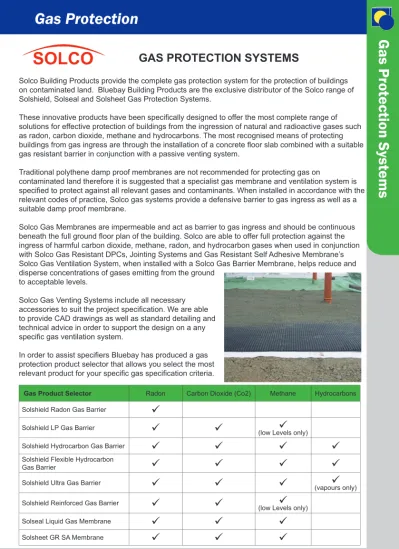

GAS PROTECTION SYSTEMS
Solco Building Products provide the complete gas protection system for the protection of buildings on contaminated land. Bluebay Building Products are the exclusive distributor of the Solco range of Solshield, Solseal and Solsheet Gas Protection Systems.
These innovative products have been specifi cally designed to offer the most complete range of solutions for effective protection of buildings from the ingression of natural and radioactive gases such as radon, carbon dioxide, methane and hydrocarbons. The most recognised means of protecting buildings from gas ingress are through the installation of a concrete fl oor slab combined with a suitable gas resistant barrier in conjunction with a passive venting system.
Traditional polythene damp proof membranes are not recommended for protecting gas on
contaminated land therefore it is suggested that a specialist gas membrane and ventilation system is specifi ed to protect against all relevant gases and contaminants. When installed in accordance with the relevant codes of practice, Solco gas systems provide a defensive barrier to gas ingress as well as a suitable damp proof membrane.
Solco Gas Membranes are impermeable and act as barrier to gas ingress and should be continuous beneath the full ground fl oor plan of the building. Solco are able to offer full protection against the ingress of harmful carbon dioxide, methane, radon, and hydrocarbon gases when used in conjunction with Solco Gas Resistant DPCs, Jointing Systems and Gas Resistant Self Adhesive Membrane’s Solco Gas Ventilation System, when installed with a Solco Gas Barrier Membrane, helps reduce and disperse concentrations of gases emitting from the ground
to acceptable levels.
Solco Gas Venting Systems include all necessary accessories to suit the project specifi cation. We are able to provide CAD drawings as well as standard detailing and technical advice in order to support the design on a any specifi c gas ventilation system.
In order to assist specifi ers Bluebay has produced a gas protection product selector that allows you select the most relevant product for your specifi c gas specifi cation criteria.
Gas Product Selector Radon Carbon Dioxide (Co2) Methane Hydrocarbons Solshield Radon Gas Barrier
Solshield LP Gas Barrier
(low Levels only)
Solshield Hydrocarbon Gas Barrier
Solshield Flexible Hydrocarbon
Gas Barrier
Solshield Ultra Gas Barrier
(vapours only)
Solshield Reinforced Gas Barrier
(low Levels only)
Solseal Liquid Gas Membrane
Solshield Gas Membranes
SOLSHIELD Radon Gas Barrier
SOLSHIELD Radon Gas Barrier is a very effective gas barrier for the protection of buildings and occupiers from the ingress of gas and moisture. The building regulations require that proper precautions be taken to prevent danger to health and safety when building on gas contaminated land.
When installed SOLSHIELD Radon Gas Barrier is an effective solution to the problem and can be laid with confi dence.
Typical areas where the membrane may be used are, coalfi elds, contaminated industrial sites, landfi ll & brown fi eld sites.
• CE Marked
• BBA Agrément Certifi cate 12/4945
• Complies with relevant codes of practice
such as current BRE and CIRIA • Protects against the ingress of Radon
• High resistance to puncture.
• Also acts as a damp proof membrane
BBA
BRITISH BOARD OF AGRÉMENT Technical Data Thickness 300mu Width (m) 4 metres - 0 + 2.5% Length (m) 25 metres - 0 +10% Roll Weight 27.6kg Colour Green Technical Data Thickness 500mu Width (m) 2 metres - 0 + 2.5% Length (m) 25 metres - 0 +10% Roll Weight 23kg Colour OrangeSOLSHIELD Low Permeability Gas Barrier
(Amber 2)
SOLSHIELD LP Gas Barrier is a very effective 500 micron gas barrier for the protection of buildings and occupiers from the ingress of gas and moisture. The building regulations require that proper precautions be taken to prevent danger to health and safety when building on gas contaminated land.
When installed SOLSHIELD LP Gas Barrier is an effective solution to the problem and can be laid with confi dence.
Typical areas where the membrane may be used are, coalfi elds, contaminated industrial sites, landfi ll & brown fi eld sites.
• CE Marked
• BBA Agrément Certifi cate 12/4945
• Complies with current codes for BRE and CIRIA
• Suitable to protect against the ingress of Radon, Carbon Dioxide (CO2) and low levels of Methane.
• High quality robust Co-Polymer Thermoplastic Membrane. • High resistance to puncture.
• Solshield LP has been tested by RAPRA Technology UK • Solshield LP is over 60% thicker than the minimum
recommended by the BRE.
BBA
BRITISHBOARD OF AGRÉMENT
65 Technical Data Thickness 0.5mm Width (m) 2.0 metres Length (m) 50 metres Roll Weight 27.5kg Colour Blue Technical Data Thickness 1.0mm 1.5mm Width (m) 2.5m 5.1m 2.5m 5.1m Length (m) 35m 100m 25m 100m Roll Weight 87.5kg 510kg 62.5kg 765kg
SOLSHIELD Reinforced Gas Barrier is a low density reinforced polyethylene (LDPE) ground membrane suitable for use in areas where Carbon Dioxide, Methane & Radon are present in the ground. The building regulations require that proper precautions be taken to prevent danger to health and safety when building on gas contaminated land.
When installed SOLSHIELD Reinforced Gas Barrier is an effective solution to the problem and can be laid with confi dence.
Typical areas where the membrane may be used are, coalfi elds, contaminated industrial sites, landfi ll & brown fi eld sites.
• CE Marked
• Complies with relevant codes of practice such as current BRE and CIRIA
• Suitable to protect against the ingress of Radon, Carbon Dioxide (CO2) and low levels of Methane. • A multi-layer reinforced polyethylene membrane • High resistance to puncture.
• Also acts as a damp proof membrane
SOLSHIELD Reinforced Gas Barrier
• CE Marked
• Complies with relevant codes of practice such as current BRE and CIRIA
• Low Permeability to latent Hydrocarbons & Methane vapours typically found in contaminated industrial sites.
• High quality robust Co-Polymer Thermoplastic Membrane.
• High resistance to puncture.
• Also acts as a damp proof membrane.
SOLSHIELD Hydrocarbon Gas Barrier is a very effective gas barrier for the protection of buildings and occupiers from the ingress of gas and moisture. The building regulations require that proper precautions be taken to prevent danger to health and safety when building on gas contaminated land.
When installed SOLSHIELD Hydrocarbon Gas Barrier is an effective solution to the problem and can be laid with confi dence. Typical areas where the membrane may be used are, coalfi elds, contaminated industrial sites, landfi ll & brown fi eld sites.
Solshield Gas Membranes
Technical Data Thickness 1.0mm Width (m) 2.5m 5.1m Length (m) 35m 100m Roll Weight 87.5kg 510kg • CE Marked• Complies with relevant codes of practice such as current BRE and CIRIA
• Low Permeability to latent Hydrocarbons & Methane vapours typically found in contaminated industrial sites.
• High quality robust fl exible Co-Polymer
Thermoplastic Membrane.
• High resistance to puncture.
• Also acts as a damp proof membrane.
SOLSHIELD Flexible Hydrocarbon Gas Barrier is a very effective gas barrier for the protection of buildings and occupiers from the ingress of gas and moisture. The building regulations require that proper precautions be taken to prevent danger to health and safety when building on gas contaminated land.
When installed SOLSHIELD Flexible Hydrocarbon Gas Barrier is an effective solution to the problem and can be laid with confi dence.
Typical areas where the membrane may be used are, coalfi elds, contaminated industrial sites, landfi ll & brown fi eld sites.
SOLSHIELD Flexible Hydrocarbon Gas Barrier
Technical Data Thickness 1.0mm Width (m) 1.0m Length (m) 20m Roll Weight 33kg Colour Black
SOLSHEET Gas Resistant
Self Adhesive Membrane
SOLSHEET Gas Resistant Self Adhesive Membrane is a preformed waterproofi ng system
with resistance to Methane, Radon and Carbon Dioxide . Resistance to gas is achieved by a laminate of aluminium and polythene fi lms.
The membrane is protected on the self adhesive side with a silicone coated release fi lm. SOLSHEET Self Adhesive Membrane conforms to the requirements of BS 8102. Substrates should be primed with SOLCO Tanking Primer prior to application.
SOLSHEET Gas Resistant Self Adhesive Membrane can be used with Solcourse GR DPC and other Solshield Gas Membranes
• CE Marked
• Provides protection against water and vapor.
• Self adhesive.
• Excellent adhesion to vertical and horizontal surfaces. • Resistance to chlorides, sulphates, alkalis and acids. • Good tear and puncture resistance.
• Excellent tensile strength.
• Can also be used as a gas resistant DPM, resistant to
67 SOLSHIELD Ultra Gas Barrier is a fl exible, loose laid proprietary gas barrier for use on sites
with Radon (RN), Carbon Dioxide (Co2), Methane (CH4) and Hydrocarbon Vapours where it is separated from the ground e.g. above a block and beam fl oor. SOLSHIELD Ultra Gas Barrier is silver on the underside and is green on the topside.
The barrier is manufactured by an extrusion/coating process which incorporates a two layer low density polyethylene membrane with a polypropylene reinforcement grid and an aluminium foil core. The membrane is extremely fl exible for ease
of installation and is robust enough to cope with site conditions.
SOLSHIELD Ultra Gas Barrier will also protect against damp and therefore will act as a DPM and satisfy Approved Document C.
Typical areas where the membrane may be used are, coalfi elds, contaminated industrial sites, landfi ll &
• Complies with CE marking (Europe), GRI GM13 and GRI GM17 (Standards recognised by the EA for the UK) • Complies with relevant codes of practice such as
current BRE and CIRIA
• Suitable to protect against the ingress of Radon (RN), Carbon Dioxide (Co2), Methane (CH4) and
Hydrocarbon Vapours.
• A multi-layer reinforced polyethylene membrane with integral aluminium core
• High resistance to puncture. • Also acts as a damp proof membrane
SOLSHIELD Ultra Gas Barrier
Technical Data
Thickness 0.6mm
Width (m) 2.0 metres
Length (m) 50 metres
Roll Weight 35kg
Colour Silver / Green
Solseal Liquid Gas Barrier is a multi functional single component acrylic modifi ed coating that can be applied as a waterproof and gas proof membrane to concrete, masonry and brick substrates, or as an alternative to sheet membranes in new construction.
Solseal LGB can be applied by airless spray, roller or brush to walls, fl oors or soffi ts.
• Fast drying properties for quick installation • Waterproof and gas-proof membrane • Single component (no primers) • Can not be punctured as fully bonded • Easily repaired by locally overcoating
• Methane, Carbon Dioxide and Radon Resistant • An alternative to sheet membranes
SOLSEAL Liquid Gas Barrier
Technical Data
Packaging 20L Pail
Specifi c Gravity 1.40 (approx) Application Temperature Plus 4°C
Toxicity Non – toxic
Colour Mid Grey
Solshield Sys
tem A
ccessories
SOLSHIELD Gas System Accessories
Technical Data Sheet Size 1.0m x 2.0m Thickness 3mm / 6mm
Solco HD Bitumen Protection Board is a tough, reinforced fl exible bitumen modifi ed board for the protection of adhesive waterproofi ng membrane and other types of waterproofi ng membranes against damage by backfi ll materials / poured concrete
Solco XL Jointing / Reinforcing Tape is a self adhesive bitumen tape is used as reinforcing / over-banding tape for securing waterproofi ng and gas protection membranes at overlaps edge and corner details.
Technical Data
Roll Width(s) 100 / 150 / 300mm
Roll Length 20m
Solco Butyl Tape is a black double sided synthetic rubber based high performance butyl mastic tape. It can be used for bonding waterproofi ng and gas protection membranes at overlaps and for bonding membranes to DPCs, and fi xing of other accessories such as top hats
Solco Foil Jointing Tape is a single sided tape for securing laps & joints. It can be used for bonding waterproofi ng and gas protection membranes at overlaps and for bonding membranes to DPC’s.
Solco Radon Sumps are used in full protection areas, where sub fl oor depressurisation may be required.
Technical Data
Roll Width 50 / 100mm Roll Length 10m
Solcourse GR DPC is a bitumen free polymeric damp proof course resistant to Radon, Methane & CO2
Solco Top Hat Units are used for sealing around penetrations through gas membranes. Available in both fl exible and rigid types.
Solco Protection Fleece is intended to be used as a protection and/or separation layer against mechanical or chemical damage, and is used between the waterproofi ng membrane and overlying components
Technical Data 430 x 430 x 220mm
Roll Widths Length 300mm - 900mm 20m
Technical Data
A range of various sizes avail.
Technical Data
Roll Sizes 5.5m x 80m Technical Data
Roll Width 75mm Roll Length 50m
Solco QD Bitumen Primer is a quick drying liquid applied, low viscosity bitumen solution used to prime and seal porous substrates and promotes the adhesion of bituminous waterproofi ng systems prior to application of Solsheet Membranes.
Technical Data Packaging
Sizes 5, 25 & 205 Litres Approx
69
enting Sys
tems
SOLSHIELD Geocomposite
Drainage & Venting Mat
SOLSHIELD Geocomposite drainage and venting mat is a cavity drain former manufactured from a dimpled H.D.P.E. core bonded to a nonwoven polypropylene geotextile fi lter membrane designed to provide a drainage / venting channel in fl oor and wall construction.
Geocomposite drainage and venting mat may be used in fl oors and walls to provide a drainage / venting void beneath the concrete to relieve both water and gas pressures, suitable to provide grade 4 protection as defi ned in BS 8102: 1990. “Protection of structures against water from the ground”.
The HDPE core provides high strength to resist the loads imposed by placing wet concrete. Geocomposite drainage and venting mat is designed to be placed with the geotextile fi lter layer facing the direction of water seepage or backfi ll.
Geocomposite drainage and venting mat can be applied against waterproofi ng membranes or directly against the masonry/concrete substrate .
• Easy application for both drainage and venting solutions • Cost effective alternative to traditional methods • Provides protection to tanking / gas membranes • Prevents tracking of water between membrane • Resistance to Hydrostatic head of water of 46m. • Can be installed in damp conditions
• Can be applied immediately shutters are struck to wet
surface/green concrete Technical Data Roll Width 0.90m Roll Length 50m Thickness 25mm Roll Weight 74kg
Solco Gas V
enting Sys
tems
Gas Venting Dispersal Components
(All pipes are available in twin wall)SBP-001 ‘T’ Fitting
110mm & 150mm Ø, 110mm & 150mm Ø, SBP-002 90° Bend
SBP-003 Coupler
110mm & 150mm Ø, 110mm & 150mm Ø, SBP-004 End Cap
SBP-005 Solid pipe
10mm Ø, for use with SBP-011 SBP-006 Slotted Pipe 110mm Ø, x 1200mm SBP-007 Carrier Pipe 110mm Ø x 6m SBP-008 Vent pipe 50mm Ø SBP-009 Vent outlet
for use with SBP-015/17 Slotted ‘T’ ConnectorSBP-010
110mm Ø
SBP-011 Vent Outlet
110mm Ø Standard Gully & Half SBP-012 Vent Box
Gulley sizes available
SBP-013 Bollard Vent 110mm Ø SBP-014 Air Brick Various Colours SBP-015 Periscope Vent SBP-016 Vent Adapter
110mm Ø for use with periscope or ext sleeve
SBP-019 Round Gully Vent SBP-020 Rectangular Gully Vent SBP-017 Extension Sleeve
550mm for use with periscope vent SBP-015
110mm Ø, x 1500mm SBP-018 Flexible Pipe
