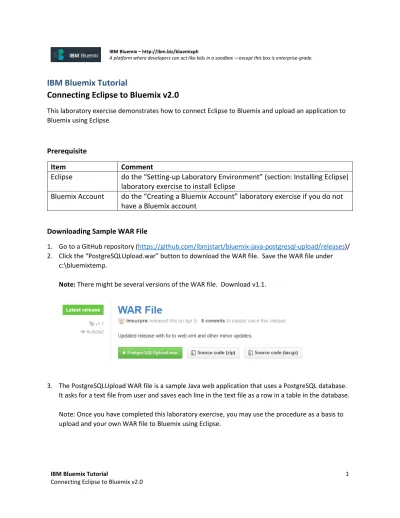

IBM Bluemix Tutorial

Connecting Eclipse to Bluemix v2.0

1

IBM Bluemix – http://ibm.biz/bluemixph

A platform where developers can act like kids in a sandbox —except this box is enterprise-grade.

IBM Bluemix Tutorial

Connecting Eclipse to Bluemix v2.0

This laboratory exercise demonstrates how to connect Eclipse to Bluemix and upload an application to Bluemix using Eclipse.

Prerequisite

Item Comment

Eclipse do the “Setting-up Laboratory Environment” (section: Installing Eclipse) laboratory exercise to install Eclipse

Bluemix Account do the “Creating a Bluemix Account” laboratory exercise if you do not have a Bluemix account

Downloading Sample WAR File

1. Go to a GitHub repository (https://github.com/ibmjstart/bluemix-java-postgresql-upload/releases)/ 2. Click the “PostgreSQLUpload.war” button to download the WAR file. Save the WAR file under

c:\bluemixtemp.

Note: There might be several versions of the WAR file. Download v1.1.

3. The PostgreSQLUpload WAR file is a sample Java web application that uses a PostgreSQL database. It asks for a text file from user and saves each line in the text file as a row in a table in the database.

Note: Once you have completed this laboratory exercise, you may use the procedure as a basis to upload and your own WAR file to Bluemix using Eclipse.

(2)

2 Download Sample WAR File

1. Launch Eclipse. Close the “Welcome” tab.

2. In the menu, click Help->Eclipse Marketplace.

3. In the “Eclipse Marketplace” search for “cloud foundry”. Look for the item titled: "Cloud Foundry Integration for Eclipse x.x.x". Click “Update” (or “Install”) to update (or install) Cloud Foundry Integration for Eclipse.

(3)

3 Setting-up Bluemix Server

1. In the bottom window section of Eclipse, select the Servers tab.

(4)

4 3. In “New Server: Define a New Server” window, select Pivotal->Cloud Foundry. Click “Next”.

(5)

5 4. In “New Server: Cloud Foundry Account” window, click “Manage Cloud”.

(6)

6 6. In “Add and validate a Cloud URL” window, enter “Bluemix” in the name field and

https://api.ng.bluemix.net in the URL field. Click “Finish”.

(7)

7 8. In “New Server: Cloud Foundry Account” window, make sure that the URL is “Bluemix –

https://api.ng.bluemix.net”. Enter your Bluemix username and password in the “Email” and “Password” fields, respectively. Click “Validate Account”. Once the account is validated, click “Finish”.

(8)

8 Import the WAR file to Eclipse

(9)

9 2. In the “Import: Select” window, select Web->WAR File. Click “Next”.

(10)

10 3. In the “Import: WAR Import” window, click “Browse”.

(11)

11 4. In the “Open” window, select the PostgreSQLUpload.war file under the folder c:\bluemixtemp. Click

(12)

12 5. In the “Import: WAR Import” window, click “Finish”.

(13)

13 Uploading the Application in Bluemix

1. In the bottom window section of Eclipse, select the Servers tab.

2. Right-click on the Bluemix server (Pivotal Cloud Foundry) and click “Connect”.

Note: If the “Connect” entry is disabled and the “Disconnect” entry is enabled, it means that Eclipse is already connected to the Bluemix server.

(14)

14 3. Right-click on the Bluemix server (Pivotal Cloud Foundry) and click “Add and Remove”.

(15)

15 5. In the “Add and Remove” window, click “Finish”.

Note: Aside from PostgreSQLUpload, it is possible that there are other applications listed in the right pane. These are the applications that are currently available in your Bluemix account. In the

(16)

16 6. In the “Application: Application details” window, enter “textfileuploader-<your name>” in the Name

filed. Click “Next”.

7. In the “Application: Launch deployment” window, take note of the “Deployed URL” field. Click “Finish”.

(17)

17 8. In the bottom window section of Eclipse, select the Console tab (if necessary). Wait for the “The

server defaultServer is ready to run a smarter planet” message to appear.

9. Open a browser. Access your uploaded application (http://textfileuploader-<you name>.mybluemix.net/)

(18)

18 Edit Application and Redeploy in Bluemix

1. In the “Project Explorer” expand PostgreSQLUpload->Java Resources->com.ibm.bluemix.samples. Double-click PostgreSQLClient.java to open it. Scroll-down until you see the createTable() method.

2. You can modify this method to create the tables you need for your application. You can modify also other files as needed.

3. Assuming that you have done the necessary modifications, you can redeploy your application. 4. In the bottom window section of Eclipse, select the Servers tab. Expand the Bluemix server (Pivotal

Cloud Foundry).

(19)

19 6. In the bottom window section of Eclipse, select the Console tab (if necessary). Wait for the “The

server defaultServer is ready to run a smarter planet” message to appear.
