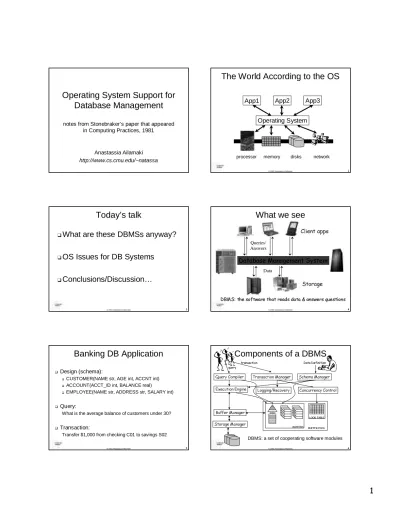

The World According to the OS. Operating System Support for Database Management. Today s talk. What we see. Banking DB Application

(1)

Operating System Support for

Database Management

notes from Stonebraker’s paper that appeared in Computing Practices, 1981

Anastassia Ailamaki

http://www.cs.cmu.edu/~natassa

2

The World According to the OS

Operating System

App1

processor memory disks network

App2

App3

3

Today’s talk

What are these DBMSs anyway?

OS Issues for DB Systems

Conclusions/Discussion…

4

What we see

Database Management System

Queries/ Answers

Storage Client apps

DBMS: the software that reads data & answers questions

Data

Banking DB Application

Design (schema):

CUSTOMER(NAME str, AGE int, ACCNT int)

ACCOUNT(ACCT_ID int, BALANCE real)

EMPLOYEE(NAME str, ADDRESS str, SALARY int)

Query:

What is the average balance of customers under 30?

Transaction:

Transfer $1,000 from checking C01 to savings S02

Components of a DBMS

Query Compiler

query

Execution Engine Logging/Recovery

LOCK TABLE Concurrency Control Storage Manager BUFFER POOL BUFFERS Buffer Manager Schema Manager Data Definition

DBMS: a set of cooperating software modules

Transaction Manager

(2)

7

Interface with the OS

Query Compiler

query

Crucial modules use OS services

Transaction Manager transaction

OS INTERFACE

OS

INTERFACE

Similarities with the OS

Query Compiler

query

Almost every part has an OS counterpart

Transaction Manager transaction

US

ER

S

PR

OC

ES

SE

S

FI

LE

S

M

AI

N

M

EM

OR

Y

Past and Present Situation

Operating System

Database Management System

10

OS Issues for DB Systems

Buffer pool management

File System

Scheduling, processes, IPC

Concurrency/Recovery

Virtual Memory

Buffer Management

Typical Unix provisions:

All file I/O goes through main memory

LRU (or approximation) stack for replacement

Prefetch on sequential access

Transparent to clients (except for “force all”)

read X

Y

main memory cache

X

1. Performance

Overhead: Can be terrible for each page read

System call

Core-to-core data move

read X

X

DB cache

X

Main memory

(3)

13

2. Replacement policy

Typical access patterns:

Sequential scan

What is the avg. balance of customers < 30?

Cyclic (looping) sequential scan

Which employees are also our customers?

Random accesses (once)

Random accesses (many times)

Same as above, with index

Which is the best replacement for each?

14

Replacement policy (cont.)

Sequential scan

MRU (one page)

Cyclic (looping) sequential scan:

MRU (one page) or

“fix n+1” pages

Random accesses (once)

MRU

Random accesses (many times)

LRU

Need provision for DB hints (or manage own BP)

LRU is the worst here!!!

15

3. Prefetch

DBMS knows what it wants next

It is not always sequential

More hints needed for good performance

Further issue: Prefetched pages might replace

needed ones (why???)

16

4. Crash Recovery: Example

Transfer $1,000 from checking A to savings B

begin transaction write begin record

read balance A into X X = X – 1000

write X into balance A write update record

read balance B into Y Y = Y – 1000

write Y into balance B write update record

commit transaction write commit record

print receipt

Crash Recovery

Deferred Updates

Force intentions list to disk

Force commit flags (after intentions list!!!)

Do updates from intentions list

WAL (Write Ahead Loggind)

Force undo/redo records

Need facilities for

Selected force out

Ordering of physical writes

Buffer Management Summary

Performance

Replacement policy

Prefetching

Crash Recovery

…desired services done “not quite right”, therefore remain unused

(4)

19

File System Issues

In current UNIX file systems

File = byte stream

Logical order little relation to physical order

Indirect blocks (trees) + directory trees

Consequences: + Small files cheap + Large files possible + Byte model for programmers

– Large files costly

– Many physical reads/logical – Loss of sequentiality – Byte model for DBMS – Too many trees!

20

Preferred DBMS approach

Physical contiguity

OS-level B+ trees, hashing

Let DBMS know about blocks of file

Implement records at the low level

Provide higher-level services on top of this

What really happens today:

Extents

File I/O vs. raw I/O

21

Scheduling, Processing, IPC

DBMS needs

Shared buffer pool

Shared lock table

Critical sections

Q: Does UNIX now have shared data segments?

Structure Alternatives

DBMS Process DBMS Process DBMS Process

user 1 user k user 1 user k

DISK

…

Process-per-user Server DBMS

Evaluation

Process-per-user structure Expensive context-switching

Preemption at “bad places”

DBMS’s critical sections – convoy

DBMS server

Duplication of OS services

must do own multi-tasking

Messages cost several thousand instructions

Structure Alternatives (cont.)

DBMS Process

user 1 user k user 1 user k

DISK

…

Server Pool Disk Server

…

DISK DISK Disk Process Disk Process DBMS Process

(5)

Evaluation (cont.)

Server pool Internal parallelism Avoid multitasking Similar to process-per-user Disk Server

Trades messages for task switches

May be more expensive

Still has queued-up requests to locked items

Multi-agent, multi-device mgr is used today

26

DBMS – yet another wish list

Reduced message/task overheads

Sockets

No-preemption scheduling (can the OS do this?)

“fast-path” for context-switching among DBMS

procs

Threads, threads, threads!

(first appeared on IBM MVS in the 70’s - sigh)

27

Recovery/CC issues

OS provides:

File-level locks – too coarse

Page-level 2PL – no special index CC possible

Problems OS-supported transactions

Transaction commit point

Duplicate functions due to buffer manager

Ordering Dependencies

Xtion result independent from execution order

28

Virtual Memory

Why not map DBMS into virtual memory?

VM approach requires (warning: old data):

4 bytes overhead/VM page

100 MB file means 100 KB page table

If page table not resident, “two-touch” page access

Extent-based files system approach

1000 consecutive blocks represented in <addr, len> (versus 100KB above to store all addresses)

4 bytes overhead/file ctl blocks can stay in memory

Super-pages

Virtual Memory (cont.)

Bind chunks of file:

DBMS must keep track of binding

Bind/unbind in Xtion very expensive

Overhead comparable to file open

Plus, all the problems from buffering!

Conclusions

OSs have problems with DBMS wish lists:

Buffer management (policies, ordering, overhead)

File systems (abstraction, sequentiality, overhead)

Process issues (structure, task/msg overhead,

scheduling)

CC/Recovery (buffer pool problems)

(6)

31

What the DBMS wants

Operating System

Database Management System

32

What about modern DBMS/OSs?

“no-cache” file system option in DB2

NT:

“VirtualLock” API (override some buffer

policies)

“FlushViewOfFile” API (flush portions of file)

Physical contiguity

Unix FFS tries to place a file’s data blocks in

the same cylinder group

64-bit systems will allow to map some files in VM

33

References

Reading

Stonebraker, M., Operating System Support for

Database Management, Communications of the ACM, 24(7), 1981 (and all its “references” section!

Gray, J., and Reuter, A., Transaction Processing:

Concepts and Techniques, Morgan Kaufmann,

1993.

CMU Courses

15-415, Database Applications

15-721, Database Management Systems

15-823, Advanced Topics in DB System Performance
