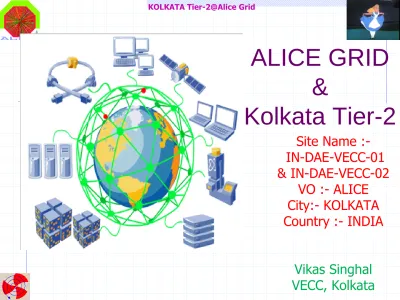

ALICE GRID & Kolkata Tier-2

(1)

ALICE GRID

&

Kolkata Tier-2

Site Name :-

IN-DAE-VECC-01

& IN-DAE-VECC-02

VO :- ALICE

City:- KOLKATA

Country :- INDIA

Vikas Singhal

VECC, Kolkata

(2)

Events at LHC

Luminosity : 1034cm-2 s-1

40 MHz – every 25 ns 20 events overlaying

(3)

CMS

ATLAS

LHC

b

CERN

Tier 0 Centre at CERN

The Grid Computing Model

Tier2 Lab a Uni a Lab c Uni n Lab m Lab b Uni b Uni y Uni x Tier3 physics department    Desktop Germany Tier 1 USA UK France Italy Scandinavia CERN Tier 1 Japan CERN Tier 0

(4)

ALICE computing model

APROC Taiwan France Regional

Center Germany Regional Center Italy Regional Center

10Gb/s Tier 1 100 - 1000 Mb/s Tier 4 Tier2 Center 1-10 Gb/s Tier2 Center Tier2 Center Tier2 Center Kolkata Tier 2 Institute Institute Institute Institute

Physics data cache

155/622 Mb/s Tier 3 Tier 0 ~40 Gb/s Online System Online Farm CERN Computer Center

RAW data delivered by DAQ undergo Calibration and Reconstruction which produce for each event 3 kinds of objects:

1. ESD object 2. AOD object 3. Tag object

Further reconstruction and calibration of RAW data will be done at Tier 1 and Tier 2.

DPD (Derived Physics Data) objects will be Processed in Tier 3 and Tier 4.

The generation, reconstruction, storage and distribution of Monte-Carlo simulated data will be the main task of Tier 1 and Tier 2.

(5)

HMPID

Muon Arm

TRD

PHOS

PMD

ITS

TOF

TPC

Indian contribution to ALICE : PMD, Muon Arm

Size: 16 x 26 meters

(6)

Total weight 10,000t Overall diameter 16.00m Overall length 25m Magnetic Field 0.4Tesla

ALICE Collaboration

 ~ 1/2 ATLAS, CMS, ~ 2x LHCb  ~1100 people

 30 countries,  80 Institutes

The ALICE collaboration & detector

(7)

Data volumes

• RAW data – 2.5 PB/year

• Two distinct periods –

•p+p (~7.5 months) and

•Pb+Pb (~40 days)

• Reconstructed and simulated data

• 1.5PB – first level RAW filtering (ESDs)

• 200TB – second level RAW filtering (AODs)

• 1PB of simulated data

• User generated data ~500TB

•

Total ~5 PB of data per year (without replicas)

• Replication 2x RAW, 3x ESD/AODs, 2x user files

(8)

Processing

• RAW data reconstruction ~10K CPU cores

• MC processing ~15K CPU cores

• User analysis ~7K CPU cores (450 distinct users)

• ~40Mio jobs per year

• ~ 1.3 job completed every second

• ½ production, ½ user jobs

• 200 Mio files per year

Taken from L. Betev Slides in T1-T2 Meeting at KIT

(9)

(10)

ALICE Sites on MONALISA

Europe

Asia

North America Africa

72 active computing sites

South America

(11)

Why Tier 2 ?

1.

Tier-2 is the lowest level to be accessible by the entire

collaboration.

2.

Each sub-detector of ALICE has to be associated with

minimum Tier-2 because of large volume of calibration

and simulated data.

3.

PMD is one of the important sub-detectors of ALICE.

4.

We are solely responsible for PMD – from conception to

commissioning.

(12)

Vikas Singhal, VECC, INDIA

Grid Site As per WLCG &

Experiment Requirement

SE (PureXrootD) WNs (More and More WNs) Disks (More and More Disks) WMS MyProxy VOMS…. CREAM-CE Site BDII LCG-UI

(13)

KOLKATA or General Site

Site BDII NFS SERVER Blade 64 bit Servers With Blade Enclosures Disks Arrays (More and More Arrays) Central Services WMS MyProxy VO-BOX CREAM-CE DPM PureXrootD XrootD Redirector XrootD Disk Server Local and G lo bal Netw ork / F ib er Lin e from Netw ork PBS SERVER DNS SERVER 32or64bit Servers 1U & 2U Servers Few Tower Servers

New SAN Box Old NAS Older NAS Even Older DAS UI SERVER Tier3 Manage ment Server and cluster HA SERVER Monitoring Server Installation,DHCP Server etc.. Cooling, UPS Fire Alarm, Access Control etc… HP DELL IBM Etc…

(14)

Frontend component of Site & Installation

LCG-CE SE CREAM-CE Site BDII LCG-UI VO-BOX PURE XrootD

Grid middleware meta-packages installed through YUM and configured through YAIM.

Middleware changed time to time like GLITE  EMI. (follow manual)

During Kolkata Site installation and configuration we

experienced about RPM dependencies with JAVA, Security packages etc.

Community and mailing list helps a lot. For most of the problem we got the solution from mailing list.

(15)

Middleware installed on

IN-DAE-VECC-02 Site

1.Installed SLC 5.8 (x86_64) operating system on x86_64 Machine.

2. Upgrading below middleware packages to EMI middleware.

glite-VOBOX

CREAM-CE (64bit)

glite-BDII

Pure XROOTD

Redirector as

Storage Element

glite-WN (64bit)

grid01.tier2-kol.res.in gridce02.tier2-kol.res.in dcache-server.tier2-kol.res.in

For 79 Worker Nodes (476 core)

wn045-wn123.internal.tier2-kol.res.in

(16)

Backend Component of SITE

Router & Switch

2 networks, one Public Network and another Private network.

Domain Name Server

DNS server is critical component. We have 2 redundant Name servers Naamak & suchak for High Availability.

Time Server

Configured NTP protocol Installer

Using Network installation and

Automated configuration Quattor like tools.

Storage Server

Using NFS mounted Common shared space

PBS Server

CE & PBS batch scheduler on a

Server. Configured Firewall (through iptables) and did NAT ing on it.

TIER-3 Cluster

Separate cluster for local users with Interactive and non interactive nodes.

Monitoring Server

Configured MRTG (Network Traffic Monitoring) and cluster monitoring tool.

(17)

(18)

Kolkata TIER-2 centre logical diagram

Router Switch gridce02 Backup-server wn045 wn046 wn122 wn123 Switch-1 Switch-2 Internet 300Mbps Computing Nodes 25 Nodes Dell and Wipro Blades Cluster with 25 TB of As Tier-3 1 9 2 .16 8 .x.x (St an d b y ) 144.16.112.xx/27 130 TB Backup grid Grid-peer gridse001

wn001 wn002 wn024 wn025 Switch-1 Switch-2 GRID-PEER Tier-3

cluster with 32 & 64 bit machine Computing Nodes 1 9 2 .16 8 .x.x (St an d b y ) IN-DAE-VECC-02 Site with 64 bit machine

Installer DELL and HP Blade Server with Multi Core Xeon 3.0 GHz

naamak suchak grid01

dache-server 4 – Xrootd Disk Servers Consisting of 230 TB of IBM And HP SAN system SINP 1Gbps Fiber Backbone

(19)

ALICE Tier-2 Grid Started in 2002

CERN

512Kbps Ethernet Bandwidth

 Operating System

› Scientific Linux 3.05

 Middleware

› Alice Environment with PBS as batch system

 Hardware (CPU, Disk)

› 1xDuel Xeon,4GB Compute Node

› 2xDuel Xeon,2GB WNs

› 2x80GB Disk Space

 Bandwidth

› 512Kbps Shared

S. K. Pal & T. Samanta Started in 2002.

(20)

From 2 Core to 700 Cores

Started with

----2 Desktop Machine

2002

----2 Tower Like Servers

2003

----9 HP 1U Servers

2004

----17 Wipro 1U Servers Single Core

2006

----40 HP Blades Dual Core

2008

----8 HP Blades Quad Core

2009

----32 Dell Bladed Dual Processor Dual Core

2011

(21)

2007

2011

2009

(22)

From 512MB Disk to 300TB Disk

Started with

----512MB in Desktop Machine

2002

----40GB in Tower Like Servers as DAS

2003

----400GB in HP MSA 500

2004

----2TB Wipro NAS

2006

----108TB HP EVA SAN

2008

---- 25 TB i-scsi

2009

----200TB IBM DS 5100

2011

(23)

2006

2008

2010

(24)

From 128Kbps to 1Gbps Disk

Started with

----128Kbps shared link

2002

----512Kbps

2003

----2Mbps Dedicated Link

2004

----4Mbps from Bharti

2006

----30Mbps from Reliance

2008

----100Mbps from VSNL (ERNET)

2009

----300 Mbps from NKN

2011

----Upgrading with 1Gpbs

2012

(25)

Efficient Cooling Concept and Implementation



Hot and Cool Air is separated.



For air separation, Cold Air Containment is

created.



Cold Air Containment is least accessible

Area.



Cool only hardware racks, not human, walls

etc.



Human intervention to Cold Aisle

Containment is restricted.



All the management and monitoring of the

server, storage is from outside Cold Aisle

Containment.



All the power and Ethernet cables are also

from outside Cold Aisle Containment.



Temperature gradient between Cold and

Hot aisle is 5

o

C

(26)

(27)

Major Achievements

Vikas Singhal, VECC, INDIA Consistently more than 400 ALICE Jobs are running after Commissioning of the efficient Cooling Solution.

(28)



Kolkata Tier-2

provided total 6.0K

HEP SPEC2006 CPU

and 230TB of Disk

Storage.

(29)

Vikas Singhal, VECC, INDIA Performance:

~1M jobs successfully completed during last one year

Jobs

completed

(30)

Total Kolkata Tier-2 Resources



Computing Resources:-

Total :- 476 Cores

DELL Blades 32 * 8 = 256

HP Quad Core Blades 8*8= 64

HP Dual Core Blades 39 * 4 = 156



Storage :- 230TB under one HP 2U Management Server

74TB : HP EVA 6100 under 2 * 2U HP disk server

156TB : IBM DS 5100 under 2 * 1U IBM disk server



300Mbps Network speed. It will be increased upto 1Gbps

(31)

(32)

Grid-Peer Tier-3 Cluster

1U Sliding LCD Monitor with 16 port KVM

Dell(TM) PowerEdge(TM) M1000e Blade Server Chassis.

16 Number of Dell(TM) PowerEdge(TM) M610 High Performance Intel Blade

Each blade has latest Nehalem based 2 * Intel Quad Core E5530 Xeon 2.4GHz CPU with 8MB cache.

Each blade has16GB RAM.

Each blade has 2 * 146GB Mounted as RAID1.

Installed SLC 5.6 x86_64 OS (kernel version 2.6.18-164.6.1.el5).

Dell™ ISCSI EqualLogic Storage

 16 * 2TB SAS hard disks.

24.88TB Usable space after RAID5 and Hot Spare.

(33)

Total 25 Nodes for VECC users and PMD Collaborators.

12 32bit nodes

13 64bit computing nodes

32 bit nodes are on oldest hardware procured in 2004 (slowly we

will deprecate them as High noise, power and Heat Generation.).

25 TB of Total storage.

50 + active users (across India.)

30 + active users (in VECC.)

Quota implemented.

Root, Geant3, Aliroot, Alien, Fortran etc user specific software

installed according to hardware like 32 bit and 64 bit.

Extensively used by the users, need to extend.

(34)

Intra-DAE Grid

EU-India Grid

Health Grid

IGCA

GARUDA Grid

Bi-product of WLCG GRID

(35)

Thank

You

(36)

(37)

Main data types in ALICE

• ESD – run/event numbers, trigger word, primary vertex, arrays of tracks/vertices, detector info

• AOD standard – cleaned-up ESD’s, reducing the size by a factor of 5

– Can be extended on user demand with extra information

• ESD and AOD inheriting from the same base class (keep same event interface)

Raw data Conditions Calibration Alignment data AliRoot RECONSTRUCTION OCDB (updated by pass0 -passN AliEn FC

Event Summary Data Pass1 – T0

Event Summary Data Pass2 – T1

Event Summary Data PassN – T1

ESD filtering AOD standard Analysis + extra Analysis Analysis

Vikas Singhal, VECC, INDIA Monte Carlo

(38)

Site ALICE central services

Job submission

Job 1 lfn1, lfn2, lfn3, lfn4 Job 2 lfn1, lfn2, lfn3, lfn4 Job 3 lfn1, lfn2, lfn3 Job 1.1 lfn1 Job 1.2 lfn2 Job 1.3 lfn3, lfn4 Job 2.1 lfn1, lfn3 Job 2.1 lfn2, lfn4 Job 3.1 lfn1, lfn3 Job 3.2 lfn2 Optimizer AliEn CE

WMS

CE

WN

Env OK? Die with grac e Execs agent Sends job agent to site Yes No

Close SE’s & Software Matchmaking

Receives work-load Asks work-load

Retrieves workload

Sends job result Updates

TQ

Submits job _User ALICE Job Catalogue

VO-Box LCG User Job ALICE catalogues Registers output lfn guid {se’s} lfn guid {se’s} lfn guid {se’s} lfn guid {se’s} lfn guid {se’s}

ALICE File Catalogue

packman

(39)

Xrootd architecture

Client

Redirector

(Head Node)

Data Servers

open file X

A

B

C

go to C Who has file X?

Cluster

Client sees all servers as xrootd data servers

All storages are on WAN

2nd_{open X}

go to C Redirectors

Cache file location

Global redirector (not in picture) – intra-site storage collaboration

(40)

Grid security (in a nutshell!)



Important to be able to identify and authorise users

 Possibly to enable/disable certain actions



Using X509 certificates

 The Grid passport, delivered by a certification authority. (IGCA for India)



For using the Grid, create short-lived “proxies”

 Same information as the certificate

 … but only valid for the time of the action



Possibility to add “group” and “role” to a proxy

 Using the VOMS extensions

 Allows a same person to wear different hats (e.g. normal user or

production manager)



Your certificate is your passport, you should sign whenever you use it,

don’t give it away!

 Less danger if a proxy is stolen (short lived)

(41)

The VOBOX

is a WLCG

service developed in 2006

to provide the experiments with a service to:

a)

Run their own services.

b)

In addition it also provides file system access to the

experiment software area.

The concept of VOBOX is not the same for the 4 LHC

experiments

a)

ALICE requires the STANDARD WLCG VOBOX

(42)

Storage strategy

WN

SE head node xrootd (manager) MSS xrootd (worker) Disk S RM xrootd (worker) DPM xrootd (worker) Castor S RM S RM MSS xrootd emulation (worker) dCache S RM DPM, CASTOR, dCache are LCG-developed SEs, xrootd is entering as a strategic solution Old implement ation Current version 2.1.8 Working, but severe limits with multiple clients

(43)

What is MonALISA ?

Caltech project started in 2002

http://monalisa.caltech.edu/

Java-based set of distributed, self-describing services

Offers the infrastructure to collect any type of information

Can process it in near real time

The services can cooperate in performing the monitoring tasks

Can act as a platform for running distributed user agents

(44)

MonALISA software components

and the connections between

them

Data consumers

Multiplexing layer Helps firewalled endpoints connect

Registration and discovery

JINI-Lookup Services Secure & Public

MonALISA services Proxies Clients HL services Agents Network of

Data gathering services

Fully Distributed System with no Single Point of Failure

(45)

PROOF

Parallel ROOT Facility

Interactive parallel analysis on a local

cluster



Parallel processing of (local) data



Fast Feedback



Output handling with direct visualization

PROOF is part of ROOT

(46)

root

Remote PROOF Cluster

Data root root root

Client

–

Local PC

ana.C

stdout/result

node1 node2 node3 node4 ana.C root

PROOF Schema

Data

Proof master

Proof slave

Result Data Result Data Result Result

http://monalisa.caltech.edu/
