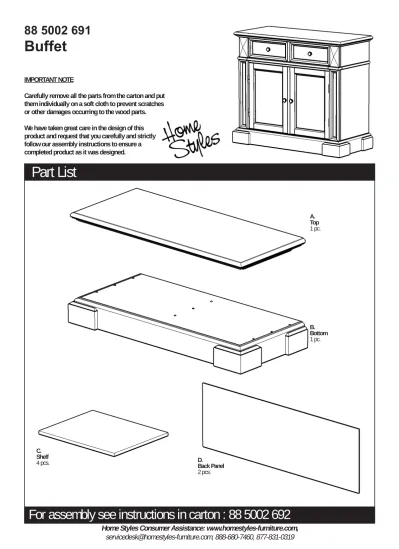

Part List. For assembly see instructions in carton : Buffet

Home Styles Consumer Assistance: www.homestyles-furniture.com,

[email protected], 888-680-7460, 877-831-0319 IMPORTANT NOTE

Carefully remove all the parts from the carton and put them individually on a soft cloth to prevent scratches or other damages occurring to the wood parts. We have taken great care in the design of this product and request that you carefully and strictly follow our assembly instructions to ensure a completed product as it was designed.

Part List

For assembly see instructions in carton : 88 5002 692

88 5002 691

Buffet

Part List

Home Styles Consumer Assistance: www.homestyles-furniture.com,

[email protected], 888-680-7460, 877-831-0319

Tools required for assembly : Phillips screwdriver Tools recommended for assembly : Level

IMPORTANT NOTE

Carefully remove all the parts from the carton and put them individually on a soft cloth to prevent scratches or other damages occurring to the wood parts. We have taken great care in the design of this product and request that you carefully and strictly follow our assembly instructions to ensure a completed product as it was designed.

Hardware List

Also need Parts in carton : 88 5002 691

19 pcs. (+1 extra) Small Hex Wrench 1 pc. Cam Lock 19 pcs. (+1 extra) M3.5x16 Wood Screw (short) 24 pcs. (+1 extra) M5x40 Panel Screw 7 pcs. (+1 extra) Magnet 2pcs. M3.5x25 Wood Screw (long) 16 pcs. (+1 extra) Washer 7 pcs. (+1 extra) M4x25 Machine Screw 4 pcs. Knob4 pcs. M6x30

Head Cap Bolt 4 pcs. (+1 extra) H. Front Rail 1 pc. Hex Wrench 1 pc. E. Side Panel 1 pc. F. Side Panel 1 pc. G.Middle Panel 1 pc. I. Back Rail 1 pc. J. Back Rail 2 pcs. M. Front Post 1 pc. K. Door 1 pc. L. Door 1 pc. N. Front Post 1 pc. O._Drawer 2 pcs.

(Please refer to the last pages of these instructions for drawer assembly.)

88 5002 692

Buffet

IMPORTANT

* Do not tighten up all the screws until each part is properly assembled.

* You should keep Hex Wrench in a safe place as you may need to tighten up the Head Cap Bolts in the future. * Use a soft cloth between these parts and the fl oor.

* After assembly, item must be level to work properly. Use the included adjustable levelers to level.

Assembly Instruction 2 / 6

E

E

STEP 1

Insert Cam Lock Screws into the pre-drilled holes in Top (A), Side Panels (E), (F), Front Rail (H), Front Posts (M), and (N). (See Figure 1)

A

A

Cam Lock Screw

Cam Lock Screw

Figure 1

H

H

Cam Lock Screw

F

F

Cam Lock Screw

M

M

N

N

Assembly Instruction 3 / 6

STEP 2

Attach Front Post (M) to Side Panel (E) and Front Post (N) to Side Panel (F) with Cam Locks. (See Figure 2)

STEP 3

Attach Magnets to Middle Panel (G) with Wood Screws for Magnet (See Figure 3)

Attach Front Rail (H) to Middle Panel (G) using Cam Lock.

E

E

M

M

N

N

G

G

H

H

F

F

Wood Screw for Magnet Cam Lock

STEP 4

Attach Back Rail (J) to Side Panel unit (F) with Cam Lock then slide Back Panel (D) into place.

Attach Back Rail (I) to Side Panel unit (F) with Cam Lock then slide Back Panel (D) into place.

Attach Back Rail (J) to Side Panel unit (F) with Cam Lock.

Assembly Instruction 4 / 6

STEP 6

Attach Bottom (B) to unit with Washers and Panel Screws.

Washer

I

I

STEP 5

Attach unit to unit from Step 3 with Cam Lock, Washer and Panel Screw. (See Figure 4)

Attach Side Panel unit (E) to unit using Cam Locks.

J

J

J

J

D

D

E

E

B

B

D

D

F

F

Wood Screw (short)

STEP 8

To level the unit, adjust the adjustable

levelers on the bottom of unit. (See Figure 8) Insert 16X Wood Screws (short) from the back of the unit. (See Figure 9)

Note: Please make sure unit is level before tightening these screws.

Assembly Instruction 5 / 6

Figure 5 Figure 7

STEP 7

Place Top (A) onto the unit and attach with Head Cap Bolts and Cam Locks. (See Figure 5) Slide Drawers (O) into position. Insert Adjustable Pins into side panels at the desired level. Place Shelves (C) into position. Attach Doors (K) and (L) to side panels by sliding the door lift hinges into the side panel lift hinges. (See Figure 6)

Assemble Knobs to Doors (K) and (L) with Machine Screws. (See Figure 7)

Figure 8

Figure 9 Head Cap Bolt

K

K

A

A

C

C

C

C

C

C

C

C

O

O

L

L

O

O

Assembly Instruction 6 / 6

STEP 1

Attach O1 to O3 and O4,

using a Phillips screwdriver and long wood screws (4X), tighten halfway.

Attach O2 to O3 and O4 using long wood screws (4X), tighten halfway. (See Figure 1)

STEP 3

Insert short wood screws (4X) into the pre-drilled holes in O5 and tighten. (See Figure 3)

STEP 4

Assemble Pull Handle with machine screws. (See Figure 4)

Tighten all screws used in drawer assembly.

Figure 3

Part List

Drawer (O)

MAKE SURE ROLLER IS ON THE BACK

Figure 5

STEP 5

Insert O6 into grooves in O1 and O2. (See Figure 5) Figure 2 Figure 1

O5

O5

O1

O1

O6

O6

O3

O3

O3

O3

O4

O4

O1

O1

O2

O2

O2

O2

O5

O5

O1

O1

O4

O4

O3

O3

O2

O2

STEP 2

Slide O5 into the grooves in O3 and O4. Be sure to push O5 all the way forward so it meets O1. (See Figure 2) Figure 4

O4

O4

O6

O6

S
