Hotel Management System Full With Tabels

(1)

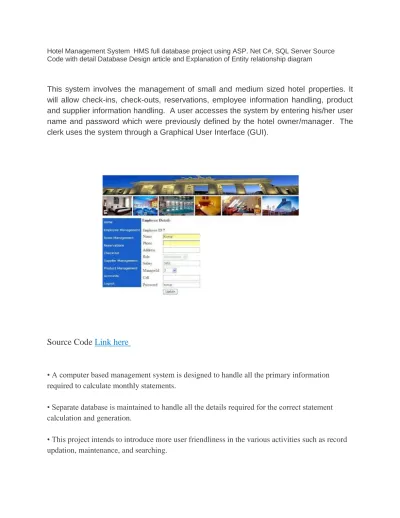

Hotel Management System HMS full database project using ASP. Net C#, SQL Server Source Code with detail Database Design article and Explanation of Entity relationship diagram

This system involves the management of small and medium sized hotel properties. It will allow check-ins, check-outs, reservations, employee information handling, product and supplier information handling. A user accesses the system by entering his/her user name and password which were previously defined by the hotel owner/manager. The clerk uses the system through a Graphical User Interface (GUI).

Source Code

Link here

• A computer based management system is designed to handle all the primary information required to calculate monthly statements.

• Separate database is maintained to handle all the details required for the correct statement calculation and generation.

• This project intends to introduce more user friendliness in the various activities such as record updation, maintenance, and searching.

(2)

• The searching of record has been made quite simple as all the details of an employee can be obtained by simply keying in the identification of that employee.

• All the records are absolutely up-to-date.

• The entire information has been maintained in the database and whoever wants to retrieve can’t retrieve it, only authorized user can retrieve the necessary information which can be easily be accessible from the file.

• The main objective of the entire activity is to automate the process of day to day activities of Hotel like:

1. Room activities,

2. Admission of a New Customer,

3. Assign a room according to customer’s demand, 4. Checkout of a customer,

5. Storing information of suppliers and products, 6. Storing employee information,

7. Keep track of accounts payable and receivable. Some other objectives are:

• No data duplication • No Paper Work Required • Time Efficient

• Cost Efficient

• Automatic data validation • User friendly environment • Data security and reliability • Fast data insertion & retrieval • Easy performance check

(3)

The scope of our project "Hotel Management System” is that it could be given to any

small/medium sized hotel so that they can maintain their room reservations, employee details, product details, accounts payable and receivable. In this project, we will keep track of

information of employees working in the hotel. We are also not managing restaurants in this project. The facilities such as airline booking, rent a car, gift shop etc. could also be provided but we are not providing this yet.

System Module

Room management Module:

This module provides the management facility of rooms. It would allow to:

 add a new room;

 edit an existing room;

 view all rooms.

Reservation Module:

This module allows the employee to manage reservations. It would allow to:

 make a new reservation(check in, assuming that the customer makes the reservation at the same time he checks in);

 check out a customer;

 Find all reservations by a customer.

Employee Management Module:

This module allows to manage the employee information. It would allow to:

 password verification;

 add a new employee;

(4)

 different views for receptionist and manager.

Accounting Module:

This module keeps track of all the accounting information regarding the hotel. It would consist of:

 view the amount payable by receipt number;

 view the amount payable by supplier ID number;

 the amount receivable by reservationID;

 the amount receivable by accounts receivable ID.

Product Management Module:

This module keeps track of inventory. It would allow to:

 add a new supplier;

 edit an existing supplier;

 add a new product;

 edit an existing product.

Users/Roles of the System

Manager:

The manager would have special privileges. He will be able to:

 add a new employee;

 edit an existing employee.

Receptionist:

The receptionist will have access to the Room management module, Product

management module and Reservation module. He will be able to perform the following operations:

 add a new room;

 edit an existing room;

 add a new product;

(5)

 check in a customer;

 check out a customer;

Maintenance:

The maintenance would be responsible to maintain rooms.

Forms and Reports

 Reservation/Check in

 Check out

 Rooms Details (add and edit)

 Employee Details (add and edit)

 Product Details (add and edit)

 Supplier Details (add and edit)

 Accounts receivable

 Accounts payable

(6)

(7)

Tables Description

Table Name: CUSTOMER Primary Key: Customer ID

Purpose: To store the customer details.

Column Name Data Type

and Domain

Null Constraint

Key Constraint

Application based Constraint

Customer ID int (4) Not Null Primary Key

Name varchar (100) Not Null

Address varchar (100) Null

Phone int(10) Null

Cell int(11) Null

Table Name: EMPLOYEE Primary Key: Employee ID

Purpose: To store the employee detail.

and Domain

Null Constraint

Key Constraint

Employee ID int (4) Not Null Primary Key

Manager ID int (4) Not Null Foreign Key

Address varchar (100) Not Null

Phone int(10) Not Null

Table Name: SUPPLIER Primary Key: Supplier ID

Purpose: To store the information of each supplier.

and Domain

Null Constraint

Key Constraint

(8)

Address varchar (100) Null

Phone int(10) Null

Table Name: PRODUCT Primary Key: Product ID

Purpose: To store the information of each product.

and Domain

Null Constraint

Key Constraint

Product ID int (4) Not Null Primary Key

Supplier ID varchar (100) Not Null Foreign Key

Price int(10) Not Null Price not less then 0 or greater then

100,000

Description varchar (100) Null

Quantity long(8) Not Null Quantity not less then 0 or greater

then 100,000

Table Name: ROOM

Primary Key: Room ID

Purpose: To store the information of each room.

and Domain

Null Constraint

Key Constraint

Room ID int (4) Not Null Primary Key

Manager ID int (4) Not Null Foreign Key

Price int (10) Not Null

Maintenance

ID int (4) Not Null Foreign Key

Table Name: ROOM-TYPE

(9)

Purpose: To store the room type against each room id.

and Domain

Null Constraint

Key Constraint

Room Type varchar (100) Not Null Primary Key

Table Name: RESERVATION

Primary Key: Customer ID, Room ID

Purpose: To store the reservation information.

and Domain

Null Constraint

Key Constraint

Customer ID int (4) Not Null Primary Key

Employee ID int (4) Not Null Foreign Key

Start Date Date Not Null Date must be in DD-MM-YYYY

format

End Date Date Not Null Date must be in DD-MM-YYYY

format

Charges int(10) Not Null Charges not less then 0

Table Name: Accounts Payable Primary Key: ID

Purpose: To keep a record of the accounts payable.

and Domain

Null Constraint

Key Constraint

ID int (4) Not Null Primary Key

Amount int (10) Not Null Amount not less than 0

Date Date Not Null Date must be in DD-MM-YYYY

format

(10)

Table Name: Accounts Receivable Primary Key: ID

Purpose: To keep a record of the accounts receivable.

and Domain

Null Constraint

Key Constraint

ID int (4) Not Null Primary Key

Amount int (10) Not Null Amount not less than 0

format

Table Name: SUPPLIER-PRODUCT Primary Key: Transaction ID, Product ID

Purpose: To keep a record of which supplier supplies a product.

and Domain

Null Constraint

Key Constraint

Transaction ID int (4) Not Null Primary Key

Product ID int (4) Not Null Primary Key

Supplier ID int (4) Not Null Foreign Key

format

Amount int(10) Not Null Charges not less then 0

Table Name: ROOM-PRODUCT Primary Key: Room ID, Product ID

Purpose: To keep a record of which product is used in which room.

and Domain

Null Constraint

Key Constraint

(11)
