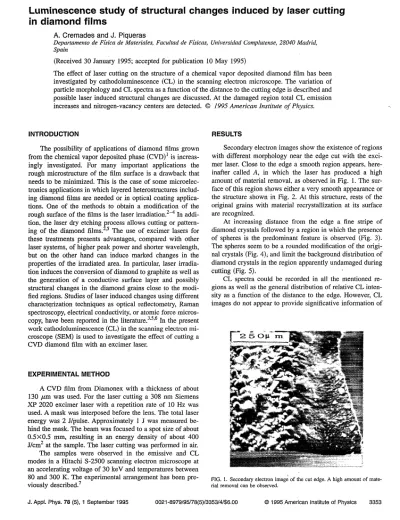

Luminescence
study of structural
changes induced by laser cutting
in diamond films
A. Cremades and J. Piqueras
Departamento de Fisica de Materiales, Facultad de Fisicas, Universidad Complutense, 28040 Madrid, Spain
(Received 30 January 1995; accepted for publication 10 May 1995)
The effect of laser cutting on the structure of a chemical vapor deposited diamond film has been investigated by cathodoluminescence (CL) in the scanning electron microscope. The variation of particle morphology and CL spectra as a function of the distance to the cutting edge is described and possible laser induced structural changes are discussed. At the damaged region total CL emission increases and nitrogen-vacancy centers are detected. 0 1995 American Institute of Physics.
INTRODUCTION RESULTS
The possibility of applications of diamond films grown from the chemical vapor deposited phase (CVD)’ is increas- ingly investigated. For many important applications the rough microstructure of the film surface is a drawback that needs to be minimized. This is the case of some microelec- tronics applications in which layered heterostructures includ- ing diamond films are needed or in optical coating applica- tions. One of the methods to obtain a modification of the rough surface of the films is the laser irradiation.2-4 In addi- tion, the laser dry etching process allows cutting or pattern- ing of the diamond films.2*5 The use of excimer lasers for these treatments presents advantages, compared with other laser systems, of higher peak power and shorter wavelength, but on the other hand can induce marked changes in the properties of the irradiated area. In particular, laser irradia- tion induces the conversion of diamond to graphite as well as the generation of a conductive surface layer and possibly structural changes in the diamond grains close to the modi- fied regions. Studies of laser induced changes using different characterization techniques as optical reflectometry, Raman spectroscopy, electrical conductivity, or atomic force micros- copy, have been reported in the literature.3’5’6 In the present work cathodoluminescence (CL) in the scanning electron mi- croscope (SEM) is used to investigate the effect of cutting a CVD diamond film with an excimer laser.
Secondary electron images show the existence of regions with different morphology near the edge cut with the exci- mer laser. Close to the edge a smooth region appears, here- inafter called A, in which the laser has produced a high amount of material removal, as observed in Fig. 1. The sur- face of this region shows either a very smooth appearance or the structure shown in Fig. 2. At this structure, rests of the original grains with material recrystallization at its surface are recognized.
At increasing distance from the edge a fine stripe of diamond crystals followed by a region in which the presence of spheres is the predominant feature is observed (Fig. 3). The spheres seem to be a rounded modification of the origi- nal crystals (Fig. 4); and limit the background distribution of diamond crystals in the region apparently undamaged during cutting (Fig. 5).
CL spectra could be recorded in all the mentioned re- gions as well as the general distribution of relative CL inten- sity as a function of the distance to the edge. However, CL images do not appear to provide significative information of
EXPERIMENTAL METHOD
A CVD film from Diamonex with a thickness of about 130 ,um was used. For the laser cutting a 308 nm Siemens XP 2020 excimer laser with a repetition rate of 10 Hz was used. A mask was interposed before the lens. The total laser energy was 2 J/pulse. Approximately 1 J was measured be- hind the mask. The beam was focused to a spot size of about 0.5X0.5 mm, resulting in an energy density of about 400 J/cm” at the sample. The laser cutting was performed in air. The samples were observed in the emissive and CL modes in a Hitachi S-2500 scanning electron microscope at an accelerating voltage of 30 keV and temperatures between X0 and 300 K. The experimental arrangement has been pre-
viously described.7 FIG. 1. Secondary electron imagk of the cut edge. A high amount of mate rial removal can be observed.
FIG. 2. Secondary electron image of the edge: (a) smooth region and (b) region with structure.
CL distribution at the local (grain size) level, due to the strong topographic effect in faceted crystals and spheres. CL images from the smooth area besides the edge show a certain correspondence with laser induced surface structure (Fig. 6). Figure 7 shows a CL intensity profile along a line perpen- dicular to the sample edge. There is a maximum of intensity near the edge and an intensity lower than the background in a wide region, part of the A region, crystal and spheres as shown in Fig. 7. Features at a longer distance from the edge correspond to intensity fluctuations of the particular line scan along the crystalline area.
CL spectra of the A region show the existence of two bands centered, respectively, at about 515 and 575 nm, as Fig. 3 shows. Relative intensity of both bands depends on the area investigated and on the observation conditions in the electron microscope. The relative intensity of the 575 nm appears to be higher in the regions showing the granular-like structure of Fig. 2, as well as the total CL intensity.
Spectra are recorded under different focusing conditions of the electron beam on the samples to account for the radia- tive centers with a low concentration.7’8 Usually by defocus- ing, the intensity of deep level bands increases. In our case the 515 nm band is magnified in defocused spectra.
FIG. 3. Secondary electron image of the laser-modified region. On the left, original crystals: center, spheres; and on the right, rest of crystals and be- ginning of the smooth region at the edge.
FIG. 4. Secondary electron image showing a detail of the spheres.
The other regions with different morphology at a dis- tance from the edge, spheres, and crystals, together with the undamaged zone, show the spectra of Fig. 9, with a broad- band centered in the blue spectra range. The’ undamaged crystalline region shows the highest emission while the emis- sion is reduced in the spheres and the nearby located crystals. Although the spectra of Fig. 9 show a predominant blue emission, a band centered about 520 nm is also present and appears by defocusing the electron beam, as shown in Fig.
10 for the case of the spheres.
MicroRaman spectra from the A region reveal the pres- ence of graphite and amorphous material. Due to the metal- lization in the rest of the sample no microRaman measure- ments were carried out.
DISCUSSION
The presence of graphite in the A region agrees with the often described2-5.9 formation of graphite during laser irra- diation. The formation can be followed by sublimation of the
FIG. 5. Secondary electron image of the undamaged zone of the sample.
(4 @I
FIG. 6. (a) Secondary electron image of the edge and (b) CL image of the 300 400 500 600 700 8
same region.
WAVELENGTH (n m)
graphite layer while a thin conductive layer remains. Typical thickness of the modified surface region has been reported to be about 150-200 nm. Since the CL signal in the SEM arises from a region extending up to about 2 m from the sample surface, the CL spectra provide information about the dia- mond phase below the graphite layer. The surface layer ab- sorbs part of the radiation emitted from the interior. Figure 7 shows a reduced intensity in the region near the sample edge with the exception of a strong luminescent narrow fringe at the border in which highest temperatures were achieved dur- ing the layer treatment. As possible reasons for the high lu- minescence in this fringe, a reduced optical absorption at the surface, due to sublimation of at least part of the graphite layer, and structural changes of the underlaying diamond during heating can be considered. Since we have not mea- sured the thickness of the graphite layer along the A regions, the first possibility has not been checked and is merely sug- gested here. This suggestion is supported by the CL image of Fig. 6 in which the luminescence clearly arises from the underlaying region. On the other hand, structural changes are revealed in the CL spectra of the A region. In Fig. 8 it is observed that in this region two luminescence bands appear at about 515 and 575 rmr, respectively, instead of the blue
SPHERES h
3 GROWN CRYSTALS EDGE
SAMPLE PROFILE (130~ -)
FIG. 7. CL intensity profile as a function of the distance to the border. The straight line is the luminescence background level. The thickness of the sample is not scaled.
FIG. 8. CL spectrum of the cut edge.
k
0 0
band that dominates the spectra in the rest of the sample (Fig. 9). The green emission appearing in the A region cor- responds to the emission between 515 and 575 nm often described in diamond (Refs. lo-12), which has been attrib- uted to centers containing nitrogenatoms and vacancies. The origin of this band would be the elevated temperature reached in this region during laser treatment and the subse- quent defect diffusion. Davies and Collins’3 have reported that on annealing, diamond vacancies are trapped at nitrogen. This would explain the present observations. The fact that no blue emission is observed in this region can be partly due to the high increase of the green emission but also to an anneal- ing induced reduction of the blue band intensity. The latter would happen if dislocations involved in luminescence at the blue range*4V’5 are annealed out during laser irradiation.
The 736 nm peak observed in Fig. 8 is thought to be Si-related, an effect from the substrate, and not the GRl band, as this is reported to anneal out at low temperatures (800 “C) (Ref. 11) compared to the temperature reached dur- ing the laser cutting. The high amount of material removal in this region supports the possibility of detecting a center re- lated to Si atoms from the substrate diffused into the dia- mond matrix. Figure 9 indicates that in the other regions of the sample, spheres and crystals, the CL of the as-grown
- AS GROWN
FIG. 9. Composition of the CL spectra of the spheres and nearby crystals as well as the undamaged zone of the sample.
FIG. 10. CL spectra of the spheres with focused and defocused beam.
material is qualitatively conserved, with peaks in the blue and green ranges, although with reduced intensity up to a distance from the edge, probably because of the appearance of a graphite layer. Structural changes as formation of vacancy-nitrogen complexes are restricted to a fringe besides the cut edge.
CONCLUSIONS
CL microscopy complements the information that scan- ning electron microscopy in the secondary electron mode provides on the effect of laser cutting in CVD diamond films. CL spectra show that in a region with a high amount of material removal at the cutting edge the treatment induces the formation of vacancy-nitrogen complexes. In nearby lo- cated regions the CL spectral features of the as-grown mate- rial are qualitatively conserved but with reduced intensity.
3356 J. Appl. Phys., Vol. 78, No. 5, 1 September 1995
ACKNOWLEDGMENTS
‘This work has been supported by DGICT (Project Nos. PB93-1256 -and HP93-004). We thank Professor J. Jimenez and P. Martin for the microRaman measurement. We thank Dr. Wolfgang (Siemens) for suggestions on this work and Dr. Roas (Siemens) for making the laser treatment.
