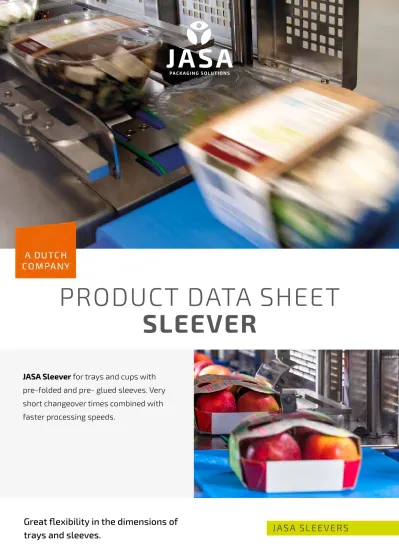

PRODUCT DATA SHEET SLEEVER

(1)

JASA SLEEVERS

PRODUCT DATA SHEET SLEEVER

JASA Sleever for trays and cups with pre-folded and pre- glued sleeves. Very short changeover times combined with faster processing speeds.

Great flexibility in the dimensions of trays and sleeves.

PDS-SLEEVER-EN-20200406-1.04

JASA Packaging Solutions stands for innovation, quality and flexibility in

packaging technology. We specialize in developing and manufacturing vertical packaging machines, sleevers and complete weighing and packaging lines. Producers and

packers of all kinds of food products around the globe trust our expertise, for more than thirty years, 24/7.

All data, products and productspecifications are intended for general information only and subject to change without notice.

Headoffice: Hazenkoog 14, 1822 BS Alkmaar (NL) T +31 72 561 27 00 E [email protected]

US Office: 7429 Whitepine Rd, 23237, Richmond VA (USA) T +1 804 290 3683 E [email protected] /JASAPackagingSolutions W www.jasa.nl W www.sleever.nl W www.jasapackaging.com

APPLES ON TRAYS

The sleeved apple tray typically replaces the traditional plastic film material. Configurations consist of the PGS-1100 or PGS-2100. Sleever with back labelling unit placing a label on the bottom of the tray thus fixing the sleeve to the tray.

Capacity: 35-40/min. (4-6 apples) on PGS-1100 or 70-80 min. on PGS-2100

MEAL SALAD TRAY WITH TOPSEAL

Trays for meal salads can be fed into the PGS-2100 double lane sleever with infeed and outfeed module. Trays can be delivered long side leading, the SIM-2100 infeed module turns the trays to short side leading.

Capacity: 50/min. on PGS-1100 or 100/min. on PGS-2100

MEAL SALAD TRAY WITH LID

A sleever configuration can be equipped with a lid placer. The topsealed trays are fed into the LPM- 1100 lidplacing module which places a lid on each tray, the trays are then fed into the PGS-1100 single lane sleever with outfeed module.

Capacity: 40/min. on PGS-1100 or 80/min. on PGS-2100

ROUND, TOPSEALED TRAY FOR TAPAS

The filled trays are fed into a PGS-1100 single lane sleever with infeed and outfeed module Capacity: 50/min. on PGS-1100 or 100/min. on PGS-2100

FLOWPACKED FRESH PRODUCE

The infeed dividing module divides cardboard boxes with fresh produce over two lanes of a PGS- 2100, double lane sleever. While doing so it checks the height of the trays. If a tray is too high to be sleeved it will be rejected onto the BMP-1100 bypass module.

Total capacity: 60/min. on PGS-2100

APPLICATION EXAMPLES

*other models and dimensions on request

The JASA sleever is suitable for many types and sizes of trays and cups. A certain degree of rigidity and a uniform shape are required.

Square, rectangular, oval and round trays can be processed with the sleever. The sleeves are closeable on 2 or on 3 sides as long as they are pre-folded and pre-glued. The position of the sleeve on the tray is freely adjustable in the machine program. A sleeve over the entire length of the tray is possible too.

TRAYS

^*

D

F (radius) B

FORMAT:

A3

DRAWINGNUMBER:

A

MACHINE:

STATUS:

REV.

SHEET:

GENERAL TOLERANCES ACCORDING TO: DRAWING PRINCIPLES ACCORDING TO:

Released

1 - 1

WEIGHT 0,49 kg

ISO 2768-MK UNLESS OTHERWISE INDICATED ISO 8015

DRAWN BY:

CHECKED BY:

DATE:

11-1-2018 UNITS:

PROJECT:

mm TITLE NL:

Marleen Snoek

SCALE:

PROJECTION:

086434

LOCATIE: \\srv-file01\Apps\CAD System Files\CAD Standard\Templates\Standard.dwg

Schaal, bakje, tray

TITLE EN:

PACKAGING SYSTEMS WWW.JASA.NL / TEL +31(0) 72-561 2700 / FAX +31(0) 72-562 54 07 The information contained in this drawing is the sole property of JASA Packaging Systems B.V.

and or affiliated companies.

Any reproduction in part or as a whole without written permission is prohibited.

A

E C

RUNNING DIRECTION

TRAYS & SLEEVES

MIN. MAX.

A + B 100 300 mm C 60 260 mm A

B C

SLEEVE DIMENSIONS

SLEEVES

^*

FORMAT:

A3 DRAWINGNUMBER:

A MACHINE:

STATUS:

REV.

SHEET:

Released

1 - 1 WEIGHT 0,49 kg

DRAWN BY:

CHECKED BY: DATE:

DATE:

11-1-2018 UNITS:

PROJECT:

mm TITLE NL:

Marleen Snoek SCALE:

PROJECTION:

086434

Schaal, bakje, tray TITLE EN:

FORMAT:

A3 DRAWINGNUMBER:

A MACHINE:

STATUS:

REV.

SHEET:

Released

DRAWN BY:

CHECKED BY:

DATE:

11-1-2018 UNITS:

PROJECT:

mm TITLE NL:

Marleen Snoek

SCALE:

PROJECTION:

086434

FORMAT:

A3 DRAWINGNUMBER:

A MACHINE:

STATUS:

REV.

SHEET:

Released

DRAWN BY:

CHECKED BY:

DATE:

11-1-2018 UNITS:

PROJECT:

mm TITLE NL:

Marleen Snoek

SCALE:

PROJECTION:

086434

3 - sides 2 - sides

2 of 3 - sides complete

FORMAT:

A3

DRA

WIN

GNUMBER:

A

MACHINE: STATUS:

REV. SHEET: GENERAL TOLERANCES ACCORDING TO:DRAWING PRINCIPLES ACCORDING TO:Released

1 - 1 WEI

GHTN/A ISO 2768-MK UNLESS OTHERWISE INDICATEDISO 8015 DRAWN BY: CHECKED BY:DATE:DATE:

11-1-2018 UNITS:PROJECT:

mm TITLE NL:

Mar

leen Snoek SCALE:PROJECTION:

11 66 26

LOCATIE: \\srv-file01\Apps\CAD System Files\CAD Standard\Templates\Standard.dwg Assy Tray Heemskerk 1710259 TITLE EN: PACKAGING SYSTEMS WWW.JASA.NL / TEL +31(0) 72-561 2700 / FAX +31(0) 72-562 54 07

The

infor

mation

conta

ined in th

is draw

ing

is thestems B SyingkagPacSA of JAertyrope psol .V. and or affiliated companies. Any reproduction in part or as a whole without

writ

ten

perm ission

is prohibited. ASAPACKAGING SOLUTIONSJ

GENERAL TOLERANCES ACCORDING TO:

ISO 2768-MK UNLESS OTHERWISE INDICATED The information contained in this drawing is the sole property of JASA Packaging Solutions B.V.

DRAWN BY:

CHECKED BY:

PROJECTION:

SCALE:

DATE:

20-11-2018

UNITS: mm

STATUS:

Released WEIGHT

N/A DRAWINGNUMBER:

118329 SHEET:

MACHINE: FORMAT:

REV.

A 1 - 1 A3

TITLE NL:

Schaal aluminium TITLE EN:

DRAWING PRINCIPLES ACCORDING TO:

ISO 8015 g.aubert

WWW.JASA.NL TEL +31(0) 72-561 2700

FORMAT:

A3 DRAWINGNUMBER:

A MACHINE:

STATUS:

REV.

SHEET:

Released

DRAWN BY:

CHECKED BY:

DATE:

11-1-2018 UNITS:

09-0049

PROJECT: mm

TITLE NL:

PROJECTION:

1021610555100 (Schaal rekfolielijn)

Omschrijving

TITLE EN:

FORMAT:

A3 DRAWINGNUMBER:

A MACHINE:

STATUS:

REV.

SHEET:

Released

1 - 1 WEIGHT

N/A

DRAWN BY:

CHECKED BY:

DATE:

11-1-2018 UNITS:

PROJECT:

mm TITLE NL:

Marleen Snoek

SCALE:

PROJECTION:

086414

A OLUSING SAGACKPA

TIONS J

GENERAL TOLERANCES ACCORDING TO: ISO 2768-MK UNLESS OTHERWISE INDICATED The information contained in this drawing is the sole property of JASA Packaging Solutions B.V.

and or

affilia

ted

compa nies. Any reproduction in part or as a who

le w

ithout .tedhibi is prormission petenwrit

DRA

WN

BY: CHECKED BY: PROJECTION: SCALE:

DATE:DATE:

20-11-2018 UNITS:mmSTATUS: Released

WEI

GHT0,01 kg DRAWINGNUMBER:

11 04 85

SHEET: MACHINE:

FORMAT:REV.

A

1 - 1

A3

TITLE

6098x42xck 1 Pare'sNatu: NL:aal ENLE SchTIT

DRA

WIN

G PRINCIPLES ACCORDING TO: ISO 8015 g.aubert WWW.JASA.NL TEL +31(0) 72-561 2700

FOR

MAT

:

A3

DRA

WIN GNU MBE

R:

A MAC

HINE: STATUS:

REV. SHEET:

GEN

ERAL T

OLE

RANCES ACCORDIN

G T O:

DRA

WIN G P

RINCIPLES ACCOR

DIN

G T O:

Rele

ased

1 - 1 WEI GHT

0,00 kg ISO 2768-MK UNLESS OTHERWISE INDICATEDISO 8015 DRAWN BY: CHECKED BY:

DATE:DATE:

11-1-2018 UNITS:

09-00083 PROJECT:

mm

TITLE NL:

Mar

leen Snoek SCALE:PROJECTION:

00 2.7 00

SCH AAL

(R

EFE REN CE)

TITLE EN: PACKAGING SYSTEMS

WWW.JASA.

NL / TEL

+31

(0) 72 -561 2

700

/ FAX

+31

(0) 72 -562 5 4 07

The informat

ion contained in this draw

ing is the sole property of JASA Packaging Systems B.V.

and

or af

filiated

compa

nies. Any reproduction in part or as a who

le w

ithout written permission is prohibited.

FORMAT:

A3 DRAWINGNUMBER:

A MACHINE:

STATUS:

REV.

SHEET:

Released

1 - 1 WEIGHT

N/A

DRAWN BY:

CHECKED BY: DATE:

DATE: 11-1-2018 UNITS:

PROJECT: mm

TITLE NL:

PROJECTION:

091686

TITLE EN:

PGS-1100/2100 MIN. MAX.

A 90 260 mm B 55 210 mm C 30 175 mm D 90 280 mm E 55 210 mm F >5 >5 mm Specials on request

(2)

Short changeover times, < 5 minutes

PLC controls and servo drive; Siemens Compact design,

easy integration in existing lines

Complies with CE safety standards JASA SmartDisplay

Stainless steel construction and hygienic design

The JASA sleever has been developed by going back to basics: how to combine easy operation and short changeover times? How to get as many production hours as possible from the sleever at the end of the day? After evaluating several concepts it became clear that changing from one sleeve to another had to be just “changing the sleeve”, nothing else. This has been achieved by making the sleever cassette the heart of the machine. Every sleeve has its own – custom made - cassette. While changing the cassette, the width of the tray guiding system is automatically adjusted through the auto tracking system. Within 5 minutes the entire machine is changed from one set of trays and sleeves to another.

The machine is easy to integrate into an existing production line due to its very compact design. Depending on the set-up, various modular de-nesters, filling stations, lid placers and in- and outfeed-units are available. Other machines can easily be linked to the sleever and offer, amongst others, the possibility to distribute trays from a packaging machine with a single lane outfeed into a double lane sleever. Trays can be turned into the right position or packages can be brought back to a single lane outfeed after a double lane sleever.

Flex-Cassette

The Flex-Cassette is the ultimate solution for “Sleeving” a wide range of products, like apples, tomatoes, and kiwis. Despite the variety in shapes and sizes of these products, there is no need to use more than one or change the cassette. How many apples do you want to pack per tray, four, six, or eight? Whatever the amount, it is all possible with just one flex-cassette. With a changeover time of mere minutes, the Flex-Cassette makes packing with paper flexible.

Fixed Cassette

The best choice when trays of mostly different sizes or a limited product range need packaging. The fixed cassette also allows for lightning-fast changeover times. The machine can be set to accommodate a new plate, tray, or cup within five minutes. Easy on the operator, great for the packing speed.

The JASA sleever personalizes a tray by applying a pre-folded, pre-glued sleeve around it. This can be a tray and/or a cup with a lid, a topseal or a flowpack or in some applications just the fresh fruit or vegetables. As long as the packaging is rigid enough, the trays can be made of many materials; plastic, aluminium, cardboard, foam, etc. The sleeve can be closed on two or three sides and positioned over the entire length of the tray.

JASA SLEEVER

CONFIGURATION EXAMPLES

D

C

B A

MODEL PGS SLM SIM/SOM LIM/LOM PGS SDM SDM BPM SIM/SOM

1100 1100 1100 1000 2100 2010 2100 1100 2100

Number of lanes 1 1 1 1 2 2 3 1 2

Mech. speed (pack./min.) 50 50 50 50 100 100 100 100

Actual speed Depending on the specifications of the packaging

Changeover time (min.) <5 10 <3 <3 7-10 <3 <5 <3 A (mm) length 1.400 1.385 600 1.005 1.400 1.600 1.600 2.005 600

B (mm) width 617 540 540 540 1.060 971 1.530 605 971

C (mm) infeed height 900 900 900 900 900 900 900 900 900

D (mm) total height 1.900 1.150 1.161 1.161 1.900 1.200 1.200 1.000 1.161

Electrical capacity (kW) 1,5 0,47 0,47 0,47 2 0,47 0,47 0,47 0,47

Electrical requirements 400VAC + N + PE, 50 Hz / 16A - 3x240VAC + PE, 60 Hz / 16A (additional options required)

Necessary air pressure (bar) 6 6 6 6

Pneumatic capacity (L/min) 0,4 0,4 0,02 0,02

Compressed air specs. 8573-1:2010[7:4:4]

IP rating machine IP55

IP rating displ. and electr. cab. IP65

EC declaration yes

Country of origin the Netherlands

Customs tariff code 84224000

Packag. dim.(L*W*H)(mm) 1.500x800x2.100 1.500x1.200x2.100

Nett weight (kg) 300 60 75 500 175 90

Packaging weight (kg)

Cassette weight(kg)* 15 15

* This is an indication, cassette is customized.

. . . .

D

C

B A

B A C

E F G A C

I H J

B A D

H

I J D

H

I J

H

K J

H M J

L

A.

B.

C.

D.

E.

F.

G.

H.

I.

J.

K.

L.

M.

LEGEND

PGS-1100 SIM-1100 SOM-1100 SLM-1100 LIM-1000 LPM-1100 LOM-1000 PGS-2100 SIM-2100 SOM-2100 SDM-2010 SDM-2100 BPM-1100

*Including capability to turn trays to short side leading Single Lane Sleever Safety Infeed Module*

Safety Outfeed Module

Label Applicator to fix a sleeve to the bottom of a tray incl. optional printer Lid Placer Infeed

Lid Placer

Lid Placer Outfeed Double Lane Sleever Safety Infeed Module*

Safety Dividing Module to divide the trays from one to two lanes Safety Dividing Module incl. bypass to reject trays too high to be sleeved Bypass Module

(3)
