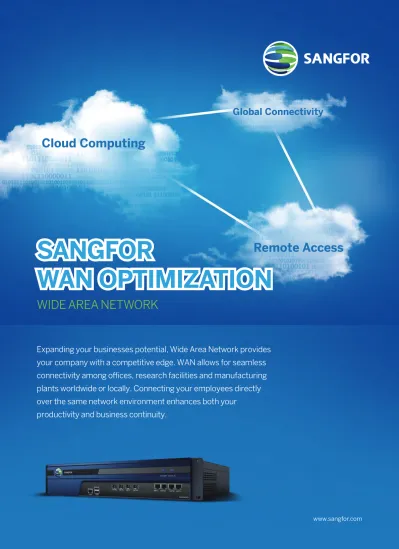

SANGFOR WAN OPTIMIZATION

Expanding your businesses potential, Wide Area Network provides

your company with a competitive edge. WAN allows for seamless

connectivity among offices, research facilities and manufacturing

plants worldwide or locally. Connecting your employees directly

over the same network environment enhances both your

productivity and business continuity.

www.sangfor.com

Global Connectivity

Remote Access

Cloud Computing

SANGFOR

WAN OPTIMIZATION

SANGFOR

WAN OPTIMIZATION

WIDE AREA NETWORK

Acceleration

Challenges

SANGFOR WAN Optimization

Challenges

SANGFOR WANO optimizes TCP protocol to reduce the impact of latency and packet loss on long-distance transmission. Intelligent TCP proxy emulates accumulated acknowledgments to avoid latency caused by repeated and unnecessary interactions. Dynamic HTP (High-speed Transmission Protocol) optimizes WAN transmission by selective/fast retransmission of lost packets, improving the efficiency of congestion control mechanism in traditional TCP protocol.

Thus it boosts WAN link performance significantly.

Most business applications perform well on the LAN. However, those

applications do not transmit or operate efficiently on the WAN due to

its protocol structure and dependence on low latency. That problem

is too often overlooked until the application performance has been

degraded by the bandwidth.

SANGFOR WAN Optimization

SANGFOR WANO offers a wide range of solutions tailored to your

company’s specific requirements. The result is a comprehensive,

reliable system that can effectively maximize your WAN potentials.

SANGFOR WANO optimizes data transmission right down to byte level, thereby enabling you to enjoy a LAN like experience over the WAN with fast delivery and efficient bandwidth utilization. Those Improvements are particularly evident under harsh network environment with applications running inefficiently over the WAN.

Transmission Optimization

Refine transmission environment

SANGFOR WANO adopts the leading byte cache technology that allows de-duplication of data across the WAN on subsequent transmissions. Once data has been transmitted from one end to the other, it is cached at byte level. Combed with various other data reduction technologies, WANO prevents repeated data transmission over the WAN, eliminating redundant data which occupies up to 95% of WAN traffic. Thus it delivers cached data at LAN speed.

Data Reduction

Improve bandwidth throughput

Application proxy is specifically designed to accelerate the most common and popular business applications. It performs proxy to protocols of MAPI, HTTP/HTTPS, CIFS, Oracle EBS, Citrix, RDP and SMTP, boosting the performance of a wide range of applications such as Exchange, SharePoint, ERP, CRM, Lotus Notes, Backup, SAP, Disaster Recovery, FTP and so on.

Application Proxy

Application acceleration

WAN Optimization Latency &

Packet Loss

Bandwidth Pressure

Protocol Chattiness

Transmission Optimization

Data Reduction

Application Proxy

Bandwidth

Management

Comprehensive

Reporting

Scalability

SANGFOR WANO provides powerful features which can prevent bandwidth congestion through priority and policy control over non-critical applications and recreational traffics such as video, social networking, ads, etc.

SANGFOR WANO monitors and controls bandwidth to prevent bottlenecks, ensuring that each application is assigned with the appropriate level of resources according to its priority.

WANO is also incorporated with a range of other features that are specifically tailored to enterprise requirements.

Prevent Bandwidth Congestion

Guaranteed and burst bandwidth can be assigned to bandwidth-sensitive applications. SANGFOR WANO adopts the percentage assigning policy of total bandwidth based on business criticality.

Prioritise Applications Based

on Business Requirements

WANOs’ analysis report enables IT managers to identify the changing trends of bandwidth utilization for better fine tuning their policies to match. WANO report provides specific details on functions and logs stored internally, which can also be exported to external syslog servers.

Analysis Report

WANO displays live information on current traffic movement by application proxy and segmented time intervals. Obvious statistic information on usage empowers system administrators to take the right steps on bandwidth management.

Network and Application

Monitoring

Portable Accelerator is a mobile client used on Windows platforms to transparently extend WAN optimisation benefits to mobile users, no matter whether they are on the road with 3G mobile broadband or in a hotel on the other side of the world. The functions and polices of PACC client are centrally managed by SANGFOR Web Interface based on rules for individual users or groups.

Portable Accelerator

vWANO is the virtual version of WAN Optimizationproduct, with full suite of WANO features. It provides our customers with the option to choose between the traditional physical unit and the virtual one.

vWANO: Virtual WANO

SANGFOR’s proprietary IPsec VPN offers all the benefits over standard IPsec VPN with added value of optimization and acceleration technology to meet the requirements of site-to-site, host-to-host and host-to-net connectivity.

Built-in IPsec VPN

The built-in firewall delivers effective protection with stable and deep-packet inspection for analysing packet headers and payloads. It ensures effective enforcement with policy management and stops Denial of Service (DoS) and flooding attacks.

Built-in Firewall

Multiple WANOs can be centrally managed by SANGFOR CMC (Central Management Console) appliance, from which

administrators are able to perform overall network status monitoring, node status

Central Management

monitoring, centralized configuration, centralized logs and reporting through one single console. It greatly simplifies the management and maintenance of a widely distributed WAN Optimization network.

With the deployment of SANGFOR WAN optimization solution, corporate headquarters, branches and partners can experience an accelerated network performance on critical applications and data anywhere in the world. It delivers a LAN-like experience over the enterprise WAN.

Laboratory Test Results:

Acceleration

Benefits

0 10 20 30 40 50 90 150

Performance Minimum

Stable Peak

10 35 150

4 13 40

45

4 13

10 30 90

3 15 30

0 6 15

10 25 50

10

3 15

8

3 15

25 40

10

20 40

10 6

3 20

15 9 4

10 2 4

“The appliance clearly delivers an impressive WAN acceleration performance for a wide range of applications and is remarkably easy to deploy.”

Professional Opinions

--- IT PRO

0 50 100 150 200 250

Befor optimization After optimization

228 4

93 7

103 15

120 34

89 4

Copy test file from server Retrieving email from exchange server FTP-file initially retrieved from server Remotely opening file Save modification

FIT FOR BUSINESS

"They come with an extensive range of optimization technologies as standard, are extremely easy to deploy and capable of delivering impressive boosts to WAN performance across wide

range of applications.” --- binary testing

Operation File copy Email FTP

Remote file open Remote file save Remote Desktop 8-31x

57-64x 22-64x

7-10x 4-5x 3x

Performance Increase Operation Performance Increase

Other Benefits

• Real-time data compression and cache.

• Reduce application response time in the WAN

• Rapid deployment of highly optimized WAN network

• Promote IT integration, reduce IT operating costs.

Technical Benefits

• Low capital and operating expense

• High ROI (Return On Investment)

• Reduce bandwidth investment

Financial Benefits

• Avoid /Delay bandwidth upgrade

• Enhance work efficiency and business productivity

• Shorten the cycle of WAN complying with business expansion requirements

Business Benefits

Network latency, packet loss and traffic congestion on VPN links can cause slow data transmission and delayed application response, especially in cross-border or cross-operator situations. SANGFOR WANO reduces the impact of packet loss and latency by transmission optimization and improves application protocol efficiency.

VPN Link Optimization

SANGFOR WANO reduces the redundant data in WAN links, which efficiently releases the bandwidth pressure while accelerating data transmission and application response time. SANGFOR WANO solution helps to greatly reduce the bandwidth expense of leased line by avoiding or delaying frequent bandwidth upgrades.

Leased Line Optimization

High latency is a fatal weakness of satellite lines, which affects the access experience of remote sites. SANGFOR WANO eliminates such VSAT link concerns and eventually boosts the transmission performance by reducing the transmission of data and improving protocol efficiency of applications with various acceleration and optimization technologies.

Satellite Line Optimization

SANGFOR WANO optimizes disaster recovery progress while reducing overall IT costs.

With approaches of traffic prioritization, data reduction and protocol optimization, WANO significantly decreases the replication time between data centers as well as the bandwidth expense. Disaster recovery optimization solution includes environment with but not limited to Veritas, Commvault, CA, RSYNC, Veeam, EMC MirrorView, Netapp SnapMirror, etc.

WAN Optimization for Data

Center Disaster Recovery

With SANGFOR’s built-in IPsec VPN and its superior WAN optimization technologies, SANGFOR WANO can act as a fast IPsec VPN solution that connects branch offices to the data center, or as a cost-effective backup line for leased line. Moreover, using IPsec VPN to replace the leased line keeps the cost low without compromising the access experience.

IPsec VPN/Back-up

Solution

SANGFOR PACC (Portable Accelerator) client caches and compresses data so that mobile users, wherever they are, can achieve a similar level of efficiency as their office-based colleagues.

Mobile Office Acceleration

Best-Practice

Network

Scenario

DB Server

FTP Server

Main Data center

Branch Office 1 Mobile Users

Application Server

DB Server FTP Server

File Server Back-up Data center

Branch Office 2

Branch Office 3 SANGFOR

WANO

SANGFOR WANO SANGFOR WANO SANGFOR

WANO

SANGFOR WANO

Wireless

VPN Leased line

Leased line Satellite line

Leased line

SANGFOR CMC

File Server
