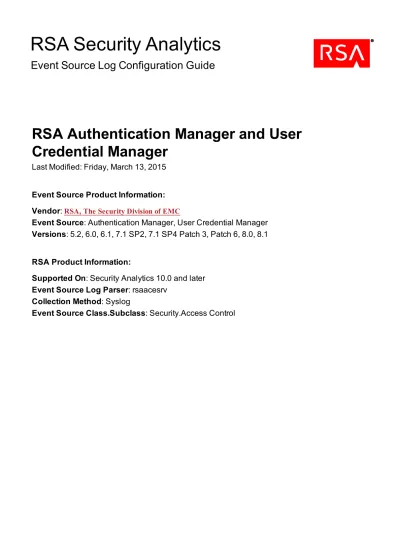

RSA Security Analytics

(1)

Event Source Log Configuration Guide

RSA Authentication Manager and User

Credential Manager

Last Modified: Friday, March 13, 2015

Event Source Product Information:

Vendor:

RSA, The Security Division of EMC

Event Source: Authentication Manager, User Credential Manager

Versions: 5.2, 6.0, 6.1, 7.1 SP2, 7.1 SP4 Patch 3, Patch 6, 8.0, 8.1

RSA Product Information:

Supported On: Security Analytics 10.0 and later

Event Source Log Parser: rsaacesrv

Collection Method: Syslog

(2)

perform the following tasks:

I. Depending on your version of RSA Authentication Manager, perform one of the following tasks:

l Configure RSA Auth Manager 7.1 to Send Syslog, or l Configure RSA Auth Manager 8.x to Send Syslog

II. Configure Security Analytics for Syslog Collection

(3)

Configure RSA Authentication Manager 7.1 to Send

Syslog Formatted Messages

You can send Syslog formatted messages to the SA platform from RSA Authentication Manager 7.1 SP2 and later.

To configure RSA Authentication Manager to send Syslog:

1. Install RSA Authentication Manager 7.1 SP2 or newer.

Note:The patch contains a fix that is needed to send syslog format messages to the Security Analytics platform.

2. On each Authentication Manager server instance, edit the following lines in the RSA_home\utils\resources\ims.properties file so that they appear as follows:

l To send Admin audit events to the Security Analytics platform:

ims.logging.audit.admin.syslog_host = SA_LogDecoder_or_

RemoteLogCollector_host

ims.logging.audit.admin.use_os_logger = true

l To send Runtime audit events to theSecurity Analytics platform:

ims.logging.audit.runtime.syslog_host = SA_LogDecoder_or_

ims.logging.audit.runtime.use_os_logger = true

l To send System audit events to the Security Analytics platform:

ims.logging.audit.system.syslog_host = SA_LogDecoder_or_

ims.logging.audit.system.use_os_logger = true

3. To restart Authentication Manager 7.1, follow these steps:

a. Click Start > Administrator Tools > Computer Management > Services

and Applications > Services.

b. Select RSA Authentication Manager. c. Click Restart.

(4)

Configure RSA Authentication Manager 8.x to Send

Syslog Formatted Messages

To configure RSA Authentication Manager 8.0 to send Syslog:

1. Log on to the RSA Authentication Manager Security Console, and navigate to

Setup > System Settings.

2. In the Basic Settings section, select Logging.

3. Select the instance from which you want to collect logs, and click Next. 4. In the Log Levels section, complete the fields as follows:

Field Action

Administrative Audit Log

Select Success.

Runtime Audit Log Select Success.

System Log Select Warning.

5. In the Log Data Destination section, complete the fields as follows:

Field Action

Administrative Audit Log Data

Select Save to remote database and internal Syslog

at the following hostname or IP address, and enter

the IP address for the Security Analytics Log Decoder or RSA Security Analytics Remote Log Collector.

Runtime Audit Log Data

Select Save to remote database and internal Syslog

System Log Data Select Save to remote database and internal Syslog

6. Click Save to save changes.

(5)

Configure Security Analytics for Syslog Collection

Note:You only need to configure Syslog collection the first time that you set up an event source that uses Syslog to send its output to Security Analytics.

You should configure either the Log Decoder or the Remote Log Collector for Syslog. You do not need to configure both.

To configure the Log Decoder for Syslog collection:

1. In the Security Analytics menu, select Administration > Services.

2. In the Services grid, select a Log Decoder, and from the Actions menu, choose

View > System.

3. Depending on the icon you see, do one of the following:

l If you see , click the icon to start capturing Syslog.

l If you see , you do not need to do anything; this Log Decoder is

already capturing Syslog.

4. Ensure that the parser for your event source is enabled. a. From the System pull-down menu, select Config.

b. In the Service Parsers Configuration panel, search for your event source. c. Ensure that the Config Value field for your event source is selected.

To configure the Remote Log Collector for Syslog collection:

1. In the Security Analytics menu, select Administration > Services. 2. In the Services grid, select a Remote Log Collector, and from the Actions

menu, choose View > Config > Event Sources. 3. Select Syslog/Config from the drop-down menu.

The Event Categories panel displays the Syslog event sources that are configured, if any.

4. In the Event Categories panel toolbar, click

+

.

The Available Event Source Types dialog is displayed.

(6)

Advanced parameters as necessary.

Click OK to accept your changes and close the dialog box.

Once you configure one or both syslog types, the Remote Log Collector collects those types of messages from all available event sources. So, you can continue to add Syslog event sources to your system without needing to do any further configuration in Security Analytics.
