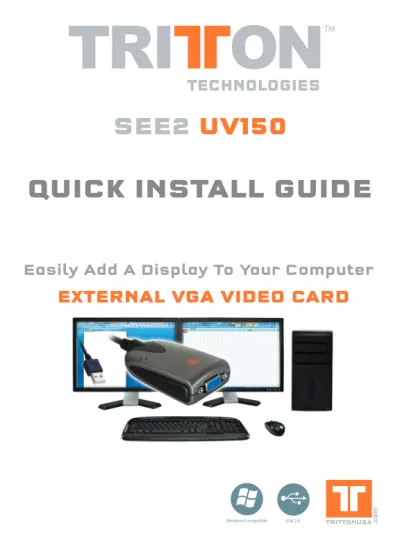

SEE2 UV150 QUICK INSTALL GUIDE

(1)

.com

TRITTONUSA TRITTONUSA .com

Windows Compatible

Three Year Warranty USB 2.0

Mac OS X Compatible

Windows Compatible

Three Year Warranty USB 2.0

Mac OS X Compatible

External VGA Video Card

technologies

SEE2

UV150

(2)

.com

TRITTONUSA TRITTONUSA.com

.com

QUICK INSTALL GUIDE

Congratulations on your purchase of the SEE2.

The USB 2.0 interface allows the SEE2 to work

with most Windows-based PC systems.

The SEE2 provides a high-speed VGA port

that can support additional displays with

resolutions up to 1600 x 1200.

This easy-to-use solution will provide increased

productivity, expandability and connectivity to

both home and office users.

For the entire manual, including

troubleshooting, and un-installation

instructions, please insert the included CD

FEATURES

• High-Resolution Monitors supported;

up to 1600 x 1200

• Supports Widescreen Resolutions;

up to 1680 x 1050

• Plug-and-Play USB connectivity

• Multiple display modes – primary, extended,

mirrored and rotated

• Full USB 2.0 Compliance

• Standard VGA (DB15) connector to support

(3)

.com

Minimum SYSTEM REQUIREMENTS

• 1.5GHz or higher processor;

• Intel Pentium 4 / Celeron Family, AMD K6 /

Athlon / Duron Family.

• 256MB memory or higher (512MB memory

or higher recommended for optimal

performance)

• Available USB 2.0 port

• Windows 2000, XP 32/64 bit, Vista 32/64 bit

(Excluding Aero)

PACKAGE CONTENTS

• SEE2 USB TO VGA ADAPTOR

• CD (Contains: Manual, Driver, Quickstart

Guide and TRITTON Product Catalog)

• Quick Start Guide

REGULATORY COMPLIANCE

FCC / CE / C-tick / VCCI

(4)

.com

Software installation

Note: Do not plug the SEE2 into the

computer system before the driver is

completely installed.

Step 1:

Insert the CD into the

drive, click “Install Driver”

and follow the onscreen

installer directions.

Step 2:

When the installer

is completed, click

finish and reboot

the computer.

Open Quick Start PDF

In order to open PDF ﬁles, you must have Adobe Acrobat installed.

Tritton Product Catalog PDF Install Driver

Open Manual PDF

(5)

.com

Hardware Installation

Step 3:

Connect the VGA display

cable to the SEE2 and

then plug the SEE2

into an available USB

port.

Step 4:

Select “No, not at this

time” when asked to

search Windows Update.

Step 5:

Select “Install the

Software Automatically

(Recommended)” when

prompted.

Step 6:

(6)

.com

(7)

.com

SUPPORT

If you have any issues using this product,

please try the following before returning

this product to the store:

The User Manual (located on the included

driver CD) includes a Troubleshooting

Section. Many common issues can be

easily resolved by reading this section of

the manual.

For online support,

visit www.TRITTONUSA.com to find the

latest documentation, Knowledge Base

articles, and software for your device.

You can also chat live with a support

technician or submit a trouble ticket.

For telephone support,

please call us at 800-431-1176 and one of

our friendly support technicians will be

happy to assist you.

Call: 800-431-1176

(8)

.com

3 Year Limited Warranty

TRITTON Technologies warrants that this product will be free from defects in materials and workmanship for a period of 3 years from the date of purchase. If a product proves to be defective during this warranty period, TRITTON Technologies, at its option, either will repair the defective product without charge for parts and labor, or will provide a replacement in exchange for the defective product. In order to obtain service under this warranty, you the Customer, must notify TRITTON Technologies of the defect before the expiration of the warranty period and make suitable arrangements for the performance of service. The Customer shall be responsible for packaging and shipping the defective product to a designated service center nominated by TRITTON Technologies. Customer shall be responsible for paying all shipping charges, insurance, duties, taxes, and any other charges for products returned to us for any reason. This warranty shall not apply to any defect, failure or damage caused by improper use or improper or inadequate maintenance and care. TRITTON Technologies shall not be obligated to furnish service under this warranty: a) to repair damage resulting from attempts by personal other than TRITTON Technologies representatives to install, repair or service the product, b) to repair damage resulting from improper use or connection to incompatible equipment, c) to repair any damage or malfunction caused by the use of non TRITTON Technologies parts or supplies, or d) to service a product that has been modified or integrated with other products when the effect of such a modification or integration increases the time or difficulty of servicing the product. THIS WARRANTY IS GIVEN BY TRITTON TECHNOLOGIES IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED. TRITTON TECHNOLOGIES AND ITS VENDORS DISCLAIM ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. TRITTON TECHNOLOGIES RESPONSIBILITY TO REPAIR OR REPLACE DEFECTIVE PRODUCTS IS THE WHOLE AND EXCLUSIVE REMEDY PROVIDED TO THE CUSTOMER FOR ANY INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES IRRESPECTIVE OF WETHER TRITTON TECHNOLOGIES OR THE VENDOR HAS ADVANCE NOTICE OF THE POSSIBILITY OF SUCH DAMAGES. TRITTON TECHNOLOGIES IS NOT LIABLE FOR ANY ILLEGAL USE OF EQUIPMENT BY CUSTOMER. TRITTON TECHNOLOGIES IS NOT LIABLE FOR ANY DAMAGES RESULTING FROM USE OF THIS PRODUCT. USER OPERATES THIS PRODUCT AT OWN RISK.
