Article
PIN-PMN-PT Single Crystal 1-3 Composite-based 20
MHz Ultrasound Phased Array
Wei Zhou 1,2,3,†, Tao Zhang 1,3,†, Jun Ou-Yang 1, Xiaofei Yang 1, Dawei Wu 4,* and Benpeng Zhu 1,3,*
1 School of Optical and Electronic Information, Huazhong University of Science and Technology, Wuhan
430074, China; [email protected] (W.Z.); [email protected] (T.Z.); [email protected] (J.O.-Y.); [email protected] (X.Y.)
2 Jingzhou Vocational College of Technology, Jingzhou 434000, China
3 State Key Laboratory of Transducer Technology, Chinese Academy of Sciences, Shanghai 200050, China
4 State Key Laboratory of Mechanics and Control of Mechanical Structures, Nanjing University of
Aeronautics and Astronautics, Nanjing 210016, China † The authors are co-first authors of this paper
* Correspondence: [email protected] (D.W.); [email protected] (B.Z.)
Abstract: Based on a modified dice-and-fill technique, a PIN-PMN-PT single crystal 1-3 composite
with the kerf of 12 μm and pitch of 50 μm was prepared. The as-made piezoelectric composite material behaved with high piezoelectric constant (d33 = 1500 pC/N), high electromechanical
coefficient (kt = 0.81), and low acoustic impedance (16.2 Mrayls). Using lithography and flexible
circuit method, a 48-element phased array was successfully fabricated from such a piezoelectric composite. The array element was measured to have a central frequency of 20 MHz and a fractional bandwidth of approximately 77% at −6 dB. Of particular significance was that this PIN-PMN-PT single crystal 1-3 composite-based phased array exhibits a superior insertion loss compared with PMN-PT single crystal and PZT-5H-based 20 MHz phased arrays. The focusing and steering capabilities of the obtained phased array were demonstrated theoretically and experimentally. These promising results indicate that the PIN-PMN-PT single crystal 1-3 composite-based high frequency phased array is a good candidate for ultrasound imaging applications.
Keywords: PIN-PMN-PT; 1-3 composite; high frequency; phased array
1. Introduction
Over the past few decades, due to its safety, convenience, and efficiency, ultrasound has attracted significant attention in biomedical research and clinical diagnosis [1,2,3,4,5,6]. To meet the requirement of high resolution imaging and precise manipulation, the operational frequency of biomedical ultrasound needs to be greater than 20 MHz. For such applications, high frequency ultrasound transducer, which plays an important role in producing and receiving ultrasound signal, is indispensable [7,8,9,10,11,12,13]. Currently, to the best of our knowledge, single element transducers and linear arrays are widely used [14,15,16,17]. Only a few studies have been carried on the high-frequency ultrasound phased array [18,19,20,21], though it is very useful in biomedical imaging by providing electronic-beam-focusing and steering capabilities. Furthermore, there are even fewer researches on composite-material-based high-frequency ultrasound phased arrays, despite the numerous benefits of composite piezoelectric materials (lower acoustic impedance, higher electromechanical coefficient, broader bandwidth, etc.). As is known, the pitch of a phased array is much less than that of a linear array at the same operating frequency, and the kerf of a composite material must be small enough to avoid spurious modes. The above facts give rise to smaller size in both kerf and each element, which poses even greater challenges for piezoelectric material composite preparation and high frequency (≥20 MHz) phased array fabrication.
In recent years, single-crystal piezoelectrics have been developing a revolutionary solution to substitute traditional PZT ceramics for ultrasonic transducer applications [22,23,24]. Recently, PMN-PT single-crystals have been used to manufacture high frequency (≥20 MHz) phased arrays and some attractive results have been found [19,20]. However, the drawback of PMN-PT single-crystals is their relatively low-temperature usage range [22]. To make the devices maintain a better temperature stability, a high Curie temperature (Tc) ternary piezoelectric single crystal [Pb(In1/2Nb1/2)O3-Pb(Mg1/3Nb2/3)O3-PbTiO3, abbreviated as PIN-PMN-PT], which maintains a similar
electromechanical and piezoelectric performance (d33~1500 pm V–1, k33 > 90%) to a PMN-PT single
crystal, has been developed [25,26]. In previous studies, the PIN-PMN-PT single crystal and its composite have been proven to be promising candidates for high frequency single element transducer fabrication [7,26,27]. Additionally, compare with piezoelectric single crystal itself and its 2-2 composite, the single crystal 1-3 composite usually exhibits higher coupling coefficient and suitable acoustic impedance. Hence, it is of great interest to demonstrate the feasibility of the development of a PIN-PMN-PT single crystal 1-3 composite-based high frequency (≥20 MHz) ultrasound phased array.
In this work, a modified dice-and-fill technique for PIN-PMN-PT single crystal 1-3 composite preparation is introduced. The design, fabrication, and characterization of a 20 MHz side-looking 48-element high frequency ultrasound phased array are presented. Furthermore, to demonstrate the imaging capability of this obtained device, wire phantom imaging experiments are carried out based on a commercial Verasonics Vantage 128 System.
2. Design and Fabrication

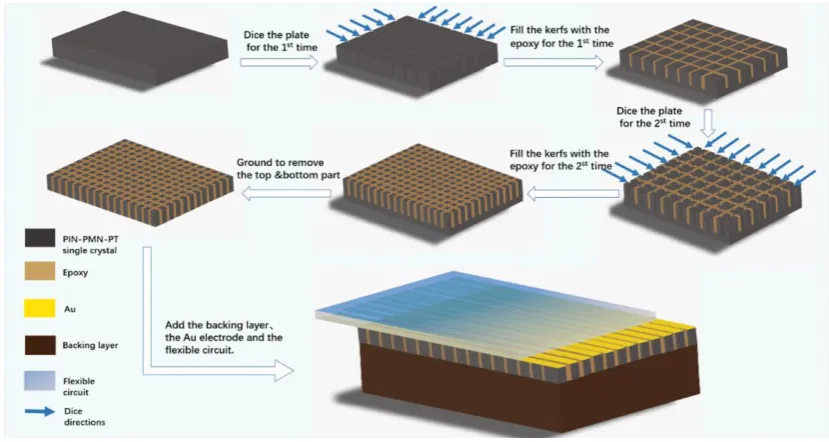

Figure 1. Schematic of the modified dice-and-fill method used for phased array fabrication.
In our fabrication, the [1]-oriented single crystal with a composition of
trapped bubbles were removed in vacuum for 15 min. After epoxy solidification at 40 °C for 10 h, the PIN-PMN-PT rods in the epoxy matrix were further diced in the two previous perpendicular directions with the same dicing pitch and depth to form equal areas. The newly formed kerfs were epoxy filled and cured again. Finally, to grind off the excess single-crystal and epoxy, a PIN-PMN-PT single crystal 1-3 composite with a 50 μm pitch and 80 μm depth was obtained. The main piezoelectric properties of the PIN-PMN-PT single-crystal 1-3 composite are listed in Table 1. With the Archimedes principle, we can know that the density of this kind of composite is 4510 kg/m3. In addition, the longitude velocity was measured to be 3600 m/s. Consequently, using the
equation of Z = c, the acoustic impedance can be calculated to be 16.2 MRayl. In addition, the piezoelectric coefficient d33 (1500 pC/N) was tested by a d33 meter (ZJ-6A, Institute of Acoustics,
Chinese Academy of Sciences, Beijing, China), and the loss (0.023) was evaluated by a LCR meter (Agilent, Englewood, CO, USA, 4263B). The electromechanical coupling factor (0.81) was calculated using resonance and anti-resonance frequencies, which were measured by an Agilent 4294A electric impedance analyzer (Agilent Technologies, Englewood, CO, USA). These excellent properties imply that this PIN-PMN-PT single crystal 1-3 composite is competent for ultrasound device application.

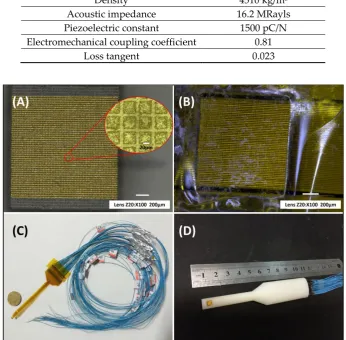

Table 1. Properties of piezoelectric single crystal 1-3 composite.
Piezoelectric material 0.27PIN-0.45PMN-0.28PT
Polymer Epoxy 301
Longitude velocity 3600 ms−1
Density 4510 kg/m3
Acoustic impedance 16.2 MRayls
Piezoelectric constant 1500 pC/N
Electromechanical coupling coefficient 0.81
Loss tangent 0.023
After sputtering Au/Cr (150 nm/100 nm) layers on both sides of the 1-3 composite, E-solder 3022 was added as the backing layer, and lithography was used to pattern 48 elements with a 38 μm width, 3 mm length, and 12 μm kerf, as presented in Figure 2A. Then, a piece of 30 μm polyimide-based flexible circuit(Kapton, DuPont, Wilmington, DE, USA) with gold patterns was attached to the front of the array using Epo-Tek 301 epoxy for electrical connections, as shown in Figure 2B,C. Actually, as long as the thickness of Epo-Tek 301 epoxy is in a suitable range, it can have a good adhesion; otherwise, it has no effect on conductivity. Because the flexible circuit (Kapton) has a specific acoustic impedance of 3.4 MRayl, it can also act as a matching layer for the phased array. Lastly, the 48-element side-looking phased array was encapsulated in a 3D-printed housing, as depicted in Figure 2D.
Table 2. The acoustic design parameters for piezoelectric single crystal 1-3 composite phased array transducer.
Layer Material Acoustic Impendence/MRayl Thickness/mm Matching layer Polyimide-based flexible circuit 3.4 0.03 Piezoelectric layer Single crystal 1-3 composite 16.2 0.08
Backing layer E-solder 3.22 5.92 2.5
To simulate the acoustic performance of our phased array, the Krimholz, Leedom, and Mattaei (KLM) equivalent circuit-based software package PiezoCAD (Sonic Concepts, Woodinville, WA, USA) was employed. The acoustic design parameters for piezoelectric single crystal 1-3 composite phased array transducer are listed in Table 2. For our design, the thickness of polyimide-based flexible circuit, PIN-PMN-PT single crystal 1-3 composite, and E-solder 3022 are 30 μm, 80 μm, and 2.5 mm, respectively. Figure 3 shows the simulated pulse-echo waveform and frequency spectrum of this phased array. It can be easily seen that the operational frequency is 20.8 MHz and bandwidth at −6 dB is 81.4%.

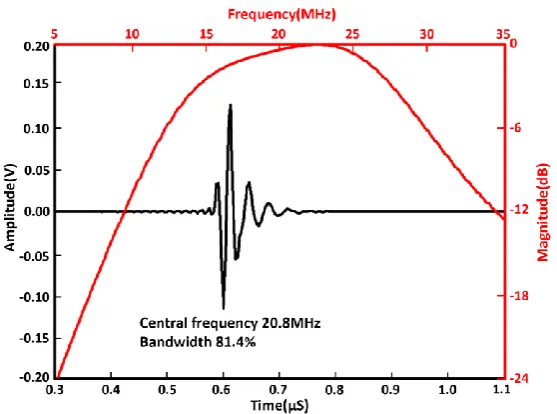

Figure 3. The simulated pulse-echo waveform and frequency spectrum of the transducer using the PiezoCAD software.
3. Characterization and Discussions
MHz. According to the IEEE standard [28], the thickness mode of the electromechanical coupling coefficient (kt) for each array element can be determined from the following equation:
𝒌𝒕2= 𝝅 2
𝒇𝒓 𝒇𝒂tan(
𝝅 2
𝒇𝒂−𝒇𝒓
𝒇𝒂 ), (1)
where 𝒇𝒓 and 𝒇𝒂 are the resonant and antiresonant frequencies, respectively. Substituting the
appropriate values into Equation (1), 𝒌𝒕 was calculated to be 0.81. This value is similar to those
reported in the literature [26,29].

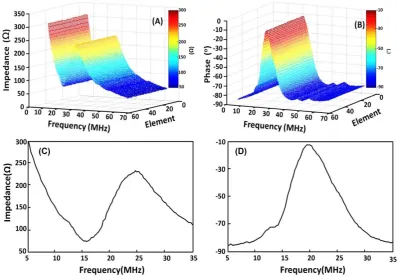

Figure 4. (A) Electrical impedance magnitude and (B) phase as a function of frequency for 48 elements. (C) Electrical impedance magnitude and (D) phase as a function of frequency for the 24th element.

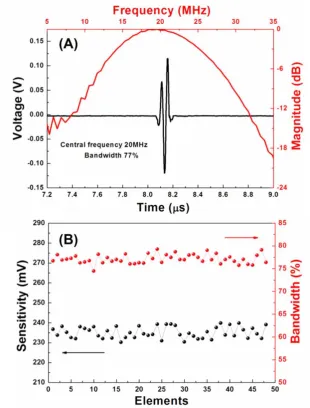

The pulse-echo response of the representative element of the phased array transducer was acquired in a deionized water tank at room-temperature using a pulser receiver (5900PR, Panametrics, Inc., Waltham, MA, USA). The echo was reflected by an X-cut quartz plate target, the waveform of which was recorded using a 1-GHz oscilloscope (LC534, LeCroy Corp., Chestnut Ridge, NY, USA). As shown in Figure 5A, the random array element exhibits a peak-to-peak echo amplitude of 0.235 V. The measured central frequency and bandwidth at −6 dB are 20 MHz and 77%, respectively, which is closed to the simulated result. It should be noted that, as described in Figure 5B, the array exhibits a good uniformity in acoustic performance (sensitivity: 0.235V ±2.1%, bandwidth: 77% ±3%).
mm–1 × MHz2) and the loss caused by the imperfect reflection from the quartz target (1.9 dB) [1], the
IL was calculated using
IL = 20log𝑽𝑹
𝑽𝑻+ 1.9 + 2.2 × 10
−4× 2𝒅 × 𝒇 𝒄 2,
(2)
where 𝒇𝒄 is the center frequency, VT and VR are the transmitting and receiving amplitudes, and 𝒅 is
the distance between the target and transducer. The IL value of the phased array elements was measured to be −19.7 dB, which is superior to those of PMN-PT single crystal- and PZT-5H-based high frequency (≥20 MHz) phased arrays [18,19,20]. This phenomenon is probably related to the high Curie Temperature of PIN-PMN-PT single crystal. The heat induced by lapping and dicing in fabrication process produces nearly no effluence to its electrical properties. Therefore, PIN-PMN-PT single crystal 1-3 composite array element can sustain a high piezoelectric performance. For the crosstalk measurement, the amplitude of an echo signal reflected by the quartz target was received by the nearest neighbor element of the excited one. According to the method reported in Reference [18], the measured crosstalk between the nearest neighbor array elements at the center frequency was −38 dB.
In order to measure the one-way azimuthal directivity response, a representative array element (24th element) was excited. The amplitude of the time-domain response of the element at discrete angular positions was acquired by a piezoelectric hydrophone with 0.2 mm diameter (Precision Acoustic, Dorset, UK). As can be seen in Figure 6A, for our phased array, the measured −6 dB directivity is approximately ±21°. Meanwhile, the similar result was reported in Reference [20], a −6 dB directivity of approximately ±20° for a 20 MHz phased array. For the evaluation of the acoustic output characteristics of the transducer, both the acoustic pressure of a representative element (24th element) and the entire array in the axis direction were measured by this commercial needle piezoelectric hydrophone. As shown in Figure 6B, the maximum acoustic pressure for an element near the surface is about 323 KPa, and the maximum acoustic pressure of the entire array near the focusing position is 625 KPa. These results indicate that this PIN-PMN-PT single crystal 1-3 composite-based phase array has the potential for ultrasound imaging application.
Figure 6. (A) Measured one-way azimuthal directivity responses of a representative array element (24th element). (B) The acoustic output in the axial direction of a representative array element (24th element) and the entire array.
located evenly between 0–10 mm along the aperture central axis were first created. The simulated result is presented in Figure 7A in a 60 dB dynamic range and the focal distance is about 3.2 mm. The imaging performance can be improved by applying apodization, as shown in Figure 7B. Because the pitch of the fabricated array is 50 µ m and the half-wavelength of the 20 MHz sound wave in water is 37.5 µ m, the side-lobes thus appear at arcsin(37.5/50), which is 48.6°,and the result is consistent with the simulation result, as shown in Figure 7C. When the beam is steered at the angle of 45°, the grating lobe shares quite a large part of the energy, as Figure 7D. The image results also indicate that the ultrasound energy is concentrated at about 3 mm along the axis. The image resolutions of the points deteriorate when they are off-axis or move away from the 3-mm distance.

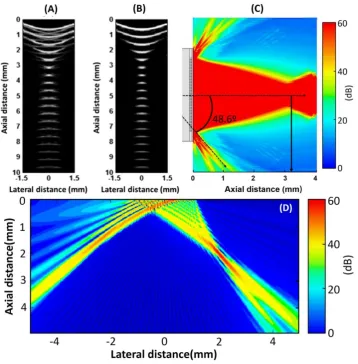

Figure 7. Point spread function phantom-imaged (A) without and (B) with apodization. (C) Simulated phased array acoustic pressure of emission mode when the steering angle is 0°. (D) Simulated acoustic beam generated by the 48-element phased array when the steering angle is 45°and the focal distance is 3 mm.
Figure 8. Schematic diagram of tungsten wire phantom in deionized water.
Figure 9. (A) Acquired image of custom-made fine-wire phantom. (B) Pseudo-color image of custom-made fine-wire phantom.
𝑹𝑨= 𝑷𝑳 𝟐⁄ , (3)
𝑹𝑳= 𝑭# × 𝝀, (4)
where 𝑹𝑨 and 𝑹𝑳 are the axial and lateral spatial resolutions, respectively. 𝑷𝑳 is the −6 dB spatial
Therefore, the theoretical axial resolution is 75 μm and theoretical lateral resolution is 94 μm. Plots of the axial and lateral line spread functions for the second wire are shown in Figure 10A,B. The measured spatial resolutions at −6 dB are approximately 77 μm and 125 μm in the axial and lateral directions, respectively. These values are in accordance with those theoretical values.
.
Figure 10. (A) Axial and (B) lateral line spread functions for the second wire of the wire phantom.
Figure 11. Schematic diagram of copper wire phantom in PDMS.
Figure 12. (A) Copper wires phantom image. (B) Pseudo-color image of copper wires phantom.
Based on a modified dice-and-fill technique, a PIN-PMN-PT single crystal 1-3 composite with high piezoelectric constant (d33 = 1500 pC/N), high electromechanical coefficient (kt = 0.81), and low
acoustic impedance (16.2 Mrayls) was prepared. Utilizing this kind of composite, a 20 MHz 48-element side-looking high frequency phased array with central frequency of 20 MHz and −6 dB bandwidth of 77% was successfully fabricated, which was confirmed by the electric impedance resonance curve and the pulse-echo response. Of particular significance was that this PIN-PMN-PT single crystal 1-3 composite-based phased array exhibits a superior insertion loss compared with PMN-PT single crystal and PZT-5H-based 20 MHz phased arrays. The focusing and steering capabilities of the obtained phased array were demonstrated theoretically and experimentally. Furthermore, when using such a phased array, wire phantom images in water and PDMS can be achieved. These promising results suggest that the PIN-PMN-PT single crystal 1-3 composite-based high frequency phased array is competent for biomedical ultrasound imaging in the future.
Author Contributions: B.Z. and D.W. conceived and designed the experiments; W.Z. and T.Z. performed the experiments; J.O.-Y. and X.Y. analyzed the data; W.Z. and T.Z. wrote the paper.
Funding: This work was supported by the Natural Science Foundation of China (Grant no. 11774117), and the Excellent Youth Foundation of Hubei Province (2018CFA083). We thank the Analytical and Testing Center of Huazhong University of Science & Technology.
Conflicts of Interest: The authors declare no conflict of interest.
