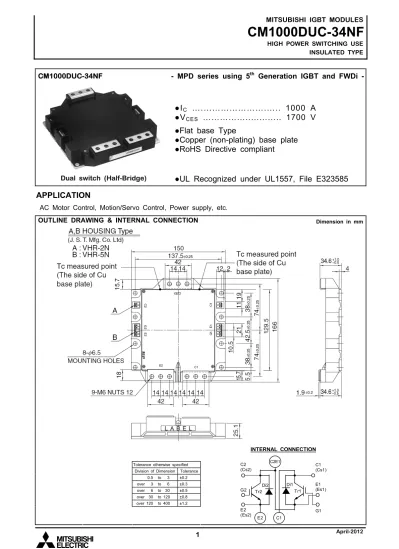

I C A V CES V Flat base Type Copper (non-plating) base plate RoHS Directive compliant. UL Recognized under UL1557, File E323585

(1)

CM1000DUC-34NF

- MPD series using 5

th

_{Generation IGBT and FWDi}

-●I

C

….……….….. 1000 A

●V

CES

………..…...….. 1700 V

●Flat base Type

●Copper (non-plating) base plate

●RoHS Directive compliant

Dual switch (Half-Bridge)

_{●UL Recognized under UL1557, File E323585}

APPLICATION

AC Motor Control, Motion/Servo Control, Power supply, etc.

OUTLINE DRAWING & INTERNAL CONNECTION

Dimension in mm

INTERNAL CONNECTION

Tolerance otherwise specified Division of Dimension Tolerance

0.5 to 3 ±0.2 over 3 to 6 ±0.3 _Di2 C2E1 Di1 G2 C2 (Cs2) E1 (Es1) C1 (Cs1)

(2)

Symbol Item Conditions Rating Unit VCES Collector-emitter voltage G-E short-circuited 1700 V

VGES Gate-emitter voltage C-E short-circuited ± 20 V

IC DC, TC=104 °C (Note2) 1000

ICRM

Collector current

Pulse, Repetitive (Note3)₂₀₀₀A

Pt o t Total power dissipation TC=25 °C (Note2, 4) 8925 W

IE (Note1) TC=25 °C (Note2, 4) 1000

IERM (Note1)

Emitter current

(Free wheeling diode forward current) Pulse, Repetitive (Note3)₂₀₀₀A

Vi s o l Isolation voltage Terminals to base plate, RMS, f=60 Hz, AC 1 min 3500 V

Tj Junction temperature - -40 ~ +150

Ts t g Storage temperature (Note7) -40 ~ +125

°C

ELECTRICAL CHARACTERISTICS (T

j

=25 °C, unless otherwise specified)

Limits

Symbol Item Conditions

Min. Typ. Max. Unit

IC E S Collector-emitter cut-off current VCE=VCES, G-E short-circuited - - 1 mA

IG E S Gate-emitter leakage current VGE=VGES, C-E short-circuited - - 5 μA

VG E ( t h ) Gate-emitter threshold voltage IC=100 mA, VCE=10 V 6 7 8 V

IC=1000 A (Note5) , Tj=25 °C - 2.2 2.85

VC E s a t Collector-emitter saturation voltage

VGE=15 V Tj=125 °C - 2.45 -

V

Ci e s Input capacitance - - 220

Co e s Output capacitance - - 25

Cr e s Reverse transfer capacitance

VCE=10 V, G-E short-circuited

- - 4.7 nF QG Gate charge VCC=1000 V, IC=1000 A, VGE=15 V - 6000 - nC

td ( o n ) Turn-on delay time - - 600

tr Rise time

VCC=1000 V, IC=1000 A, VGE=±15 V,

- - 200

td ( o f f ) Turn-off delay time - - 1000

tf Fall time

RG=0.47 Ω, Inductive load

- - 300

ns

VEC (Note1) Emitter-collector voltage IE=1000 A, G-E short-circuited (Note5) - 2.3 3.0 V

tr r (Note1) Reverse recovery time VCC=1000 V, IE=1000 A, VGE=±15 V, - - 500 ns

Qr r (Note1) Reverse recovery charge RG=0.47 Ω, Inductive load - 90 - μC

Eo n Turn-on switching energy per pulse VCC=1000 V, IC=IE=1000 A, - 272.4 -

Eo f f Turn-off switching energy per pulse VGE=±15 V, RG=0.47 Ω, Tj=125 °C, - 250.2 -

Er r (Note1) Reverse recovery energy per pulse Inductive load - 172.4 -

mJ

RCC'+EE' Internal lead resistance Main terminals-chip, per switch, _T

C=25 °C (Note2) - 0.286 - mΩ

rg Internal gate resistance Per switch - 0.67 - Ω

THERMAL RESISTANCE CHARACTERISTICS

Limits

Min. Typ. Max. Unit

Rt h ( j - c ) Q Junction to case, per IGBT - - 14 K/kW

R Thermal resistance

(Note2)

(3)

RECOMMENDED OPERATING CONDITIONS

Limits

Min. Typ. Max. Unit VC C (DC) Supply voltage Applied across C1-E2 - 1000 1100

VGEon Gate (-emitter drive) voltage Applied across G1-Es1/G2-Es2 13.5 15.0 16.5

V RG External gate resistance Per switch 0.47 - 4.7 Ω

Note1. Represent ratings and characteristics of the anti-parallel, emitter-collector free wheeling diode (FWDi).

2. Case temperature (TC) and heat sink temperature (Ts) are defined on the each surface of base plate and heat sink

just under the chips. (Refer to the figure of chip location)

The heat sink thermal resistance {Rt h ( s - a )} should measure just under the chips.

3. Pulse width and repetition rate should be such that the device junction temperature (Tj) dose not exceed Tj m a x rating.

4. Junction temperature (Tj) should not increase beyond Tj m a x rating.

5. Pulse width and repetition rate should be such as to cause negligible temperature rise. (Refer to the figure of test circuit) 6. Typical value is measured by using thermally conductive grease of λ=0.9 W/(m·K).

7. The operation temperature is restrained by the permission temperature of female connector housing. 8. Base plate flatness measurement points are as in the following figure.

+: Convex -: Concave +: C onv ex Bottom Bottom Label side Bottom Y1 X 39 mm 39 mm Y2 -: C on cav e

9. Generally, the company name, the brand name listed in this material are the trademark of the companies or registered tradem arks.

(4)

(5)

TEST CIRCUIT AND WAVEFORMS

IC C2E1 E2 Es2 G2 Es1 G1 V Short- circuited C1 VGE=15 V Cs1 Cs2 IC C2E1 E2 Es2 G2 Es1 G1 V Short- circuited C1 VGE=15 V Cs1 Cs2 IE C2E1 E2 Es2 G2 Es1 G1 V Short-circuited C1 Cs1 Cs2 Short-circuited IE C2E1 E2 Es2 G2 Es1 G1 V Short- circuited C1 Cs1 Cs2 Short- circuited Tr1 Tr2 Di1 Di2 VC E s a t test circuit VEC test circuit

～ t tf tr td ( o n ) iC 10% 90 % 90 % vGE VC C RG -VGE +VGE -VGE Load ～～～ 0 V 0 A + 0 vCE vGE 0 V td ( o f f ) t iE iC C1 E2 C2E1 G1 Es1 G2 Es2 Cs1 Cs2 Ir r Qr r=0.5×Ir r×tr r 0.5×Ir r t tr r iE 0 A IE

Switching characteristics test circuit and waveforms tr r, Qr r test waveform

0.1×ICM IC M VC C vC E iC t 0 Eo n 0.1×VCC 0.1×VC C VCE ICM vC E iC t 0 Eo f f 0.02×IC M IEM vEC iE t 0 V Er r t VC C 0 A

IGBT Turn-on switching energy IGBT Turn-off switching energy FWDi Reverse recovery energy Turn-on / Turn-off switching energy and Reverse recovery energy integral range

(6)

OUTPUT CHARACTERISTICS (TYPICAL) COLLECTOR-EMITTER SATURATION VOLTAGE CHARACTERISTICS (TYPICAL) Tj=25 °C (Chip) VGE=15 V (Chip) COLLECTOR CURRENT I C (A) 0 500 1000 1500 2000 0 2 4 6 8 10 COLLECTOR-EMITTER SATURATION VOLTAGE V CEsat (V) 0 1 2 3 4 0 500 1000 1500 2000

COLLECTOR-EMITTER VOLTAGE VCE (V) COLLECTOR CURRENT IC (A)

COLLECTOR-EMITTER SATURATION VOLTAGE CHARACTERISTICS

(TYPICAL)

FREE WHEELING DIODE FORWARD CHARACTERISTICS

(TYPICAL)

Tj=25 °C (Chip) G-E short-circuited (Chip)

CEsat (V) 6 8 10 E (A) 1000 10000 Tj=125 °C Tj=25 °C VGE=20 V 12 V 11 V 10 V 9 V 13.5 V 15 V Tj=125 °C IC=2000 A IC=1000 A IC=400 A

(7)

HALF-BRIDGE SWITCHING CHARACTERISTICS (TYPICAL) HALF-BRIDGE SWITCHING CHARACTERISTICS (TYPICAL) VCC=1000 V, VGE=±15 V, RG=0.47 Ω, Tj=125 °C, INDUCTIVE LOAD VCC=1000 V, IC=1000 A, VGE=±15 V, Tj=125 °C, INDUCTIVE LOAD SWITCHING TIME (ns) 10 100 1000 10000 100 1000 10000 SWITCHING TIME (ns) 10 100 1000 10000 0.1 1 10

COLLECTOR CURRENT IC (A) EXTERNAL GATE RESISTANCE RG (Ω)

HALF-BRIDGE SWITCHING CHARACTERISTICS (TYPICAL) HALF-BRIDGE SWITCHING CHARACTERISTICS (TYPICAL) VCC=1000 V, VGE=±15 V, RG=0.47 Ω, Tj=125 °C,

INDUCTIVE LOAD, PER PULSE

VCC=1000 V, IC/IE=1000 A, VGE=±15 V, Tj=125 °C,

INDUCTIVE LOAD, PER PULSE

SWITCHING ENERG Y (mJ) REVERSE RECO VERY ENERG Y (mJ) 10 100 1000 SWITCHING ENERG Y (mJ) REVERSE RECO VERY ENERG Y (mJ) 10 100 1000 10000 td ( o n ) tr td ( o f f ) tf td ( o n ) tr tf td ( o f f ) Eo n Eo f f Er r Eo n Eo f f Er r

(8)

CAPACITANCE CHARACTERISTICS

(TYPICAL)

FREE WHEELING DIODE

REVERSE RECOVERY CHARACTERISTICS (TYPICAL) G-E short-circuited, Tj=25 °C VCC=1000 V, VGE=±15 V, RG=0.47 Ω, Tj=25 °C, INDUCTIVE LOAD CAPACITANCE (nF) 0.1 1 10 100 1000 0.1 1 10 100 trr (ns), I rr (A) 100 1000 10000 100 1000 10000

COLLECTOR-EMITTER VOLTAGE VCE (V) EMITTER CURRENT IE (A)

GATE CHARGE CHARACTERISTICS

(TYPICAL)

TRANSIENT THERMAL IMPEDANCE CHARACTERISTICS (MAXIMUM) IC=1000 A, Tj=25 °C Single pulse, TC=25°C GE (V) 15 20 Z th(j -c ) 0.1 1 Ci e s Co e s Cr e s Ir r tr r VCC=800 V VCC=1000 V

(9)
