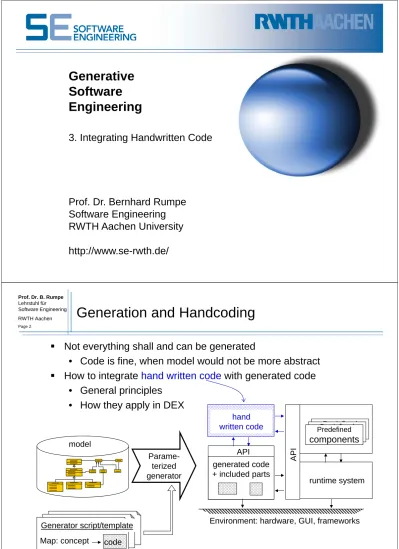

Generation and Handcoding

(1)

Generative

Software

Engineering

3. Integrating Handwritten Code

Prof. Dr. Bernhard Rumpe Software Engineering RWTH Aachen University http://www.se-rwth.de/ Prof. Dr. B. Rumpe Lehrstuhl für Software Engineering RWTH Aachen Page 2

 Not everything shall and can be generated

• Code is fine, when model would not be more abstract  How to integrate hand written code with generated code

• General principles • How they apply in DEX

Generation and Handcoding

Parame-terized generator

Generator script/template Map: concept _code

model

hand written code

runtime system

Environment: hardware, GUI, frameworks generated code + included parts Predefined componentsPredefined componentsPredefined components API API

(2)

Prof. Dr. B. Rumpe Lehrstuhl für Software Engineering RWTH Aachen Page 3

Goals of Handcoding

 The goal of handcoding

• extend domain model

• add functionality to generated code

• customize generated code

 Benefits of handcoding

• Normally re-generation is not needed

• Reuse of existing handwritten code

• Tooling (e.g. editor) for the programming language can be used

 DEX supports extensions for

• domain model with attributes and method bodies • domain model with signatures

• generated GUI code

Handwritten Code

 Handcoding (HC) = the process of writing code manually (by hand)

 vs. generating code (GC), where the code comes from the generator.

 Important questions to decide:

• Artefacts of interest for users?

• What to write, what to read and understand

• Generating and handcoding in which order?

• Repeatable generation?

• Dependences between the forms of code? • Methodical alignment

• Which knowledge is necessary for

• the developer • the generating tool

(3)

Software Engineering RWTH Aachen

Page 5

Mixing of HC and Generation in Artifacts

 Scenario A:

• 1. Let the generator produce code frames in files • 2. Add code manually, e.g. method implementations  Advantage:

• HC is well integrated inside GC  Disadvantage:

• “One shot” generation only

• Model becomes irrelevant because useless after generation, • Changes in models impossible

• Doesn’t support evolution  Decision:

• Strict separation of handcoding and generation on artifacts! • Each artifact (= file) is either handcoded or generated.

Prof. Dr. B. Rumpe

Lehrstuhl für Software Engineering RWTH Aachen

Page 6

Mixing of HC and Generation in Artifacts -2

 Scenario B:

• 1. Let the generator produce code frames in files

• Generate explicit markers to protect regions of HC

• 2. Add code manually in protected regions

 Advantage:

• Easy to use and easy to identify where to handcode

 Necessary:

• Extraction of HC for inclusion in next generation step

 Disadvantages:

• Not robust e.g. against editing

• Vulnerable against advanced tools (e.g. beautifiers) • No clean full generation possible

• Generated code needs to be version controlled public class Person {

public String getFullname () {

/* [protected GEN#XwgHEge23qp (method getFullname)] */ // to be handcoded /* [/protected GEN#XwgHEge23qp] */ } } Java «hc» «gen» «gen»

(4)

Page 7

Separation of HC and GC in Artifacts

 Each artifact (file) is either HC or GC.

 Advantages:

• Only sources (HC and models) need to be versioned

• this greatly reduces conflicts

• and helps understanding progress from the version control logs

• Developers normally don’t read generated code

• just understand the interfaces

• Clean & regenerate always works  Necessary:

• HC needs to be written and integrated

Page 8

Alternatives for Integration of HC

 1. Reference it from the model. •  Ch. 2 for attributes &

• DEX would allow method signatures & bodies in a CD, but that pollutes the CD (not recommended)

 2. Compiler: no that doesn’t work

• We would need “partial classes”, not provided by Java

 3. When starting at runtime

• 3a) Write your own main()-function and call HC to configure GC

• that is fine and actually used by many frameworks

• 3b) write static-code pieces: no, because classes are loaded lazy in Java (and thus static code may be never called)

 4. Config file

• Works, but is error prone because it looses type safety.

 5. Generator identifies HC and integrates references to it

(5)

Page 9

 Generated DEX product has this architecture

• HC internal architecture is out of generators control: • But it is recommended to maintain the architecture

Overview of Product with HC

RTE standard components Application Core RTE standard components GUI RTE standard components Persistence hand coded hand coded hand coded generated generated generated Prof. Dr. B. Rumpe Lehrstuhl für Software Engineering RWTH Aachen Page 10

Generator detects HC, the Principle:

 Approaches DEX uses: (Placeholder X)

 1. Extending signature and implementation of domain class X.java • When XSIG.java exists  inherit it in X.java

• When XEIMP.java exists  use it in the factory

(assuming it is a subclass of XIMP)  2. Specific Hot Spots documented in the generator handbook.

 Extending signature, implementation and hot spots

(6)

Generative

Software

Engineering

3. Integrating Handwritten Code 3.1. Extension of Generated Code

Prof. Dr. Bernhard Rumpe Software Engineering RWTH Aachen University http://www.se-rwth.de/ Farbe! Prof. Dr. B. Rumpe Lehrstuhl für Software Engineering RWTH Aachen Page 12

Generated Artifacts in DEX

 What DEX does:

 One class is mapped to • an interface

• an implementation, and • a factory for object creation

GroupFactory

+static Group create() #Group doCreate() …

class Group extends Profile

{ // … String purpose; } CD SocNet Java «gen» «interface» Group + String getPurpose(); + void setPurpose(String s) … GroupImpl - String purpose; + String getPurpose(); + void setPurpose(String s) …

(7)

Page 13

Extending the Implementation

 … and adapting generated functionality

 by defining HC class XEIMP that inherits GC

 Generator adapts only the GroupFactory

• now GroupEIMP objects are created

 Necessary:

• GroupEIMP is subclass of GroupImpl

• “EIMP” was chosen to prevent occasional use • “EIMP” = extended implementation

«interface» Group

GroupImpl

GroupEIMP

GroupFactory +static Group create() #Group doCreate() …

import GroupEIMP; …

class GroupFactory …

protected Group doCreate() { return new GroupEIMP(); }

handcoded Java class

adapted Factory Product-CD «hc» «gen» «gen» «gen» «gen» Prof. Dr. B. Rumpe Lehrstuhl für Software Engineering RWTH Aachen Page 14

 Two steps are required to add handcoded Java classes in DEX • 1. Create handcoded Java class GroupEIMP

• 2. Implement the full and the empty constructor of GroupImpl

• (3. Override methods and add attributes/methods …)

public class GroupEIMP extends GroupImpl {

public GroupEIMP() {

super(); }

protected GroupEIMP(String profileName, boolean isOpen, Date created, String purpose) {

super(profileName, isOpen, created, purpose); }

}

How to add handcoded Java classes

attributes of class GroupImpl

Java «hc»

(8)

Page 15

 The domain model can be extended by adding attributes

 Properties of these attributes • not visible in the GUI • not saved in the database

public class GroupEIMP extends GroupImpl {

private String newAttribute = "My String";

// ... }

How to add attributes to the domain model

new domain model attribute Java «hc» Prof. Dr. B. Rumpe Lehrstuhl für Software Engineering RWTH Aachen Page 16

 Application functionality can be extended by adding new methods • This brings the “meat” to the application

 Limitations

• New methods do not appear in the signature of the Group interface

public class GroupEIMP extends GroupImpl { // ...

public String groupOverview (){

return "Group Overview: " + getPurpose() + " " + getHeadcount();

} }

How to add Methods

new method Java «hc»

(9)

Page 17

How to implement derived Attributes

 Derived attribute does have an empty default implementation as get/retrieve-method

 Add meaning to the derived attribute using HC by overriding the getter

 Every generated method can be overwritten • Incl. ordinary get/setters for attributes • Association methods

public class GroupEIMP extends GroupImpl { // ...

@Override

public int getHeadcount() {

return sizeMembers()+ sizeOrganizers(); } } Group /int headcount; … Java «hc» Model-CD Prof. Dr. B. Rumpe Lehrstuhl für Software Engineering RWTH Aachen Page 18

 derived attributes are shown in the gui

(10)

Page 19

Overwriting Generated Methods

 Generated methods can be adapted by HC

 Log result is shown in the bottom line on the GUI

public class GroupEIMP extends GroupImpl { //constructors ...

public void setPurpose(String pname) {

StatusBar.write("Group "+profileName +" new purpose "+pname)

super.setPurpose(pname); } } Group boolean isOpen Date created String purpose /int headcount overrride Logging Java «hc» Model-CD Prof. Dr. B. Rumpe Lehrstuhl für Software Engineering RWTH Aachen Page 20

Extending the Implementation

 Advantages:

• relatively little effort to adapt implementation

• adaptable reuse of generated implementation • smooth integration of HC artefact

 Restriction:

• Only one subclass supported  Disadvantages:

• IDEs don’t assist when superclass hasn’t been generated yet

• = many false errors are reported after fresh checkout or a clean

• some risk of unwanted occasional detection of “*EIMP”

• re-generation necessary after EIMP-class is created (or deleted) to get adapted factory

«interface» Group GroupImpl GroupEIMP Product-CD «hc» «gen» «gen»

(11)

Generative

Software

Engineering

3. Integrating Handwritten Code

3.2. Extending Data Model Signature

Prof. Dr. Bernhard Rumpe Software Engineering RWTH Aachen University http://www.se-rwth.de/ Prof. Dr. B. Rumpe Lehrstuhl für Software Engineering RWTH Aachen Page 22

 by defining HC interface XSIG that inherits to GC

 1. Generator detects XSIG.java

 2. Generated code is adapted to implement the new interface

 3. Generator also expects XEIMP.java, because XImpl is now abstract

 Signature extensions (methods) are inherited to interface X.java and handcoded in XEIMP.java  “Sandwich”-Principle for extension

Extending the Signature of a Class

public interface GroupSIG {

String getFullname(); } «interface» GroupSIG Product-CD «interface» Group GroupImpl GroupEIMP «hc» «gen» «gen» «hc»

(12)

Prof. Dr. B. Rumpe Lehrstuhl für Software Engineering RWTH Aachen Page 23  Required steps

• 1. Add handwritten Java interface XSIG

• 2. Add handwritten Java class XEIMP

• 3. Implement new methods in XEIMP

How to add signature extensions

public interface Group extends dex.socnet.GroupSIG { //... } handwritten Java interface «interface» GroupSIG Product-CD «interface» Group GroupImpl GroupEIMP «hc» «gen» «gen» «hc» Java «gen»

public abstract class GroupImpl implements dex.socnet.Group

{ //... } Prof. Dr. B. Rumpe Lehrstuhl für Software Engineering RWTH Aachen Page 24

Mapping Model Inheritance and HC Extension

 Inheritance and implementation relation is preserved

 DEIMP inherits CEIMP indirectly

through DImpl

interface A; interface B;

class C implements A;

class D extends C implements B;

Model-CD «interface» B DEIMP Product-CD «gen» «interface» A CEIMP «interface» DSIG «interface» C «interface» BSIG «interface» ASIG «abstract» DImpl «abstract» CImpl «interface» CSIG «interface» D

(13)

Page 25

 Advantages

• Separation of generated and handwritten artifacts

• Signature extensions in HC interfaces

• Supports redefinition of generated functionality

• Supports implementation of internally available methods and attributes

 Disadvantages/problems

• Signature of methods need to be repeated at implementation • Re-generation is necessary when SIG/EIMP-class is added or

removed

Signature Extensions Summary

Generative

Software

Engineering

3. Integrating Handwritten Code 3.3. Hot Spots for the DEX GUI

Prof. Dr. Bernhard Rumpe Software Engineering RWTH Aachen University http://www.se-rwth.de/

(14)

Page 27

 A hot spot is a place in the generated code that is planned for adaptation by handwritten code.

 The adaptation is carried out through the generator detecting and including appropriate HC.

 Hot spot documentation needs:

• A) How does a hot spot look like

• e.g. naming conventions for the class

• B) Signature the hot spot has to provide • C) What is the API the hot spot can use  The approach is similar to framework hot spots.

Hot Spot

 Often the GUI of a DEX product needs adaptation

• More functions, more screens, nicer appearance, …

• GUI can be customized by adding handwritten extensions  DEX has e.g. hot spots prepared for

• Menu Extension

• Home Screen Adaptation • Panel Extensions

• Startup and TearDown Phases

 Adapting a hot spot needs some knowledge about the mechanisms of the adapted GUI.

 Examples of DEX SocNet adaptations:

• see DEX website: http://www.monticore.de/dex/

(15)

Page 29

Hot Spot: Menu Extension

public class MainWindowViewEIMP extends MainWindowView { //constructors

public void extendMenu() {

JideMenu m = new JideMenu("StatusBar"); JMenuItem item = new JMenuItem("print"); m.add(item);

item.addActionListener(new ActionListener() { @Override

public void actionPerformed(ActionEvent e) {

StatusBar.write("Menue item print was clicked");

}});

addMenuItem(m); }

}

 Purpose: Add menu items

 Hot spot class: MainWindowViewEIMP

 Methods to override: • extendMenu()  Available API: • addMenuItem(), … Java «hc» Prof. Dr. B. Rumpe Lehrstuhl für Software Engineering RWTH Aachen Page 30

How to Adapt the Home Screen

 Purpose: Customize home screen

 Hot spot class: MainWindowPresenterEIMP

 Methods to override:

• setHomeTitle()  Available API (see code):

• Swing

public class MainWindowPresenterEIMP extends MainWindowPresenter { //constructors

public JPanel setHomeTitle() { JPanel panel = new JPanel(); panel.setLayout(null);

JLabel lblSystem = new JLabel("SocNet System");

lblSystem.setHorizontalTextPosition(SwingConstants.CENTER); lblSystem.setHorizontalAlignment(SwingConstants.CENTER); lblSystem.setFont(new Font("Tahoma", Font.PLAIN, 40)); panel.setLayout(new BorderLayout(0, 0)); panel.add(lblSystem, BorderLayout.CENTER); return panel; } } Java «hc»

(16)

Adapting Panels

 Purpose: Customize Panel for Specific Domain Class “X”

 Hot spot class: XEditPanelViewEIMP  Methods to override:

• getXPanelComponent()  Available API (see code):

• Swing

• Reusable: Methods from XEditPanelView

TagEditPanelView

«interface» ITagEditPanelView

TagEditPanelView

TagEditPanelViewEIMP

public class TagEditPanelViewEIMP extends TagEditPanelView { //constructors

public ITagPanelComponentView getTagPanelComponent() {

//... } } «hc» «gen» «gen» Java «hc» Product-CD Prof. Dr. B. Rumpe Lehrstuhl für Software Engineering RWTH Aachen Page 32

StartUp & TearDown

 Purpose: Add startup and teardown actions or takeover control completely

 Hot spot class: XControllerEIMP (for model X.cd)

 Methods to override:

• startUp()

• tearDown()

 Available API (see code):

• Reusable: Methods from AbstractController

public class SocNetControllerEIMP extends SocNetController{ //constructors

protected void startUp() {

//... some startUp actions }

protected void tearDown() {

//... some tearDown actions }

(17)

Page 33

Summary – Lessons learned

 Hot spots are HC classes that replace generated classes • and at the same time inherit their functionality for reuse  Hot spots can be used for various purposes:

• Signature extension • Method overwriting • Functionality extension

 Hot spots allow to inject HC into a generated system, thus adapting it for specific needs

 Hot spots are filled during the generation process • and identified through naming conventions

 Hot spots are usually model-specific

Generative

Software

Engineering

3. Integrating Handwritten Code 3.4. More Adaptation Mechanisms

Prof. Dr. Bernhard Rumpe Software Engineering RWTH Aachen University http://www.se-rwth.de/

(18)

Class Overriding

 The principle:

• When X.java exists in handcoded form

 just use it and generate nothing

 Required:

• HC Java can be distinguished from GC

• e.g. disjoint directories for HC and GC

 Advantage:

• Anything can easily be adapted  Disadvantage:

• X.java: nothing is generated anymore; no reuse

• Brittle: adaptations of model need to be tracked manually in HC

Page 36

Class Overriding plus Prototypes

 The principle:

• When X.java exists in handcoded form

 use it, but generate XProto.java instead

• Xproto.java can be used as superclass for HC X.Java  Advantage:

• Anything can easily be adapted

• Reuse of generated code possible, which is still there

 Disadvantage:

• Brittle: adaptations of model need to be tracked manually in HC  Remark: very similar to the Dex approach using EIMPL

(19)

Page 37

Use GUI as Framework

 The principle:

• The generated code may be adaptable by classic programming techniques, e.g. usable as framework

 Required:

• Explicit hot spots (= empty methods) that can be overwritten in subclasses

• Possibilities to adapt / configure in the generated code  Advantage:

• Traditional form of adaptation, no interaction with generator  Disadvantage:

• Generated code needs to be a framework

Delegation to HC

 The principle:

• The generated code uses delegation to hot spots

 Similar to the used inheritance approach  Advantage:

• More flexible, e.g. individual delegators for each method  Disadvantage:

• More complex: more objects to manage, • Objects have substructure

delegate Delegation delegator delegate Person String getFullName() «interface» PersonDelegate String getFullName() Person String getFullName() PersonImpl String getFullName() Model-CD Product-CD «hc» «gen» _«gen»

(20)

Partial Classes

 The principle:

• The language allows classes to be distributed over several artefacts, called “partial classes”

 Advantage:

• Generation of classes piecewise is possible

 Disadvantage:

• Java doesn’t support this (It can be mimicked by a design pattern) • Generated functionality cannot be redefined

Model-CD partial_{string firstName;}class Person{

//… }

partial class Person{

public string getFullname(){ //… } } classes have the same names Person String firstName String getFullName() «hc» «gen» C# Prof. Dr. B. Rumpe Lehrstuhl für Software Engineering RWTH Aachen Page 40

Aspect Orientation for HC-Injection

 The principle:

• Use an Aspect-Oriented Language • Add functionality in form of Aspects  Disadvantage:

• From SE point of view aspects are harmful. Not recommended to use an AOP language for coding. (Much worse than goto)

public class Person { //… generated impl public void clearMembers() { //… default impl } }

public aspect PersonAspect {

pointcut pcClearMembers(Person p):

execution(* Person.

clearMembers()) && target(p);

void around(Person p): pcClearMembers (p) { // … handwritten impl } } AspectJ Handwritten impl. in advice p = instance on which method shall be executed Java «gen» «hc»

(21)

Page 41

Embed Action Language in Model

 The principle:

• Embed a language for method implementation within the modelling language

 Advantage:

• We get completely rid of handcoding!  Disadvantage:

• Large model: confusing?

• IDEs are less elaborated for such kind of programming  Examples:

• MontiCore (DEX) provides possibilities to add methods and method bodies, e.g. in Java and python-style

• UML has its own action language defined

Page 42

Model Refers to Actions

 The principle:

• Add references to the implementations in the model  Variants:

• 1) GC calls the referenced HC: like delegation

• 2) Generator weaves the referenced artefact into the GC

 Disadvantage:

• Model gets polluted

• Model contains references to artefacts that should be developed after the model  unnecessary

• IDEs are less elaborated for such kind of programming

• For 2: Checking of syntactical correctness is deferred to the compiler (and thus too late)
