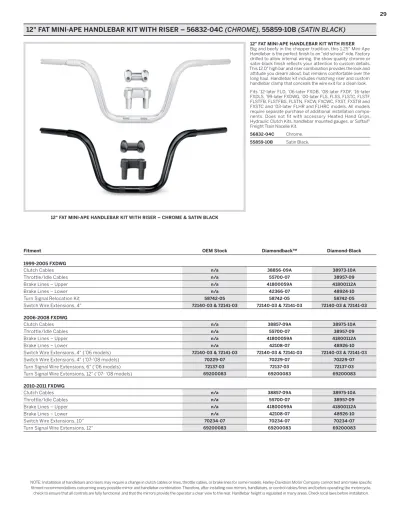

12" FAT MINI-APE HANDLEBAR KIT WITH RISER C (CHROME), B (SATIN BLACK)

(1)

NOTE: Installation of handlebars and risers may require a change in clutch cables or lines, throttle cables, or brake lines for some models. Harley-Davidson Motor Company cannot test and make specific

Fitment OEM Stock Diamondback™ Diamond-Black

1999-2005 FXDWG

Clutch Cables n/a 38856-09A 38973-10A

Throttle/Idle Cables n/a 55700-07 38957-09

Brake Lines – Upper n/a 41800059A 41800112A

Brake Lines – Lower n/a 42366-07 48924-10

Turn Signal Relocation Kit 58742-05 58742-05 58742-05

Switch Wire Extensions, 4" 72140-03 & 72141-03 72140-03 & 72141-03 72140-03 & 72141-03

2006-2008 FXDWG

Switch Wire Extensions, 4" (’06 models) 72140-03 & 72141-03 72140-03 & 72141-03 72140-03 & 72141-03

Switch Wire Extensions, 4" (’07-’08 models) 70229-07 70229-07 70229-07

Turn Signal Wire Extensions, 6" (’06 models) 72137-03 72137-03 72137-03

Turn Signal Wire Extensions, 12" (’07- ’08 models) 69200083 69200083 69200083

2010-2011 FXDWG

Switch Wire Extensions, 10" 70234-07 70234-07 70234-07

Turn Signal Wire Extensions, 12" 69200083 69200083 69200083

Handlebar is the perfect finish to an “old school” ride. Factory drilled to allow internal wiring, the show-quality chrome or satin-black finish reflects your attention to custom details. This 12.0" high bar and riser combination provides the look and attitude you dream about, but remains comfortable over the long haul. Handlebar kit includes matching riser and custom handlebar clamp that conceals the wire exit for a clean look. Fits ’12-later FLD, ’06-later FXDB, ’08-later FXDF, '16-later FXDLS, ’99-later FXDWG, ’00-later FLS, FLSS, FLSTC, FLSTF, FLSTFB, FLSTFBS, FLSTN, FXCW, FXCWC, FXST, FXSTB and FXSTC and ’03-later FLHR and FLHRC models. All models require separate purchase of additional installation compo-nents. Does not fit with accessory Heated Hand Grips, Hydraulic Clutch Kits, handlebar mounted gauges, or Softail®

Freight Train Nacelle Kit.

56832-04C Chrome.

55859-10B Satin Black.

(2)

2012-later FXDWG

Brake Lines, Non-ABS – Upper n/a 41800059A 41800112A

Brake Lines, Non-ABS – Lower n/a 42108-07 48926-10

Brake Lines, ABS – Upper n/a 41800059A 41800112A

Brake Lines, ABS – Lower n/a 41800032A 41800076A

Switch Wire Extensions, 10" 69200034 69200034 69200034

2006-2011 FXDB

Upper Fork Bracket ('08 -'11 models only) 45538-08 45538-08 45538-08

2012-later FXDB

Brake Lines – Non-ABS – Upper n/a 41800059A 41800112A

Brake Lines – Non-ABS – Lower n/a 42110-07 38116-10

Brake Lines, ABS – Lower n/a 41800032A 41800076A

Upper Fork Bracket (’12 models only) 45538-08 45538-08 45538-08

2008-2011 FXDF

Brake Lines – Upper n/a 41800242 41800256

Brake Lines – Lower n/a 42112-08A 48928-10

2012-later FXDF

Brake Lines, Non-ABS – Upper n/a 41800242 41800256

Brake Lines, Non-ABS – Lower n/a 42112-08A 48928-10

Brake Lines, ABS – Upper n/a 41800242 41800256

Brake Lines, ABS – Lower n/a 41800048 41800078

2016-later FXDLS

Hydraulic Clutch Lines n/a 38857-09A 38975-10A

Brake Lines, ABS - Upper n/a 41800242 41800256

Brake Lines, ABS - Lower n/a 41800048 41800078

2012-later FLD

Throttle/Idle Cables 56939-07A/56934-07A 55700-07 38957-09

Brake Lines, ABS – Upper n/a 41800059A n/a

Brake Lines, ABS – Lower n/a 41800050 n/a

2000-2010 FXST

Clutch Cables n/a 38852-09A 38875-09B

(3)

NOTE: Installation of handlebars and risers may require a change in clutch cables or lines, throttle cables, or brake lines for some models. Harley-Davidson Motor Company cannot test and make specific 2011-2014 FXST

Brake Lines, ABS – Lower n/a 38132-11A 38135-11A

2015 FXST

Clutch Cables n/a 38924-09A 37200050A

Brake Lines, ABS – Lower n/a 41800308A 41800022B

2000-2009 FXSTB

Switch Wire Extensions, 10" (’00-’06 models) 72150-03 & 72151-03 72150-03 & 72151-03 72150-03 & 72151-03

2007-2010 FXSTC

2008-2010 FXCW & FXCWC

Brake Lines – Upper n/a 41800058A n/a

Brake Lines – Lower n/a 45770-08 n/a

Turn Signal Wire Extensions, 6" 72137-03 72137-03 72137-03

Bolt, Riser Mount (1/2"-13 thd x 2.75" lg) 3471 (2x) 3471 (2x) 3471 (2x)

Washer, Split Lock (1/2" nom) 7068 (2x) 7068 (2x) 7068 (2x)

P-Clamp (’08-’09 models) 10053 10053 10053

Screw & Washer (’08-’09 models) 3594 & 6703 3594 & 6703 3594 & 6703

2011 FXCWC

Brake Lines, Non-ABS – Upper n/a 41800058A n/a

Brake Lines, Non-ABS – Lower n/a 45770-08 n/a

Brake Lines, ABS – Upper n/a 41800058 n/a

Brake Lines, ABS – Lower n/a 38186-11A n/a

Bolt, Riser Mount (1/2"-13 thd x 2.75" lg) 3471 (2x) 3471 (2x) 3471 (2x)

(4)

2000-2006 FLSTF

Clutch Cables 38661-00 38852-09A 38875-09B

Switch Wire Extensions, 4" 72140-03 & 72141-03 72140-03 & 72141-03 72140-03 & 72141-03

Externally Wire Turn Signals OR Auxiliary Lighting Kit _{68669-05A (Domestic) or 68670-05A (International)}Wire extension needed if externally wired OR

Turn Signal Wire Extensions, 6" 72137-03 only if externally wired

2000-2010 FLSTC, 2005-2010 FLSTN & 2007-2010 FLSTF

Switch Wire Extensions, 4" (’00-’06 models) 72140-03 & 72141-03 72140-03 & 72141-03 72140-03 & 72141-03

Turn Signal Wire Extensions, 6" (FLSTF models only) 72137-03 72137-03 72137-03

2011-2014 FLSTC, FLSTN, FLSTF & 2012-2014 FLS

Turn Signal Wire Extensions, 6" (FLS & FLSTF models only) 72137-03 72137-03 72137-03

2015 FLSTC, FLSTN, FLSTF & FLS

Brake Lines, Non-ABS – Upper (FLS models only) n/a 41800422 41800438

Brake Lines, Non-ABS – Lower (FLS models only) n/a 41800374 41800375

Turn Signal Wire Extensions, 6" (FLS & FLSTF models only) 72137-03 72137-03 72137-03

2016-later FLSTC, FLSTN, FLSTF & FLS

Brake Lines, Non-ABS – Upper (FLS models only) n/a 41800422 41800438

Brake Lines, Non-ABS – Lower (FLS models only) n/a 41800374 41800375

Twist Grip Sensor Kit Stock 32700050 Stock Stock

Turn Signal Wire Extensions, 12" (FLS & FLSTF models only) 69201618 69201618 69201618

2010 FLSTFB

Clutch Cables 38789-06C 38852-09A 38875-09B

(5)

NOTE: Installation of handlebars and risers may require a change in clutch cables or lines, throttle cables, or brake lines for some models. Harley-Davidson Motor Company cannot test and make specific 2011-2014 FLSTFB

Clutch Cables 38789-06C 38852-09A 38875-09B

2015 FLSTFB

Brake Lines, ABS - Upper n/a 41800422 41800438

Brake Lines, ABS - Lower n/a 41800370 41800369

2016-later FLSTFB

2016-later FLSS & FLSTFBS

Hydraulic Clutch Lines n/a 37200191 37200203

Brake Lines, ABS - UPPER n/a 41800422 41800438

Brake Lines, ABS - LOWER n/a 41800370 41800369

2003-2007 FLHR, FLHRC & FLHRS

Throttle/Idle Cables n/a 55734-07 n/a

Handlebar Cover Kit 55879-10 (chrome) or _{55881-10 (black)} 55879-10 (chrome) or _{55881-10 (black)} 55879-10 (chrome) or _{55881-10 (black)}

Switch Wire Replacement, Non-Cruise Control 70318-10 70318-10 70318-10

Turn Signal Relocation Kit (FLHRS models only) _{69578-06 (interntl)}69577-06 (dom) or _{69578-06 (interntl)}69577-06 (dom) or _{69578-06 (interntl)}69577-06 (dom) or

Nacelle Trim Strip (FLHRS models only) 67868-03 67868-03 67868-03

Tamper-Proof Screws (HDI, Australia, England, Japan only) 2935A (2x) 2935A (2x) 2935A (2x)

2008-2013 FLHR & FLHRC

Brake Lines, ABS – Upper (’09-’13 models) n/a 41800471 41800483

Brake Lines, ABS – Lower (’09-’13 models) n/a 41825-09 48946-10

Handlebar Cover Kit 55879-10 (chrome) or _{55881-10 (black)} 55879-10 (chrome) or _{55881-10 (black)} 55879-10 (chrome) or _{55881-10 (black)}

Switch Wire Replacement, Non-Cruise Control 70318-10 70318-10 70318-10

Switch Wire Replacement, Cruise Control 70246-10 70246-10 70246-10

Twist Grip Sensor Kit 32310-08 32310-08 32310-08

(6)

Fitment OEM Stock Diamondback™ Diamond-Black 2014-later FLHR & FLHRC

Brake Lines, Non-ABS – Lower n/a 41800336 41800338

Brake Lines, ABS – Upper n/a 41800321 & 41800242 41800321 & 41800256

Optional Brake Lines, ABS – Lower n/a 41800323 & 41800332 41800323 & 41800333

Twist Grip Sensor Kit Stock Stock Stock

Handlebar Cover Kit 55800289 (chrome) or _{55800290 (black)} 55800289 (chrome) or _{55800290 (black)} 55800289 (chrome) or _{55800290 (black)}
