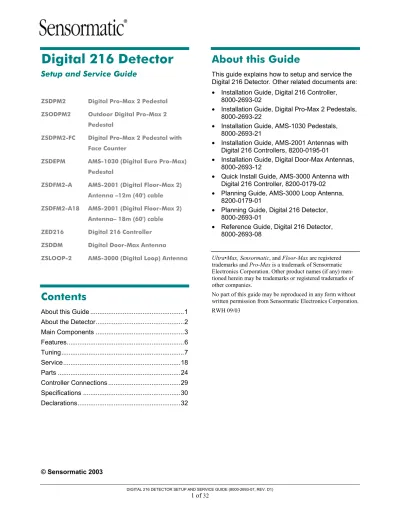

Digital 216 Detector
Setup and Service Guide
ZSDPM2 Digital Pro-Max 2 Pedestal ZSODPM2 Outdoor Digital Pro-Max 2
Pedestal
ZSDPM2-FC Digital Pro-Max 2 Pedestal with Face Counter
ZSDEPM AMS-1030 (Digital Euro Pro-Max) Pedestal
ZSDFM2-A AMS-2001 (Digital Floor-Max 2) Antenna –12m (40') cable ZSDFM2-A18 AMS-2001 (Digital Floor-Max 2)
Antenna– 18m (60') cable ZED216 Digital 216 Controller ZSDDM Digital Door-Max Antenna ZSLOOP-2 AMS-3000 (Digital Loop) Antenna
Contents
About this Guide ...1
About the Detector...2
Main Components ...3 Features...6 Tuning...7 Service...18 Parts ...24 Controller Connections ...29 Specifications ...30 Declarations...32 © Sensormatic 2003
About this Guide
This guide explains how to setup and service the Digital 216 Detector. Other related documents are: • Installation Guide, Digital 216 Controller,
8000-2693-02
• Installation Guide, Digital Pro-Max 2 Pedestals, 8000-2693-22
• Installation Guide, AMS-1030 Pedestals, 8000-2693-21
• Installation Guide, AMS-2001 Antennas with Digital 216 Controllers, 8200-0195-01
• Installation Guide, Digital Door-Max Antennas, 8000-2693-12
• Quick Install Guide, AMS-3000 Antenna with Digital 216 Controller, 8200-0179-02
• Planning Guide, AMS-3000 Loop Antenna, 8200-0179-01
• Planning Guide, Digital 216 Detector, 8000-2693-01
• Reference Guide, Digital 216 Detector, 8000-2693-08
Ultra•Max,Sensormatic, and Floor-Max are registered trademarks and Pro-Max is a trademark of Sensormatic Electronics Corporation. Other product names (if any) men-tioned herein may be trademarks or registered trademarks of other companies.
No part of this guide may be reproduced in any form without written permission from Sensormatic Electronics Corporation. RWH 09/03
About the Detector
The Digital 216 detectors deter theft by activating an alarm when they detect the unique response of an active Ultra•Max® hard plastic tag or disposable label.
To detect a tag, the antennas emit a magnetic field close to the tag’s natural frequency, causing the tag to vibrate or “ring" at the frequency of the field. Once the field is removed, the tag’s energy exponentially rings down at its own natural frequency. It is this ring down that is detected and analyzed to determine if an alarm should be activated.
Figure 1. Digital Pro-Max 2 Detector
Figure 2. AMS-1030 Detector
Figure 3. AMS-2001 (Floor-Max) Detector
Figure 4. Digital Door-Max Detector
Figure 5. AMS-3000 Detector
Controller Optional remote alarm Pedestals Controller Optional remote alarm In-floor antennas Cap board enclosure RS-232 plate Optional remote alarm Controller Door-Max antennas Controller Optional remote alarm Pedestals Controller Remote alarm Cap box Loop (in extrusions) Rangers
Main Components
Except for AMS-3000 detectors (Figure 5), the detector consists of a controller and transceiver antennas. Transceiver antennas may be Digital Pro-Max pedestals (Figure 1), AMS-1030 pedestals (Figure 2), Floor-Max panels (Figure 3), or Digital Door-Max antennas (Figure 4). Auxiliary receiver antennas may be used as additional receiver or noise cancellation antennas. • Controller: The controller (Figure 6) contains a receiver/DSP board, power supply/transmitter board, and backplane board. It is capable of driving two unicoil transceiver antennas. The controller supports two auxiliary receiver antennas, two noise cancellation antennas, a Remote Alarm, a Relay Output port, a Beacon Lamp port, a RS485 port, and General I/O ports.
• Digital Pro-Max 2 pedestal: Controlled by the controller, the pedestal (Figure 7) contains the transceiver antenna and capacitor board. The pedestal also contains an alarm light, speaker, laptop connection, transmit inhibit key switch, and status LED. The pedestal is available in three versions: an outdoor version, an indoor version with an optional counter in the base, and another indoor version with a larger counter in the face. In some configurations, Digital Pro-Max 2 pedestals are used as receivers (Rx) only.
• AMS-1030 (Digital Euro Pro-Max) pedestal:
Controlled by the controller, this floor-standing pedestal (Figure 8) contains the transceiver (Tx/Rx) antenna and associated tuning circuitry. The pedestal also contains an alarm light, piezo, laptop connection, transmit inhibit key switch, and status LEDs. The pedestal is not available in a version suitable for outdoor use. In some configurations, AMS-1030 pedestals are used as receivers (Rx) only. • AMS-2001 (Floor-Max) panel: Controlled by
the controller, the panel (Figure 9) contains the transceiver antenna. The capacitor board is mounted in the capacitor board enclosure (Figure 12). The RS-232 plate (Figure 13) contains the laptop connection, transmit inhibit key switch, and status LEDs. A separate remote alarm is required.
• Digital Door-Max antenna: Controlled by the controller, the antenna (Figure 10) contains the transceiver antenna and capacitor board. The antenna also contains an alarm light, piezo, laptop connection, transmit inhibit push-button switch, and status LED. In some configurations, Digital Door-Max pedestals are used as
receivers (Rx) only.
• AMS-3000 antennas: AMS-3000 detectors (Figure 5) consist of the controller, an AMS-3000 loop transmitter antenna, a cap box, and two sets of Ranger antennas. The loop antenna encircles the doorway and is housed in
aluminum extrusions on the doorframe and in conduit in the floor. The loop antenna only transmits; the Ranger antennas are the receivers. The AMS-3000 antenna requires a remote alarm. The AMS-3000 detector does not have a key switch or status LED.
• Auxiliary receiver antennas. Also known as ferrites, these wall or ceiling-mounted antennas contain only receivers. They do not transmit and they do not contain an alarm. Auxiliary receiver antennas may be used as additional receiver or noise cancellation antennas. Auxiliary receiver antennas are available in the following designs:
− Ranger antennas
− Satellite Receiver antennas − Sky•Max antennas
Figure 7. Pro-Max 2 pedestal features
Figure 8. AMS-1030 pedestal features
Figure 9. AMS-2001 antenna
Figure 10. Digital Door-Max antenna features
Alarm light
Speaker Transmit inhibit keyswitch RS-232 port (behind cover) Capacitor board (behind cover) Status LED Audible alarm Alarm light Status LED Transmit inhibit push button RS232 port (behind cover) Capacitor board (behind cover) Counter Alarm light Piezo RS-232 port (behind cover) Capacitor board (behind cover) Status LED Keyswitch Counter
Figure 11. AMS 3000 features
Figure 12. Capacitor board enclosure
Figure 13. RS-232 Plate
Transmit inhibit keyswitch:
Off (left) – Transmitters and alarm off
One Toggle (right) – Both Transmitter A and B off for 30 seconds Two Toggles (right) – Transmitter A off for 30 seconds
Three Toggles (right) – Transmitter B off for 30 seconds RS-232 port Status LEDs: Antenna A Antenna B On – Transmitter On Off – Transmitter Off Remote alarm
Features
Transceiver antenna ports. Two ports drive two unicoil antennas.
Alarm/Com/Pedestal ID ports. Two ports, one for each antenna, support the following functions: • Drive a speaker and LEDs or bulbs to provide
audio and visual alarms.
• Drive an electronic alarm counter in the pedestal.
• Provide a communication link between the laptop and the controller via a connection port in the pedestal.
• Provide pedestal ID to set controller output current.
• Provide command line to drive LEDs on capacitor boards for pack-assisted tuning.
Auxiliary Receiver ports. Two ports accept one auxiliary receiver each to enhance system performance.
Noise Cancellation Antenna port. One port accepts two cancellation coils to receive localized noise and interference sources such as ballasts and monitors. These antennas cancel the environmental noise seen by the system.
RS485 port. One port allows for the connection of a wired network.
Remote Alarm port. One port drives the Digital Remote Alarm with speaker, lights, and a counter. No external transformer is required for devices attached to this port.
Relay Output ports. One port provides two relays to control remote devices such as alarms,
cameras, or VCRs. Another port allows you to connect two devices to a single relay to control remote devices.
Beacon Lamp port. One port provides relays to control a beacon lamp. No external transformer is required for devices attached to this port.
General I/O ports. Ports are available for future expansion.
Unicoil antenna. Except for AMS-3000, the same coil is used to transmit and receive.
Alarm indication. To indicate an alarm, the Digital Pro-Max pedestal has flashing LEDs in the top cap and a speaker along the beltline of the pedestal. The AMS-1030 has flashing LEDs in the top cap and a piezo in the base. The Digital Door-Max antenna has a piezo and flashing LEDs in the top cap. AMS-2001 panels require a separate remote alarm.
Transmit inhibit. A key switch, located in the Digital Pro-Max 2 pedestal, the AMS-1030 base, or the RS-232 plate (used with Digital Floor-Max detectors), disables the transmitter for diagnostic purposes. The Door-Max antenna uses a
pushbutton switch in its base.
Laptop connection. The laptop computer can be connected at the controller, pedestal, or RS-232 plate.
Status LED. Status LEDs, located in the pedestal or RS-232, plate indicate the on/off status of the transmitter.
Pack-assisted tuning. LEDs and a check-tuning button on the capacitor board guide the installer through the steps needed to set the tuning jumpers.
58kHz operation. The detector detects 58kHz tags.
Auto phasing. The detector automatically synchronizes itself with adjacent Ultra•Max detectors.
Self adjusting. The detector automatically adjusts to changes in the environmental noise.
Controller installation. The controller can rest on a shelf or can be mounted on a wall. The controller accepts conduit attachment. A separate enclosure is not required. A plenum kit is available for installations in air handling spaces.
Power cord. Use the appropriate power cord based on the country of use.
USA-IEC 320, EMC, 18/3, 125V, 10A, 7.5ft. 0351-2179-01 Schuko-IEC 320, 1mm sq., 250V, 10A, 2.5m 0351-0547-02 UK-IEC 320, 1mm sq., 250V, 10A, 2.5m 0351-0547-03 Japan-IEC 320, 2mm sq., 250V, 15A, 2.5m 0351-0547-04 Australia to IEC 320, 2.5m, 250V, 10A 0351-0547-07
Pedestal installation. Conduit can be attached to the pedestal on any of its four sides or through the bottom.
Outdoor version (ZSODPM2). The outdoor version of the Digital Pro-Max 2 pedestal is approved for outdoor installation without the use of outdoor covers.
Accessories
Counter (Pro-Max Electronic, ZPDCNTR; Door-Max Electronic, 0351-2189-01). The counter is installed in the base of a pedestal or antenna. The counter increments by one for each alarm event that occurs.
Key switch (ZPD216-KEY). The key switch replaces the power on/off rocker switch on the controller so that a key is required to turn the pack on or off.
Plenum kit (ZPD216-PL). The plenum kit provides register boxes and hosing. It is required when the controller is installed in an air handling space.
Wear guard (ZPDPM-WG). The wear protection is matte urethane strips with pressure-sensitive adhesive that are applied to the lower sections of the pedestal. The wear protection protects the pedestal from abrasion marks caused by bumps from objects such as shopping carts.
Digital tone alarm (ZC30-ADS). The digital tone alarm is an audio/visual alarm device for Digital 216 detectors. It is the same device as the ZC30-XP but is compatible with Digital 216.
Message unit (ZC35-ADS). The message unit is a voice alarm device for Digital 216 detectors. It is the same device as the ZC35-XP but is compatible with Digital 216.
Remote alarm beacon (0351-0556-02). The remote alarm beacon is an amber light used as a visual alarm for Digital 216 detectors. It is the same device as the 0351-0556-01 but is compatible with Digital 216.
Floor-Max shield (ZPDFM-SH). The Floor-Max shield improves the performance of Floor-Max antennas in off grade installations where metal cannot be removed from the floor. The shield consists of a plastic tray and compressed powdered-iron tiles. It shields the Floor-Max antenna from the metal pan and rebar located underneath the antenna.
Ranger Noise Canceller Antenna (ZKNC-R).
Ranger antennas reduce the effect of noise on a Digital 216 detector. The noise coils are positioned at a location where they can detect the offending noise. Software in the Digital 216 controller uses the signal from the noise coils to cancel the noise from the signal received by the antennas.
Sky•Max Noise Canceller Antenna (ZKNC-SM).
Sky•Max antennas reduce the effect of noise on a Digital 216 detector. The noise coils are positioned at a location where they can detect the offending noise. Software in the Digital 216 controller uses the signal from the noise coils to cancel the noise from the signal received by the antennas.
Antenna message (ZPMESSAGE). With this option, you can download a pre-recorded message into the controller and it will play through the speakers in the Pro-Max 2 pedestals whenever an alarm occurs.
Tuning
This section describes how to tune the capacitor board. The capacitor board is an adjustable high voltage capacitance network. Jumpers are reconfigured in steps to resonate the transmit coils. AMS-3000 (Digital Loop) cap boards are tuned differently from the other cap boards, so the tuning procedure for it is explained separately.
Tuning the AMS-3000 Cap
Board
Figure 14. AMS-3000 Cap board
CAUTION !
HIGH VOLTAGE
TUNE
P3
J5 J4 J3 J2 J1P1 P2
J6 DOOR WIDTH 1.83 - 2.4m .9m 6 - 8FT 3FTTune the AMS-3000 cap board (shown in Figure 14) using the following procedure.
1. Move door width jumper J6 to proper place: OUT for doors 1.8 – 2.4m (6-8ft) wide and IN for doors about 0.9m (3ft) wide.
2. Turn controller on and use the configurator to verify the following parameters:
Antenna Type Loop A Aux. Receiver Control A Enabled Aux. Receiver Control B Enabled
If antenna is very detuned, the Antenna Type may not be set to Loop A. Proceed with antenna tuning anyway and reboot controller when you are done. The antenna type should now be set to Loop A.
3. While viewing the current display on the Tx Configuration screen, adjust the slider until the current is at the minimum.
4. Start with jumpers J1-J5 IN.
5. Reduce the capacitance one unit of
capacitance (1C) at a time until you find the capacitance that minimizes the voltage.
The capacitance is selected by jumpers J1 to J6 and it changes in binary fashion. In other words, removing J1 subtracts 1C, J2 subtracts 2C, J3 subtracts 4C, etc.
6. Compare the current reading to the value listed in Table 1 for your size door.
If the current reading is below the value listed, go to step 7. If the current reading is greater than value listed, detune the antenna by adding capacitance until it is at or below the maximum.
7. Add back 1C so that the antenna will be tuned slightly below 58kHz.
8. In the table below, find the maximum B-field strength (A/m) and peak current (Apk) for this size antenna. If a height or width is not in the table, use the next largest size. Table 1. Maximum current and B-field strength
Door Width Door Height 1m (3 ft) 1.2-1.8m (4-6 ft) 2m (6 ft 6in.) 2.14m
(7 ft) 35 A/m 11 Apk 20 A/m 10 Apk 18 A/m 9.3 Apk 2.44m
(8 ft) 31 A/m 10 Apk 17 A/m 9 Apk 15 A/m 8.2 Apk 2.74m
(9 ft) 28 A/m 9 Apk 15 A/m 8 Apk 13 A/m 7.4 Apk 3.05m
(10 ft) 25 A/m 8 Apk 14 A/m 7.3 Apk 12 A/m 6.7 Apk
Notes:
• If you do not have a B-field meter, you must not exceed the peak current (Apk) for that loop size.
• If you have a B-field meter, you can exceed the peak current (Apk) for the loop size but you must not exceed the B-field strength (A/m).
9. Adjust the current slider on the Tx
Configuration screen to produce the correct B field or peak current (see Notes above). If you use a B-field meter, hold it vertically 1m (3ft) above the ground in the middle of the two vertical extrusions. Values in table with gray background are for non-supported configurations.
10. Test the system with a tag or label. If the system works correctly, fill up the trench with non-metallic, non-shrink, 5000-psi mortar or concrete.
Table 2. AMS-3000 capacitance table Cap J5 J4 J3 J2 J1 31 ● ● ● ● ● 30 ● ● ● ● ○ 29 ● ● ● ○ ● 28 ● ● ● ○ ○ 27 ● ● ○ ● ● 26 ● ● ○ ● ○ 25 ● ● ○ ○ ● 24 ● ● ○ ○ ○ 23 ● ○ ● ● ● 22 ● ○ ● ● ○ 21 ● ○ ● ○ ● 20 ● ○ ● ○ ○ 19 ● ○ ○ ● ● 18 ● ○ ○ ● ○ 17 ● ○ ○ ○ ● 16 ● ○ ○ ○ ○ 15 ○ ● ● ● ● 14 ○ ● ● ● ○ 13 ○ ● ● ○ ● 12 ○ ● ● ○ ○ 11 ○ ● ○ ● ● 10 ○ ● ○ ● ○ 9 ○ ● ○ ○ ● 8 ○ ● ○ ○ ○ 7 ○ ○ ● ● ● 6 ○ ○ ● ● ○ 5 ○ ○ ● ○ ● 4 ○ ○ ● ○ ○ 3 ○ ○ ○ ● ● 2 ○ ○ ○ ● ○ 1 ○ ○ ○ ○ ● 0 ○ ○ ○ ○ ○ ● – Jumper In ○ – Jumper Out
Tuning Other Digital Cap
Boards
For each antenna, do the following:
1. Access the capacitor board.
2. Verify that the controller transceiver cable is connected to the capacitor board.
WARNING—RISK OF ELECTRIC SHOCK!
Do not touch boards and connectors with the power on.
3. Turn on the controller, connect your laptop computer to the RS-232 port and open the configurator.
4. Display the transmit current for the antenna you are tuning on the TX Configuration screen.
The capacitor board (58kHz operation) can be resonated for aiding or figure 8. To resonate the capacitor board, do the following:
WARNING—RISK OF ELECTRIC SHOCK!
Use the configurator to disable the transmitter before reconfiguring tuning jumpers on the capacitor board.
1. Set the tuning jumpers to the default
configuration. Refer to Table 3 for the Digital Pro-Max capacitor board, Table 4 for the Digital Floor-Max capacitor board or Table 5 for the Digital Door-Max and AMS-1030 capacitor boards.
Note: Jumper position 1-2 adds capacitance; jumper position 2-3 bypasses capacitance. Set jumpers JW1 – JW7 and JW8 – JW14 to the configuration appropriate for the transmitter mode and operating frequency you are using. Jumpers JW1 – JW7 tune the bottom coil while JW8 – JW14 tune the top coil.
2. Resonate the cap board.
Begin at the default configuration in Table 3 or Table 4 or Table 5 and adjust the tuning jumpers in the direction that improves resonance. At resonance, transmit current should be 14.5A to 16A.
The transmit current in one coil affects the transmit current in the other coil. Resonance is achieved when the combined current in both coils is maximized.
Make a 1-step tuning adjustment in one coil (JW1-JW7) to increase transmit current while observing the effect on both coils. Then make a 1-step tuning adjustment in the other coil (JW8-JW14) while observing the effect on both coils. Continue making 1-step adjustments in one coil and then the other coil until the combined current in both coils is maximized.
Note: If the antenna is close to metal, capacitance will have to be added to acquire resonance.
Table 3. Tuning steps – Digital Pro-Max 0301-1532-01 Capacitor Board Tuning Step JW1 Or JW8 JW2 Or JW9 JW3 Or JW10 JW4 Or JW11 JW5 Or JW12 JW6 Or JW13 JW7 Or JW14 Cap. NF +/-5% 1 1-2 2-3 2-3 2-3 2-3 2-3 2-3 13.60 2 1-2 2-3 2-3 2-3 2-3 2-3 1-2 13.69 3 1-2 2-3 2-3 2-3 2-3 1-2 2-3 13.78 4 1-2 2-3 2-3 2-3 2-3 1-2 1-2 13.86 5 1-2 2-3 2-3 2-3 1-2 2-3 2-3 13.96 6 1-2 2-3 2-3 2-3 1-2 2-3 1-2 14.05 7 1-2 2-3 2-3 2-3 1-2 1-2 2-3 14.15 8 1-2 2-3 2-3 2-3 1-2 1-2 1-2 14.23 9 1-2 2-3 2-3 1-2 2-3 2-3 2-3 14.30 10 1-2 2-3 2-3 1-2 2-3 2-3 1-2 14.39 11 1-2 2-3 2-3 1-2 2-3 1-2 2-3 14.50 12 1-2 2-3 2-3 1-2 2-3 1-2 1-2 14.58 13 1-2 2-3 2-3 1-2 1-2 2-3 2-3 14.70 14 1-2 2-3 2-3 1-2 1-2 2-3 1-2 14.80 15 1-2 2-3 2-3 1-2 1-2 1-2 2-3 14.90 16 1-2 2-3 2-3 1-2 1-2 1-2 1-2 14.99 17 1-2 2-3 1-2 2-3 2-3 2-3 2-3 15.11 18 1-2 2-3 1-2 2-3 2-3 2-3 1-2 15.22 19 1-2 2-3 1-2 2-3 2-3 1-2 2-3 15.33 20 1-2 2-3 1-2 2-3 2-3 1-2 1-2 15.43 21 1-2 2-3 1-2 2-3 1-2 2-3 2-3 15.55 22 1-2 2-3 1-2 2-3 1-2 2-3 1-2 15.67 23 1-2 2-3 1-2 2-3 1-2 1-2 2-3 15.79 24 * 1-2 2-3 1-2 2-3 1-2 1-2 1-2 15.89 25 1-2 2-3 1-2 1-2 2-3 2-3 2-3 15.98 26 1-2 2-3 1-2 1-2 2-3 2-3 1-2 16.10 27 1-2 2-3 1-2 1-2 2-3 1-2 2-3 16.23 28 1-2 2-3 1-2 1-2 2-3 1-2 1-2 16.33 29 1-2 2-3 1-2 1-2 1-2 2-3 2-3 16.48 30 1-2 2-3 1-2 1-2 1-2 2-3 1-2 16.60 31 1-2 2-3 1-2 1-2 1-2 1-2 2-3 16.74 32 1-2 2-3 1-2 1-2 1-2 1-2 1-2 16.85 33 1-2 1-2 2-3 2-3 2-3 2-3 2-3 17.00 34 1-2 1-2 2-3 2-3 2-3 2-3 1-2 17.13 35 1-2 1-2 2-3 2-3 2-3 1-2 2-3 17.28 36 1-2 1-2 2-3 2-3 2-3 1-2 1-2 17.40 37 1-2 1-2 2-3 2-3 1-2 2-3 2-3 17.56 38 1-2 1-2 2-3 2-3 1-2 2-3 1-2 17.71
Tuning Step JW1 Or JW8 JW2 Or JW9 JW3 Or JW10 JW4 Or JW11 JW5 Or JW12 JW6 Or JW13 JW7 Or JW14 Cap. NF +/-5% 39 1-2 1-2 2-3 2-3 1-2 1-2 2-3 17.86 40 1-2 1-2 2-3 2-3 1-2 1-2 1-2 17.99 41 1-2 1-2 2-3 1-2 2-3 2-3 2-3 18.11 42 1-2 1-2 2-3 1-2 2-3 2-3 1-2 18.26 43 1-2 1-2 2-3 1-2 2-3 1-2 2-3 18.42 44 1-2 1-2 2-3 1-2 2-3 1-2 1-2 18.56 45 1-2 1-2 2-3 1-2 1-2 2-3 2-3 18.75 46 1-2 1-2 2-3 1-2 1-2 2-3 1-2 18.91 47 1-2 1-2 2-3 1-2 1-2 1-2 2-3 19.09 48 1-2 1-2 2-3 1-2 1-2 1-2 1-2 19.23 49 1-2 1-2 1-2 2-3 2-3 2-3 2-3 19.43 50 1-2 1-2 1-2 2-3 2-3 2-3 1-2 19.60 51 1-2 1-2 1-2 2-3 2-3 1-2 2-3 19.79 52 1-2 1-2 1-2 2-3 2-3 1-2 1-2 19.95 53 1-2 1-2 1-2 2-3 1-2 2-3 2-3 20.17 54 1-2 1-2 1-2 2-3 1-2 2-3 1-2 20.36 55 1-2 1-2 1-2 2-3 1-2 1-2 2-3 20.56 56 1-2 1-2 1-2 2-3 1-2 1-2 1-2 20.73 57 1-2 1-2 1-2 1-2 2-3 2-3 2-3 20.89 58 1-2 1-2 1-2 1-2 2-3 2-3 1-2 21.09 59 1-2 1-2 1-2 1-2 2-3 1-2 2-3 21.31 60 1-2 1-2 1-2 1-2 2-3 1-2 1-2 21.50 61 1-2 1-2 1-2 1-2 1-2 2-3 2-3 21.74 62 1-2 1-2 1-2 1-2 1-2 2-3 1-2 21.96 63 1-2 1-2 1-2 1-2 1-2 1-2 2-3 22.20 64 1-2 1-2 1-2 1-2 1-2 1-2 1-2 22.40 * default
Table 4. Tuning steps – Digital Floor-Max 0301-1536-01 Capacitor Board Tuning Step JW1 Or JW8 JW2 Or JW9 JW3 Or JW10 JW4 Or JW11 JW5 Or JW12 JW6 Or JW13 JW7 Or JW14 Cap. NF +/-5% 1 2-3 2-3 2-3 2-3 2-3 2-3 2-3 6.81 2 2-3 2-3 2-3 2-3 2-3 2-3 1-2 6.85 3 2-3 2-3 2-3 2-3 2-3 1-2 2-3 6.89 4 2-3 2-3 2-3 2-3 2-3 1-2 1-2 6.93 5 2-3 2-3 2-3 2-3 1-2 2-3 2-3 6.98 6 2-3 2-3 2-3 2-3 1-2 2-3 1-2 7.02 7 2-3 2-3 2-3 2-3 1-2 1-2 2-3 7.07 8 2-3 2-3 2-3 2-3 1-2 1-2 1-2 7.11 9 2-3 2-3 2-3 1-2 2-3 2-3 2-3 7.16 10 2-3 2-3 2-3 1-2 2-3 2-3 1-2 7.21 11 2-3 2-3 2-3 1-2 2-3 1-2 2-3 7.26 12 2-3 2-3 2-3 1-2 2-3 1-2 1-2 7.30 13 2-3 2-3 2-3 1-2 1-2 2-3 2-3 7.35 14 2-3 2-3 2-3 1-2 1-2 2-3 1-2 7.41 15 2-3 2-3 2-3 1-2 1-2 1-2 2-3 7.46 16 2-3 2-3 2-3 1-2 1-2 1-2 1-2 7.50 17 2-3 2-3 1-2 2-3 2-3 2-3 2-3 7.56 18 2-3 2-3 1-2 2-3 2-3 2-3 1-2 7.62 19 2-3 2-3 1-2 2-3 2-3 1-2 2-3 7.67 20 2-3 2-3 1-2 2-3 2-3 1-2 1-2 7.72 21 2-3 2-3 1-2 2-3 1-2 2-3 2-3 7.77 22 2-3 2-3 1-2 2-3 1-2 2-3 1-2 7.83 23 2-3 2-3 1-2 2-3 1-2 1-2 2-3 7.89 24 2-3 2-3 1-2 2-3 1-2 1-2 1-2 7.94 25 2-3 2-3 1-2 1-2 2-3 2-3 2-3 8.01 26 2-3 2-3 1-2 1-2 2-3 2-3 1-2 8.07 27 2-3 2-3 1-2 1-2 2-3 1-2 2-3 8.13 28 2-3 2-3 1-2 1-2 2-3 1-2 1-2 8.18 29 2-3 2-3 1-2 1-2 1-2 2-3 2-3 8.25 30 2-3 2-3 1-2 1-2 1-2 2-3 1-2 8.31 31 2-3 2-3 1-2 1-2 1-2 1-2 2-3 8.38 32 2-3 2-3 1-2 1-2 1-2 1-2 1-2 8.43 33 2-3 1-2 2-3 2-3 2-3 2-3 2-3 8.53 34 2-3 1-2 2-3 2-3 2-3 2-3 1-2 8.60 35 2-3 1-2 2-3 2-3 2-3 1-2 2-3 8.67 36 2-3 1-2 2-3 2-3 2-3 1-2 1-2 8.73 37 2-3 1-2 2-3 2-3 1-2 2-3 2-3 8.80 38 2-3 1-2 2-3 2-3 1-2 2-3 1-2 8.87
Tuning Step JW1 Or JW8 JW2 Or JW9 JW3 Or JW10 JW4 Or JW11 JW5 Or JW12 JW6 Or JW13 JW7 Or JW14 Cap. NF +/-5% 39 2-3 1-2 2-3 2-3 1-2 1-2 2-3 8.95 40 2-3 1-2 2-3 2-3 1-2 1-2 1-2 9.01 41 2-3 1-2 2-3 1-2 2-3 2-3 2-3 9.10 42 2-3 1-2 2-3 1-2 2-3 2-3 1-2 9.18 43 2-3 1-2 2-3 1-2 2-3 1-2 2-3 9.26 44 2-3 1-2 2-3 1-2 2-3 1-2 1-2 9.32 45 2-3 1-2 2-3 1-2 1-2 2-3 2-3 9.41 46 2-3 1-2 2-3 1-2 1-2 2-3 1-2 9.49 47 2-3 1-2 2-3 1-2 1-2 1-2 2-3 9.58 48 2-3 1-2 2-3 1-2 1-2 1-2 1-2 9.65 49 2-3 1-2 1-2 2-3 2-3 2-3 2-3 9.75 50 2-3 1-2 1-2 2-3 2-3 2-3 1-2 9.85 51 2-3 1-2 1-2 2-3 2-3 1-2 2-3 9.94 52 2-3 1-2 1-2 2-3 2-3 1-2 1-2 10.0 53 2-3 1-2 1-2 2-3 1-2 2-3 2-3 10.1 54 2-3 1-2 1-2 2-3 1-2 2-3 1-2 10.2 55 2-3 1-2 1-2 2-3 1-2 1-2 2-3 10.3 56 2-3 1-2 1-2 2-3 1-2 1-2 1-2 10.4 57 2-3 1-2 1-2 1-2 2-3 2-3 2-3 10.5 58 2-3 1-2 1-2 1-2 2-3 2-3 1-2 10.6 59 2-3 1-2 1-2 1-2 2-3 1-2 2-3 10.7 60 2-3 1-2 1-2 1-2 2-3 1-2 1-2 10.8 61 2-3 1-2 1-2 1-2 1-2 2-3 2-3 10.9 62 2-3 1-2 1-2 1-2 1-2 2-3 1-2 11.0 63 2-3 1-2 1-2 1-2 1-2 1-2 2-3 11.1 64 2-3 1-2 1-2 1-2 1-2 1-2 1-2 11.2 65 1-2 2-3 1-2 2-3 2-3 2-3 2-3 11.3 66 1-2 2-3 1-2 2-3 2-3 2-3 1-2 11.5 67 1-2 2-3 1-2 2-3 2-3 1-2 2-3 11.6 68 1-2 2-3 1-2 2-3 2-3 1-2 1-2 11.7 69 1-2 2-3 1-2 2-3 1-2 2-3 2-3 11.8 70 1-2 2-3 1-2 2-3 1-2 2-3 1-2 12.0 71 1-2 2-3 1-2 2-3 1-2 1-2 2-3 12.1 72 1-2 2-3 1-2 2-3 1-2 1-2 1-2 12.2 73 1-2 2-3 1-2 1-2 2-3 2-3 2-3 12.4 74 1-2 2-3 1-2 1-2 2-3 2-3 1-2 12.5 75 1-2 2-3 1-2 1-2 2-3 1-2 2-3 12.7 76 1-2 2-3 1-2 1-2 2-3 1-2 1-2 12.8 77 1-2 2-3 1-2 1-2 1-2 2-3 2-3 13.0
Tuning Step JW1 Or JW8 JW2 Or JW9 JW3 Or JW10 JW4 Or JW11 JW5 Or JW12 JW6 Or JW13 JW7 Or JW14 Cap. NF +/-5% 78 1-2 2-3 1-2 1-2 1-2 2-3 1-2 13.1 79 * 1-2 2-3 1-2 1-2 1-2 1-2 2-3 13.3 80 1-2 2-3 1-2 1-2 1-2 1-2 1-2 13.4 81 1-2 1-2 2-3 2-3 2-3 2-3 2-3 13.7 82 1-2 1-2 2-3 2-3 2-3 2-3 1-2 13.9 83 1-2 1-2 2-3 2-3 2-3 1-2 2-3 14.0 84 1-2 1-2 2-3 2-3 2-3 1-2 1-2 14.2 85 1-2 1-2 2-3 2-3 1-2 2-3 2-3 14.4 86 1-2 1-2 2-3 2-3 1-2 2-3 1-2 14.6 87 1-2 1-2 2-3 2-3 1-2 1-2 2-3 14.8 88 1-2 1-2 2-3 2-3 1-2 1-2 1-2 14.9 89 1-2 1-2 2-3 1-2 2-3 2-3 2-3 15.2 90 1-2 1-2 2-3 1-2 2-3 2-3 1-2 15.4 91 1-2 1-2 2-3 1-2 2-3 1-2 2-3 15.6 92 1-2 1-2 2-3 1-2 2-3 1-2 1-2 15.8 93 1-2 1-2 2-3 1-2 1-2 2-3 2-3 16.1 94 1-2 1-2 2-3 1-2 1-2 2-3 1-2 16.3 95 1-2 1-2 2-3 1-2 1-2 1-2 2-3 16.6 96 1-2 1-2 2-3 1-2 1-2 1-2 1-2 16.8 97 1-2 1-2 1-2 2-3 2-3 2-3 2-3 17.1 98 1-2 1-2 1-2 2-3 2-3 2-3 1-2 17.4 99 1-2 1-2 1-2 2-3 2-3 1-2 2-3 17.7 100 1-2 1-2 1-2 2-3 2-3 1-2 1-2 17.9 101 1-2 1-2 1-2 2-3 1-2 2-3 2-3 18.2 102 1-2 1-2 1-2 2-3 1-2 2-3 1-2 18.6 103 1-2 1-2 1-2 2-3 1-2 1-2 2-3 18.9 104 1-2 1-2 1-2 2-3 1-2 1-2 1-2 19.1 105 1-2 1-2 1-2 1-2 2-3 2-3 2-3 19.6 106 1-2 1-2 1-2 1-2 2-3 2-3 1-2 19.9 107 1-2 1-2 1-2 1-2 2-3 1-2 2-3 20.3 108 1-2 1-2 1-2 1-2 2-3 1-2 1-2 20.6 109 1-2 1-2 1-2 1-2 1-2 2-3 2-3 21.0 110 1-2 1-2 1-2 1-2 1-2 2-3 1-2 21.5 111 1-2 1-2 1-2 1-2 1-2 1-2 2-3 21.9 112 1-2 1-2 1-2 1-2 1-2 1-2 1-2 22.3 * default
Table 5. Tuning steps - Digital Door-Max and AMS-1030 Capacitor Board (0301-1574-01/02) Tuning Step JW1 Or JW6 JW2 Or JW7 JW3 Or JW8 JW4 Or JW9 JW5 Or JW10 Cap. NF +/-5% 1 2-3 2-3 2-3 2-3 2-3 24.00 2 2-3 2-3 2-3 2-3 1-2 24.18 3 2-3 2-3 2-3 1-2 2-3 24.38 4 2-3 2-3 2-3 1-2 1-2 24.54 5 2-3 2-3 1-2 2-3 2-3 24.77 6 2-3 2-3 1-2 2-3 1-2 24.96 7 2-3 2-3 1-2 1-2 2-3 25.17 8 2-3 2-3 1-2 1-2 1-2 25.34 9 2-3 1-2 2-3 2-3 2-3 25.63 10 2-3 1-2 2-3 2-3 1-2 25.84 11 2-3 1-2 2-3 1-2 2-3 26.06 12 2-3 1-2 2-3 1-2 1-2 26.24 13 2-3 1-2 1-2 2-3 2-3 26.51 14 2-3 1-2 1-2 2-3 1-2 26.73 15 2-3 1-2 1-2 1-2 2-3 26.97 16 2-3 1-2 1-2 1-2 1-2 27.16 17 1-2 2-3 2-3 2-3 2-3 27.43 18 * 1-2 2-3 2-3 2-3 1-2 27.67 19 1-2 2-3 2-3 1-2 2-3 27.92 20 1-2 2-3 2-3 1-2 1-2 28.13 21 1-2 2-3 1-2 2-3 2-3 28.44 22 1-2 2-3 1-2 2-3 1-2 28.69 23 1-2 2-3 1-2 1-2 2-3 28.96 24 1-2 2-3 1-2 1-2 1-2 29.19 25 1-2 1-2 2-3 2-3 2-3 29.58 26 1-2 1-2 2-3 2-3 1-2 29.86 27 1-2 1-2 2-3 1-2 2-3 30.15 28 1-2 1-2 2-3 1-2 1-2 30.40 29 1-2 1-2 1-2 2-3 2-3 30.75 30 1-2 1-2 1-2 2-3 1-2 31.05 31 1-2 1-2 1-2 1-2 2-3 31.37 32 1-2 1-2 1-2 1-2 1-2 31.64 * default
Figure 15. Digital Pro-Max 2 Capacitor board 0301-1631-01
Figure 16. Digital Floor-Max Capacitor board 0301-1536-01
P1 – Tx/Rx P6 – Com Check Tuning button Tuning jumpers JW1–JW7
Tuning jumper LEDs DS1–DS7
(for JW1–JW14) Tuning jumpers
JW8–JW14
Tx Off LED Counter cable connector
Tuning jumper LEDs DS7–DS14
(for JW1–JW14)
Tuning jumpers JW1–JW7
Tuning jumper LEDS
DS1–DS7 DS8–DS14 (forJW1 –JW7) (forJW8 –JW14) P1 - TB5 Tx/Rx P4 – RS-232 plate P2 – Com P3 – RS-232 plate Tx Off Check
LED Tuning button TB1 TB2 TB6 TB4 TB3
Bottom Bottom Shield Top Top Start Finish Finish Start (Black) (Red) (Green) (White) High voltage
cover
Tuning jumpers JW8–JW14
Figure 17. Digital Door-Max and AMS-1030 Capacitor board 0301-1574-02 Tuning jumpers JW1–JW5 Tuning jumpers JW6-JW10 P1 – Tx/Rx JW1 JW5 JW6 JW10 TB1 Bottom Start TB3 Bottom Finish TB2 Pedestal Shield TB4 Top Finish TB6 Top Start TB5 Pedestal Shield
Service
You can perform the following service procedures for a Digital 216 detector:
• Force controller-assisted tuning • Replace the alarm lamp in the pedestal • Replace the LED board in the Door-Max • Turn off the transmitter
• Expedite pick tests
• Replace the fuses in the controller
• Restore communications with the controller • Program a modem
• Connect for remote diagnostics • Interpret LED error codes • Use the configurator
Forcing controller-assisted
tuning
An antenna can be forced into the controller-assisted tuning mode by doing the following:
1. Turn the Transmit inhibit key switch for the antenna to the momentary (spring-loaded) position.
2. While the Tx Off LED on the antenna’s capacitor board is lit, press the check-tuning button.
The controller resets. If the antenna is resonated, normal operation resumes. If the antenna is not resonated, the default jumper setting is displayed on the capacitor board LEDs. Proceed with the pack-assisted tuning procedure.
Note: If pack-assisted tuning is attempted while the transmit inhibit key switch is off, pairs of LEDs on the capacitor board blink in an up/down pattern.
Replacing the alarm lamp in
the pedestal
To replace the alarm lamp in the pedestal, do the following:
1. Lift off the red lens from the top of the pedestal.
2. Wrap a piece of duct tape around the lamp and pull out lamp.
3. Insert replacement lamp. 4. Insert red lens into guide holes.
Replacing the LED board in the
Door-Max
On the Digital Door-Max, the alarm light comes from the LED board in the top of the antenna. To replace the board, do the following:
1. Rock the lens on the top of the antenna from side to side until you can lift it off. 2. Slide the LED board (0301-1576-01) out from
behind the lens.
3. Pull off the connector attached to the LED board.
4. Attach the replacement LED board to the connector.
5. Slide the PC board back in. 6. Replace the lens.
Turn off the transmitter
You can turn off the transmitter using theConfigurator. If communications with the controller are disrupted, however, it is possible to turn off the transmitter externally by grounding pin 1 of
connector P12 on the controller.
Expediting pick tests
When performing pick tests, set the alarm duration for the pedestals to 1/8 or ½ second and monitor the "System Environment Panel" for alarms. This technique will expedite the pick test. Be aware that some detects could be missed because of the refresh rate of the configurator.
Replace the fuses in the
controller
The controller contains two 5A, 250V, slow-blow fuses. To replace the fuse(s) in the controller, do the following:
Figure 18. Fuse location
1. Locate the fuse holders. They are directly under the P2 and P4 connectors. See Figure 18.
2. Replace the fuse (or fuses) with 5A, 250V slow-blow fuses (P/N 5111-0028-11).
Restoring communications with
the controller
To assist in performing pick tests and other troubleshooting activities, an RS-232 port is
available on most antennas. The Digital Pro-Max 2, the AMS-1030, and the Door-Max all have RS-232 ports in the base of their antennas. The AMS-2001 (Floor-Max) has a wall-mounted RS-232 plate. If firmware in the controller is corrupted, however, the controller may not be able to communicate with the remote RS-232 port in the pedestal or RS-232 plate. In this situation, you can connect the laptop to the controller RS-232 port to download firmware and restore communications with the remote port, as shown in Figure 19.
Figure 19. Laptop and controller RS-232 communication Fuses RJ11 male to RJ22 male cable DB-9-to-RJ11 adapter laptop DB-9 serial port
Programming a modem
The Digital 216 controller supports remote diagnostics, which means you can troubleshoot problems and change controller parameters while you are away from the installation site. The controller, however, must be connected to a properly programmed modem and a telephone line. To program the modem, do the following: Figure 20. Connecting a laptop to a modem1. Connect a service laptop to the modem using the modem configuration cable. The DB-9 connector on the cable connects to the RS-232 port on the laptop and the DB-25 connector on the cable connects to the DB-25 port on the modem. Refer to Figure 20 as an example but your laptop and modem may be different.
2. Run the modem flash program
(Modemconfig.exe) on your laptop. The Status window in the program describes how to set the dip switches if necessary. 3. After you exit the flash program, remove the
modem configuration cable.
Connecting for remote
diagnostics
The Digital 216 controller supports remote diagnostics, which means you can troubleshoot problems and change controller parameters while you are away from the installation site. The controller, however, must be connected to a properly programmed modem and a telephone line. The figure below shows the required hardware. RJ11 male to RJ22 male cable DB-25 to RJ12/RJ11 connector external modem DB-25 port modem configurator cable
modem DB-25 port laptop serial (RS-232) port
To connect the modem to the controller, do the following:
1. Prepare the DB-25 to RJ12/RJ11 connector. Follow the diagram in the figure below.
1 2 2 3 4 5 6 3 7
2. Connect the DB-25 connector to the modem.
3. Connect the RJ11 connector to the DB-25 to RJ12/RJ11 connector as shown below.
4. Connect the RJ22 connector to the
controller service port. See Figure 21 below. 5. Connect the telephone line to the TO LINE
port of the modem.
Figure 21. Connecting for remote diagnostics
DB-25 (to Modem) RJ11 RJ22 (to controller) Signal RJ12 DB-25 Rx Pin 2 Pin 3 Tx Pin 3 Pin 2 Gnd Pin 4 Pin 7 RJ12/RJ11 Inside View DB-25 DB-25 male to RJ12/11 male adapter RJ11 male to RJ22 male cable telephone line wall outlets modem DB-25 port controller RS-232 port
laptop modem port
Interpreting LED indicators and
error codes
If the detector does not pass the power up self-test, LEDs DS1 and DS2 on the controller flash alternately. All other errors are logged to the laptop configurator. Multiple errors are logged in
sequence on the laptop.
Most errors are also flashed using LEDs DS1-DS4 on the controller. A long LED interval indicates the start of an error code. Then the two-digit error code is signaled with a short delay between digits. Error codes are as follows:
Runtime errors
11 Stack error 12 Illegal ISR
13 Recovery threshold error
Flash errors
20 NVM rev number changed and reset pack to defaults
21 NVM update 22 FPGA load error
23 NVM failed checksum on bootup
24 NVM location failed to program successfully 25 Atmel chip has failed to respond
26 Atmel flash could not be programmed successfully
Hardware
31 Transmitter current overload (hardware) 32 DC fan fault
33 Power supply temperature fault 34 Amplifier temperature fault 35 Fault Tx failsafe
36 No zero crossing signal 37 Unused
38 Transmitter current overload (software) 39 Tx current overload threshold exceeded
Sequencer failure
41 Watchdog fault
42 Setup AFE channel map error 44 Rx phase error
45 Stat count error 46 Line phase error 47 Tx phase error 48 Tx frequency error
49 Fault out of real time 51 IRQB ISR error 52 Synch IRQD ISR error 53 Real time warning
Antenna detection startup error
55 Tx burst failure
Communication failures
61 Invalid sequence table 62 Invalid configuration
SPB failures
71 Dwell out of bounds 72 Detection mode sw 73 Data dump invalid buffer 74 Data dump invalid res 75 Data dump log only one 76 Auto setup debug counter 77 Auto setup switch default 78 Data dump invalid mode 79 Alarm failure
81 Invalid SUV command 82 Warning Invalid Compare 83 Line PLL RC too big 84 Invalid auto sync state
85 Invalid auto sync state algorithm
Tuning errors
91 Intelligent Pedestal A tuning error 92 Intelligent Pedestal B tuning error 93 Dumb Pedestal A tuning error 94 Dumb Pedestal B tuning error 95 Pedestal A tune Tx off 96 Pedestal B tune Tx off
Using the configurator
Digital 216 detectors use the CE Digital Platform Configurator (version 1.5 or later). Configurator features vary with each version; consult the help files linked to the Configurator for up-to-date information about the Configurator features.
Configurator requirements
To run the Configurator your service laptop must have the following:
• Pentium 2 processor or better • Windows 95, 98, NT 4.0, 2000, or XP • RS-232 port
Summary of configurator panels
A short summary of the control panels is listed below. For more information, refer to the online help included with the Configurator.
• Setup - configures the alarms for the detector and selects the transmit mode if a mode other than the default is desired. Also enable/disables automatic antenna detection and auxiliary receiver antennas.
• Tx Configuration - selects the transmit frequency control and polarity. Also, it manually adjusts transmitter current.
• Rx Configuration Panel - adjusts sensitivity and selects the receiver polarity desired. • Device Info Panel – displays information about
the controller. Also initiates data dumps. • Flash Downloads Panel - downloads
application code, FPGA code, tolerance files, NVM firmware, or audio files to the controller. • Diagnostic Panel – a training screen that
allows new users to become familiar with the icons that appear at the top of the Configurator. • Packet Monitor Panel - configures and
monitors communications between the laptop and the controller. Verify communication between laptop and controller using this panel. If laptop and controller are not communicating, click “Reset Com” to reset and restart
communications ports.
• System Noise Averages and Phasing View - monitors all receiver signals. Also use to manually adjust line sync delay.
• Individual Noise Averages Window - monitors individual antenna noise average data.
• Noise Canceling Antenna Window - monitors the effect of noise cancellation antennas. Tag detection is disabled when noise hunting is active.
• Frequency Analyzer - monitors the frequency spectrum of the receiver data.
• Time/Phase Graph - monitors the time domain of the receiver data and looks for out-of-phase transmitters.
• System Errors Panel - reviews the errors logged by the controller and resets errors and runtime. Double click on the error to review the error and possible corrective action.
• Advanced Settings – configures the firmware in the controller.
• Diagnostic Tests - selects diagnostic tests to run and view the results.
Parts
Digital Pro-Max 2 Pedestal
The Digital Pro-Max 2 pedestal contains the following field-replaceable parts.Lens (0500-9303-01): The red lens in the top of the pedestal covers the alarm lamp.
Lamp (3901-0018-01): The alarm lamp is a T-3 ¼, 14V, 0.350A bulb.
Capacitor Board (0301-1631-01): The board contains the capacitors required to resonate the pedestal. It also contains a microcontroller that communicates with the controller.
Base (0500-9304-01/02): The base is bolted to the floor. The pedestal is inserted into the base and secured with a bolt. –01 parts are gray; -02 parts are dark brown.
Shroud (0500-9305-01): The shroud slides over the pedestal and covers the cable entry points in the base.
Base Cover (0500-9350-01/02): The base cover slides over the electronics compartment in the base of the pedestal.
Figure 22. Pro-Max 2 pedestal parts
Speaker Cover (0500-9353-01/02): The
removable speaker cover covers the audible alarm on one side of the pedestal.
Speaker (1380-0022-01): The speaker is 2.5", round, 3 watt, 8 ohm.
Counter, face (0311-0056-01) – The resettable electronic counter is located on the face of the ZSDPM2-FC version of the Digital Pro-Max 2 pedestal.
Install Kit (0352-0125-01): The install kit contains the parts and cables needed to install a pedestal and connect it to the controller.
AMS-1030 Pedestal
The AMS-1030 pedestal contains the following field-replaceable parts.
Lens (0500-7815-03): The red lens in the top of the pedestal covers the alarm lamp and status LED.
Lamp (3901-0018-01): The alarm lamp is a T-3 ¼, 14V, 0.350A bulb.
Figure 23. AMS-1030 pedestal parts
Lens (0500-9303-01) Speaker cover (0500-9353-01/02) Shroud (0500-9305-01) Lamp (3901-0018-01) Capacitor board (0301-1631-01) Base (0500-9304-01/02) Base cover (0500-9350-01/02) Speaker (1380-0022-01) Lens (0500-7815-03) Alarm board (0301-1575-02) Lamp (3901-0018-01) Capacitor board (0301-1574-02) Base cover (0500-8796-01) Base cover w/ SW lock (0500-8069-02)
Capacitor Board (0301-1574-02): The board contains the capacitors required to resonate the pedestal. It also contains a microcontroller that communicates with the controller.
Alarm Board (0301-1575-02): This board contains the microcontroller that communicates with the controller. It also contains the tuning jumper LEDs, the alarm volume potentiometer, the RS2-232 port, the Tx Off LED, and the check-tuning button.
Base Cover (0500-8796-01): The base cover hides the electronics in the base of the pedestal.
Base Cover w/ Switch Lock (0500-8069-02): The base cover hides the electronics in the base of the pedestal and comes with a lock and key.
Install Kit (0352-0098-01): The install kit contains the parts and cables needed to install a pedestal and connect it to the controller.
Digital Door-Max Antenna
The Digital Door-Max antenna contains the following field-replaceable parts:Capacitor Board (0301-1574-01): The board contains the capacitors required to resonate the antenna.
Alarm Board (0301-1575-01): This board contains the microcontroller that communicates with the controller. It also contains the tuning jumper LEDs, the alarm volume potentiometer, the RS2-232 port, the Tx Off LED, and the check-tuning button.
LED Board (0301-1576-01): This board contains the alarm LEDs.
Firmware (0701-4050-0100): This firmware controls the microcontroller.
Com Cable Connector (0300-2465-01): This color-coded 10-pin connector attaches the Com cable to the capacitor board.
Shunt (2109-0062-01): This jumper plugs into tuning jumper pins JW1-J10 on the capacitor board to tune the antenna.
Piezo and Cable (0650-2420-01): The piezo resides in the cover cap and sounds during alarms.
Cover (0400-1388-01): This covers the capacitor board area.
Install Kit (0351-2184-01): The install kit contains the parts and cables needed to install an antenna and connect it to the controller.
Glass Mounting Installation Kit (ZSDDM-G1): This kit contains a special glass preparation
solution and cosmetic strip for mounting Door-Max to glass surfaces.
Status LED and switch cable assembly (0650-2418-01): This contains the Status LED, the transmit inhibit push-button switch, and the cable that connects them to the alarm board.
Acrylic panel, left (0500-9739-01): This is the clear plastic panel on the left side of the antenna.
Acrylic panel, right (0500-9740-01): This is the clear plastic panel on the right side of the antenna.
Lens (0400-1398-01): The lens covers the LEDs.
Mounting Kit, Black (ZPDDM-M1): The mounting kit attaches the antenna to the doorjamb.
Mounting Kit, Grey (ZPDDM-M2): The mounting kit attaches the antenna to the doorjamb.
Counter Install Kit (0351-2189-01): This option contains a PC board that displays the number of alarms.
Figure 24. Door-Max parts
Mounting Kit, Black (ZPDDM-M1) Grey (ZPDDM-M2) Lens (0400-1398-01) Capacitor board (0301-1574-01) LED Board (0301-1576-01) Alarm Board (0301-1575-01) Counter (0351-2189-01) Cover (0400-1388-01) Acrylic panel, left
(0500-9739-01) Piezo
AMS-2001 (Floor-Max) Antenna
The Digital Floor-Max antenna contains thefollowing field-replaceable parts.
Capacitor Board (0301-1536-01): The board contains the capacitors required to resonate the antenna. It also contains a microcontroller that communicates with the controller.
RS-232 Assembly (0300-2307-01): The RS-232 plate (Figure 13) contains the laptop connection, transmit inhibit key switch, and status LEDs.
Install Kit (0351-1696-01): The install kit contains the parts and cables needed to install an antenna and connect it to the controller.
AMS-3000 Loop Antenna
The AMS-3000 contains the following field-replaceable parts, which are shown in Figure 25.Transmitter (Tx) cable (ZSLOOP-2) This kit contains several parts. The Tx cable is a 15.24m (50ft), 300V, 20G, burial-rated cable that creates the detection field at the exit. The power cable carries power from the controller to the cap box. The cap board stores the electrical energy needed for the detection field.
Extrusion kit (0352-0064-01 black, 0352-0066-01 clear) The extrusions are hollow aluminum pieces that house the transmitter cable around the doorframe.
Bracket kit (0352-0086-01 black, 0352-0087-01 clear) This kit contains many parts. The L bracket covers the connection between the top extrusion and the side (vertical) extrusions. The T bracket covers the connection between the top extrusion and the channel. The adapter connects the channel to the cap box. The cap box houses the cap board.
Glass mounting kit (0352-0072-01) This kit (not shown) contains materials for preparing glass surfaces prior to mounting the extrusions.
Install option kit (0352-0106-01): This kit contains several parts. The PVC conduit consists of two 2.4m (8ft) pipes and various joints and elbows that house and protect the transmitter cable in the floor. The extrusion elbow connects the side (vertical) extrusions to the PVC conduit. The extrusions are hollow aluminum pieces that house the transmitter cable around the doorframe.
Digital 216 Controller
The Digital 216 Controller contains the following field replaceable parts. Refer to Figure 27 for the location of the parts.
Fuse (5111-0028-11): The controller contains two 5A, 250V, slow-blow, hi-breaking fuses.
Labels: The pluggable connectors in the controller have color-coded labels. Four different labels are used. The power connector also has a label.
− 10 position, 3.5 center (0300-2319-01 − 5 position, 3.5 center (0300-2318-01) − 5 position, 5.0 center (0300-2317-01) − 3 position, 3.5 center (0300-2316-01) − power label (0300-2487-01)
Backplane Board (0301-1510-02): The board contains the external connectors and interfaces. The Receiver/DSP board and the Power
Supply/Transmitter boards slide into it.
Receiver/DSP Board (0301-1500-01): The board contains the analog front end, the processing unit, and the interface unit.
Power Supply/Transmitter Board (0301-1508-01): The board contains the power supply, transmitter and output switcher.
Controller Assembly (0100-2475-01): This assembly includes the controller mechanical package and boards. The conduit mounting bracket is not included.
Conduit Mounting Bracket (0400-1241-01): This bracket hangs on the wall. Conduit attaches to the bracket and the controller mounts on the bracket.
Figure 25. AMS-3000 (Loop) Antenna Parts T bracket Extrusions Channel L bracket PVC conduit Extrusion elbow Transmitter cable Adapter Power cable Cap box
Figure 26. Controller connections
Controller
P14 RS485 Aux RxP10 B P9 Aux Rx A P17 Option 1 P18 Option 2 P12 Option 3 P11 Noise ComP7 Ped. B P6 Com Ped. A P5 Tx/Rx Ped. B P4 Tx/Rx Ped. A P2 AC P13 Relay A-B 1 2 3 4 5 6 7 8 9 10 A R M A N C A N O A S H L D A R M B N C B N O B S H L D P13Relay BeaconP19 RemP8 Alarm P19 Beacon Lamp 1 2 3 LA M P + V A L A R M G N D P8 Alarm 1 2 3 4 5 V A L A R M R E T + V A LA R M A LA R M N .O . S H IE L D P20 Relays C-D
Figure 27. Controller without covers
Fuses
(5111-0028-11)
Receiver/DSP Board (0301-1500-01)
Power Supply/Transmitter Board (0301-1508-01)
Backplane Board (0301-1510-02)
Antenna connectors
Controller Connections
Refer to Figure 26 for the location of the following controller connectors.Hardwired AC (P2)
Pin 1 - N-Neutral Pin 2 - L-LineTx/Rx A and B (P4 and P5)
Pin 1 - Antenna Bottom (Black) Pin 2 - Antenna Bottom Return (Red) Pin 3 - Antenna Top Return (Green) Pin 4 - Antenna Top (White)Pin 5 - Shield
Com A and B (P6 and P7)
Pin 1 - Speaker Out (Black) Pin 2 - Speaker Return (Brown) Pin 3 - Antenna LED Out (Red) Pin 4 - Data In (Orange) Pin 5 - V Alarm Return (Yellow) Pin 6 - Com Rx (Green) Pin 7 - Com Tx (Blue) Pin 8 - Data Out (Violet) Pin 9 - +V Alarm (Gray) Pin 10 - ShieldAlarm (P8)
Pin 1 - V Alarm Ret Pin 2 - +V Alarm Pin 3 - Alarm Pin 4 - N.O. Pin 5 - Shield
Aux Rx A and B (P9 and P10)
Pin 1 - Antenna BottomPin 2 - Antenna Bottom Return Pin 3 - Antenna Top Return Pin 4 - Antenna Top Pin 5 - Shield
Noise (P11)
Pin 1 - Ferrite A Pin 2 - Ferrite A Ret Pin 3 - Ferrite B Pin 4 - Ferrite B Return Pin 5 - ShieldOption 3 (P12)
Pin 1 - Spare 1 – Tx inhibit Pin 2 - Ground
Pin 3 - Shield
Relay A-B (P13)
Pin 1 - Relay A Arm Pin 2 - Relay A N.C. Pin 3 - Relay A N.O. Pin 4 - Shield Pin 5 - Not used Pin 6 - Relay B Arm. Pin 7 - Relay B N.C. Pin 8 - Relay B N.O. Pin 9 - ShieldRS485 (P14)
Pin 1 - Network Out Signal Pin 2 - Network Out Signal Return Pin 3 - Shield
Option 1 and 2 (P17 and P18)
Pin 1 - I/O Board 1Pin 2 - I/O Board 2 Pin 3 - I/O Board 3 Pin 4 - I/O Board 4 Pin 5 - Shield
Beacon Lamp (P19)
Pin 1 - Lamp Pin 2 - +V Alarm Pin 3 - GroundRelay C-D (P20)
Pin 1 - Relay C Arm Pin 2 - Relay C N.O. Pin 3 - Relay D Arm Pin 4 - Relay D N.O. Pin 5 - Ground
Specifications
Electrical
Power Supply (Non-European Controller) Primary Input:... 100-120Vac or
220-240Vac @ 50–60Hz Primary Power Fuse:... 5A, 250V, slo-blow,
hi-breaking Current Draw:... 3.5Arms Input Power: ... <350W Transmitter
Outputs: ... 2 ports
Operating Frequency: ... 58kHz (±200Hz) Transmit Burst Duration... 1.6ms
Transmit Current:... 16A peak Burst Repetition Rate:
Based on 50Hz ac... 75Hz or 37.5Hz Based on 60Hz ac... 90Hz or 45Hz Receiver Inputs: ... 4 ports Center Frequency: ... 58kHz Alarm
Alarm Relay Output... DPDT contacts Contact Switching Current .... 1.0A max. Contact Switching Voltage .... 28V max. Lamp/Audio Duration 1–30 sec.
(1 sec. increments)
Environmental
Ambient Temperature: ... 0°C to 50°C (32°F to 122°F) Relative Humidity: ... 0 to 90%
Mechanical
Digital 216 Controller
Length... 50.7cm (20") Width with bracket ... 37.7cm (14.8") Width without bracket ... 32.6cm (12.8") Height ... 15cm (5.9") Weight ... 8.6kg (19 lbs) Digital Pro-Max Pedestal
Height ... 159cm (62.5") Width (pedestal) ... 68cm (26.75") Width (base shroud) ... 72cm (28.3") Depth (base shroud) ... 10cm (4") Weight ... 20.4kg (45 lbs) AMS-2001 (Digital Floor-Max) Panel Length... 148.4cm (58.4") Width ... 72cm (28.3") Depth ... 1.85cm (0.7") Weight (w/o cable)... 10.4kg (23 lbs) AMS-1030 (Digital Euro Pro-Max) Pedestal Height ... 149cm (58.5") Width ... 71.4cm (28") Depth ... 14cm (5.5") Weight ... 22.2kg (48.8 lbs) Digital Door-Max Antenna
Height ... 183.9cm (72.4") Width ... 24.0cm (9.4") Depth ... 4.4cm (1.7") Weight ... 11.6kg (25.5 lbs) AMS-3000 (Loop) Antenna
Height ... 2m (6′ 6") max Width ... 2.44cm (8′) max Weight ... 9.3kg (20.5 lbs) AMS-2001 Floor-Max Antenna Shield Length... 180cm (71") Width ... 91cm (36") Depth ... 1cm (0.4") Weight (tray) ... 6kg (13.25 lbs) Weight (196 tiles)... 89kg (196 lbs)
Capacitor Board Enclosure
Length ... 47.5cm (18.7") Width... 37.8cm (14.9") Depth... 8.5cm (3.3") Weight... 2.4kg (5.25 lbs) RS-232 Plate Height... 11.5cm (4.5") Width... 7cm (2.7") Depth... 1.7cm (0.7") Weight... 0.1kg (0.25 lbs)
Declarations
Regulatory Compliance
(Non-European Controller)
Safety:...UL 1950 Can/CSA C22.2 No. 950 EMC:...47 CFR, Part 15 RSS 210 Issue 3FCC COMPLIANCE: This equipment complies with Part 15 of the FCC rules for intentional radiators and Class A digital devices when installed and used in accordance with the instruction manual. Following these rules provides reasonable protection against harmful interference from equipment operated in a commercial area. This equipment should not be installed in a residential area as it can radiate radio frequency energy that could interfere with radio communications, a situation the user would have to fix at their own expense.
EQUIPMENT MODIFICATION CAUTION: Equipment changes or modifications not expressly approved by
Sensormatic Electronics Corporation, the party responsible for FCC compliance, could void the user's authority to operate the equipment and could create a hazardous condition.
Other Declarations
WARRANTY DISCLAIMER: Sensormatic Electronics Corporation makes no representation or warranty with respect to the contents hereof and specifically disclaims any implied warranties of merchantability or fitness for any particular purpose. Further, Sensormatic Electronics Corporation reserves the right to revise this publication and make changes from time to time in the content hereof without obligation of Sensormatic Electronics Corporation to notify any person of such revision or changes.
LIMITED RIGHTS NOTICE: For units of the Department of Defense, all documentation and manuals were developed at private expense and no part of it was developed using Government Funds. The restrictions governing the use and disclosure of technical data marked with this legend are set forth in the definition of "limited rights" in paragraph (a) (15) of the clause of DFARS 252.227.7013. Unpublished - rights reserved under the Copyright Laws of the United States.
