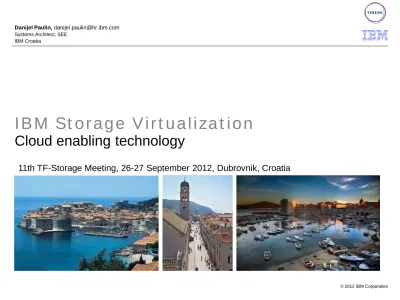

IBM Storage Virtualization Cloud enabling technology

(1)

IBM Storage Virtualization

Cloud enabling technology

Danijel Paulin, [email protected]

Systems Architect, SEE IBM Croatia

9/27/2012

(2)

Agenda

 Introduction

 Virtualization – function and benefits

 IBM Storage Virtualization

 Virtualization Appliance SAN Volume Controller

 Virtual Storage Platform Management

 Integrated Infrastructure System - „Cloud Ready”

(3)

Virtualization

Greater Storage Efficiency & Flexibility

Workload Systems Tuning Foundation for Cloud Higher Utilization Increased Flexibility Better Economics

New approach in designing IT Infrastructures

Smarter Computing is realized through an IT infrastructure that is designed for data, tuned to the task, and managed in the cloud...

Smarter Computing

(4)

The journey to the cloud begins with virtualization!

Orchestrate Workflow

Manage the process for approval of usage

Provision & Secure

Automate provisioning of resources

Monitor & Manage

Provide visibility of performance of virtual machines

Meter & Rate

Track usage of resources

Virtualize

(5)

Server virtualization

 System p, System i, System z LPARs, VMware ESX, IBM Smart Business Desktop Cloud

 Virtually consolidate workloads on servers File and File System virtualization

 Scale Out NAS (SoNAS), DFSMS, IBM General Parallel File System, N-series

 Virtually consolidate files in one namespace across servers Storage virtualization

 SAN Volume Controller (the Storage Hypervisor), ProtecTIER

 Industry leading Storage Virtualization solutions Server and Storage Infrastructure Management

 Data protection with Tivoli Storage Manager and TSM FastBack

 Advanced management of virtual environments with TPC, IBM Director VMcontrol, TADDM, ITM, TPM

 Consolidated management of virtual and physical storage resources IBM Storage Cloud Solutions

 Smart Business Storage Cloud (SoNAS), IBM SmartCloud Managed Backup

 Virtualization and automation of storage capacity, data protection, and other storage services

(6)

Sharing

Virtual Resources

Resources

Examples: LPARs, VMs, virtual disks, VLANs

Benefits: Resource utilization, workload mgmt., agility, energy efficiency

Aggregation

Virtual Resources

Resources

Examples: Virtual disks, system pools

Benefits: Management simplification, investment protection, scalability

Emulation

Virtual Resources

Resources

Examples: Arch. emulators, iSCSI, FCoE, v. tape

Benefits: Compatibility, software investment protection, interoperability, flexibility

Insulation Add, Replace, or Change Virtual Resources Resources

Examples: Compat. modes, CUOD, appliances

Benefits: Agility, investment protection, complexity & change hiding

Resource Type Y

Resource Type X

Add or Change

(7)

7

Technology that makes one set of resources look and feel like another set of resources

A logical representation of physical resources

– Hides some of the complexity

– Adds or integrates new function with existing services

– Can be nested or applied to multiple layers of a system Virtualization Logical Representation Physical Resources

(8)

What distinguishes a Storage Cloud

from Traditional IT?

1. Storage resources are virtualized from multiple arrays, vendors, and datacenters – pooled together and accessed anywhere.

(as opposed to physical array-boundary limitations)

2. Storage services are standardized – selected from a storage service catalog.

(as opposed to customized configuration)

3. Storage provisioning is self-service – administrators use automation to allocate capacity from the catalog.

(as opposed to manual component-level provisioning)

4. Storage usage is paid per use – end users are aware of the impact of their consumption and service levels.

(9)

9

(10)

Today's SAN

SAN SAN-attached disks look

like local disks to the OS & application

(11)

11

Virtualization layer

SAN – with Virtualization

Virtual disks start as images of migrated

non-virtual disks. Later, modify striping,

thin provisioning, etc.

(12)

Virtualization layer

Become truly flexible !

Virtual disks remain constant during physical

infrastructure changes

(13)

13

Virtualization layer

Enable tiered Storage !

Moving virtual disks between storage

tiers requires no downtime

(14)

Avoid planned Downtime !

Upgrade Virtualization layer upgrade or replacement with no downtime! SAN

(15)

15

In-band Storage Virtualization - Benefits

Isolation

1. Flat interoperability matrix

2. Non-disruptive migrations

3. No-cost multipathing

Pooling

1. Higher (pool) utilization

2. Cross-pool-striping: IOPS

3. Thin Provisioning: free GB

Performance

CACHE + SSD

1. Performance increase

2. Hot-spot elimination

3. Adds SSD to old gear

Mirroring Mirroring

×

1. License economies 2. Cross-vendor mirror 3. Favorable TCO License $$

(16)

Migration into Storage Virtualization

(and back!)

Virtualization layer SAN

ZONE

This works backwards too (no vendor lock-in)

Virtual disks in transparent Image Mode, before being converted to Full Striped

(17)

Redundant SAN !

SAN A ZONE 1 : 4 SAN B

(18)

Virtualization Appliance

SAN Volume Controller

(19)

Virtual Server Infrastructure

Storage Hypervisor

M an ag e V M C ont rol Virtual Storage Infrastructure Ti vol i S tor age P roduc tiv ity C en ter Sto rag e H yp er vi so r

(SAN Volume Controller) M

an ag e IB M S y st ems D irect o r

• Virtual Storage Platform - SAN Volume Controller

–Common device driver - iSCSI or FC host attach –Common capabilities

• I/O caching and cross-site cache coherency • Thin provisioning

• Easy Tier automated tiering to Solid-state Disks • Snapshot (FlashCopy)

• Mirroring (Synchronous and Asynchronous)

–Data mobility

• Transparent data migration among arrays and across tiers • Snapshot and mirroring across arrays and tiers

• Virtual Storage Platform Management - Tivoli Storage Productivity Center

–Manageability

• Integrated SAN-wide Management with Tivoli Storage Productivity Center

• Integrated IBM server and storage management (Systems Director Storage Control)

–Replication

• Application integrated FlashCopy • DR automation

–High Availability

(20)

Virtualization Appliance : SAN Volume Controller

 Stand-alone product

 Clustered ×2…8

 SVC comes with write cache mirrored in pairs (IOgroups)

 Multi-use Fibrechannel in & out

 Linux boot, 100% IBM stack

TCA:

1. Hardware

2. per-TB license (tiered)

(21)

21

6th Generation...

 Continuous development

 Firmware is backwards compatible

(64 bit not for 32 bit Hardware)

 Replace while online

SAN Volume Controller CG8 – Firmware v6.4

SVC 4F2 - 4GB cache, 2Gb SAN (Rel.3 / 2006) SVC 8F2 - 8GB cache, 2Gb SAN (ROHS comp.)

SVC 8F4 - 8GB cache, 4Gb SAN 155.000 SPC-1™_IOPS SVC 8G4 - +Dual-core Processor 272.500 SPC-1™_IOPS SVC CF8 - 24GB cache, Quad-core 380.483 6-node SPC-1 IOPS

SVC CG8 - +10 GbE approx. 640.000 SPC-1-like IOPS

MODELS

initial Release

:

(22)

SVC Model & Code Release History

 1999 – Almaden Research group publish ComPaSS clustering

 2000 – SVC ‘lodestone’ development begins using ComPaSS

 2003 – SVC 1.1 – 4F2 Hardware 4 node

 2004 – SVC 1.2 – 8 node support

 2004 – SVC 2.1 – 8F2 Hardware

 2005 – SVC 3.1 – 8F4 Hardware

 2006 – SVC 4.1 – Global Mirror, MTFC

 2007 – SVC 4.2 – 8G4 Hardware, FlashCopy enh

 2008 – SVC 4.3 – Thin Provisioning, Vdisk Mirror 8A4 Hdw

 2009 – SVC 5.1 – CF8 Hardware, SSD Support, 4 Site

 2010 – SVC 6.1 – V7000 Hardware, RAID, Easy Tier

 2011 – SVC 6.2/3 – V7000U, 10G iSCSI, xtD Split Cluster

(23)

 Based on IBM System x3550 M3 server (1U)

– Intel® Xeon® 5600 (Westmere) 2.53 GHz quad-core processor

 24GB of cache

– Up to 192GB of cache per SVC cluster

 Four 8Gbps FC ports (support Short-Wave & Long-Wave SFPs)

– Up to 32 FC ports per SVC cluster For external storage

And/or for server attachment And/or Remote Copy/Mirroring

 Two 1 Gbps iSCSI ports

– Up to 16 GbE ports per SVC cluster

 Optional 1 to 4 Solid State Drives

– Up to 32 SSD per SVC cluster

 Optional two 10 Gbps iSCSI/FCoE ports

 New engines may be intermixed in pairs with other engines in SVC clusters

– Mixing engine types in a cluster results in Volume throughput characteristics of the engine type in that I/O group

 Cluster non-disruptive upgrade capability may be used to replace older engines with new CG8 engines

(24)

SAN Volume Controller cluster

Storage Pool Storage Pool Storage Pool

consistent Driver Stack consistent Driver Stack consistent Driver Stack

IBM SAN Volume Controller Architecture

SVC Node

with UPS (not depicted)

IO Group

Managed Disk vDISK

(25)

SVC Cluster

(26)

Virtual-Disk Types

Virtual Disks MDG1 MDG2 MDG3 Image Mode:

Pass thru; Virtual Disk = Physical LUN

Sequential Mode:

Virtual Disk mapped sequentially to a portion of a managed disk

Striped Mode:

Virtual Disk striped across multiple managed

disks. Preferred mode

A A B B C C C

(27)

27

IBM SAN Volume Controller

I/O Stack



SVC software has a modular design

– 100% “In-house” code path



Each function is implemented as an

independent component

– Components bypassed if not in use for a given volume



Standard interface between components

– Easy to add/remove components



Components exploit a rich set of libraries

and frameworks

– Minimal Linux base OS to boot-strap and hand control to user space

– Custom memory management & thread scheduling

– Optimal I/O code path

– Clustered "support" processes like GUI, slpd, cimom, easy tier

Remote Copy Cache Flash Copy Mirroring Space Efficient Virtualization SCSI Backend SCSI Frontend 60us RAID Easy Tier

(28)

IBM SAN Volume Controller Management Options

SVC GUI

 Completely redesigned

 Browser based

 Extremely easy to learn/use fast

SVC CLI

 ssh

 scripting

 complete command set

Tivoli Productivity Center

 TPC, TPC-R  SMI-S 1.3  Embedded CIMOM VDS VSS Storage Control vCenter Plugin

(29)

29

(30)

SAN Volume Controller Features - summary

 _{Cache partitioning}  Embedded SMI-S agent

 Easy to use GUI

– Built-in real time performance monitoring

 E-mail, SNMP trap & Syslog error event logging

 Authentication service for Single Sign-On & LDAP

 _{Virtualise data without data-loss}  _{Expand or shrink Volumes on-line}  Thin-provisioned Volumes

– Reclaim Zero-write space

– Thick to thin, thin to thick & thin to thin migration

 On-line Volume Migration

 Volume Mirroring

 _{EasyTier: Automatic relocation of hot and cold}

extents

 _{FlashCopy, Point-In-Time copy (optional)} – Up to 256 target per source

● Target FC may be source Remote Copy

– Full (with background copy = clone)

– Partial (no background copy)

– Space Efficient

– Incremental

– Cascaded

– Consistency Groups

– Reverse

 _{Microsoft Virtual Disk Service & Volume Shadow}

Copy Services hardware provider

 _{Remote Copy (optional)}

– Synchronous & asynchronous remote replication with Consistency groups

 VMware

– Storage Replication Adaptor for Site Recovery Manager

Optimized performance and throughput Automatic Relocation SSDs HDDs SSDs HDDs Volume Volume copy 2 SVC Volume copy 1 Volume MDisk Target SVC MDisk Source Up to 256 Vol3 FlashCopy target of Vol1 Vol0 Source Map 1 Map 2 Map 4 Vol1 FlashCopy target of Vol0 Vol2 FlashCopy target of Vol1 Vol4 FlashCopy target of Vol3 MM or GM

Relationship Consolidated DR Site

MM or GM Relationship MM or GM Relationship SVC SVC SVC SVC

(31)

Volume Mirroring

Back-end high availability & migration

 _{SVC stores two copies of a Volume}

– It maintains both copies in sync, reads primary copy and writes to both copies

 If disk supporting one copy fails, SVC provides continuous data access by using other copy

– Copies are automatically resynchronized after repair

 Intended to protect critical data against failure of a disk system or disk array

– A local high availability function, not a disaster recovery function

 _{Copies can be split}

– Either copy can continue as production copy

 Either or both copies may be thin-provisioned

– Can be used to convert fully allocated to thin-provisioned volume ● Thick to thin migration

– May be used to convert thin-provisioned to fully allocated ● Thin to thick migration

 Mirrored Volumes use twice physical capacity of un-mirrored Volumes

– Base virtualisation licensed capacity must include required physical capacity

 The user can configure the timeout for each mirrored volume

– Priority on redundancy: Wait until write completes or times-out finally.

 Performance impact, but active copies are always synchronized

31

Copy 0 Copy 1

SVC

(32)

 _{What is Easy Tier?}

– A function that dynamically re- distributes active data across multiple tiers of storage class based on workload

characteristics _{Automatic storage hierarchy}

● Hybrid storage pool with 2 tiers = Solid-State Drives & Hard Disk Drives

● I/O Monitor keeps access history for each virtualisation extent (16MiB to 2GiB per extent) every 5 minutes

● Data Placement Adviser analyses history every 24 hours

● Data Migration Planner invokes data migration  Promote hot extents or demote inactive extents

– The goal being to reduce response time

– Users have automatic and semi-automatic extent based placement and migration management

 Why it matters?

– Solid State Storage has orders of magnitude better throughput and response time with random reads

– Full volume allocation to SSD only benefits a small number of volumes or portions of volumes, and use cases – Allowing dynamic movement of the hottest extents to be transferred to the highest performance storage

enables a small number of SSD to benefit the entire infrastructure

IBM EasyTier

Hot-spots Optimized performance and throughput

Transparent reorganization

Hot-spots Optimized performance and throughput

Automatic Relocation

(33)

Thin-provisioning

 Traditional (“fully allocated”) virtual disks use physical disk capacity for the entire capacity of a virtual disk even if it is not used

 With thin-provisioning, SVC allocates and uses physical disk capacity when data is written

 Available at no additional charge with base virtualisation license

 _{Support all hosts supported with traditional volumes and all advanced features}

(EasyTier, FlashCopy, etc.)

 Reclaiming Unused Disk Space

– When using Volume Mirroring to copy from a fully-allocated volume to a thin-provisioned volume, SVC will not copy blocks that are all zeroes

– When processing a write request, SVC detects if all zeroes are being written and does not allocate disk space for such requests in the thin-provisioned volumes

● Helps avoid space utilization concerns when formatting Volumes

 _{Done at Grain Level (32/64/128/256KiB)}_{If grain contains all zeros don’t write}

33

Without thin provisioning, pre-allocated space is reserved whether the application

uses it or not

With thin provisioning, applications can grow dynamically, but only consume space they are

actually using

Dynamic growth

(34)

(35)

35

Business Continuity with SVC

Traditional SAN

 _{Replication APIs differ by vendor}  _{Replication destination must be the}

same as the source

 _{Different multipath drivers for each}

array

 _{Lower-cost disks offer primitive, or no}

replication services

SAN Volume Controller

 _{Common replication API, SAN-wide, that}

does not change as storage hardware changes

 Common multipath driver for all arrays

 _{Replication targets can be on lower-cost}

disks, reducing the overall cost of exploiting replication services

SAN SAN

FlashCopy®

Metro/Global Mirror TimeFinder _SRDF

IBM

DS5000 DS5000 IBM Clariion EMC _ClariionEMC _EMC

Clariion DS5000 IBM HP EVA IBM Storwize V7000 HDS AMS SVC SVC

(36)

SVC SVC

Managed Storage

Volume Mirroring  Volume Mirroring

“outside the box” 2 close sites (<10Km)

Warning, there is no consistency group

Global Mirror

 Consistent Asynchronous Mirror – Limited impact on write IO response

time

– Data loss

– All write IOs are sent to the remote site in the same order they were received on source volumes

– Only 1 source and 1 target volumes

2 remote sites (>300 Km) Metro Mirror

 Synchronous Mirror – Write IO response time

doubled + distance latency

– No data loss

2 close sites (<300 Km)

Warning, production performance impact if inter-site links are unavailable, during microcode upgrades, etc.

FlashCopy

 Point-in-Time Copy

“outside the box” 2 close sites (<10Km)

Warning, this is not real time replication

Vol0 Vol0’ Vol0’

Managed Storage Legacy Storage

R W W

Copy Services with SVC

(37)

Multicluster Mirroring

"any-to-any"

(up to 4 instances)

SAN Volume Controller SAN Volume Controller SAN Volume Controller Datacenter1 Datacenter 2 Datacenter 4 Datacenter 3

(38)

(39)

39

SVC split cluster - symmetric disk mirroring

VM Host

VM Host

SVC 1 node A SVC 1 node B

High availability + protection

for virtual machines

VM VM

LUN1  max.100km recommended  LUN1'

max.300km supported

One storage system. Two locations.

VM VM

(40)

SW

I/O Group

Production room A Production room C Production room B  You should always have 2 SAN fabrics (A

& B), and 2 switches per SAN fabric (one on each site)

– This diagram is only showing connectivity to a single fabric

● In reality connectivity is to a redundant SAN fabric and therefore everything should be doubled

 You should always connect each SVC node in a cluster on the same SAN switches

– The best is to connect each SVC node to SAN fabric A switch 1 & 2, as well as SAN fabric B switch 1 & 2

– You can consider (supported but it is not recommended) connecting all SVC nodes to the switch 1 in the SAN fabric A, and to the switch 2 in the SAN fabric B

 To avoid fabric re-initialisation in case of link hiccups on the ISL, consider creating a Virtual SAN Fabric on each site and use inter-VSAN routing

SAN A Switch 1 SAN A’ Switch 2 LW or SW LW or SW SW SW SW SW SW LW or SW LW or SW LW or SW LW or SW ISL

SVC split cluster & VDM – Connectivity

Bellow 10Km using passive DWDM

Pool 1 Pool 3 Pool 2 Candidate

Quorum Primary

Quorum Candidate

(41)

SW

I/O Group

Production room A Production room B

SW

SW SW

SVC split cluster & VDM – Connectivity

Up to 300Km using active DWDM

Pool 1 Candidate Quorum Pool 2 Candidate Quorum

41

Dedicated ISLs/Trunks

For SVC inter-node traffic

Private SAN A Private SAN A’

Public SAN A ISL s/Trunks Public SAN A’

Production room C

LW or SW LW or SW

Pool 3 Quorum Primary

SW

Brocade virtual fabric or a Cisco VSAN can be used to isolate Public and Private SANs

Enhanced!

You should always have 2 SAN fabrics (A & B) with at least:

 _{2 switches per SAN fabric (1 per site) when using CISCO VSANs or Brocade virtual fabrics to isolate private and}

public SANs

 4 switches per SAN fabric (2 per site) when private and public SANs are on physically dedicated switches

_{This diagram is only showing connectivity to a single fabric A (In reality connectivity is to a redundant SAN}

(42)

2-site Split Cluster

HA / Disaster Recovery with SVC Split Cluster

Improve availability, load-balance, and

deliver real-time remote data access by distributing applications and their data across multiple sites.

Seamless server / storage failover when

used in conjunction with server or

hypervisor clustering (such as VMware or PowerVM)

Up to 300km between sites (3x EMC VPLEX)

Metro or Global Mirror

4-site Disaster Recovery For combined high availability and disaster

recovery needs, synchronously or asynchronously mirror data over long distances between two high-availability stretch clusters.

High Availability High Availability Disaster Recovery

Data center 1 Data center 2

Server Cluster 1 Server Cluster 2

SVC

Stretched-cluster Stretched virtual volume

Failover

Data center 1 Data center 2 Server Cluster 1 Server Cluster 2

Stretched virtual volume

Failover

Data center 1 Data center 2 Server Cluster 1 Server Cluster 2

Stretched virtual volume

Failover

Up to 300km

(43)

SVC Split Cluster Considerations

 The same code is used for all inter-node communication

– Clustering

– Write Cache Mirroring

– Global Mirror & Metro Mirror

 Advantages

– No manual intervention required

– Automatic and fast handling of storage failures

– Volumes mirrored in both locations

– Transparent for servers and host based clusters

– Perfect fit in a virtualized environment (like VMware VMotion, AIX Live Partition Mobility)

 Disadvantages

– Mix between HA and DR solution but not a true DR solution

– Non-trivial implementation – involve IBM Services

(44)

(45)

45

V7000 = The iPod of Midrange Storage

Delegated complexity

"auto optimizing"

Easy-Tier  SSD enabled  Thin provisioning  Non-IBM expansion  Auto-migration  based on "mini" SVC

(46)

(47)

SAN Volume Controller

SVC 6.4 Supported Environments

8Gbps SAN fabric HP 3PAR, StorageWorks P9500, MA, EMA MSA 2000, XP EVA 6400, 8400 Hitachi Virtual Storage Platform (VSP) Lightning Thunder TagmaStore AMS 2100, 2300, 2500 WMS, USP, USP-V EMC VNX VMAX CLARiiON CX4-960 Symmetrix Microsoft Windows Hyper-V IBM Power7 IBM AIX IBM i 6.1 (VIOS) Sun Solaris HP-UX 11i Tru64 OpenVMS Linux (Intel/Power/z Linux) RHEL SUSE 11 Citrix Xen Server IBM BladeCenter SAN SAN Volume Controller Continuous Copy Metro/Global Mirror Multiple Cluster Mirror

VMware vSphere 4.1., 5

Point-in-time Copy Full volume, Copy on write 256 targets,

Incremental, Cascaded, Reverse, Space-Efficient, FlashCopy Mgr Novell NetWare Sun StorageTek IBM DS DS3400, DS3500 DS4000 DS5020, DS3950 DS6000 DS8000, DS8800 1024 Hosts IBM Storwize V7000 IBM N series NetApp FAS SGI IRIX IBM TS7650G Fujitsu Eternus DX60, DX80, DX90, DX410 DX8100, DX8300, DX9700 8000 Models 2000 & 1200 4000 models 600 & 400, 3000 NEC iStorage Bull Storeway

Space-Efficient Virtual Disks

Apple Mac OS Pillar Axiom IBM XIV DCS9550 DCS9900 IBM z/VSE SSD Native iSCSI* 1 or 10 Gigabit TMS RamSan- 620 Compellent Series 20 Easy Tier

Virtual Disk Mirroring

(48)

Virtual Storage Platform

Management

(49)

Virtual Server Infrastructure

Storage Hypervisor

M an ag e V M C ont rol Virtual Storage Infrastructure Ti vol i S tor age P roduc tiv ity C en ter Sto rag e H yp er vi so r

(SAN Volume Controller) M

an ag e IB M S y st ems D irect o r

• Virtual Storage Platform - SAN Volume Controller –Common device driver - iSCSI or FC host attach –Common capabilities

• I/O caching and cross-site cache coherency • Thin provisioning

• Easy Tier automated tiering to Solid-state Disks • Snapshot (FlashCopy)

• Mirroring (Synchronous and Asynchronous)

–Data mobility

• Transparent data migration among arrays and across tiers • Snapshot and mirroring across arrays and tiers

• Virtual Storage Platform Management - Tivoli Storage Productivity Center

–Manageability

• Integrated SAN-wide Management with Tivoli Storage Productivity Center

• Integrated IBM server and storage management (Systems Director Storage Control)

–Replication

• Application integrated FlashCopy • DR automation

–High Availability

(50)

Tivoli Storage Productivity Center - TPC

5

Servers

ESX servers

Apps, DB’s, file systems

Volume managers

Host bus adaptors

Virtual HBAs Multi-path drivers

What You Need to Manage

TPC Can Help

IBM SmartCloud

Virtual Storage Center All this and more…

 Advanced SAN Planning and

provisioning based on best practices

 Proactive configuration change

management

 Performance optimization

 Tiering Optimization

 Complete SAN fabric

performance mgmt.

 Storage Virtualization

 Application Aware FlashCopy

management TPC 5.1  Single management console  Heterogeneous storage  Health monitoring  Capacity mgmt.  Provisioning  Fabric management  FlashCopy support  Storage System Performance Management

 SAN Fabric Performance management

 Trend Analysis

 DR & Business Continuity  Applications & Storage  Hypervisor (ESX, VIO)

 Hyperswap Mgmt.

Storage Networks

Switches & Directors Virtual devices

Storage

Multi-vendor storage

Storage array provisioning

Virtualization / Vol. mapping

Block + NAS, VMFS

Tape libraries

Replication

FlashCopy

Metro Mirror

Metro Global Mirror

… and Mature

(51)

TPC 5.1 Highlights

51



Fully integrated & Web-based

GUI

– Based on Storwize/XIV success



TCR/Cognos-based

Reporting & Analytics



Enhanced management for

virtual environments



Integrated Installer

(52)

Enhanced management for virtual environments

 Helps avoid double counting storage capacity in TPC reporting on VMware

 Associates storage not only with individual VMs and Hypervisors but also with the clusters

 VMotion awareness

Virtual Machines Clustered Across Hosts

Storage (SAN) VM Hypervisor Tivoli Storage Productivity Center VM Hypervisor

(53)

Enhanced management for virtual environments

(54)

Integrated Infrastructure System

„Cloud Ready”

(55)

IBM PureSystems

55

Infrastructure & Cloud Application & Cloud

• Integrated Infrastructure System • Factory integration of Compute, Storage, Networking, and management

• Broad support for x86 and POWER environments • Cloud ready for

infrastructure • Integrated Application Platform • Factory integration of infrastructure + middleware (DB2, Websphere) • Application ready (Power or x86 with workload deployment capability) • Cloud ready application platform

(56)

Flexible and open choice in a fully integrated system

PureFlex System is Integrated by design

Expert Integrated

Systems

Tightly integrated compute, storage, networking, software, management, and security

Applications Tools Compute Storage Networking Virtualization Management Security

(57)

57

IBM Flex System

Compute Nodes Power 2S/4S* x86 2S/4S Storage Node V7000 Expansion inside or outside chassis Management Appliance Networking 10/40GbE, FCoE, IB 8/16Gb FC Expansion PCIe Storage

IBM PureFlex System

Pre-configured, pre-integrated

infrastructure systems with compute, storage, networking, physical and virtual management, and entry cloud

management with

integrated expertise. Chassis

14 half-wide bays for nodes

IBM PureApplication System

Pre-configured, pre-integrated

platform systems with middleware designed for transactional web applications

and enabled for cloud with

integrated expertise.

IBM PureSystems

What’s Inside? An evolution in design, a revolution in experience

Expert Integrated

(58)

(59)

59

– Simplified administration, including copy services: 1 same process

– Online re-planning flexibility is greatly enhanced  "Cloud ready"

– Storage effectiveness (ongoing optimization) can be maintained over time

– Move applications up one tier as required, or down one tier when stale

– Move from performance design "in hardware" to QoS policy management

Why to consider Storage Virtualization?

1. Missing storage "hypervisor" for virtualized servers 2. Too high physical migration effort

3. Compatibility chaos (multipathing, HBA firmware…)

4. Need for transparent campus failover like Unix LVM

5. Need for automatic hotspot elimination ("EasyTier")

6. Unhappy with storage performance

(60)

Internet Resources

 Information Center  SVC Support Matrix  SVC / Storwize V7000 Documentation

(61)

Thank you!

(62)
