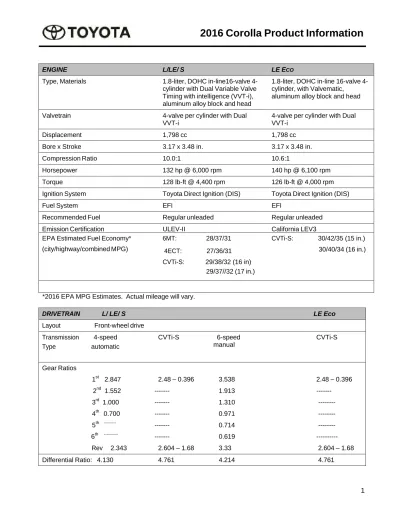

2016 Corolla Product Information

(1)

2016 Corolla Product Information

1

ENGINE L/LE/ S LE ECO

Type, Materials 1.8-liter, DOHC in-line16-valve 4- 1.8-liter, DOHC in-line 16-valve

4-cylinder with Dual Variable Valve cylinder, with Valvematic,

Timing with intelligence (VVT-i), aluminum alloy block and head

aluminum alloy block and head

Valvetrain 4-valve per cylinder with Dual 4-valve per cylinder with Dual

VVT-i VVT-i

Displacement 1,798 cc 1,798 cc

Bore x Stroke 3.17 x 3.48 in. 3.17 x 3.48 in.

Compression Ratio 10.0:1 10.6:1

Horsepower 132 hp @ 6,000 rpm 140 hp @ 6,100 rpm

Torque 128 lb-ft @ 4,400 rpm 126 lb-ft @ 4,000 rpm

Ignition System Toyota Direct Ignition (DIS) Toyota Direct Ignition (DIS)

Fuel System EFI EFI

Recommended Fuel Regular unleaded Regular unleaded

Emission Certification ULEV-II California LEV3

EPA Estimated Fuel Economy* 6MT: 28/37/31 CVTi-S: 30/42/35 (15 in.)

(city/highway/combined MPG) _4ECT: _27/36/31 30/40/34 (16 in.)

CVTi-S: 29/38/32 (16 in)

29/37//32 (17 in.)

*2016 EPA MPG Estimates. Actual mileage will vary.

DRIVETRAIN L/ LE/ S LE Eco

Layout Front-wheel drive

Transmission 4-speed CVTi-S 6-speed CVTi-S

Type automatic manual

Gear Ratios 1st 2.847 2.48 – 0.396 3.538 2.48 – 0.396 2nd 1.552 --- 1.913 ---3rd 1.000 --- 1.310 ---4th 0.700 --- 0.971 ---5th --- --- 0.714 ---6th --- --- 0.619 ---Rev 2.343 2.604 – 1.68 3.33 2.604 – 1.68 Differential Ratio: 4.130 4.761 4.214 4.761

(2)

2016 Corolla Product Information

2

CHASSIS AND BODY L/ LE/ LE Eco S

Suspension - Front Independent MacPherson Strut Independent MacPherson Strut

- Rear Torsion Beam Torsion Beam

- Stabilizer Bar Diameter 0.94/0.79 in. 0.94/0.79 in.

(front/rear)

Steering - Type Electric Power Steering (EPS) Electric Power Steering (EPS)

- Overall Ratio 17.8:1 17.8:1

- Turns (lock to lock) 3.19 turns 3.19 turns

- Turning Circle 35.6 ft. 35.6 ft.

Diameter (curb to curb)

Brakes - Front - type/diameter Ventilated disc/10.8 in. Ventilated disc/10.8 in.

- Front Swept Area 208 sq. in. 208 sq. in.

- Rear - type/diameter Drum/9.1 in. Solid Disc/ 10.2 in.

- Rear Swept Area 78 sq. in. 168 sq. in.

- Parking Center hand brake Center hand brake

Anti-lock Brake System (ABS), Electronic Standard Standard

Brake-force Distribution (EBD), and Brake Assist (BA)

Wheel Size 6.0 x 15 in. (steel for L, LE Eco) 6.5 x 16 in (steel for base S)

6.5 x 16 in. (steel and available 7.0 x 17 in.(available alloy for S) alloy– LE, LE Eco),

Tire Size P195/65 R15 P205/55 R16

P205/55 R16 P215/45 R17

Tire Type All-season steel belted radial All-season steel belted radial

(3)

2016 Corolla Product Information

3

EXTERIOR DIMENSIONS L/LE/ LE Eco S

Wheelbase 106.3 in. 106.3 in.

Overall Length 182.6 in. 183.1 in.

Overall Width 69.9 in. 69.9 in.

Overall Height 57.3 in. 57.3in.

Tread Width 15 in. 16 in. 17 in.

- Front 60.3 in. 59.8 in. 59.8 in.

- Rear 60.4 in. 59.9 in. 59.9 in.

Ground Clearance 5.5 in. 5.6 in.

Coefficient of Drag 0.29 (0.28 LE Eco) 0.30

INTERIOR DIMENSIONS L/LE/ LE Eco S

Seating Capacity 5 5

Headroom (Front/Rear) 38.3/37.1 in. (without moonroof) 38.3/37.1 in. (w/o moonroof)

38.0.9/37.1 in. (with moonroof) 38.0/37.1 in. (with moonroof)

Legroom (Front/Rear) 42.3/41.4 in. 42.3/41.4 in.

Shoulder Room (Front/Rear) 54.8/54.8 in. 54.8/54.8 in.

Hip Room (Front/Rear) 53.0/43.9 in. 53.0/43.9 in.

EPA Passenger Volume 97.5 cu. ft. (w/o moonroof) 97.5 cu. ft. (w/o moonroof)

97.11 cu. ft. (with moonroof) 97.11 cu. ft. (with moonroof)

EPA Cargo Volume 13.0 cu. ft. 13.0 cu. ft.

WEIGHTS AND CAPACITIES L/LE/ LE Eco S

Curb Weight L LE/ LE Eco

6MT 2,800 lbs. --- 6MT 2,845 lbs.

4ECT 2,820 lbs. CVTi-S 2,865 lbs.

CVTi-S 2,855 lbs.

Maximum Towing Weight 0 lbs. 0 lbs.

Fuel Capacity 13.2 gal. 13.2 gal.

Engine Oil 5.0 qt. 5.0 qt.

(4)

2016 Corolla Product Information

4

STANDARD EXTERIOR FEATURES

L

 LED lowbeam headlights with halogen highbeams

 LED daytime running lights (DRL)

 Color-keyed power outside mirrors

 Color-keyed outside door handles

 15-inch steel wheels with wheel covers and P195/65 R15 tires

 Color-keyed front grille

 Intermittent windshield wipers

 In-glass AM/FM antenna

LE (In addition to or in place of L grade features)

 Front grille with argent gray painted insert

 Color-keyed heated power outside mirrors

 16-inch steel wheels with wheel covers and P205/55R16 tires

 Variable intermittent windshield wipers with mist cycle

LE Eco (In addition to or in place of LE grade features)

 Rear spoiler

 15-inch steel wheels with wheel covers and P195/65R15 tires

LE Plus (In addition to or in place of LE and LE Eco grade features)

 Integrated fog lights

 16-inch alloy wheels with P205/55R16 tires

LE Eco Plus (In addition to or in place of LE Plus grade features)

 Chrome window accent trim

 Rear Spoiler

 16-inch aerodynamically designed alloy wheels with P205/55R16 tires

LE Premium (In addition to or in place of LE Plus grade features)

 Power tilt/slide moonroof with sliding sunshade

 Roof-mounted antenna

LE Eco Premium (In addition to or in place of LE Premium grade features)

 Chrome window accent trim

 Rear spoiler

 16-inch aerodynamically designed alloy wheels with P205/55R16 tires

S (In addition to or in place of LE Plus grade features)

 Front chrome grille surround with piano black insert

 Color-keyed heated power outside mirrors with turn signal indicators

 Rear Spoiler

 16-inch steel wheels with unique wheel covers and P205/55R16 tires

 Chrome-tipped exhaust

S Plus (In addition to or in place of S grade features)

 Power tilt/slide moonroof with sliding sunshade (standard on 6-speed manual and optional on CVT)

 17-inch alloy wheels with 215/45R17 tires

 Roof-mounted antenna (standard on 6-speed manual and part of package on CVT)

S Special Edition (In addition to S Plus grade features)

 Special Edition exterior badge

 17-inch alloy wheels with gloss black finish and P215/45R17 tires

S Premium (In addition to or in place of S Plus grade features)

(5)

2016 Corolla Product Information

5

STANDARD INTERIOR FEATURES

L

 Air conditioning with dust and pollen filter

 Fabric-trimmed six-way adjustable driver’s seat; four-way adjustable front passenger seat

 Fabric-trimmed 60/40 split fold-down rear seat

 Tilt/telescopic steering wheel with audio and Bluetooth®_{hands-free phone controls}

 Instrumentation with speedometer and tachometer, odometer, tripmeters, outside temperature,

current/average fuel economy, cruising range; TPMS, one-touch 3-blink lane change turn signal indicator, and warning messages (6-speed manual only)

current/average fuel economy, cruising range, shift-position; TPMS,ECO indicator, one-touch 3-blink lane change turn signal indicator, and warning messages (4-speed automatic only)

 Power door locks with automatic locking feature

 Power windows with driver’s side one touch up/down

 Rear window defogger with timer

 Day/night rearview mirror

 Overhead console with map lights

 Center console with storage compartment

 Passenger-side glove compartment

 Front and rear door storage pockets with sculpted bottle holders

 One 12V auxiliary power outlet

 Two front cup holders

 Digital clock

LE and LE Eco (In addition to or in place of L grade features)

 Automatic climate control with dust and pollen filter and push-button controls

 Integrated backup camera with projected path

 Fabric-trimmed six-way adjustable driver’s seat; four-way adjustable front passenger seat with

seatback pocket

 Fabric-trimmed 60/40 split fold-down rear seat with center armrest and two cupholders

 Cruise control

 Tilt/telescopic 3-spoke steering wheel with audio and Bluetooth®_{hands-free phone voice-command}

controls

current/average fuel economy, cruising range, shift-position; TPMS, eco indicator, one-touch 3-blink lane change turn signal indicator, and warning messages

 Metallic interior trim with chrome interior door handles, and color-keyed door panel piping

 Multi-function in-key remote keyless entry system with lock, unlock, panic and trunk-release functions,

and remote illuminated entry

 Shift mode

LE Plus and LE Eco Plus (In addition to or in place of LE and LE Eco grade features)

 Normal and Eco driving modes LE Eco Plus only)

LE Premium and LE Eco Premium (In addition to or in place of LE and LE Plus grade features)

 Softex®_{-trimmed 8-way power-adjustable driver’s seat; 4-way adjustable front passenger seat with}

seatback pocket

 Driver and front passenger heated seats

 Smart Key System on front doors and trunk with Push Button Start, remote keyless entry system with

(6)

2016 Corolla Product Information

6

STANDARD INTERIOR FEATURES – CONT’D

S (In addition to or in place of LE and LE Eco features)

 Fabric-trimmed 6-way adjustable driver's seat with sport bolsters and sport fabric inserts; 4-way

adjustable front passenger seat with sport bolsters and sport fabric inserts and seatback pocket

 Leather-trimmed tilt/telescopic 3-spoke steering wheel with paddle shifters and audio,

Multi-Information Display, Bluetooth® hands-free phone voice-command controls

 Sport instrumentation with speedometer and tachometer, coolant temperature, TFT Multi-Information

Display with customizable settings, odometer, tripmeters, outside temperature, current/average fuel economy, cruising range, average speed, elapsed time, shift-position; TPMS, ECO-indicator, one-touch 3-blink lane change turn signal indicator, and warning messages

 Normal and Sport driving modes

S Plus (In addition to or in place of S grade features)

 Leather-trimmed tilt/telescopic 3-spoke steering wheel and audio, Multi-Information Display,

Bluetooth®_{hands-free phone voice-command controls (6-speed manual only)}

 Sport instrumentation with speedometer and tachometer, coolant temperature, TFT Multi-Information

Display with customizable settings, odometer, tripmeters, outside temperature, current/average fuel economy, cruising range, average speed, elapsed time; shift position, TPMS, one-touch 3-blink lane change turn signal indicator, and warning messages (6-speed manual only)

lock, two-stage unlock, panic, and trunk-release (Standard on 6-speed manual only)

S Special Edition (In addition to or in place of S and S Plus features)

 Fabric-trimmed 6-way adjustable driver's seat with sport bolsters and sport fabric inserts with red

contrast stitching; 4-way adjustable front passenger seat with sport bolsters and sport fabric inserts with red contrast stitching and seatback pocket

 60/40 split fold-down rear seat with red contrast stitching, center armrest and two cupholders

 Black interior with red contrast stitching on shift boot, center console armrest and door armrests, red

accents on instrument panel and door trim

 Leather-trimmed tilt/telescopic 3-spoke steering wheel with red contrast stitching, paddle shifters and

audio, Multi-Information Display, Bluetooth® hands-free phone voice-command controls

lock, two-stage unlock, panic, and trunk-release

 Special Edition floor mats

S Premium (In addition to or in place of S, S Plus, and S Special Edition grade features)

 SofTex®_{-trimmed 8-way power-adjustable driver's seat; 4-way adjustable front passenger seat with}

seatback pocket

(7)

2016 Corolla Product Information

7

STANDARD AUDIO SYSTEM

L, LE, LE Plus, LE Eco, LE Eco Plus, S, S Plus CVT, and S Special Edition

 Entune Audio - includes the Entune Multimedia Bundle (6.1 in. touch-screen display, AM/FM CD

player, 6 speakers, auxiliary audio jack, USB 2.0 port with iPod®_{connectivity and control, advanced}

voice recognition, hands-free phone capability, phone book access and music streaming via Bluetooth®_{wireless technology), Siri}®_{Eyes Free}

LE Premium, LE Eco Premium, S Plus 6-speed manual, and S Premium

 Entune Premium Audio with Integrated Navigation and App Suite - includes the Entune Multimedia

Bundle (6.1-in high resolution touch-screen with split screen display, AM/FM CD player, 6 speakers, auxiliary audio jack, USB 2.0 port with iPod®_{connectivity and control, advanced voice recognition,}

hands-free phone capability, phone book access and music streaming via Bluetooth®_wireless

technology), Siri®_{Eyes Free, Entune App Suite, HD radio, HD predictive traffic and doppler weather}

overlay, AM/FM cache radio, SiriusXM All Access Radio with 3-month complimentary trial and Gracenotes album cover art

 Entune®_{App Suite - includes Destination Search, iHeartRadio, MovieTickets.com, OpenTable}®_,

Pandora®_{, Facebook Places, Yelp™ and Slacker Radio; real-time info including traffic, weather, fuel}

prices, sports and stocks. Access to Entune® services is subscription free. See toyota.com/entune for details.

STANDARD SAFETY AND SECURITY

 Star Safety System™ - includes Enhanced Vehicle Stability Control (VSC), Traction Control (TRAC),

Anti-lock Brake System (ABS), Electronic Brake-force Distribution (EBD) and Brake Assist (BA) and Smart Stop Technology (SST)

 Eight airbags - includes driver and front passenger Advanced Airbag System, driver and front

passenger seat-mounted side airbags, driver knee airbag, passenger seat cushion airbag, and front and rear side curtain airbags

 Driver and front passenger Whiplash-Injury-Lessening (WIL) seats

 3-point seatbelts for all seating positions; driver-side Emergency Locking Retractor (ELR) and

Automatic/Emergency Locking Retractor (ALR/ELR) on all passenger belts

 Adjustable front shoulder anchors, driver and front passenger seatbelt pretensioners with force limiters

 LATCH (Lower Anchors and Tethers for Children) includes lower anchors on outboard rear seats and

tether anchors on all rear seats

 Child protector rear door locks

 Energy absorbing collapsible steering column

 Front and rear energy-absorbing crumple zones with side-impact door beams

 Head impact protection structure

 High tensile strength steel body panels

 Tire Pressure Monitor System (TPMS)

(8)

2016 Corolla Product Information

8 FACTORY OPTIONS L  None LE and LE Eco

 Entune Audio Plus with Connected Navigation App - includes the Entune Multimedia Bundle (6.1 in. high

resolution touch-screen display, AM/FM CD player, 6 speakers, auxiliary audio jack, USB 2.0 port with

iPod®_{connectivity and control, advanced voice recognition, hands-free phone capability, phone book}

access and music streaming via Bluetooth®_{wireless technology), Siri}®_{Eyes Free, SiriusXM All Access}

Radio with 3-month complimentary trial, HD radio, HD traffic and weather in major metro areas,

Connected Navigation Scout®_{GPS for Cars Link App}

LE Plus and LE Eco Plus

 Driver Convenience Package: Includes Smart Key System on front doors and trunk with Push Button

Start, remote keyless entry system with lock, panic, and trunk-release functions; Entune Premium Audio with Integrated Navigation and App Suite

LE Premium and LE Eco Premium

 None

S CVT

 Entune Audio Plus with Connected Navigation App

S Plus 6-speed manual and S Premium

 None

S Plus CVT

 Driver Convenience Package: Includes Smart Key System on front doors and trunk with Push Button

Start, remote keyless entry system with lock, panic, and trunk-release functions; Entune Premium Audio with In-Vehicle Navigation and App Suite

AVAILABLE EXTERIOR COLORS

- Black Sand Pearl - Barcelona Red Metallic - Slate Metallic

- Brown Sugar Metallic - Classic Silver Metallic - Blue Crush Metallic - Super White - Evergreen Metallic - Blizzard Pearl - Absolutely Red

BASIC LIMITED WARRANTY COVERAGE

 3-year/36,000-mile Comprehensive

 5-year/60,000-mile Powertrain

 5-year/unlimited-mileage Corrosion Perforation

 Toyota Care – Complimentary maintenance plan with the purchase or lease of every new Toyota. For

2 years or 25,000 miles, whichever comes first, every new Toyota will be covered for all normal factory scheduled service, as well as 24/7 roadside assistance
