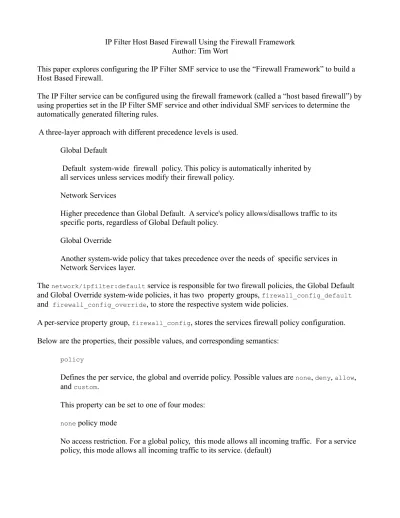

IP Filter Host Based Firewall Using the Firewall Framework Author: Tim Wort

IP Filter Host Based Firewall Using the Firewall Framework

Author: Tim Wort

This paper explores configuring the IP Filter SMF service to use the “Firewall Framework” to build a

Host Based Firewall.

The IP Filter service can be configured using the firewall framework (called a “host based firewall”) by

using properties set in the IP Filter SMF service and other individual SMF services to determine the

automatically generated filtering rules.

A three-layer approach with different precedence levels is used.

Global Default

Default system-wide firewall policy. This policy is automatically inherited by

all services unless services modify their firewall policy.

Network Services

Higher precedence than Global Default. A service's policy allows/disallows traffic to its

specific ports, regardless of Global Default policy.

Global Override

Another system-wide policy that takes precedence over the needs of specific services in

Network Services layer.

The

network/ipfilter:default

service is responsible for two firewall policies, the Global Default

and Global Override system-wide policies, it has two property groups,

firewall_config_default

and

firewall_config_override

, to store the respective system wide policies.

A per-service property group,

firewall_config

, stores the services firewall policy configuration.

Below are the properties, their possible values, and corresponding semantics:

policy

Defines the per service, the global and override policy. Possible values are

none

,

deny

,

allow

,

and

custom

.

This property can be set to one of four modes:

none

policy mode

No access restriction. For a global policy, this mode allows all incoming traffic. For a service

policy, this mode allows all incoming traffic to its service. (default)

deny

policy mode

More restrictive than none. This mode allows incoming traffic from all sources except those

specified in the

apply_to

property.

allow

policy mode

Most restrictive mode. This mode blocks incoming traffic from all sources except those

specified in the

apply_to

property.

custom

policy mode

The mode can be used if an existing IP Filter configuration or custom configurations that cannot

be provided by the framework is required. This Global Default only policy mode allows users to

supply a text file containing the complete set of IPF rules. When custom mode is selected, the

specified set of IPF rules is complete and the framework will not generate IPF rules from

configured firewall policies. The rules file location and name is specified by the

firewall_config_default/custom_policy_file

property.

apply_to

A multi-value property listing network entities to enforce the chosen policy mode. Entities

listed in

apply_to

property will be denied if policy is

deny

and allowed if policy is

allow

. The

syntax for possible values are:

host: host:IP "host:192.168.84.14" subnet: network:IP/netmask "network:129.168.1.5/24" ippool: pool:pool number "pool:77"

interface: if:interface_name "if:e1000g0" exceptions

A multi-value property listing network entities to be excluded from the

apply_to

list. For

example, when

deny

policy is applied to a subnet, exceptions can be made to some hosts in that

subnet by specifying them in the

exceptions

property. This property has the same value syntax

as

apply_to

property.

open_ports

For the Global Default only. Non-service program requiring allowance of its incoming traffic

can request that the firewall allow traffic to its communication ports. This multi-value property

contains protocol and port(s) tuple in the form:

"{tcp | udp}:{PORT | PORT-PORT}"

The following examples first sets a global firewall policy for the host then individual services are

configured to allow access to the host, finally the global policy is overridden to block a host.

This listing displays the

firewall_config_*

default properties and their default values:

root@anarchy:~# svccfg -s ipfilter:default listprop firewall_config_*

firewall_config_default com.sun,fw_configuration firewall_config_default/apply_to astring firewall_config_default/custom_policy_file astring firewall_config_default/exceptions astring firewall_config_default/open_ports astring firewall_config_default/value_authorization astring solaris.smf.value.firewall.config

firewall_config_default/policy astring none firewall_config_default/version count 0

firewall_config_override com.sun,fw_configuration firewall_config_override/value_authorization astring

solaris.smf.value.firewall.config

firewall_config_override/apply_to astring

firewall_config_override/policy astring none

The

firewall_config_default/policy

property defines the global IP Filter policy.

First the service is enabled:

root@anarchy:~# svcadm enable ipfilter:default

The IP Filter service is configured for the allow mode which will block all incoming traffic except

traffic that is explicitly allowed:

root@anarchy:~# svccfg -s ipfilter:default

svc:/network/ipfilter:default> setprop firewall_config_default/policy = allow

svc:/network/ipfilter:default> refresh

svc:/network/ipfilter:default> exit

The custom configurations to the service are examined:

root@anarchy:~# svccfg -s ipfilter:default listcust

firewall_config_default/version count admin 1 firewall_config_default/policy astring admin allow general/enabled boolean admin true

Note in the previously listing the

general/enabled

property is not a default and thus is listed as a

customization.

When the IP Filter service was refreshed a filtering rule set was automatically generated and put in

place to enforce the new global policy:

root@anarchy:~# ipfstat -io

pass out log quick all keep state block in log all

The first rule “

pass out log quick all keep state

” allows all outbound traffic and logs it

(logging requires configuration, see ipfilter(5) and ipmon(1M)), the

quick

statement applies this rule to

all matching packets and no other rules will be processed, the

keep state

statement will cause the

connection to be added to a state table and all inbound packets that are part of the established

connection will be passed through the firewall.

The second rule “

block in log all

” applies the global policy and disallows all packets that did not

match the first rule.

Individual SMF network services can be configured to allow or disallow traffic for the particular

service, the Network Services configuration has a higher precedence than the global policy and

overrides it.

The next examples will enable telnet access from a single host and enable ssh access for all hosts on a

specified subnet.

The default telnet service configuration inherits the global policy from the IP Filter service. The telnet

services

firewall_config

properties are listed below along with their default settings:

root@anarchy:/# svcfg -s telnet listprop firewall_config

firewall_config com.sun,fw_configuration firewall_config/apply_to astring

firewall_config/exceptions astring

firewall_config/policy astring use_global

firewall_config/value_authorization astring solaris.smf.value.firewall.config

The telnet service is enabled and it is verified that no access to the service is allowed from the remote

host

chaos-gw (192.168.1.1)

, the service is then disabled:

root@anarchy:~# inetadm -e telnet

root@chaos-gw:~# telnet anarchy

Trying 192.168.1.189...

telnet: Unable to connect to remote host: Connection timed out root@anarchy:~# inetadm -d telnet

The

firewall_config/policy

is set to

allow.

root@anarchy:~# svccfg -s telnet setprop firewall_config/policy = allow

The

firewall_config/apply_to

properties is set to

host:192.168.1.1

, the

apply_to

property

“allows” access from this host for the telnet service:

root@anarchy:~# svccfg -s telnet setprop firewall_config/apply_to = host:192.168.1.1

The service is refreshed:

root@anarchy:~# svccfg -s telnet refresh

The customizations are listed:

root@anarchy:~# svccfg -s telnet listcust

firewall_config/policy astring admin allow

firewall_config/apply_to astring admin host:192.168.1.1

The service is enabled and the generated rule set is listed:

root@anarchy:~# ipfstat -io

pass out log quick all keep state

pass in log quick proto tcp from 192.168.1.1/32 to any port = telnet flags S/FSRPAU keep state keep frags

block in log quick proto tcp from any to any port = telnet flags S/FSRPAU keep state keep frags

block in log all

Two new rules are added to the rules set, the first new rule, “

pass in log quick proto tcp from 192.168.1.1/32 to any port = telnet flags S/FSRPAU keep state keep frags

” passes in

TCP packets from

192.168.1.1

(chaos-gw).

The first packet of a TCP connection will have only the SYN flag set. The

S/FSRPAU

statement matches

packets with only the SYN flag set.

The

keep frags

stores fragmented packets information for the connection.

The second new rule blocks all other telnet packets explicitly.

The new rules are verified by connecting from the

chaos-gw

host:

root@chaos-gw:~# telnet anarchy

Trying 192.168.1.189... Connected to anarchy. Escape character is '^]'. login: tim

Password:

Last login: Fri Jul 18 11:37:11 on term/a

Oracle Corporation SunOS 5.11 11.1 March 2014 tim@anarchy:~$

The next example is enabling the ssh service from all hosts on the

192.168.1.0\24

subnet.

The ssh network service is enabled by default. The

firewall_config/apply_to

is set to

network:192.168.1.0/24

and the

refresh

command is sent to the service, in this example the

editprop

svccvfg(1M) sub command is used:

root@anarchy:~# svccfg -s ssh editprop

##

## Change property values by removing the leading '#' from the ## appropriate lines and editing the values. svccfg subcommands ## such as delprop can also be added to the script.

##

setprop firewall_config/policy = allow

setprop firewall_config/apply_to = network:192.168.1.0/24 setprop firewall_config/exceptions = host:192.168.1.50

## Uncomment to apply these changes to all instances of this service. refresh

~ ~ ~ (:wq!)

The customization is verified:

root@anarchy:~# svccfg -s ssh listcust

firewall_config/apply_to astring admin network:192.168.1.0/24 firewall_config/policy astring admin allow

firewall_config/exceptions astring admin host:192.168.1.50

The newly generated rule set is examined:

root@anarchy:~# ipfstat -io

pass out log quick all keep state

block in log quick proto tcp from 192.168.1.50/32 to any port = ssh flags S/FSRPAU keep state keep frags

pass in log quick proto tcp from 192.168.1.0/24 to any port = ssh flags S/FSRPAU keep state keep frags

block in log quick proto tcp from any to any port = ssh flags S/FSRPAU keep state keep frags

pass in log quick proto tcp from 192.168.1.1/32 to any port = telnet flags S/FSRPAU keep state keep frags

block in log quick proto tcp from any to any port = telnet flags S/FSRPAU keep state keep frags

block in log all

Three new rules are added, the first blocks traffic from the host with IP address

192.168.1.50

and is a

result of the

exceptions

property.

The second rule allows

ssh

traffic from the

192.168.1.0/24

subnet and the third rule blocks all other

ssh

traffic.

On this network there is a wireless gateway, the wireless gateway NATs packets from wireless device to

the gateways IP address

192.168.1.45

. The next example adds a

override

property to the IP Filter

service to block traffic from the gateway

192.168.1.45

from accessing the firewall host. The

override

properties take precedence over the Global Property of the IP Filter service and the

individual network services.

The

firewall_config_override/policy

is set to

deny

and the

firewall_config_override/apply_to

property is set to

host:192.168.1.45

and the service

refreshed:

root@anarchy:~# svccfg -s ipfilter:default setprop firewall_config_override/apply_to = host:192.168.1.45

root@anarchy:~# svccfg -s ipfilter:default setprop firewall_config_override/policy = deny

root@anarchy:~# svccfg -s ipfilter:default refresh

The customizations are verified:

root@anarchy:~# svccfg -s ipfilter:default listcust

firewall_config_default/policy astring admin allow firewall_config_default/version count admin 1

firewall_config_override/apply_to astring admin host:192.168.1.45 firewall_config_override/policy astring admin deny

The new rule set is examined:

root@anarchy:~# ipfstat -io

pass out log quick all keep state

block in log quick from 192.168.1.45/32 to any

block in log quick proto tcp from 192.168.1.50/32 to any port = ssh flags S/FSRPAU keep state keep frags

pass in log quick proto tcp from 192.168.1.0/24 to any port = ssh flags S/FSRPAU keep state keep frags

block in log quick proto tcp from any to any port = ssh flags S/FSRPAU keep state keep frags

pass in log quick proto tcp from 192.168.1.1/32 to any port = telnet flags S/FSRPAU keep state keep frags

block in log quick proto tcp from any to any port = telnet flags S/FSRPAU keep state keep frags

block in log all

Note the new block rule (second rule entry) is added. When a service is disabled the rules are

regenerated by the IP Filter service, to remove the individual network service customizations and

restore the services defaults the svccfg(1M)

delcust

sub command can be used:

root@anarchy:~# svccfg -s telnet delcust

Deleting customizations for service: network/telnet root@anarchy:~# svccfg -s telnet listcust

root@anarchy:~# svccfg -s telnet listprop firewall_config

firewall_config com.sun,fw_configuration

firewall_config/value_authorization astring solaris.smf.value.firewall.config firewall_config/exceptions astring

firewall_config/apply_to astring

firewall_config/policy astring use_global

The default for the telnet service is to be disabled:

root@anarchy:~# svcs telnet

STATE STIME FMRI

disabled 13:32:57 svc:/network/telnet:default

The steps are repeated for the

ssh

network service:

root@anarchy:~# svccfg -s ssh delcust

Deleting customizations for service: network/ssh

The default for the

ssh

service is to be enabled:

root@anarchy:~# svcs ssh

STATE STIME FMRI

online 13:06:55 svc:/network/ssh:default

root@anarchy:~# svccfg -s ssh listprop firewall_config

firewall_config com.sun,fw_configuration

firewall_config/value_authorization astring solaris.smf.value.firewall.config firewall_config/apply_to astring

firewall_config/policy astring use_global firewall_config/exceptions astring

The svccfg(1M)

delcust

sub command is used to clear the IP Filter service as well:

root@anarchy:~# svccfg -s ipfilter:default delcust

Deleting customizations for instance: default root@anarchy:~# svcs ipfilter:default

STATE STIME FMRI

disabled 13:39:07 svc:/network/ipfilter:default root@anarchy:~# ipfstat -io

empty list for ipfilter(out) empty list for ipfilter(in)

In the last example a service that does not contain the

firewall_config

property group is configured

to use the firewall framework.

The network service

svc:/application/x11/xvnc-inetd:default

does not have a

firewall_config

property group as shown by the first svccfg(1M)

listprop

sub command.

The

scvcfg

command is used to add the property group and define the properties:

root@anarchy:~# svccfg -s xvnc-inetd:default

svc:/application/x11/xvnc-inetd:default> listprop firewall_config

svc:/application/x11/xvnc-inetd:default> addpg firewall_config com.sun,fw_configuration

svc:/application/x11/xvnc-inetd:default> setprop

firewall_config/value_authorization = astring: solaris.smf.value.firewall.config

svc:/application/x11/xvnc-inetd:default> setprop firewall_config/policy = astring: allow

svc:/application/x11/xvnc-inetd:default> setprop firewall_config/apply_to = astring: network:192.168.1.0/24

svc:/application/x11/xvnc-inetd:default> listcust

general/enabled boolean admin true inetd_start method admin

inetd_start/exec astring admin "/usr/bin/Xvnc -geometry 1280x720 -inetd -query localhost -once securitytypes=none"

firewall_config com.sun,fw_configuration admin firewall_config/value_authorization astring admin

solaris.smf.value.firewall.config

firewall_config/policy astring admin allow

firewall_config/apply_to astring admin network:192.168.1.0/24 svc:/application/x11/xvnc-inetd:default> refresh

svc:/application/x11/xvnc-inetd:default> exit

The service must be restarted to read the new property group:

The updated rules are displayed:

root@anarchy:~# ipfstat -io

pass out log quick all keep state

pass in log quick proto tcp from 192.168.1.0/24 to any port = vnc-server flags S/FSRPAU keep state keep frags

block in log quick proto tcp from any to any port = vnc-server flags S/FSRPAU keep state keep frags

block in log quick proto tcp from 192.168.1.50/32 to any port = ssh flags S/FSRPAU keep state keep frags

pass in log quick proto tcp from 192.168.1.0/24 to any port = ssh flags S/FSRPAU keep state keep frags

block in log quick proto tcp from any to any port = ssh flags S/FSRPAU keep state keep frags

block in log all

(Note: In this example the telnet service was not configured nor was the

firewall_config_override
