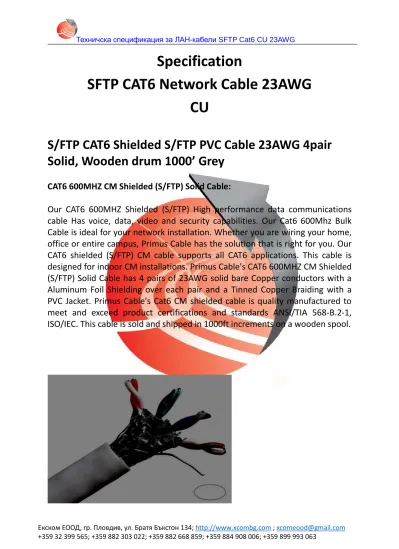

Specification
SFTP CAT6 Network Cable 23AWG
CU
S/FTP CAT6 Shielded S/FTP PVC Cable 23AWG 4pair
Solid, Wooden drum 1000’ Grey
CAT6 600MHZ CM Shielded (S/FTP) Solid Cable:
Our CAT6 600MHZ Shielded (S/FTP) High performance data communications cable Has voice, data, video and security capabilities. Our Cat6 600Mhz Bulk Cable is ideal for your network installation. Whether you are wiring your home, office or entire campus, Primus Cable has the solution that is right for you. Our CAT6 shielded (S/FTP) CM cable supports all CAT6 applications. This cable is designed for indoor CM installations. Primus Cable's CAT6 600MHZ CM Shielded (S/FTP) Solid Cable has 4 pairs of 23AWG solid bare Copper conductors with a Aluminum Foil Shielding over each pair and a Tinned Copper Braiding with a PVC Jacket. Primus Cable's Cat6 CM shielded cable is quality manufactured to meet and exceed product certifications and standards ANSI/TIA 568-B.2-1, ISO/IEC. This cable is sold and shipped in 1000ft increments on a wooden spool.
Техничска спецификация за ЛАН-кабели SFTP Cat6 CU 23AWG CAT6 Cable Options:
Solid Wire: also called solid-core or single-strand wire, consists of one piece of metal wire. Stranded wire is composed of a bundle of small-gauge wires to make a larger conductor and more flexible than solid wire. Solid wire is generally used for in-wall wiring where there is little need for flexibility in the wire.
CM/CMH/CMG:
CM is used for general building wiring such as residential house. CM cables are used in areas other than plenums and risers.
CMR: The 'R' in CMR is for 'Riser'. Riser type cables are engineered to prevent the spread of fire from floor to floor and are suitable for vertical shaft applications.
CMP: The 'P' in CMP is for Plenum. Cables meeting type CMP requirements are suitable for installation in ducts and plenums without the use of conduit. These cables are designed for fire resistance and low-smoke and toxin producing characteristics.
CMX: The 'X' in CMX is for Outside Plant. Cables meeting type CMX requirements are suitable for installation in outdoor applications where exposed to the elements.
CAT6 600MHZ CM Shielded (S/FTP) Solid Cable Features: • Category-6 Solid Cable
• Overall Tin-Copper Braid Shielded with Individually Foil Shielded Twisted Pairs (S/FTP)
• High-performance data communications cable
• Suitable for 600 MHz high speed data applications, Gigabit Ethernet, fast Ethernet and 155Mbps TP-PMD/CDDI
• Designed for indoor installations (CM) • 4-Pair – easily identified color-striped pairs • 23AWG solid bare copper conductors
• Excellent attenuation and crosstalk characteristics • CM rated PVC Jacket
Техничска спецификация за ЛАН-кабели SFTP Cat6 CU 23AWG • ISO/IEC 2nd Edition 11801 Class F
• Supplied on 1000´ wooden spools
Physical Construction
1 Conductor Solid Bare Copper 2 Conductor Size 23 AWG
3 Insulation PE Tape
4 Outer Diameter 6.7mm ± 0.2mm
5 Jacket PVC
Jacket Color White
Electrical Characteristics 1 Impedance 100Ω±35 2 Capacitance Unbalance <=330 (pF/100m) 3 Delay Skew <=45 (ns/100m) 4 Rated Temperature 70°C 5 Resistance Unbalance <=5 (ns/100m) 6 Max DC Resistance 95(Ω/km) 7 Rated Voltage 300V Frequency Attenuation
(dB/100m) Next PSNext (dB/100m) ElFext Delay (dB)
Max. Min. Min. Min. Min. Max.
.772 - - - - 1 2 20 74.3 72.3 67.8 570 4 3.8 23 65.3 63.3 55.8 552 10 6 25 59.3 57.3 47.8 545 20 8.5 25 54.8 52.8 41.8 542 31.25 10.7 23.6 51.9 49.9 37.9 540 62.5 15.4 21.5 47.4 45.4 31.9 538 100 19.8 20.1 44.3 42.3 27.8 537 200 29 18 39.8 37.8 21.8 536 250 32.8 17.3 38.3 36.3 19.8 536 350 39.8 16.3 36.1 34.1 17.1 535 450 46 15.5 34.5 32.5 15.2 534 550 51.7 14.9 33.2 31.2 13.2 532
Техничска спецификация за ЛАН-кабели SFTP Cat6 CU 23AWG Additional
Information
1 Standards EIA | TIA 568 B.2-1 | UL | CSA | ISO | IEC 11801 | UL/cUL | ETL 2 Applications High-performance data communications cable for noisy environment
