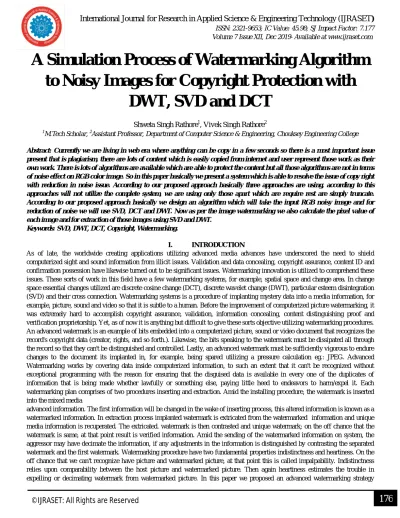

A Simulation Process of Watermarking Algorithm

to Noisy Images for Copyright Protection with

DWT, SVD and DCT

Shweta Singh Rathore1, Vivek Singh Rathore2

1

M.Tech Scholar, 2Assistant Professor, Department of Computer Science & Engineering, Chouksey Engineering College

Abstract: Currently we are living in web era where anything can be copy in a few seconds so there is a most important issue present that is plagiarism, there are lots of content which is easily copied from internet and user represent those work as their own work. There is lots of algorithms are available which are able to protect the content but all those algorithms are not in terms of noise effect on RGB color image. So in this paper basically we present a system which is able to resolve the issue of copy right with reduction in noise issue. According to our proposed approach basically three approaches are using, according to this approaches will not utilize the complete system, we are using only those apart which are require rest are simply truncate. According to our proposed approach basically we design an algorithm which will take the input RGB noisy image and for reduction of noise we will use SVD, DCT and DWT. Now as per the image watermarking we also calculate the pixel value of each image and for extraction of those images using SVD and DWT.

Keywords: SVD, DWT, DCT, Copyright, Watermarking.

I. INTRODUCTION

As of late, the worldwide creating applications utilizing advanced media advances have underscored the need to shield computerized sight and sound information from illicit issues. Validation and data concealing, copyright assurance, content ID and confirmation possession have likewise turned out to be significant issues. Watermarking innovation is utilized to comprehend these issues. These sorts of work in this field have a few watermarking systems, for example, spatial space and change area. In change space essential changes utilized are discrete cosine change (DCT), discrete wavelet change (DWT), particular esteem disintegration (SVD) and their cross connection. Watermarking systems is a procedure of implanting mystery data into a media information, for example, picture, sound and video so that it is subtle to a human. Before the improvement of computerized picture watermarking, it was extremely hard to accomplish copyright assurance, validation, information concealing, content distinguishing proof and verification proprietorship. Yet, as of now it is anything but difficult to give these sorts objective utilizing watermarking procedures. An advanced watermark is an example of bits embedded into a computerized picture, sound or video document that recognizes the record's copyright data (creator, rights, and so forth.). Likewise, the bits speaking to the watermark must be dissipated all through the record so that they can't be distinguished and controlled. Lastly, an advanced watermark must be sufficiently vigorous to endure changes to the document its implanted in, for example, being spared utilizing a pressure calculation eg.: JPEG. Advanced Watermarking works by covering data inside computerized information, to such an extent that it can't be recognized without exceptional programming with the reason for ensuring that the disguised data is available in every one of the duplicates of information that is being made whether lawfully or something else, paying little heed to endeavors to harm/expel it. Each watermarking plan comprises of two procedures inserting and extraction. Amid the installing procedure, the watermark is inserted into the mixed media

177

©IJRASET: All Rights are Reserved

dependent on DWT, DCT and SVD change. These plans give a decent subtlety and high heartiness against different sorts handling assaults. The remainder of the paper centers around review of Transforms for watermarking plans, gives the subtleties of proposed watermarking calculations, and gives advancement parameters and trial results. The rest of the paper is organized as follows. Necessary background and underlying principle on watermarking is given in Section II . Experimental results and its analysis are given in Section V. Finally, Section VI concludes the paper.

II. LITRATURE REVIEW

178

©IJRASET: All Rights are Reserved

res are associated for scaling and upset generosity, and two mix-up amendment estimations are used, which are weighted predominant part throwing a poll (WMV) and low thickness balance check (LDPC) code to address the mix-ups of removed watermarks. As the speedy figuring differentiated and SIFT, quicken healthy incorporate (SURF) count is associated into watermarking estimation. Fazli and Moeini [31] presented a geometric-mutilation adaptable watermarking count, using the feathery C-infers bundling to process the component centers removed by SURF, and isolated component direct sets are used toward hole the image into triangular patches for watermark embedding. Error Tolerant ismost import part for any consumer level image processing algorithms[13]As we already know in current stage every one need fast system. We also know in current ere everyone use mobile phone and laptop for multimedia application. But those device is work on battery so due to high latency those device are require more energy which consume more power in hardware level. So for reduction of those issue there is no need of accurate logic because as per some research there is 5-10% error human eye can’t identify. So by using of error tolerant concept we can resolve previous issue. So there is following issue which motivate me to work on this application: detection is main part for most of the multimedia applications. Basically there is mainly three challenges is faced by the current available Watermarking technique and those challenges are:

A. Latency Complexity

B. Accuracy on watermark algorithm

C. Watermarking Level is low

D. Quality Complexity after extraction watermark image

III. PROPOSED METHADOLOGY & IMPLIMENTATION

In this section we discuss about the implementation details of previous existing work and our proposed work. Here we implement the multiple previous existing work which are baseon DWT, DCT, SVD, Arnold Transform etc. Here are those previous existing approaches:

1) DWT Based Embed & Extract

2) DWT SVD Based Embed & Extract

3) DWT SVD DCT Based Embed & Extract

4) DWT ARNOLD Based Embed & Extract

5) LSB Based Embed & Extract

6) Proposed Error Acceptance DWT DCT SVD Arnold

A. Based Embed &Extract

According to our proposed approach basically we design a system which is able to handle the noisy images as a input and generate a good quality result. As per our proposed approach for embed watermarking we performs followings steps which are followings:

1) Task perform on Input image like Resize, RGB to YCbCr, DWT, Arnold& SVD.

2) Task perform on watermark image like Resize , RGB to YCbCr, DWT, SVD, Error acceptance Gabor Filter generated results watermark image

3) Watermark image extraction using SVD, DWT

179

©IJRASET: All Rights are Reserved

IV. RESULT ANALYSIS

In this section we present the comparative study about our proposed approach with all different type of existing approach. Here we will use some existing scientific parameter which will prove proper justification for our proposed approach. Those parameters are:

1) PSNR

2) SSIM

3) FSIM

4) RFSIM

5) Correlation

6) Similarity (%)

7) Time Complexity

According to table 4.1 we can see the analysis between parameters. As we can see our proposed approach is far better than all previous existing approaches. Our proposed approach is make proper justification with image quality and also with the time complexity. According to fig. 4.1 is shows the comparative analysis in terms on of time complexity as we know for any application time complexity is a main barrier , our proposed approach have approximately double time improvement as compare to Arnold transform based watermarking technique. Similar our proposed approach also show a very good improvement over LSB techniques.

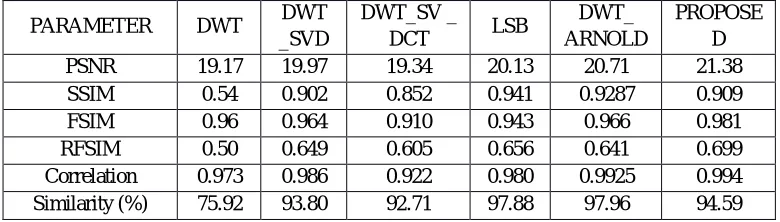

Table 4.1 Image Quality Comparison in proposed and previous existing approaches for generated water marked image

Table 4.2 Image Quality Comparison in proposed and previous existing approaches for generated water mark image

Similar we can see on watermark extract result our proposed approach perform well in terms of others parameters.

Here we take Host.jpg as a input image and for watermark image we use watermark.jpg. As per Figure 4.6 data flow the followings task we will perform to get watermarked image:

A. Insert Original Image 1) Insert Host. jpg

PARAMETER DWT DWT_SVD DWT_SVD_DCT LSB DWT_ARNOLD PROPOSED

PSNR 15.91 16.84 19.34 20.13 21.03 19.62

SSIM 0.544 0.568 0.6426 0.621 0.593 0.681

FSIM 0.859 0.878 0.920 0.903 0.895 0.920

RFSIM 0.071 0.353 0.615 0.466 0.469 0.4692

Correlation 0.936 0.9578 0.942 0.960 0.960 0.987

Similarity (%) 69.58 91.79 96.71 97.48 97.96 93.23

TIME

(Sec.) 1.176 1.97 1.08 1.37 2.28 0.990

PARAMETER DWT DWT

_SVD

DWT_SV _

DCT LSB

DWT_ ARNOLD

PROPOSE D

PSNR 19.17 19.97 19.34 20.13 20.71 21.38

SSIM 0.54 0.902 0.852 0.941 0.9287 0.909

FSIM 0.96 0.964 0.910 0.943 0.966 0.981

RFSIM 0.50 0.649 0.605 0.656 0.641 0.699

Correlation 0.973 0.986 0.922 0.980 0.9925 0.994

180

©IJRASET: All Rights are Reserved

RED

43 45 44 50 50

41 46 51 51 44

46 46 50 52 44

46 53 50 46 42

43 45 44 50 50

GREEN

53 53 48 52 56

52 54 53 54 50

53 51 52 55 49

50 55 52 49 49

53 53 48 52 56

BLUE

42 42 51 47 42

36 39 50 47 40

46 44 49 48 42

51 52 49 42 42

42 42 51 47 42

Resize Image

57 64 77 83 141

59 56 84 150 171

59 54 98 162 131

58 57 96 117 122

RGB to GRAY

58 58 56 60 61

56 59 61 61 56

59 58 60 62 56

58 82 60 57 56

Arnold Transform

54 169 165 159 154

87 82 168 161 159

95 59 62 165 159

94 91 56 89 167

Inverse Arnold

186 184 303 296.5 296.5

138 250 314 310.5 265.5

154 176.5 268.5 268.5 299.5

181

©IJRASET: All Rights are Reserved

DWT

186 329 310 290 287

171 184 312 288 289.5

198 138 303 288 290

192.5 172 250 296.5 292

DCT

-24.92 11.92 -0.69 7.24 -1.04

93.00 -22.60 -6.10 0.41 5.57

-89.72 -79.87 -21.20 10.05 15.57

0.78 -16.55 -27.38 60.00 3.47

SVD

0.39 0.08 -0.03 -0.07 0.06

-0.38 0.10 -0.06 -0.11 0.08

0.48 0.13 0.00 0.09 0.05

0.07 0.12 0.06 0.13 0.06

Inverse DCT

-72.37 -38.34 -6.36 4.76 -3.66

-25.74 19.22 12.76 -0.54 -5.92

-42.39 -7.93 37.82 -3.82 13.28

-18.24 -30.31 14.86 15.99 -7.88

Inverse DWT

55.81 170.18 56.32 163.67 139.81

88.18 57.81 58.67 89.32 150.18

58.62 70.37 98.61 174.38 164.38 93.37 53.62 56.38 170.61 126.61

B. Insert Watermark Image 1) Insert Watermark Image

RED

138 139 135 131 131

141 135 133 134 137

137 134 134 135 139

182

©IJRASET: All Rights are Reserved

GREEN

130 109 95 211 131

122 105 93 114 137

124 100 194 115 139

135 102 196 125 138

BLUE

141 135 133 134 137

121 135 143 154 157

137 134 134 135 139

134 134 136 135 138

Resize

133 130 131 131 130

131 131 135 134 132

128 131 133 133 134

128 131 131 132 130

RGB to GRAY

132 133 131 127 127

135 131 129 130 133

133 130 130 131 135

130 130 132 131 134

DWT on Cb Part

262.5 265.5 263 263 262

259 264.5 263.5 263.5 263

261.5 262.5 265 267 258.5

264.5 266.5 265.5 265 264.5

DCT on Cb Part

-17.82 19.26 -39.00 -44.03 1.89

14.44 -10.37 -50.55 -22.22 -78.62

-16.42 17.11 -32.85 -16.07 39.80

0.70 -29.43 57.14 19.61 22.01

SVD

-0.017 0.010 -0.054 -0.004 0.035

0.107 0.010 0.242 0.015 -0.051

183

©IJRASET: All Rights are Reserved

2) Watermarked Generator

Gabor Filter

99.04 115.01 149.12 181.54 192.94

82.76 107.11 152.74 182.53 193.82

87.25 115.77 157.88 182.14 187.81

86.22 100.23 130.33 157.65 174.03

Resize

99 102 110 123 140

95 99 107 120 140

84 89 100 117 141

81 87 99 118 143

YCbCr to RGB

92 95 108 123 141

87 92 104 119 141

78 83 96 116 141

74 81 95 116 141

C. Watermarked Image

RED

99 102 110 123 140

95 99 107 120 140

84 89 100 117 141

81 87 99 118 143

GREEN

125 125 127 126 124

125 125 127 127 125

127 127 125 125 127

127 126 125 126 129

BLUE

125 125 127 127 126

125 125 127 127 126

127 127 127 127 125

184

©IJRASET: All Rights are Reserved

V. CONCLUSIONS

As per current innovation future is completely founded on virtual world. At the present time everything depends on online like shopping, films, pictures, trainings estimated time of arrival. So for these sort of use there is need of some other steady framework which are known as communitarian framework, organizing, Internet of things and so forth now every one of these frameworks depend on some scientific capacities which are known as trigonometric capacity. In this work basically we present a new algorithm which is based on the concept of error acceptance. Here we present the complete watermarking approach which is basically combination of two main process embed & extract. Here we also proposed a new Gabor filter for the filtering process apart from that we use Arnold transformation, SVD, DCT and DWT with addition of resize, RGB to YCbCr.As we can see according to result we are far better than with previous existing technique. Here we also reduce the noisy issues for RGB image. In future our proposed algorithm can be convert into the architecture level.
