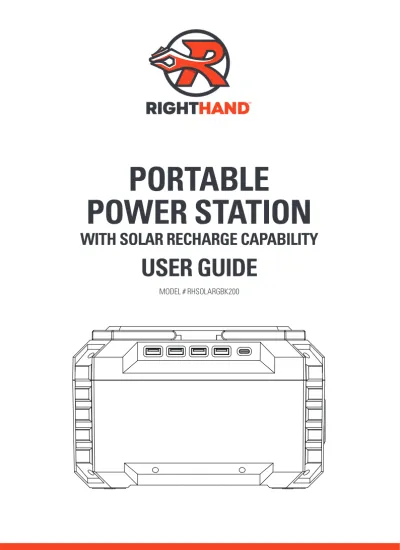

PORTABLE POWER STATION

PORTABLE

POWER STATION

WITH SOLAR RECHARGE CAPABILITY

Thank you for purchasing the Right Hand™ _{Portable Power Station. This User Guide is intended to provide you}

with guidelines to ensure that operation of this product is safe and does not pose risk to the user. Any use that does not conform to the guidelines described in this User Guide may void the limited warranty.

Please read all directions before using the product and retain this guide for reference. This product is intended for household use only.

This product is covered by a limited one-year warranty. Coverage is subject to limits and exclusions. See warranty for details.

SAFETY PRECAUTIONS

1. Never short-circuit this device. To avoid short-circuiting, keep the power station away from all metal objects such as coins, hair pins, keys, etc.

2. Do not heat this device or dispose of it in fire or water/other liquids. Keep the power station away from high temperatures and out of direct sunlight.

3. Make sure to keep the power station away from places prone to high humidity or heavy dust accumulation, as these could damage the internals or cause device malfunctions.

4. Never attempt to disassemble or reassemble this device.

5. Do not drop, place heavy objects on, or allow any other kind of strong impact to this device. 6. This appliance should not be used by children or persons with reduced physical, sensory, or mental

capabilities, or lack of experience and knowledge, unless they are closely supervised at all times, and/or have received extensive instruction and training on how to use this device by a person responsible for their safety. 7. Children should never play with this device and should always be supervised around it.

8. Never cover the power station with towels, clothing, and/or other items.

9. The power station may become warm or hot while charging. This is normal. Always use caution when handling this device.

10. Make sure to disconnect this device as soon as it has finished charging.

11. Improper usage of this device could result in electric shock. Always use this device in accordance with the instructions.

12. When disposing of this device, please be mindful of the fact that it should not be treated the same as regular household waste, due to the lithium battery contained within it. Improper disposal could result in pollution and/or explosion. Please make sure to dispose of this device in accordance with your local regulations. 13. This product should not be used to replace standard household AC/DC power supplies for appliances and/or

digital products; it was designed to be used in cases of emergency, during camping/travel, or during power failures.

Notice: This power station produces a modified sine wave output, and it can be compatible with any AC electric

PACKAGE CONTENTS

Portable Power Station

Cigarette Lighter/Car Port Adapter DC Power Adapter

LEFT

RIGHT

5.5mm/2.1mm DC Input Quick Recharging Dual Led Flashlight

Cooling Vents Handle

LED DISPLAY

USING THE POWER STATION

1. Providing Power for DC12V Appliances (e.g., head lamp, fan): The 5.5mm 12V DC output is plug and play, meaning you simply need to connect your appliance via any of the 5.5mm DC out ports to receive power. Please confirm that your device supports charging via a 5.5mm port, or purchase the correct adapter, before attempting to plug it in, to avoid device malfunction.

Protection Mode for 12V DC Output: If the DC output is short-circuited or your device attempts to draw

more than 150W of power, the power station will shut down to protect itself. To clear the problem, disconnect your device and plug the power supply in to charge so that it can recover.

USB USB Type-c Type-c Capacity AC/DC Status USB Output LED Flashlight DC Output USB-C Output AC Output

The included car charger adapter allows you to charge any devices that use DC12V car kits or require a cigarette lighter adapter. or charge car kits via DC to Cigarette Lighter Connector

Note: Although labeled 12V output, the DC output voltage will range between 9~12.6V, with a maximum output current of 15A. The DC output will decrease in direct correlation to the battery level of the power station, due to the nature of the lithium ion battery inside. If your appliance does not have a built-in voltage stabilizing function, it may cease charging or shut down if the input voltage is too low. Be sure to unplug your device if this happens and recharge the power station to continue using it.

2. Providing Power for AC Appliances: Connect the power cable plug of your electrical appliance to the AC outlet on the right side of the power station, then press the AC ON/OFF button located on the front of the device to begin receiving AC power to your appliances. When not in use, make sure to press the AC ON/OFF button again to turn off AC power and preserve the life of the power station battery.

Protection Mode for AC Output: If the AC output becomes short-circuited, or overpowered because a

device attempts to draw over 200W of power from it, the power station will shut down the AC output to protect itself. Please disconnect your device before continuing to use the power station. You will need to press the AC ON/OFF button again to receive more AC power after protection mode is triggered.

Note: Always check your devices to see the peak amount of AC power they require to avoid triggering protection mode. Certain devices like refrigerators, ice makers, or laser printers do not start out using 200W of power, but could start drawing over 200W of power while in use.

3. Providing Power for USB Appliances: Connect the USB cable to your device and to any of the USB ports on the front of the power station (either regular USB or USB 3.0 for supported devices), and then press the Battery Check button to the left of the AC ON/OFF button to start receiving USB power.

NOTICE: Some smart devices, such as wireless headphones and LED lights, require a very small input current to charge, which could be less than 150mA. The power station may fail to charge these types of devices due to the detection current limitations of the USB output ports. Should this occur, you can press the USB LOCK ON button to keep the USB port output running. Once your devices are fully charged, please turn off the USB LOCK ON function to save power.

USB ON

USB C

4. Using the Flashlight: The power station is also equipped with an LED flashlight that offers both a steady regular flashlight mode, an “SOS” mode (in which it flashes the Morse code for the letters S-O-S), and a

steady blinking mode. Press the flashlight button under the power button to cycle through the various modes as follows: Flashlight » Blinking » SOS » OFF.

USB USB Type-c Type-c USB ON

Dual LED Flashlight

▲ Input Charging DC 13V~25V/2.6A Max

CHARGING THE POWER STATION

1. Charging via AC Wall Charger: Use the included AC wall charger and plug it into any standard wall outlet, then connect it to the power station via the DC IN port. The battery indicators on the LED display will begin blinking to indicate that the power station is charging, and once the device is fully charged, all battery indicators will be lit and stay solid. When the device reaches a full charge, disconnect it from the wall charger.

2. Charging via Car Port (12V Cigarette Lighter Port): Use the included car charger adapter to plug into the cigarette lighter/charging port in your car, then connect it to the power station via the DC IN port. The battery indicators blink as the device charges, and then stay solidly lit once it reaches a full charge.

To avoid car battery power loss, this functionality will only work when your car engine is running.

CARE AND MAINTENANCE

1. This power station includes a built-in high quality lithium ion battery, which is durable and boasts a 60000 mAh capacity. For maximum battery performance and overall charging capacity, we recommend using the product within a temperature range of 50–86°F (10–30°C).

2. In order to avoid interference while charging, please keep the power station away from the TV, radio, and other similar equipment.

3. If you will not be using the device for an extended period of time, make sure to disconnect all cables and store it in a safe, dry environment within the recommended temperature range.

4. Some portable devices may need to be set to “charge mode” in order to receive a charge from this power station. Check all devices’ manuals before charging via the power station.

5. In order to extend the life of the lithium ion battery within your power station, it’s best to charge it at least once every 6 months.

6. Cold temperatures (especially below freezing) can affect the power station’s battery capacity due to its chemical characteristics. If you’ll be living off the grid in sub-zero conditions, we recommend you keep your power station in an insulated cooler and connected to a power source (solar panels). The natural heat generated by this device contained within an insulated cooler will help preserve the battery capacity and ideally prevent device malfunction.

7. Always dispose of used electronics, batteries, and packaging materials at designated collection points in your area. This helps to prevent uncontrolled waste disposal and promotes the safe recycling of electronic and packaging materials.

SPECIFICATIONS

Capacity: 60000 mAh, 3.7V (222Wh)

Dimensions: 9.17" L x 5.43" W x 5.9" H (233 x 138 x 150 mm) Weight: Approximately 5.3 lbs. (2.4 kg)

Built-in Battery Materials: High-quality lithium ion DC Input (via Adapter): DC15V/3A

Solar Panel Input: DC 13V~25V/2.6A max Charging Time via DC15V/3A: 8~9 hours Output: 3 x USB 5V-2.1A | Total: 4.6A max

1 x USB Qualcomm QuickCharge 3.0 5~9V/2A 1 x USB C Qualcomm QuickCharge 3.0 5~9V/2A 5 x DC 9-12.6V/10A (15A max)

AC Output: 200W/110V/60Hz AC Rated Power: 200W AC Max Output: 300W

AC Waveform Output: Modified sinewave Flashlight Bulb: 2 x Ultra-bright LED Display/Power Indicator: LED screen

Operation Temperature Range: 14–104°F (-10–40°C) Battery Lifecycle: >500 recharges

QUESTIONS OR PROBLEMS? CONTACT US!

[email protected] | 1-833-665-2121

Right Hand is a trademark of C&A IP Holdings, LLC, in the U.S.

LIMITED WARRANTY ON RIGHT HAND

_{PORTABLE POWER STATION 200W}

WE WARRANT THAT DURING THE WARRANTY PERIOD, THE PRODUCT WILL BE FREE FROM DEFECTS IN MATERIALS AND WORKMANSHIP.

LIMITATION OF LIABILITY

TO THE EXTENT NOT PROHIBITED BY LAW, THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, ORAL, WRITTEN, STATUTORY, EXPRESS OR IMPLIED. EXCEPT FOR THE EXPRESS WARRAN-TIES CONTAINED IN THIS LIMITED WARRANTY STATEMENT AND TO THE EXTENT NOT PROHIBITED BY LAW, WE DISCLAIM ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, STATUTORY OR OTHERWISE, INCLUDING WITHOUT LIMITATION, THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. SOME STATES DO NOT ALLOW DISCLAIMERS OF IMPLIED WARRANTIES, SO THIS DISCLAIMER MAY NOT APPLY TO YOU. TO THE EXTENT SUCH WARRANTIES CANNOT BE DISCLAIMED UNDER THE LAWS OF YOUR JURISDICTION, WE LIMIT THE DURATION AND REMEDIES OF SUCH WARRANTIES TO THE DURATION OF THIS EXPRESS LIMITED WARRANTY.

OUR RESPONSIBILITY FOR DEFECTIVE GOODS IS LIMITED TO REPAIR, REPLACEMENT OR REFUND AS DESCRIBED BELOW IN THIS WARRANTY STATEMENT.

WHO MAY USE THIS WARRANTY? C&A Marketing, Inc. located at 114 Tived Lane East, Edison, NJ (“we”)

extend this limited warranty only to the consumer who originally purchased the product (“you”). It does not extend to any subsequent owner or other transferee of the product.

WHAT DOES THIS WARRANTY COVER? This limited warranty covers defects in materials and

workman-ship of the Right Hand Portable Power Station 200W (the “product”) for the Warranty Period as defined below.

WHAT DOES THIS WARRANTY NOT COVER? This limited warranty does not cover any damage due to: (a)

transportation; (b) storage; (c) improper use; (d) failure to follow the product instructions or to perform any preventive maintenance; (e) modifications; (f) unauthorized repair; (g) normal wear and tear; or (h) external causes such as accidents, abuse, or other actions or events beyond our reasonable control.

WHAT IS THE PERIOD OF COVERAGE? This limited warranty starts on the date of your purchase and lasts

for one year (the “Warranty Period”). The Warranty Period is not extended if we repair or replace the product. We may change the availability of this limited warranty at our discretion, but any changes will not be retroactive.

WHAT ARE YOUR REMEDIES UNDER THIS WARRANTY? With respect to any defective product during

the Warranty Period, we will, at our sole discretion, either: (a) repair or replace such product (or the defective part) free of charge or (b) refund the purchase price of such product if an exchange unit cannot be provided.

HOW DO YOU OBTAIN WARRANTY SERVICE? To obtain warranty service, you must contact us at
