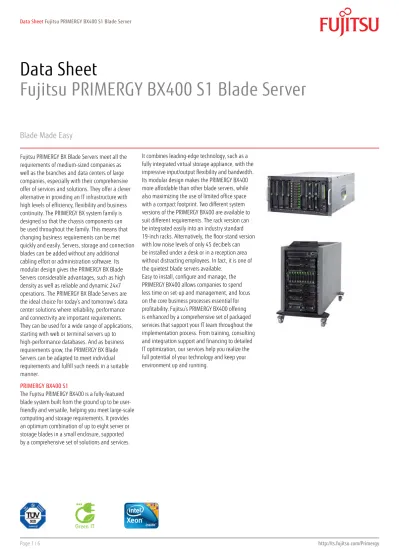

Data Sheet
Fujitsu PRIMERGY BX400 S1 Blade Server
Blade Made Easy
Fujitsu PRIMERGY BX Blade Servers meet all the requirements of medium-sized companies as well as the branches and data centers of large companies, especially with their comprehensive offer of services and solutions. They offer a clever alternative in providing an IT infrastructure with high levels of efficiency, flexibility and business continuity. The PRIMERGY BX system family is designed so that the chassis components can be used throughout the family. This means that changing business requirements can be met quickly and easily. Servers, storage and connection blades can be added without any additional cabling effort or administration software. Its modular design gives the PRIMERGY BX Blade Servers considerable advantages, such as high density as well as reliable and dynamic 24x7 operations. The PRIMERGY BX Blade Servers are the ideal choice for today’s and tomorrow’s data center solutions where reliability, performance and connectivity are important requirements. They can be used for a wide range of applications, starting with web or terminal servers up to high-performance databases. And as business requirements grow, the PRIMERGY BX Blade Servers can be adapted to meet individual requirements and fulfill such needs in a suitable manner.
PRIMERGY BX400 S1
The Fujitsu PRIMERGY BX400 is a fully-featured blade system built from the ground up to be user-friendly and versatile, helping you meet large-scale computing and storage requirements. It provides an optimum combination of up to eight server or storage blades in a small enclosure, supported by a comprehensive set of solutions and services.
It combines leading-edge technology, such as a fully integrated virtual storage appliance, with the impressive input/output flexibility and bandwidth. Its modular design makes the PRIMERGY BX400 more affordable than other blade servers, while also maximizing the use of limited office space with a compact footprint. Two different system versions of the PRIMERGY BX400 are available to suit different requirements. The rack version can be integrated easily into an industry standard 19-inch racks. Alternatively, the floor-stand version with low noise levels of only 45 decibels can be installed under a desk or in a reception area without distracting employees. In fact, it is one of the quietest blade servers available.
Features and Benefits
Main Features Benefits
The box for your solution
The Fujitsu PRIMERGY BX400 provides an optimum combination of up to eight server or storage blades in a small enclosure that is available as 6U rack- and floorstand-version.
It combines leading-edge technology, such as a fully integrated virtual storage appliance, in order to convert it into a small data center in a box.
Modular infrastructure to meet office and datacenter environments, designed to share components throughout the family making it easy to create, customize and grow.
Grow The Business
Complementary technology to x86 server virtualization with additional benefits such as improved manageability, availability, and operational efficiency from shared cable infrastructures or virtual input/output (I/O).
The PRIMERGY BX400 can be equipped with the latest blade technology and offers high levels of I/O flexibility and a bandwidth.
Thanks to its highly efficient components, advanced cooling technology, and potent power management tools, the BX400 also reduces cooling and air conditioning costs.
Its smart design makes the PRIMERGY BX400 more flexible than other server solutions, offering easy scalability to protect your investments.
Simplify The Business
With ServerView you manage your servers and enclosures locally and remotely and take complete control regardless of the state of the server operating system.
Additional software components help to reduce the complexity in mixed physical and virtual environments and its internal and external connections.
Simplified lifecycle management cuts server administration time by up to 60 percent, saving you even more effort and money.
Creates Value For The Business
Modular upgrade options for server- or storage blades provide the flexibility to integrate new technologies into existing environments.
Additional server blades or components can be easily added or replaced without the re-cabling that usually requires multiple man-hours or complicated processes.
Fujitsu’s PRIMERGY BX400 offering is enhanced by a comprehensive set of packaged services that support your IT team throughout the implementation process.
Technical details
Enclosure
System unit type 6 U chassis for 19-inch rack, or floorstand version Front bays 8 half height bays for server or storage blades
Midplane High speed midplane with 3 fabrics
Rear bays 4 x for Connection Blades
4 x for PSU/fan modules
Management Blades 1x hot-plug management blade as standard, redundant management blades as option Fan configuration Up to 3 hot plug, redundant rear fan units (2 fans per unit)
Power supply configuration Up to 4x hot-plug power supply modules (1x as standard)
Operating panel
Operating buttons On/off switch
ID button
Status LEDs Power (amber / green)
System status (orange / yellow) Identification (blue)
Service display ServerView Local Service Display for Blade (LSB)
ODD 1 - assinged to server blade by MMB control
USB ports 2 - assigned to server blade by MMB control
Management Blade
Type of Unit BX900 MMB S1
LAN / Ethernet (RJ-45) 2 x 1Gb Ethernet
Service LAN (RJ45) Dedicated Service LAN port for MMB (1Gb Ethernet)
Serial 1 (9-pin) 1 x RS-232-C
USB ports 2 x (at rear side of the system)
Dimensions / Weight
Floor-stand (W x D x H) 366 x 819 x 578 mm
Rack (W x D x H) 445 x 785 x 267 mm
Mounting Depth Rack 818 mm
Height Unit Rack 6 U
19” rackmount Yes
Weight Rack: up to 98 kg / Floorstand: up to 112.5 kg
Weight notes Fully assembled
Actual weight may vary depending on configuration Rack integration kit Included in Rack System
Electrical values
Max. input of single power supply 1200 W / 1785 W (100 V - 240 V)
Power supply configuration note max. 4 PSU in n, n+1 or n+n redundancy configuration. Power supply efficiency 92% (at 50% PSU load, CSCI “gold”)
Rated voltage range 100 V - 240 V Rated frequency range 50 Hz - 60 Hz
Rated current max. 45 A / 22.5 A (100 V - 240 V)
Electrical value notes Active power max. value depends on system configuration. For details see Power Configuration Tool.
Power plug: non industrial type a connector (100V) e.g. NEMA 5-15P or 5-20P / industrial type b connector (230V) e.g. IEC60309
Environmental
Environmental
Operating environment Link http://docs.ts.fujitsu.com/dl.aspx?id=e4813edf-4a27-461a-8184-983092c12dbe Noise emission Measured according to ISO 7779 and declared according to ISO 9296
Sound pressure (LpAm) up to 60.5dB(A) (operating), 45dB(A) operating in Low Noise mode Sound power (LWAd; 1B = 10dB) 71dB (operating), 62dB (operating in Low Noise mode)
Compliance Germany GS Europe CE Class A * USA/Canada ULc/us FCC Class A Global CB RoHS WEEE
Japan VCCI Class A + JIS 61000-3-2
Australia/New Zealand C-Tick
Taiwan BSMI
Compliance notes There is general compliance with the safety requirements of all European countries and North America. National approvals required in order to satisfy statutory regulations or for other reasons can be applied for on request. Compliance link http://sp.ts.fujitsu.com/sites/certificates/
Server and Storage Blades pluggable into system unit front side
Product Model name Product Type Processor quantity support
Max. number per BX400
Memory slots total
Supported capacity RAM (max.)
PRIMERGY BX920 S2 Dual Socket Server Blade (Intel) 1 - 2 8 9 288 GB
http://docs.ts.fujitsu.com/dl.aspx?id=cfd1622e-9fae-419b-ad1c-91f78c9f93e7
PRIMERGY BX922 S2 Dual Socket Server Blade (Intel) 1 - 2 8 12 192 GB
http://docs.ts.fujitsu.com/dl.aspx?id=cb2281f2-b794-422b-aa87-a62dfeb7914c
PRIMERGY BX924 S2 Dual Socket Server Blade (Intel) 2 8 18 384 GB
http://docs.ts.fujitsu.com/dl.aspx?id=43070323-fed9-4cfb-83f5-f791be68994a
PRIMERGY SX910 S1 Storage Blade Tape 4
http://docs.ts.fujitsu.com/dl.aspx?id=cc5ba5c8-2c98-4647-b585-db5890f9243c
PRIMERGY SX940 S1 Storage Blade Disk 4
http://docs.ts.fujitsu.com/dl.aspx?id=cabbdb01-8a40-44dd-af4d-50bc074c0ec8
PRIMERGY SX960 S1 Storage Blade Disk 2
http://docs.ts.fujitsu.com/dl.aspx?id=489d2a0c-81f1-4d3e-aaa3-df55ac446930
PRIMERGY SX980 S1 Storage Blade Disk 3
http://docs.ts.fujitsu.com/dl.aspx?id=b4de3482-a07c-4cda-8f9c-de4e3869291b
Connection Blades (CB) pluggable into system unit rear side
Connection type Down-link ports Up-link ports Max. number per BX400
Eth Switch/IBP 1Gb 36/12 36 x 1 Gb Eth 8 x 1 Gb (RJ45), 4 x 1 Gb (SFP) 4
(CB Slot 1/2 3/4) Eth Switch/IBP 1Gb 36/8+2 36 x 1 Gb Eth 8 x 1 Gb (RJ45) , 2 x 10 Gb (SFP+) 4
(CB Slot 1/2 3/4)
Eth Switch/IBP 10Gb 18/8 18 x 10 Gb Eth 8 x 10 Gb (SFP+) 4
(CB Slot 1/2 3/4) FC Switch 8Gb Brocade 26 Port
Enterprise
18 x 8 Gb FC 8 x 4/8 Gb (SFP/SFP+) 2
(CB Slot 3/4)
FC Switch 8Gb Brocade 14 Port 18 x 8 Gb FC 8 x 4/8 Gb (SFP/SFP+) 2
(CB Slot 3/4)
FC Switch 8Gb Brocade 26 Port 18 x 8 Gb FC 8 x 4/8 Gb (SFP/SFP+) 2
(CB Slot 3/4)
IB Switch 40Gb 18/18 18 x 40 Gb IB 18 x 40 Gb (QSFP) 1
(CB Slot 3/4)
FC Pass Thru 8Gb 18/18 18 x 8 Gb FC 18 x 4/8 Gb (SFP/SFP+) 2
Connection Blades (CB) pluggable into system unit rear side
Connection type Down-link ports Up-link ports Max. number per BX400
Eth Pass Thru 10Gb 18/18 18 x 1/10 Gb Eth 18 x 1/10 Gb (SFP/SFP+/Twinax) 4
(CB Slot 1/2 3/4)
Eth Switch/IBP 1Gb 18/6 18 x 1 Gb Eth 6 x 1 Gb (RJ45) 4
(CB Slot 1/2 3/4)
SAS Switch 6Gb 18/6 18 x 6 Gb SAS 6 x 6 Gb SAS 1
(CB Slot 3)
Warranty
Standard Warranty 3 years
Service level On-site Service (depending on country)
Maintenance and Support Services - the perfect extension
Recommended Service 7x24, Onsite Response Time: 4h - For locations outside of EMEA please contact your local Fujitsu partner. Spare Parts availability 5 years
