The promise of object storage is simple: to enable organizations to build highly reliable, infi nitely scalable, cost-effi cient storage pools for all their unstructured data needs. But those needs can vary a lot depending on data types, sizes, protection requirements and applications. Think of scale-out web environments where users will store a mix of media fi les. In these environments, it is very diffi cult to predict data types and sizes, data locality and consumption patterns. At the other end of the unstructured data spectrum, there are active archive applications where performance and data locality requirements are somewhat less important, but where effi ciency and resiliency are critical.
WOS is a comprehensive object storage solution, purpose-built, for all your unstructured data needs. WOS off ers multiple user confi guration settings to make it the ideal solution for applications ranging from web origins and collaborative workfl ows to content delivery and active archives. DDN has carefully analyzed contemporary storage requirements and delivered a fl exible platform that has unprecedented tuning options, that enable users to give priority to the requirements that are most important for their data and applications, in every dimension.
WOS is the only object storage platform that off ers full fl exibility in data protection schemes, delivering performance and durability optimization that complies with all storage requirements. WOS also simplifi es deployment including support for a broad set of plug-n-play data access protocols including S3/Swift, NFS/CIFS/SMB and GPFS™ using embedded or highly scalable discrete gateways. For environments that prefer custom application integration, an embedded REST API is included.
Effi
cien
cy
R
elia
bili
ty
P
er
fo
rm
an
ce
S
cal
abi
lity
Secu
rity
A
cc
es
sib
ilit
y
CLOUD STORAGEEffi ciency: Increased performance, reduced data center footprint and achieved cost savings simultaneously
Reliability: Increased data durability and protection, complying with international funding bodies’ policies
Accessibility: Collaborative platform accelerates time-to-discovery
DATA COLLABORATION Effi ciency: Increased performance, reduced data center footprint and achieved cost savings simultaneously
Reliability: Increased data durability and protection, complying with international funding bodies’ policies
Accessibility: Collaborative platform accelerates time-to-discovery MEDICAL RESEARCH
Scale: Readily handles 1TB/week data growth
Access: Easily integrated interface to custom workfl ow
Reliability: Maintains data integrity and off site replication
MOBILE DEVICE & CLOUD DATA SHARING
Effi ciency: Distributed environment managed as single, high density entity, lowering IT, power and cooling costs
Reliability: Multiple copies of data replicated between sites for disaster recovery and low latency access Accessibility: Files uploaded from PC by teachers and students; and, research equipment/sensors from S3 applications to shared WOS Cloud

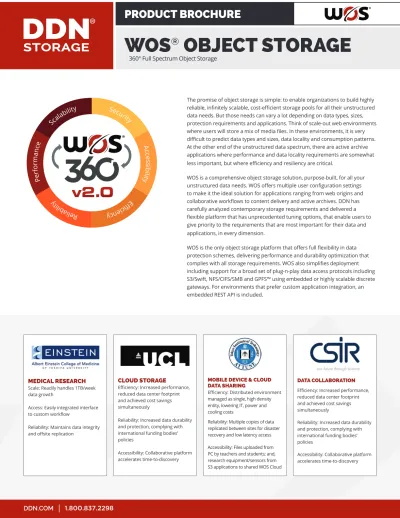

PRODUCT BROCHURE
WOS
®
OBJECT STORAGE
Object Storage was designed as a more scalable alternative to fi le storage solutions for simplifi ed storage needs. File storage was designed for fi les that need to be modifi ed or changed frequently. As such, fi le storage is complex to scale because of fi le system hierarchies and locking mechanisms, which were created to enable fi le modifi cations. This overhead drives up the management cost exponentially. DDN is the only storage provider that fully embraces the fact that most unstructured data (80+%) is never modifi ed. The performance, effi ciency and scalability of WOS are beyond compare, leading to a TCO that actually decreases per storage unit as the platform is scaled out. WOS stores objects in one scalable namespace. When objects are stored, an identifi er is created to locate the object in the namespace. Applications can very quickly retrieve the right data for the users through the object identifi er or by querying the metadata information.
TRUE OBJECT STORAGE
WOS is enabled through DDN’s underlying NoFS™ (no underlying fi le system) architecture, which minimizes disk operations with as little as a single-disk-operation for reads, and two for writes. (This sharply contrasts with the 8-10 I/O operations that POSIX fi le systems require, resulting in additional performance and network overhead). Further, the infi nitely variable data buckets or “sector” sizes used in WOS carefully balance performance and platter utilization, while keeping system overhead very low.
FEDERATED GLOBAL NAMESPACE
WOS Scales out in clusters of up to 256 nodes. Combine up to 32 clusters to build out an Exabyte namespace, distributed geographically.
FLEXIBLE DATA PROTECTION
An unparalleled choice of data protection schemes allows customers to optimize to higher levels data protection, more cost-eff ectively. Additional I/O performance or latency optimization is delivered for distributed environments. For archival use cases, Global ObjectAssureTM enables very high data durability
and effi ciency with the lowest overhead, all without sacrifi cing self-healing performance.
WOS FEATURES
FILE STORAGE VS. OBJECT STORAGE
Figure 1 - File vs. Object
Hundreds of Billions of Objects Immutable Data No Locking Mechanisms One Storage Pool, Object ID’s
Scales Uniformly Lowest TCO Millions of Files
Amendable Data Locking Mechanisms File System Hierarchy
Complex to Scale TCO increases exponentially
FILE VS. OBJECT STORAGE
File Storage vs Object Storage
FLEXIBILITY
WOS provides full fl exibility to build the right storage infrastructure for any mix of applications. Customers can tune their infrastructure to meet the requirements for their data and application needs.
EXABYTE-SCALE
Storage platforms can be scaled in three dimensions: the total volume of storage; the number of objects; and the number of sites. It is possible to deploy a fully functional storage cloud with just a single WOS appliance, and then scale seamlessly by non-disruptively adding more nodes. A federated WOS namespace has capacity for up to one exabyte and 32 trillion objects.
EASIER ACCESSIBILITY
WOS provides the most complete choice of interfaces, including RESTful APIs and fi le system gateways from S3/Swift, NFS, CIFS and GPFS to the WOS object store. In addition, interfaces with WOS is off ered from third party ISV’s and DDN off ers a complete WOS Partner development program for users that prefer to do custom integration with their own in-house applications.
MORE EFFICIENCY
WOS was designed as a single storage solution for all your unstructured data needs, to easily and reliably store petabytes of information at the lowest cost. DDN maximizes storage effi ciency through the NoFS™ architecture, which keeps the solution easy to manage at scale (one infrastructure). Some customers manage up to 20PB with just one full-time employee. The TCO can be further optimized by leveraging the WOS Capacity nodes and ObjectAssure, which provides the highest durability, with the
WOS BENEFITS
SELF-HEALING ARCHITECTURE
ObjectAssure, a unique form of erasure coding, has self-healing capabilities that reduce the management eff ort. In case of a failed disk, ObjectAssure only reconstructs the actual data that was lost, as opposed to the entire disk. In the event of an object read error, WOS automatically recreates the object from a replica or parity to fulfi ll the request and then replaces the object to restore compliance with the specifi ed data protection policy. These automatic features dramatically increase data availability and reduce operator intervention.
LATENCY-AWARE ACCESS MANAGER
In distributed environments with replicated data, WOS minimizes the access latency for end users. When a user requests an object, WOS automatically retrieves the object from the geographic node with the lowest latency.
METADATA SEARCH
WOS avoids scalability bottlenecks by storing metadata in key-value stores, rather than in scale-limiting metadata databases. A highly parallelized backend metadata search allows users to query one or more indexed fi elds of user-specifi ed metadata across petabytes of objects.
MULTIPLE HARDWARE PLATFORM CHOICES
WOS is available preinstalled on: DDN high-density, high-performance storage appliance with the option of lower cost archive tier, Node confi gurations; or on an OCP-ready platform appliance for scale-out web applications.
Figure 3 - Flexible Data Protection
COMPLETE RELIABILITY
WOS provides full data protection with a wide choice of user-selected protection schemes. Data protection policies can be selected per object: synchronous and asynchronous replication; local ObjectAssure (Erasure Coding); replicated ObjectAssure or Global ObjectAssure (Hierarchical Erasure Coding). This enables customers to design their infrastructure specifi cally to support their required SLAs.
HIGHER PERFORMANCE
WOS USE CASES
WOS enables customers to build the perfect storage platform for any data type or size. The platform can be tuned to support any application that needs to store and access large volumes of unstructured data. Policies can be set per object, so a single WOS infrastructure can be used to support several applications. For example, it is possible to use WOS for a combined sync and share/disaster recovery/archiving solution at the same time - or to build a scale-out web application that will be generate billions of small fi les and deliver the high throughput required to stream high-resolution, large movie fi les.
WOS use cases are extended with a mix of in-house developed solutions, integrated applications from third party ISV’s and reference architectures through the WOS Partner program. With its rich choice of API’s and fi le system gateways, WOS can easily be integrated for Custom Applications as well. WOS currently supports a wide variety of use cases with pre-integrated partner solutions.
SOLUTIONS. SYNC & SHARE
Automated Sync & Share applications enable users to securely upload documents to the cloud, synchronize fi les and mobile devices, and easily share information with others. This is one of the more popular applications that utilize WOS, leveraging the latency-aware and data placement capabilities that are unique to the platform. WOS Sync & Share comes as a pre-integrated partner solution, from companies like CTERA® and OwnCloud®.
VIDEO STREAMING
Enable Video on Demand, Cloud DVR or other video streaming services for residential or corporate end users. WOS provides high-throughput, low latency video delivery streaming for geographically distributed viewers. WOS Video Streaming can be deployed as a custom solution (integrated with API’s or fi le system gateways) or as a pre-integrated solution using the technology from partners like Arris®, a global innovator in cable,
video and broadband technology.
CONTENT DELIVERY NETWORK
Leverage WOS to build your own Content Delivery Network for worldwide distribution of massive volumes of data with high throughput and low latency. The unique latency-aware technology in WOS, combined with the fl exibility to optimize for small and large fi le performance, make WOS the perfect CDN storage origin. DDN has engaged with several partners to build CDN architectures that scale to as many as 60 origin storage sites.
Figure 4 - WOS Partners Ecosystem Applications & Data
Management Partners Infrastructure Partners
WORLDWIDE COLLABORATION
Store assets in a globally distributed storage cloud to enable collaboration between distributed teams and integrate with your favorite workfl ow suites or fi le sync and share clients. WOS is the only platform that enables integration with (and federation of) parallel fi le systems. Leading research institutions and universities around the world leverage WOS to build global collaboration libraries, enabling more effi cient workfl ows and quicker times to result/discovery.
VIDEO POST-PRODUCTION
WOS enables collaborative editing for distributed teams in video production environments. Integrate WOS with your favorite post-production workfl ow suites, directly integrated through the native REST API or by leveraging the integrated S3, Swift, CIFS, NFS and GPFS fi le system gateways. WOS can be optimized to replace several tiers of the storage infrastructure with one, scalable and easy to manage storage pool.
ACTIVE ARCHIVES
Many providers have been promoting disk storage solutions as an alternative to tape to build “Active” Archives, but few are able to provide the cost-effi ciency that is required to build petabyte-scale repositories. WOS enables customers to monetize their data and build highly reliable, scale-out archive infrastructures, at the lowest TCO. WOS provides instant access to all archived assets and integrates with popular archival platforms, such as: ASG® and iRODS®. DDN is a member of the Active
CLOUD TIERING:
GRIDSCALER-WOS
BRIDGE
WOS ARCHIVEDIRECTOR
WOS ENTERPRISE
PROTECT
Figure 5 - GRIDScaler-WOS Bridge
Overview• Federation of GRIDScaler®
namespaces, using WOS as the wide area distribution mechanism • Multi-site ingest, distribution and
collaboration capacity for up to 8 GRIDScaler systems
Access Mechanisms
• Data is ingested and written into GRIDScaler and copied to WOS, or written directly to WOS – and then exposed as a NAS mount point
• Data is ingested into WOS via NFS or CIFS and accessible to GRIDScaler as a NAS mount point
WOS Bridge is a tiering solution between WOS and GRIDScaler, DDN’s scalable parallel fi le system and WOS Access NFS/CIFS. The core of WOS Bridge is a data migration engine that automates and manages data migration from a variety of storage platforms to a WOS storage cloud. WOS replication policies distribute the data to remote locations where it is accessible directly through the WOS Bridge or to be migrated back to the original platform. The distributed nature of WOS, and its scalability, performance and effi ciency feature, facilitate a range of new use cases for existing GRIDScaler environments such as GRIDScaler archiving, data distribution or worldwide collaboration. The DDN WOS ArchiveDirector™ Archive Gateway enables a hybrid archive to a variety of repositories. It can be used as stand-alone or included with DDN DataMigrator. Integrated with WOS, ArchiveDirector can simultaneously write to object storage, tape and public cloud.
DDN WOS® Enterprise Protect is an integrated,
enterprise-wide solution for fi le sync and share and endpoint backup. It delivers a complete set of features for capacity, bandwidth and access, as well as all the tools to track, hold and protect sensitive business data while remaining in compliance with company policies and regulatory statutes. WOS Enterprise Protect is easy to manage, cost eff ective, and scalable. The solution’s combined features ensure effi cient, high availability, security and access management features. File sync and share features include: security for digital rights management and mobile content management, data encryption, robust, granular access rights and e-discovery support. Endpoint backup features support continuous data protection, intuitive self-service restore and Confi gurable processor and bandwidth throttling.
WOS ACCESS
WOS Access is a family of high performance; high availability gateways that provide multi-protocol S3, NFS/CIFS and GPFS access to DDN’s WOS object storage platform. WOS Access gateways provide logical separation of interface overhead and functions from the WOS storage platform enabling interface performance to scale independently of storage capacity to support any performance or capacity requirement.
WOS Access gateways can synchronize across multiple, geographically distributed sites to present a single, federated namespace, making them the perfect solution for organizations that require multisite collaboration and/or disaster protection. In distributed collaborative environments, the intelligent location-aware capability assures that users will always access data from the nearest WOS node, providing local LAN level performance.
MAXIMUM NUMBER OF SERVERS [CLUSTER, NAMESPACE]
256, 8192
[2 nodes per WOS7000] MAXIMUM # OF UNIQUE OBJECTS
[CLUSTER, NAMESPACE]
1 Trillion, 32 Trillion NAMESPACE GROWTH Non-Disruptive Scaling,
Auto-Balance, Online Upgrades MAXIMUM REPLICAS PER UNIQUE
OBJECT
4-way replication MAXIMUM TOTAL [CLUSTER,
NAMESPACE] (USING 6TB HDDS)
46.08 PB; 0.98EB MAXIMUM CLUSTER AGGREGATE
R/W PERFORMANCE (SAS HDDS) 8M Object Reads; 2M Object Writes MAXIMUM NAMESPACE
AGGREGATE R/W PERFORMANCE (SAS HDDS)
256M Object Reads; 64M Object Writes LATENCY (4KB RANDOM; 2-WAY
REPLICATION, 15K SAS HDD)
9ms Read, 25ms Write (Flash is even better) MAXIMUM OBJECT SIZE; MINIMUM
OBJECT SIZE
5TB; 512B
CLOUD PROTOCOL CLIENT ACCESS WOSLib API, WOS REST API WOS ACCESS GATEWAY OPTIONS S3, NFS/CIFS, GPFS DESKTOP & MOBILE CLIENT
ACCESS (THIRD PARTY)
Windows & MAC Sync, iOS, Android, Web (3rd party) PARALLEL FILE SYSTEM TIERING WOS Bridge for DDN GRlDScaIer MAXIMUM METADATA SPACE PER
OBJECTLD
64MB; ≤7 Key:Values for Parallel Boolean Search
DATA PROTECTION & DISTRIBUTION OPTIONS
Replication(Sync, Async), 8+2 Erasure Code w/ Replication, Global Object Assure (1.875x)
MONITORING SNMP, GUI, CLI, HTTP
MAXIMUM # OF STORAGE ZONES [CIUSTER, NAMESPACE] 64, 2048 MAX # OF REPLICATION/ PROTECTION POLICIES [CLUSTER, NAMESPACE] 64, 2048
MAXIMUM NUMBER OF SERVERS [CLUSTER, NAMESPACE]
256, 8192
[2 nodes per WOS7000] MAXIMUM # OF UNIQUE OBJECTS
[CLUSTER, NAMESPACE]
1 Trillion, 32 Trillion NAMESPACE GROWTH Non-Disruptive Scaling,
Auto-Balance, Online Upgrades MAXIMUM REPLICAS PER UNIQUE
OBJECT
4-way replication MAXIMUM TOTAL CLUSTER
CAPACITY (USING 6TB HDDS)
46.08 PB; 0.98EB MAXIMUM CLUSTER AGGREGATE
R/W PERFORMANCE (SAS HDDS) 8M Object Reads; 2M Object Writes MAXIMUM NAMESPACE AGGREGATE R/W PERFORMANCE (SAS HDDS) 256M Object Reads; 64M Object Writes LATENCY (4KB RANDOM; 2-WAY
REPLICATION, 15K SAS HDD)
9ms Read, 25ms Write (Flash is even better) MAXIMUM OBJECT SIZE; MINIMUM
OBJECT SIZE
5TB; 512B
CLOUD PROTOCOL CLIENT ACCESS WOSLib API, WOS REST API WOS ACCESS GATEWAY OPTIONS S3, NFS/CIFS, GPFS DESKTOP & MOBILE CLIENT
ACCESS (THIRD PARTY)
Windows & MAC Sync, iOS, Android, Web (3rd party) PARALLEL FILE SYSTEM TIERING WOS Bridge for DDN
GRlDScaIer MAXIMUM METADATA SPACE PER
OBJECTLD
64MB; ≤7 Key:Values for Parallel Boolean Search DATA PROTECTION &
DISTRIBUTION OPTIONS
Replication(Sync, Async), 8+2 Erasure Code w/ Replication, Global Object Assure (1.875x)
MONITORING SNMP, GUI, CLI, HTTP
MAXIMUM # OF STORAGE ZONES [CIUSTER, NAMESPACE] 64, 2048 MAX # OF REPLICATION/ PROTECTION POLICIES [CLUSTER, NAMESPACE] 64, 2048
WOS HIGH PERFORMANCE APPLIANCE
WOS ARCHIVE APPLIANCE
