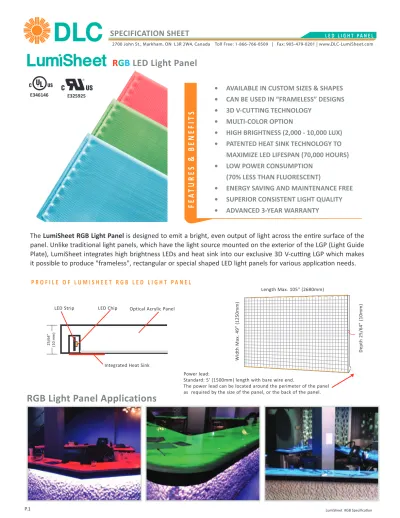

RGB Light Panel Applications. RGB LED Light Panel FEATURES & BENEFITS SPECIFICATION SHEET

RGB LED Light Panel

FE ATURE S & BENEFIT S

• AVAILABLE IN CUSTOM SIZES & SHAPES

• CAN BE USED IN “FRAMELESS” DESIGNS

• 3D V-CUTTING TECHNOLOGY

• MULTI-COLOR OPTION

• HIGH BRIGHTNESS (2,000 - 10,000 LUX)

• PATENTED HEAT SINK TECHNOLOGY TO MAXIMIZE LED LIFESPAN (70,000 HOURS)

• LOW POWER CONSUMPTION (70% LESS THAN FLUORESCENT)

• ENERGY SAVING AND MAINTENANCE FREE

• SUPERIOR CONSISTENT LIGHT QUALITY

• ADVANCED 3-YEAR WARRANTY

P R O F I L E O F L U M I S H E E T R G B L E D L I G H T P A N E L

LED Strip LED Chip Optical Acrylic Panel

Integrated Heat Sink 25/64" (10 mm)

Width Max. 49" (1250mm) Depth 25/64" (10mm)

Power lead:

Standard: 5' (1500mm) length with bare wire end.

The power lead can be located around the perimeter of the panel as required by the size of the panel, or the back of the panel.

Length Max. 105" (2680mm)

The LumiSheet RGB Light Panel is designed to emit a bright, even output of light across the entire surface of the panel. Unlike traditional light panels, which have the light source mounted on the exterior of the LGP (Light Guide Plate), LumiSheet integrates high brightness LEDs and heat sink into our exclusive 3D V-cutting LGP which makes it possible to produce "frameless", rectangular or special shaped LED light panels for various application needs.

RGB Light Panel Applications

E346146 E325925

P.2

• AVAILABLE IN CUSTOM SIZES & SHAPES

• CAN BE USED IN “FRAMELESS” DESIGNS

• 3D V-CUTTING TECHNOLOGY

• MULTI-COLOR OPTION

• HIGH BRIGHTNESS (2,000 - 10,000 LUX)

• PATENTED HEAT SINK TECHNOLOGY TO MAXIMIZE LED LIFESPAN (70,000 HOURS)

• LOW POWER CONSUMPTION (70% LESS THAN FLUORESCENT)

• ENERGY SAVING AND MAINTENANCE FREE

• SUPERIOR CONSISTENT LIGHT QUALITY

• ADVANCED 3-YEAR WARRANTY

LED Light Location

LED light along 1 long edge LED light along 2 long edges

LED light along all 4 edges

Illuminated Face Options

Single Face Illumination (Standard) Double Face Illumination (Option)

Illuminated Front Face

Both Front and Back Face Illuminated (no reflective white backer) Width LESS than

12" (305mm)

Max (L): 105" (2680mm)

Width GREATER than 12" (305mm)

Max (L): 105" (2680mm)

Non-Illuminated Back Face (with reflective white backer)

LEDs LEDs

LEDs

FOR SQUARE PANELS For example: 36" x 36" or 48" x 48"

**This is only recommended for when panels are "nearly" square. It is not recommended for long narrow panels.

Specifications

LumiSheet - RGB LED Light Panel Electrical

Input Voltage 12 Volt DC

Power Consumption Max 5.0 Watts/ft

Wire Size 20 AWG 4 wire

Wiring Each panel must have direct connection to power supply. Do not wire panels in series Connector Bare wire. Standard 5' (1500mm), Optional 10' (3000mm)

Certification UL / cUL (E346146, E325925)

Physical

Color Temperature RGB - Full color

Mounting Wall mounted with screws, Z-clips, U-channel, mirror clips or Mounting with Stand offs Operating Temperature - 30 °C ( - 22 °F ) ~ + 40 °C ( + 104 °F )

Environment Dry location only (Standard) Wet location (Custom)

Minimum Size 2"W x 2"L x_25/64"D (50mm x 50mm x 10mm) Maximum Size 49"W x 105"L x 25/64"D (1250mm x 2680mm x 10mm)

Weight 2.35 lbs /sq. ft. 11.45 kg/sq. M

Accessories

RGB Control Stand alone or DMX control

Plug-In Power Adaptors

Power Adaptors 12V DC, 1A, 12W, UL listed 12V DC, 5A, 60W, UL class 2 listed Hardwire Power Adaptors

Power Adaptors: PA-60W-HW

60W 12V Hardwire power adaptor Input 110V AC ~ 240V AC

PA-150W-HW:

150W 12V Hardwire power adaptor Input 110V AC ~ 240V AC

Color Temperature: RGB

Max Size & Min Size

49" (1,250mm)

49"(1,250mm)

Min Size

2" (50mm) Min Size 2"(50mm)

Max Size

72" (1,800mm)

105" (2,680mm)

Max Size

E346146 E325925

P.4

Typical Power Cord Exits

Standard 1 Standard 2

Power cord exits from short side (edge) corner (standard) Power cord exits from the middle of each long side for Lumisheet longer than 6 ft

Option 1 Option 2

Power cord exits from the back side of Lumisheet Recessed (notched) power cord exits

Installation Tips

Single Panel Multi-Panel

Typically LEDs are installed along a groove 0.25" away from the edge. To completely hide the LED light source (Hot Spots), re- cess the light panel into the fixture / frame by a minimum of 0.75" distance.

When placing panels side by side to form a longer panel, you may see a "hot line" where they meet. To avoid this you can use a diffuser (9mm thick or more) or leave a space (gap) of 1.5" or more between the light panel and front graphic etc.

1.5" (38mm) space between Panels and Graphic / Diffuser 0.25" (6mm)

0.75" (19mm)

LEDs 1.5"

Side View

3D View LED Panels

Diffuser or Graphic

LED Panels Diffuser or Graphic

Surface Mounting

Option 1 Option 2

Screw mounting with pre-drilled holes Mounting with mirror clips

Option 3 Option 4

Mounting with Z-clips Mounting with Stand offs

P.6

RGB Controllers

P H O T O

RGB OPTION 1: LUMISHEET RGB LED LIGHT PANEL - MINI RGB CONTROLLER AND REMOTE

KC-32-MINI Mini RGB RECEPTOR (controller) 3 CHANNEL RGB CONSTANT VOLTAGE CONTROLLER - MAX. 5A PER CHANNEL

- 12V

- DIMMENSIONS: 177MM L X 45 MM W X 21 MM D - WEIGHT: 95G

FEATURES:

- RF SIGNAL

- MULITIPLE COLOUR CYCLE OPTIONS - 8 SPEED ADJUSTMENT LEVELS - BRIGHTNESS CONTROL - INDIVIDUAL COLOUR CONTROL KS-RGB-L01 RF REMOTE

- RADIO FREQUENCY - 433KHZ

- 2 X AAA BATTERIES FEATURES:

- 3 CHANNEL RGB CONSTANT VOLTAGE CONTROLLER, THE MAX CURRENT OF EACH CHANNEL UP TO 5A

- MULTI-COLOR MODE TO SELECT (FLASHING / FADING) - CAN SET TO ANY STATIC COLOR

-CAN ADJUST THE BRIGHTNESS FROM 0 TO 100%

- 8 SCALE SPEED

- LEARN IN FUNCTION, NEVER MISS WITH OTHER RECEPTOR OR REMOTE CONTROL

- RF- ONE REMOTE CAN BE SYNCHRONIZED TO CONTROL MULTIPLE CONTROLLERS

- SETTINGS REMAIN IN MEMMORY EVEN WHEN POWERED OFF

Operation Button

➀ MODE Change the color mode

➁ SP+ Flash / Fading speed plus

➂ SP- Flash / Fading speed minus

➃ BR+ Bright plus

➄ BR- Bright minus

➅ R Increase / Decrease Red by

➆ G Increase / Decrease Green by

➇ B Increase / Decrease Blue by Controller

REMOTE

➀

➃ ➁

➂

➄

➅

➆

➇

Wiring

E346146 E325925

or or or

12VDC Output

Mini RGB Controller KC-32-mini

RGB LED Light Panel (up to 60W Max.

each Channel)

+

R G B

+ _

White Red Green Black GND

D M X - K E Y ( K C - 2 4 / 5 A - D e c o d e r ) R G B C o l o r C o n t r o l l e r / D e c o d e r

PART NUMBER KC-24/5A-DECODER

INPUT POWER DC12V

OUTPUT R, G, B, V+ (12V), MAX 60W EACH CHANNEL

DMX STANDARD DMX512/1990

SIZE 204 (L) X 44 (W) X 25 (H) MM

WEIGHT 115G

STORAGE TEMPERATURE -15 TO 85 DEGREES ADDRESS SETTING IN DMX MASTER

MODE THERE ARE 3 DIGITS ON THE UNIT FOR SETTING ADDRESS. PRESS THE “-“ ON TOP OR THE “+” BELOW THE 3 DIGITS TO DECREASE OR INCREASE THE ADDRESS NUMBERS.

If the addresses of a DMX-KEY is set between 71x – 99x, the unit is automatically set as the DMX Master. The first 2 digit numbers

“71” to “99” represent the pre-set programs while the 3rd digit indicates the color changing speed. “0” indicates a slow speed and

“9” indicates a fast speed. For a list of all the pre-set programs available, please refer to the list below.

Program No. Description Remark

In DMX decoder mode, all 3 digits are used for address set- ting. The address ranges from 001 to 512. The decoder changes colors according to incoming DMX signals. When the address is set between 001-512, the DMX-KEY functions as a DMX decoder (DMX slave) and the pre-set programs do not func- tion. The decoder changes colors according to incoming DMX signals. There is one address difference between “R”, “G” and

“B”. For example if Red is 001, then Green is 002, and Blue is 003. To operate each decoder independently, you must offset each address by 3 (e.g. 001, 004, 007, …).

For example, to synchronize all decoders all addresses can be set as 001.

70 OFF

71 Seven Color Jumping Seven color refers to the colors in 77

- 83 below

72 Seven Color Fading

73 Seven Color Jumping and Fading

74 Seven Color Tail Chasing

75 Seven Color Water Flowing

76 Execute programs 71, 72, 73, 74, 75 and repeat

77 Red

78 Green

79 Blue

80 Yellow

81 Purple

82 Cyan

83 White

84 Red Fading

85 Green Fading

86 Blue Fading

87 Yellow Fading

88 Purple Fading

89 Cyan Fading

90 White Fading

91 Seven Color Fading Recycle

92 Red Flashing

93 Green Flashing

94 Blue Flashing

95 Yellow Flashing

96 Purple Flashing

97 Cyan Flashing

98 White Flashing

99 Seven Color Flashing

** Please Contact DLC for wiring instructions

RGB OPTION 2: LUMISHEET RGB LED LIGHT PANEL - DMX CONTROLLOR

P.8

Power Supply (DSA-12G-12FUS)

Power Supply (PA-60W-HW)

Power Supply (PA-150W-HW)

60 Watt 12V Hardwire Power Supply ; Input Voltage: 110AC - 240AC

150 Watt 12V Hardwire Power Supply ; Input Voltage: 110AC - 240V AC, IP65 Outdoor Rated

9 1/16" (230mm) 7 7/8" (200mm)

70 7/8" (1800mm) 1 1/2" (38mm)

1 1/4" (32mm)

8 7/8" (222.2mm)

7 13/16" (198.2mm) 11 13/16" (300mm)

11 13/16" (300mm)

1 1/2" (38mm)

Hardwire Power Adaptors

Class 2

Class 2

Power Supply (PA-60W-i5)

9 1/16" (230mm) 7 7/8" (200mm)

70" (1800mm) 60" (1500mm)

1 1/2" (38mm)

1 1/4" (32mm)

2 3/4" (70mm) 68" (1730mm)

1" (25.4mm)

1 5/8" (41mm)

LumiSheet - RGB LED Light Panel

Series # - Size

Length x Width (inch/mm)* - Color Temperature - Illuminated Face

Option - Cable Length - LED Location

LLP 12

10mm RGB 12V - CS - Custom shape

(drawing may be required) - RGB - Full Color - SFI - Single face*

- DFI - Double face - WL15 -5' (1500mm) power cord with free leads*

- WL30 - 10' (3000mm) cord with free leads

- L1 - LED along 1 long edge - L2 - LED along 2 long edges*

- S1 - LED along 1 short edge - S2 - LED along 2 short edges - S4 - LED along All 4 edges - CI - Custom Illumination

* Denotes standard configuration of rectangular or square light panel

Series # - Size

Length x Width (inch/mm)* - Color Temperature - Illuminated Face

Option - Cable Length - LED Location

LLP12 - 24" x 36" - RGB - SFI - WL15 - L2

Order Information
