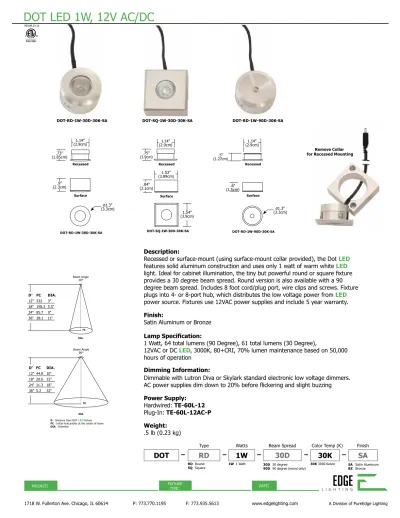

DOT LED 1W, 12V AC/DC
30D
Beam Spread
30D 30 degree 90D 90 degree (round only)
DOT
–RD
–Type
RD Round SQ Square
1W
Watts
1W 1 Watt
–
30K
Color Temp (K)
30K 3000 Kelvin
–
SA
Finish
SA Satin Aluminum BZ Bronze
–
DOT-RD-1W-90D-30K-SA
Ø1.3"
(3.3cm)
DOT-RD-1W-90D-30K-SA Surface .6"
(1.5cm) Recessed
1.14"
(2.9cm) .5"
(1.27cm)
D - Distance from DOT LED fixture FC - Initial footcandles at the center of beam DIA - Diameter
DIA.
Beam Angle 90°
D" FC DIA.
12" 44.8 10"
18" 20.6 15"
24" 11.3 18"
36" 5.2 32"
FC DIA.
Beam Angle 30°
FC
D" FC DIA.
12" 332 3"
18" 158.3 5.5"
24" 85.7 9"
36" 38.1 11"
DOT-RD-1W-30D-30K-SA
Recessed 1.14"
(2.9cm) ø1.3" (3.3cm)
DOT-RD-1W-90D DOT-RD-1W-30D
0.9"
(2.3cm)
ø1.3" (3.3cm)
0.6"
(1.5cm)
0.73"
(1.85cm) RECESSED SURFACE
0.5"
(1.27cm) 1.14"
(2.9cm)
1.14"
(2.9cm)
SURFACE RECESSED .75"
(1.9cm) ø1.3" (3.3cm)
DOT-RD-1W-90D DOT-RD-1W-30D
0.9"
(2.3cm)
ø1.3" (3.3cm)
0.6"
(1.5cm)
0.73"
(1.85cm) RECESSED SURFACE
0.5"
(1.27cm) 1.14"
(2.9cm)
1.14"
(2.9cm)
SURFACE RECESSED
Surface .84"
(2.1cm) 1.53"
(3.89cm)
DOT-SQ-1W-30D-30K-SA ø1.3" (3.3cm)
DOT-RD-1W-90D DOT-RD-1W-30D
0.9"
(2.3cm)
ø1.3" (3.3cm)
0.6"
(1.5cm)
0.73"
(1.85cm) RECESSED SURFACE
0.5"
(1.27cm) 1.14"
(2.9cm)
1.14"
(2.9cm)
SURFACE RECESSED
1.54"
(3.9cm) DOT-SQ-1W-30D-30K-SA
DOT-RD-1W-30D-30K-SA Ø1.3"
(3.3cm) 1.14"
(2.9cm) .73"
(1.85cm) Recessed
Surface .9"
(2.3cm)
Description:
Recessed or surface-mount (using surface-mount collar provided), the Dot LED features solid aluminum construction and uses only 1 watt of warm white LED light. Ideal for cabinet illumination, the tiny but powerful round or square fixture provides a 30 degree beam spread. Round version is also available with a 90 degree beam spread. Includes 8 foot cord/plug port, wire clips and screws. Fixture plugs into 4- or 8-port hub, which distributes the low voltage power from LED power source. Fixtures use 12VAC power supplies and include 5 year warranty.
Finish:
Satin Aluminum or Bronze Lamp Specification:
1 Watt, 64 total lumens (90 Degree), 61 total lumens (30 Degree),
12VAC or DC LED, 3000K, 80+CRI, 70% lumen maintenance based on 50,000 hours of operation
Dimming Information:
Dimmable with Lutron Diva or Skylark standard electronic low voltage dimmers.
AC power supplies dim down to 20% before flickering and slight buzzing Power Supply:
Hardwired: TE-60L-12 Plug-In: TE-60L-12AC-P Weight:
.5 lb (0.23 kg)
Remove Collar for Recessed Mounting
REV08.23.16
6 foot cord connects to LED power source
8 Port Hub shown
.6"
(1.5cm) 2.35"
(6cm)
1.3"
(3.3cm) HUB-8P
.6"
(1.5cm) 1.65"
(4.2cm)
HUB-4P 1.3"
(3.3cm)
POWER HUB FOR PUCKS & DOTS
Description:
The 4 or 8 Port Hub distributes the 12V AC/DC low voltage power from LED transformer to a combination of 1 to 4 or 1 to 8 LED Puck or Dot lights. Includes 6 foot Power Feed Connector Cord and 3 clips.
12 Ft. Hub Extension Cord and Hub Connector
The 12 ft extension cord extends the Hub power cord or the Puck and Dot fixture cord. Includes 6 pieces of WC-1 wire clips. Use HUB-HUB-12 to link multiple Hubs together.
Wire Clips
Wire Clips keep wires organized. Secure with screws or double- sided tape (included). 3 wire clips provided for each fixture. Also sold separately.
HUB
–Type
EC Extension Cord HUB Hub to Hub
EC
HUB Power Hub
–
Length
12
12 12 Feet
Product
WC
–Type
1
1 Standard WC Wire Clip
Product
HUB
–Type
4P 4 Port 8P 8 Port
4P
HUB Power Hub
Product
REV08.23.16
AC POWER FOR DOTS
Electronic 60 Watt LED AC Transformer Plug-In
Plug-In version of the TE-60-12 Electronic 60 Watt 12 Volt AC Transformer includes 10 ft of cord and DC Connector to plug into the HUB-4P or HUB-8P powering the Dots and Pucks.
Electronic 60 Watt AC Transformer with Rectangle Canopy Cover
TE-60L-12 Electronic 60 Watt 12 Volt AC hard wire fits inside single gang electrical box covered with a white 3" rectangular canopy, powering the Dots and Pucks.
P
P Plug In
Type
TE
Product
–
60L
60L 60 Watt LED
Wattage
12AC
–
12AC 12 Volt AC
Voltage
–
Electronic 60 Watt LED AC Transformer
TE-60L-12 Electronic 60 Watt 12 Volt AC Transformer converts standard 120 volt line voltage to 12 volts and features built-in short-circuit protection. Fits inside an electrical junction box. Minimum dimming load is 6 watts.
TE
Product
–
60L
60L 60 Watt LED and Halogen
Wattage
12
–
12 12 Volt AC
Voltage
3" Rectangle and 4" Round Canopy Cover
The white rectangle or round canopy cover conceals the TE-60L-12 LED transformer (sold separately) inside a single gang box to power Dots and Pucks.
3RE
3RE 3 Inch Rectangle Canopy Cover 4RD 4 Inch Round
Canopy Cover
Product
–
WH
Finish
WH White
3RE
Type
WH
Finish
WH White
TE
TE Transformer Electronic
Product
–
60L
60L 60 Watt LED
Wattage
12AC
–
Voltage
– –
12AC 12 Volt AC 3RE 3 Inch Rectangle Canopy Cover
TE Transformer Electronic
TE Transformer Electronic REV08.23.16
DOT LED
Application: Wiring Diagram for 4 Dot LED fixtures
Power Supply: 60 watt, 120 volt input, 12 volt AC output TE-60L-12
Dimming: Dimmable with low voltage electronic dimmer using power supply above.
See power supply spec sheet for additional details.
Lutron: Diva #DVELV-300P; Skylark #SELV-300P dimmers are recommended
WIRING DIAGRAM, HARDWIRED
120VAC
YELLOW (HOT) WHITE (NEUTRAL)
RECTANGLE ELECTRICAL BOX
RECTANGLE CANOPY COVER
(3RE-WH)
6FT
8FT
12VDC/AC TE-60L-12
SWITCH OR ELECTRONIC LOW VOLTAGE DIMMER
TE-60L-12AC-3RE-WH
120VAC
HUB-4P or HUB-8P
HUB-4P or HUB-8P HUB-HUB-12
REV08.23.16
DOT LED
Application: Wiring diagram for 7 Dot LED fixtures
Power Supply: 60 watt, 120 volt input, 12 volt AC output TE-60L-12AC-P
Dimming: Dimmable with low voltage electronic dimmer using power supply above.
See power supply spec sheet for additional details.
Lutron: Diva #DVELV-300P; Skylark #SELV-300P dimmers are recommended
WIRING DIAGRAM, PLUG-IN
HUB-4P OR HUB-8P
DOT LED CABINET LIGHTING. 1W PER FIXTURE EDGE # DOT-RD-1W-30D-30K-SA
DOT-RD-1W-90D-30K-SA DOT-SQ-1W-30D-30K-SA WHITE(NEUTRAL)
BLACK (HOT)
OUTLET
POWER SUPPLY TE-60L-12AC-P
60W 12VAC 120VAC
12VAC SWITCH OR ELV DIMMER
MIX & MATCH FIXTURES HUB-4P
OPTIONAL HUB FOR ADDITIONAL FIXTURES
3FT
10FT
HUB-HUB-12 (12 FEET)6FT
8FT REV08.23.16
