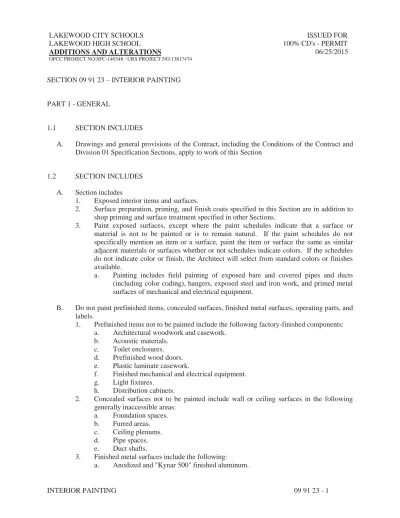

SECTION 09 91 23 – INTERIOR PAINTING
PART 1 - GENERAL
1.1 SECTION INCLUDES
A. Drawings and general provisions of the Contract, including the Conditions of the Contract and Division 01 Specification Sections, apply to work of this Section
1.2 SECTION INCLUDES A. Section includes
1. Exposed interior items and surfaces.
2. Surface preparation, priming, and finish coats specified in this Section are in addition to shop priming and surface treatment specified in other Sections.
3. Paint exposed surfaces, except where the paint schedules indicate that a surface or material is not to be painted or is to remain natural. If the paint schedules do not specifically mention an item or a surface, paint the item or surface the same as similar adjacent materials or surfaces whether or not schedules indicate colors. If the schedules do not indicate color or finish, the Architect will select from standard colors or finishes available.
a. Painting includes field painting of exposed bare and covered pipes and ducts (including color coding), hangers, exposed steel and iron work, and primed metal surfaces of mechanical and electrical equipment.
B. Do not paint prefinished items, concealed surfaces, finished metal surfaces, operating parts, and labels.
1. Prefinished items not to be painted include the following factory-finished components:
a. Architectural woodwork and casework.
b. Acoustic materials.
c. Toilet enclosures.
d. Prefinished wood doors.
e. Plastic laminate casework.
f. Finished mechanical and electrical equipment.
g. Light fixtures.
h. Distribution cabinets.
2. Concealed surfaces not to be painted include wall or ceiling surfaces in the following generally inaccessible areas:
a. Foundation spaces.
b. Furred areas.
c. Ceiling plenums.
d. Pipe spaces.
e. Duct shafts.
3. Finished metal surfaces include the following:
a. Anodized and "Kynar 500" finished aluminum.
b. Stainless steel.
c. Chromium plate.
d. Copper.
e. Bronze and brass.
4. Operating parts not to be painted include moving parts of operating equipment such as the following:
a. Valve and damper operators.
b. Linkages.
c. Sensing devices.
d. Motor and fan shafts.
5. Labels: Do not paint over Underwriter's Laboratories (UL), Factory Mutual (FM), or other code-required labels or equipment name, identification, performance rating, or nomenclature plates.
1.3 DEFINITIONS
A. General: Standard coating terms defined in ASTM D 16 apply to this Section.
1.4 SUBMITTALS
A. Product Data: For each paint system specified. Include block fillers and primers.
1. Material List: Provide an inclusive list of required coating materials. Indicate each material and cross-reference specific coating, finish system, and application. Identify each material by manufacturer’s catalog number and general classification.
2. Manufacturer’s Information: Provide manufacturer’s technical information, including label analysis and instructions for handling, storing, and applying each coating material proposed for use.
3. Certification by the manufacturer that products supplied comply with local regulations controlling use of volatile organic compounds (VOCs).
B. Qualification Data: For firms and persons specified in the “Quality Assurance” Article to demonstrate their capabilities and experience. Include lists of completed projects with project names and addresses, names and addresses of architects and owners, and other contact information.
1.5 QUALITY ASSURANCE
A. Applicator Qualifications: Engage an experienced applicator who has completed painting system applications similar in material and extent to that indicated for this Project with a record of successful in-service performance.
B. Source Limitations: Obtain block fillers, primers, and undercoat materials for each coating system from the same manufacturer as the finish coats.
C. Ohio VOC Limits:
1. Flat Ceilings: 100g/L.
2. Non-flat coatings: 150 g/L.
3. Non flat high-gloss coatings: 250 g/L.
4. Clear brushing lacquers: 680 g/L.
5. Primers, sealers, undercoats: 200 g/L.
1.6 DELIVERY, STORAGE, AND HANDLING
A. Deliver materials to the Project Site in manufacturer's original, unopened packages and containers bearing manufacturer's name and label, and the following information:
1. Product name or title of material.
2. Product description (generic classification or binder type).
3. Manufacturer's stock number and date of manufacture.
4. Contents by volume, for pigment and vehicle constituents.
5. Thinning instructions.
6. Application instructions.
7. Color name and number.
8. VOC content.
B. Inspect upon arrival onsite to verify acceptability.
C. Store materials not in use in tightly covered containers in a well-ventilated area at a minimum ambient temperature of 45 degrees F. Maintain containers used in storage in a clean condition, free of foreign materials and residue.
1. Protect from freezing. Keep storage area neat and orderly. Remove oily rags and waste daily. Take necessary measures to ensure that workers and work areas are protected from fire and health hazards resulting from handling, mixing, and application.
1.7 PROJECT CONDITIONS
A. Do not apply materials when surface and ambient conditions or temperatures are outside the condition or temperature ranges required by the paint product manufacturer.
B. Do not apply exterior coatings during rain or snow, or when relative humidity is outside the humidity range required by the paint product manufacturer.
C. Minimum Application Temperatures for Latex Paints: 45 degrees F for interiors; 50 degrees F for exterior; unless required otherwise by manufacturer's instructions.
D. Minimum Application Temperature for Varnish Finishes: 65 degrees F for interior or exterior, unless required otherwise by manufacturer's instructions.
PART 2 - PRODUCTS
2.1 MANUFACTURERS
A. Manufacturers: Specification is based upon the manufacturers listed in the Color Finish Schedule or, subject to compliance to requirements, from one of the manufacturers listed below:
1. Sherwin-Williams.
2. Pittsburgh Paints 3. ICI Paints.
4. Benjamin Moore.
5. Pratt & Lambert.
B. Colors: Refer to Color Finish Schedule at the end of this section.
C. Interior Paint Systems: Refer to Interior Paint Systems Section 2.3.
2.2 PAINT MATERIALS, GENERAL
A. Material Compatibility: Provide block fillers, primers, undercoats, and finish-coat materials that are compatible with one another and the substrates indicated under conditions of service and application, as demonstrated by manufacturer based on testing and field experience.
B. VOC Content of Field-Applied Interior Paints and Coatings: Provide products that comply with the following limits for VOC content, exclusive of colorants added to a tint base, when calculated according to 40 CFR 59, Subpart D (EPA Method 24); these requirements do not apply to paints and coatings that are applied in a fabrication or finishing shop:
1. Flat Paints, Coatings, and Primers: VOC content of not more than 50 g/L.
2. Nonflat Paints, Coatings, and Primers: VOC content of not more than 150 g/L.
3. Anti-Corrosive and Anti-Rust Paints Applied to Ferrous Metals: VOC not more than 250 g/L.
4. Floor Coatings: VOC not more than 100 g/L.
5. Shellacs, Clear: VOC not more than 730 g/L.
6. Shellacs, Pigmented: VOC not more than 550 g/L.
7. Flat Topcoat Paints: VOC content of not more than 50 g/L.
8. Nonflat Topcoat Paints: VOC content of not more than 150 g/L.
9. Anti-Corrosive and Anti-Rust Paints Applied to Ferrous Metals: VOC not more than 250 g/L.
10. Floor Coatings: VOC not more than 100 g/L.
11. Shellacs, Clear: VOC not more than 730 g/L.
12. Shellacs, Pigmented: VOC not more than 550 g/L.
13. Primers, Sealers, and Undercoaters: VOC content of not more than 200 g/L.
14. Dry-Fog Coatings: VOC content of not more than 400 g/L.
15. Zinc-Rich Industrial Maintenance Primers: VOC content of not more than 340 g/L.
16. Pre-Treatment Wash Primers: VOC content of not more than 420 g/L.
C. Chemical Components of Field-Applied Interior Paints and Coatings: Provide topcoat paints and anti-corrosive and anti-rust paints applied to ferrous metals that comply with the following chemical restrictions; these requirements do not apply to paints and coatings that are applied in a fabrication or finishing shop:
1. Aromatic Compounds: Paints and coatings shall not contain more than 1.0 percent by weight of total aromatic compounds (hydrocarbon compounds containing one or more benzene rings).
2. Prohibited Content: Paints and coatings shall not contain any of the following:
a. Acrolein.
b. Acrylonitrile.
c. Antimony.
d. Benzene.
e. Butyl benzyl phthalate.
f. Cadmium.
g. Di (2-ethylhexyl) phthalate.
h. Di-n-butyl phthalate.
i. Di-n-octyl phthalate.
j. 1,2-dichlorobenzene.
k. Diethyl phthalate.
l. Dimethyl phthalate.
m. Ethylbenzene.
n. Formaldehyde.
o. Hexavalent chromium.
p. Isophorone.
q. Lead.
r. Mercury.
s. Methyl ethyl ketone.
t. Methyl isobutyl ketone.
u. Methylene chloride.
v. Naphthalene.
w. Toluene (methylbenzene).
x. 1,1,1-trichloroethane.
y. Vinyl chloride.
D. Material Quality: Provide manufacturer's best-quality paint material of the various coating types specified. Paint-material containers not displaying manufacturer's product identification will not be acceptable.
E. Coatings: Ready mixed, except field catalyzed coatings. Process pigments to a soft paste consistency, capable of being readily and uniformly dispersed to a homogeneous coating; good flow and brushing properties; capable of drying or curing free of streaks or sags.
1. Apply color prime shade to tint primer and block filler where finish coats are tinted as per manufacturer recommendations.
F. Accessory Materials: Linseed oil, shellac, turpentine, paint thinners and other materials not specifically indicated but required to achieve the finishes specified, of commercial quality.
G. Patching Materials: Latex filler.
H. Fastener Head Cover Materials: Latex filler.
2.3 PAINT SYSTEMS
A. Provide the following paint systems for the various substrates as indicated.
1. Paint, stains, and coatings listed are selected manufacturer’s unless noted otherwise.
2. Film thickness required is designated as mils W (wet)/D (dry) per coat.
B. Gypsum Board (Type 1 - Standard Wall Applications):
1. Sherwin Williams Products:
a. One (1) coat PrepRite 200 Latex Primer B28W200 Series, 4 mils W/1.1 mils D.
b. Two (2) coats ProMar 200 Latex Eg-shel B20 Series, 4 mils W/1.8 mils D per coat.
2. Pittsburgh Paints Products:
a. One (1) coat 6-2 SpeedHide Interior Quick-Drying Latex Sealer: Applied at a dry film thickness of not less than 1.0 mil.
b. Two (2) coats 6-411 Series SpeedHide Eggshell Acrylic Latex Enamel: Applied at a dry film thickness of not less than 1.25 mils.
3. ICI Paints:
a. One (1) coat Prep & Prime 1000 Hi Hide Primer, 4 mils W/1.1 mils D.
b. Two (2) coats Dulux Pro Premium 1402 Acrylic Latex Eggshell, 4 mils W/1.4 mils D per coat.
4. Benjamin Moore Products:
a. One (1) coat 253 Superspec Primer, 4 mils W/1.1 mils D.
b. Two (2) coats 274 Superspec Eggshell, 4 mils W/1.8 mils D per coat.
5. Pratt & Lambert:
a. One (1) coat Z8160 Pro-Hide Gold Latex Primer, 4 mils W/1.1 mils D.
b. Two (2) coats Pro-Hide Gold Series Latex Eggshell, 4 mils W/1.8 mils D per coat.
C. Gypsum Board (Type 2 - Standard Soffit Applications):
1. Sherwin Williams Products:
a. One (1) coat Prepkite 200 Latex Primer B28W200 Series, 1.1 mils D.
b. Two (2) coats ProMar 200 Flat Latex B30-200 Series, 4 mils W/1.3 mils D per coat.
2. Pittsburgh Paints Products:
a. One (1) coat 6-2 SpeedHide Interior Quick-Drying Latex Sealer: Applied at a dry film thickness of not less than 1.0 mil.
b. Two (2) coats 6-70 Line SpeedHide Interior Wall Flat-Latex Paint: Applied at a dry film thickness of not less than 1.0 mil.
3. ICI Paints:
a. One (1) coat Prep & Prime 1000 Hi Hide Primer, 4 mils W/1.1 mils D.
b. Two (2) coats Dulux Pro Premium 1200 Acrylic Latex Flat, 4 mils W/1.4 mils D per coat.
4. Benjamin Moore Products:
a. One (1) coat 253 Superspec Primer, 4 mils W/1.1 mils D.
b. Two (2) coats 275 Superspec Flat, 4 mils W/1.3 mils D per coat.
5. Pratt & Lambert:
a. One (1) coat Z8160 Pro-Hide Gold Latex Primer, 1.1 mils D.
b. Two (2) coats Z8100 Series Pro-Hide Gold Flat Latex, 4 mils W/1.3 mils D per
coat.
D. Gypsum Board (Type 3 - Scrubbable / Wet Applications): (FOOD SERVICE AREAS, LOCKER ROOM AREAS, RESTROOMS, TOILETS, SHOWERS, LOBBY SERVICES ROOM, TEACHING WALLS IN CLASSROOM)
1. Sherwin Williams Products:
a. One (1) coat PrepRite 200 Latex Primer B28-200 Series, 1.1 mils D.
b. Two (2) coats Water Based Catalyzed Epoxy Semi-Gloss B70 Series, 6.5 mils W/2.5 mils D per coat.
2. Pittsburgh Paints Products:
a. One (1) coat 6-2 SpeedHide Interior Quick-Drying Latex Sealer: Applied at a dry film thickness of not less than 1.0 mil.
b. Two (2) coats 16-551 Pitt-Glaze WB Acrylic Epoxy Semi-Gloss: Applied at a dry film thickness of not less than 2.0 mils.
3. ICI Paints:
a. One (1) coat Prep & Prime Gripper 3210 Primer Sealer, 2.5 mils D.
b. Two (2) coats Tru-Glaze-WB 4406 Waterborne Epoxy Semi-Gloss Coating, 5 - 11 mils W/2 - 5 mils D per coat.
4. Benjamin Moore Products:
a. One (1) coat 023 Fresh Start Primer, 1.1 mils D.
b. Two (2) coats M43/M44 Acrylic Epoxy Semi-Gloss, 6.5 mils W/2 .5 mils D per coat.
5. Pratt & Lambert:
a. One (1) coat Z8160 Pro-Hide Gold Latex Primer, 1.1 mils D.
b. Two (2) coats Enducryl Water Based Catalyzed Epoxy Series (Z7025 Semi-Gloss Activator), 6.5 mils W/2.5 mils D per coat.
E. Concrete/Concrete Block (Standard Applications):
1. Sherwin Williams Products:
a. One (1) coat PrepRite Block Filler B25W25, 16 mils W / 8 mils D.
b. Two (2) coats ProMar 200 Latex Eg-Shel, 4 mils W / 1.6 mils D per coat.
2. Pittsburgh Paints Products:
a. One (1) coat 6-7 SpeedHide Interior/Exterior Masonry Latex Block Filler:
Applied at a dry film thickness of not less than 6.0 to 12.5 mils.
b. Two (2) coats 6-411 Series SpeedHide Eggshell Acrylic Latex Enamel: Applied at a dry film thickness of not less than 1.25 mils.
3. ICI Paints:
a. One (1) coat Prep & Prime 3010 Water-based Block Filler, 16 mils W / 8 mils D.
b. Two (2) coats Dulux Pro Premium 1402 Acrylic Latex Eggshell, 4 mils W/1.4 mils D per coat.
4. Benjamin Moore Products:
a. One (1) coat M88 Block Filler, 16 mils W / 8 mils D.
b. Two (2) coats 274 Superspec Eggshell, 4 mils W/1.6 mils D per coat.
5. Pratt & Lambert:
a. One (1) coat Pro-Hide Silver Block Filler Z8485, 16 mils W / 8 mils D.
b. Two (2) coats Pro-Hide Gold Latex Egg-shell Z8200 Series, 4 mils W / 1.6 mils D per coat.
F. Concrete/Concrete Block (FOOD SERVICE AREAS):
1. Sherwin Williams Products:
a. One (1) coat Kem Cati-Coat High Solids B42W400, 14 mils W/10 mils D.
b. Two (2) coats Tile-Clad High Solids Series, Gloss, 4 mils W/2.5 mils D per coat.
2. Pittsburgh Paints Products:
a. One (1) coat 97-685Aquapon Epoxy Block Filler. Applied at a dry film thickness of not less than 12.0 mils.
b. Two (2) coats 95-1 Aquapon Gloss Epoxy. Applied at a dry film thickness of not less than 2.0 mils.
3. ICI Paints:
a. One (1) coat Tru-Glaze-WB 4015 Water-Based Epoxy Block Filler, 17 mils W/11 mils D.
b. Two (2) coats Tru-Glaze-WB 4408 Waterborne Epoxy Gloss Coating, 5 - 11 mils W/2 - 5 mils D per coat.
c. OR Tru-Glaze 4508H Chemical Resistant Epoxy Gloss Coating 6 - 10 mils W/3 - 5 mils D per coat.
4. Benjamin Moore Products:
a. Two (2) coats M36/M39 Epoxy High Build, 14 mils W/10 mils D.
b. Two (2) coats M36/M39 Epoxy High Build, 4 mils W/2.5 mils D per coat.
5. Pratt & Lambert:
a. One (1) coat Techgard Epoxy, Block Filler S4250, S4251 (activator), 14 mils W/10 mils D.
b. Two (2) coats Palgard Epoxy, Gloss, 4 mils W/2.0 mils D per coat.
G. Concrete/Concrete Block (CORRIDORS, LOBBIES, TEACHING WALLS IN CLASSROOM):
1. Sherwin Williams Products:
a. One (1) coat PrepRite Block Filler B25W25, 16 mils W/8 mils D.
b. Two (2) coats ProMar 200 Latex Semi-Gloss, 4 mils w/1.5 mils D per coat.
2. Pittsburgh Paints Products:
a. One (1) coat 6-7 SpeedHide Interior/Exterior Masonry Latex Block Filler:
Applied at a dry film thickness of not less than 6.0 to 12.5 mils.
b. Two (2) coats 6-500 Series SpeedHide Interior Semi-Gloss Latex: Applied at a dry film thickness of not less than 1.0 mil.
3. ICI Paints:
a. One (1) coat Prep & Prime 3010 Water-based Block Filler, 16 mils W/8 mils D.
b. Two (2) coats Dulux Pro Premium 1406 Acrylic Latex Semi-Gloss, 4 mils W/1.5 mils D per coat.
4. Benjamin Moore Products:
a. One (1) coat M88 Block Filler, 16 mils W/8 mils D.
b. Two (2) coats 276 Superspec Semi-Gloss, 4 mils W/1.5 mils D per coat.
5. Pratt & Lambert:
a. One (1) coat Pro-Hide Silver Z8485 Block Filler, 16 mils W/8 mils D.
b. Two (2) coats Pro-Hide Gold Z8300 Series Latex Semi-Gloss, 4 mils w/1.5 mils D per coat
H. Concrete/Concrete Block (RESTROOM, TOILET ROOMS, LOCKER ROOM AREAS,
SHOWERS, ETC.,):
1. Sherwin Williams Products:
a. One (1) coat Preprite BlockFiller B25W25, 16 mils W/8 mils D.
b. Two (2) coats Water Based Catalyzed Epoxy B 70 Series, Semi-Gloss, 6.5 mils W/2.5 mils D per coat.
2. Pittsburgh Paints Products:
a. One (1) coat 6-7 SpeedHide Interior/Exterior Masonry Latex Block Filler:
Applied at a dry film thickness of not less than 6.0 to 12.5 mils.
b. Two (2) coats 16-551 Pitt-Glaze WB Acrylic Epoxy Semi-Gloss Applied at a dry film thickness of not less than 2.0 mils.
3. ICI Paints:
a. One (1) coat Bloxfil 4000 Heavy Duty Acrylic Block Filler, 15.5 - 32 mils W/7 – 14.5 mils D.
b. Two (2) coats Tru-Glaze-WB 4406 Waterborne Epoxy Semi-Gloss Coating, 5 - 11 mils W/2 - 5 mils D per coat
4. Benjamin Moore Products:
a. One (1) coat M88 Block Filler, 16 mils W/8 mils D.
b. Two (2) coats M42 Waterborne Epoxy, 6.5 mils W/2.5 mils D per coat.
5. Pratt & Lambert:
a. One (1) coat Z8465 Enducryl HP Block Filler, 16 mils W/8 mils D.
b. Two (2) coats Enducryl Water Based Catalyzed Epoxy Z7021/Z7025, Semi-Gloss, 6.5 mils W/3 mils D per coat.
I. Plaster (SHOWERS/DRYING AREAS) 1. Sherwin Williams Products:
a. One (1) coat PrepRite 200 Latex Primer B28-200 Series, 1.1 mils D.
b. Two (2) coats Water Based Catalyzed Epoxy Semi-Gloss B70 Series, 6.5 mils W/2.5 mils D per coat.
2. Pittsburgh Paints Products:
a. One (1) coat 6-2 SpeedHide Interior Quick-Drying Latex Sealer: Applied at a dry film thickness of not less than 1.0 mil.
b. Two (2) coats 16-551 Pitt-Glaze WB Acrylic Epoxy Semi-Gloss: Applied at a dry film thickness of not less than 2.0 mils.
3. ICI Paints:
a. One (1) coat Prep & Prime Gripper 3210 Primer Sealer, 2.5 mils D.
b. Two (2) coats Tru-Glaze-WB 4406 Waterborne Epoxy Semi-Gloss Coating, 5 - 11 mils W/2 - 5 mils D per coat.
4. Benjamin Moore Products:
a. One (1) coat 023 Fresh Start Primer, 1.1 mils D.
b. Two (2) coats M43/M44 Acrylic Epoxy Semi-Gloss, 6.5 mils W/2 .5 mils D per coat.
5. Pratt & Lambert:
a. One (1) coat Z8160 Pro-Hide Gold Latex Primer, 1.1 mils D.
b. Two (2) coats Enducryl Water Based Catalyzed Epoxy Series (Z7025 Semi-Gloss Activator), 6.5 mils W/2.5 mils D per coat.
J. Metal Doors and Frames:
1. Sherwin Williams Products:
a. Touch up with DTM Acrylic Primer/Finish, 3.75 mils D.
b. Two (2) coats DTM Acrylic Semi-Gloss #B66-200, 8.25 mils W / 3.25 mils D per coat.
2. Pittsburgh Paints Products:
a. Touch up with 90-709 Pitt-Tech Primer/Finish DTM Applied at a dry film thickness of not less than 2.0 mils.
b. Two (2) coats 90-474 Pitt-Tech High Performance Waterborne DTM Enamel:
Applied at a dry film thickness of not less than 3.0 mils.
3. ICI Paints:
a. Touch up with Devflex 4020 PF DTM Flat Primer/Finish, 3.5 mils D.
b. Two (2) coats Devflex 4216 HP Acrylic Semi-Gloss Enamel, 4 - 11.6 mils W/1.5 – 4 mils D per coat.
4. Benjamin Moore Products:
a. Touch up with M29 DTM Acrylic Semi-Gloss, 3.75 mils D.
b. Two (2) coats M29 DTM Acrylic Semi-Gloss, 8.25 mils W / 3.25 mils D per coat.
5. Pratt & Lambert:
a. Touch up with Enducryl DTM Z6600 Series @ 3.75 mils D per coat.
b. Two (2) coats Enducryl DTM Z6600 Series @ 3.25 mils D per coat.
K. Ferrous Metal:
1. Sherwin Williams Products:
a. One (1) KemKromik Metal Primer B50Z Series, 6 mils W / 3 mils D.
b. Two (2) coats Metalastic DTM B55Z Series, Semi-Gloss, 5 mils W / 3 mils D per coat.
2. Pittsburgh Paints Products:
a. One (1) coat 94-258 Multi Prime Metal Primer Applied at a dry film thickness of not less than 1.5 mils.
b. Two (2) coats 7-844 Alkyd Semi Gloss Enamel. Applied at a dry film thickness of not less than 2.0 mils.
3. ICI Paints:
a. One (1) Devflex 4020 PF DTM Flat Primer/Finish, 3.5 mils D
b. Two (2) coats Devflex 4216 HP Acrylic Semi-Gloss Enamel, 4 - 11.6 mils W / 1.5 – 4 mils D per coat.
4. Benjamin Moore Products:
a. One (1) M06 Alkyd Metal Primer, 6 mils W / 3 mils D.
b. Two (2) coats M29 DTM Acrylic, Semi-Gloss, 5 mils W / 3 mils D per coat.
5. Pratt & Lambert:
a. One (1) coat of S4501 Rust Inhibitive Metal Primer @ 2.0 mils W.
b. Two (2) coats Techgard Maintenance Gloss S4500 Series, 4-5 mils W per coat.
L. Wood Stained - Type 1 (clearcoat) (Wood Trim, Locker Room Bench):
1. Sherwin Williams Products:
a. Two (2) coats Wood Classics Polyurethane Varnish A67 Series, 4 mils W / 1.7 mils D per coat.
2. Pittsburgh Paints Products:
a. Two (2) coats 77-89 REZ Interior Polyurethane Satin Clear Varnish.
3. ICI Paints:
a. Two (2) coats Woodpride 1908 Interior Gloss Polyurethane Varnish, 4 mils W/1.8 mils D.
4. Benjamin Moore Products:
a. Two (2) coats C435 Benwood Polyurethane Low Lustre, 4 mils W / 1.7 mils D per coat.
5. Pratt & Lambert:
a. Two (2) coats Varmor R10 Series Varnish @ 2.3 mils W.
M. Wood Stained - Type 2:
1. Sherwin Williams Products:
a. One (1) coat premium custom stain; applied on species indicated to match Architect’s sample.
b. Two (2) coats Wood Classics Polyurethane Varnish A67 Series, 4 mils W / 1.7 mils D per coat.
2. Pittsburgh Paints Products:
a. One (1) coat 77-89 REZ Interior Polyurethane Satin Clear Varnish; applied on species indicated to match Architect’s sample.
b. Two (2) coats 77-89 REZ Interior Polyurethane Satin Clear Varnish 3. ICI Paints:
a. One (1) coat premium custom stain; applied on species indicated to match Architect’s sample.
b. Two (2) coats Woodpride 1908 Interior Gloss Polyurethane Varnish, 4 mils W/1.8 mils D.
4. Benjamin Moore Products:
a. One (1) coat 234 Benwood Stain; applied on species indicated to match Architect’s sample.
b. Two (2) coats C435 Benwood Polyurethane Low Lustre, 4 mils W/1.7 mils D.
5. Pratt & Lambert:
a. One (1) coat premium custom stain; applied on species indicated to match Architect’s sample.
b. Two (2) coats Varmor R10 Series, 2.3 mils W per coat.
N. Exposed Structure – Ferrous (Exposed Metal Decking, Trusses, Structural Steel and Metal Joists):
1. Sherwin Williams Products:
a. One (1) coat primer as per manufacturer’s recommendations.
b. Two (2) coats Water Based Dryfall B42 T1, 1 mil D per coat.
c. Test patch for adhesion to be approved by Architect before installation.
2. Pittsburgh Paints Products:
a. One (1) coat primer as per manufacturer’s recommendations; 94-258 Multi Prime Metal Primer
b. Two (2) coats 90-810 Pitt Tech Edt Semi-Gloss: Applied at a dry film thickness of not less than 2.0 mils.
c. Test patch for adhesion to be approved by Architect before installation.
3. ICI Paints:
a. One (1) coat primer as per manufacturer’s recommendations.
b. Two (2) coats Spraymaster Pro Uni-Grip-WB 1280 Flat, 1482 Eggshell, 1486 Semi-Gloss; 1.5 – 2.0 mils D.
c. Test patch for adhesion to be approved by Architect before installation.
4. Benjamin Moore Products:
a. One (1) coat M53 Flat Dryfall Water Based.
b. Two (2) coats M535 Semi-Gloss Dryfall Water Based, 1 mil D per coat.
c. Test patch for adhesion to be approved by Architect before installation.
5. Pratt & Lambert:
a. One (1) coat of S4501 Rust Inhibitive Metal Primer @ 2.0 mils W.
b. Two (2) coats Enducryl Latex Dryfall Z5931 (black) or Z5900 (white) @ 7.0-11.0 mils W per coat.
c. Test patch for adhesion to be approved by Architect before installation.
O. Exposed Structure Galvanized Steel (Exposed Metal Decking, Trusses, Structural Steel and Metal Joists):
1. Sherwin Williams Products:
a. One (1) coat primer as per manufacturer’s recommendations.
b. Two (2) coats Water Based Dryfall B42 T1, 1 mil D per coat.
c. Test patch for adhesion to be approved by Architect before installation.
2. Pittsburgh Paints Products:
a. One (1) coat primer as per manufacturer’s recommendations.
b. Two (2) coats 90-810 Pitt Tech Edt Semi-Gloss: Applied at a dry film thickness of not less than 2.0 mils.
c. Test patch for adhesion to be approved by Architect before installation.
3. ICI Paints:
a. One (1) coat primer as per manufacturer’s recommendations.
b. Two (2) coats Spraymaster Pro Uni-Grip-WB 1280 Flat, 1482 Eggshell, 1486 Semi-Gloss; 1.5 – 2.0 mils D.
c. Test patch for adhesion to be approved by Architect before installation.
4. Benjamin Moore Products:
a. One (1) coat M04 Alkyd Metal Primer.
b. Two (2) coats M06 Acrylic Metal Primer, previously painted, 1 mil D per coat.
c. Two (2) coats M53 Flat Dryfall Water Based, 1 mil D per coat.
d. Test patch for adhesion to be approved by Architect before installation.
5. Pratt & Lambert:
a. One (1) coat of S4501 Rust Inhibitive Metal Primer @ 2.0 mils W.
b. Two (2) coats Enducryl Latex Dryfall Z5931 (black) or Z5900 (white) @ 7.0-11.0 mils W per coat.
c. Test patch for adhesion to be approved by Architect before installation.
P. Concrete Substrates, Traffic Surfaces: (Black Box Theater) 1. Latex Floor Enamel System: MPI INT 3.2A.
a. Prime Coat: Interior/exterior latex floor paint (flat enamel).
b. Intermediate Coat: Interior/exterior latex floor paint (flat enamel).
c. Topcoat: Interior/exterior latex floor paint (flat enamel).
PART 3 - EXECUTION
3.1 EXAMINATION
A. Examine substrates, areas, and conditions, with the Applicator present, under which painting will be performed for compliance with paint application and the manufacturer’s requirements.
1. Do not begin to apply paint until unsatisfactory conditions have been corrected and surfaces receiving paint are thoroughly dry.
B. Verify that moisture content of surfaces to receive paint application is acceptable according to the manufacturer’s written recommendations/instructions. Any testing costs are the responsibility of the contractor.
1. Start of painting will be construed as the Applicator's acceptance of surfaces and conditions within a particular area.
C. Coordination of Work: Review other Sections in which primers are provided to ensure compatibility of the total system for various substrates. On request, furnish information on characteristics of finish materials to ensure use of compatible primers.
1. Notify the Architect about anticipated problems using the materials specified over substrates primed by others.
3.2 PREPARATION
A. General: Remove hardware and hardware accessories, plates, machined surfaces, lighting fixtures, and similar items already installed that are not to be painted. If removal is impractical or impossible because of the size or weight of the item, provide surface-applied protection before surface preparation and painting.
1. After completing painting operations in each space or area, reinstall items removed using workers skilled in the trades involved.
B. Cleaning: Before applying paint or other surface treatments, clean the substrates of substances that could impair the bond of the various coatings. Remove oil and grease before cleaning.
1. Schedule cleaning and painting so dust and other contaminants from the cleaning process will not fall on wet, newly painted surfaces.
C. Surface Preparation: Clean and prepare surfaces to be painted according to manufacturer's written instructions for each particular substrate condition and as specified.
1. Provide barrier coats over incompatible primers or remove and reprime.
2. Cementitious Materials: Prepare concrete, concrete masonry block, cement plaster, and mineral-fiber-reinforced cement panel surfaces to be painted. Remove efflorescence, chalk, dust, dirt, grease, oils, and release agents. Roughen as required to remove glaze.
If hardeners or sealers have been used to improve curing, use mechanical methods of surface preparation.
a. Remove oil and grease with a solution of tri-sodium phosphate; rinse well and allow to dry. Remove stains caused by weathering of corroding metals with a solution of sodium metasilicate after thoroughly wetting with water. Allow to dry.
b. Use abrasive blast-cleaning methods if recommended by paint manufacturer.
c. Determine alkalinity and moisture content of surfaces by performing appropriate tests. If surfaces are sufficiently alkaline to cause the finish paint to blister and burn, correct this condition before application. Do not paint surfaces where moisture content exceeds that permitted in manufacturer's written instructions.
3. Wood: Clean surfaces of dirt, oil, and other foreign substances with scrapers, solvent, and sandpaper, as required. Sand surfaces exposed to view smooth and dust off.
a. Scrape and clean small, dry, seasoned knots, and apply a thin coat of white shellac or other recommended knot sealer before applying primer. After priming, fill holes and imperfections in finish surfaces with putty or plastic wood filler. Sand smooth when dried.
b. Prime, stain, or seal wood to be painted immediately on delivery. Prime edges, ends, faces, undersides, and backsides of wood, including cabinets, counters, cases, and paneling.
c. When transparent finish is required, backprime with spar varnish.
d. Backprime paneling on interior partitions where masonry, plaster, or other wet wall construction occurs on backside.
e. Seal tops, bottoms, and cutouts of unprimed wood doors with a heavy coat of varnish or sealer immediately on delivery.
4. Ferrous Metals: Clean ungalvanized ferrous-metal surfaces that have not been shop coated; remove oil, grease, dirt, loose mill scale, and other foreign substances. Use solvent or mechanical cleaning methods that comply with the Steel Structures Painting Council's (SSPC) recommendations.
a. Blast steel surfaces clean when and as recommended by paint system manufacturer and according to requirements of SSPC-SP 6.
b. If recommended by manufacturer, treat bare and sandblasted or pickled clean metal with a metal treatment wash coat before priming.
c. Touch up bare areas and shop-applied prime coats that have been damaged. Wire- brush, clean with solvents recommended by paint manufacturer, and touch up with the same primer as the shop coat.
5. Galvanized Surfaces: Clean galvanized surfaces with nonpetroleum-based solvents so surface is free of oil and surface contaminants. Remove pretreatment from galvanized sheet metal fabricated from coil stock by mechanical methods.
a. Permit galvanized surfaces to weather in exterior environment for 6 months or power wash galvanized metals to completely remove oil and surface contaminants.
b. Remove all contaminates and prepare galvanized surfaces per SSPC-SP1.
c. Touch up abraded or otherwise damaged areas with specified primer.
6. Gypsum Board Surfaces: Fill minor defects with filler compound. Spot prime defects after repair.
7. Impervious Surfaces: Remove mildew by scrubbing with solution of tri-sodium phosphate and bleach. Rinse with clean water and allow surface to dry.
8. Metal Doors Scheduled for Painting: Seal top and bottom edges with primer.
9. Shop Primed Steel Surfaces: Sand and scrape to remove loose primer and rust. Feather edges to make touch-up patches inconspicuous. Clean surfaces with solvent. Prime bare
steel surfaces. Prime metal items including shop primed items.
10. Interior Wood Items Scheduled to Receive Transparent Finish: Wipe off dust and grit prior to sealing, seal knots, pitch streaks, and sappy sections with sealer. Fill nail holes and cracks after sealer has dried; sand lightly between coats.
11. VCT Flooring Surfaces: Clean surface of VCT. Remove all oil, grease, wax, dirt, dust, and all other foreign contaminants. Surface must be clean, dry, and in sound condition before coating. Sand surface with 60 grit sanding screen, sand in two (2) different directions, broom and vacuum to remove all dust and debris before coating.
D. Materials Preparation: Mix and prepare paint materials according to manufacturer's written instructions.
1. Maintain containers used in mixing and applying paint in a clean condition, free of foreign materials and residue.
2. Stir material before application to produce a mixture of uniform density. Stir as required during application. Do not stir surface film into material. If necessary, remove surface film and strain material before using.
3. Use only thinners approved by paint manufacturer and only within recommended limits.
E. Tinting: Unless not recommended by paint manufacturer, tint each undercoat a lighter shade to simplify identification of each coat when multiple coats of the same material are applied. Tint undercoats to match the color of the finish coat, but provide sufficient differences in shade of undercoats to distinguish each separate coat.
3.3 APPLICATION
A. General: Apply paint according to manufacturer's written instructions. Use applicators and techniques best suited for substrate and type of material being applied.
1. Paint colors, surface treatments, and finishes are indicated in the schedules and Finish Plans..
2. Do not paint over dirt, rust, scale, grease, moisture, scuffed surfaces, or conditions detrimental to formation of a durable paint film.
3. Provide finish coats that are compatible with primers used.
4. The term "exposed surfaces" includes areas visible when permanent or built-in fixtures, convector covers, covers for finned-tube radiation, grilles, and similar components are in place. Extend coatings in these areas, as required, to maintain the system integrity and provide desired protection.
5. Paint surfaces behind movable equipment and furniture the same as similar exposed surfaces. Before the final installation of equipment, paint surfaces behind permanently fixed equipment or furniture with prime coat only.
6. Paint interior surfaces of ducts with a flat, nonspecular black paint where visible through registers or grilles.
7. Paint back sides of access panels and removable or hinged covers to match exposed surfaces.
8. Finish exterior doors on tops, bottoms, and side edges the same as exterior faces.
9. Finish interior of wall and base cabinets and similar field-finished casework to match exterior.
10. Vacuum clean surfaces free of loose particles and use tack cloth just prior to applying
next coat.
11. Sand lightly between each succeeding enamel or varnish coat.
12. Where clear finishes are required, tint fillers to match wood. Work fillers into the grain before set. Wipe excess from surface.
B. Scheduling Painting: Apply first coat to surfaces that have been cleaned, pretreated, or otherwise prepared for painting as soon as practicable after preparation and before subsequent surface deterioration.
1. The number of coats and the film thickness required are the same regardless of application method. Do not apply succeeding coats until the previous coat has cured as recommended by the manufacturer. If sanding is required to produce a smooth, even surface according to manufacturer's written instructions, sand between applications.
2. Omit primer on metal surfaces that have been shop primed and touchup painted.
3. If undercoats, stains, or other conditions show through final coat of paint, apply additional coats until paint film is of uniform finish, color, and appearance. Give special attention to ensure edges, corners, crevices, welds, and exposed fasteners receive a dry film thickness equivalent to that of flat surfaces.
4. Allow sufficient time between successive coats to permit proper drying. Do not recoat surfaces until paint has dried to where it feels firm, does not deform or feel sticky under moderate thumb pressure, and where application of another coat of paint does not cause the undercoat to lift or lose adhesion.
C. Application Procedures: Apply paints and coatings by brush, roller, spray, or other applicators according to manufacturer's written instructions.
1. Brushes: Use brushes best suited for the type of material applied. Use brush of appropriate size for the surface or item being painted.
2. Rollers: Use rollers of carpet, velvet back, or high-pile sheep's wool as recommended by the manufacturer for the material and texture required.
3. Spray Equipment: Use airless spray equipment with orifice size as recommended by the manufacturer for the material and texture required.
D. Minimum Coating Thickness: Apply paint materials no thinner than manufacturer's recommended spreading rate. Provide the total dry film thickness of the entire system as recommended by the manufacturer.
E. Refer to Divisions 22, 23, and 26 for schedule of color coding and identification banding of equipment, duct work, piping, and conduit.
F. Mechanical and Electrical Work: Painting of mechanical and electrical work is limited to items exposed in equipment rooms and occupied spaces.
G. Mechanical items to be painted include but are not limited to the following:
1. Uninsulated metal piping.
2. Uninsulated plastic piping.
3. Pipe hangers and supports.
4. Tanks that do not have factory applied topcoat finishes.
5. Visible portions of internal surfaces of metal ducts, without liner, behind air inlets and outlets.
6. Duct, equipment, and pipe insulation having "all-service jacket" or other paintable jacket material.
7. Exposed fire protection piping in stairwells or gymnasiums.
8. Exposed heating water piping to cabinet unit heaters.
9. Exposed exhaust ductwork.
10. Exposed steam and condensate return piping.
11. Exposed gas service piping, exterior, interior.
H. Electrical items to be painted include, but are not limited to, the following:
1. Exposed conduit and fittings.
I. Block Fillers: Apply block fillers to concrete masonry block at a rate to ensure complete coverage with pores filled.
J. Prime Coats: Before applying finish coats, apply a prime coat of material, as recommended by the manufacturer, to material that is required to be painted or finished and that has not been prime coated by others. Recoat primed and sealed surfaces where evidence of suction spots or unsealed areas in first coat appears, to ensure a finish coat with no burn through or other defects due to insufficient sealing.
K. Pigmented (Opaque) Finishes: Completely cover surfaces as necessary to provide a smooth, opaque surface of uniform finish, color, appearance, and coverage. Cloudiness, spotting, holidays, laps, brush marks, runs, sags, ropiness, or other surface imperfections will not be acceptable.
L. Transparent (Clear) Finishes: Use multiple coats to produce a glass-smooth surface film of even luster. Provide a finish free of laps, runs, cloudiness, color irregularity, brush marks, orange peel, nail holes, or other surface imperfections.
1. Provide satin finish for final coats.
M. Stipple Enamel Finish: Roll and redistribute paint to an even and fine texture. Leave no evidence of rolling, such as laps, irregularity in texture, skid marks, or other surface imperfections.
N. Completed Work: Match approved samples for color, texture, and coverage. Remove, refinish, or repaint work not complying with requirements.
1. Allow VCT floor coatings to cure for a minimum of 72 hours before putting into service.
3.4 CLEANING
A. Cleanup: At the end of each workday, remove empty cans, rags, rubbish, and other discarded paint materials from the site.
1. After completing painting, clean glass and paint-spattered surfaces. Remove spattered paint by washing and scraping. Be careful not to scratch or damage adjacent finished surfaces.
3.5 PROTECTION
A. Protect work of other trades, whether being painted or not, against damage by painting. Correct damage by cleaning, repairing or replacing, and repainting, as approved by Architect.
B. Provide "Wet Paint" signs to protect newly painted finishes. Remove temporary protective wrappings provided by others to protect their work after completing painting operations.
3.6 PAINT SCHEDULE
A. Items to be painted include, but are not limited to the following.
1. Interior
a. Hardwood trim and paneling: Stain.
b. Steel doors and frames: Paint.
c. Concrete and Masonry (walls): Paint.
d. Gypsum board (walls): Paint.
e. Gypsum board (ceilings and soffits): Paint.
f. All miscellaneous steel items: Paint.
g. All mechanical and electrical items under paragraph 3.3 of this section: Paint.
h. Pipe and Tube Railings: Paint.
i. Exposed steel structure as noted in room finish schedule: Paint.
2. Exterior
a. Hollow metal doors and frames: Paint.
b. Lintels: Paint.
c. Exterior plaster soffits: Paint.
d. Bollards and Corner Protector Steel: Paint.
e. Gas meter setting, excluding prefinished items: Paint.
f. Wood gates: Stain
B. Rooms to be epoxy painted include, but are not limited to the following. (See finish schedule on drawings)
1. Interior
a. Toilet Rooms, Restrooms, Locker Rooms, Showers - all walls (gloss).
b. Corridors, Vestibules and Lobbies
c. Gymnasium, Auxilary Gymnasium, Weight Room and Student Dining d. Kitchen and all Food Service Areas, And Lobby Services Room – all walls.
2. Verify and coordinate with joint sealant contractor that epoxy paint and joint sealants are compatible. Provide necessary primer for joint sealant if not compatible.
3.7 COLOR SCHEDULE (TO BE SELECTED IN CD PHASE)
A. General: Provide products from the specified manufacturer to follow at the end of this section.
Item Manufacturer Color No. Color Name Remarks
P-1 Sherwin Williams SW6098 Pacer White Field
P-2 Sherwin Williams SW6874 Ardent Coral South Addition
P-3 Glidden A1378
Pebble Drift
(match existing) 1rst floor Renovation
P-4 Glidden A0133
White
(match existing) Ceilings P-5 Sherwin Williams SW6673 Banana Cream Natatorium
P-6 Glidden A2016
Black
(match existing) Metal Doors and Frames
P-7 Glidden A1377
Lakefront
(match existing) Renovation Soffit
P-8 Glidden A1748
Sand Motif (match existing)
P-9 Glidden A0761
Butterfield (match existing)
P-10 Glidden A0739
Mushroom Cap (match existing)
P-11 Sherwin Williams SW6386 Health Clinic
P-12 Glidden A1217
Hidden Forest (match existing)
P-13 Glidden A1554
Midnight Cruise (match existing)
P-14 Sherwin Williams SW6612 Ravishing Coral South Addition P-15 Sherwin Williams SW6551 Purple Passage
P-16 Sherwin Williams SW6667 After Glow P-17 Sherwin Williams SW6716 Dancing Green P-18 Sherwin Williams SW6811 Honorable Blue
P-19 Sherwin Williams SW6258 Tricorn Black (flat) Black Box
P-20 Sherwin Williams White Board Paint
P-21 Civic Ceiling
EP = EPOXY
END OF SECTION
Item Manufacturer Color No. Color Name Remarks
