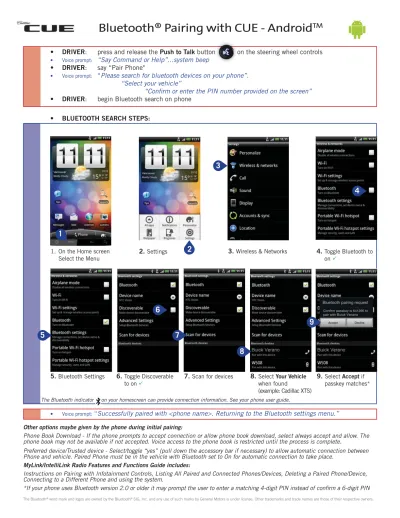

Bluetooth Pairing with CUE - Android TM

(1)

3

4

2 • DRIVER: press and release the Push to Talk button

on the steering wheel controls

• Voice prompt: “Say Command or Help”...system beep

• DRIVER: say “Pair Phone"

• Voice prompt: “Please search for bluetooth devices on your phone”.

“Select

your

vehicle”

“Confi rm or enter the PIN number provided on the screen”

• DRIVER: begin Bluetooth search on phone

Bluetooth® Pairing with CUE - Android

TM

1. On the Home screen

Select the Menu

2.

Settings

3.

Wireless & Networks

4.

Toggle Bluetooth to

on 

5.

Bluetooth Settings

6.

Toggle Discoverable to on 

7.

Scan for devices

8.

Select Your Vehicle

when found

(example: Cadillac XTS)

1 • BLUETOOTH SEARCH STEPS:

9.

Select Accept if passkey matches*

7

6

8

9

• Voice prompt:

“Successfully paired with <phone name>. Returning to the Bluetooth settings menu.”

Other options maybe given by the phone during initial pairing:

Phone Book Download - If the phone prompts to accept connection or allow phone book download, select always accept and allow. The phone book may not be available if not accepted. Voice access to the phone book is restricted until the process is complete.

Preferred device/Trusted device - Select/toggle “yes” (pull down the accessory bar if necessary) to allow automatic connection between Phone and vehicle. Paired Phone must be in the vehicle with Bluetooth set to On for automatic connection to take place.

MyLink/IntelliLink Radio Features and Functions Guide includes:

Instructions on Pairing with Infotainment Controls, Listing All Paired and Connected Phones/Devices, Deleting a Paired Phone/Device, Connecting to a Different Phone and using the system.

*If your phone uses Bluetooth version 2.0 or older it may prompt the user to enter a matching 4-digit PIN instead of confi rm a 6-digit PIN

5

The Bluetooth indicator on your homescreen can provide connection information. See your phone user guide.

(2)

3

4 Bluetooth® Pairing with CUE - Blackberry®

1. From the Home screen

Select Menu

2.

Manage Connections

3.

Toggle Bluetooth on 

4.

Set up Bluetooth

5.

Add New Device

6.

Search

7.

Select Your Vehicle

when found

(Example Cadillac XTS)

8.

Select Yes if passkey

matches*

Cadillac XTS

Pairing request from Cadillac XTS. Does this number match? 445 657

Yes

No

Pairing complete. Connect to Cadillac XTS? Yes No

8

9

1

2 • DRIVER: press and release the Push to Talk button

on the steering wheel controls

• DRIVER: say “Pair Phone"

“Select

your

vehicle”

“Confi rm or enter the PIN number provided on the screen”

• DRIVER: begin Bluetooth search on phone

• BLUETOOTH SEARCH STEPS: Blackberry Bold example

• Voice prompt:

“Successfully paired with <phone name>. Returning to the Bluetooth settings menu.”

Phone Book Download - If the phone prompts to accept connection or allow phone book download, select always accept and allow. The phone book may not be available if not accepted. Voice access to the phone book is restricted until the process is complete. Note: Not all Blackberry devices support phone book download. Consult your cell phone owner manual for more information.

Preferred device/Trusted device - Select/toggle “yes” to allow automatic connection between Phone and vehicle. Paired Phone must be in the vehicle with Bluetooth set to On for automatic connection to take place.

*If your phone uses Bluetooth version 2.0 or older it may prompt the user to enter a matching 4-digit PIN instead of confi rm a 6-digit PIN

6

5

7

9.

Select Yes to

connect The Bluetooth indicator on your homescreen can provide connection information. See your phone user guide.

(3)

1. On the Main menu

select the Settings

icon

1

2 2. General

3 3. Bluetooth

Bluetooth® Pairing with CUE - iPhone®

4 4. Bluetooth ON/OFF

screen

5 5. Toggle Bluetooth ON

(search for devices begins)

Cadillac XTS

8. Your vehicle is now

paired and connected

8

Cadillac XTS

6. Select Your Vehicle

when found

6 7. Confi rm 6-digit pass

code by selecting

Pair*

7 • DRIVER: press and release the Push to Talk button

on the steering wheel controls

• DRIVER: say “Pair Phone”

“Select

your

vehicle”

“Confi rm or enter the PIN number provided on the screen”

• DRIVER: begin Bluetooth search on phone

• BLUETOOTH SEARCH STEPS:

• Voice prompt:

“Successfully paired with <phone name>. Returning to the Bluetooth settings menu.”

Note: When an iPhone is Bluetooth connected and also plugged into the USB port you need to change the connection setting on the iPhone. Change setting on iPhone from “Your Vehicle” (example: Cadillac XTS) to “Dock Connect” to allow multiple inputs.

Phone Book Download - If the phone prompts to accept connection or allow phone book download, select always accept and allow. The phone book may not be available if not accepted. Voice access to the phone book is restricted until the process is complete.

*If your phone uses Bluetooth version 2.0 or older it may prompt the user to enter a matching 4-digit PIN instead of confi rm a 6-digit PIN The Bluetooth indicator on your homescreen can provide connection information. See your phone user guide.

(4)

Nokia 6350

Settings

Connectivity

Bluetooth

(ON/Discoverable)

Add new Device

LG 231

Menu (OK)

Press 3

(Bluetooth/ON/Visible)

Press 1 (Paired devices)

Samsung C414

OK

Settings

Connectivity

Bluetooth

(On/Discoverable)

Search for New Device

• Example: To scan or discover new Bluetooth devices press :

Bluetooth® Pairing with CUE - Feature phone

• DRIVER: press and release the Push to Talk button

on the steering wheel controls

• DRIVER: say “Pair Phone”

“Select

your

vehicle”

“Confi rm or enter the PIN number provided on the screen”

• DRIVER: begin Bluetooth search on phone

• BLUETOOTH SEARCH TIPS: Feature phone examples

• Voice prompt:

“Successfully paired with <phone name>. Returning to the Bluetooth settings menu.”

Phone Book Download - If the phone prompts to accept connection or allow phone book download, select always accept and allow. The phone book may not be available if not accepted.

*If your phone uses Bluetooth version 2.0 or older it may prompt the user to enter a matching 4-digit PIN instead of confi rm a 6-digit PIN The Bluetooth indicator on your homescreen can provide connection information. See your phone user guide.

Begin at the Home screen of your phone and drill down through Menus for Bluetooth settings and set-up.

Note that Bluetooth is a radio connectivity feature and maybe included in the settings menu for your mobile network, wi-fi , Hotspot etc.

1. Bluetooth must be set to ON

2. Make your phone discoverable/visible to the vehicle

(this may happen automatically with step 1)

3. Search/Scan/Add New Device. This looks for the vehicles Bluetooth signal

(this may happen automatically with step 1)

4. Vehicle is found and displayed.

(Phone is found and displayed by vehicle)

5. Secure the phone/vehicle connection by confi rming a matching passkey/PIN prompt

6. The vehicle will appear as Paired on the phone.

(Phone will appear as paired on the vehicle)

7. Trust/ Remember this device initiates an automatic connection when the phone returns to the vehicle.

For further assistance on Bluetooth Pairing your phone:

Consult your phone owner manual. Visit you mobile provider web site Internet search “

Consult your phone owner manual. Visit you mobile provider web site Internet search “pairing <pairing <your phone your phone model>”model>”

(5)

3

4 Bluetooth® Pairing with CUE - Windows Phone7®

1.

From the Start screen, slide

to the App menu, or tap

2.

Flick to and tap Settings.

3.

Tap Bluetooth.

4.

Toggle Bluetooth On (If Off)

5.

Search for Your Vehicle

begins automatically

6.

Select when foundYour Vehicle (Example Cadillac XTS)

7.

Select OK if PIN matches

1

2 • DRIVER: press and release the Push to Talk button on the steering wheel controls

• DRIVER: say “Pair Phone”

“Select

your

vehicle”

“Confi rm or enter the PIN number provided on the screen”

• DRIVER: begin Bluetooth search on phone

• BLUETOOTH SEARCH STEPS: Nokia Lumina example

• Voice prompt:

“Successfully paired with <phone name>. Returning to the Bluetooth settings menu.”

Phone Book Download - If the phone prompts to accept connection or allow phone book download, select always accept and allow. The phone book may not be available if not accepted. Voice access to the phone book is restricted until the process is complete. Note: Not all Blackberry devices support phone book download. Consult your cell phone owner manual for more information.

6

7

The Bluetooth indicator on your homescreen can provide connection information. See your phone user guide.

The Bluetooth®_{word mark and logos are owned by the Bluetooth}®_{SIG, Inc. and any use of such marks by General Motors is under license. Other trademarks and trade names are those of their respective owners.}

Cadillac XTS Cadillac XTS Cadillac XTS
