Amp models that helix will be shipped with

(1)

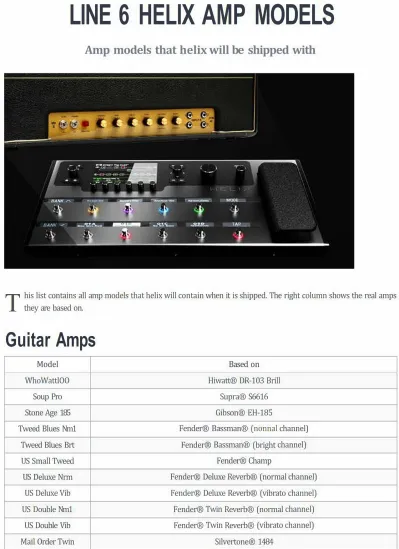

LINE 6 HELIX AMP MODELS

Amp models that helix will be shipped with

T

his list contains all amp models that helix will contain when it is shipped. The right column shows the real amps they are based on.

Guitar Amps

Model Based on

WhoWattlOO Hiwatt® DR-103 Brill

Soup Pro Supra® S6616

Stone Age 185 Gibson® EH-185

Tweed Blues Nm1 Fender® Bassman® (nonnal channel)

Tweed Blues Brt Fender® Bassman® (bright channel)

US Small Tweed Fender® Champ

US Deluxe Nrm Fender® Deluxe Reverb® (normal channel)

US Deluxe Vib Fender® Deluxe Reverb® (vibrato channel)

US Double Nm1 Fender® Twin Reverb® (normal channel) US Double Vib Fender® Twin Reverb® (vibrato channel)

Mail Order Twin Silvertone® 1484

Divided Duo +13 JRT 9/15

Interstate Zed Dr z® Route 66

Jazz Rivet 120 Roland® JC-120 Jazz Chorus

EssexA-15 Vox®AC-15

EssexA-30 Vox® AC-30 with top boost

A-30 Fawn Nrm Vox® AC-30 Fawn (normal channel)

A-30 Fawn Brt Vox® AC-30 Fawn (bright channel)

Mandarin So Orange^™ ORSO

Brit J-45 Nrm Marshall® JTM-45 (normal channel)

Brit J-45 Brt Marshall® JTM-45 (bright channel)

Brit Plexi Nrm Marshall® Super Lead 100 (normal channel)

Brit Plexi Brt Marshall® Super Lead 100 (bright channel)

Brit Plexi Jump Marshall® Super Lead 100 (jumped)

Brit P-75 Nrm Park® 75 (nonnal channel)

Brit P-75 Brt Park® 75 (bright channel)

Brit2204 Marshall® JCM-800

German Mahadeva Bogner® Shiva®

German Ubersonic Bogner® Oberschall®

Cali Rectifire MESA/Boogie® Dual Rectifier®

ANGLMeteor ENGL® Fireball 100

Solo Lead Clean Soldano® SL0-100 (clean channel)

Solo Lead Crunch Soldano® SL0-100 (crunch channel)

Solo Lead OD Soldano® SL0-100 (overdrive channel)

PVPanama Peavey® 5150®

Line 6 Elektrik Line 6 Original

Line 6Doom Line 6 Original

Line 6 Epic Line 6 Original

(2)

Added with firmware 1.06

Matchstick Chl Channel 1 of the Matchless TM DC30

Matchstick Ch2 Channel 2 of the Matchless TM DC30

Matchstick Jump Jumping Channels 1 and 2 of the Matchless TM DC30 Added with firmware 2.0

Cali IV Rhythm 1 Rhythm I channel of the MESA/Boogie® Mk IV

Cali IV Rhythm 2 Rhythm II channel of the MESA/Boogie® Mk IV

Cali IV Lead Lead channel of the MESA/Boogie® Mk IV

Line 6 2204 Mod Line 6 Original based on a hot-rodded Marshall® JCM® 800

Line 6 Fatality Line 6 Original

Archetype Clean Clean channel of the Paul Reed Stnith® Archon®

Archetype Le.ad Lead channel of the Paul Reed Smith® Arch on®

Line 6 Litigator Line 6 Original inspired by boutique mid-gain amps Added with firmware 2.20

Line 6 Badonk Line 6 Original inspired by the original high gain Big Bottom model Added with firmware 2.30

Voltage Queen Victoria® Electro King

Derailed Ingrid Trainwreck Circuits® Express

Brit Trem Nrm Nom1al channel of the Marshall® Plexi Tremolo 50 Brit Trem Brt Bright channel of the Marshall® Plexi Tremolo 50

Brit Trem Jump Normal and bright channel (jumped) of the Marshall® Plexi Tremolo 50

Cartographer Ben Adrian Cartographer

Cali Texas Ch2 Drive channel of the MESA/Boogie® Lonestar (Chi coming later) Placater Dirty BE/HBE channel of the Friedman BE-100 (Clean channel coming later)

Cali Texas Ch1 Clean channel of the MESA/Boogie® Lonestar

Placater Clean Clean channel of the Friedman BE-100

Bass Amps

Model Based on

Tuckn'Go Ampeg® B-15NF Portaflex®

SVBeastNnn Ampeg® SVT (normal channel)

SVBeastBrt Ampeg® SVT (bright channel)

Cali Bass MESA/Boogie® M9 Carbine

Cali400Ch1 MESA/Boogie® Bass 400+ (channel 1)

Cali 400 Ch2 MESA/Boogie® Bass 400+ ( channel 2)

GCougar8oo G·allien-Krueger® GK 8ooRB

Woody Blue Acoustic® 360 bass amp

DelSol 300 Sunn® Coliseum 300 bass amp

BusyOneChl Channel 1 of the Pearce BC-1 bass preamp BusyOneCh2 Channel 2 of the Pearce BC-1 bass preamp

Busy One Jump Channel 1 and 2 (jumped) of the Pearce BC-1 bass preamp Added with firmware 2.30

Agua 51 Aguilar® DB751 bass amp

Mic Amps

The microphone amps are located under the Preamp Section (Preamp-> Mic).

Model Studio TubePre

Based on Line 6 Original

It seems that is based on the Vintage Pre Model in the HD500 with some improvements but I'm not sure about that.

(3)

LINE 6 HELIX CABINET MODELS

Cabinet models that helix will be shipped with

T

his list contains all the cabinet models that helix will contain when it is shipped. The right column shows the real cabs they are based on.

Model Subcategories Based On

I · Soup Pro Ellipse Single, Dual 1 x 6x9" Supra® S6616

lx8 Small Tweed Single, Dual lx8" Fender® Champ

lx12 Field Coil Single, Dual lx12" Gibson® EH185

lx12 US Deluxe Single, Dual lxl2" Fender® Deluxe Oxford lx12 Celest 12H Single, Dual lx12" 13 JRT 9/15 G12 H30

lx12 Blue Bell Single, Dual lx12"Vox® AC-15 Blue

lxl2 Lead 80 Single, Dual lxl2" Bogner® Shiva® CL8o

2x12 Double C12N Single, Dual 2x12" Fender® Twin C12N 2x12 Mail C12Q Single, Dual 2x12" Silvertone® 1484 2x12 Interstate Single, Dual 2x12" Dr z® Z Best V30

2x12 Jazz Rivet Single, Dual 2x12"Roland® JC-120

2x12 Silver Bell Single, Dual 2x12"Vox® AC-30TB Silver 2x12 Blue Bell Single, Dual 2x12" Vox® AC-30 Fawn Blue 4x10 Tweed PlOR Single, Dual 4x10" Fender® Bassman® P10R 4x12 WhoWatt 100 Single, Dual 4x12" Hiwatt® AP Fane®

4x12 Mandarin EM Single, Dual 4xl2" Orange^™ Eminence

4x12 Greenback25 Single, Dual 4xI2" Marshall® Basketweave G12 M25 4x12 Greenback2o Single, Dual 4x12" Marshall® Basketweave G12 M20

4x12 Blackback30 Single, Dual 4x12" Park® 75 G12 H30 4x121960 T7S Single, Dual 4x12" Marshall® 1960 AT75 4x12 Uber V30 Single, Dual 4x12" Bogner® Uberkab V30 4x12 Uber T7 5 Single, Dual 4x12" Bogner® Uberkab T7s 4x12 Cali V30 Single, Dual 4x12" MESA/Boogie® 4FB V30

4x12XXLV30 Single, Dual 4x12" ENGL® XXL V30

4x12 Solo Lead EM Single, Dual 4x12" Soldano®

1x15Tuckn'Go Single, Dual lxl5" Ampeg® B-15

2x15 Brute Single, Dual 2x15" MESA/Boogie® 2x15 EV®

4x10 Rhino Single, Dual 4x10" Ampeg® SVT-410HLF

6x10 Cali Power Single, Dual 6xlO" MESA/Boogie® Power House

8x10 SV Beast Single, Dual 8xl0" Ampeg® SVT

lx12 Cali IV Single, Dual MESA/Boogie® Mk IV 12" cab

lx12 Cali EXT Single, Dual MESA/Boogie® 12" extension cab (EVM12L speaker) 2x12Match H30 Single, Dual Matchless® DC-30 cab (12¹¹G12H30 speaker) 2x12 Match G25 Single, Dual Matchless® DC-30 cab (12" Greenback 25 speaker)

lxl2 Del Sol Single, Dual Sunn® Coliseum 300 bass cab (12" speaker) 1x18 Del Sol Single, Dual Sunn® Coliseum 300 bass cab (18" speaker) 1x18 Woody Blue Single, Dual Acoustic® 360 18" bass cab

-

(4)

LINE 6 HELIX EFFECT MODELS

Effect models that helix will be shipped with

Helix Effect Models

F

^{.... 1 •}

^{··· -"} ^....

^{• . •}

^--

" 1 7 )

.oc• ' ' ' .• , , · ' "

.^.^{: -}- - . : : -^{" ;}

... --._.-^{. .}· ^{' · •} . .

T

his list contains all effect models that helix will contain when it is shipped. The right column shows the real pedal they are based on.

Distortion Models

Model Subcategory Based on

Minotaur Mono, Stereo Klan® Centaur

Compulsive Drive Mono, Stereo Fulltone® OCD

Valve Driver Mono, Stereo Chandler Tube Driver

Top Secret OD Mono, Stereo 000®00-250

Scream 808 Mono, Stereo Ibanez® TS8o8 Tube Screamer®

HedgehogD9 Mono, Stereo MAXON® SD9 Sonic Distortion

VenninDist Mono, Stereo Pro Co RAT

Arbitrator Fuzz Mono, Stereo Arbiter® Fuzz Face®

Triangle Fuzz Mono, Stereo Electro-Ham1onix® Big Muff Pi®

Industrial Fuzz Mono, Stereo Z.Vex Fuzz Factory

Tycoctavia Fuzz Mono, Stereo Tycobrahe® Octavia

Megaphone Mono, Stereo Megaphone

Added with firmware ^1.06

Teemah! Mono, Stereo Paul Cochrane Timmy® Overdrive KWB Mono, Stereo Benadrian Kowloon Walled Bunny Distortion

Bitcrusher Mono, Stereo Line 6 Original

Added with fimlware ^2.0

Wringer Fuzz Mono, Stereo Garbage's special BOSS® FZ-2 Added with firmware ^2.10

Stupor OD Mono, Stereo BOSS® SD-1 Overdrive

Obsidian 7000 Mono, Stereo Darkglass Electronics® Microtubes B7K Ultra bass preamp/overdrive/EQ Clawthorn Drive Mono, Stereo Wounded Paw Battering Ram bass overdrive

Kinky Boost Mono, Stereo Xotic® EP Booster

Thrifter Fuzz Mono, Stereo Line 6 Original

Deranged Master Mono, Stereo Dallas Rangemaster Treble Booster

Deez One Vintage Mono, Stereo BOSS© DS-1 distortion pedal ( classic Made-in-Japan version) DeezOneMod Mono, Stereo BOSS© DS-1 distortion pedal (Keeley mod version)

Dynamic Models

Model Subcategory Based on

Deluxe Comp Mono, Stereo Line 6 Original

Red Squeeze Mono, Stereo MXR® Dyna Comp

LA Studio Comp Mono, Stereo Teletronix® LA-2A®

Noise Gate Mono, Stereo Line 6 Original

Hard Gate Mono, Stereo Line 6 Original

(5)

3-BandComp Mono, Stereo Line 6 Original multiband compressor

Autoswell Mono, Stereo Line 6 Original

Added with finnware 2.30

Kinky Comp Mono, Stereo Xotic® SP Compressor

Eq Models

SimpleEQ Mono, Stereo Line 6 Original

Low Cut/High Cut Mono, Stereo Line 6 Original

Parametric Mono, Stereo Line 6 Original

10-Band Graphic Mono, Stereo MXR® 10-Band Graphic EQ

Cali Q Graphic Mono, Stereo MESA/Boogie® Mk !V's 5-band EQ

Modulation Models

Optical Trem Mono, Stereo Fender® optical tremolo circuit

6os Bias Trem Mono, Stereo Vox® AC-15 Tremolo

Script Mod Phase Mono, Stereo MXR® Phase 90

Ubiquitous Vibe Mono, Stereo Shin-ei Uni-Vibe®

Gray Flanger Mono, Stereo MXR® 117 Flanger

Ham10nic Flanger Mono, Stereo A/DA Flanger

Courtesan Flange Mono, Stereo Electro-Harmonix® Deluxe EM

Chorus Mono, Stereo Line 6 Original

?Os Chorus Mono, Stereo BOSS®CE-1

Trinity Chorus Stereo DyTronics Tri-Stereo Chorus

Bubble Vibrato Mono, Stereo BOSS® VB-2 Vibrato

Vibe Rotary Stereo Fender® Vibratone

122Rotary Stereo Leslie® 122

145 Rotary Stereo Leslie® 145

AM Ring Mod Mono, Stereo Line 6 Original

Pitch Ring Mod Stereo Line 6 Original

Dynamix Flanger Mono, Stereo Line 6 Original

Deluxe Phaser Mono, Stereo Line 6 Original

Tremolo Mono BOSS® PN-2

Tremolo/ Autopan Stereo BOSS® PN-2

Hannonic Tremolo Mono, Stereo Line 6 Original

PlastiChorus Mono, Stereo modded Arion SCH -Z chorus

Bleat Chop Trem Mono, Stereo Lightfoot Labs© Goatkeeper

Double Take Mono, Stereo Line 6 Original doubler

Delay Models

Simple Delay Mono, Stereo Line 6 Original

Mod Chorus Echo Mono, Stereo Line 6 Original

Multitap 4 Stereo Line 6 Original

Multitap 6 Stereo Line 6 Original

Ping Pong Stereo Line 6 Original

Sweep Echo Mono, Stereo Line 6 Original

Ducked Delay Mono, Stereo TC Electronic® 2290

Transistor Tape Mono, Stereo Maestro® Echoplex EP-3

Harmony Delay Stereo Line 6 Original

Bucket Brigade Mono, Stereo BOSS® DM-2

Adriatic Delay Mono, Stereo BOSS® DM-2 w/ Adrian Mod

Elephant Man Mono, Stereo Electro-Harmonix® Deluxe Memory Man

(6)

Vintage Digital Mono, Stereo Line 6 Original

Pitch Echo Mono, Stereo Line 6 Original

Vintage Swell Mono, Stereo Line 6 Original

Adriatic Swell Mono, Stereo Line 6 Original

Cosmos Echo Mono, Stereo Roland® RE-201 Space Echo

Added with firmware 2.50 (New HX Effects)

Multi.Pass Mono, Stereo Line 6 Original bandpass-filtered multitap delay

Reverb Models

Model Subcategory Based on

Plate Stereo Line6 Original

Room Stereo Line6 Original

Chamber Stereo Line6 Original

Hall Stereo Line6 Original

Echo Stereo Line6 Original

Tile Stereo Line6 Original

Cave Stereo Line6 Original

Ducking Stereo Line6 Original

Octo Stereo Line6 Original

63 Spring Stereo Line6 Original

Spring Stereo Line6 Original

Particle Verb Stereo Line6 Original

Added with firmware 2.50 (NewHXEffects)

Glitz Mono, Stereo Line 6 Original

Ganymede Mono, Stereo Line 6 Original

Searchlights Mono, Stereo Line 6 Original

Plateaux Mono, St,ereo Line 6 Original

Double Tank Mono, Stereo Line 6 Original

Pitch / Synth Models

Pitch Wham Mono, Stereo DigiTech Whammy®

Twin Hannony Mono, Stereo Eventide® H3000

30SCSynth Stereo Line 6 Original

Simple Pitch Mono, Stereo Line 6 Original

Dual Pitch Mono, Stereo Line 6 Original

3 Note Generator Mono, Stereo Line 6 Original

4 OSC Generator Mono, Stereo Line 6 Original

Filter Models

Mutant Filter Mono, Stereo Musitronics® Mu-Tron®

III Mystery Filter Mono, Stereo Korg®A3

Added with firmware L06

Autofilter Mono, Stereo Line 6 Original

Volume / Pan Models

Volume Pedal Mono, Stereo Line 6 Original

Gain Mono, Stereo Line 6 Original

Pan Stereo Line 6 Original

Stereo Width Stereo Line 6 Original utility to collapse stereo paths

(7)

Wah Models

UKWah846 Mono, Stereo Yox®Y846

Teardrop 310 Mono, Stereo Dunlop® Cry Baby® Fasel model 310

Fassel Mono, Stereo Dunlop® Cry Baby® Super

Weeper Mono, Stereo Arbiter® Cry Baby®

Chrome Mono, Stereo Yox®Y847

Chrome Custom Mono, Stereo Modded Yox® Y847

Throaty Mono, Stereo RMC Real McCoy 1

Yetta Wah Mono, Stereo Line 6 Original

Colorful Mono, Stereo Colorsound ® Wah-fuzz

Conductor Mono, Stereo Maestro® Boomerang

Legacy Effects (with firmware 2.50)

Helix Floor, Rack/Control, and LT now include a library of effects from M131 M91 M51 DL41 DM4, FM41 and MM4.

These appear in a new "Legacy" subcategory in the model list.

Type Model Description

Distortion Tube Drive A sweet, singing sustain c.raved by guitarists worldwide. Inspired by* the tone of a Chandler Tube Driver®.

Distortion Screamer Inspired by the smooth medium-gain tones of the collectable original, Screamer is based on* an Ibanez® Tube Screamer®.

Distortion Overdrive Inspired by* a DOD® Overdrive/Preamp 2501 which was designed to slam the input of a tube amp forcing it to distort violently.

Distortion Classic Dist Angry and aggressive, Classic Distortion is inspired by* a Proco Rat.

Distortion Heavy Dist The industry-standard heavy metal distortion of the late 'Sos. Inspired by* a Boss®

Metal Zone.

Distortion Colordrive Colordrive will transport you back to the breeding ground of British guitar heroes.

Inspired by* a Colorsound® Overdriver.

Distortion Buzz Saw Take a deep breath and repeat: "I can't get no (duh, duh, duh) Satisfaction. ¹¹Inspired by* a Maestro® Fuzz Tone.

Distortion Facial Fuzz Bottom-heavy distortion inspired by* the Arbiter Fuzz Face, which is associated with the tones of Jimi Hendrix and Eric Johnson.

Distortion Jumbo Fuzz Jumbo Fuzz delivers a bright bite reminiscent of the fuzz tones heard all over the first two Led Zeppelin records. Inspired by* a Yox® Tone Bender.

Distortion Fuzz Pi Fuzz Pi delivers plenty of thick distortion and oceans of sustain inspired by* the tone of an Electro-Harmonix® Big Muff Pi®.

Distortion Jet Fuzz Part fuzz/part phaser, Jet Fuzz delivers the best of both. Inspired by* the Roland® Jet Phaser.

Distortion Line 6 Drive If we could go back to the 6os and be a part of the fuzz revolution, this is what we'd design. Inspired by* the Colorsound® Tone Bender.

Distortion Line6 Completely saturated and over the top, Line 6 Distortion is massive and totally crazy.

Distortion

Distortion Sub Oct Fuzz Biting fuzz with an octave below! Excellent for bass guitar. Inspired by* the PAiA Roctave Divider.

Distortion Octave Fuzz White-hot fuzz v,,jth an octave above! This classic fuzz+octave effect was used by Jimi and other pioneering players. Inspired by* the Tycobrahe® Octavia.

Dynamics Tube Comp Tube-style compression with added low-end warmth inspired by* the characteristic color of the Teletronix® LA-2A® compressor, a studio standard.

Dynamics Red Comp Red Comp evens out your volume and adds plenty of sustain. Ideal for slow leads.

Inspired by* the MXR® Dyna Comp stompbox compressor.

Dynamics Blue Comp Inspired by* the Boss® CS-1 Compression Sustainer (with the treble switch off), Blue Comp delivers warm, percussive qualities that are great for cleaner tones.

Dynamics Blue Comp Inspired by* the Boss® CS-1 Compression Sustainer (with the treble switch off), Blue Treb Comp delivers warm, percussive qualities that are great for cleaner tones.

Dynamics Yetta Comp Inspired by* the Boss® CS-1 Compression Sustainer (with the treble switch off), Blue Comp delivers warm, percussive qualities that are great for cleaner tones.

Dynamics Yetta Juice A colorful boost taken fro1n our Yettarn II guitar amplifier, Yetta Juice pours out up to 3odB of available gain at the Level knob.

Dynamics Boost Comp A punchy boost of gain inspired by* an MXR® Micro Amp. The compressor can add hang tune to your sustain and fill out your leads.

Modulation Pattern Engage up to four tremolo patten1s to play in sequence. This is a truly original Tremolo textural effect inspired by* a Lightfoot Labs Goatkeeper.

Modulation Panner This effect pans back and forth between your left and right channels. If you nm it in mono, it's basically tremolo.

Modulation Bias Tremolo Bias Trem is inspired by* the 1960 Yox® AC-15 Tremolo, which got its pulse by literally varying the bias of the power amp tubes.

Modulation Opto Opto Trem is inspired by* the optical tremolo circuit that was used in the blackface Tremolo Fender® amps like the '64 Deluxe Reverb®.

(8)

Modulation Script Phase Just add the "brown" sound and you're emulating one of rock's most celebrated guitar tones! Inspired by* an MXR® Phase 90. Speed control only, just like the

original.

Modulation Panned A hypnotizing phaser that slithers from side to side. Inspired by* the sound of an Phaser Ibanez® Flying Pan, which is a four-stage phase shifter with a panner built in.

Modulation Barberpole A classic effect from the world of modular synths. Depending on how you set it, this phaser either sounds like it's always going up or always down. Set to stereo you get

both!

Modulation Dual Phaser Dual Phaser delivers a big jet sound inspired by* a Mu-Tron® Bi-Phase.

Modulation U-Vibe Inspired by* the pulsing push of the now-legendary Uni-Vibe®. One listen to

"Machine Gun" and you'll be hooked!

Modulation Phaser Phaser is inspired by* the sound of an MXR® Phase 90 but it's got a few extra parameters to bring you there and back again.

Modulation Pitch Vibrato Inspired by* the Boss® VB-2, which contained a circuit that produced a bubbly vibrato. This pedal (and this model) feature a "rise time" control that when engaged

speeds up to where you last set it.

Modulation Dimension Inspired by* the Roland® Dimension D, one of the first true-stereo choms units. It's relatively subtle in nature and became an industry standard for double-track effects.

Modulation Analog Inspired by* the big andwann tones of a Boss® CE-1 Chorus Ensemble, the original

Chorus stompbox chorus.

Modulation Tri Chorus Tri Chorns is inspired by* the larger-than-life sotmd of a Song Bird/DyTronics Tri- Stereo Chorus.

Modulation Analog Inspired by* the classic MXR® Flanger, which was made classic on Van Halen's Fair

Flanger Warning and Women and Children First.

Modulation Jet Flanger Compared to Analog Flange, Jet Flanger is more dramatic with a different wave shape.

Inspired by* the signature jet-like sweep of an A/DA Flanger.

Modulation ACFlanger The variety of vibey effects available from AC Flanger are inspired by* the classic tones of the MXR® Flanger

Modulation 8oAFlanger The gritty and spacey sweeps of 8oA Flanger are inspired by* the distinctive sound of the A/DA Flanger.

Modulation Frequency Shift frequencies up or down and set the mix to 100% for an otherworldly tone. Or Shift dial it back to add interesting colors to leads.

Modulation Ring Perfect for those late-night jams when only the weirdest, wildest sounds will do.

Modulator

Modulation Rotary Drum Inspired by* the Fender® Vibratone. This rotating speaker effect was popular with SRV. Think "Cold Shot."

Modulation Rotary Inspired by* a Leslie® 145 tube-driven cabinet with a rotating speaker. Guitarists DrmjHorn have always loved its signature shimmer.

Delay Ping Pong T\1\10 separate channels of delay. The output of each channel bounces into the other to create the ping pong effect.

Delay Dynamic Dynamic Delay features a ducking control to keep the delays from overwhe!Jning what you're playing. Inspired by* a T.C. Electronic® 2290 Dynamic Digital Delay.

Delay Stereo The secret to the "Big L.A. Solo" sound of the 'Sos! Set one side as a fast echo with many repeats, and the other side as a slow delay with few repeats. Voila, you 're

famous!

Delay Digital A great workhorse effect, this straight-up digital delay has a transparent and pristine echo-echo-echo-echo ...

Delay Digw/Mod Digital Delay w/ Mod adds a juicy chorus effect to your digital delay.

Delay Reverse !seltaeB eht dna xirdneH imiJ ekil tsuJ - Whatever you play comes out backwards.

Delay Lo Res Inspired by the w1ique grunge and noise of early digital delay units. Many of which had only 8-bit resolution.

Delay Tube Echo Like peanut butter and chocolate, tubes and tape are a great combination. Tube Echo is inspired by* a Maestro® EP-1.

Delay Tape Echo Tape Echo is inspired by* the unmistakable depth and sweetness of the Maestro®

EP-3 Echoplex, which used transistor sound electronics instead of tubes.

Delay Sweep Echo Add a sweeping warble to the Tube Echo repeats and you've got Sweep Echo. This unique tone adds a tangy flavor to your delays.

Delay Echo Platter Inspired by* a Binson EchoRec, which inspired bands like Pink Floyd. Rather than using tape, the EchoRec used a magnetic platter to record and play back.

Delay Analog Echo Analog Echo is inspired by* the wanu and distorted delays of a Boss® DM2 Analog Echo.

Delay Analogw/ Inspired by* the cherished tone of an Electro-Ham1onix® Deluxe Memory Man, Mod Analogw/ Mod delivers an organic-sounding analog delay with a generous dollop of

lush, spatial chorus.

Delay Auto-Volume Two effects in one! A volwne fade-in swell and an echo complete with tape-style

Echo wow-and-flutter modulation.

Delay Multi-Head Multi-Head delay is inspired by* the sound created by the multiple playback heads of the Roland® RE-101 Space Echo.

Pitch/Synth Bass Octaver This effect gives you a single clean note one octave down. Bassists love it but guitarists (including Jeff Beck) are known to bust it out, too. Inspired by* the tone of

an EBS OctaBass.

Pitch/Synth Smart Turn that 6-string into a 12-string, rip some ^'Bosdual leads and so much more. This Harmony intelligent pitch shifter is inspired by* an Eventide® 83000.

Pitch/Synth Octi Synth Not to be missed, Octisynth provides textures that are equally at home in a mad scientist's laboratory or 111iles below sea level among its eight-armed namesake.

(9)

Pitch/Synth SynthO Synth-O-Matic features ,..,aveforms from a mouth-watering collection of vintage

Matic analog synths.

Pitch/Syn th Attack Syn th Inspired by* a waveform and wave-shaping functions of a Korg® ^X911Guitar Synth Pitch/Synth Synth String A monophonic synth sound inspired by* the Roland® GR700 Guitar Synth.

Pitch/Synth Growler Named Growler for a reason, this model produces a sinister "Grrrrrrrrr" that's inspired by* a Roland® GR700 Guitar Synth and a Mu-Tron® III.

Filter Voice Box Let your guitar Come Alive with the sound of a classic talk box. Inspired by vocoders, vocal tracts and surgical tubing.

Filter VTron Your guitar "speaks" with an almost human voice in response to your playing.

Inspired by* Voice Box and a Mu-Tron® III.

Filter QFilter Your very own parked wah! Let your solos soar with the colorful "honk" that became a signature tone of Mark Knopfler and Brian May.

Filter Seeker Up to nine "parked" wah filters set at varying positions and then used in sequence to create a pulsating, hypnotic vibe. Inspired by* the Z-Vex Seek Wah.

Filter Obi Wah Obi Wah creates sequential changes in tone by emphasizing random frequencies.

Inspired by* the Oberheim® Voltage Controlled sample-and-hold filter.

Filter Tron Up Part Auto Wah and part triggered filter, Tron Up delivers a seriously funky vibe.

Inspired by* the Mu-Tron® III envelope follower.

Filter Tron Down Part Auto Wah and part triggered filter, Tron Down delivers a seriously funky vibe.

Inspired by* the Mu-Tron® III envelope follower.

Filter Throbber Perfect for a multitude of cool electronica-style sounds and textures, Throbber is inspired by* the Electrix® Filter Factory.

Filter Slow Filter This triggered filter rolls off your high-end with adjustable speeds.

Filter Spin Cycle This is what headphone 111ixes were made for! Imagine two wahs panned left and right working in opposite directions from each other. Inspired by* Craig Anderton's

Wah/Anti-Wah.

Filter Comet Trails Spooky and otherworldly, Comet Trails provides an enchanting pulse for you to add to your tone.

Looper Models

Model

I

Subcategory

I

^{Based on}

Switch Looper

I

Mono, Stereo

I

Line 6 original (doesn't leave Stomp mode)

(10)

LINE 6 HELIX MICROPHONE MODELS

Mic models that helix will be shipped with

T

his list contains all microphone models that helix will contain when it is shipped. The right column shows the real mies they are based on.

Model Based on

S7Dynamic Shure®SM57

409 Dynamic Sennheiser® MD 409

421Dynamic Sennheiser® MD 421-u

30Dynamic Heil Sound® PR 30

20 Dynamic Electro-Voice® RE20

121Ribbon Royer® R-121

160Ribbon Beyerdynamic® M 160

4038 Ribbon Coles® 4038

414Cond AKG® C414 TL!!

84Cond Neumam1® KM84

67Cond Neumann® U67

112Dynamic AKG®D112

12Dynamic AKG®D12

7Dynamic Shure®SM7

Amp models that helix will be shipped with

LINE 6 HELIX AMP MODELS
