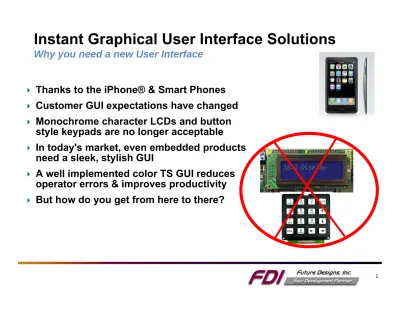

Instant Graphical User Interface Solutions Why you need a new User Interface

(1)

Instant Graphical User Interface Solutions

Why you need a new User Interface

Thanks to the iPhone® & Smart Phones Customer GUI expectations have changed Monochrome character LCDs and button style keypads are no longer acceptable

In today's market, even embedded products need a sleek, stylish GUI

A well implemented color TS GUI reduces operator errors & improves productivity But how do you get from here to there?

(2)

uEZ® GUI Family

Instant Graphical User Interface

Off the Shelf options for GUI / HMI Fully integrated HW & SW solution Quick time-to-market

Can be the main CPU or just a slave GUI

Standard versions available in distribution stock

Customization options for volumes of 500 units or more Cost effective even for high volume applications

Easily upgrade the User Interface in your embedded product

(3)

uEZ® GUI Family

Instant Graphical User Interface

Multiple processor options

Various LCD sizes like 3.5 / 4.3 / 5.7 / 7.0”

Touch Screen 4 or 5 wire resistive Cap Touch options also available

Expansion Boards available for common I/O functions Plastic and machined housings available

Available as Dev Kits and as cost effective volume assemblies Easily upgrade the User Interface in your embedded product

(4)

uEZGUI-1788-70WVT Features

TOUCH SCREEN LCD GUI

7.0” WVGA TFT LCD

4-Wire Resistive Touch Screen NXP LPC1788 Microcontroller 8MB External SDRAM

8MB External NOR Flash microSD Memory Card

USB Device Port for comm 2^nd USB Port for +5VDC power

Real Time Clock with SuperCap backup 3-axis Accelerometer , Temp Sensor Mini JTAG Connector

Optional Features

802.11n Wi-Fi module -BA less than $200 in volume

(5)

uEZ® GUI 7.0

LPC1788 PCB Assembly

PCB dimensions: 6.70” x 5.20”

Mates directly to back of 7.0” LCD

(6)

uEZ® GUI 7.0

Development Kit Contents

uEZ® GUI PCB Assembly 7.0” TFT WVGA LCD

Stylus for touch Screen USB Cable

Documentation on microSD Card Quick Start Guide

Graphical User Interface demos Segger J-Link Lite Debugger

P/N uEZGUI-1788-70WVT Resale Price $405.00

(7)

uEZGUI-1788-70WVM Features

PCAP TOUCH SCREEN LCD GUI

7.0” WVGA TFT LCD

Projected Capacitive Touch Screen NXP LPC1788 Microcontroller

8MB External SDRAM 8MB External NOR Flash

High Speed microSD Memory Card USB Device / Host Port

2^nd USB Port for +5VDC power

Optional 802.11n Wi-Fi module

-BA less than $220 in volume

PCAP Touchscreen

(8)

uEZGUI-1788-56VI Features

5.6” VGA TFT LCD

USB Device Port for comm 2^nd USB Port for +5VDC power

Optional Features

802.11n Wi-Fi module -BA less than $200 in volume

(9)

uEZGUI-1788-43WQR Features

4.3” WQVGA TFT LCD

USB Device Port for power & comm

Real Time Clock with SuperCap backup 3-axis Accelerometer, Temp Sensor

Mini JTAG Connector

-BA less than $150 in volume

(10)

uEZGUI-RX62N-35QT Features

3.5” QVGA TFT LCD from Tianma 4-Wire Resistive Touch Screen Renesas RX62N Microcontroller

– 512 KB of Internal Flash memory – 96 KB internal SRAM

2MB external SDRAM

2GB microSD Memory Card

USB Device Port for power & comm On-board Speaker

JTAG Connector

Expansion via 50- pin I/O connector – UARTs, I2C, SPI, USB Host/Device

-BA price $70 in volume

(11)

uEZ® GUI with Expansion Board

Expansion Board, P/N UEZGUI-EXP1, Price $79.00

– Compatible with all uEZ GUI Kits

– Ethernet, USB Host, RS232/RS485 and AC Power options

(12)

uEZ® GUI Fully Housed 4.3 Unit

P/N uEZGUI-43-H01, Price $350 qty 1 Custom Enclosure for OEM Applications

– Volume pricing and OEM customization options available – Front label can be branded for volume customers

– Rear panel & connectors can be customized

– Easily modified with cost effective prototypes in 6 weeks or less

(13)

Standard uEZ® GUI Products In Stock

Use these units for easy Off-the-Shelf Designs

** Customization available for volumes above 500 units

Part Number LCD Size CPU Description Availability Price

UEZGUI‐RX62N‐35QT 3.5" QVGA Renesas RX62N Development Kit ‐ JTAG, cables, documentation Stock $199.00 UEZGUI‐RX62N‐35QT‐BA 3.5" QVGA Renesas RX62N Board Assembly with touch screen LCD Stock $70‐$105 UEZGUI‐1788‐43WQR 4.3" WQVGA NXP LPC1788 Development Kit ‐ JTAG, cables, documentation Stock $299.00 UEZGUI‐1788‐43WQR‐BA 4.3" WQVGA NXP LPC1788 Board Assembly with touch screen LCD Stock $125 ‐ $200 UEZGUI‐1788‐56VI 5.6" VGA NXP LPC1788 Development Kit ‐ JTAG, cables, documentation Stock $375.00 UEZGUI‐1788‐56VI‐BA 5.6" VGA NXP LPC1788 Board Assembly with touch screen LCD Stock $175 ‐ $275 UEZGUI‐1788‐70WVT 7.0" WVGA NXP LPC1788 Development Kit ‐ JTAG, cables, documentation Stock $405.00 UEZGUI‐1788‐70WVT‐BA 7.0" WVGA NXP LPC1788 Board Assembly with touch screen LCD Stock $185 ‐ $285 UEZGUI‐1788‐70WVM 7.0" WVGA NXP LPC1788 PCAP Development Kit ‐ JTAG, cables, documentation Stock $475.00 UEZGUI‐1788‐70WVM‐BA 7.0" WVGA NXP LPC1788 Board Assembly with PCAP touch screen LCD Stock $205 ‐ $325

UEZGUI‐EXP1 ‐ Expansion Board with USB Host, Ethernet, RS232/RS485 Stock $79.00

UEZGUI‐EXP‐DK “Kitchen Sink” Expansion board Stock $165.00

(14)

What is μEZ®

(15)

Quick Start GUI Program Outline

Customer provides Menu inputs

– Photoshop, PowerPoint or even hand drawn

Simple Menus and Functions

– Usually < 6 screens

…

since we’re not an iPhone

Typical 1-2 weeks and about $5K Up and running with basic GUI

– Avoids schedule delays & steep GUI learning curve

– Customer starts API level App development instantly

(16)

The FDI Advantage

FDI is a proud member of the ARM Connected Community FDI has a close working relationship with NXP

 NXP Authorized Design Consultant & Tool Partner for 15 years

Designed and manufactured in the USA

Full Technical Support from our Team of US based Engineers Our products are 100% Functional Tested and guaranteed Market Lifetime of 10 years minimum

Direct OEM sales or available from any of our six franchised distributors FDI offers cost effective customization for volumes as low as 500 units We purchase only from factory authorized sources and distributors FDI has a 24 year history of Customer Satisfaction

(17)

uEZ GUI Family Videos

Multiple videos showing key product areas such as:

– Basic Product Demos – Tradeshow highlights

– Product Comparisons & Migration Details – Capabilities of the emWin Graphics Library – Firmware updates using the uEZ+ Bootloader

Link to Videos is:

– http://www.teamfdi.com/videos/
