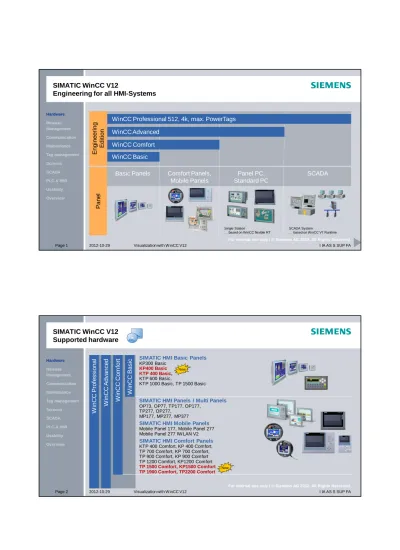

SIMATIC WinCC V12 Engineering for all HMI-Systems

1

For internal use only / © Siemens AG 2012. All Rights Reserved. I IA AS S SUP FA Page 1 2012-10-29 Visualization with W inCC V12

Overview Usability PLC & HMI SCADA Screens Tag management Maintenance Communication Release Management Hardware

SIMATIC WinCC V12

Engineering for all HMI-Systems

Single Station

… based on WinCC flexible RT

SCADA System

… based on WinCC V7 Runtime

E n g in e e ri n g E d it io n

Basic Panels Comfort Panels, Mobile Panels SCADA Panel PC, Standard PC P a n e l WinCC Basic WinCC Comfort

WinCC Professional 512, 4k, max. PowerTags WinCC Advanced

For internal use only / © Siemens AG 2012. All Rights Reserved. I IA AS S SUP FA Page 2 2012-10-29 Visualization with W inCC V12

Overview Usability PLC & HMI SCADA Screens Tag management Maintenance Communication Release Management Hardware

SIMATIC WinCC V12

Supported hardware

SIMATIC HMI Basic Panels

KP300 Basic

KP400 Basic KTP 400 Basic,

KTP 600 Basic,

KTP 1000 Basic, TP 1500 Basic

SIMATIC HMI Panels / Multi Panels

OP73, OP77, TP177, OP177, TP277, OP277,

MP177, MP277, MP377

SIMATIC HMI Mobile Panels

Mobile Panel 177, Mobile Panel 277 Mobile Panel 277 IWLAN V2

SIMATIC HMI Comfort Panels

KTP 400 Comfort, KP 400 Comfort, TP 700 Comfort, KP 700 Comfort, TP 900 Comfort, KP 900 Comfort TP 1200 Comfort, KP1200 Comfort TP 1500 Comfort, KP1500 Comfort TP 1900 Comfort, TP2200 Comfort W in C C C o m fo rt W in C C B a si c W in C C A d va n ce d W in C C P ro fe ssi o n a l New New

For internal use only / © Siemens AG 2012. All Rights Reserved. I IA AS S SUP FA Page 3 2012-10-29 Visualization with W inCC V12

Overview Usability PLC & HMI SCADA Screens Tag management Maintenance Communication Release Management Hardware

SIMATIC WinCC V12

Supported hardware

SIMATIC WinCC Runtime Professional (PC-based SCADA)

…with 128, 512, 2k, 4k, 8k, 64k PowerTags IPC427C/D, IPC477C/D (Client)

IPC577C (Client) IPC627C, IPC827C IPC677C IPC647C, IPC847C IPC547C/D Standard PC

SIMATIC WinCC Runtime Advanced (PC-based single station)

…with 128, 512, 2k, 4k PowerTags IPC227D, IPC277D IPC427C/D, IPC477C/D IPC577C IPC627C, IPC827C IPC677C IPC647C, IPC847C IPC547D Standard PC W in C C P ro fe ssi o n a l W in C C A d va n ce d Overview Usability PLC & HMI SCADA Screens Tag management Maintenance Communication Release Management Hardware

SIMATIC WinCC V12

Comfort Panels – Overview

4''W 7''W 9''W 12''W 15''W 19''W 22''W Display size 4,3'' 7,0'' 9,0'' 12,1'' 15,4'' 18,5'' 21,5'' Resolution 480x272 800x480 1280x800 1366x768 1920x1080 Prozessor ARM 532 MHz x86 500 MHz x86 1GHz Project memory 4 MB 12 MB 24 MB Tags 1024 2048 4096 Messages 2000 4000 6000 Recipes 100 / 200 / 200 * 300/ 500 / 1000 * 500 / 1000 / 2000 Images 500 500 750 Archives 10 / 10.000 ** 50 / 50.000 ** Scripts 50 100 200

Viewer / multimedia Internet Explorer, PDF, W ord- and Excelviewer, Multimedia Player

Sm@rtServer yes

*) recipes / data sets per recipe / entries per data set **) Archive / entries per archive

3

For internal use only / © Siemens AG 2012. All Rights Reserved. I IA AS S SUP FA Page 5 2012-10-29 Visualization with W inCC V12

SIMATIC WinCC V12

Industrial Thin Client – SIMATIC ITC

New

SIMATIC ITC ITC1200 ITC1500 ITC1900 ITC2200

12" Touch W idescreen 15" Touch W idescreen 19” Touch W idescreen 22" Touch W idescreen Resolution 1280 x 800 1280 x 800 1366x768 1920 x 1080

Display high resolution, 16 Mio. colors, 100% dimmable

CPU Intel Celeron1,2 GHz

Interfaces 1 x GBit LAN, 2 x USB 2.0 (backside)

Webbrowser HTML5, XML, CSS, JavaScript

Protocols Sm@rtServer, RDP, VNC

Active connections 5

Power supply 24V DC

Certificates CE, cULus, C-Tick, ATEX Zone 2/22 (planned)

Produkt link: 60521782 FAQ: 63258317 Produktvideo

For internal use only / © Siemens AG 2012. All Rights Reserved. I IA AS S SUP FA Page 6 2012-10-29 Visualization with W inCC V12

Overview Usability PLC & HMI SCADA Screens Tag management Maintenance Communication Release Management Hardware

SIMATIC WinCC V12

1 – Compatibility mode

TIA Portal V12 support for the Service use case

 Exception: Compile of Runtime Professional V11

Upgrade RT V11 SP2 Panel / SCADA 1 RT V12 Panel / SCADA 2 WinCC ES V11 SP2 RT V11 SP2 V11 Proj. WinCC ES V12 (compatibility mode) RT V11 SP2 V12 Proj. WinCC ES V12 RT V11 SP2 RT V12

For internal use only / © Siemens AG 2012. All Rights Reserved. I IA AS S SUP FA Page 7 2012-10-29 Visualization with W inCC V12

V11 Proj.

SIMATIC WinCC V12

1 – Compatibility mode

Work on V11 projects with V12

 V11 project can be modified with different versions of the engineering system

 Saved projects can be opened with TIA Portal V11 SP2 again

 Functionality and features of TIA Portal V11 SP2 products are supported

Open project supported Edit/compile/download devices supported*

WinCC V11

SP2

WinCC V12

m _{*Compile and download not supported}

for Runtime Professional V11

Overview Usability PLC & HMI SCADA Screens Tag management Maintenance Communication Release Management Hardware WinCC ES V12 RT V12

SIMATIC WinCC V12

2 – Upgrade to V12

Use of new functionality coming with WinCC V12

5

For internal use only / © Siemens AG 2012. All Rights Reserved. I IA AS S SUP FA Page 9 2012-10-29 Visualization with W inCC V12

Overview Usability PLC & HMI SCADA Screens Tag management Maintenance Communication Release Management Hardware V11 Proj.

SIMATIC WinCC V12

2 - Upgrade to V12

Use of new functionality coming with WinCC V12

 Use of new functions (e.g. S7-1500) V11 project must be upgraded to V12

 Project upgrade includes upgrade of RT Professional

 Panels and RT Advanced remain in version 11 for service use cases

Save (V12) project supported Edit/compile/download devices supported

WinCC V12

m Upgraded V11 project or newly_{created V12 project can only be}

opened with TIA Portal V12 products

V12 Proj.

For internal use only / © Siemens AG 2012. All Rights Reserved. I IA AS S SUP FA Page 10 2012-10-29 Visualization with W inCC V12

Overview Usability PLC & HMI SCADA Screens Tag management Maintenance Communication Release Management Hardware

SIMATIC WinCC V12

2 – How to…

V12 project build in a new folder named “..._V12”

No downgrade afterwards, no more use in TIA Portal V11

1 2

3

For internal use only / © Siemens AG 2012. All Rights Reserved. I IA AS S SUP FA Page 11 2012-10-29 Visualization with W inCC V12

Overview Usability PLC & HMI SCADA Screens Tag management Maintenance Communication Release Management

Hardware _{Create, modify and compile V11 devices in V12 project}  Exception: Compile As Runtime Professional V11

WinCC ES V12

RT V12

SIMATIC WinCC V12

3 – V11 devices in TIA Portal V12

Upgrade RT V11 Panel / SCADA 1 RT V12 Panel / SCADA 2 WinCC ES V11 SP2 RT V11 SP2 V11 Proj. WinCC ES V12 (compatibility mode) RT V11 SP2 V12 Proj. RT V11 SP2 Overview Usability PLC & HMI SCADA Screens Tag management Maintenance Communication Release Management Hardware

SIMATIC WinCC V12

3 – V11 devices in TIA Portal V12

No upgrade of Panels FW forced by new version of engineering system

 WinCC V12 can configure devices with RT versions V11 and V12

 Configured RT version decides about supported functionality in editors

 Version change (V11↔V12) is handled similar to Device type change

WinCC V12

m _{Compile and download not supported}

for Runtime Professional V11

V11 device

V12 device V12

7

For internal use only / © Siemens AG 2012. All Rights Reserved. I IA AS S SUP FA Page 13 2012-10-29 Visualization with W inCC V12

Overview Usability PLC & HMI SCADA Screens Tag management Maintenance Communication Release Management Hardware

SIMATIC WinCC V12

Upgrade process

V12 project build in a new folder named “..._V12”

No downgrade afterwards, no more use in TIA Portal V11

1 2

3

Upgrade to V12

For internal use only / © Siemens AG 2012. All Rights Reserved. I IA AS S SUP FA Page 14 2012-10-29 Visualization with W inCC V12

Overview Usability PLC & HMI SCADA Screens Tag management Maintenance Communication Release Management Hardware

SIMATIC WinCC V12

V11 devices in TIA Portal V12

No upgrade of Panels FW forced by new version of engineering system

 WinCC V12 can configure devices with RT versions V11 and V12

 Configured RT version decides about supported functionality in editors

 Version change (V11↔V12)is handled similar to Device type change

WinCC V12

m _{Compile and download not supported}

for Runtime Professional V11

V11 device

V12 device V12

For internal use only / © Siemens AG 2012. All Rights Reserved. I IA AS S SUP FA Page 15 2012-10-29 Visualization with W inCC V12

SIMATIC WinCC V12

Select RT version

Configurable RT version in “Add new device” dialog Configurable RT version in Hardware catalog Configured RT version in Catalog information of configured device (Editor Devices & networks)

SIMATIC WinCC V12

Change RT version

Change device type / version for selected device

9

For internal use only / © Siemens AG 2012. All Rights Reserved. I IA AS S SUP FA Page 17 2012-10-29 Visualization with W inCC V12

Overview Usability PLC & HMI SCADA Screens Tag management Maintenance Communication Release Management Hardware

SIMATIC WinCC V12

Communication drivers

WinCC Basic offers drivers for: SIMATIC S7-1500 SIMATIC S7-1200 SIMATIC S7-300/400 SIMATIC S7-200 LOGO! Allen-Bradley DF1, EtherNet/IP Mitsubishi MC TCP/IP

Modicon Modbus TCP/IP

No support for SIMATIC S5

New

New

For internal use only / © Siemens AG 2012. All Rights Reserved. I IA AS S SUP FA Page 18 2012-10-29 Visualization with W inCC V12

Overview Usability PLC & HMI SCADA Screens Tag management Maintenance Communication Release Management Hardware

* SINUMERIK Integrate Create MyHMI / WinCC option has to be installed

SIMATIC WinCC V12

Communication drivers

WinCC Comfort / Advanced offers drivers for: SIMATIC S7-1500 SIMATIC S7-1200 SIMATIC S7-300/400 SIMATIC S7-200 LOGO! Allen-Bradley DF1, EtherNet/IP Mitsubishi FX, MC TCP/IP Modicon Modbus RTU, TCP/IP Omron Host Link

OPC (DA, XML DA, UA) No support for SIMATIC S5

Communication driver New

For internal use only / © Siemens AG 2012. All Rights Reserved. I IA AS S SUP FA Page 19 2012-10-29 Visualization with W inCC V12

Overview Usability PLC & HMI SCADA Screens Tag management Maintenance Communication Release Management

Hardware Communication driver for LOGO!

Communication interface Ethernet

Available in HMI devices

Basic PN Panels

Mobile Panels 177PN, 277

Multi Panels

Comfort Panels

Runtime Advanced

Data Type and address range

SIMATIC WinCC V12 Process Communication Driver

What’s new: LOGO!

Overview Usability PLC & HMI SCADA Screens Tag management Maintenance Communication Release Management Hardware

SIMATIC WinCC V12

Communication drivers

WinCC Professional offers drivers for: SIMATIC S7-1500

SIMATIC S7-1200 SIMATIC S7-300/400 Allen-Bradley EtherNet/IP Mitsubishi MC TCP/IP Modicon Modbus TCP/IP OPC (DA / XML DA)

No support for SIMATIC S5

Communication driver New

11

For internal use only / © Siemens AG 2012. All Rights Reserved. I IA AS S SUP FA Page 21 2012-10-29 Visualization with W inCC V12

Overview Usability PLC & HMI SCADA Screens Tag management Maintenance Communication Release Management Hardware

SIMATIC WinCC V12

Diagnostic services

STEP 7 HMI WebServer CPU-Display

For internal use only / © Siemens AG 2012. All Rights Reserved. I IA AS S SUP FA Page 22 2012-10-29 Visualization with W inCC V12

Overview Usability PLC & HMI SCADA Screens Tag management Maintenance Communication Release Management Hardware

SIMATIC WinCC V12

Diagnostic services – Display at Panels / RT Advanced

System diagnostics viewer

Displays the overview of accessible devices and the system state of the plant

Switch between device and detail view

Same concept at Comfort Panels, RT Advanced, CPU display and CPU webserver

For internal use only / © Siemens AG 2012. All Rights Reserved. I IA AS S SUP FA Page 23 2012-10-29 Visualization with W inCC V12

Overview Usability PLC & HMI SCADA Screens Tag management Maintenance Communication Release Management Hardware

SIMATIC WinCC V12

Diagnostic services – Display at Panels / RT Advanced

System diagnostics viewer – detect errors in plant

Click forward through structure to find out the source of an error Autofocus on faulty device

Overview Usability PLC & HMI SCADA Screens Tag management Maintenance Communication Release Management Hardware

SIMATIC WinCC V12

New service concept

New panel service concept - Basic Panels



Runtime project stored on S7-1500



In the case of a device replacement the

HMI backup can be uploaded

from the PLC directly into the new

panel

Basic Panels

13

For internal use only / © Siemens AG 2012. All Rights Reserved. I IA AS S SUP FA Page 25 2012-10-29 Visualization with W inCC V12

Overview Usability PLC & HMI SCADA Screens Tag management Maintenance Communication Release Management Hardware

SIMATIC WinCC V12

How to…

Backup & restore via Basic Panel

New item “Service & Commission” available Select “Backup” or “Restore”

Scan for an accessible device or insert IP & connect afterwards Create a backup or select & restore an existing one

Backup will be placed at or restored from PLCs SIMATIC memory card

Basic Panels

For internal use only / © Siemens AG 2012. All Rights Reserved. I IA AS S SUP FA Page 26 2012-10-29 Visualization with W inCC V12

Overview Usability PLC & HMI SCADA Screens Tag management Maintenance Communication Release Management

Hardware _{New panel service concept - Comfort Panels}



Image transfer via USB-Stick or SD-Card (FAT32)



Replacement of Comfort Panel without engineering system

possible



TIA Portal / ProSave is still possible

SIMATIC WinCC V12

For internal use only / © Siemens AG 2012. All Rights Reserved. I IA AS S SUP FA Page 27 2012-10-29 Visualization with W inCC V12

Overview Usability PLC & HMI SCADA Screens Tag management Maintenance Communication Release Management

Hardware _{Create a HMI OS image}

SIMATIC WinCC V12

How to…

Comfort Panels

Overview Usability PLC & HMI SCADA Screens Tag management Maintenance Communication Release Management

Hardware _{Create a HMI OS image}

Select destination device & create HMI OS image on memory card

Choose matching display

if necessary adapt restore settings It is also possible to download

various images on device

SIMATIC WinCC V12

How to…

2

Comfort Panels

15

For internal use only / © Siemens AG 2012. All Rights Reserved. I IA AS S SUP FA Page 29 2012-10-29 Visualization with W inCC V12

Overview Usability PLC & HMI SCADA Screens Tag management Maintenance Communication Release Management Hardware 1

Update OS from SD card or USB stick

SIMATIC WinCC V12

How to…

Comfort Panels

For internal use only / © Siemens AG 2012. All Rights Reserved. I IA AS S SUP FA Page 30 2012-10-29 Visualization with W inCC V12

Overview Usability PLC & HMI SCADA Screens Tag management Maintenance Communication Release Management Hardware 1

Update OS from SD card or USB stick

SIMATIC WinCC V12

How to…

2

For internal use only / © Siemens AG 2012. All Rights Reserved. I IA AS S SUP FA Page 31 2012-10-29 Visualization with W inCC V12

Overview Usability PLC & HMI SCADA Screens Tag management Maintenance Communication Release Management Hardware 1

Update OS from SD card or USB stick

SIMATIC WinCC V12

How to…

Comfort Panels

Update OS from SD card or USB stick

SIMATIC WinCC V12

How to…

Comfort Panels

17

For internal use only / © Siemens AG 2012. All Rights Reserved. I IA AS S SUP FA Page 33 2012-10-29 Visualization with W inCC V12

Overview Usability PLC & HMI SCADA Screens Tag management Maintenance Communication Release Management Hardware

SIMATIC WinCC V12

Integrated connections

Addressing with integrated connections

Absolute addressing: connected to address, tag name not necessary

searches automatically (reconnect to PLC) for tag name

Symbolic addressing: connected to symbolic name, no relation to absolute address

supported by S7-1200 and S7-1500 PLCs

For internal use only / © Siemens AG 2012. All Rights Reserved. I IA AS S SUP FA Page 34 2012-10-29 Visualization with W inCC V12

Overview Usability PLC & HMI SCADA Screens Tag management Maintenance Communication Release Management Hardware

SIMATIC WinCC V12

Integrated connections

Addressing PLC tags symbolically

For internal use only / © Siemens AG 2012. All Rights Reserved. I IA AS S SUP FA Page 35 2012-10-29 Visualization with W inCC V12

Overview Usability PLC & HMI SCADA Screens Tag management Maintenance Communication Release Management Hardware

SIMATIC WinCC V12

Integrated connections

Default settings for addressing PLC tags

Change default access method in TIA Portal settings

Defines whether PLC tags are automatically addressed absolutely or symbolically

Access method can also be changed by hand afterwards

Overview Usability PLC & HMI SCADA Screens Tag management Maintenance Communication Release Management

Hardware Use cases – Benefits of symbolic addressing:

PLC: changes

SIMATIC WinCC V12

Integrated connections

 HMI: notnecessary

Change address & PLC

Add a row above & PLC

 PLC tags:

19

For internal use only / © Siemens AG 2012. All Rights Reserved. I IA AS S SUP FA Page 37 2012-10-29 Visualization with W inCC V12

Overview Usability PLC & HMI SCADA Screens Tag management Maintenance Communication Release Management

Hardware Use cases – Benefits of symbolic addressing:

PLC: changes

SIMATIC WinCC V12

Integrated connections

Change name & PLC

 HMI: notnecessary

 Name of PLC tags:

Tag is updated automatically

For internal use only / © Siemens AG 2012. All Rights Reserved. I IA AS S SUP FA Page 38 2012-10-29 Visualization with W inCC V12

Overview Usability PLC & HMI SCADA Screens Tag management Maintenance Communication Release Management Hardware

SIMATIC WinCC V12

Data types

Support of 64-bit data types in HMI

Communication with S7-1200 or S7-1500 64-bit tags

Higher resolution with usage of LREAL data types

Real Floating-point number 32-bit IEEE 754 +-3.402823e+38

For internal use only / © Siemens AG 2012. All Rights Reserved. I IA AS S SUP FA Page 39 2012-10-29 Visualization with W inCC V12

Overview Usability PLC & HMI SCADA Screens Tag management Maintenance Communication Release Management Hardware

HMI tag table: browse PLC tag

PLC tag table

SIMATIC WinCC V12

PLC tags restrictions

Restricted access to PLC tags Visible in HMI:

Shows whether the tag is visible by default

Accessible from HMI:

Shows whether HMI can access this tag

even copy & paste does not insert those tags into tag tables

Overview Usability PLC & HMI SCADA Screens Tag management Maintenance Communication Release Management Hardware

HMI tag table: browse PLC tag

PLC tag table

SIMATIC WinCC V12

PLC tags restrictions

Restricted access to PLC tags Visible in HMI:

Shows whether the tag is visible by default

Accessible from HMI:

Shows whether HMI can access this tag

21

For internal use only / © Siemens AG 2012. All Rights Reserved. I IA AS S SUP FA Page 41 2012-10-29 Visualization with W inCC V12

Overview Usability PLC & HMI SCADA Screens Tag management Maintenance Communication Release Management Hardware

SIMATIC WinCC V12

PLC tags restrictions

Drag & Drop structured PLC tags to HMI

Each element is implemented as an individual HMI tag (not structured)

HMI tag automatically connected to PLC tag

Existing HMI connection is used or a new one will be created

Only tags with accessible flag are copied

For internal use only / © Siemens AG 2012. All Rights Reserved. I IA AS S SUP FA Page 42 2012-10-29 Visualization with W inCC V12

Overview Usability PLC & HMI SCADA Screens Tag management Maintenance Communication Release Management Hardware

SIMATIC WinCC V12

PLC tags restrictions

Drag & Drop structured PLC tags to HMI

Copy also of complex structures & paste as single tags in HMI tag table

For internal use only / © Siemens AG 2012. All Rights Reserved. I IA AS S SUP FA Page 43 2012-10-29 Visualization with W inCC V12

Overview Usability PLC & HMI SCADA Screens Tag management Maintenance Communication Release Management Hardware

SIMATIC WinCC V12

HMI protection levels

PLC and HMI protection levels

S7-1500 PLC

Protection level 4 affects all HMI devices

Access granted with password from level 1, 2 or 3

Password defined at the HMI connection

Basic Panels, Mobile Panel 277, Multi Panels x77, Comfort Panel, RT

Advanced & Professional support access via password

Only in this level a password is needed



SIMATIC WinCC V12

How to…

PLC and HMI protection levels

Password is needed in case of protection level 4

Set password to grant access to PLC 1

23

For internal use only / © Siemens AG 2012. All Rights Reserved. I IA AS S SUP FA Page 45 2012-10-29 Visualization with W inCC V12

Overview Usability PLC & HMI SCADA Screens Tag management Maintenance Communication Release Management Hardware RT

SIMATIC WinCC V12

HMI protection levels

HMI No password S7-1500 Level 4 HMI Level 1-3 password S7-1500 Level 4 HMI No password S7-1500 Level 1-3 HMI wrong password S7-1500 Level 1-4

For internal use only / © Siemens AG 2012. All Rights Reserved. I IA AS S SUP FA Page 46 2012-10-29 Visualization with W inCC V12

Overview Usability PLC & HMI SCADA Screens Tag management Maintenance Communication Release Management Hardware

SIMATIC WinCC V12

Screens – Overview

For internal use only / © Siemens AG 2012. All Rights Reserved. I IA AS S SUP FA Page 47 2012-10-29 Visualization with W inCC V12

Overview Usability PLC & HMI SCADA Screens Tag management Maintenance Communication Release Management Hardware

SIMATIC WinCC V12

Languages & multilingual texts

Easier handling of multilingual texts

Edit texts of screen, whole groups or multi selections Copy and paste of texts

All in one window without changing editing language

Languages have to be activated in languages & resources

Overview Usability PLC & HMI SCADA Screens Tag management Maintenance Communication Release Management Hardware

SIMATIC WinCC V12

Rewiring

Change object references similar to rewiring functionality from WinCC flexible

Shows tag references within screens

25

For internal use only / © Siemens AG 2012. All Rights Reserved. I IA AS S SUP FA Page 49 2012-10-29 Visualization with W inCC V12

SIMATIC WinCC V12

How to…

Same screens for different DBs

Copy screen Screen_1 DB1_status DB1_min DB1_max Connect tags

Change object reference Find & replace string DB1 by DB2 rewire

Configuration

rewire

DB1 DB2

For internal use only / © Siemens AG 2012. All Rights Reserved. I IA AS S SUP FA Page 50 2012-10-29 Visualization with W inCC V12

SIMATIC WinCC V12

How to…

Change object references … Precondition: well organized tags

Open from context menu

Find and replace parts of tag names

1

2 3

For internal use only / © Siemens AG 2012. All Rights Reserved. I IA AS S SUP FA Page 51 2012-10-29 Visualization with W inCC V12

Overview Usability PLC & HMI SCADA Screens Tag management Maintenance Communication Release Management

Hardware Reconnect PLC tags similar to WinCC flexible based on:

Symbolic addresses Absolute addresses

SIMATIC WinCC V12

Reconnect PLC tags

SIMATIC WinCC V12

Reconnect PLC tags

The path of the PLC tag matches

The connection has to be already created

Reconnect if the path / tag name matches The connection is marked red because…

…PLC connection changed

Reconnect checks validation in new connection path

…PLC connection changed & address changed

Reconnect checks validation in new connection path & updates the address

27

For internal use only / © Siemens AG 2012. All Rights Reserved. I IA AS S SUP FA Page 53 2012-10-29 Visualization with W inCC V12

SIMATIC WinCC V12

Reconnect PLC tags

The address of the PLC tag matches

The connection has to be already created

Reconnect if the address matches The field “PLC tag” is empty because...

…tags have been imported

…a copied tag table from library

Reconnect finds matching tag names

The connection is marked red because…

…PLC connection changed

Reconnect checks validation in new connection path

For internal use only / © Siemens AG 2012. All Rights Reserved. I IA AS S SUP FA Page 54 2012-10-29 Visualization with W inCC V12

Overview Usability PLC & HMI SCADA Screens Tag management Maintenance Communication Release Management Hardware

SIMATIC WinCC V12

Runtime file browser

Runtime file browser

Useful to transfer a file’s path to a tag by selecting the file in the browser

The tag can be used to open webpages, PDFs, etc.

For internal use only / © Siemens AG 2012. All Rights Reserved. I IA AS S SUP FA Page 55 2012-10-29 Visualization with W inCC V12

Overview Usability PLC & HMI SCADA Screens Tag management Maintenance Communication Release Management Hardware

SIMATIC WinCC V12

How to…

Use new system function “OpenFileBrowser”, e.g. click event at a button Use “Initial directory” for browsing location

Select a tag (Wstring) to configure the output path: Path (Out)

Overview Usability PLC & HMI SCADA Screens Tag management Maintenance Communication Release Management Hardware

SIMATIC WinCC V12

Offline download

New:Download single stations to a local path or an external device

Usual way: Download to network path

RT

WinCC Client Engineering Station

29

For internal use only / © Siemens AG 2012. All Rights Reserved. I IA AS S SUP FA Page 57 2012-10-29 Visualization with W inCC V12

Overview Usability PLC & HMI SCADA Screens Tag management Maintenance Communication Release Management Hardware SIMATIC WinCC V12 Run as service WinCC as service:

WinCC servers as service, Clients interactively

WinCC server is located in a separate room, no user needs to be logged in

WinCC Runtime starts automatically with Windows

Monitoring and control of the WinCC project from the clients / Web clients

Dedicated Web Navigator or Data Monitor server as service

separated room

For internal use only / © Siemens AG 2012. All Rights Reserved. I IA AS S SUP FA Page 58 2012-10-29 Visualization with W inCC V12

Overview Usability PLC & HMI SCADA Screens Tag management Maintenance Communication Release Management Hardware

SIMATIC WinCC V12

How to…

Open WinCC RT Start

Select a project

Switch to tab Operation mode

Insert Windowsuser and password

For internal use only / © Siemens AG 2012. All Rights Reserved. I IA AS S SUP FA Page 59 2012-10-29 Visualization with W inCC V12

Overview Usability PLC & HMI SCADA Screens Tag management Maintenance Communication Release Management Hardware

SIMATIC WinCC V12

Vertical fonts

Define a font in vertical reading direction “@” in front of the name signals a vertical font Set text orientation vertical

1 2 Overview Usability PLC & HMI SCADA Screens Tag management Maintenance Communication Release Management Hardware

SIMATIC WinCC V12

PLC & HMI Engineer working together

Slides will be available for S7-300, S7-1200 & S7-1500 Slides are currently in work

Published as newsletter (HMI- and TIA- Promotors)

31

For internal use only / © Siemens AG 2012. All Rights Reserved. I IA AS S SUP FA Page 61 2012-10-29 Visualization with W inCC V12

SIMATIC WinCC V12

Comfort Panel migration

Integrated Classic project available Switch to STEP 7 and WinCC V11

WinCC (TIA Portal) STEP 7 (TIA Portal) Migration of project Device change

Use of TIA Portal Benefits

WinCC flexible STEP 7 classic

Integrated Classic project available Switch to WinCC V11 WinCC (TIA Portal) Deintegration Migration of WinCC flexible Device change STEP 7 classic STEP 7 classic WinCC flexible New project

Use of STEP 7 and WinCC V11

WinCC (TIA Portal)

STEP 7 (TIA Portal)

Use of TIA Portal Benefits

New project

Use of STEP 7 classic and WinCC V11

WinCC (TIA Portal)

Export of STEP 7 Tags

Convert tags with TagConverter

Import in WinCC V11

STEP 7 classic

For internal use only / © Siemens AG 2012. All Rights Reserved. I IA AS S SUP FA Page 62 2012-10-29 Visualization with W inCC V12

Overview Usability PLC & HMI SCADA Screens Tag management Maintenance Communication Release Management Hardware

SIMATIC WinCC V12

Working with STEP 7 classic & WinCC V12 together

WinCC (TIA Portal) and STEP 7 classic

Existing STEP 7 with new WinCC (TIA Portal) project

1. Create the HMI in WinCC (TIA Portal) 2. Export the needed tags from STEP 7

3. Convert the export file with WinCC Tag Converter (Link) 4. Import the converted file in WinCC (TIA Portal)

 All tags are converted with absolute address

 Changes on some single tags in STEP 7 project can be updated manually

 „big changes“ can be updated with the help of Tag Converter

For internal use only / © Siemens AG 2012. All Rights Reserved. I IA AS S SUP FA Page 63 2012-10-29 Visualization with W inCC V12

SIMATIC WinCC V12

WinCC Tag Converter – How to…

Export of tags from STEP 7 classic

Single data blocks

 Open the data block

 File Print „Generic / Text only“ printer  Input path \ filename.txt in the following dialog

SIMATIC WinCC V12

WinCC Tag Converter – How to…

Export of tags from STEP 7 classic

Single or several data blocks

 „Generic / Text only“ printer is the windows standard printer

 Right mouse on the needed data blocks

 Print Object Content

33

For internal use only / © Siemens AG 2012. All Rights Reserved. I IA AS S SUP FA Page 65 2012-10-29 Visualization with W inCC V12

SIMATIC WinCC V12

WinCC Tag Converter – How to…

Export of tags from STEP 7 classic

Symbol table

 Open symbol table

 Symbol Table export

 Input path \ filename.asc in the following dialog

For internal use only / © Siemens AG 2012. All Rights Reserved. I IA AS S SUP FA Page 66 2012-10-29 Visualization with W inCC V12

SIMATIC WinCC V12

WinCC Tag Converter – How to…

Export of tags from STEP 7 classic

Symbol table

 Open symbol table

 Symbol Table export

For internal use only / © Siemens AG 2012. All Rights Reserved. I IA AS S SUP FA Page 67 2012-10-29 Visualization with W inCC V12

SIMATIC WinCC V12

WinCC Tag Converter – How to…

Conversion of tags with WinCC Tag Converter

 Converts the tag export files of SIMATIC Manager, Rockwell (Allen-Bradley)

and Schneider/Modicon in the import-format of WinCC (TIA Portal)

WinCC Tag Converter

export file from PLC programming Tool

converted file ready to import in WinCC

Industry Online Support:

Deutsch English

SIMATIC WinCC V12

WinCC Tag Converter – How to…

Import of tags to WinCC (TIA Portal)

 The converted file with the tags can easily be imported. Hint:the PLC connection should be created in WinCC previously

start tag import

HMI Tags Show all tags: Converted file:

35

For internal use only / © Siemens AG 2012. All Rights Reserved. I IA AS S SUP FA Page 69 2012-10-29 Visualization with W inCC V12

Overview Usability PLC & HMI SCADA Screens Tag management Maintenance Communication Release Management Hardware

SIMATIC WinCC V12

Usability

Advanced color picker

Not every color is supported by each Panel Therefore TIA Portal adapts colors & displays the

current, the selected and the adapted color in a preview

Selected color Adapted color, details see tooltip

For internal use only / © Siemens AG 2012. All Rights Reserved. I IA AS S SUP FA Page 70 2012-10-29 Visualization with W inCC V12

Overview Usability PLC & HMI SCADA Screens Tag management Maintenance Communication Release Management Hardware

SIMATIC WinCC V12

Usability

Number of locations where the object is used

1

For internal use only / © Siemens AG 2012. All Rights Reserved. I IA AS S SUP FA Page 71 2012-10-29 Visualization with W inCC V12

Overview Usability PLC & HMI SCADA Screens Tag management Maintenance Communication Release Management Hardware

SIMATIC WinCC V12

Usability

Move object to the next snap line Use “s” + “arrow key” to move object

Overview Usability PLC & HMI SCADA Screens Tag management Maintenance Communication Release Management Hardware

SIMATIC WinCC V12

Usability

New system function in SCADA Set language directly or toggle

37

For internal use only / © Siemens AG 2012. All Rights Reserved. I IA AS S SUP FA Page 73 2012-10-29 Visualization with W inCC V12

Overview Usability PLC & HMI SCADA Screens Tag management Maintenance Communication Release Management Hardware

SIMATIC WinCC V12

Usability

Events with improved look and feel

V11 V12

For internal use only / © Siemens AG 2012. All Rights Reserved. I IA AS S SUP FA Page 74 2012-10-29 Visualization with W inCC V12

Overview Usability PLC & HMI SCADA Screens Tag management Maintenance Communication Release Management Hardware

SIMATIC WinCC V12

Usability

Two new expression templates Expressions AND & OR added Additional space for expressions

Enough space for long expression

For internal use only / © Siemens AG 2012. All Rights Reserved. I IA AS S SUP FA Page 75 2012-10-29 Visualization with W inCC V12

Overview Usability PLC & HMI SCADA Screens Tag management Maintenance Communication Release Management Hardware

SIMATIC WinCC V12

Usability

Animate property: Support of floating points (range type) Including new elements: Brackets & intervals

Bracket Example If the process value (x) is … …than color is …

[…-…] [0 - 0.25] 0 ≤ x ≤ 0.25 black ]…-…] ]0.25 - 0.5] 0.25 < x ≤ 0.50 red ]…-…[ ]0.5 - 1[ 0.5 < x < 1 yellow Overview Usability PLC & HMI SCADA Screens Tag management Maintenance Communication Release Management Hardware

SIMATIC WinCC V12

Usability

Support of floating points

Use case expression: calculations

Overlapping areas are invalid and marked red

39

For internal use only / © Siemens AG 2012. All Rights Reserved. I IA AS S SUP FA Page 77 2012-10-29 Visualization with W inCC V12

Overview Usability PLC & HMI SCADA Screens Tag management Maintenance Communication Release Management Hardware

SIMATIC WinCC V12

Usability

Select “Open screen” to switch to displayed screen

For internal use only / © Siemens AG 2012. All Rights Reserved. I IA AS S SUP FA Page 78 2012-10-29 Visualization with W inCC V12

Overview Usability PLC & HMI SCADA Screens Tag management Maintenance Communication Release Management Hardware

SIMATIC WinCC V12

Usability

For internal use only / © Siemens AG 2012. All Rights Reserved. I IA AS S SUP FA Page 79 2012-10-29 Visualization with W inCC V12

Overview Usability PLC & HMI SCADA Screens Tag management Maintenance Communication Release Management Hardware

SIMATIC WinCC V12

Overview

Feature Panels RT Advanced RT Professional

Hardware news - -

-S7-1500 driver Symbolic addressing 64-bit data types

Restricted access to PLC tags Protection levels

New tab for multilingual languages Change object reference (rewire) Reconnect tags Offline transfer - -Run as service - -Overview Usability PLC & HMI SCADA Screens Tag management Maintenance Communication Release Management Hardware

SIMATIC WinCC V12

Overview

Feature Panels RT Advanced RT Professional

System diagnostic viewer

-Backup & restore an image at PLC only Basic -

-OS Update via external devices only Comfort -

-Advanced color picker -

-Counting in cross references

Move object to snap lines via keyboard Advanced context menu for events

New expression templates -

-Floating points for property animation -

-Vertical fonts -

-Improved handling of screen windows -
