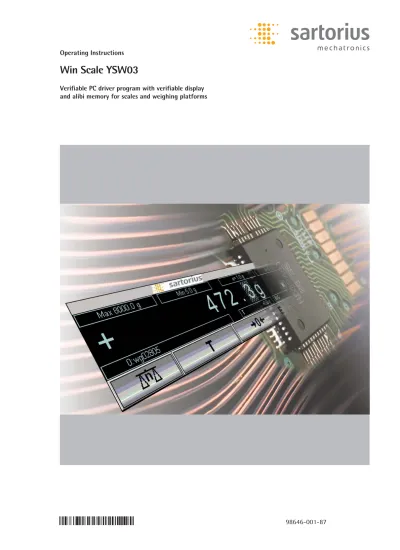

Operating Instructions

Win Scale YSW03

Verifiable PC driver program with verifiable display

and alibi memory for scales and weighing platforms

(2)

Intended use

Note:

Windows® 95, Windows® 98, Windows® 2000, Windows® NT, Windows® XP, MS Office®, MS Excel® and MS Word® are registered trademarks of Microsoft Inc. All other names are trademarks of the corresponding companies.

Hotline

$ Please direct technical questions on design, specifications and installation to your operating partner or directly to Sartorius, at the hotline:

Telephone: +49 (0) 551 /308-4440 Fax: +49 (0) 551 /308-4449

Explanation of symbols

The following symbols are used in the text:

Instructions for correct operation

$ Special instructions for exceptional cases > Description of the consequences of an

operating step

!Warnings Legal metrology

Legal and copyright information This documentation may not be reproduced or distributed either in whole or in part without the explicit written permission of Sartorius AG. This documentation is intended only for use by the buyer. Transfer to third parties, whether free or in exchange for payment, is not permitted. The software on the included CD-ROM is the property of Sartorius AG.

The software may not be copied or modified, it may not be decompiled or modified through assimilation. The buyer may only use the software for his own purposes and may not make the software available to third parties either for use for free or in exchange for payment. If you encounter problems with the included software, please contact the software distributor. Sartorius AG reserves the right to deliver updated software for this product. No liability is accepted for software installed before the purchase of this product. The buyer is liable for misuse of the software.

Note:

With regard to operation and user programming, special attention must be paid to the sections marked with the symbol.

The “Sartorius Win Scale” application is a type-approved driver program for a verifiable display and alibi memory used to store values measured by one or several balances, scales or weighing platforms (weighing modules). Communication between a PC and the balance, scale or weighing platform takes place over a serial RS-232/RS-485 data interface. The devices must be suitable, set up and certified for the transmission protocol xBPI (extended BBBBBalance PPPPProcessor IIIIInterface) or SBI (SSSSSartorius BBBBalanceB IIIIInterface), which are used for communica-tion. In the configuration of xBPI for some model series, it is possible to show the verified display and operating settings on the screen of the PC. No additional operating terminal for the weighing platform is then required.

In the configuration of SBI for other model series, the program is suitable for secure storage of the verified display values on the PC (alibi memory). The display and operating settings of the scale then continue to be used.

It is therefore possible, for example, to connect scales of the FB, FC, FD, LA and LP series, isi-industrial terminals and IS weighing platforms. If you use “Sartorius Win Scale” in conjunction with an IS weighing platform, an “isi” industrial display and operator terminal is not necessary. Several devices (up to 31) can be connected via a special network (“xBus network”) in which each device is identifi-able by a unique address.

The “Sartorius Win Scale” application is used:

– to emulate a verifiable display and

operator terminal (a “verifiable

window”) on the PC. The verifiable

window is placed on the screen in a

location selected freely by the user

and cannot be overwritten there by

any other application.

– for verifiable storage of data (in the

alibi memory; please see the section

entitled “Alibi Memory” above on the

right).

– as an interface between the user,

other software processes running in

parallel (DDE clients: D

D

Dynamic

D

ata

E

Exchange) and the scale or weighing

platform.

Example:

Data exchange between the scale or IS weighting platform and the PC takes place over a special, verifiable communi-cation library that is adapted to the external device. Data from the device is stored in alibi memory, which provides reliable protection against manipulation. The alibi memory enables the user to retrieve and further process verifiable data directly from the balance, scale or weighing platform using his own software. Furthermore, the user can take advantage of the range of commands available to him to initiate various functions on the balance, scale or IS platform (e.g. taring/ zeroing the display, starting calibration/ adjustment, accessing or changing the balance or scale operating menu). On verifiable devices, the range of commands is limited accordingly.

Alibi memory

The determination of the mass of an object for trade purposes is subject to calibration and verification requirements. If, for example, an invoice indicating the mass of an object is generated via a connected electronic data processing device (the number of intermediate stations does not matter here), calibration and verification regulations apply all the way to the printout of that invoice or any other record. The connected electronic data processing device can be a PC or computer network, for which it would be unrealistic to demand type approval certificates or verification.

However, in order to comply with the requirements of this legally regulated area, the concept of “alibi memory” was created. This is a type-approved, protected memory. Data to be further processed in transactions subject to calibration requirements is stored in this memory, where it cannot be manipulated. The data can be reaccessed on command at any time. When the data is processed, it is only necessary to indicate an ID that subsequently allows for unique retrieval of the stored data. It is the responsibility of the operator to ensure that this takes place. The archiving duration of the data is regulated at the national level. Compli-ance with the established periods is also the responsibility of the operator. Since this may become problematic for large amounts of data and long storage times, the Sartorius memory concept permits the stored data to be securely exported and reimported as required.

M

(3)

– “Sartorius Win Scale” can be used in legal metrology either as an addi-tional device or as a display and operating terminal (for balances and scales without an integrated display). In both cases, calibration by a duly authorized representative of Sartorius AG or calibration authorities is required. Subsequent installation of “Sartorius Win Scale” for use in conjunction with a balance or scale that has already been calibrated requires recalibration by the calibration authorities.

– The section entitled “Information in the Display” in the “Operation” section describes the inspection of the display required during calibration to ensure that the data is presented correctly. In addition, the mandatory inspection of correct storage of the weight values subject to calibration in the alibi memory is explained under “Function Test of the Alibi Memory” in the section entitled “Accessing the Service Menu” in the “Operation” section. The mandatory comparison of the software ID with a target value is described under “Reading Program Information” in the section entitled “Accessing the Service Menu” in the “Operation” section.

– When using the “Sartorius Win Scale” application, it is imperative that you follow the rules listed below: The display window of “Sartorius Win Scale” may not be imitated. This means that no similar display window can be generated, since this could lead to confusion with the display window of “Sartorius Win Scale.”

– The display window of “Sartorius Win Scale” in XBPi mode may not be hidden. The application has been designed so that the display window reappears in the foreground of the screen at least after any change in the readout from a connected weighing instrument. It is therefore up to the operator to ensure that no attempts are made to place the display window in the background, to hide parts of the window or to falsify the window with outside information.

- In SBI mode, no verifiable readout may be shown in the display window; for this reason, hiding of the window is permitted.

In addition to inspection of the findings with regard to the information displayed on the monitor (when using as a verifiable display), a function test is sufficient for the verifiable memory.

- The following function test of the verifiable memory is sufficient:

Performance of 5 weighings with saving of the data in each case (e.g. press the printout button on the scale). The weighing results should be recorded for subsequent checking. Inspection of the stored weighing results for agreement with the previously recorded values:

Click on “S” in monitor display to access the service menu. In the Password dialog, enter the user or system password and confirm with OK. In the Service Menu dialog, select “Verifiable Memory” and confirm with OK. In the Display Under Day File dialog, select the desired day and under Search enter the desired number under Verifiable ID, if necessary. The user must check the integrity of the legal metrology software modules every day. This is accomplished by accessing the software information (for this purpose, please refer to the sections entitled “Accessing the Service Menu” and “Reading Program Information” in the “Operation” section). A weight value may only be used and/or further processed in a verified context if it has been stored in the alibi memory.

– The storage time for legal metrology data depends on the application. It is the responsibility of the operator to ensure compliance.

– The operator is responsible for providing storage space for the alibi memory on the local hard drive. Configuration of the ring storage of the alibi memory must be performed by the operator (see here the section “Opera-tion” – “Configuring the Alibi Memory”). This also applies to measures for backing up the data.

– The alibi memory is protected against manipulation by checksums. Never-theless, the operator may not attempt to bypass this protection by analyzing or manipulating the files.

– The computer used must conform to EEC Council Directive 89/336/EEC and must bear the CE symbol. All connected peripheral devices subject to calibration requirements (keyboard, monitor, etc) must also bear this certification.

– The PC platform must fulfill the minimum requirements specified under “System Requirements” in the “Installation” section.

M M M M M M M M M M M M M M M M M M

(4)

System Overview

Software System

The figure below shows the individual components of “Sartorius Win Scale” as a server in conjunction with a balance, scale or weighing platform and an external software application (client). Externally connected devices (balances, scales or weighing platforms) communicate with the help of modularly designed, device-specific drivers known as “verifi-able communication libraries.” Each library contains a defined range of functions (SARTOCOM protocol) as a software interface to a non-verifiable application and specific com-mands for communication with the external device. When the application is running, an appropriate verifiable communica-tion library is loaded for the particular external device with which the program is to communicate. All program-specific settings are stored in a configuration file. When the applica-tion is closed, a copy is made of this configuraapplica-tion file. If the original configuration file is destroyed, a valid configuration file can be restored from this copy.

xBus Network

All devices equipped with a serial RS-485 data interface and set to the xBPI communication mode can be linked together in an xBus network (see the figure on the left). In this special Sartorius network, up to 31 devices (balances, scales or IS weighing platforms) can be connected together. On scales or balances (such as the FB/FC or LA/LP series), the standard RS-232 data interface must be replaced with an RS-485 inter-face. This is available as an accessory for devices of the FB/FC series (YDO01F and YDO02F for scales and balances with high loads ≤12 kg) and for the LA/LP series upon request in the “Fast Factory” department.

To connect an xBus network or an individual device equipped with an RS-485 data interface (e.g. an IS weighing platform) to a PC equipped with a standard RS-232 interface, use one of the two options described below:

– Installation of an RS-485 interface card in the PC. For this purpose, Sartorius offers the W&T PC card 13601 (order no.: 62PC-Y014). This is a dual interface that can be installed in any commercially available PC with a standard AT bus. A detailed description is included with the card.

– Use of the 725319 interface converter (see figure on page 5). The RS-232 data interface on the converter is connected to the RS-232 interface on the PC via cable 7253143 (25-pin D-Sub female connector at both ends). The wiring diagram of

the RS-485 interface on the converter and all other details are included in the accompanying operating instructions. Because of the individual cable lengths used for data transmission according to the RS-485 standard, there is no standard cable for this purpose. If you operate IS weighing platforms in the xBus network, they must have their own power supply. If necessary, the IS weighing platform must be converted (exception: IS weighing platforms that are controlled by an isi industrial terminal and scales of the FD series). For information on connecting IS weighing platforms, consult the section “Connecting an IS Weighing Platform to the PC” under “Connecting Devices to the PC.” To ensure unique identification in the network, each component must have a unique bus address that is stored in the device. The addresses may have the values 1 to 31. The data exchange within the network takes place in binary. Cyclical data output from a device is not possible in bus operation mode. A detailed description of the xBus can be found in the “Protocol and Function Description of the xBPI Interface of the isi Operating Terminals.”

In addition to the EC type approval of the balance or scale, the associated test certificate with appendix must be presented for calibration. It must be determined whether the verifiable program is operating properly. The actual value of the software ID is calculated and displayed by loading the menu item “Information, Software” in the service menu. The saved set value (CB880838 for software version 1.0.... / 8228A94E for software version 2.0....) is also displayed. If both values match, the software has been loaded properly and the computer may be used for purposes subject to calibration require-ments.

M

Monitor

Computer Device 1 Device 2 ... Device 31

725319

RS-232 converter RS-485 xBus network

interface interface

Computer with Windows95/Windows NT-compatible operating system

Sartorius WinScale Verifiable window User interface Alibi memory (data with verifiable ID) Verifiable communication library Balance/scale or weighing platform Non- verifi-able appli-cation Printer (data with veri-fiable ID)

(5)

Installation

System Requirements

Hardware Requirements:

– Computer: IBM-compatible PC,

Processor: Pentium or equivalent, Clock speed > 133 MHz, RAM > 32 MB,

Hard drive space > 1 GB

CE certification according to the EMC Directive 89/336/EEC – Display: Diagonal display size > 10”,

Windows setting “Small font”

– Resolution: Maximum 800x600 pixels for a diagonal size of <12” Maximum 1024x768 pixels for a diagonal size of <15” Maximum 1152x864 pixels for a diagonal size of <17” At least 256 colors in all resolutions

– Data interface: RS-232/RS-485 Software Requirements:

– Operating system: MS Windows 95®_{, MS Windows 98}®_{, MS Windows 2000}®_{, MS Windows NT}®_{, MS Windows XP}® All standard drivers of the respective operating system are used.

These do not change the verifiable data. – Transmission protocol: xBPI or SBI

Note:

MS Windows 98®_{, MS Windows 2000}®_{, MS Windows NT}®_{, MS Windows XP}®_{are registered trademarks of Microsoft Inc.} Scope of Delivery

The program and all additionally required files (e.g. initialization file, configuration file and help file) are delivered on a CD.

Installing Sartorius Win Scale Note:

Exit all Windows programs before installing the “Sartorius Win Scale” application.

The hard disk of the computer (i.e. the C:\ drive) must have sufficient storage capacity to accommodate the program (> 3.5 MB).

SBI

If weighing platforms are equipped with an RS-232 data interface, they can be addressed within the SBI protocol. In SBI mode, data can be received from up to three connected devices.

Note:

In legal metrology, only the connection of a single balance or scale is permitted in SBI mode! No multi-range scales or multi-division scales may be connected when using the SBI protocol. In addition to the EC type approval of the balance or scale, the associated test certificate with appendix must be presented for calibration. It must be determined whether the verifiable program is operating properly. The actual value of the software ID is calculated and displayed by loading the menu item “Information, Software” in the service menu. The saved set value (8228A94E version 2.0....for SBI) is also displayed.

If both values match, the software has been loaded properly and the computer may be used for purposes subject to calibration require-ments.

If the recorded data should be stored in the alibi memory, the configuration data must first be entered based on the information on the test certificate: in case of calibration, the calibration value “e” must be entered. Combined tare/null or blockprint setting, indication of d for scales d not equal to e.

For balances and scales with combined taring and zeroing function, “Combined tare/null” must be selected, for balances and scales with separate taring and zeroing functions, “Blockprint” must be selected. Serial number, decimal places, etc. are entered in the configuration dialog windows since this data is not automatically collected (as in XBPI mode).

(6)

Program Installation

Insert the CD into the CD drive of the computer. Start Setup.exe by double-clicking on it. > This starts the installation program from the CD.

> The initial screen of the installation program for the “Sartorius Win Scale” application is displayed.

Click the button [Next].

> The software license agreement for the program is displayed. The user must accept the license agreement for this program. You can view the rest of the text by sliding the scrollbar with the mouse pointer or by clicking on the (Arrow) button with the mouse. Clicking on the button [Cancel] will stop the installation, [Back] will return you to the previous screen.

Accept the license agreement by clicking on the radio button.

(7)

To continue the installation: Click the button [Next].

> The installation program allows the user to configure the installation according to his own requirements.

> A directory tree and the directory in which “Sartorius Win Scale” and all accompanying, necessary files will be saved are displayed. Clicking on the button [Next] confirms these settings.

> Clicking on the button [Browse] allows the user select the drive (in the field “Drives”) and to select the directory within the directory tree (in the field “Directories”) in order to install the program where desired.

By editing the entry in the “Path” field, the user can directly enter the desired path.

Note:

If you do not select the standard installation directory “C:\Program Files\Sartorius\Sartorius Win Scale” as the installation path, you will receive the error message “ERR APP 13” the first time you access the program. You can alleviate this error by setting the correct directory path for the communication library (for more information, please refer to the section entitled “Configuring the Communication Library” at the end of the “Installation” section).

Enter the installation path as desired.

To continue the installation: Click the button [OK].

> The actual installation procedure begins now.

Select the language version, e.g. “English,” and click the button to confirm.

(8)

> You have now made all the necessary entries for installation of “Sartorius Win Scale.” The actual installation process takes place automatically. The installation program automatically copies all necessary files into the target directory.

> At the end of the installation procedure, you can choose to have the ReadMe file displayed and/or start the “Sartorius Win Scale” applica-tion.

Click on the check boxes with the mouse to select or unselect the individual options. By default, “Show ReadMe File” is checked and “Start Sartorius Win Scale ” is unchecked (application will not start). > The ReadMe file is displayed on the screen. The user can print out the

file by selecting the “Print” option under the “File” menu. To close the ReadMe file, either click on the “x” button in the upper right-hand corner of the window or select the “Exit” option under the “File” menu.

> If the option “Start Sartorius Win Scale” was selected, the applica-tion is started. If both opapplica-tions were selected, the applicaapplica-tion is started and the ReadMe file is displayed at the same time. If neither of the two options was selected, the installation process ends with the “Setup completed” window. This completes the installation of “Sartorius Win Scale.”

Select the options and click the button [Finish]. This completes the installation process.

> The program searches for a connection to the connected balance or scale.

A virtual display is shown on the screen.

If no device is connected to the serial interface “COM1” (default setting at program start, see also the section “Configuring Communi-cation with the Device” in the “Operation” section), the following error message appears: “ERR DLL -6” (“cannot connect to scale”). If a balance, scale or weighing platform is connected to the “COM1” interface and properly set to operate in the xBPI communication mode (see the section entitled “Connecting Devices to the PC”), a weight readout will appear in the virtual display and operator terminal.

(9)

Clicking on the button changes the setting from xBPI to SBI.

First Use

Load the “Sartorius Win Scale” application to test whether the program was installed correctly. It is not necessary to connect a device to the PC for this purpose.

To access the program from the Windows platform, select “Start” and “Programs.”

> In the list of programs, the application is shown with an icon and the name “Sartorius Win Scale.” The exact location in the menu tree depends on the path selected during installation (e.g. for the standard path: “Sartorius AG” “Sartorius WinScale”)

Click on this name with the mouse to start the application.

> The program performs an integrity test. Once this has been successfully completed, the verifiable window appears as a virtual display and operator terminal in the upper left-hand corner of the screen.

If a balance, scale or weighing platform is connected to the “COM1” interface and properly set to operate in the xBPI communication mode (see the section entitled “Connecting Devices to the PC”), a weight readout will appear in the virtual display and operator terminal.

For more information, refer to the sections entitled “Operation” and “Error Messages.” (see the section “Error Messages”).

Exit the application by clicking on the on-screen button or by entering “x” or “X” on the keyboard.

When prompted as to whether you are sure that you want to exit the applica-tion, click on the “Yes” button to quit or enter “y” or “Y” on the keyboard. > This exits the “Sartorius Win Scale” application, and the virtual display and

operator terminal disappears from the screen (see also the section entitled “Exiting Sartorius Win Scale” in the “Operation” section).

(10)

Configuring the Communication Library

If the error message “ERR APP 13” (“Integrity test of the communication library (DLL) has failed”) appears in the virtual display and operator terminal, the path assigned to this library in the program must be updated. This error occurs because the user selected a different directory path during installation rather than the standard installation directory “C:\Program Files\Sartorius AG\Sartorius Win Scale”. You can correct this error as follows (see also the sections entitled “Accessing the Service Menu” and “Defining the Communication Library” in the “Operation” section, which provide detailed descriptions):

Access the service menu: Click on the “S” button with the mouse or enter “s” or “S” on the keyboard.

When the selection screen for the user status and the password appears, select “System” for the user status by clicking on that choice with the mouse and enter the accompanying password (the preset password after installation is

“WINSCALE”). Click on the “OK” button to confirm.

In the “Service menu” selection screen, click on the “Communication library” button.

In the “Communication library” selection screen, click on the “...” button located to the right of the current path for the communication library, which is shown as “Communication library.”

In the “Browse” dialog, set the correct path for the communication library. The filename is “srvind3_3_0_1.dll”. If this setting is not correct, enter the correct access code “3920898448” in the field labeled “Access code.”

Click on the “Update” button. The updated communication library is displayed in the “Current configuration” box.

Confirm all changes by clicking on the “OK” button. The program then returns to the service menu.

Click the “OK” button to exit the service menu.

The communication library has now been set correctly. If no device is connected to the “COM1” interface, the error message “ERR DLL -6” will appear on the display. If a device is properly connected, the weight value appears in the virtual display and operator terminal. If other error messages arise, consult the “Error Messages” section.

Changing the Device Name (XBPI Mode)

During the installation of “Sartorius Win Scale,” the communication parameters for the connected device in XBPI mode are set to the following defaults:

– ID name: xbpi – Baud rate: 9600

– Protocol: srvind 3301 – Parity: kA

– Address: 0 – Handshake: RTS

– COM Port: 1 – Data bits: 8

The protocol name “srvind 3301” is linked to the associated communication library. It can be changed in the service menu under “Communication library” (see the section “Defining the Communication Library” in the “Operation” section). The ID name “srvind 3301” is user-definable. If you would like to change this ID, proceed as follows (see also the sections entitled “Accessing the Service Menu” and “Configuring Communication with the Device” in the “Operation” section, where this setting is described in detail).

Changing the Device Name (SBI Mode)

During the installation of “Sartorius Win Scale,” the communication parameters for the connected device in SBI mode are set to the following defaults:

– ID name: sbi1 – Baud rate: 9600

– Protocol: srvsbi 3_6_0_6 – Parity: kA

– Address: 0 – Handshake: RTSXONXOFF

– COM Port: 1 – Data bits: 8

The protocol name “srvsbi 3_6_0_6” is linked to the associated communication library. It can be changed in the service menu under “Communication library” (see the section “Defining the Communication Library” in the “Operation” section). The ID name “srvsbi 3_6_0_6” is user-definable. If you would like to change this ID, proceed as follows (see also the sections entitled “Accessing the Service Menu” and “Configuring Communication with the Device” in the “Operation” section, where this setting is described in detail).

(11)

Access the service menu: Click on the “S” button with the mouse or enter “s” or “S” on the keyboard.

When the selection screen for the user status and the password appears, select “System” for the user status by clicking on that choice with the mouse and enter the accompanying password (the preset password after installation is

“WINSCALE”).

Confirm by clicking on the “OK” button.

(12)

The “Weighing platform” selection screen appears. The configuration data for the weighing platform is displayed.

If operating mode “SBI” is selected, additional settings can be configured via the “SBI Setting” button that subsequently becomes active.

Enter the ID for the weighing platform.

Select whether or not it is a verified device. The result of a calibration/ adjustment process can be printed out. With the “Blockprint” setting, the results are collected and printed out as a blockprint upon request. Consult the configurations according to the respective operating instructions for the weighing platform.

Based on the respective operating instructions, select whether the combined tare/null setting can be selected. The buttons can be pressed separately, for example, on the film keypad of laboratory scales and balances.

Confirm the entered data with OK.

Settings for XBPI: See image

Save the new ID in the program by clicking on the “Update” button and confirm the change by clicking on the “OK” button. The program then returns to the service menu.

Click the “OK” button to exit the service menu.

Click on the button or press “n” or “N” on the keyboard. A selection screen appears with the options SBI or XBPI.

Click on your selection (e.g.: SBI or XBPI) and confirm the selection by clicking the “OK” button.

Reselect the device (see also the section “Selecting a Device” in the “Opera-tion” section).

The new device ID now appears in the corresponding field of the virtual display and operator terminal.

(13)

Creating the Program Icon

You can assign an icon to the “Sartorius Win Scale” application on the desktop of the PC as follows:

Using the right mouse button, double-click on a free area of the PC desktop. A context menu is displayed.

If you select “New” – “Shortcut,” the “Create Shortcut” window appears on screen.

Click on the “Browse...” button, set the directory path for the application “WinScale.exe” and confirm the entry by clicking on the “Open” button (or double click on “WinScale.exe”).

In the “Command Line” window, add the file name “WinScale.ini” after the application name “WinScale.exe” (you must leave a space before the word “WinScale,” i.e.: “...\WinScale.exe” WinScale.ini).

Confirm the new command line by clicking on the “Next” button. Assign a name to the shortcut, e.g. “Win Scale” and create the shortcut by clicking on the “Finish” button.

> The icon for the new shortcut to the “Sartorius Win Scale” application appears on the PC desktop: . You can start the “Sartorius Win Scale” application by double clicking on this icon.

Note:

Once the program has been installed, both passwords (i.e. for the “User” and “System” user profiles) have the default setting “WINSCALE”. To protect the program from unauthorized changes to relevant system settings, change these passwords immediately after starting up the application and give each user profile a unique password. Record the passwords and store them in a safe place. If you lose the system password, you must reinstall the program.

This completes all installation procedures for the “Sartorius Win Scale” applica-tion.

(14)

Connecting Devices to the PC

Connecting the FB/FC series to the PC

Scales of the FB/FC series are equipped with a built-in RS-232 data interface. The data output port (12-pin, round socket) is connected to the PC via cable YCC01-03ISM5. If the PC has a 9-pin connector rather than a 25-9-pin connector, you must also connect a 6965619 adapter cable between the PC and the interface cable. Set the balance to operate in the “xBPI” commu-nication mode. For more information, refer to the installation and operating instructions for the particular balance.

Connecting the LA/LP series to the PC

Scales of the LA/LP series are equipped with a built-in RS-232 data interface. The data output port (25-pin D-Sub female) is connected to the PC via cable 7357312. If the PC has a 9-pin connector rather than a 25-pin connector, you must also connect a 6965619 adapter cable between the PC and the interface cable. Set the balance to operate in the “xBPI” communication mode. For more information, refer to the installation and operating instructions for the particular balance.

Connecting an isi Operating Terminal/FD Series to the PC The isi industrial terminal must be equipped with a serial RS-232 interface. Scales of the FD Series come standard with an RS-232 interface. The data output port (12-pin, round socket) is connected to the PC via cable YCC01-03ISM5. If the PC has a 9-pin connec-tor rather than a 25-pin connecconnec-tor, you must also connect a 6965619 adapter cable between the PC and the interface cable. Set the RS-232 interface (“COM” interface) to operate in the “XBPI-232” communication mode by accessing the system settings. For more information, refer to the installation and operating instructions for the isi industrial terminal or the FD series scale.

Connecting an IS Weighing Platform to the PC

IS weighing platforms are equipped at the factory with an RS-485 interface and, in general, do not have their own power supply. The weighing platforms are operated in conjunction with an isi industrial terminal, and power is supplied via the connecting cable. To directly connect a weighing platform (or several weighing platforms in an xBus network – see the section entitled “xBus Network” for more information) to the PC, the weighing platform must be retrofitted with its own power supply. For this purpose, you will need an “installation kit for an external power supply” (for line voltage or mains supply of 220V: order no. 6971889) and a YAS03IS upgrade kit.

To facilitate data exchange between the PC and the weighing platform, you must do one of the following:

– Use an RS-232/RS-485 interface converter, model 725219, which is connected to the PC via cable 7253143. The pin assignment for connecting a weighing platform is included in the installation and operating instructions for the interface converter.

– Install an RS-485 interface card in the PC. For example, the W&T PC card 13601 (order no. 62PC-Y014) is suitable for this purpose. Additional information on this can be found in the section “xBus Network” in the “System Overview” section.

(15)

Operation

Loading Sartorius Win Scale Requirements:

– The connection between the device and the PC must be properly established (see also “Connecting a Device to the PC”). – The application must be installed

(see also “Installing Sartorius Win Scale”).

Double-click on the Win Scale icon on the PC desktop. > This starts the application.

An integrity test of the program file (“.exe file”) is performed first.

If this fails, a corresponding error message appears. The application is closed immediately. This implies that the program file has been manipulated. In this case, notify your Sartorius dealer, your nearest Sartorius Service Center or the International Technical Support Unit based in Goettingen, Germany, since you will not be able to run the program and it is, therefore, unusable.

If one of the error messages shown on the left is displayed when you start the application, “Sartorius Win Scale” will also close immediately.

In these cases, the application was not installed correctly or the file shown in the error message could not be found.

To correct this error: Reinstall the application (see the section entitled “Installing Sartorius Win Scale” for more information). If the error continues to occur, contact your Sartorius dealer, your nearest Sartorius Service Center or the International Technical Support Unit based in Goettingen, Germany.

If the self-test of the application is completed successfully, the verifiable window will appear on screen as the virtual display and operator terminal. The first time “Sartorius Win Scale” is run after reinstallation, the verifiable window is posi-tioned in the upper left-hand corner of the screen. Otherwise, the window remains in the position defined by the user the last time the application was accessed (see also the section entitled “Configuring the Display Position”).

The virtual display and operator terminal of the “Sartorius Win Scale” application is shown in a fixed area on the screen where it cannot be overwritten. It cannot be hidden by any other application, and it returns to the foreground of the display after each change to a measured value.

The figure on the left shows a practical example of the “Sartorius Win Scale” virtual display and operator terminal, which cannot be overwritten, together with another application (e.g. MS Excel).

M

(16)

If the application starts correctly but the communication library necessary for communication with the connected weighing instrument is missing, the error message “ERR APP 13” is displayed. The commu-nication library can be selected in the service menu (see the section entitled “Accessing the Service Menu” for more information). If the display window is empty, a weighing instrument was not selected. In this case, access the service menu, select the appropriate device and click on the on-screen button to confirm (see the section entitled “Accessing the Service Menu” for more information). If other error messages are displayed, consult the section entitled “Error Messages.”

You can access on-line help by pressing the [F1] key.

Information in the Display

1 Zero-indicating device (zero indication) 2 Maximum capacity

3 Minimum capacity 4 Measured value (weight) 5 Verification scale interval e *

6 ID of the auxiliary indicating devices / Scale interval d * 7 Weight unit / stability symbol

8 Scale interval d 9 Net symbol 10 Caution triangle 11 “Busy” symbol

12 “Exit application” button 13 Gross value

14 “Service menu” button

15 “Store measured value in alibi memory” button 16 Tare value

17 “Zero-setting” button 18 “Tare” button 19 Device ID 20 Device address

21 PC serial interface number 22 “Select device” button 23 + or - sign

* Not displayed on devices in a non-verifiable configuration. Note

When using the “Sartorius Win Scale” application in legal metrology, make certain that the metrology line (maximum capacity (2), minimum capacity (3), verification scale interval e (5) and, if present, scale interval d (8)) (depending on the design of the scale or balance, see the respective operating instructions) contains the correct data. For weighing platforms with a scale interval d not equal to the verification scale interval e, the additional display position d must be labeled (this does not apply to weighing platforms with e = 1 mg and d < 0.1 mg). This must be ensured before calibration of the scale. Set the required configuration according to the respective operating instructions for the weighing platform.

The on-screen buttons are activated either by clicking on them with the mouse or by entering the letter or number indicated on the buttons using the PC keyboard. Both upper-case and lower-case letters can be entered. The same is true for the buttons in the selection windows and information windows that are displayed while the program is running. These buttons can be activated either by clicking on them with the mouse or by holding down the [ALT] key and pressing the underlined letter shown on the on-screen button on the keyboard (shortcut).

M 1 2 3 4 5 6 7 8 9 10 12 11 13 14 15 16 17 18 19 20 21 22 23

(17)

Exiting Sartorius Win Scale

Using the mouse, click on the button (12) or enter “X” on the key-board.

> The application prompts you to confirm whether you would like to quit the application.

Click on the “Yes” button or enter “Y” on the keyboard.

> The “Sartorius Win Scale” application closes, and the virtual display and operator terminal disappears from the screen.

Selecting a Device

Using the mouse, click on the button (22) or enter “N” on the keyboard.

> A selection screen that allows you to choose the desired weighing instru-ment is displayed.

Select a device from the list by clicking on it with the mouse or by pressing the cursor buttons ↑ and ↓ on the keyboard, and confirm the selection by clicking the “OK” button.

> The “Sartorius Win Scale” application establishes the link to the selected weighing instrument. The device ID appears in the field (20) of the virtual display and operator terminal.

If you would like to connect to a device not listed on the selection screen, access the service menu using the “System” user status and select the desired device from the list of available weighing instruments via the “Weighing Platform” menu (for more information, see the section entitled “Configuring Connection with the Device” under “Accessing the Service Menu”).

Taring a Device

Use the mouse to click on the “T” button (19) or enter “T” on the keyboard. > The weighing instrument is tared, and the readout (4) is set to zero. The net

symbol (9) appears in the virtual display and operator terminal and indicates that the measured value (4) displayed is a net value. The tare value appears in the tare value display (16), and the gross value is shown in the gross value display (13).

If you attempt to tare the device with a gross value ≤0, the error message “ERR 09” appears in the virtual display and operator terminal. The function is not executed.

Zeroing a Device

Using the mouse, click on the button (17) or enter “0” on the key-board.

> This zeroes the display – the weight value measured (4), tare display (16) and gross value display (13) are all set to zero. If the weight (4) displayed was a net value before the display was zeroed, the net symbol (9) disap-pears.

If you attempt to zero the device outside of its zeroing range, the error message “ERR 08” appears in the virtual display and operator terminal. The function is not executed.

(18)

Writing the Weight to Alibi Memory Note:

You must configure the alibi memory before using it for the first time. This process is described under “Accessing the Service Menu”

– “Configuring the Alibi Memory.” Once the alibi memory has been configured, you must check it to make sure it functions properly (for more information, refer to the section entitled “Function Test of the Alibi Memory” under “Accessing the Service Menu”).

Click on the “E” button (15) with the mouse or enter “E” on the keyboard. > The weight is stored in the alibi memory. If you have not yet configured the

alibi memory, a corresponding error message will be displayed. In this case, access the service menu using the “System” user status and configure the alibi memory using the “Settings” menu. See here the section “Accessing the Service Menu” – “Configuring the Alibi Memory.”

Minimize

The display can be minimized on the screen with the “M” button on your keyboard; the display then disappears from the screen.

Note: Only possible with the SBI setting!

Accessing the Service Menu

Use the mouse to click on the “S” (14) button or enter “S” on the keyboard.

> A selection screen appears for entering the user status and corresponding password.

3 user profiles are available for selection: – Normal status, in which no password is required.

The user can access general system information, such as the following: – Information about the currently selected device (selection of the device

with the button (22))

– Information about the software “Sartorius Win Scale” (e.g. software version and software ID for inspecting the software modules relevant to verification)

– User status (requires the user password). The user can also:

– Read the data stored in the alibi memory and export this data

– Read the data in the directory “Archived Day Files” and export this data – Read the data in the directory “Altered

Day Files” and export this data

– System status (requires the system password).

The user has access to all settings in the service menu.

Select the user status (“User” or “System”) by clicking on the desired status with the mouse or by using the cursor buttons - and ¯ on the keyboard, enter the associated password and confirm by clicking on the “OK” button. Note:

The password is case-sensitive, so be aware of upper-case and lower-case letters when making your entry.

If an incorrect password is entered, an error message will be displayed. You have the option of re-entering the password at this time.

If you only wish to view general system information (normal status, which does not require a password), just click on the “OK” button without entering a password. In this case, the user status displayed is meaningless.

M

(19)

> The service menu appears on screen. This menu is divided into 5 sections (“Weighing Platform Communication,” “DDE Communication,” “Information,” “Verifiable Memory” (alibi memory) and “Display”).

One or several on-screen buttons appear in each section. Note:

Depending on the user status selected, the on-screen buttons that cannot be activated have different lettering to distin-guish them from the others in accordance with the

Microsoft Windows conventions. The figure on the left shows the service menu when the user status “User” is selected, and the figure below it shows the service menu for the “System” user status.

To activate an on-screen button, either click on it with the mouse or enter [ALT] + the the keyboard key for the underlined letter shown on the button (shortcut).

To exit the service menu: Click on the “OK” button or enter “[ALT] + O” on the keyboard.

Changing the Service Menu Password

Purpose: Limiting the right to read, set or change data relevant to security and verification in the service menu to very select groups of properly trained users.

Select the user status for which you would like to change the password (“User” or “System”) by clicking on it with the mouse or by using the cursor buttons ↑ and ↓ on the keyboard, then click the button “Change”.

(20)

> An entry screen for changing the password appears. The password for a particular user status can only be changed if you know the currently valid password.

First enter the old password, then enter the new password and confirm it by re-entering the new password. Confirm the password change by clicking on the “OK” button.

Note:

The password is case-sensitive, so be aware of upper-case and lower-case letters when making your entry.

Reading Information from the Connected Device

Purpose: Reading identifying data, such as the model name, serial number and metrological data, from the selected weighing instrument. If necessary, select a weighing instrument

(see the section entitled “Selecting a Device” for more information). To access the service menu:

Use the mouse to click on the “S” (14) button or enter “S” on the keyboard. A password is not required (see the section entitled “Accessing the Service Menu”).

> The service menu appears on screen.

In the “Information” section, click on the “Weighing platform” button or enter “[ALT] + F” on the keyboard.

> The screen “Weighing Platform – Information” appears with the desired information.

To exit the screen: Click on the “OK” button.

You can also retrieve this information by selecting the configuration menu for the connected weighing instrument (“Weighing Platform – Settings” screen). To do so, access the service menu using the “System” user status, click on the “Weighing platform” button in the “Communication weighing platform” section of the menu, select the desired weighing instrument from the list, and click on the “Test” button. This procedure is described in the section entitled “Configuring Communication with the Device.”

(21)

Reading Program Information Purpose:

– Reading information about the program, such as software version, software ID, DLL version and PTB test certificate number. – Inspection of the software modules relevant to verification

When you access the program information, the version ID of each function relevant to verification in the “Sartorius Win Scale” applica-tion is checked and a total checksum is determined from this data via checksum calculaapplica-tion (CRC: Cyclic Redundancy Check). This allows the user to compare the calculated actual checksum to the displayed target checksum.

M M

To access the service menu:

Use the mouse to click on the button (14) or enter “S” on the keyboard. A password is not required (see the section entitled “Accessing the Service Menu”).

> The service menu appears on screen. Enter the password

In the “Information” section, click on the “Software” button or “[ALT] + S” on the keyboard.

> The screen “Software – Information” appears with the desired information. The actual and target checksums are indicated for the software ID. The integrity of the software modules relevant to verification is only ensured when these two values are identical.

(22)

Defining the Communication Library

Purpose: Selecting the verifiable communication library necessary for communication with the connected weighing instrument (or instruments). In order to work with “Sartorius Win Scale,” at least one “verifiable communication library” must exist. This library functions as a driver for the connected weighing instrument and must, therefore, “correspond” to the device with which communication is to be established. The communication library (e.g. “srvind3301.dll”) is a separate file, not an integral component of the “Sartorius Win Scale” software module (see also “Software System” in the “System Overview” section), but it is included in the delivery. The supplied file enables communication with the most important Sartorius instruments via the xBPI protocol; please consult with your Sartorius dealer, the Sartorius Service Center or the International Technical Support Unit based in Goettingen, Germany, for special applications. For licensing reasons, an access code for each communication library is delivered separately; this code functions as a key to enable use of the corresponding library.

The following steps are necessary to define the communication library: – Selection of a protocol ID

– Assignment of the verifiable communication library linked to this protocol ID (entry of the file name with directory path)

– Entry of the corresponding access code – Updating of the library directory

Select the “System” user status by clicking on it.

Enter the system password and confirm by clicking on the “OK” button. > The service menu appears on screen.

Click on the “Communication library” button in the “Communication weighing platform” section of the menu or enter “[ALT] + L” on the keyboard.

(23)

> The “Communication Library – Settings” screen is displayed. Enter the desired protocol ID (e.g. “srvind3301.dll”). The protocol ID is user-definable and enables the application to use the communica-tion library linked to this name.

Enter the file name of the communication library with the complete directory path. To do this, click on “...” button, select the required file in the “Browse” screen, (e.g. “srvind3301.dll”) and confirm by clicking on the “Open” button. The file then appears in the “Commu-nication library” window.

Enter the access code. The access code is delivered separately with the product.

Update the communication library: Click on the “Update” button or enter “[ALT] + U” on the keyboard. If a communication library already exists, you will be asked to confirm that you wish to update the library.

> The selected communication library is displayed in the “Current configuration” box. If one or more libraries are already listed here, the new library will be placed at the top of the list.

To exit the screen and confirm changes to the settings: Click on the “OK” button.

To cancel without changing the settings: Click on the “Cancel” button.

Changing the current communication library (if several communica-tion libraries exist):

Select the new communication library in the “Current configuration” box by clicking on it with the mouse.

Update the communication library by clicking on the “Update” button.

Answer the prompt with “Yes.”

> The currently valid library (protocol ID, file name with directory path and access code) is redisplayed in the “Assign name” section. The list of available libraries in the “Current Configuration” box is reordered so that the current configuration is listed first.

(24)

Removing a Communication Library (If multiple communication libraries exist):

Select the communication library to be removed in the “Current Con-figuration” box by clicking on it with the mouse.

Click on the “Remove” button or enter “[ALT] + R” on the keyboard to remove the communication library.

> The currently valid library (protocol ID, file name with directory path and access code) is redisplayed in the “Assign name” section. The deleted communication library is removed from the list of all existing communi-cation libraries in the “Current configuration” box. If no communicommuni-cation libraries exist at this point, the error message “ERR APP 01” will appear in the virtual display and operator terminal. For the program to function properly, a communication library must first be defined again.

Configuring Communication with the Device

Purpose: Setting all parameters necessary for communication with a weighing instrument, such as the device ID, communication protocol, device address, COM port on the PC and other interface parameters. Proper communication with the weighing instrument can be tested. To establish communication between the “Sartorius Win Scale” applica-tion and an external device, the following settings are required for the application and the external device:

– The “Sartorius Win Scale” application must use the verifiable communi-cation library that corresponds to the external device. A name (protocol ID) that establishes the necessary connection is assigned to the library in the selection screen “Communication Library – Settings” (see also the section “Defining the Communication Library”).

– The device address, connection of the serial interface on the PC (COM port) and the interface parameters must be adapted for communication with the external device.

– The external device must be set to the transmission protocol configured in the “Sartorius Win Scale” application (see the section entitled “Connecting Devices to the PC”).

The external device must be correctly configured in order to select it for communication with “Sartorius Win Scale” via the button (22) in the virtual display and operator terminal. You can configure these settings in the “Weighing Platform – Settings” screen, which is explained below.

(25)

Use the mouse to click on the “S” (14) button or enter “S” on the keyboard. > A selection screen appears for entering the user status and corresponding

password.

Click on the “Weighing platform” button in the “Communication weighing platform” section of the menu or enter “[ALT] + W” on the keyboard. > The “Weighing Platform – Settings” screen is displayed (see figure on the

next page).

Enter the device ID in the “ID” field.

The device ID is user-definable. Once you have selected a device by clicking on the button (22) in the virtual display and operator terminal, this name appears in the field above the on-screen button (marked as (19) in the figure in the section entitled “Information in the Display”).

Note:

Each new entry in the “ID name” field opens a new set of parameters (= communication path). Several sets of parameters can exist for the same device. However, this makes little sense in actual use because all parameters (communication protocol and all interface parameters) must be identical for the same device.

Select the communication protocol for data transfer between the PC and the device in the “Protocol” field. Clicking on the button opens a selection window in which you can click on the desired protocol. This protocol name establishes the link to the verifiable communication library that supports communication with the external device (see the section entitled “Defining the Communication Library”).

Enter the device address in the “Address” field. The device address is a number between 1 and 31 (for an individual device, the address “0” is also acceptable) that is assigned only to that device. With the help of configura-tion programs, such as YAD01IS, a particular address can be assigned to a device. If you leave the “Address” field blank, the address will be interpreted as “0”.

Enter the number of the serial interface on the PC (COM port) used for data exchange between the PC and the device in the “COM Port” field. If, for example, the device is connected to the COM1 interface, enter “1” in the “COM Port” field.

Entry of other interface parameters, such as “baud rate,” “parity,” “hand-shake,” “data bits,” and “stop bits” is optional. If these fields are left blank, “kA” (no entry) appears in each field. If data is entered into these fields, however, it must agree with the configuration of the device interface. Otherwise, data cannot be transmitted properly between the PC and the external device.

To transfer the new communication parameters to the PC: Click on the “Update” button with the mouse or enter “[ALT] + U” on the keyboard. If you have changed an existing configuration (the entry in the “ID name” field was not changed), you must answer a prompt to confirm the updates. > The new set of parameters appears in the “Current configuration” list. This

list is arranged alphabetically according to the entries in the “ID name” field.

To exit the screen and confirm changes to the settings: Click on the “OK” button.

(26)

Changing a communication parameter set (if multiple parameter sets exist):

Select the set of parameters to be changed in the “Current configuration” box by clicking on it. The communication parameters that have been valid up to now are displayed in the corresponding fields and can be changed. If you change the data in the “ID name” field in the process, this will be interpreted by the program as a new set of parameters (see the note on the previous page).

Update the parameter set by clicking on the “Update” button.

> The changed parameter set is displayed again in the “Current configuration” list.

Removing a set of communication parameters (if several sets of parameters exist):

Select the set of parameters to be removed in the “Current configuration” box by clicking on it.

Click on the “Remove” button or enter “[ALT] + R” on the keyboard to remove the parameter set.

> The deleted set of parameters is removed from the list of all existing sets of communication parameters under “Current configuration.” If no sets of parameters exist at this point, the error message “ERR APP 01” will appear in the virtual display and operator terminal. This error message disappears as soon as proper communication to an external device is re-established.

Testing the connection to a device:

Select the connection to be tested by clicking on it in the “Current configuration” box.

> The corresponding communication parameters are displayed in the applicable fields.

Click on the “Test” button or enter “[ALT] + T” on the keyboard.

> The “Weighing Platform – Information” screen is displayed. If a connection to a particular device has been established, the applicable identifying data for that device, such as the model name, serial number and metrological data, appear on this screen. If the connection could not be established (e.g. due to faulty communication parameter settings), “???” appears in the “Model” and “Serial Number” fields.

To exit the screen: Click on the “OK” button.

Defining DDE Connection Parameters

Purpose: Selecting the communication parameters necessary for Dynamic Data Exchange (DDE) between a DDE server program and a DDE client program (see section “Communication with External Programs (DDE Clients)”).

As a DDE server program, the “Sartorius Win Scale” application can receive and execute queries and requests from an external program (DDE client program) (e.g. requests to read a net value at stability and provide this data to the client program or to tare the weighing instrument). The DDE server program makes information available for retrieval without actively seeking communication with other software processes.

DDE client programs can establish DDE communication with a server application using the DDE communication parameters made available by the server. These parameters are defined by the three terms “Service,” “Topic” and “Item”:

– The “Service” parameter is the name that the server program recognizes when a DDE client program attempts to establish a DDE connection.

– The “Topic” parameter describes the type of data source. – The “Item” parameter identifies the actual data requested by the

DDE client.

The entries for the DDE communication parameters are user-definable in the DDE server.

This section describes only the entry of connection parameters. For further information on the DDE interface and application exam-ples, refer to the section entitled “Communication with External Programs (DDE Clients).”

Enter the system password and confirm by clicking on the “OK” button.

Click on the “Connection parameters” button in the “Communica-tion DDE” sec“Communica-tion or enter “[ALT] + B” on the keyboard.

(27)

> The “Connection Parameters – Settings” screen is displayed.

Enter the “Service,” “Topic” and “Item” parameters in the respective fields. These must also be defined in the client application to be served by “Sartorius Win Scale.”

To confirm the settings: Click on the “OK” button.

If you do not want to save the settings: Click on the “Cancel” button.

Configuring the Alibi Memory

Purpose: Defining a directory path and storage period for data in the alibi memory.

Data stored in the alibi memory is protected against manipulation by a security mechanism (CRC: Cyclic Redundancy Check). The security mecha-nism is designed to satisfy the special statutory requirements that apply to the archiving of verifiable data. Data stored in this memory is considered verifiable for the entire period for which it is stored in the memory. The first time you run “Sartorius Win Scale” after installing the program, you must define a directory path under which files will be stored and protected in the alibi memory. The directory (“ESP” is generally selected as the name for the alibi memory) must be created on the local hard disk of the PC being used. It may not be located on a diskette or a network drive. Each time data is stored in the alibi memory, the program checks whether sufficient storage capacity exists under the defined directory path. As a ring buffer, the alibi memory is set up with a defined storage capacity allocated in days. Once the defined time period expires, the oldest day file is moved from the alibi memory to the archive directory “WINSCALE-ESP-DEL-FILES” (“archived day files”). The files moved in this way are protected against manipulation with checksums in the same manner as the files in the ring buffer. If an attempt is made to alter a file stored in the alibi memory or in the archive directory, the file is identified by the program as a manipulated file and removed from the alibi memory or archive directory. These files are stored in the directory “WINSCALE-ESP-CRC-ERROR”.

Use the mouse to click on the “S” (14) button or enter “S” on the keyboard. > A selection screen appears for entering the user status and corresponding

password.

Click on the “Settings” button in the “Verifiable Memory” (alibi memory) section of the menu or enter “[ALT] + E” on the keyboard.

(28)

> The “Settings” screen is displayed.

Enter the time period for data to be stored in the ring buffer (1 to 30,000 days) in the “Time frame” field. The time period is dependent on the legal requirements of your country.

Enter the path for the “Verifiable Memory” directory in the “Memory path” field. The default setting for the path is “C:\ESP”.

Note:

The alibi memory (ring buffer) must be located on the local hard disk. If this is not the case, a corresponding error message will be displayed, and you will be given the option of correcting the error (see

the figure below on the left). If you do not make a correction, the default “C:\ESP” will be used as the path.

Note:

The paths for archived data (“WINSCALE-ESP-DEL-FILES”) and altered data (“WINSCALE-ESP-CRC-ERROR”) are created as subdirectories of the alibi memory (ESP).

To save the configuration: Click on the “OK” button or enter “[ALT] + O” on the keyboard.

To cancel the configuration: Click on the “Cancel” button or enter “[ALT] + C” on the keyboard.

Function Test of the Alibi Memory

Purpose: Testing the alibi memory to ensure error-free function. Immediately after it has been configured, the alibi memory must be tested to ensure error-free function and compliance with the appli-cable legal requirements. This is done by performing several weighing operations, storing the resulting data in the alibi memory, accessing the stored data and checking to ensure that it was stored correctly (for more information, see also the sections entitled “Writing the Weight to Alibi Memory” and “Reading the Alibi Memory and Exporting Data”). Perform a weighing operation and store the weight in the alibi memory. To do this, click on the “E” button (15) with the mouse or enter “E” on the keyboard (see “Writing the Weight to the Alibi Memory”). Repeat the procedure several times with various weights.

To access the service menu and read the data in the Alibi memory (see also “Accessing the Service Menu” – “Reading the Alibi Memory and Exporting Data”):

Click on the “S” button (14) with the mouse or enter “S” on the keyboard.

> A selection screen appears for entering the user status and correspond-ing password.

Click on “User” to select this status. You can also select the “System” user status instead, which carries higher privileges.

Enter the password for the particular user status selected, and click on the “OK” button to confirm.

(29)

Select the alibi memory by clicking on the “Verifiable memory” button in the “Verifiable memory” section of the menu or by entering “[ALT] + V” on the keyboard.

> The “Display” screen appears.

To select a date: Clicking on the button opens a selection window in which you can click on the desired date.

Note:

If you do not first choose a date when selecting a data record, you will be alerted by a corresponding error message.

Select the desired data record by clicking on it with the mouse in the “Data record” box. As an alternative method, enter the verifiable ID for this data record. The ID appears in every data record as the first group of numbers before the date.

> The selected data record, which appears in compressed format in the “Data record” box, is shown in detail in the “Contents” section of the window.

Check the displayed data record to determine if it has a verifiable ID and a checksum. These must be displayed in their respectively designated fields. The checksum must be labeled with “OK:”. The actual checksum can be seen at the bottom of the data record display after the remarks, and the whole checksum can be viewed by sliding the scroll bar to the right side of the window (see figure).

(30)

Check the data records of all test weighing operations in the same manner. All data records must have a unique verifiable ID and a correct checksum.

If errors occur, notify your Sartorius dealer, the nearest Sartorius Service Center or the International Technical Support Unit based in Goettingen, Germany. In this case, the “Sartorius Win Scale” application may not be used in legal metrology.

Reading the Alibi Memory and Exporting Data

Purpose: Reading out data stored in the 3 memories for weights. The data records can be selected and exported for further processing. In the process, a copy of the current day file is created in ASCII format. The “Sartorius Win Scale” appl
