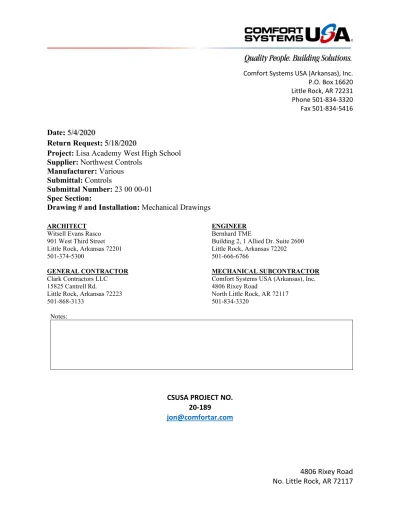

CSUSA PROJECT NO

(1)

Comfort Systems USA (Arkansas), Inc.

P.O. Box 16620

Little Rock, AR 72231

Phone 501-834-3320

Fax 501-834-5416

4806 Rixey Road

No. Little Rock, AR 72117

Date:

5/4/2020

Return Request:

5/18/2020

Project:

Lisa Academy West High School

Supplier:

Northwest Controls

Manufacturer:

Various

Submittal:

Controls

Submittal Number:

23 00 00-01

Spec Section:

Drawing # and Installation:

Mechanical Drawings

ARCHITECT

ENGINEER

Witsell Evans Rasco

Bernhard TME

901 West Third Street

Building 2, 1 Allied Dr. Suite 2600

Little Rock, Arkansas 72201

Little Rock, Arkansas 72202

501-374-5300

501-666-6766

GENERAL CONTRACTOR

MECHANICAL SUBCONTRACTOR

Clark Contractors LLC

Comfort Systems USA (Arkansas), Inc.

15825 Cantrell Rd.

4806 Rixey Road

Little Rock, Arkansas 72223

North Little Rock, AR 72117

501-868-3133

501-834-3320

Notes:

CSUSA PROJECT NO.

20-189

(2)

7631 Northshore Place

North Little Rock, AR 72118

501.280.0404

www.nwcontrols.com

SUBMITTAL

Equipment:

Building Automation System

Project:

Lisa Academy

–

West High School

Location:

Little Rock, AR

Engineer:

BTME

Mechanical:

Comfort Systems USA

Submitted for approval by: Virgil Irvin

Northwest Controls Systems, Inc.

Date:

28 April 2020

• Control Diagrams with Sequences of Operation

• Bill of Materials

(3)

© 2015 Honeywell International Inc. All Rights Reserved. LT-COMPASS Rev. 1.4 09_15

₁

Part of Alerton’s BACtalk™ Ascent product line, Compass is a

comprehensive, powerfully designed product that replaces Alerton Building

Suite and Envision for BACtalk as the operator workstation of the future.

Use of informative display layers with an improved tree-style navigation

structure provides intuitive and guided browsing sessions. User-specific and

group-specific navigation enforces access privileges and streamlines the user

experience.

Graphical controls bring data to life. OmniGraphic images transform

background images into interactive controls to visually communicate system

status. Plus, with Alerton’s OmniZoon, graphics automatically adjust to

monitor display size for better visibility and system management.

Compass provides a familiar user experience through a standard user

interface, enabling you to get users quickly up to speed on the software and

your building’s systems. Plus, with improved localization features, multiple

Web-UI users can connect to the same Compass System using their native

language and comfortable numeric formats.

Build dynamic graphics faster and easier with Compass’ updated isometric

graphics library. This library also serves as a foundation for users to build

their own libraries. Compass supports many graphic formats and sizes

and easily converts Alerton legacy graphics (bitmaps) to HTML 5 format,

enabling you to quickly integrate graphical content to the web without using

Flash and third-party plug-ins.

Note:

Compass with the SQL option supports the Alerton Engineering

Services (AES) energy dashboard. An AES-built dashboard can help track

energy usage and cost savings and can be customized for specific applications.

For more information about AES services, email [email protected].

FEATURES AND HIGHLIGHTS

ENERGY MANAGEMENT

• Efficient equipment start times, sophisticated load optimization, and

energy use monitoring that helps you track savings.

EASY TO USE

• Configurable, tree-style navigation.

TENANT ACTIVITY

• Detect and log after-hours tenant override activity, then generate

appropriate tenant bills.

FLEXIBLE

• Converts legacy displays and graphics to current standard file formats.

DYNAMIC

• Create systems that are easy to upgrade and improve.

TECHNICAL DATA

CONNECTIVITY

NETWORK

BACnet Ethernet, Annex J BACnet/IP.

COMPUTER REQUIREMENTS

See the table below to determine minimum computer specifications for the

primary Compass workstation. Additional memory is recommended for

projects that have many concurrent users, displays, or templates.

For example, a project that has ten or more users and 100 or more

displays and templates may need additional memory. For Compass client

workstations, use a computer with a dual-core processor and at least 4GB

RAM.

Compass

Model

BACnet

Devices

Operating

System

CPU

Cores

Memory

COMPASS-1-ENT up to 3000

*

_64-bit

Win7

Win8, Win8.1

Win10

Win Server 2012

Eight-core 16GB

COMPASS-1-XL up to 1000

Quad-core 8GB

COMPASS-1-LG up to 450

Quad-core 8GB

COMPASS-1-MD up to 150

Dual-core 4GB

COMPASS-1-SM up to 50

Dual-core 4GB

*NOTE: The number of supported devices in the Enterprise model can be extended in

1000 device increments by applying one or more device packs (COMPASS-1-ENTDP).

Specifications subject to change without notice.

(4)

© 2015 Honeywell International Inc. All Rights Reserved. LT-COMPASS Rev. 1.4 09_15

₂

ENERGY

TRENDLOGS

View trendlogs in graph or text format with multiple

points per log. Archived in database format for compatibility with office

applications.

ENERGY LOGS

Hourly or daily energy use and demand displayed

in text format. Archived in database format for compatibility with office

applications.

DEMAND LIMITING

Flexible demand metering supports various

media. Shed and restore binary and analog loads according to load priority.

Base strategies on time of day or season. View results in real time.

MANAGEMENT

A wide range of building management tools are

available, including:

16201 25th Avenue W., Lynnwood, WA 98087

Telephone: (425) 921-4900 / Fax: (425) 921-4872

alerton.com / [email protected]

FLEXIBLE,

POWERFUL

SOFTWARE FOR

BACNET-BASED

BUILDING

MANAGEMENT

SYSTEMS.

- Display capability

- Scheduling

- Alarms

- Optimum start

- Tenant activity

ORDERING INFORMATION*

ITEM NUMBER

COMPASS-1-ENT

Enterprise license, up to 3000 devices

+ SQL support

COMPASS-1-XL

Extra Large license, up to 1000 devices

+ SQL support

COMPASS-1-LG

Large license, up to 450 devices

COMPASS-1-MD

Medium license, up to 150 devices

COMPASS-1-SM

Small license, up to 50 devices

COMPASS-1-SQL

SQL support add-on for

COMPASS-1-SM/MD/LG

COMPASS-1-ENTDP Add-on for Enterprise license only (COMPASS-1-

ENT) to support an additional 1,000 devices

*

IMPORTANT!

Please see the Compass Installation and Upgrade Guide

(LT-COMPASSIUG) for more information about Compass licensing,

including part numbers for upgrading to Compass from EBT or ABS, Host

IDs, and procedures for installing software license keys.

- Zones

- Reporting and printing

- Auto archiving

- Job merge

ASCENTCONTROL MODULE™

INTEGRATION PROTOCOLS ENTERPRISE NETWORK ASCENTCOMPASSSOFTWARE DASHBOARD MS/TP VLX-PLATINUM VLCA-1688 VLCA-1688 WTS BACNET MS/TP NETWORK MSTP MICROSET4 VLC VAViH-SD MICROSET4

TEMP/HUMID MICROSET4 TEMP/HUMID/CO2

VFDs OTHER PROTOCOLS LON MODBUS SNMP METERS P W S E T H M S T P T U X H O T E L M D B U S F P C S BACNET/IP NETWORK FLG MODBUS OPTIONAL EXPANDABLE I/O SMART DEVICE MOBILE AZW-5000

(5)

© 2016 Honeywell International Inc. All Rights Reserved. LT-ACM Rev. 05 04_16

₁

The backbone of Alerton’s BACtalk™ Ascent product line, the Ascent

Control Module (ACM) is the industry’s most agile controller in its class.

It combines Alerton’s pioneering and proven BACnet® capability with

Tridium’s® Niagara Framework® flexibility.

It provides a powerful assortment of features such as multiple global

controller instances, and multiple communication networks.

The ACM can incorporate up to six (6) global controller instances and

supports up to six (6) MS/TP trunks or EIA-485 LANs, consolidating the

functionality of these controllers into a single configurable platform, and

exceeding the functionality of six individual devices.

Two onboard Ethernet ports support 10/100/1000 Mbps Ethernet

connections to the BACnet network, Modbus TCP or for NiagaraAX

integration protocols such as LON IP and SNMP.

Easy to add option cards offer scalability for additional communication

trunks as needed using the two slots available on the ACM. For example,

you can use one option card slot for additional BACnet communication and

the second card slot for LON communication by simply adding a dual 485

card and a LON card, respectively.

The ACM’s quad-core processor future-proofs the system by providing high

DDC execution speed for all the computing power you need. Two-direction

DIN channel and direct panel mount options enable you to mount the ACM

in different positions for the best fit.

The ACM hosts automation features such as schedules, trendlogs, alarms,

zones and demand limiting.

FEATURES AND HIGHLIGHTS

SCALABLE

• Supports up to six EIA-485 LANs; two EIA-232 connections; two LON

LANs; or four TUX trunks.

INTEROPERABLE

• Supports the BACnet Protocol on Ethernet, BACnet IP, and MS/TP;

Modbus TCP and RTU (EIA-485 and EIA-232); Alerton TUX, as well as

many Niagara supported protocols.

ENTERPRISE READY

• Supports BACnet/IP and can operate as a BACnet broadcast

management device (BBMD) with NAT support for integration on

enterprise and wide-area networks.

POWERFUL

• Advanced processor and extended memory provide a fast, reliable

platform for running DDC programming and global automation

routines.

SEGMENTED DDC CODE

• Allows multiple DDC program instances to run within a single

controller, providing the ability to logically group sub-systems, improve

uptime by enabling service on one system without impacting another,

and maximizing flexibility in programming configuration.

TECHNICAL DATA: ACM

POWER

24 VAC @ 40 VA, 47–63 Hz, full-wave rectified, with optional

battery backup (see other side).

DATA BACKUP/STORAGE

One removable microSD card.

PROCESSOR AND MEMORY

Efficient, high-speed, quad-core CPU

based on the ARM® Cortex™-A9 architecture (Freescale i.MX6Quad);

1GB DDR3 SDRAM, 64-bit-wide, 533 MHz (1066 MT/s).

REAL-TIME CLOCK

Provides system date and time.

BACNET/IP

IP support for interoperability on enterprise and WANs.

Functions as up to four BACnet broadcast management devices (BBMDs)

in accordance with Annex J BACnet/IP. Supports both Alerton and

BACnet Standard network address translation (NAT) implementations.

MS/TP

Supports two onboard networks that can be used for BACnet

MS/TP or EIA-485 and up to two expansion cards (two networks each)

for a maximum of six BACnet MS/TP networks per ACM.

MODBUS

supports both TCP and RTU (EIA-485 and EIA-232)

protocols; configuration supports up to 384 Modbus devices.

TUX

Supports up to four Alerton TUX trunks for connection of up to 64

TUXs per trunk communicating at 4800/9600 baud or up to 32 TUXs per

trunk communicating at 1200 baud. Each TUX Option Card has two TUX

trunks.

(6)

© 2016 Honeywell International Inc. All Rights Reserved. LT-ACM Rev. 05 04_16

₂

EXPANSION

Supports up to two expansion cards for interface

adapters, such as EIA-485, EIA-232, LON, and TUX.

COMMUNICATIONS

Provides two Ethernet ports, two onboard

EIA-485 networks, two expansion card slots give the ability to add up

to four additional EIA-485 networks (for a total of six), or two EIA-232

connections, or two LONworks networks, or up to four TUX Trunks.

MOUNTING

35mm DIN rail, either vertical or horizontal orientation.

DIMENSIONS

7-1/4 W x 8-9/16 H x 1-11/16 D (inches)

185 W x 220 H x 44 D (millimeters); fits 12 x 12 x 4 (inch) panel

enclosure.

ENVIRONMENTAL

Without battery:

-4 to 149 °F (-20 to 65 °C), 0 to 95% RH, non-condensing.

Storage Temperature:

-4 to 185 °F (-20 to 85 °C), 0 to 95% RH, non-condensing.

PLATFORM

Linux.

ETHERNET

Two integrated 8P8C modular connectors for use with two

10Base-T, 100Base-TX, and 1000Base-T Ethernet networks.

SOFTWARE

Programming interface is Alerton Compass operator

workstation software. Niagara AX 3.8.

CERTIFICATIONS AND STANDARDS

- RoHS compliant

- CE (EN 60730-1)

- FCC Part 15 Class B

- ICES-003

- C-Tick listed

- UL 916 for open energy management equipment.

TECHNICAL DATA: ACM BATTERY

The ACM has an optional 12 volt NiMH battery, which provides backup

power that allows for orderly shutdown should power remain OFF for more

than 60 seconds.

POWER

12 VDC supply voltage

ENVIRONMENTAL

Operational temperature and humidity:

32 to 122 °F (0 to 50 °C), 0 to 95% RH, non-condensing

Recommended storage temperature and humidity (to extend life):

41 to 77 °F (5 to 25°C), RH 65% ±5% non-condensing

Allowed storage temperature and humidity:

32 to 122 °F (0 to 50 °C), RH 5 to 95% non-condensing

CERTIFICATIONS AND STANDARDS

- UL 2054 ed 2 rev 2011-09-14

- EN 62133 ed 1 (2002), ed 2 (2012)

16201 25th Avenue W., Lynnwood, WA 98087

Telephone: (425) 921-4900 / Fax: (425) 921-4872

alerton.com / [email protected]

INNOVATIVE

GLOBAL

CONTROLLER

WITH EXTENSIVE

FLEXIBILITY.

TECHNICAL DATA: TUX OPTION CARD

Each card has two TUX trunks - a total of four TUX trunks can be added in

an ACM.

ENVIRONMENTAL

Operational temperature and humidity:

-4 to 149 °F (-20 to 65°C), 5 to 95% RH, non-condensing

Storage temperature and humidity:

-40 to 149 °F (-40 to 65°C), 5 to 95% RH, non-condensing

CERTIFICATIONS AND STANDARDS

- (Same as ACM)

ORDERING INFORMATION*

ITEM NUMBER

ACM

Ascent Control Module

ACM-BATT

Optional ACM battery

ACM-OC-2X485

Dual EIA-485 option card

ACM-OC-232

EIA-232 option card

ACM-OC-LON

78kbps FTT10A LON option card

ACM-OC-2XTUX

Dual TUX Trunk option card

ACM-MDBS-DR-TCP

Alerton Modbus TCP protocol driver

ACM-MDBS-DR-RTU

Alerton Modbus RTU protocol driver

*

IMPORTANT!

Requires at least one base device license, Alerton

(ACM032, ACM064, ACM128, ACM256, ACM384) or Niagara AX

(AX016, AX032, AX064, AX128, AX256). Add-on Device packs also

available for both Alerton and Niagara AX base licenses.

For a list of supported Niagara AX protocols, please consult you local

Alerton authorized dealer.

Specifications subject to change without notice.

BACnet is a registered trademark of ASHRAE. ASHRAE does not endorse, approve or test products for compliance with ASHRAE standards. Compliance of listed products to requirements of ASHRAE Standard 135 is the responsibility of the BACnet Manufacturers Association (BMA). BTL is a registered trademark of the BMA.

(7)

6670 185th Avenue Northeast, Redmond, WA 98052 USA • Tel: 425.869.8400 • Fax: 425.869.8445 • www.alerton.com

LTBT-VLC-550 Rev. 0002 1 of 2

The Alerton BACtalk

®

_{VLC-550™ is a versatile, high-performance,}

BACnet-compliant ﬁeld controller designed for heat pumps, AC units,

and other terminal unit applications. As a native BACnet controller, the

VLC-550 integrates seamlessly with your BACnet system. It communicates

at up to 76.8 Kbps on a BACnet MS/TP LAN or can operate as a

stand-alone controller.

All VLC–550 control logic is programmed with Alerton’s easy-to-learn

graphical programming language, VisualLogic

®

_{. Programming and setup}

data is stored in non-volatile ﬂash memory, ensuring stable and reliable

operation. The VLC-550 supports the Alerton Microset

™

_{and Microset}

II intelligent wall sensors, which offer convenient data display, setpoint

adjustment, and technician access to equipment setup parameters.

The VLC–550 is built for high-speed processing, with an internal logical

loop time of 100 msec. Programmable timers also maintain a resolution

of 100 msec.

High-resolution, 10-bit analog inputs are ﬁeld-adjustable for thermistor/

dry contact or 0–5 VDC/4–20 mA . For equipment monitoring, an on-board

LED for each binary output indicates ON/OFF status, and a separate LED

indicates communication activity on the MS/TP LAN.

VLC-550

Features and highlights

• Capable

Five 10-bit inputs and ﬁve binary

outputs.

• Interoperable

BACnet-compliant on MS/TP LAN

at up to 76.8 Kbps.

• Versatile

Fully programmable for heat

pumps, air-conditioning units,

and general purpose control

applications

• Reliable

Extensive on-board ﬁltering, with

all program data backed up in

nonvolatile ﬂash memory.

• Fast

(8)

6670 185th Avenue Northeast, Redmond, WA 98052 USA • Tel: 425.869.8400 • Fax: 425.869.8445 • www.alerton.com

2 of 2 LTBT-VLC-550 Rev. 0002

Technical Data

• Power

24 VAC @ 5 VA min., plus binary output loads (65 VA max.). Utilizes

a half-wave rectiﬁ er, which enables a single transformer to power multiple

VLCs. One leg of 24 VAC connects to earth (panel)

ground.

• Inputs

5 inputs with 10-bit resolution. Input 0 can be used for a BACtalk

Microset. Inputs 1–4 are switch-selectable for thermistor/dry contact or

0–5 VDC/4–20 mA signals.

• Binary Outputs

5 outputs, each rated at 24 VAC, 0.5 A. The outputs

utilize hot-switched triacs, which have a common connection to the fused

24 VAC supply.

• 24VDC Outputs

Up to 250 mA of 24VDC power is provided to power

transducers or other devices.

• Processor and Memory

Motorola AZ-60 processor with on-board ﬂ ash

memory. Flash memory provides non-volatile program and data storage,

and allows for encrypted updates to the program for future product

enhancements.

• Maximum Dimensions

4.9” (125mm)H x 5.00” (127mm)W x 1.4” (36mm)D.

• Terminations

Removable header-type screw terminals accept

14–24 AWG wire.

• Environmental

32–158ºF (0–70ºC). 0–95% RH, non-condensing.

• Communications

BACnet MS/TP LAN up to 76.8 Kbps.

• BACnet Conformance

An application speciﬁ c controller

(ASC); tested and approved by BTL. See Protocol

Implementation Conformance Statement (PICS).

• Ratings

Listed Underwriters Laboratory for Open Energy

Management

Equipment (PAZX) under the UL Standard

for Safety 916.

EMC Directive 89/336/EEC (European CE Mark).

FCC Part 15, Subpart J, Class A.

Ordering information

Item number

Description

VLC-550

Field controller with 5 inputs and 5 binary outputs

VLC-550

1/2" 13 2 1/4" 57 5" 127 4 1/16" 103 3/16" 5 4 15/32" 113 � � � ��/�� /��

(9)

6670 185th Avenue Northeast, Redmond, WA 98052 USA Tel: 425.869.8400 Fax: 425.869.8445 www.alerton.com

LTBT-VLC-660R Rev. 0001 1 of 2

The Alerton BACtalk

®

_{VLC660R is a versatile, fully programmable}

BACnet-compliant field controller. With three software-controlled high-current relays,

the VLC-660R is well suited for unit ventilator and fan-coil applications, or

any application that requires multi-speed fan or motor control. As a native

BACnet controller, it integrates seamlessly with your BACnet system,

communicating on a BACnet MS/TP LAN at up to 76.8 Kbps.

The VLC660R supports the Alerton Microtouch

_{, as well as the}

Microset

_{and Microset II intelligent wall sensors, which offer convenient}

data display, setpoint adjustment, and technician access to equipment

setup parameters.

The VLC660R is built for high-speed processing, with an internal logical

loop time of 100 msec. Programmable timers also maintain a resolution of

100 msec. High-resolution, 10-bit universal inputs are software configurable

to accept various input types.

VLC-660R

Features and highlights

Capable

Six universal 10-bit inputs, three

binary triac outputs, and three

binary high-current relay outputs.

Interoperable

Fully BACnet-compliant on MS/TP

LAN at up to 76.8 Kbps.

Versatile

Fully programmable for fan-coil,

unit ventilator, and other

multi-speed fan or motor applications.

Reliable

AZ60 processor and extensive

onboard filtering, with all program

data backed up in non-volatile

flash memory.

Fast

(10)

6670 185th Avenue Northeast, Redmond, WA 98052 USA Tel: 425.869.8400 Fax: 425.869.8445 www.alerton.com

2 of 2 LTBT-VLC-660R Rev. 0001

Technical Data

Power

24 VAC @ 10 VA min., plus binary output loads (40 VA max).

Utilizes a half-wave rectifier, which allows a single transformer to power

multiple VLCs. One leg of 24 VAC connects to earth (panel) ground.

Inputs

Six universal inputs with 10-bit resolution. Input 0 can be used for

a BACtalk

®

_{Microset or Microset II.}

Binary Outputs

Three hot-switched triac outputs, which have a common connection to

the fused 24 VAC supply. Rated 24 VAC, 0.5 A.

Three independently isolated, normally open relay outputs. Motor load

rating: 120 VAC 1 HP (15 FLA); 240 VAC 2 HP (12 FLA); 277 VAC 3/4 HP

(6.9 FLA). General purpose rating: 120 VAC @ 15 A; 240/277 VAC @ 10 A.

24VDC Output

Uncontrolled output to provide up to 100 mA of 24 VDC

power for transducers or other devices.

Processor & Memory

Motorola AZ-60 processor with on-board flash

memory. Flash memory provides non-volatile program and data storage,

and allows for encrypted updates to the program for future product

enhancements.

Dimensions

4.9" (125mm) H x 5.5" (140mm) W x 1.4" (36mm) D.

Terminations

Removable header-type screw terminals accept 1424

AWG wire.

Environmental

0158 deg. F (-1770 deg. C). 095% RH,

non-condensing.

Communications

BACnet MS/TP LAN up to 76.8 Kbps.

BACnet Conformance

ASC level device; tested and

approved by BTL. See Protocol Implementation

Conformance Statement (PICS).

Ratings

Listed Underwriters Laboratory for Open Energy Management Equipment

(PAZX) under the UL Standard for Safety 916.

Suitable for plenum mounting.

EMC Directive 89/336/EEC (European CE Mark).

FCC Part 15, Subpart J, Class A.

Ordering Information

Item number

Description

VLC660R

BACtalk field controller for unit ventilator, fan-coil, and

multi-speed motor applications

VLC-660R

(11)

6670 185th Avenue Northeast, Redmond, WA 98052 USA • Tel: 425.869.8400 • Fax: 425.869.8445 • www.alerton.com

LTBT-VLC-1188 Rev. 0002 1 of 2

VLC-1188

Features and highlights

• Capable

Eleven 10-bit universal inputs,

eight binary outputs, and eight

analog outputs.

• Interoperable

Fully BACnet-compliant on MS/TP

LAN at up to 76.8 Kbps.

• Versatile

Fully programmable and capable of

stand-alone operation.

• Reliable

AZ–60 processor and extensive

onboard ﬁltering, with all program

data backed up in non-volatile ﬂash

memory.

• Fast

Internal logic loop of 100 msec.

The Alerton

®

_BACtalk

®

_{VLC-1188 is a versatile, fully programmable logic}

controller designed for central plant systems, air handling units, clean

rooms, fume hoods, large terminal units, and similar control and process

equipment. As a native BACnet controller, it integrates seamlessly with

your BACnet system, communicating on a BACnet MS/TP LAN at up to

76.8 Kbps.

The VLC-1188 supports the Alerton Microtouch™, as well as the

Microset™ and Microset II intelligent wall sensors, which offer convenient

data display, setpoint adjustment, and technician access to equipment

setup parameters.

All VLC–1188 control logic is programmed with Alerton’s easy-to-learn

graphical programming language, VisualLogic™. Programming and setup

data is stored in non-volatile ﬂash memory, ensuring stable and reliable

operation.

High-resolution 10-bit analog inputs are ﬁeld-adjustable for thermistor/

dry contact, 0–5 VDC/4–20 mA, or 0–10 VDC. Analog outputs are

switch-selectable for 4–20 mA or 0–10 VDC.

(12)

6670 185th Avenue Northeast, Redmond, WA 98052 USA • Tel: 425.869.8400 • Fax: 425.869.8445 • www.alerton.com

2 of 2 LTBT-VLC-1188 Rev. 0002

Technical Data

• Power

24 VAC @ 20 VA min., plus binary output loads (110 VA max).

Utilizes a half-wave rectiﬁer, which allows a single transformer to power

multiple VLCs. One leg of 24 VAC connects to earth (panel) ground.

• Inputs

11 universal inputs with 10-bit resolution. Input 0 can be used for

a BACtalk

®

_{Microset™ or Microset II. Inputs 1–10 are jumper-selectable for}

thermistor/dry contact, 0–5 VDC/4–20 mA., or 0–10 VDC signals.

• Binary Outputs

8 outputs each rated at 24 VAC, 0.5A. The outputs utilize

optically coupled triacs, which have a common connection to the fused 24

VAC supply.

• Analog Output

8 outputs with 8-bit resolution. Each is switch-selectable for

0–10 VDC or 4–20 mA. 4–20 mA outputs are sourced by the VLC. Connected

loads must return to the VLC ground. 4–20 mA max. load resistance is 1,000

ohm

.

0–10 VDC min. load resistance is 500 ohm.

• 24VDC Output

Up to 250 mA of 24 VDC power is provided to power

transducers or other devices.

• Processor & Memory

Motorola AZ–60 processor with onboard ﬂash

memory. Flash memory provides nonvolatile program and data storage, and

allows for encrypted updates to the program for future product enhancements.

• Dimensions

6.98” (177mm) H x 5.0” (127mm) W x 1.5” (38mm) D.

• Terminations

Removable header-type screw terminals accept 14–24 AWG

wire.

• Environmental

0–158 deg. F (-17–70 deg. C). 0–95% RH, non-condensing.

• Communications

BACnet MS/TP LAN up to 76.8 Kbps.

• BACnet Conformance

B-ASC level device; tested and approved by BTL.

See Protocol Implementation Conformance Statement (PICS).

• Ratings

Listed Underwriters Laboratory for Open Energy

Management Equipment (PAZX) under the UL Standard

for Safety 916. Listing includes both U.S. and Canadian

certiﬁcation.

Suitable for plenum mounting.

EMC Directive 89/336/EEC (European CE Mark).

FCC Part 15, Subpart J, Class A.

Ordering Information

Item number

Description

VLC-1188

Field Controller for central plant systems application

with 11 inputs, 8 binary triac outputs, 8 analog outputs

VLC-1188

(13)

© 2014 Honeywell International Inc. All Rights Reserved. LT-MS4 02_14

₁

Alerton’s Microset 4 wall sensor offers a sleek, modern look that is a

perfect fit in any building. Its strengthened glass touchscreen user interface

has the capability to display the setpoint, room, and outside air

tempera-tures. Relative humidity and fan status can also be displayed. A configurable

LED Status Light indicator displays heating or cooling status at a glance. The

Microset 4 sensor offers several options to meet precise job specifications.

The Microset 4 is fully backward compatible with Alerton’s BACtalk™

system, providing users with a tenant control interface, test and balance

tool, and field service tool, while enabling them to leverage their existing

Alerton devices.

The Microset 4 line of wall sensors includes a model with a carbon dioxide

(CO2) sensor as well as one with MS/TP capability.

The flexible Microset 4 displays information and allows occupant control

according to the application.

Customizable and intuitive operation enables occupants to turn zone HVAC

equipment ON or OFF in 30-minute increments for sporadically occupied

areas, such as conference rooms, to set window blinds to open or closed,

and offers optional control of lights and fan. This makes saving energy easy

and supports green standards of building construction and operation.

With its sleek edge-to-edge hardened glass, capacitive touch backlit display,

and polished finish, Alerton’s Microset 4 wall sensor offers a full

comple-ment of features and looks good on any wall.

FEATURES AND HIGHLIGHTS

VERSATILE

• Occupant can view room and outside air temperatures, indoor and

outdoor humidity (if enabled in programming), select fan status and

change room temperature setpoints. Data and functions are selectable.

ENERGY EFFICIENT

• Occupants can select after-hours operation in 30-minute increments or

turn zone equipment ON and OFF.

FLEXIBLE

• Robust and easy-to-use test and balance and field service modes allow

maintenance personnel to monitor and adjust parameters.

ATTRACTIVE

• Modern styling enhances any interior, and functional design makes

operation intuitive.

TECHNICAL DATA

THERMISTOR

The thermistors are integrated with the device. The thermistors and

humidity sensors are processed by an onboard microcontroller.

TYPE

- NTC.

RESISTANCE

- 100K Ohm at 77 °F (25 °C).

TIME CONSTANT*

- 20 minutes (to 63% of new temperature).

STABILITY*

- Maximum 0.036 °F (0.02 °C) drift per year.

ACCURACY*

- ± 0.36 °F over range of 32 to 116 °F (0 to 47 °C);

± 0.19 °F at 72 °F (22 °C).

*Based on normal operating conditions.

POWER

- 24 VAC.

PROCESSOR & MEMORY

- ARM Cortex-M4 processor with

onboard flash memory.

DIMENSIONS

- 4.5” H x 3” W x .875” D (114.9mm H x 76.6mm W x

22mm D).

MS4-THC: 4.54” H x 3.04” W x 1.25” D (115.2mm H x 77.2mm W x

31.6mm D).

ENVIRONMENTAL

- 32 to 140 °F (0 to 60 °C);

0 to 90% RH, non-condensing.

Specifications subject to change without notice.

(14)

© 2014 Honeywell International Inc. All Rights Reserved. LT-MS4 02_14

₂

CO2 SENSOR

OPERATING TEMPERATURE RANGE

- 32 to 122 °F (0 to 50 °C).

POWER CONSUMPTION

- 1.5 mA for measurement every 30s;

0.74 mA for measurement every 60s; 86 µA for measurement every

15 min; 52 µA for measurement every 60 min.

MEASUREMENT RANGE

- 0 to 5000 ppm.

ACCURACY

- ± 30 ppm, ± 3% of reading.

HUMIDITY SENSOR

OPERATING TEMPERATURE RANGE

- 50 to 113 °F (10 to 45 °C).

REPEATABILITY

- Minimum ± 0.5% RH.

ACCURACY

- ± 3% at 10 to 90% RH,

± 5% at 0 to 10% and 90% to 100%RH.

COMMUNICATIONS

- Microset bus up to 115.2 Kbps.

RATINGS

- UL Standard for Safety 916;

EMC Directive 89/336/EEC (European CE Mark)

FCC Part 15.107 & 109, Class B, CFR47-15.

6670 185th Avenue NE, Redmond, WA 98052

Telephone: (425) 869-8400 / Fax: (425) 869-8445

alerton.com / [email protected]

STYLISH

TOUCHSCREEN

WALL SENSOR WITH

TEMPERATURE AND

HUMIDITY SENSING.

ORDERING INFORMATION

ITEM NUMBER

MS4-TH

Microset 4 with temperature and humidity sensors

MS4-TH-NL

Microset 4 with temperature and humidity sensors

and no logo

MS4-TH-MSTP MS/TP Microset 4 with temperature and humidity

sensors

(15)

6670 185th Avenue Northeast, Redmond, WA 98052 USA • Tel: 425.869.8400 • Fax: 425.869.8445 • www.alerton.com

1 of 2 LT-TS Rev. 0007

Temperature Sensors

Duct sensors

• Accurate over a wide temperature

range

• Tabs for easy installation

• Variety of housings, lengths,

harness lengths, and mounting

options for versatility

Immersion sensors and

wells

• Four-, six-, and eight-inch lengths

• Immersion wells in stainless steel

Wallplate sensors

• Brushed stainless steel is attractive

and tamper resistant

• Rugged, reliable design

• Order versions with field service

jack, override switch, or both

Outside air sensors

• Gasketed, weathertight enclosures

Duct average sensors

• Six-foot, twelve-foot, or

twenty-four-foot versions

• Rigid or flexible probe

See page 2 for ordering and

technical information

(16)

6670 185th Avenue Northeast, Redmond, WA 98052 USA • Tel: 425.869.8400 • Fax: 425.869.8445 • www.alerton.com

2 of 2 LT-TS Rev. 0007

Temperature Sensors

Technical Data

• Type

Uni-curve Type II

• Resistance

3k ohm or 10k ohm at 77 deg. F

(25 deg. C)

• Interchangeability

0.36 deg. F (0.20 deg. C)

• Time constant*

10 seconds (to 66% of new

temperature)

• Stability*

0.036 deg. F (0.020 deg. C) drift

per year

• Accuracy

±0.36 deg. F (0.20 deg. C) over

range of 32–158 deg. F (0–70

deg. C)

Ordering information

*Under normal operating conditions

03 = 3k ohm 10 = 10k ohm Immersion wells 00 = N/A Wallplate A = Wire leads Duct A = Wire leads

B = Plenum rated (flange only) Immersion H = ½” NPT (outside diameter) Immersion well I = ½” NPT internal thread, ½” NPT external J = ½” NPT internal thread, ¾” NPT external Pencil A = N/A Raw thermistor B = Plenum rated C = 7 foot standard Wallplate W = Wallplate Duct, immersion

F = Flange (duct only) P = Plastic box G = Galvanized box M = Painted steel box C = Stainless steel Pencil, raw thermistor

O = N/A Outside air P = Plastic box D = Die-cast box Duct average R = Rigid probe X = Flexible probe Wallplate 01 = Wallplate only 02 = Override switch 03 = Override switch and communications jack 04 = Communications jack only Duct, immersion, immersion well, and pencil

25 = 2.5 inch 04 = 4 inch 06 = 6 inch 08 = 8 inch

12 = 12 inch (duct only) 25 = 2.5 inch (immersion and immersion well only) Outside air, raw thermistor

00 = N/A Duct average 06 = 6 foot 12 = 12 foot 24 = 24 foot 11 = Wallplate (stainless steel) 20 = Duct 21 = Immersion 31 = Immersion well 30 = Pencil 32 = Outside air 40 = Raw thermistor 50 = Duct average

Step 1

Select Type

TS-

-

-AA

Step 2

Select Length or Style

Select Mounting or Material

Step 3

Select Wiring Harness or Thread

Step 4

Select Resistance

Step 5

Example: 3k ohm duct sensor, 6 inches, with flange, 3-inch leads

TS-2006-FA-03-AA

Example: 10k ohm immersion sensor, 8-inch probe with plastic enclosure and ½” NPT

TS-2108-PH-10-AA

Example: Stainless well for 6-inch immersion sensor with ½” NPT internal thread, ¾” NPT external

(17)

GENERAL

Media

Compatibility

Dry air or inert gas

Input Power

Three-wire Volt mode: 24 Vac or 12-30 Vdc*

Two-wire mA mode: 12-30 Vdc*

Output Power

Field-selectable:

2-wire, loop-powered 4-20 mA** (DC only, clipped and capped),

24 Vac/dc or

3-wire 0-5V/0-10V***

PRESSURE RANGES

01 Pressure

Range

Pressure Mode:

Unidirectional: 0.1/0.25/0.5/1.0 in. WC FS, switch selectable

Bidirectional: ±0.1/±0.25/±0.5/±1.0 in. WC FS, switch selectable

Unidirectional: 25 Pa/50 Pa/100 Pa/250 Pa, FS, switch selectable

Bidirectional: ±25 Pa/±50 Pa/±100 Pa/±250 Pa, FS, switch

selectable

Velocity Mode:

500/1,000/2,000/3,000 ft/min

2.5/5/10/15 m/s

02 Pressure

Range

Pressure Mode:

Unidirectional: 1.0/2.5/5.0/10 in. WC FS, switch selectable

Bidirectional: ±1.0/±2.5/±5.0/±10 in. WC FS, switch selectable

Unidirectional: 0.250 kPa/0.500 kPa/1.000 kPa/2.500 kPa, FS,

switch selectable

Bidirectional: ±0.250 kPa/±0.500kPa/±1.000 kPa/±2.500 kPa, FS,

switch selectable

Velocity Mode:

3,000/4,000/5,000/6,000 ft/min

15/20/25/30 m/s

05 Pressure

Range

Pressure Mode:

Unidirectional: 0.1/0.25/0.5/1.0/2.5/5/10 in. WC FS,

switch selectable

Bidirectional: ±0.1/0.25/0.5/1.0/2.5/5/10 in. WC FS,

switch selectable

Unidirectional: 25Pa/50Pa/100Pa/250Pa/0.5kPa/1kPa/2.5kPa FS,

switch selectable

Bidirectional: ±25Pa/50Pa/100Pa/250Pa/0.5kPa/1kPa/2.5kPa FS,

switch selectable

Velocity Mode:

500/1000/2000/3000/4000/5000/6000/7000 ft/min

2.5/5/10/15/20/25/30/35 m/s

SENSOR

Response

Time

Standard: T95 in 20 sec, Fast: T95 in 2 sec, DIP switch selectable

Mode

Unidirectional or bidirectional, DIP switch selectable

Display

(option)

Pressure mode: Signed 3-1/2 digit LCD, indicates pressure,

overrange indicator

Velocity mode: Signed 4-1/2 digit LCD, indicates velocity,

overrange indicator

Proof Pressure

3 psid (20.6 kPa)

Burst Pressure

5 psid (34.5 kPa)

Pressure Mode

Accuracy

±1% FS (combined linearity and hysteresis)

Velocity Mode

Accuracy

±90 ft/min (±0.45 m/s) plus 5% of measured value****

Temperature

Effect

1” (250 Pa) models: 0.05%/°C; 10” (2.5 kPa) models: 0.01%/°C

(Relative to 25 °C) 0 to 50 °C (32 to 122 °F)

Zero Drift

(1-year)

1” (250 Pa) models: 2.0% max.; 10” (2.5 kPa) models: 0.5% max.

The PX3 transducer can measure either air pressure or velocity

with the flip of a switch. The PX3 is available in three installation

configurations: duct, panel or universal. Duct and panel models

have two pressure and velocity options: 0-1” WC / 0-3,000 ft/min or

1-10” WC / 3,000-6,000 ft/min with four field-selectable sub-ranges.

The universal model comes in one pressure/velocity range:

0-10” WC / 0-7,000 ft/min with seven field-selectable sub-ranges for

pressure and eight for velocity. All variants are available with and

without display. The PX3 has an IP65/NEMA 4 environmental rating

and a 5-year limited warranty.

PX3

SPECIFICATIONS

PX3 SERIES

Differential Pressure/Air Velocity Transducer

HQ0001827.F 0117

APPLICATIONS

• Duct static pressure

(Pressure mode)

• Building or room pressure

(Pressure mode)

• Filter status

(Pressure mode)

• Air flow measurement

(Velocity mode)

Reduce field

failures

Excellent tolerance to overpressure

& vibration reduces field failures

Reduce setup

Selectable ranges and scales

reduce setup time and number of

models to stock

High accuracy

High accuracy digital sensor with

seven selectable pressure and eight

velocity sub-ranges, maintains

calibration and reduces callbacks

Water-resistant

housing

IP65/NEMA 4 housing allows for

mounting in wash-down locations

Maintenance free

High reliability sensor technology

for long-term, maintenance-free

operation

Circuit protection

Circuit protection avoids damage

due to incorrect input wiring

800.354.8556 | +1 503.598.4564 | [email protected] | [email protected]

TM

Pressure Monitoring | Dry Media Digital Pressure Transducer

(18)

Enclosure

D = Duct P = Panel

Local Display Local Display

L = LCD Display

X = No Display L = LCD DisplayX = No Display

NIST Certificate NIST Certificate

N = NIST

X = None N = NISTX = None

Range Range 01 = Pressure: 0 to 1 in. WC / 0 to 250 Pa Velocity: 0 to 3000 ft/min / 0 to 15 m/s 02 = Pressure: 0 to 10 in. WC/0 to 2500 Pa Velocity: 0 to 6000 ft/min / 0 to 30 m/s 05 = Pressure: 0 to 10 in. WC / 0 to 2500 Pa Velocity: 0 to 7000 ft/min / 0 to 35 m/s PX3 PX3U

EMC Conformance: EN 61000-6-3 and A1 Class B, EN 61000-6-1.

* Class 2/II power source.

** Minimum input voltage for 4 to 20 mA operation: 250 Ω loop = 12 Vdc; 500 Ω loop = 19 Vdc.

*** Minimum load resistance for Volt operation: 5 kΩ.

**** For measured values between 200 and 7000 ft/min (1 and 35 m/s).

ORDERING INFORMATION

Example: L D X 01 PX3 Example: L X 05 PX3U

Pressure Monitoring | PX Series

HQ0001827.F 0117

Zero Adjust

Pushbutton auto-zero and digital input (2-pos terminal block)

Operating

Environment

0 to 60 °C (32 to 140 °F)

Altitude of

Operation

0 to 3000 m

Pollution Deg.

2 Humidity

Range

100% RH, non-condensing

Mounting

Location

For indoor use only.

Fittings

Brass barb; 0.24” (6.1 mm) o.d.

Environmental

Rating

IP65, NEMA 4

Flammability

Rating

UL 94 5VA fire retardant ABS, plenum rated

WARRANTY

Limited

Warranty

5 years

AGENCY APPROVALS

1.6 (42) 3.5 (88) 4.4 (112) 7.4 (188) 0.3 (7) 3.1 (78) DIGITAL CONTROL Digital Output Return V+

1.000

0 1₂ 3 4 5 6 7 PWR mA RT N

{

RMT. ZERO ZERO

1.000

0 1₂ 3 4 5 6 7

{

RMT. ZERO ZERO DIGITAL CONTROL Digital Output V IN -POWER SOURCE 24 Vac/dc -+ V+/PWR V-/GND V OUT

WIRING DIAGRAM

2-wire, 4-20 mA Current Loop Output

WIRING DIAGRAM

3-wire, 0-5 V/0-10 V Voltage Output

DIMENSIONAL DRAWING

in. (mm)

SPECIFICATIONS (CONT.)

800.354.8556 | +1 503.598.4564 | [email protected] | [email protected] | www.veris.com

TM

Pressure Monitoring | PX3 Series

(19)

RELAYS & POWER SOURCES

800.354.8556

©2004

VERIS INDUSTRIES

171 The Veris

VMD2B-F Series

are full featured DPDT blade style relays for socket/DIN mounting. The VMD2B-F

Series are equipped with an LED for coil proof, a ﬂ ag for contact proof, a push to test button for momentary

contact control, and an override lever to hold the contacts in ON position. The VMD1B-F will allow for instant

and conclusive troubleshooting. Never wonder if the relay, control system, or mechanical wiring is the cause of

a problem. The DIN rail compatible VBD1B-F series sockets feature ﬁ ngersafe terminals and the an integrated

hold down clip.

Full-Featured DPDT DIN Socket Relays

12VDC/24VDC/24VAC/120VAC/240VAC

VMD2B-F Series

VMD2B-F

(Coil)

12D = 12VDC

24D = 24VDC

24A = 24VAC

120A = 120VAC

240A = 240VAC

HOLD DOWN CLIP

FINGER SAFE

VBD2B-C

VBD2B-F

MODEL

® LR 35144

Coil Power:

0.9 watts DC, 1.2VA (60Hz) AC@25C

TYPICAL COIL PERFORMANCE

Voltage

Amperage (r)

Motor Load

50/60Hz.

28VDC

12A

-110/120VAC

15A

1/2HP

220/277

12A

1HP

CONTACT RATINGS

SPDT SOCKET ORDERING INFORMATION

DIMENSIONS

E198453

Example:

VMD2B- F24A =

DPDT 15A Relay with 24VAC coil,

LED, Contact Flag and Push to Test

NOTE: All 2B-F

models contain an

LED, Contact Flag,

Push to Test, and

Override Lever

1.13" (29mm) 3.09" (79mm) 1.165" (30mm) .125" to .156" (3.17 to 3.96mm)

Hold Down Clip included with F Model

WIRING DIAGRAM

NOTE: VBD2B-C plain sockets are also compatible

VBD2B-F Socket

8(44)

14(A2)

12(41)

13(A1)

9(11)

5(14)

4(42) 1(12)

TOP VIEW

Coil (+)*

Coil (-)*

COMM1

N.O.1

N.C.1

COMM2

N.O.2

N.C.2

NEMA (IEC)*

Terminal

*Sockets support both

numbering systems by

labeling each terminal

with two numbers.

**Observe polarity for relays

with DC coil voltages only

14(A2)

13(A1)

9(11)

5(14)

1(12)

12(41)

8(44)

4(42)

Function

ORDERING INFORMATION

FIVE-YEAR WARRANTY

(20)

RELAYS & POWER SOURCES

©2004

VERIS INDUSTRIES

800.354.8556

138 Sleek ﬁeld enclosure eliminates the need for

panel space

■

Versatile coil and contact ratings minimize the

number of models to choose from

■

The nipple mount feature allows the Victory

Series to be mounted to any electrical enclosure

■

Flexible tinned stranded wire...ﬁts easily in tight

spaces & provides secure connections to wire nuts

■

UL508 Listed...designed and approved for ﬁeld

installation...makes electrical inspection a snap

Concealed HOA switch reduces the likelihood of

tampering

■

Out of sight, out of mind…eliminate

curiosity switching

■

Eliminate costly control system override and

service calls

HOA position monitor improves control

■

The switch position monitors available with the

V102 & V103 models allow the control system

to notify the building owner when a motor is

inadvertently left in ON or OFF position.

Provided with a concealed HOA switch for local

control and troubleshooting, the

V101, 102 & 103

provide HOA ﬂexibility while limiting unauthorized

switch manipulation. To further guard against

control system override the V102 and V103 are

equipped with a monitored HOA. The V102 provides

a two-wire 0-10KΩ resistive output and the V103 a

three-wire digital monitor. Now your customer and

technicians can enjoy the beneﬁt of local control

without problems often caused by override.

APPLICATIONS

■

Command contactors

■

Control motors

■

Isolation

■

Device interlocking

■

Relay logic

■

Sense voltages for alarm conditions

SPST Enclosed Relay with HOA Switch – Coil: 10-30VAC/DC, 120VAC

Contacts: 10A(r)@250VAC, or 277VAC

MODEL

CONTACT

V101

V102

V103

10-30VAC/DC, 120VAC

10A@250VAC

10A@277VAC

COIL

HOA

HOA MONITOR

None

Resistive

Digital

VICTORY

101/102/103

Coil Voltage 10-30VAC/DC, 120VAC

Pull In Voltage

AC

DC

10-30V...

8

9 120V...

78 Drop Out Voltage

AC

DC

10-30V...

2

3 120V...

18 Voltage

Coil Current

AC

DC

10V... 25mA... 14mA

24V... 31mA... 16mA

30V... 39mA... 18mA

120V...22mA

–

TYPICAL COIL PERFORMANCE

CONTACT RATINGS

Resistive...

10A(r)@250VAC

Motor...

1/3 HP@120VAC N.O.

Gold Flash...

Yes

V101

Resistive...

10A(r)@277VAC

Motor...

1/3 HP@240VAC N.O.

1/6 HP@240VAC N.C.

Gold Flash...

Yes

V102, V103

ORDERING INFORMATION

V102 With Cover Oﬀ

Cover conceals/

protects HOA switch

V102 With Cover On

FIVE-YEAR

WARRANTY

SPECIFICATIONS

Operating Temperature

-40°C to 55°C

Operating Humidity

0-95% non-condensing

Expected Relay Life

10 million cycles min.

Relay Status

LED ON=energized

Dimensions

…(LxWxH)

4.0" x 2.04" x 2.50"; 3/4" NPT nipple

V102 Resistive Monitor Maximums

Voltage Max

13.4VAC/DC

Current Max

4mA AC/DC

V103 Digital Monitor Maximums

Dry Circuit Contact Rating (Max.)

24VAC/DC@100mA

Plenum rated

per UL 2043

(21)

RELAYS & POWER SOURCES

800.354.8556

©2004

VERIS INDUSTRIES

139 2.038"

(52 mm)

2.50"

(64 mm)

3/4" NPT Nipple

2.3"

(58 mm)

4.00"

(101 mm)

3.80"

(71 mm)

APPLICATIONS/WIRING EXAMPLE

DIMENSIONAL DRAWING

Nipple mount directly to a panel

Nipple mount to any 2x or 4x electrical box

WIRE COLOR CODES

10-30VAC/DC

BROWN

GREY

VIOLET

Switch Positions:

HAND = Brown wire closed to Common

OFF = Both wires open to Common

AUTO = Grey wire closed to Common

VIOLET = Common

HAND

BROWN GREY VIOLET

OFF

BROWN GREY VIOLET

AUTO

To Load

To Controls Wire Nut COIL CONTACTS

V102

RESISTIVE

INPUT

DO

NOT TO SCALE

V101/102/103

V102 RESISTIVE HOA POSITION MONITOR

(22)

Supply Voltage

24 VAC @ 4 VA 50/60 Hz; 24 VDC @ 166.6 mA,

120VAC, or 240 VAC

Operation

4 buttons w/ menu display

Relay Output Configuration

Dry Contact, Maintain operation

FM1

1 Circuit, SPDT

FM2

2 Circuit Individually controlled, Dual SPDT

Contact Current

Circuit 1 and 2

Resistive

(NC) 16A @ 277 VAC

Ballast

(NO) 8A @ 240 VAC, 12A @120 VAC

Tungsten

(NO) 1000W @ 240 VAC, 600W @120 VAC

FAN

(NO) 1/2 hp, 120 VAC; 1 hp, 240 VAC;

(NC) 360 VA @ 120 VAC

Manual Override

2- push buttons (one for each circuit)

Clock

12/24 hour clock

with 24 hour/7 day programming

Clock Accuracy

±4 minutes per year

Special Functions

Day light Saving Time (DST)

Battery Backup

3 year battery life (Non-Replaceable)

Schedules

20 event or 50 event per order

Holidays

8th day, No Holiday per say

Schedule Transfer

None

Display

4 line LCD display, w/clear dust cover

Local Set-up & Control

6-Push Buttons for menu manipulation

Operating Temperature

–14°F to 131°F (–10°C to 55°C)

Operating Humidity

0% to 95% Non-condensing

Wiring Terminations

5 or 8 Screw terminals, 10 AWG

Mounting

Surface/DIN rail/Flush, (Product specific)

Enclosure Rating

NEMA 3R, Plastic with terminal cover

Dimensions

FM1

2.4"H x 2.4"W x 2.3"D (6.0 x 6.0 x 5.8 cm)

FM2

4"H x 2.8"W x 2.3"D (10.2 x 7.2 x 5.8 cm)

Weight

0.5 lb ( 0.23 Kg)

Approvals

UL File #E10694, CE

Warranty

1 year

DESCRipTiON

The

Grasslin FM1D50 Series electronic time clocks

are

compact time controls providing 24-hour or 7-day time-based

switching of HVAC control circuits, lighting, or machinery.

The

FM1D50

is a single-circuit control and the

FM2D50

is a

two-circuit control. They utilize heavy-duty, 16A, SPDT relay

contacts suitable for low- or line- voltage loads.

FEATuRES

• 24-hour or 7-day programming

• 50 programs and 20 program models

• 24 VAC or 120 VAC models

• Automatic daylight savings time (DST) changeover

• Large LCD display of day, time, and load status

• Manual override of each circuit

• Eighth-day holiday programming

1 M

M

N.O.

N.C.

N.O.

N.C.

Input

Power

_Power

Input

FM1D50A

FM2D50

Isolated Contacts

Output

_{(Individually programmed)}

Isolated Contacts Output

Circuit 1

Circuit 2

Note: Screw terminals accept up to #12 AWG wire _{Note: Screw terminals accept up to #12 AWG wire}

N.C.

2

3

4

5

1

2

3

4

5

6

7

8 WiRiNG

ElEctronic timE clocks

FM_D SerieS

SpECiFiCATiONS

FM1D50A-120

ORDERiNG iNFORMATiON

Model

Supply Voltage

Channels

Mounting

Additional Specifications

FM1D20A-24

24 VAC/VDC

1 Surface/ DIN rail

20 programs

FM1D20A-120

120V

1 Surface/ DIN rail

20 programs

FM1D20A-240

240 V

1 Surface/ DIN rail

20 programs

FM1D50A-24

24 VAC/VDC

1 Surface/ DIN rail

50 programs

FM1D50A-120

120V

1 Surface/ DIN rail

50 programs

FM1D50E-24

24 VAC/VDC

1 Flush

50 programs

FM2D50-24

24 VAC/VDC

2 Surface/ DIN rail

50 programs

FM2D50-120

120V

2 Surface/ DIN rail

50 programs

NEW!

LIGHTING CONTROLS

712

NEW!

LIGHITING CONTROLS

11 your project partner, big or small

kele.com

(23)

HUMIDITY

544 HUMIDITY

9 Free custom calibration

kele.com

877-826-9037 USA

September 2016

2% WAll, duCt And osA Humidity tRAnsmitteRs

H_20K SeRieS

Accuracy

2% RH @ 73°F (23°C) from 5% to

90% RH; (0-5% & 90%-100%) add

3%

Stability

0.5% drift per year

Thermal Effect

0.07% per °F

Supply Voltage

9.5-28 VDC, loop powered

Signal Output

4-20 mA @ 750

Ω

, optional

thermistor, RTD

Measurement Range

RH

0-100%

Temperature

-20° to 140°F (-29° to 60°C)

(see ordering information)

Sensor Protection

(Duct and OSA)

Plastic filter

Operating Temperature

-20° to 158°F (-29° to 70°C)

Operating Humidity

0-100% RH non-condensing

Enclosure Rating

Room

NEMA 1, Beige plastic

Duct/OSA

NEMA 4, weather resistant cast

aluminum

Wiring Terminations

Terminal block (22 to 16 AWG)

Weight

Room

0.3 lb (0.09 Kg)

Duct

1.14 lb (0.52 Kg)

OSA

1.2 lb (0.54 Kg)

Approvals

RoHs

Warranty

1 year

DESCRIPTION

The

Kele Series H_20K Humidity Transmitters

have been

specifically designed for use in HVAC/BAS applications.

These instruments measure relative humidity from 5% to

90% RH with 2% accuracy and produce a two wire 4-20 mA

linear output. All are available with an optional passive RTD or

thermistor. The duct and OSA versions may also be fitted with

a 4-20mA temperature transmitter.

FEATURES

• 2% accuracy (5% to 90%)

• Two-wire, 4-20 mA RH output

• Optional temperature thermistor

• Optional temperature RTD

• Optional temperature 4-20mA (duct or OSA)

APPLICATION

The temperature compensated circuitry converts the relative

humidity into a 4-20 mA signal. The optional temperature

sensors, RTDs or thermistors, offer direct connection to most

automation systems. On duct and OSA units, an optional 4-20

mA temperature transmitter may also be employed and is

rangeable from -30° to 250°F (-34° to 121°C).

DIMENSIONS

SPECIFICATIONS

HW20K

4.50 (11.43) 3.23 (8.20)

in

(cm)

2.875 (7.3) 4.625 (11.7) 2.13 (5.4) 7.0 (17.8) .75 (1.91)

HD20K

Foam gasket 5.25 (13.3) 4.43 (11.3) 2.88 (7.30) 2.125 (5.4) 1.25 (3.18)

HO20K

HW21K

HD20K

HO20K

CSUSA PROJECT NO

Comfort Systems USA (Arkansas), Inc.

P.O. Box 16620

Little Rock, AR 72231

Phone 501-834-3320

Fax 501-834-5416

4806 Rixey Road

No. Little Rock, AR 72117

Date:

5/4/2020

Return Request:

5/18/2020

Project:

Lisa Academy West High School

Supplier:

Northwest Controls

Manufacturer:

Various

Submittal:

Controls

Submittal Number:

23 00 00-01

Spec Section:

Drawing # and Installation:

Mechanical Drawings

ARCHITECT

ENGINEER

Witsell Evans Rasco

Bernhard TME

901 West Third Street

Building 2, 1 Allied Dr. Suite 2600

Little Rock, Arkansas 72201

Little Rock, Arkansas 72202

501-374-5300

501-666-6766

GENERAL CONTRACTOR

MECHANICAL SUBCONTRACTOR

Clark Contractors LLC

Comfort Systems USA (Arkansas), Inc.

15825 Cantrell Rd.

4806 Rixey Road

Little Rock, Arkansas 72223

North Little Rock, AR 72117

501-868-3133

501-834-3320

Notes:

CSUSA PROJECT NO.

20-189

7631 Northshore Place

North Little Rock, AR 72118

501.280.0404

www.nwcontrols.com

SUBMITTAL

Equipment:

Building Automation System

Project:

Lisa Academy

–

West High School

Location:

Little Rock, AR

Engineer:

BTME

Mechanical:

Comfort Systems USA

Submitted for approval by: Virgil Irvin

Northwest Controls Systems, Inc.

Date:

28 April 2020

Contents

•

Control Diagrams with Sequences of Operation

•

Bill of Materials

© 2015 Honeywell International Inc. All Rights Reserved. LT-COMPASS Rev. 1.4 09_15

1

Part of Alerton’s BACtalk™ Ascent product line, Compass is a

comprehensive, powerfully designed product that replaces Alerton Building

Suite and Envision for BACtalk as the operator workstation of the future.

Use of informative display layers with an improved tree-style navigation

₁

_64-bit
