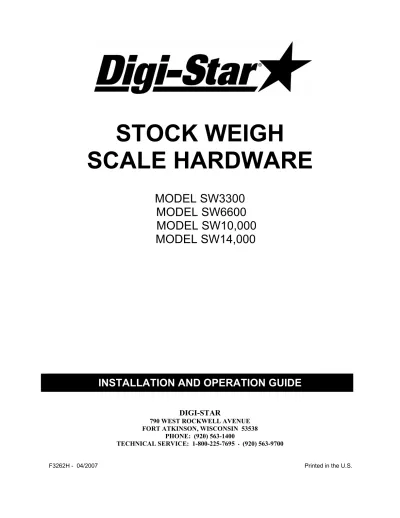

STOCK WEIGH

SCALE HARDWARE

MODEL SW3300

MODEL SW6600

MODEL SW10,000

MODEL SW14,000

DIGI-STAR

790 WEST ROCKWELL AVENUE FORT ATKINSON, WISCONSIN 53538

PHONE: (920) 563-1400

TECHNICAL SERVICE: 1-800-225-7695 • (920) 563-9700

F3262H - 04/2007 Printed in the U.S.

INSTALLATION AND OPERATION GUIDE

(2)

TABLE OF CONTENTS

Introduction ... 1 Warranty... 2 StockWeigh System Components... 3-5 StockWeigh Load Cells Specifications ... 6-9 Installation 10k & 14k load cells ... 10-11 Troubleshooting ... 12-14 Typical Platform Construction ... 15-16 Repair parts... 17-23

INTRODUCTION

Congratulations, on your purchase of a Digi-Star Stock Weigh scale system which is the simplest and most reliable animal weighing system on the market today. Due to the large number of load cell capacity options, Stock Weigh scale systems can be

customized to fit your animal weighing needs. The indicator Auto-Lock feature allows the scale to weigh active and restless animals within ±1% of actual weight.

This manual will cover the load cell and other hardware options available in the Stock Weigh system. The load cells option available include the following: SW3300 (3300 lbs capacity), SW6600 (6600 lbs Capacity), SW10K (10,000 lbs capacity), SW14K (14,000 lbs capacity).

(3)

2

DIGI-STAR

STOCK WEIGH SCALE

WARRANTY

GUARANTEE

Digi-Star, LLC. warrants correcting by repair or replacement, at Digi-Star's option, any defect in material or workmanship in any part of electronic scale products (unless otherwise specified on selected products). In the event of replacement, Digi-Star's sole obligation shall be to provide replacement product or parts, FOB. Check with your dealer or OEM for specific duration.

LIMITATIONS

This Limited Warranty does not apply to electronic scale products, accessories or parts not manufactured by Digi-Star, except to the extent of the warranty given by the actual manufacturer thereof. Furthermore, this warranty shall not apply to:

1. Parts or products requiring replacement due to normal wear and tear, or due to improper

installation, abuse, neglect or required maintenance, accident, fire, lightning or other acts of God.

2. Equipment that has been repaired or modified by person(s) not authorized by Digi-Star, which

in Digi-Star's judgment has affected the performance or reliability.

Digi-Star does not warrant any part or product to meet local, municipal, state, provincial or national laws and/or regulations.

EXCLUSION OF OTHER WARRANTIES AND REMEDIES

Except where such disclaimers and exclusions are specifically prohibited by applicable law, the foregoing sets forth the ONLY GUARANTEE or warranty applicable to this transaction, and such warranty is given expressly and in lieu of all other warranties, express or implied, or merchantability and fitness for a particular purpose and all such implied warranties which exceed or differ from the warranty set forth herein are hereby disclaimed by Digi-Star. Oral statements about the products covered by this transaction made by Digi-Star's representatives, or statements contained in Digi-Star's general advertising, pamphlets, brochures, or other printed matter, shall not constitute warranties. Except where such limitations and exclusions are specifically prohibited by applicable law, the sole and exclusive remedy against Digi-Star shall be for the repair or replacement of defective parts as provided, and no other remedy (including but not limited to incidental, special, indirect, or consequential damages for lost profits, lost sales, injury to persons or property, or an other loss) shall be available. This exclusive remedy shall not be deemed to have failed of its essential purpose as long as Digi-Star is willing and able to repair or replace defective parts in the prescribed manner.

PRODUCT CHANGES AND IMPROVEMENTS

We reserve the right to make changes in design, to add improvements to or otherwise modify our electronic scale products without incurring an obligation on goods previously purchased and to discontinue supplying any parts listed when the demand does not warrant production.

(4)

Stock Weigh scale components:

(5)

4

Key 2: Indicator mounting: The following mounting brackets (P/N 403769, 403770, 403771) are shipped standard with SW600 indicator. P/N 403980 metal bracket can be purchased separately.

Optional Ram Mounting Bracket Option: (Standard on the SW550 EID Indicator)

Key 3: Power supply options. Both the SW600 & SW550 come standard with the wall outlet or battery clip adaptor power supply.

(6)

Key 4: P/N 403360- Stock Weigh Alley Platform

(7)

6

STOCKWEIGH SPECIFICATIONS

Gross Capacity Model 3300: 3300 lbs. Maximum Model 6600: 6600 lbs. Maximum Model 10000 10,000 lbs. Maximum Model 14000 14,000 lbs Maximum

Accuracy: ±1% and ±1Display Increment

Load Cell Cable Length: 14 Feet

Resolution (For Both Models)

Increment Range

1 lbs or kgs 0-300 lbs or kgs 2 lbs or kgs 300-600 lbs or kgs 5 lbs or kgs 600 lbs or kgs

Power Requirements: 12-14 VDC @ approx 1 Amp

AC to DC Converter

110 VAC to 13.8VDC @ 1.2 Amps

LOAD CELL DIMENSIONS

Model 3300 A B C D E F G H 148042 16" SW 3300 16" 12.19" N/A 7.75" 8.25" 7.25" 15.5" .625" x 1.0" SLOT 146769 24" SW 3300 23.5" 19.69" 17.19" 11.5" 8.25" 7.25" 23" .562" X 1.0" SLOT 400144 32.5" SW 3300 32.5" 28.75" 23.5" N/A 8.25" 7.25" 33.5" .562" X 1.0" SLOT

(8)

Model 6600 Model 10000 A B C D E 400058 33.5" SW 6600 33.31" 29.5" 28.75" 32.5" 33.5" 400006 44" SW 6600 43.81" 40.0" N/A 43.0" 44.0" A B C 403666 39" SW10K 39.0" 50.0" 54.25" 403831 43" SW10K 43.063" 54.063" 58.313"

(9)

8 Model 14000 A B C Notes 400161 44" SW 14K 44.0" 55.75" 61.75" Requires J-box 403858

(10)
(11)

10

Installations Stock Weigh

10k & 14k Scale Load cells.

Installation & Guidelines:

The scale must be installed on a flat, level, and well-drained surface. Concrete is preferred. Shim under the scale as required. Usually flatness within ±1/8” is required. The scale is approximately 4” high. Ramps or a shallow pit may be required to facilitate animal access if used as an animal scale. If a pit is used, adequate drainage is a MUST.

Assemble load cells and components as shown in the two diagrams. The cross tubes joining the upper mounts must be used. The scale will NOT function properly if the upper mounts are not installed correctly. Load cells must be installed as noted on the “Bending Direction” decal (arrow must point UPWARD).

Position assembled unit as desired on the mounting pad. Mark all required drilled holes using the lower mount as a template. An angle iron bracket may be welded to the chute to provide mounting surfaces for the top mounts. Mounting hardware is not provided.

Grease all hardware with a weather resistant grease to make subsequent disassembly easier.

The chute should be restrained with a horizontal chain or other flexible means if the scale system is not bolted to concrete. Important: The restraining chain must be horizontal. Any deviation can add or subtract from the correct scale reading.

Assembly Diagram 10k Load Cells

NOTE PROPER ORIENTATION

(12)

Extension tube may be cut down to provide a custom scale width. Simply re-drill the mounting cross-hole after cutting down the pipe on one end.

Wires and cables must be stowed and secured safely to prevent damage. Secure all cables of off ground and away from animals with nylon cable ties or other fasteners.

Maintenance:

There are no moving parts and no lubrication required. The only maintenance required is periodic cleaning of the mounts and the area below the scale to assure free and unencumbered operation of the scale. If a pressure washer is being used, do not spray or direct high pressure stream at the load cells. Load cell damage may occur.

Stand over each of the 4 corners to troubleshoot for problems. Corners should weigh the same within ±2 display counts. Scale system accuracy is ±1% maximum error.

Do not weld to load cells with load cell cables connected to the indicator. If you must weld with load cells connected, locate welder ground so that current will not flow through the load cell.

Important

NOTE PROPER ORIENTATION

(13)

12

(14)
(15)
(16)

TYPICAL WOOD PLATFORM CONSTRUCTION

The following two platforms can be built using readily available building materials. Alternate decking material (plywood or steel grating) may be used if properly supported. An example of proper support could consist of either concrete or timber piers, or a concrete slab. Treated lumber is recommended for decking material.

If alternate deck sizes and/or materials are used, be aware that too much deck deflection will affect weighing accuracy. A heavy strong structure is better than a light one that flexes.

Important

Do not weld to load cells with load cell cables connected to the indicator. If you must weld with load cells connected, locate welder ground so that current will not flow through the load cell.

Model 3300 (3300 LB [1500 KG] Gross Capacity)

This is a typical platform that may be used with the Stockweigh Model 3300. Do not allow deck to overhang more than 6 inches past the edge of the load cell.

(17)

16

Model 6600 (6600 LB [3000 KG] Gross Capacity)

This plan is an example of a platform that may be used with the Stockweigh Model 6600. Do not allow deck to overhang more than 12 inches past the edge of the load cell.

(18)

Repair Parts

Stock Weigh 3300

P/N 148042 SW 3300 16”

P/N 146769 SW 3300 24”

P/N 400144 SW 3300 33.5”

Key Qty P/N Description

1 1 400031 CHANNEL-LOWER – 16” 1 400139 CHANNEL-LOWER – 24” 1 400140 CHANNEL-LOWER – 33.5” 2 1 148039 CHANNEL-UPPER – 16” 1 146762 CHANNEL-UPPER – 24” 1 400059 CHANNEL-UPPER – 33.5” 3 1 148041 CELL-SW 13”– 15FT W/CONNECTOR – 16”

1 146768 CELL-SW 21”-15FT W/CONNECTOR – 24” & 33.5”

4 4 146760 MOUNT-ELASTOMER

5 1 404211 CLAMP-CABLE .25ID SS

6 1 403392 STRAP-LOADCELL COVER

7 1 403394 COVER-LOADCELL DUST

8 8 146764 NUT-3/8-24 UNF SS

9 1 146765 CABLE-CLAMP NYLON 3/8 ID – ONLY FOR 33.5”

10 1 146766 SCR-PHMS #8-32 SS – ONLY FOR 33.5”

11 1 146781 NUT-#8-32 SS - ONLY FOR 33.5”

12 4 840468 CONNECTOR – PIN /MALE

(19)

18

Stock Weigh 6600

P/N 400058 SW 6600 – 33.5”

P/N 400006 SW 6600 – 44”

Key Qty P/N Description

1 1 400059 CHANNEL-33.5” SW 6600 UPPER

2 1 400010 CHANNEL-44” SW 6600 UPPER

3 2 400031 CHANNEL-16” SW 3300 LOWER

4 1 400005 CELL-SW 13”-15 FT CORD W/ CONNECTOR

5 8 146760 MOUNT-ELASTOMER

6 1 404212 CABLE-LOOP RETAINER

7 1 404211 CLAMP-CABLE .25 ID SS

8 1 403392 STRAP-LOAD CELL COVER

9 1 403394 COVER-LOADCELL DUST

10 1 400303 HEX HEAD CAP SCREW- 3/8-24 SS

11 17 146764 NUT-3/8-24 UNF SS

12 4 840468 CONNECTOR – PIN /MALE

13 1 840469 CONNECTOR BODY/MALE (see page 23 for wiring diagram)

(20)

Stock Weigh 6600

P/N 403441 SW 6600 PAIRED 16” MNT

Key Qty P/N Description

1 1 403440 CELL-SW PR 13”- 15FT W/ CONNECTOR 2 8 146760 MOUNT ELASTOMER 3 2 400031 CHANNEL-16” SW 3300 LOWER 4 2 148039 CHANNEL-16” SW 3300 UPPER 5 16 146764 NUT-3/8-24 UNF SS 6 2 404211 CLAMP-CABLE .25 ID SS

(21)

20

Stock Weigh – 10,000 LBS

P/N 403666 SW 10K 39”

P/N 403831 SW 10K 43”

Key Qty P/N Description

1 1 403138 CELL-SW PAIR 1.5 DB 10K

2 2 403540 MOUNT-SW10K UPPER

3 2 403541 MOUNT-SW10K LOWER

4 1 403539 TUBE-SW10K EXTENSION 28.5” (MODEL 39)

1 403830 TUBE-SW10K EXTENSION 32.563” (MODEL 43)

5 4 403661 SCR-3/8-16 X 2.5” HHCS SS

6 4 403662 NUT-3/8-16 NYLOC SS

7 2 403664 PIN-3/8 X 2/5” CLEVIS SS

8 10 403663 WASH-3/8 FLAT SS

(22)

Stock Weigh – 14,000 LBS

P/N 400161 SW 14K 44” – J-Box Load Cell

P/N 403858 SW 14K 44” – Spliced Load Cell

Key Qty P/N Description

1 1 403857 CELL-SW PAIR 1.875 DB 14K (for P/N 403858)

2 153171 CELL-1.875 DB-16FT W/CONNECTOR (for P/N 400161)

2 2 400159 UPPER MOUNT WELDMENT

3 2 400153 ISOLATOR END WELDMENT

4 2 400152 ISOLATOR-80 DUR POLY

5 1 400160 EXTENSION TUBE- 34.75”

6 2 400248 SCR-1/2-13 X 3.75” HHCS SS

7 2 400249 NUT-1/2-13 UNC SS

8 4 400222 PIN-SCALE MOUNT

(23)

22

Repair Parts

404254 Assy J-box 4pt mobile

404256 Assy J-box 6pt mobile

(4pt Mobile J-box is shown)

KEY PART NO. DESCRITPION

1 404257 Top Cover Assembly (includes keys 3-5, 13)

2 404258 Bottom Housing Assembly – 3pt/4pt mobile (includes keys 8, 9) 404261 Bottom Housing Assembly – 6 pt mobile (includes keys 8, 9) 3 404084 Housing Top Cover

4 404082 Gasket J-Box .106 dia 5 404283 Decal- J-box wiring

6 148051 PC Board Assembly-Complete 3pt/4pt 404275 PC Board Assembly-Complete 6pt 7 404616 Scr-#8 x 3/8 PH Hi/Low ZP 8 404083 Bottom Housing 3pt/4pt

404158 Bottom Housing 6pt w/drilled holes 9 141885 Strain Relief Heyco

10 404160 SCR-#8 x 1.0 PHSTS SS 11 404217 Washer-#8 small OD flat SS 12 146724 Rod-1/4” Plastic Heyco Plug 13 404486 Decal Digi-Star (.8” x 1.9”)

(24)

Description + EX - SIG + SIG - EX DRAIN

Load Cell Connector

Wiring Diagram
