U.S. CMS Software and Computing Project

(1)

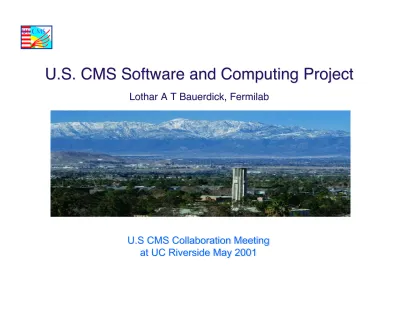

U.S. CMS Software and Computing Project

Lothar A T Bauerdick, Fermilab

U.S CMS Collaboration Meeting

at UC Riverside May 2001

(2)

CMS Software and Computing

Scale of LHC computing is greater than anything we have tried in HEP

LHC Collaboration

Number of collaborating physicists Number of collaborating institutions Number of collaborating nations Geographic distribution

Projected length of the experiment Size and complexity of dataset

Distributed object data base

This demands a new model of computing

CMS WorldWide

1800 Physicists 150 Institutes 30 Countries

(3)

U.S. Part of World-Wide Computing for CMS

LHC Computing Model:

distributed multi-tier architecture

Regional Computing centers outside CERN

CMS Tier1 centers:

U.S. Tier1 at Fermilab

also Lyon, RAL, INFN, Moscow CMS Tier2 centers:

5 U.S. Tier2 centers

CMS in total ~ 25

Coordinated use of distributed computing resources Communication and collaboration at a distance Data Grids as a new form of distributed systems

Software Engineering:

distributed software development for physics analysis

software and computing R&D

Research e.g. in Data Grids, distributed object dbase, … data challenges as check-points

prototype software and prototype computing installations funding for prototypes during 2001 to 2004

(4)

These are key elements to its eventual success

(U.S.) CMS Distributed Computing Model

Tiered Computing model puts U.S. CMS Computing at Labs and Universities

Draws strength and exploits the synergy between

U.S. Universities and Fermilab

Software Professionals and Physicists

Takes advantage of and contributes to key developments in the US

in information technology

Drive towards a high speed network infrastructure

Development of ever better network software and applications such as Grid computing concepts

Significant funding, manpower and technologies from Grid projects

It takes advantage through the Tier2 centers of the significant strengths of US

universities in the area of computer science and information technology

(5)

Software and Computing Deliverables

Deliverables of the S&C Project

CORE SOFTWARE: Engineered Infrastructure

such as distributed object dbase, software development,

analysis tools and processes

MAJOR USER FACILITIES and Services:

Tier1 and Tier2 Regional Centers, production management systems

for distributed analysis, interface to wide area networks

Non-Deliverables of the S&C Project

Sub-detector and Physics Software

Local Computing (Workgroup servers, desktops) at home institutions

NB:

Physicists working on computing R&D, management are off-project

Will be covered

by S&C MOU

(6)

Computing R&D

+

User Facility

Develop software / systems

architectures

and

implementations

to deal with a new level of complexity:

Complexity in data: rate, #channels, pile up

Complexity in data structures: persistent objects, data base computing, Grid

Support for an active and growing user community

—

>

User Facility

Detector simulation and reconstruction, Higher Level Trigger, Physics TDR “Production” in 2000/1:

~5M events simulated and reconstructed worldwide (1.5M at Fermilab) ~10 Terabyte data stored in an Object Database

Distributed computing strategies have to be verified

by applying them to real world computing problems!

Tier1 and Tier2 prototypes start in 2000/1, increase complexity techniques and strategies for distributed computing

operation and management of complex systems

50% complexity

in 2004

(7)

Resources are in 3 Categories

User Facilities Equipment

Prototypes

Tier1 at Fermilab

Tier2s at 5 U.S. Institutions

User Facilities Staff

Computing Professionals for Computing-related R&D Tier1 at Fermilab

Tier2 Maintenance

Core Application Engineers

Computing Professionals/Software Engineers for CMS Core Software Support for specific U.S. activities

(8)

Prototype

50% complexity

in 2004

+

User Facilities: 3-Phases

Tier1 and Tier2 regional centers: R&D, Equipment, Staff

Prototyping: has started in 2000

Computing R&D

Computing hardware prototyping and test-beds

Computing for Physic Reconstruction and Selection

Deployment: 2005-2007

Assumes LHC startup in 2006 and design Lumi in 2007

Procurement Model: Start deployment in 2005, 30%, 30%, 40% costs Ramp-up of User Facility Staff

Maintenance and Operations: 2007 on

Constant staff level

“Rolling Replacement” of hardware components, yearly budget 1/3 of initial investment

(9)

Buy late

—

but not too late

…

Requirement based on Computing Model allow to estimate Computing Cost Large extrapolation factors O(20)

Large uncertainties —> build to cost!

Tier1 Computing Resources

needed in 2007:

CPU 200k SI95 (~5000 1GHz Pentium ///) Disk ~ 1 Petabyte

Tapes 1.5 Petabyte

Initial Computing Hardware Costs:

$10M ~

O

(1 RunII exp) = $9.1M

Hardware Costs and Procurements

Moore

(10)

2001

2001 20022002 20032003 20042004 20052005 20062006 20072007

1.1 Tier 1 Regional Center

1.1 Tier 1 Regional Center 1313 1717 2020 1.2 System and User Support

1.2 System and User Support 1.31.3 2.252.25 33 33 55 4.54.5 4.54.5 1.3 Operations and Infrastructure

1.3 Operations and Infrastructure 11 1.251.25 1.251.25 33 55 4.54.5 4.54.5 1.4 Tier 2

1.4 Tier 2 RCsRCs 2.52.5 3.53.5 44 55 6.56.5 7.57.5 7.57.5 1.5 Networking

1.5 Networking 0.50.5 11 22 2.52.5 33 33 33 1.6 Computing and Software R&D

1.6 Computing and Software R&D 33 44 4.54.5 1.41.4 0.60.6 0.60.6 0.60.6 1.7 Construction Phase Computing

1.7 Construction Phase Computing 22 22 22 0.25 0.25 1.8 Support FNAL based Computing

1.8 Support FNAL based Computing 0.40.4 1.41.4 11 2.62.6 2.252.25 22 22 User Facilities (total)

User Facilities (total) 1010 1515 1818 1818 3535 3939 4242 (Without T2 Personnel)

(Without T2 Personnel) 7.57.5 11.511.5 1414 1313 2929 3232 3535

Comparison to RunII: D

Comparison to RunII: DØØ / CDF have 36/33.5 FTE! / CDF have 36/33.5 FTE!

User Facilities Staff

Detailed Bottom-up analysis of needs for Tier1 and Tier2 facilities

Full time staff working on User Facilities tasks:

(11)

CMS Software Cycles and Milestones

The OO “Functional Prototype” phase completed in 2000 Entering new development iteration:

Fully Functional pre-production Software in 2001-2 Distributed Object Data Base System

Production System Software to be ready for first run in 2006

These Milestones are linked with the major CMS Milestones:

Technical Design Reports on DAQ, Software, Physics

May 2001 CMS MILESTONES

CORE SOFTWARE

End of Fortran dev

CMS GEANT4 simulation 1 2 3 4

Framework 1 2 3 4

Det Reconstruction 1 2 3 4

Physics Object Reconstruction 1 2 3 4

User Analysis Environment 1 2 3 4

1 Proof of Concept 3 Fully functional

2 Funct. Prototype 4 Production system

1998 1999 2000 2005

Jun-98

Jun-98 Dec-99 Jun-00 Dec-03

2001 2002 2003 2004

Jun-98 Dec-99 Dec-01 Dec-03

Dec-98 Dec-99 Jun-02 Jun-04 Mar-99 Jun-00 Dec-02 Dec-04 Dec-98 Jun-00 Dec-02 Dec-04

Software Engineering

(12)

Software Engineering

U.S. contributes its share of ~25% to total Core Software Engineering effort

Main U.S. contributions in Software Architecture Interactive Analysis Distributed Computing

8 Engineers now, ramping to 14

This will be subject of an

iMOU

on Software and computing (End 2001)

FTE Profile CMS Core Software and Computing

16 29 40 43 44 46 42 7 8 9 10 10 10 10 0 5 10 15 20 25 30 35 40 45 50 Total CMS Offline + Online S/W FTE 16 29 40 43 44 46 42 U.S. CMS Core-SW contribution 7 8 9 10 10 10 10 2000 2001 2002 2003 2004 2005 2006

U.S. Share of CMS Software FTEs USA (DOE and NSF) Italy CERN (CMS RDMS- France-Germany UK Hungary Belgium India Other China Spain Switzerland (ETHZ)

(13)

LHC Total Initial Computing Cost:

~$150M

CMS and U.S. CMS S&C

US plans and progress are important driving forces for

discussions of LHC Computing at CERN and elsewhere

U.S. Model and Costing sanctioned by

“

Hoffmann Review

”

LHC Computing Review Panels

Software Project

Worldwide Analysis/Computing Model Management and Resources

Report of the Steering Group published end of Feb 2001

Findings

total LHC computing hardware initial costs estimated 240 MCHF CERN Tier0 and Tier1 represents ~ 1/3 of overall capacity

Recognize need for Prototyping and Software Engineering

(14)

Total Costs FY01 .. 06 is 54.7 M$ (escalated) + 17.5 in FY07

Integral Funding Profile is 52.5 FY01 to FY06, assume 17.5 in out-years

Changes since Nov2000: shift in LHC schedule

US CMS S&C Project Costs (prelim.)

Total Project Costs and Funding Profile

2 2.5 3.5 5.5 9.5 12.5 12.5 3.5 4 5.5 8.5 13.5 17.5 17.5 0 2 4 6 8 10 12 14 16 18 20 2001 2002 2003 2004 2005 2006 2007

CAS labor UF Tier1 labor UF Tier2 labor UF Tier1 h/w UF Tier2 h/w Project Office

Mgmt Reserve DOE profile DOE+NSF(assumed) FY

Million AY$

Spread out R&D

Tier1/2 deployment

!

Delayed deployment at T1 (starts 2005, in time ) will need some thinking –3.5 FTE from UF ‘til 2003 –1 FTE from CAS ‘til 2003 –1 FTE in PO

Put in “reality” for 2001 Need to work on FY2002 Staging of R&D in UF

(15)

Management Team, Committees

Project Management team in place since November 2000

Level 1 Project Manager

Lothar Bauerdick/Fermilab, Lucas Taylor/North Eastern U deputy Level 2 Project Manager User Facilities

Vivian O’Dell/Fermilab

Level 2 Project Manager Core Application Software Ian Fisk/UC San Diego

U.S. Advisory Software and Computing Board

Elected: Irwin Gaines/Fermilab chair

Paul Avery/Florida, Bob Clare/UC Riverside,

Sridhara Dasu/Wisconsin, David Stickland/Princeton, Shuichi Kunori/Maryland Ex-officio: L1PM, L2PMs, chair U.S. CB, PM CCS,

L1PM construction, U.S. physics coordinator, head Fermilab CD

Fermilab Oversight: PMG

U.S. CMS PMG sub-group for Software and Computing

Chair: Mike Shaevitz, Fermilab Associate Director of Research

Added to PMG: L1/2PMs, U.S.ASCB chair, U.S.CB chair, Fermilab CD head 3 experts: Ruth Pordes, Erik Gottschalk, Mike Diesburg

This is our

Interface

to U.S. CMS!

(16)

Reports, reviews etc

2nd Quarterly

Progress Report

released last Friday: FY2001Q2

SCOP review

, reporting to Fermilab Directors for Project Oversight

Friday May 25, 9:00 .. 15:00 at Fermilab

Status report

to DOE/NSF

at Washington/NSF May 30

Proposed date of

DOE/NSF review

New date November 27-30 at Fermilab (was: October 9-12) plan: baseline the project…

Common meetings

of (U.S.) LHC S&C community

Networking meeting at Indiana U. June 1-2

(17)

FY2001 Plans and Funding

Make the most of

Make the most of Functional Functional

Prototype

Software Software

use to simulate and reconstruct events for Higher Level Trigger studies

develop tools and systems needed to deliver large and high quality data samples

Proceed towards

Proceed towards Fully Functional

Fully Functional

Software Software milestone milestone

Iterate and extend on Software Architecture

Develop Distributed Production and Analysis Environment

Deploy User Facilities and R&D Systems at Tier1 and Tier2 centres

Project Funding

Project Funding in FY2001 from DOE and NSF to support that program: in FY2001 from DOE and NSF to support that program: (but problems with NSF part of the funds!)

(but problems with NSF part of the funds!)

U.S. CMS Software and Computing Caltech UCSD FNAL NEU Princeton UC Davis pT2'2 TOTAL Core Applications Software (CAS) FTE

2.0 1.5 2.5 1.0 1.0 8.0 User Facilities (UF) FTE

0.5 0.5 4.0 0.8 5.8 TOTAL FTE 2.5 0.5 5.5 2.5 1.0 1.0 0.8 13.8

CAS Personnel (salary, PC, travel,...) 317.8 238.3 400.0 158.9 119.2 1,234.2 UF Personnel (salary, PC, travel,...) 75.0 75.0 635.4 100.0 885.4 UF Tier 1 Equipment 410.0 410.0 UF Tier 2 Equipment 200.0 200.0 350.0 750.0 Project Office, Management Reserve 220.4 220.4

(18)

Funding Status

Received $1500k from DOE in February and April

+ $500k loan from Construction Project

Support CAS and UF personnel, start Project Office Go-ahead for Tier-1 upgrade —> Viv’s talk yesterday

Requested $1500k from NSF

NSF Advice: $1000 planned for FY2001 + $500 for prototype Tier 2 end FY2000 Received only $320 for CAS engineers (NEU) (+ $80 expected)

No concrete news from NSF! Status report meeting at NSF on May 30

All funds in AY$ x 1000 FY2000 FY2001 Total

Requested Received

DOE 1164.7 1500.0 1500.0 2664.7 NSF 310.0 1500.0 400.0 1810.0 Loan from U.S. CMS Detetector Project 500.0 500.0 500.0

(19)

Grid Projects

Two Grid R&D proposals submitted with substantial U.S. CMS contributions

PPDG (DOE

SciDAC

, CMS PI: Harvey Newman): approved!

deployment of Grid technologies in vertically integrated systems for CMS CMS deliverables worked on w/ PPDG provided FTE + CS groups

Funding for personnel at Caltech, UCSD, Fermilab

iVDGL (NSF ITR, PI: Paul Avery)

Funding for CMS Tier-2 prototype efforts: (+ATLAS, Ligo, SDSS) mostly facilities + maintenance

Some funds for Grid integration into CMS s/w See Paul’s talk

IMHO The production Tier-2 funds should be handled in a different way:

The Tier-2 funds should be controlled by the CMS project

This will require

(20)

Prototype Tier-2 centers

Successful deployment and commissioning of (1st stage of) Cal pT2!

University of Florida was selected as 2nd prototype Tier-2 site

Procedure as described in my letter to collaboration

Solicitation for proposals (deadline April 15) Report of UF Level-2 PM to Level-1 PM

Discussion to get input from U.S. ASCB (meeting April 24) Selection of Florida unanimous

Funding of the prototypes through iVDGL will start FY2002

WBS, MOU and SOW in preparation (also w/ Caltech/UCSD)

selection procedure for final Tier2 sites

will need discussion in collaboration

Should be proposal driven; criteria: U.S. ASCB, but much discussion required Review board to evaluate proposals, membership TBD

Recommends sites/proposals with greatest benefits to U.S. CMS and CMS Final decision by L1PM

Time scale: end of 2002

(21)

Core Applications Software (CAS)

4 areas of software development

WBS 2.1 CMS Software Architecture

U.S.: e.g. get CARF, Object Dbase, C++ know-how

U.S.: e.g. get CARF, Object Dbase, C++ know-how

WBS 2.2 Interactive User Analysis

U.S.: e.g. schema for

U.S.: e.g. schema for ““AODAOD””, prep for Physics TDR tools, prep for Physics TDR tools

WBS 2.3 Distributed Data Mgmt and Processing

U.S.: e.g. production tools at e.g. Fermilab,Caltech,UCSD,Wisconsin,

U.S.: e.g. production tools at e.g. Fermilab,Caltech,UCSD,Wisconsin,

concepts and tools for distributed analysis

WBS 2.4 User Support: 25% of each engineers time

U.S.: e.g. software engineering support; physicist formulates a project for CP,

engineer can help designing / implementing; need to estimate time & involvement

engineer can help designing / implementing; need to estimate time & involvement 8 CAS software engineers on project at 5 institutions

8 CAS software engineers on project at 5 institutions

Vladimir Litvin Caltech DDMP/ Prod. / Arch. Iosef Legrand Caltech (CERN) DDMP

Tony Wildish Princeton (CERN) Prod. / DDMP/ Arch. Michael Case UC Davis Arch.

Lassi Tuura Northeastern (CERN) Arch./ IGUANA Ianna Gaponenko Northeastern (CERN) IGUANA

Hans Wenzel Fermilab Prod./ Arch. Greg Graham Fermilab DDMP

(22)

Software

req

. from PRS (Paris,

CPT

week)

Analysis tools

: Needed soon. The sooner the better; Physics TDR(s):

Clearly, aim is not to determine/influence detector design

Probably biggest side-effect/purpose will be the training of people

Probably biggest side-effect/purpose will be the training of people

We’ll use “near-final” software and “near-final” tools

Therefore: analysis tools must be ready and people trained on them at least a year before the Physics TDR. That’s End 2003.

Therefore, year 2003 is the year of deployment/training of people (tight, would be better to extend into 2002…)

Will need first full deployment end 2002. With the DAQ TDR. Timing would be good; finish TDR, presumably more time(?)

Estimated size of

event samples

needed for Physics TDR studies

Expect that we can continue at ~ the same rate as up to now

Above statement accurate to a factor 2 (but: CPU for tracking?)(but: CPU for tracking?)

More would be welcome (and even helpful) Data access issue(s) could be looked at Organization could be strengthened

PRS Groups Getting More

Involvded Into Production

(23)

Summary of Engineering Efforts

Spent effort is assessed on

the basis of regular effort reports from engineers and managers, using a bottom-up approach, where for each WBS item

expenditure of labor is accumulated.

For the User Facilities subproject this is

reconciled with the monthly effort reports from the

departments of Fermilab Computing Division.

As part of the reporting for the Core Application

Software subproject the engineers submit monthly reports for effort tracking.

This system is successful!

WBS item FY2001Q1 FY2001Q2 Total effort

projected FY2001

Total project-funded effort

FY2001

WBS 1.1 Tier 1 Regional Center inactive

WBS 1.2 User Support 0.26 0.32 1.31

WBS 1.3 Maintenance and Operations 0.03 0.02 0.63

WBS 1.4 Tier 2 Regional Centers 0.25 0.20 2.50

WBS 1.5 Tier 1 Network 0.02 0.02 0.50

WBS 1.6 Software and Computing R&D 0.44 0.34 2.69

WBS 1.7 Detector Construction Phase Computing 0.41 0.49 2.00

WBS 1.8 Support for Fermilab Based Computing 0.03 0.01 0.38

Total FTEs at Fermilab Regional Center 1.19 1.20 7.50 4.05

Total FTEs 1.44 1.40 10.00 6.55

WBS item FY2001Q2 Total effort

projected FY2001 Total project-funded effort FY2001 WBS 2.1 Software Architecture 0.44 WBS 2.2 Interactive Graphics and User Analysis 0.06 WBS 2.3 Distributed Data Management and Proc 0.75 WBS 2.4 User Support 0.75

Total FTEs 0.00 2.00 8.50 7.75

User Facilities

(24)

U.S. CMS S&C Summary

A large part of the computing and software engineering

for CMS will need to be provided from outside CERN

to fully yield the compelling physics potential of CMS

The U.S. CMS S&C Project is going to

deliver the necessary efforts and computing resources to

enable U.S. physicists making a major impact on

physics analysis within CMS
