Accessories for Heating and Cooling Installations

Accessories for Heating

and Cooling Installations

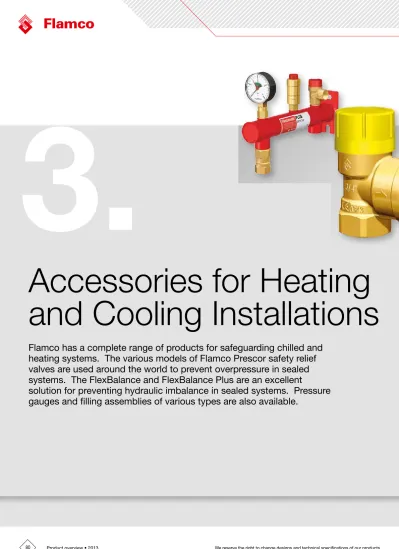

Flamco has a complete range of products for safeguarding chilled and

heating systems. The various models of Flamco Prescor safety relief

valves are used around the world to prevent overpressure in sealed

systems. The FlexBalance and FlexBalance Plus are an excellent

solution for preventing hydraulic imbalance in sealed systems. Pressure

gauges and fi lling assemblies of various types are also available.

Accessories for Heating

and Cooling Installations

Flamco has a complete range of products for safeguarding chilled and

heating systems. The various models of Flamco Prescor safety relief

valves are used around the world to prevent overpressure in sealed

systems. The FlexBalance and FlexBalance Plus are an excellent

solution for preventing hydraulic imbalance in sealed systems. Pressure

gauges and fi lling assemblies of various types are also available.

Accessories for Heating and Cooling Installations

Connection Sets and

Isolating Unions

Wall Mounting

Flexcon Pressure Gauges

Connecting group ½"

• For connecting expansion vessels to a heating or cooling system. • Consists of a shut-off valve, a fill

and drain cock with hose connections.

• Also available with optional manometer.

Flexcon connecting set 1"

• For connecting expansion vessels to a heating or cooling system. • Consists of a shut-off valve, fill

and drain cock with hose connection".

• Also available with optional manometer (0-12 Bar).

FlexControl ¾"

• The FlexControl connects the Flexcon expansion vessel with the central heating system.

• Enables checking the pre-charge of the Flexcon expansion vessel and topping up the system.

• Enables replacing the expansion vessel without depressurising or draining the system.

Flexfast ¾"

• Quick disconnect coupler for check-ing the pre-charge of the Flexcon expansion vessels up to 25 litres. • Enables replacing the expansion vessel without depressurising or draining the system.

Flexconsole Plus

• Suplied with Prescor ½" - 3 bar, Flexvent 3_/8", Flexfast quick

disconnect coupler and pressure

gauge.

Pressure gauge

• For monitoring system pressure.

• Flexcon pressure gauges (80 mm dia.) can be installed without de-pressurising or draining the system thanks to the self closing shut off valve.

Thermo pressure gauges

• For monitoring system pressure and system temperature. • Axial connection.

Test pressure gauge

• For testing pre-charges of Flexcon and Airfix expansion vessels. • Pressure range 0.4 - 6.8 bar.

Wall mounting bracket MB

• For easy connecting Flexcon and Airfix A/D 8 - 25 litres vessels to a wall

Flexconsole ¾

• For mounting Flexcon 8 - 25 vessels to a wall.

• Available in red or white color.

Relief Vessels

Flamco EG

• Used in sealed heating systems with high temperatures for separating steam from condensate at safety valve exit.

• Used in combination with a full stroke safety valve.

Hydraulic Balancers

FlexBalance F

• Equalizes hydraulic imbalance inbetween primary and secondary circuits.

• Flanged connection.

• Internal flow rate reducing perforated plate.

FlexBalance S

• Equalizes hydraulic imbalance inbetween primary and secondary circuits.

• Welding connections.

• Internal flow rate reducing perforated plate.

FlexBalance R

• Equalizes hydraulic imbalance inbetween primary and secondary circuits.

• Grooved pipe system connection. • Internal flow rate reducing perforated

plate.

FlexBalance Plus F

• Equalizes hydraulic imbalance inbetween primary and secondary circuits.

• Flanged connection. • With Pall-rings.

• Supplied with automatic float vent and a drain cock.

FlexBalance Plus S

• Equalizes hydraulic imbalance inbetween primary and secondary circuits.

• Welding connection. • With Pall-rings.

• Supplied with automatic float vent and a drain cock.

FlexBalance Plus R

• Equalizes hydraulic imbalance inbetween primary and secondary circuits.

• Grooved pipe system connection. • With Pall-rings.

• Supplied with automatic float vent and a drain cock.

Flexbalance EcoPlus C

• Equalizes hydraulic imbalance inbetween primary and secondary circuits.

• Including air and dirt separation. • Connection: includes four

pre-assembled galvanized conical couplings.

• De-aerator: Flexvent Top white, supplied separately in packaging. • Supplied with automatic float vent

and a drain cock.

• PUR hard foam insulation mantle.

Mild steel dosing pots

• For dosing sealed heating or chilled systems with chemical additives.

Dosing Pots

Cubex R Bracket

• For mounting Cubex R 12 - 18 litres vessels to a wall.

Safety Valves

Prescor

• Safety valves for sealed heating and cooling installations.

Prescor Solar

• For sealed solar installations. • According to TÜV. SV.08-118.SOL. • Working temperatures from -30 °C

up to 160 °C. Working temperature is 120 °C continuously.

Prescomano

• For sealed heating and cooling installations. • Safety valves with

pressure gauge (0 - 4 bar).

Prescofiller

• Filling and safety group suitable for smaller domestic installations. • Combination of Prescor

safety valve, Flexcon pressure gauge and a fill and drain set.

• Prescomano and ball valve are supplied separate from the T-piece and fill and drain set, so that mount-ing in any position is made possible.

Manofiller

• Filling group suitable for mounting on a radiator.

• Ideal for installations in which the pressure gauge has been installed in close proximity of the boiler, but filling of the installation has to take place elsewhere (e.g. bathroom). • May be mounted in any position

Prescor S

• Safety valve for sealed heating and cooling installations.

• With connections from 1¼" up to 2" these valves are ideal for protecting larger commercial installations.

TRD Full stroke safety valve

• According to TRD 721-6 directive. • Spring loaded, directly activated. • Specify set pressure up on order

(between 1 bar and 10 bar).

Flopress

• Safety valves for sealed heating and cooling installations.

Red brass safety valve

• For sealed heating systems with supply temperatures up to 120 °C and for solar systems.

Prescorplus T ½"

• Prescorplus T ½" is a Prescor safety valve with an integrated T-piece 22 mm.

Funnel

• Fitted between the Prescor safety valve and the discharge pipe.

Auxiliary Products

System Accessories

WMS

• Mechanical low water level protection device.

WMS -E

• Electronic low water level protection device.

• For monitoring system pressure and system temperature. • Maximum pressure: 10.0 bar

Flexcon DT

• For unmounting Flexcon and Airfix vessels.

• Suitable for 2 - 24 litre vessels.

Flanged lock-shield valves

• Available in 6 and 16 bar execution.

Flexcon GVA 90

• Gas valve extension bent at 90° to increase accessibility of Flexcon 110 - 1000 gas valves.

Pressure reducing valves

• For pressure regulation. • Compact and with excellent

performance.

• Complete with an integral serviceable strainer.

Pressure safety switch
