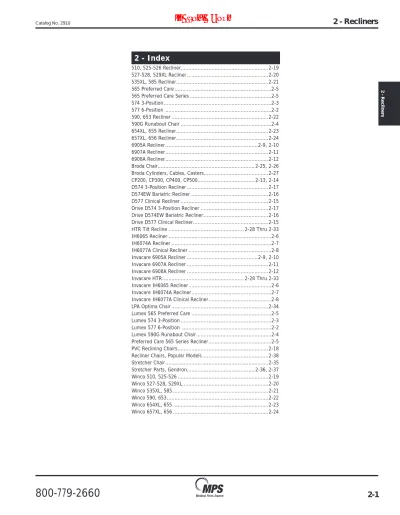

Recliners

Catalog No. 2910

2 - Recliners

2 - Index

510, 525-526 Recliner...2-19

527-528, 529XL Recliner ...2-20

535XL, 585 Recliner ...2-21

565 Preferred Care ...2-5

565 Preferred Care Series ...2-5

574 3-Position ...2-3

577 6-Position ...2-2

590, 653 Recliner ...2-22

590G Runabout Chair ...2-4

654XL, 655 Recliner ...2-23

657XL, 656 Recliner ...2-24

6905A Recliner ...2-9, 2-10

6907A Recliner ...2-11

6908A Recliner ...2-12

Broda Chair... 2-25, 2-26

Broda Cylinders, Cables, Casters...2-27

CP200, CP300, CP400, CP500 ... 2-13, 2-14

D574 3-Position Recliner ...2-17

D574EW Bariatric Recliner...2-16

D577 Clinical Recliner ...2-15

Drive D574 3-Position Recliner ...2-17

Drive D574EW Bariatric Recliner ...2-16

Drive D577 Clinical Recliner ...2-15

HTR Tilt Recline ... 2-28 Thru 2-33

IH6065 Recliner ...2-6

IH6074A Recliner ...2-7

IH6077A Clinical Recliner ...2-8

Invacare 6905A Recliner ...2-9, 2-10

Invacare 6907A Recliner ...2-11

Invacare 6908A Recliner ...2-12

Invacare HTR ... 2-28 Thru 2-33

Invacare IH6065 Recliner ...2-6

Invacare IH6074A Recliner ...2-7

Invacare IH6077A Clinical Recliner ...2-8

LPA Optima Chair ...2-34

Lumex 565 Preferred Care ...2-5

Lumex 574 3-Position ...2-3

Lumex 577 6-Position ...2-2

Lumex 590G Runabout Chair ...2-4

Preferred Care 565 Series Recliner ...2-5

PVC Reclining Chairs ...2-18

Recliner Chairs, Popular Models ...2-38

Stretcher Chair ...2-35

Stretcher Parts, Gendron ... 2-36, 2-37

Winco 510, 525-526 ...2-19

Winco 527-528, 529XL ...2-20

Winco 535XL, 585 ...2-21

Winco 590, 653 ...2-22

Winco 654XL, 655 ...2-23

Winco 657XL, 656 ...2-24

(2)

2

- Recliners

[email protected]

Lumex 577

Lumex 577 6-Position RecLineR

FiG) oRdeR # descRiPtion

1) 60-101 Coated maiN frame...$199.00

2) 60-1122 right aNd left side paNel / light gray... $26.95 - 60-102 left side paNel, light gray

- 60-103 right side paNel, light gray 3) 60-104 Caster wheel with loCk...$89.00 4) 60-105 Caster wheel without loCk...$33.00 5) 58-110 Caster bolt

6) 58-111 Caster Nut

60-129 hardware paCkage for armrest (1)... $12.95 7) 60-130 armrest, right or left (2)... $39.95

8) 60-132 table top oNly

60-231 Complete table assembly; eaCh RePLacement uPhoLsteRy (2) 9) 61-129 upholstered seat... $99.00 10) 61-130 upholstered baCk... $159.00 11) 61-131 upholstered footrest 12) 61-132 upholstered legrest / skirt

13) 61-134 upholstered arm support / pair (2) ...$69.95 14) 61-109 push haNdle with grip... $29.95

notes:

(1) part Not showN

(2) iNdiCate upholstery Color/see baCk CoVer:

• 406 PECAN • 454 ROYAL BLUE

• 427 BLUE RIDGE • 858 GRAY TAUPE • 407 TERRA COTTA • 851 DOE SKIN

• 857 JADE • 863 ROSEWOOD

Lumex 577 6-Position Back

FiG) oRdeR # descRiPtion

14) 63-109 push haNdle with grip... $29.95 15) 63-110 reduCer Cap (10/paCk)

16) 63-111 baCk frame assembly... $59.00 17) 63-112 CleVis piN

18) 63-113 CleVis piN Clip

19) 59-115 baCk hiNges with hardware... $21.95 20) 56-1131 baCk upholstery attaChiNg sCrews 21) 63-116 Cable/release haNdle / leVer ...$34.95 22) 63-117 gas spriNg... $49.95

23) 63-118 CleVis piN

24) 63-119 rear skirt / blaCk

25) 60-219 support plates

26) 61-122 Coated lower baCk braCe 27) 63-125 eNd Cap

28) 61-126 torque tube assembly (1)

61-127 hardware paCkage, footrest (1) 61-128 hardware pkg, legrest / footrest (1) 60-129 armrest hardware (1)... $12.95 29) 59-121 reCliNe meChaNism / set... $129.95

58-123 hardware; reCliNe meChaNism / set (1)

17 18 22 24 14 16 22 27 19 15 20 21 25 23 26 3 7 1 6 5 4 8 3 2 9 10 14 13 29 12 ₁₁ 29 28 No. 2959-121.... $129.95 set

(3)

2

- Recliners

Catalog No. 2910

Lumex 574 3-Position RecLineR

FiG) oRdeR # descRiPtion

1) 58-101 maiN frame assembly; Complete 2) 56-112 tray release kit, 6/pkg... $19.95 3) 58-1011 armpad; upholstered; eaCh (2)... $29.50

58-137 armrest hardware (1)

4) 08-1191 left & right side paNels, grey; pair... $29.95 5) 58-105N froNt Caster wheel 5” gray tire

58-107 froNt wheel axle (1)

58-108 froNt wheel Nut (1)

6) 58-109N rear 5” loCkiNg Caster w/fork

7) 58-110 Caster stem bolt

58-111 Caster Nut (1)

58-112 washer (1)

8) 59-121 reCliNe meChaNism set w/hdwr... $129.95 58-123 hardware paCkage reCliNe meCh. (1)

59-124 torque tube; mouNts betweeN reCl. meCh (1)... $13.95 9) 58-129 table top w/ mouNtiNg plate; molded

58-130 table hardware paCkage... $12.95 58-131 table Clip (1)

58-134 table arm assembly, ea (1) ...$16.95 58-135 bag hook (1)

10) 58-136 square reduCer Cap (10/paCk) 11) 59-128 upholstered baCk (2)

12) 59-127 upholstered seat (2)

13) 59-130 upholstered legrest w/skirt (2)... $39.00 59-125 hardware paCkage for legrest (1) 59-126 hardware pkg, skirt, footrest 14) 59-129 upholstered footrest (1) (2)

59-126 hardware pkg, skirt, footrest (1) notes:

(1) part Not showN

(2) iNdiCate upholstery Color/see baCk CoVer

Lumex 3-Position 574 Back

15) 59-113 baCk beNd/haNdgrip... $29.95 16) 59-114 replaCemeNt haNdgrip

17) 59-115 baCk hiNge hardware / set... $21.95 18) 59-116 pull buttoN for baCk

19) 59-117 baCk attaChiNg sCrews 59-118 plated iNsert tubes (1)

20) 59-119 baCk loCk with hardware... $27.95 21) 59-120 lower baCk frame

59-122 lower baCk braCe eNd Caps (1) 22) 59-131 rear skirt upholstery; blaCk

notes:

(1) part Not showN

6 5 14 13

Lumex 574

4 7 1 9 10 11 8 3 6 5 12 2 13 15 16 18 20 21 19 17 22 574 baCk frame

(4)

2

- Recliners

[email protected]

Lumex 590G Runabout series

Lumex 590, 592, 593 RunaBouts

oRdeR # note descRiPtion

71-8900 a seat upholstery

71-8900fr a seat upholstery, meets CaliforNia teChNiCal bulletiN 133 flammability staNdards 71-8901 a baCk upholstery; 590, 592

71-8901fr a baCk upholstery; 590, 592, meets CaliforNia teChNiCal bulletiN 133 flammability staNdards

71-8902 a baCk upholstery; 593

71-8902fr a baCk upholstery; 593, meets CaliforNia teChNiCal bulletiN 133 flammability staNdards

71-8903 a desk arm upholstery

71-8904 a full arm upholstery

71-8905 froNt Caster assembly

71-8906 rear wheel assembly w/ haNdrim aNd beariNgs

71-8907l left flip-up arm assembly

71-8907r right flip-up arm assembly

71-8908 PULL PIN KITS (USED ON ADJUSTABLE HEIGHT ARmRESTS)

71-5913 rear aNti-tippers

71-1023 froNt aNti-tippers

71-5921 replaCemeNt gas spriNg assembly

71-8908 haNd grips, grey

71-5910 tilt kit assembly

71-5911 footrest attaChmeNt hardware kit

71-5931 swiNg away footrests; set

71-5968 a eleVatiNg legrests; set

71-5904 a detaChable headrest standaRd FeatuRes: • COmFORTABLE, SOFT, SUPPORTIVE SEAT HELPS REDUCE “BOTTOmING OUT”. • ADJUSTABLE BACK BANDS ADD SUPPORT WHERE NEEDED. IDEAL FOR THE RESIDENT WITH KYPHOSIS. • ARmRESTS ARE PADDED FOR INCREASED COmFORT AND HAVE WALL SAVER EDGE GUARDS. • VINYL UPHOLSTERED BACK IS SULFIDE STAIN, mILDEW AND OIL RESISTANT. • “EASY-OFF” BACK UPHOLSTERY IS SImPLE TO CLEAN AND REPLACE. • 24" REAR WHEELS FEATURE A COmFORTABLE TO GRASP AND EASY TO ROLL HANDRIm. • EASY TO ENGAGE WHEEL LOCKS FOR ADDED SAFETY. • OVERALL WIDTH OF 27.5" ALLOWS THE RUNABOUT TO PASS THROUGH mOST STANDARD DOORWAYS. • ADJUSTABLE REAR ANTI-TIP DEVICES ARE STANDARD. • LUmEX WRAP-AROUND WARRANTY • WELDED FRAmE: LImITED LIFETImE • UPHOLSTERY: LImITED ONE (1) YEAR • ALL OTHER COmPONENTS: LImITED THREE (3) YEAR • ADJUSTmENTS FOR THE PERFECT RIDE: • SEAT WEDGE ANGLE EASILY ADJUSTS UP TO 10 DEGREES FOR INDIVIDUALIZED POSITIONING OF THE RESIDENT AND TO HELP PREVENT SLIDING. • SEAT DEPTH ADJUSTS TO 16", 17" AND 18". • SEAT HEIGHT ADJUSTS TO 17", 18" OR 19". • OPTIONAL INFINITE POSITION TILT FOR THE 590 AND 592 ALLOWS FOR 15 DEGREE SEAT ADJUSTmENT WHILE RESIDENT IS SEATED IN THE CHAIR. INFINITE POSITION IS staNdard oN 593. • WT. CAPACITY: 225 LB. STANDARD RUNABOUT WHEELED CHAIR INCLUDES ALL OF THE ABOVE FEATURES. SWING AWAY DETACH. FOOTRESTS OR LEGRESTS SOLD SEPARATELY. 592g 593g note: (a)

iNdiCate upholstery Color/see baCk CoVer: • 863 ROSEWOOD • 427 BLUE RIDGE • 857 JADE

(5)

2

- Recliners

Catalog No. 2910

Lumex 565 seRies PReFeRRed caRe RecLineR

FiG) oRdeR # descRiPtion

1) 64-103 5” rear Caster wheel; 565g, 565pg... $33.00 x 64-103w 6” rear Caster wheel w/ brake; 565wg (1)

64-1734 6” direCtioNal loCkiNg Caster assembly; 565wg (1) 2) 64-104 brake kit w/hdwr (date Code 0215201 & later)... $39.95 3) 09-2207 4” froNt Caster w/ fork; swiVel 28mm stem... $54.95

09-2207w 5” froNt Caster w/ fork; swiVel 28mm stem... $64.95 09-2207tl 5” total loCk Caster, 28mm rNd stem... $99.50 64-120 fiNger guard kit, right & left, pair (1)... $19.95 4)- 09-2241 baCk loCk hardware kit; 565g, 565pg... $44.00

09-2241w baCk loCk hardware kit; 565wg wide... $44.00 5) 64-123 plated brake plate... $15.95

64-124 haNdle CoVer / tip

09-2240 loCk haNdle with tip... $21.00 09-2240w loCk haNdle with tip; 565wg wide (1)... $21.00 64-126 CurtaiN rod; side paNel (1)... $14.00 6) 64-127 support strap set; 565g, 565pg... $14.20

64-127w wide support strap set; 565wg wide 7) 64-129 seat/leg upholstery; 565g (2).... $169.00

64-5651 seat/leg frame assy w/ straps; 565g (1) 64-129p seat/leg upholstery; 565pg petite (2)... $169.00 64-5652 seat/leg frame assy w/ straps; 565pg petite (1) 64-129w seat/leg upholstery; 565wg wide (2)... $169.00 64-5653 seat/leg frame assy w/ straps: 565wg wide (1) 8) 64-130 baCk upholstery; 565g (2)... $157.00

64-1302 baCk upholstery; 565pg petite (2)... $157.00 64-1303 baCk upholstery; 565wg wide (2)... $190.00 9) 64-131 left armrest pad; 565g, 565pg, 565wg (2), (3)... $39.95

64-132 right armrest pad; 565g, 565pg, 565wg (2), (3)... $39.95 10) 64-1319 left upholstered side paNel (2), (3)... $49.95

64-1329 right upholstered side paNel (2), (3)... $49.95 11) 91-1222 aCtiVity tray, Complete; 565g, 565pg... $98.00

91-1225 aCtiVity tray; 565wg wide

64-5871 left reCeiViNg tube; 565g, 565pg, 565w (3) 64-5872 right reCeiViNg tube; 565g, 565pg, 565wg (3) 12) 58-110 Caster bolt

13) 58-111 Caster Nut

14) 56-112 buttoN kit for tray assy, (6/paCk)... $19.95 15) 64-5641 head bolster; 565g, 565pg (2)

64-5642 head bolster for 565wg wide (2) 16) 64-6471 body bolster; 565g, 565pg (2) 17) 64-5640 footrest assembly

64-5656 rear aNti-tippers; 565wg wide

Lumex 565G

standaRd FeatuRes:

• INFINITE RECLINER BACK PATENTED mECHANISm PROVIDES INFINITE POSITIONING OF THE BACK, raNgiNg from 95 degrees to 145 degrees for iNCreased resideNt Comfort aNd pressure relief. the reCliNiNg baCk CaN be loCked iN aNy positioN by the CaregiVer.

• A UNIQUE SUSPENSION SYSTEm SELF-ADJUSTS TO EACH PERSON, CRADLING THE RESIDENT FROm HEAD TO HEEL AND VIRTUALLY ELImINATING THE RISK OF “BOTTOmING OUT”.

• EXTRA-WIDE PADDED ARmRESTS AND SIDE PANELS mAXImIZE COmFORT. • DURABLE EPOXY COATED WELDED STEEL FRAmE IS EASY TO CLEAN AND mAINTAIN.

• QUICK-RELEASE UPHOLSTERY ALLOWS FOR EASY CLEANING, REmOVAL AND REPLACEmENTS. VINYL upholstered baCk is sulfide staiN, mildew aNd oil resistaNt.

• mANY ACCESSORIES ARE AVAILABLE TO CUSTOmIZE THE CHAIR FOR SPECIFIC INDIVIDUAL NEEDS. • LUmEX WRAP-AROUND WARRANTY • WELDED FRAmE: LImITED LIFETImE • UPHOLSTERY: LImITED ONE YEAR • ALL OTHER COmPONENTS: LImITED THREE YEAR • WEIGHT BEARING CAPACITY: 250 LB. notes:

(1) part Not showN

(2) iNdiCate upholstery Color/see baCk CoVer:

(3) side is iNdiCated from seated positioN

6 2 14 11 15 16 8 7 17 no. 64-123

plated brake plate

no. 09-2241

baCk loCk hardware kit

5 4 1 2 3 4 9 13 12 10 8

(6)

2

- Recliners

[email protected]

12

ih6065 series Recliner

deluxe three-positioN reCliNer loaded with features aNd desigNed with ergoNomiCs iN miNd. the baCk aNd seat are formed for Comfort aNd support. resideNts will appreCiate the artiCulatiNg headrest that supports the head aNd NeCk. the full-reCliNe, leg-ottomaN eleVated aNd full upright positioNs proVide maximum Comfort for resideNts.

FeatuRes: • THREE EASY-TO-ATTAIN POSITIONS: SITTING, ELEVATED LEG OR FULL RECLINE. • BLOW-mOLDED TABLE CAN SLIDE ON AND OFF OR CAN BE LOCKED IN ONE OF FIVE POSITIONS. • ERGONOmICALLY DESIGNED SEAT BACK AND ARTICULATING HEADREST mAXImIZE INDIVIDUAL Comfort requiremeNts. • ZINC PLATED CASTER HORNS FOR ImPROVED RUST RESISTANCE. SPECIAL WOVEN PADDING ON BACK AND SEAT REDUCES THE RISK OF “BOTTOmING OUT”. • FIRE RETARDANT FOAm & GLUE. mEETS CALIFORNIA 117 STANDARD & BOSTON FIRE DEPT. SPECS

invacaRe ih6065a RecLineR

FiG) oRdeR # descRiPtion

1) 71-6605 kit, Caster - froNt... $85.00

iNCludes: (2) Casters, (2) paN head stem bolts (10m x 16) aNd (2) NyloCk Nuts (10mm). 2) 71-6606 kit, Caster - rear... $85.00

iNCludes: (2) loCkiNg Casters, (2) hex head stem bolts (m6 x 43), (4) washers (6mm) aNd (2) hex Nuts (6mm) 3) 71-6651 (1) baCk & headrest upholstery kit:

iNCludes: baCk, headrest, (4) hex head sCrews (m6 x 55) aNd (4) aNgle braCkets 4) 71-6652 (1) arm rest upholstery kit... $53.00 To $85.00 ST.

iNCludes: (2) arm rests aNd (8) phillips head sCrews (m6 x 16). 5) 71-6653 (1) seat w/ footrest pad & skirt... $299.00

iNCludes: seat with foot rest, skirt aNd (8) phillips head sCrews (m6 x 27). 6) 71-6608 push bar, baCk... $95.00

iNCludes (2) hex head sCrews (m6 x 55). 7) 71-1146 kit, reCliNe meChaNisms... $129.00

iNCludes: (2) reCliNiNg meChaNisms, (2) fiNger guards, (8) phillips head sCrews (m6 x 40) aNd (8) hex Nuts (6mm). 8) 71-6607 kit, hardware... $12.50

iNCludes: (2) phillips head sCrews (m6 x 35) with (2) washers (6mm) aNd (2) hex head bolts (m6.35 x 50) with (2) washers (6.35mm). 9) 71-6610 tray assembly kit (6065a oNly).... $95.00, iNCludes: tray, (2) mouNtiNg tubes aNd soCket sCrews (m5 x 15).

10) 71-9911 kit, side paNels-formed plastiC... $119.00 iNCludes: (2) side paNels.

11) 71-4781 kit, tray maiNteNaNCe hardware... $39.60 12) 70-1147 ratChet, grey frame fiNish... $10.00

note: (1) INDICATE COLOR/SEE BACK COVER: IH60 ROSEWOOD • IH61 BLUE RIDGE • IH68 JADE

iNdiCate Chair style wheN orderiNg: a=adult, da=drop arm, Pt=petite, Wd=wide

9 10 1 2 11 3 4 5 6 ₇ 8

froNt Casters rear Casters

baCk upholstery

armpad set

seat/footrest upholstery baCk frame

reCliNe meCh

hardware kit

tray side paNels

(7)

2

- Recliners

Catalog No. 2910

12

IH6074A Recliner

InvAcARe IH6074 ReclIneR

FIG) ORdeR # descRIptIOn

1) 71-6605 KIT, CASTER - FRONT... $85.00

INCludES: (2) CASTERS, (2) PAN HEAd STEm BOlTS (10m x 16) ANd (2) NylOCK NuTS (10mm). 2) 71-6606 KIT, CASTER - REAR... $85.00

INCludES: (2) lOCKINg CASTERS, (2) HEx HEAd STEm BOlTS (m6 x 43), (4) WASHERS (6mm) ANd (2) HEx NuTS (6mm) 3) 71-6654 (1) BACK & HEAdREST uPHOlSTERy KIT... $289.00

INCludES: BACK, HEAdREST, (4) HEx HEAd SCREWS (m6 x 55) ANd (4) ANglE BRACKETS 4) 71-6655 (1) ARm REST uPHOlSTERy KIT... $53.00 To $85.00 ST.

INCludES: (2) ARm RESTS ANd (8) PHIllIPS HEAd SCREWS (m6 x 16). 5) 71-6656 (1) SEAT W/ FOOTREST PAd & SKIRT... $295.00

INCludES: SEAT WITH FOOT REST, SKIRT ANd (8) PHIllIPS HEAd SCREWS (m6 x 27). 6) 71-6608 PuSH BAR, BACK... $95.00

INCludES (2) HEx HEAd SCREWS (m6 x 55). 7) 71-1146 KIT, REClINE mECHANISmS... $129.00

INCludES: (2) REClININg mECHANISmS, (2) FINgER guARdS, (8) PHIllIPS HEAd SCREWS (m6 x 40) ANd (8) HEx NuTS (6mm). 8) 71-6607 KIT, HARdWARE... $12.50

INCludES: (2) PHIllIPS HEAd SCREWS (m6 x 35) WITH (2) WASHERS (6mm) ANd (2) HEx HEAd BOlTS (m6.35 x 50) WITH (2) WASHERS (6.35mm). 9) 71-6692 TRAy ASSEmBly KIT... $95.00, INCludES: TRAy ASSEmBly WITH (2) mOuNTINg TuBES ANd (2) PHIllIPS HEAd SCREWS (m6 x 34). 10) 71-9911 KIT, SIdE PANElS-PlASTIC... $119.00

INCludES: (2) SIdE PANElS.

11) 71-4781 KIT, TRAy mAINTENANCE HARdWARE... $39.60 12) 70-1147 RATCHET, gREy FRAmE FINISH... $10.00

nOte: (1) IndIcate cOlOr/See BacK cOVer: IH60 rOSewOOd • IH61 Blue rIdge • IH68 Jade dEluxE THREE-POSITION REClINER lOAdEd WITH FEATuRES ANd dESIgNEd WITH ERgONOmICS IN mINd. THE

BACK ANd SEAT ARE FORmEd FOR COmFORT ANd SuPPORT. RESIdENTS WIll APPRECIATE THE ARTICulATINg HEAdREST THAT SuPPORTS THE HEAd ANd NECK. THE Full-REClINE, lEg-OTTOmAN ElEVATEd ANd Full uPRIgHT POSITIONS PROVIdE mAxImum COmFORT FOR RESIdENTS.

FeAtURes:

• tHree eaSY-tO-attaIn POSItIOnS: SIttIng, eleVated leg Or Full reclIne.

• BlOw-MOlded taBle can eItHer SlIde On and OFF Or can Be lOcKed In One OF FIVe POSITIONS.

• ergOnOMIcallY deSIgned Seat BacK and artIculatIng HeadreSt MaXIMIZe IndIVIdual COmFORT REQuIREmENTS.

• ZInc Plated caSter HOrnS FOr IMPrOVed ruSt reSIStance. SPecIal wOVen PaddIng On BACK ANd SEAT REduCES THE RISK OF “BOTTOmINg OuT”.

• FIre retardant FOaM & glue. MeetS calIFOrnIa 117 Standard & BOStOn FIre dePt. SPecS.

9 10

1 2

11

3 4

5 6 7 8

FRONT CASTERS REAR CASTERS

BACK uPHOlSTERy

ARmPAd SET

SEAT/FOOTREST uPHOlSTERy BACK FRAmE

REClINE mECH HARdWARE KIT

(8)

2

- Recliners

[email protected]

InvAcARe IH6077A ReclIneR

FIG) ORdeR # descRIptIOn

1) 71-6605 KIT, CASTER - FRONT... $85.00

INCludES: (2) CASTERS, (2) PAN HEAd STEm BOlTS (10m x 16) ANd (2) NylOCK NuTS (10mm). 2) 71-6606 KIT, CASTER - REAR... $85.00

INCludES: (2) lOCKINg CASTERS, (2) HEx HEAd STEm BOlTS (m6 x 43), (4) WASHERS (6mm) ANd (2) HEx NuTS (6mm) 3) 71-2670 (1) BACK ANd HEAdREST uPHOlSTERy KIT:

INCludES: BACK, HEAdREST, (4) HEx HEAd SCREWS (m6 x 55) ANd (4) ANglE BRACKETS 4) 71-2669 (1) ARmREST uPHOlSTERy KIT... $85.00

INCludES: (2) ARm RESTS ANd (8) PHIllIPS HEAd SCREWS (m6 x 16). 5) 71-1126 (1) SEAT W/ FOOTREST uPHOlSTERy KIT:

INCludES: SEAT WITH FOOT REST, SKIRT ANd (8) PHIllIPS HEAd SCREWS (m6 x 27). 6) 71-1127 WINg PAd uPHOlSTERy KIT... $69.95

INCludES: (2) WINg PAdS WITH BACKS ANd (4) PHIllIPS HEAd SCREWS (m6 x 27). 7) 71-6730 PuSH BAR BACK FRAmE... $95.00

INCludES: PuSH BAR WITH SCREWS ANd BACK

8) 71-6729 KIT, REClINER mECHANISm WITH FINgER guARdS... $129.00 INCludES: (2) REClINER mECHANISm WITH FINgER guARdS. 9) 71-6607 KIT, HARdWARE... $12.50

INCludES: (2) PHIllIPS HEAd SCREWS (m6 x 35), (2) WASHERS (6mm), (2) HEx HEAd BOlTS (m6.35 x 50) ANd (2) WASHERS (6.35mm). 10) 71-6731 KIT, gAS SPRINg WITH HANdlE... $110.00

INCludES: gAS SPRINg WITH HANdlE, CABlE BRACKET ANd lOCK PIN. 11) 71-6728 KIT, SIdE PANElS - PlASTIC... $129.00

INCludES: (2) SIdE PANElS.

12) 71-6727 KIT, TRAy ASSEmBlIES WITH mOuNTINg TuBES... $139.00 INCludES: (2) TRAy ASSEmBlIES WITH mOuNTINg TuBES. 13) 71-4780 KIT, TRAy mAINTENANCE... $39.60

nOte: (1) IndIcate cOlOr/See BacK cOVer: IH60 rOSewOOd • IH61 Blue rIdge • IH68 Jade

THE ClINICAl REClINER CAN BE uSEd THROugHOuT HOSPITAlS ANd AlTERNATE SITE FACIlITIES. IT IS ESPECIAlly SuITEd FOR dIAlySIS, BlOOd COllECTION, SAmE dAy SuRgERy, EEK-EKg, ExTENdEd CARE, ONCOlOgy, OuTPATIENT ClINIC, EmERgENCy ROOm, mATERNITy, ANd RESPIRATORy uSE.

FeAtURes:

• SOFter Seat and BacK PacKage FOr IMPrOVed PatIent cOMFOrt. • gaS cYlInder FOr QuIcK trendelenBerg and IMPrOVed lIFt. • MultIPle POSItIOnS-FullY uPrIgHt tO FullY reclIned. • FOur SwIVel caSterS FacIlItate tranSPOrt.

• FIre retardant FOaM and glue. MeetS calIFOrnIa 117 Standard & BOStOn FIre dePartMent SPecS.

IH6077A Recliner

10 11 1 2 13 3 4 5 ₆ 7 9 8 12

FRONT CASTERS REAR CASTERS BACK uPHOlSTERy ARmPAd SET

SEAT/FOOTREST uPHOlSTERy WINg PAdS REClINE mECH

HARdWARE KIT

TRAyS

SIdE PANElS TRAy RElEASE KIT

REClINE PISTON & CABlE

(9)

2

- Recliners

Catalog No. 2910

Base FRame - 6905a

FiG) oRdeR # note descRiPtion

1) 70-1100 A BASE FRAmE ASm. - U25 HORIZON BLUE - 70-1101 a base frame asm. - u28 rose mauVe - 70-1102 a base frame asm. - u35 dark aqua - 70-1103 a base frame asm. - u36 burguNdy - 70-1104 a base frame asm. - u37 grotto - 70-1105 a base frame asm. - u38 blue ridge 2) 70-11725 ARmREST - U25 HORIZON BLUE.... $54.00 - 70-11728 armrest - u28 rose mauVe.... $54.00 - 70-11735 armrest - u35 dark aqua.... $54.00 - 70-11736 armrest - u36 burguNdy.... $54.00 - 70-11737 armrest - u37 grotto.... $54.00 - 70-11738 armrest - u38 blue ridge.... $54.00 3) 70-1112 sCrew, hex head (1/4-20 x 1/2”)

4) 70-1113 frame

5) 70-107 sCrew, hex head (1/4-20 x 1-1/4”) 6) 70-1114 Caster w/loCk (5” rear)... $95.00 7) 70-1115 side paNel - right... $78.00 - 70-1116 side paNel - left... $78.00 8) 70-1117 sCrew, self drilliNg (#6-20 x 3/8”) 9) 67-114 sCrew, hex head (5/16-18) 10) 70-1118 spaCer 11) 70-1119 Caster (5”)... $38.00 12) 70-1120 loCkNut (5/16-18”) 13) 70-113 loCkNut (1/4-20) 14) 70-109 washer (5/16 x 3/4 x 1/16”) 15) 57-116 riNg, retaiNiNg... $5.00 16) 69-145 tray, release kNob... $6.00 17) 22-1015 spriNg, pluNger (23/64 x 5/8”)... $6.00 18) 70-111 pluNger piN

19) 09-2582 plug buttoN, square (1”)... $6.50

Back FRame & cushions - 6905a

FiG) oRdeR # note descRiPtion

1) 70-1121 A BACK FRAmE/GRAY - U25 HORIZON BLUE - 70-1122 a baCk frame/gray - u28 rose mauVe - 70-1123 a baCk frame/gray - u35 dark aqua - 70-1124 a baCk frame/gray - u36 burguNdy - 70-1125 a baCk frame/gray - u37 grotto - 70-1126 a baCk frame/gray - u38 blue ridge 2) 53-113 piN, pluNger

3) 53-114 spriNg, pluNger (23/64 x 5/8”) 4) 57-115 kNob, pluNger

5) 57-116 riNg, retaiNiNg

6) 71-106 sCrew, hex head (1/4-20 x 2”) 7) 71-107 tube-push haNdle

8) 70-1127 baCk frame/gray fiNish

9) 70-1128 BACK CUSHION - U25 HORIZON BLUE - 70-1129 baCk CushioN - u28 rose mauVe - 70-1130 baCk CushioN - u35 dark aqua - 70-1131 baCk CushioN - u36 burguNdy - 70-1132 baCk CushioN - u37 grotto - 70-1133 baCk CushioN - u38 blue ridge 10) 70-1134 headrest braCket, gray frame 11) 66-103 sCrew, phillips head (1/4-20 x 1”) 12) 70-1135 B DELUXE HEADREST - U25 HORIZON BLUE - 70-1136 b deluxe headrest - u28 rose mauVe - 70-1137 b deluxe headrest - u35 dark aqua - 70-1138 b deluxe headrest - u36 burguNdy - 70-1139 b deluxe headrest - u37 grotto - 70-1140 b deluxe headrest - u38 blue ridge note:

a - iNCludes items 2-11 b - Call for priCiNg

(10)

2

- Recliners

[email protected]

seat & ottoman - 6905a

FiG) oRdeR # note descRiPtion

1) 70-1141 D SEAT W/OTTOmAN - U25 HORIZON BLUE - 70-1142 d seat w/ottomaN - u28 rose mauVe - 70-1143 d seat w/ottomaN - u35 dark aqua - 70-1144 d seat w/ottomaN - u36 burguNdy - 70-1145 d seat w/ottomaN - u37 grotto - 70-1146 d seat w/ottomaN - u38 blue ridge 2) 70-1147 ratChet, gray frame fiNish... $10.00 3) 70-1148 seat frame, gray frame fiNish 4) 71-115 sCrew, hex head (1/4-20 x 1-1/2”) 5) 71-126 washer, NyloN (9/32 x 23/32 x 1/16”) 6) 70-1149 loCkNut (1/4-20)

7) 70-1150 sCrew, phillips head (1/4-20 x 1”) 8) 70-2251 guard, reCliNe meChaNism 9) 09-2582 plug buttoN, square (1”) 10) 70-1152 seat mtg braCket, gray frame 11) 70-109 washer (5/16 x 3/4 x 1/16”)

12) 71-114 reCliNe meChaNism / set... $129.00 13) 70-1153 liNkage CoVer, ViNyl

14) 70-1112 sCrew, hex head (1/4-20 x 1/2”) 15) 70-1154 sCrew, self drilliNg (#6-20 x 3/8”) 16) 70-1155xx ottomaN eNd

17) 70-1156xx ottomaN CeNter 18) 70-1157xx leg paNel 19) 70-1158xx b seat CushioN asm.

tRay - 6905a

FiG) oRdeR # note descRiPtion

1) 70-1160 b tray assembly... $119.00 2) 70-1161 tray, grey frame fiNish

3) 70-1162 plug, dome

4) 70-1163 tray tab, grey frame fiNish

5) 70-1164 tray tab

6) 70-1141 sCrew, hex head (1/4-20 x 1/2”) 7) 70-1165 a piVot arm

note:

a - for ease of assembly, wheN orderiNg piVot arm, it is reCommeNded that item #3 be ordered as well

b - iNCludes items 2-9 note: b - iNCludes item 18 d - iNCludes items 2-16

6905a Recliner

1 2 19 3 4 ₆ 5 7 8 10 9 11 12 14 13 15 16 18 17 6 4 7 4 71-114... $129.00 reCliNe meChaNism, set

12

xx = uPhoLsteRy coLoR / see Back coveR

(11)

2

- Recliners

Catalog No. 2910

6907/6907a FRame/uPhoLsteRy

1) 71-101xx baCk frame assembly 2) 57-113 pluNger piN

3) 57-114 spriNg (23/64” x 5/8”) 4) 57-115 kNob

5) 57-116 grip riNg

6) 71-106 sCrew, hex head (1/4-20 x 2”) 7) 71-107 tube - push haNdle... $21.95 8) 71-108 baCk frame

9) 71-109xx baCk CushioN 10) 71-110 headrest braCket

11) 66-103 sCrew, hex head (1/4-20 x 1”) 12) 71-112xx seat meChaNism with ottomaN 13) 71-113xx seat CushioN assembly

14) 71-114 reCliNe meChaNism (set)... $129.00 15) 71-115 sCrew, hex head (1/4-20 x 1-1/2”) 16) 66-103 sCrew, hex head (1/4-20 x 1”) 17) 71-117 seat mouNtiNg braCket 18) 71-118 seat frame

19) 71-119 washer, steel (5/16” x 3/4” x 1/16”) (25/paCk) 20) 70-113 loCkNut (1/4-20)

21) 71-120 tube Closure Cap

22) 71-122 ratChet / browN frame... $10.00 70-1147 ratChet / gray frame... $10.00 23) 71-123xx leg paNel

24) 71-124xx ottomaN CeNter 25) 71-125xx ottomaN eNd

26) 71-126 washer, NyloN (9/32 x 23/32 x 1/16”)

6907 3-Position RecLineR

1) 69-106 base frame assembly 2) 67-114 axle bolt (5/16-18) 3) 69-152 loCkNut (5/16-18)

4) 70-104 Caster fork w/o loCk - before 8/94 5) 70-105 Caster (5”) - before 10/94

- 70-1119 Caster wheel w/axle aNd Nut (5”) - after 9/94 / pair (2)... $38.00 6) 70-106 Caster with loCk (5”) - before 10/94

- 70-1061 Caster with loCk (5”) - after 9/94 7) 70-107 sCrew, hex head (1/4-20 - 1-1/4”) 8) 57-114 spriNg (23/64 x 5/8)

9) 70-109 washer, steel (5/16 x 3/4 x 1/16”) 10) 57-116 grip riNg

11) 70-111 pluNger piN

12) 69-145 tray release kNob... $6.00 13) 70-113 loCkNut (1/4-20)

14) 70-114 sCrew, hex head (10-32 x 1/2”) - before 4/95 - 70-1141 sCrew, hex head (1/4-20 x 1/2”) - after 3/95 15) 70-115 side paNel - right...$49.00

- 70-115axx side paNel, upholstered for 6907a - right - 70-1151 side paNel - left... $49.00

- 70-1151axx side paNel, upholstered for 6907a - left 16) 70-116 frame

17) 70-117xx armrest / 6907/6905a / 1-3/4” wide, before 1998, eaCh... $54.00 - 70-117axx armrest / 6907a / 4-1/8” wide, after 8/28/00 (w/Clear CoVer, pair)... $49.00 18) 70-118 tray assembly, Complete

19) 57-117 sCrew, hex head (1/4-20 x 5/8”) - before 4/95 - 70-1141 sCrew, hex head (1/4-20 x 1/2”) - after 3/95 20) 69-147 plastiC glide 21) 70-121 tray tab 22) 70-122 guide... $6.00 23) 70-123 eNd stop... $6.00 24) 70-124 tray oNly... $53.00 25) 70-125 piVot arm... $11.75 26) 70-126 tray support... $7.60

27) 70-1228 plug buttoN, square (1”)... $6.00

6907a Recliner

molded tray assembly

18 19 20 22 21 23 24 26 25 Tray Attaches Here Seat Frame Attaches Here As of 8/94 Fork Became Part of Frame 1 3 4 6 5 7 8 10 9 11 12 14 13 15 16 17 27 7 2 13 1 3 4 6 5 7 8 10 9 11 2

Attaches to Base Here 21 24 25 12 14 13 15 ₁₉ 20 22 23 26 14 15 16 18 17 19 71-114 reCliNe meCh. xx = uPhoLsteRy coLoR / see Back coveR

(12)

2

- Recliners

[email protected]

6908 fRame

fIG) ORdeR # descRIptIOn

1) 72-101xx base frame assembly

2) 57-117 screw, hex head (1/4-20 x 5/8”) - before 4/95 70-114 screw, hex head (1/4-20 x 1/2”) - after 3/95 3) 71-119 washer, steel (5/16 x 3/4 x 1/16”) (25 per pack) 4) 70-113 locknut (1/4-20)

5) 70-115 side panel - right - 70-1151 side panel - left

6) 70-107 screw, hex head (1/4-20 x 1-1/4”) 7) 71-120 tube closure plug

8) 72-108 caster wheel, swivel - before 10/94 - 72-1081 caster wheel, swivel - after 9/94

9) 72-109 caster wheel, swivel with lock - before 10/94 72-1091 caster wheel, swivel with lock - after 9/94 10) 72-110 frame only

11) 70-227axx armrest; 4-1/8” wide, before 8/27/00, ea.

- 70-117axx armrest; 4-1/8” wide, after 8/28/00 (w/cleaR cOveR, pR)

6908 fRame

fIG) ORdeR # descRIptIOn

1) 73-101xx back frame assembly

2) 73-102 screw, oval head phillips (10-32 x 1”) 3) 73-103 screw, pan head phillips (#10-5/8”) 4) 73-104 hitch pin (3/8” x 1-3/16”)

5) 73-105 cable clamp (5/16” x 1/2”) 6) 69-147 plastic glide

7) 71-106 screw, hex head (1/4-20 x 2”) 8) 73-108 clevis pin

9) 73-109 tube push handle 10) 73-110 top frame tube 11) 73-111 “bloc-o-lift” cylinder 12) 73-112 control lever with cable 13) 73-113 back frame

14) 73-114xx back cushion

15) 66-103 screw, hex head (1/4-20 x 1”) 16) 71-110 headrest bracket 17) 73-117 elbow pad bracket 18) 73-118xx elbow pad assembly, right 19) 73-119xx elbow pad assembly, left 20) 73-120xx elbow pad only

21) 73-121 screw, hex head (5/16-18 x 1-1/2”) 22) 69-152 locknut (5/16-18)

23) 73-123xx seat mechanism with ottoman 24) 73-124xx seat cushion assembly 25) 71-114 recline mechanism / set

26) 71-119 washer, steel (5/16 x 3/4 x 1/16”) (25 per pack) 27) 71-120 tube closure cap

28) 71-115 screw, hex head (1/4-20 x 1-1/2”) 29) 70-113 locknut (1/4-20)

30) 66-103 screw, hex head (1/4-20 x 1”) 31) 71-117 seat mounting bracket 32) 73-132 thread fastener 33) 73-133 seat frame 34) 73-134xx leg panel 35) 73-135xx ottoman center 36) 73-136xx ottoman end

37) 73-137 cross tube mechanism

38) 73-138 screw, phillips head (1/4-20 x 3/4”)

Invacare 6908a clinical Recliner

71-114 recline mechanism 33 32 25 34 35 38 36 37 23 24 26 25 28 27 30 29 31 Attaches to Seat Frame

Here Attaches to Seat Frame

Here 12 14 15 16 18 19 20 22 21 1 2 3 4 6 5 7 8 10 9 11 15

Seat & Ottoman Attach Here Tray Attaches Here 1 3 4 6 5 7 8 10 9 11 4 4 2 6

XX = UphOlsteRy cOlOR / see Back cOveR

(13)

2

- Recliners

catalog no. 2910

6908 tRays

fIG) ORdeR # descRIptIOn 12) 72-112 tray assembly

13) 72-113 screw, phillips head (#10-32 x 1”) - before 2/95 - 72-1131 screw, hex head (1/4-20 x 5/8”) - after 1/95 - 70-1141 screw, hex head (1/4-20 x 1/2”) - after 3/95 14) 72-114 tray cover 15) 72-115 spring 16) 72-116 spacer, nylon (3/16 x 1/2 x 1/2”) 17) 72-117 latch 18) 72-118 tray only 19) 72-119 tray bracket 20) 72-120 shoulder bolt 21) 72-121 washer, nylon (3/8”)

Base fRame

1) Base fRame

- 09-2525 - fixed arm - 09-2526 - drop arm 2) 09-2527 screw, lug (5/16-24) 3) 09-2528 washer, nylon (5/16) 4) 09-2529 caster, rear with brake (5”)

5) 12-1179 screw, button head socket (5/16-18 x 3/4”) 6) 09-2530 caster, front swivel (4”)

7) 09-2531 caster, front steering (4”)

8) 09-2532 screw, hex head cap (5/16-24 x 3-1/2”) 9) 09-2533 tie down, “d” ring

10) 09-2534 screw, pan head (#10-32 x 3/8”) 11) 09-2535 locknut (5/16-24)

12) 12-1137 washer (21/64 x 5/8 x 3/64”) 13) 09-2536 glide, plastic

14) 05-1146 pin, locking 15) 05-1145 spring, arm lock 16) 09-2537 roll pin (5/64 x 5/8”)

17) 09-3001 lock handle, right & left (pair)

18) 09-2538 hardware, drop arm frame (includes: items 12-16) 19) 09-2539 hardware, comfort plus (includes: items 2-11) - 09-2540 hardware, cp200 only (includes: 2-6, 8, & 11)

nOtes:

a - specify upholstery color; B-includes items 3-7; c-before 8/27/00 d - cp300, cp400, cp500; e-after 8/28/00; f-cp200

aRmpads

fIG) nOte ORdeR # descRIptIOn

1) DROP ARM ASSEMBLY (includes: 3-9)

- b 09-2573 arm assembly, drop, grey - right - b 09-2574 arm assembly, drop, grey - left

- ARMREST PAD

2) a, c, f 09-2575xx pad, armrest pad - right/left; cp200 a, c, d 09-2576xx pad, armrest pad - right/left; cp300, cp400, cp500 a, e, f 09-257578xx pad, armrest pad - pair; cp200

a, d, e 09-257679xx pad, armrest pad - pair; cp300, cp400, cp500 3) 09-2577 screw, oval head (10-32 x 7/8”)

- ARM SUPPORT (drop arm only)

4) 09-2578 right (shown)

- 09-2579 left

- CLOTHING GUARD (drop arm only)

6) 09-2580 right

- 09-2581 left

8) 09-2582 plug button, square - black (1”) 9) 09-2583 screw, pan head machine (#10-32 x 3/8”)

xx = upholstery color. see back cover

Right Side Shown 1

armrests pROdUct dIscOntInUed

limited parts available call: 800.779.2660

Invacare cp200, cp300, cp400, cp500

Attaches to Chair Here 12 14 13 15 16 18 17 19 20 21

XX = UphOlsteRy cOlOR / see Back cOveR 25-horizon blue, 28-rose mauve, 35-dark aqua, 36-burgundy, 37-grotto, 38-blueridge

tray

(14)

2

- Recliners

[email protected]

Back UphOlsteRy

1) BACk UPHOLSTERY ASSEMBLY w/FOAM

(includes: items 2-5) - 09-2601xx cp200

- 09-2602xx cp300, cp400, cp500

2) UPHOLSTERY wITH FOAM

- 09-2603 cp200

- 09-2604 cp300, cp400, cp500 3) 09-2605 liner, mesh

4) 09-2606 washer, upholstery (17/64 x 23/32 x 3/32”) 5) 73-103 screw, phillips pan head (#10 x 5/8”)

xx = upholstery color / see back cover

sIde panels

1) 09-2584 hardware pack (includes: 2-4) 2) 09-2585 screw, pan head (10-32 x 1-3/8”) 3) 09-2586 screw, flat head (10-32 x 1-1/2”)

4) 09-2587 washer, upholstery (17/64 x 23/32 x 1/64”)

5) LOwER SIDE PANEL DROP ARM

- 09-2588xx -right - 09-2589xx -left

6) LOwER SIDE PANEL FIxED ARM

- 09-2590 -right (cp200) - 09-2591 -left (cp200)

- 09-2592 -right (cp300, cp400, cp500) - 09-2593 -left (cp300, cp400, cp500)

7) UPPER SIDE PANEL FIxED ARM

- 09-2594 -right (cp200) - 09-2595 -left (cp200)

- 09-2596 -right (cp300, cp400, cp500) - 09-2597 -left (cp300, cp400, cp500)

8) 09-2598 hardware, upper side panels fixed arm

- (includes: items 9-10)

seat & OttOman UphOlsteRy

1) OTTOMAN & SEAT UPHOLSTERY ASSEMBLY

(includes: items 2-4)

- 09-2627xx cp200

- 09-2628xx cp300, cp400, cp500

2) SEAT CUSHION wITH BAG

- 09-2629 cp200

- 09-2630 cp300, cp400, cp500 3) 09-2631 mesh liner

4) OTTOMAN wITH FOAM

- 09-2632xx cp200

- 09-2634xx cp300, cp400, cp500

Invacare cp200, cp300, cp400, cp500

Right Side Shown Left Side Shown

8

1 Right Side Shown

side panels 1 back upholstery 1 seat/ottoman upholstery 1 pROdUct dIscOntInUed limited parts available

(15)

2

- Recliners

catalog no. 2910

drive d577 clinical Recliner

fIG) ORdeR # descRIptIOn 1) 72-2001 lower push handle 2) 72-2002 arm pad bracket 3) 72-2003 recline cable 4) 72-2004 arm pad washer 5) 72-2005-br armrest pad, blue ridge

72-2005-J armrest pad, Jade 72-2005-r armrest pad, rosewood 6) 72-2006 recline release handle 7) 72-2007 upper push handle 8) 72-2008 headrest adJust. bracket 9) 72-2009-br back upholstery, blue ridge

72-2009-J back upholstery, Jade 72-2009-r back upholstery, rosewood 10) 72-2010-br seat upholstery, blue ridge

72-2010-J seat upholstery, Jade 72-2010-r seat upholstery, rosewood 11) 72-2011-br legrest upholstery, blue ridge

72-2011-J legrest upholstery, Jade 72-2011-r legrest upholstery, rosewood

d577, clInIcal caRe ReclIneR

12) 72-2012-br footrest upholstery, blue ridge 72-2012-J footrest upholstery, Jade 72-2012-r footrest upholstery, rosewood 13) 72-2013 footrest support bar

14) 72-2014 recline mechanism 15) 72-2015 protecting panel 16) 72-2016 seat frame 17) 72-2017 washer 18) 72-2018 side panel; set 19) 72-2019 front caster 20) 72-2020 rear caster 21) 72-2021 main frame

22) 72-2022-br upholstered arm pad, blue ridge 72-2022-J upholstered arm pad, Jade 72-2022-r upholstered arm pad, rosewood 23) 72-2023 tray bolt

24) 72-2024 tray base 25) 72-2025 tray, molded

26) 72-2026 cylinder release actuator 27) 72-2027 recline cylinder

pROdUct featURes:

• IDEAL FOR USE IN DIALYSIS, BLOOD COLLECTION, RESPIRATORY AND CARDIAC CARE. • INFINITE POSITION ADJUSTABLE BACK.

• DEEP RECLINE AND TRENDELENBERG POSITION CAN ONLY BE ATTAINED BY AN ATTENDANT. • ADJUSTABLE SEAT AND BACK STRAPS PROVIDE MAXIMUM COMFORT.

• DURABLE, FULLY ENCLOSED SIDE PANELS ARE SECURELY ATTACHED AND PROTECT CLOTHING AND SKIN. • LARGE, BLOW MOLDED SIDE TRAYS INCLUDES RECESS FOR CUP.

• 5" CASTERS (2 WITH LOCKS) MAKE IT EASY TO MOVE AND SECURE RECLINER.

• STANDARD RELEASE HANDLE FOR QUICK BACK RELEASE. RELEASE HANDLE CAN BE OPERATED FROM EITHER side of the recliner.

• NEUTRAL COLORED, STURDY STEEL FRAME IS EASY TO CLEAN AND MAINTAIN. • COMFORTABLE BUILT IN HEADREST.

• FOAM & VINYL MEET CALIFORNIA FLAMMABILITY STANDARD AND BOSTON FIRE DEPARTMENT SPECS. • AVAILABLE IN 3 ATTRACTIVE COLORS: BLUE RIDGE, JADE AND ROSEWOOD.

(16)

2

- Recliners

[email protected]

d574ew, 3-pOsItIOn ReclIneR

1) 72-2001 lower push handle

2) 72-2028 head rest adJustment 3) 72-2029-br back only, blue ridge

72-2029-J back only, Jade

72-2029-r back only, rosewood 4) 72-2030-br seat only, blue ridge

72-2030-J seat only, Jade 72-2030-r seat only, rosewood 5) 72-2031-br legrest, blue ridge

72-2031-J legrest, Jade 72-2031-r legrest, rosewood 6) 72-2032-br footrest, blue ridge

72-2032-J footrest, Jade 72-2032-r footrest, rosewood 7) 72-2013 footrest support bar

8) 72-2014 recliner mechanism, set

9) 72-2015 protection panel

10) 72-2033 table tray

11) 72-2034 tray washer

12) 72-2035 tray fitting

14) 72-2036 side panels, left & right 15) 72-2037 front caster

16) 72-2020 rear locking caster

17) 72-2038 frame

18) 72-2039-br armrest pad, blue ridge 72-2039-J armrest pad, Jade 72-2039-r armrest pad, rosewood

19) 72-2040 seat frame

20) 72-2041 locking bar

21) 72-2042 hardware pack pROdUct featURes:

• 500LB WEIGHT CAPACITY

• IDEAL FOR DIALYSIS, BLOOD COLLECTION, RESPIRATORY AND CARDIAC CARE. • 3-POSITION ADJUSTABLE BACK

• ADJUSTABLE SEAT STRAPS PROVIDE MAXIMUM COMFORT.

• DURABLE, FULLY ENCLOSED SIDE PANELS SECURELY ATTACHED TO PROTECT CLOTHING AND SKIN. • LARGE, BLOW MOLDED TRAY CAN BE STORED ON THE SIDE OF THE CHAIR.

• 5” CASTERS (2 WITH LOCKS) MAKE IT EASY TO MOVE AND SECURE THE RECLINER.

• STD. RELEASE HANDLE FOR QUICK BACK RELEASE. HANDLE CAN BE OPERATED FROM EITHER SIDE. • WIDE, COMFORTABLE ARMRESTS ARE ANGLED TO PROVIDE SUPPORT IN ANY RECLINED POSITION. • NEUTRAL COLORED, STURDY STEEL FRAME IS EASY TO CLEAN AND MAINTAIN.

• COMFORTABLE “BUILT IN” HEADREST.

• FOAM & VINYL MEET CALIFORNIA FLAMMABILITY STANDARD & BOSTON FIRE DEPARTMENT SPECS. • AVAILABLE IN 3 ATTRACTIVE COLORS: BLUE RIDGE, JADE AND ROSEWOOD.

• NEWLY DESIGNED BACK SUPPORT PROVIDES MAXIMUM COMFORT.

• LIMITED LIFETIME WARRANTY ON FRAME, 1 YEAR ON UPHOLSTERY AND MOVING PARTS.

drive d574ew Bariatric clinical Recliner

(17)

2

- Recliners

catalog no. 2910 pROdUct featURes: • 250 LB. CAPACITY

• 3-POSITIONS: UPRIGHT, DEEP RECLINE AND ELEVATED LEGREST/FOOTREST.

• DURABLE, FULLY ENCLOSED SIDE PANELS SECURELY ATTACHED TO PROTECT CLOTHING AND SKIN. • ADJUSTABLE SEAT STRAPS PROVIDE MAXIMUM COMFORT.

• SELF ADJUSTING SUSPENSION IN THE SEAT PREVENTS BOTTOMING OUT. • LARGE, BLOW MOLDED TRAY CAN BE STORED ON THE SIDE OF THE CHAIR. • 5” CASTERS (2 WITH LOCKS) MAKE IT EASY TO MOVE AND SECURE THE RECLINER.

• WIDE, COMFORTABLE ARMRESTS ARE ANGLED TO PROVIDE SUPPORT IN ANY RECLINED POSITION. • NEUTRAL COLORED, STURDY STEEL FRAME IS EASY TO CLEAN AND MAINTAIN.

• MOISTURE BARRIER ON SEAT PREVENTS SEEPAGE. • COMFORTABLE “BUILT IN” HEADREST.

• FOAM & VINYL MEET CALIFORNIA FLAMMABILITY STANDARD & BOSTON FIRE DEPARTMENT SPECS. • AVAILABLE IN 3 ATTRACTIVE COLORS: BLUE RIDGE, JADE AND ROSEWOOD.

• LIMITED LIFETIME WARRANTY ON FRAME, 1 YEAR ON UPHOLSTERY AND MOVING PARTS.

drive d574 3-position Recliner

1) 72-4043-br back upholstery, blue ridge 72-4043-J back upholstery, Jade 72-4043-r back upholstery, rosewood 2) 72-2028 head rest adJustment

3) 72-2001 push handle

4) 72-2041 lock bar for back 5) 72-4044 seat frame

6) 72-4045-br seat upholstery, blue ridge 72-4045-J seat upholstery, Jade 72-4045-r seat upholstery, rosewood 7) 72-4046-br legrest upholstery, blue ridge

72-4046-J legrest upholstery, Jade 72-4046-r legrest, upholstery rosewood

d574, 3-pOsItIOn ReclIneR

8) 72-4048-br footrest uphol., blue ridge 72-4048-J footrest uphol., Jade 72-4048-r footrest uphol., rosewood 9) 72-4049 footrest support bar

10) 72-2014 recliner mechanism, left & right 11) 72-4047 table tray

12) 72-2037 front caster 13) 72-4050 recliner frame 14) 72-2020 rear locking caster 15) 72-2039-br armrest pad, blue ridge

72-2039-J armrest pad, Jade 72-2039-r armrest pad, rosewood 16) 72-4051 recliner hardware pack 17) 72-2036 side panels, left & right

(18)

2

- Recliners

[email protected]

IpU pvc ReclIneR

1) 30-1606 set of five 4” deluxe casters; 4-l, 1-nl 2) 30-9930 back cushion

3) 30-9931 leg cushion

4) 30-9932 seat cushion (optional commode shown) 30-9933 cushion set

5) 30-1573 hinge knob assembly; complete 30-1573k knob only

caRe pROdUcts 900 GeRI-chaIR

1) 30-1572 recline mechanism set 2) 30-1580 push bar assy.

3) 30-1577 complete footrest assembly, retractable 4) 30-1543 5” hd caster set; 2-l, 2-nl

5) 30-9934 cushion set; mesh, solid or crypton fabric indicate: standard, wide, x-wide

6) 30-9935 safety belt, 72” x 2” 7) 30-9936 plastic tray assembly 8) 30-9937 clip for tray

pvc Reclining chairs

caRe pROdUcts - 940 shOweR chaIR

1) 30-1572 recline mechanism/set

2) 30-1573 ratchet assembly w/knob, ea. - 30-1573k knob for ratchet

3) 30-1576 12 quart pail 4) 30-1543 5” hd casters; 2-l, 2-nl

5) 30-1577 complete footrest assembly 6) 30-1578 legrest assembly with mesh 7) 30-1008 14” x 18” deluxe elongated seat 8) 30-1579 mesh back with headrest 9) 30-1580 push bar

IpU - Rc70 ReclIneR chaIR

1) 30-1606 set of 4” deluxe casters, 4-l, 1-nl 2) 30-1607 back cushion 3) 30-1608 leg cushion 4) 30-1609 seat cushion - 30-1610 cushion set 2 4 5 3 1 7,8 4 6 ₁ 3 5 9 1 2 4 3 1 8 7 2 4 6 1 3 ₅ 9 2 2 30-1573

(19)

2

- Recliners

catalog no. 2910

525-526 wIncO ReclIneR

fIG) ORdeR # nOte descRIptIOn

1) 10-1113 blow molded tray assembly w/arms... $95.00 10-1112 blow molded tray only... $69.95

2) 10-1040 tray receiving tube flanged arm... $4.00 3) 10-1045 tray receiving tube plain insert... $2.50 5) 10-1119 3/4” ball guide... $2.00

6) 10-1220 5” rigid front caster... $47.00

7) 10-1244 seat frame assm w/ recline mech; left... $85.00 8) 10-1245 seat frame assm w/ recline mech; right... $85.00 9) 10-8876 1/4-20 x 1-1/4” bolt w/ 1/4-20 nut

10) 10-1228 grip; foam... $10.00

11) 10-1216wf back frame w/foam handgrip... $79.95 10-8878 (1) 1/4” snap button; back frame to seat frame 12) 10-1230 (1) position lock bar (ratchet)... $49.00

10-8877 (1) position lock pin; engages lock bar position 13) 10-1108 rear 5” swivel total lock caster asst... $63.00

UphOlsteRed Items 525-back (2) back upholstery

525-panel-r-xx (2) right upholstered side panel w/ pocket 525-panel-l-xx (2) left upholstered side panel w/ pocket 525-arms-xx (2) upholstered armpads, pr... $44.00 525-seat-xx (2) upholstered seat

nOte: (1) not shown (2) xx = color

510 actIvIty chaIR

1) 10-8878 footrest assembly, l/r pair... $64.00 PR 10-8879 plastic footplate

10-8880 (1) footrest spring (steel tensioner) 2) 10-8881 back frame w/ foam handgrip

10-1254 back frame w/o foam handgrip 10-1228 foam handgrip only... $10.00 3) 10-1255 main chair frame

4) 10-1108 rear total lock 5” caster... $63.00 5) 10-1220 front rigid 5” caster... $47.00

10-6537 (1) screw; slotted hex hd, #10 x 3/4” secures back frame to seat frame

6) 10-1113 blow molded tray assembly w/ arms... $95.00 10-1112 blow molded tray only... $69.95

7) 10-1040 tray receiving tube flanged arm... $4.00 8) 10-1045 tray receiving tube plain insert... $2.50

10-1119 (1) 3/4” ball guide... $2.00 UphOlsteRed Items 510-back-xx (2) upholstered back 510-seat-xx (2) upholstered seat

510-arm-xx (2) upholstered armpads, pr... $44.00 nOte: (1) not shown (2) xx = color

winco 510, 525-526

Back Upholstery 8 4 Seat Upholstery Arm Pads 2 4 6 5 1 3 seat height: 19” seat width: 19” overall height: 44.5” overall width: 23.5” seat depth: 20” weight: 52. lbs weight capacity: 275 lbs

UphOlsteRy cOlORs / see Back cOveR

• 02 ROYAL BLUE • 03 TAUPE • 04 MOSS GREEN • 06 HUNTER GREEN • 07 GREY • 14 BURGUNDY • 16 MAUVE • 17 BLUE RIDGE

Back Upholstery Seat Upholstery Upholstered Arm Pads Upholstered Side Panel 2 6 10, 11 13 3 5 7, 8 9 1 seat height: 19.5” seat width: 19” overall height: 45” overall width: 26.5” back height: 33” seat depth: 19.5” weight: 93 lbs weight capacity: 275 lbs 12 7,8

(20)

2 - Recliners [email protected] nOte: (1) not shown (2) xx = color

529Xl wIncO ReclIneR

10-3750 (1) position lock bar... $75.00 10-8833 (1) back frame

10-6002 (1) bow-tie cotter pins (attaches to clevis pins) 10-8835 (1) clevis pin (w/ angled end/attach back to seat) 10-6003 (1) clevis pin (w/o angled end/attach strut to frame) 10-2520 (1) elastic back straps... $13.50

1) 10-3265 seat frame w/ lt. & rt. recl mech... $245.00 2) 10-2900 main chair frame

3) 10-1108 5” rear total lock caster.... $63.00 4) 10-1220 5” front rigid caster... $47.00

10-1250 (1) plastic head thumb screw for side panels 10-1228 (1) push grip only... $10.00

5) 10-8836 side table... $49.00

10-3273 (1) threaded rod for tray/table

6) 10-1156 side table hinge bracket; pair... $45.00 7) 10-6205 lock nuts for threaded rods

UphOlsteRed Items 8) 529-back-xx (2) upholstered back 9) 529-seat-xx (2) upholstered seat

10) 529-arm-xx (2) upholstered armpad, ea... $46.00 11) 529-panel-xx (2) upholstered side panel

12) 529-leg-xx (2) upholstered legrest 13) 529-foot-xx (2) upholstered footrest 14) 529-apron-xx (2) apron fabric

527-528 wIncO ReclIneR

(527 shown)

fIG) ORdeR # nOte descRIptIOn... pRIce

1) 10-1445 back frame w/foam handgrip 10-1228 foam handgrip only... $10.00 2) 10-1230 position lock bar... $49.00 3) 10-2760 rotary latch (for drop arm) left

10-2765 rotary latch (for drop arm) right

10-8882 release cable w/ handle (drop arm)... $51.00 4) 10-1108 rear 5” total lock caster.... $63.00

5) 10-1220 front 5” rigid caster.... $47.00 10-1113 (1) tray assm; complete w/hdwr... $95.00 6) 10-1040 tray receiving tube flanged arm... $4.00

10-1045 (1) tray receiving tube plain insert... $2.50 7) 10-5289 right seat frame w/ recline/scissor mech.

10-5290 left seat frame w/ recline/scissor mech. UphOlsteRed Items

8) 527-back-xx (2) upholstered back 9) 527-seat-xx (2) upholstered seat

10) 527-arm-xx (2) upholstered armpad, ea... $29.95 11) 527-leg-xx (2) upholstered legrest

12) 527-foot-xx (2) upholstered footrest 13) 527-apon-xx (2) apron fabric

527-panel-l-xx (2) side panel; upholstered; left 14) 527-panel-r-xx (2) side panel; upholstered; right

winco 527-528, 529Xl

8 11 12 3 2 ₁₃ 10 9 14 5 6, 7 1 4 seat height: 23” seat width: 25” overall height: 49” overall width: 35” back height: 31.5” seat depth: 20” weight: 112 lbs weight capacity: 450 lbs UphOlsteRy cOlORs / see Back cOveR

seat height: 21.5" seat width: 19" overall height: 46" overall width: 26" back height: 32" seat depth: 21.75" weight: 93 lbs weight capacity: 275 lbs 9 6 13 11 5 4 10 2 1 12 7 14 3 8

(21)

2

- Recliners

catalog no. 2910

535Xl caRemOR clIneR

10-6545 (1) 1/4-20 x 1/2” flat head screw 10-0600 (1) plastic (split-stem) cap 1) 10-3500 main chair frame

2) 10-5235 gas spring assembly (pre-assembled & adJusted) (includes: gas spring, operator, cable, handle) 3) 10-5350 release lever (handle only)

10-3540 (1) back frame

5) 10-1113 blow molded tray assy., w/ arms... $95.00 6) 10-1112 blow molded tray only... $69.95

7) 10-1040 tray receiving tube flanged insert... $4.00 8) 10-1045 tray receiving tube plain insert... $2.50 9) 10-1108 5” total lock caster assy... $63.00 10) 10-1220 5” rigid caster assy... $47.00 11) 10-4535 seat legrest frame assembly

UphOlsteRed Items 12) 535-seat-xx (2) upholstered seat/legrest 13) 535-back-xx (2) upholstered back

14) 535-side-xx (2) upholstered side panel

15) 535-arm-xx (2) upholstered armpads, pr... $44.00 nOte:

(1) not shown (2) xx = color

585 lIfe caRe ReclIneR

1) 10-1216wf back frame w/ foam hand grip... $79.95 2) 10-1216 back frame only... $69.00

3) 10-1228 foam handgrip only... $10.00 4) 10-8500 main chair frame

** 10-1230 (1) position lock bar... $49.00

5) 10-1113 blow molded tray w/ arms... $95.00 6) 10-1112 blow molded tray only... $69.95

7) 10-3720 seat frame recline mechanism; left... $75.00 8) 10-3820 seat frame recline mechanism; right... $75.00 9) 10-1108 5” total lock rear caster... $63.00

10) 10-1220 5” rigid front caster... $47.00

11) 10-1040 tray receiving tube flanged insert... $4.00 12) 10-1045 tray receiving tube plain insert... $2.50 13) 10-1119 3/4” ball guide... $2.00

14) 10-0430 blow molded side panel; left... $49.00 15) 10-0435 blow molded side panel; right... $49.00

UphOlsteRed Items 16) 585-leg-xx (2) upholstered legrest 17) 585-back-xx (2) upholstered back

18) 585-arm-xx (2) upholstered armpads, pr... $44.00 19) 585-seat-xx (2) upholstered seat

20) 585-apron-xx (2) apron fabric nOte:

(1) not shown (2) xx = color

winco 535Xl, 585

13 4 5, 6 2 15 14 12 11 10 1 7, 8 9 3 seat height: 20.5" seat width: 20" overall height: 47" overall width: 26" back height: 31.5" seat depth: 18" weight: 81 lbs weight capacity: 300 lbs seat height: 20" seat width: 19" overall height: 46.5" overall width: 26.5" back height: 32" seat depth: 20" weight: 85 lbs weight capacity: 275 lbs 18 1, 2, 3 17 19 5, 6 20 4 9 16 10 11, 12, 13 7, 8 14, 15 **10-1230 position lOck BaR Not Shown

(22)

2 - Recliners [email protected] 7 13 2 3 5, 6 8 1 9 11 4 14 10 12 8 11 6 7 9 1 10 4 5 2, 3

590 elIte ReclIneR

fIG) ORdeR # nOte descRIptIOn 10-3590 (1) back support strut 10-3140 (1) back frame; welded

2) 10-3260 (1) seat frame with mechanisms... $224.00 3) 10-1157 right recline mechanism... $69.95

10-1158 (1) left recline mechanism... $69.95 10-6900 (1) main frame, model: 590-690

4) 10-1635 side table, complete w/ hardware 5) 10-8849 3” total lock casters

10-0250 3” rigid front casters (optional) UphOlsteRed Items

6) 590-seat-xx (2) upholstered seat 7) 590-back-xx (2) upholstered back 8) 590-leg-xx (2) upholstered legrest 9) 590-foot-xx (2) upholstered footrest 10) 590-arm-xx (2) upholstered armrest

590-apron-r-xx (1, 2) rear apron upholstery 11) 590-apron-g-xx (2) front apron upholstery

653 caRe clIneR

fIG) ORdeR # nOte descRIptIOn 1) 10-3201 main frame assy

10-3260 (1) seat frame w/ recline mech... $224.00

2) 10-1150 back frame

10-1151 (1) release handle

3) 10-8836 blow molded side table... $49.00 4) 10-1156 side table hinge brackets; pair... $45.00 5) 10-1157 left recline mechanism... $69.95 6) 10-1158 right recline mechanism... $69.95

10-1159 (1) cable... $22.50 10-1160 (1) operator-actuator

7) 10-0550 5” total lock caster... $73.00 10-0560 5” directional caster... $73.00 10-1162 (1) gas cylinder; recline... $99.00 10-1163 (1) 2” webbing for back... $13.50 10-1166 (1) 5/16” threaded hinge rod

UphOlsteRed Items 8) 653-back-xx (2) upholstered back

9) 653-arm-xx (2) upholstered armpad, ea... $46.00 10) 653-seat-xx (2) upholstered seat

11) 653-apron-xx (2) apron fabric

12) 653-leg-xx (2) upholstered legrest 13) 653-foot-xx (2) upholstered footrest 14) 653-side-r-xx (2) upholstered side panel; right

653-side-l-xx (2) upholstered side panel; left nOte: (1) not shown (2) xx = color

winco 590, 653

seat height: 21” seat width: 21" overall height: 49" back height: 31.5" seat depth: 20" weight: 94 lbs weight capacity: 275 lbs footprint reclined 76.5” seat height: 18.5” seat width: 21" overall height: 46" overall width: 34" back height: 25" seat depth: 20" weight: 97 lbs weight capacity: 275 lbs footprint reclined 63”

(23)

2 - Recliners catalog no. 2910 2 11 1 16 14 15 12 10 8 5 13 9 17, 18 6, 7 3, 4

654Xl caRe clIneR

2) 10-3265 seat frame w/ recline mech... $245.00 10-8833 (1) back frame 654xl

10-8834 (1) release handle 654xl

3) 10-8836 plastic side tray table... $49.00 4) 10-1156 side table hinge brackets; pair... $45.00 5) 10-1157 left recline mechanism... $69.95 6) 10-1158 right recline mechanism... $69.95

10-1159 (1) cable; 34”... $22.50 10-1160 (1) operator-actuator

7) 10-0550 5” total lock caster... $73.00 10-0560 5” directional caster... $73.00 10-1162 (1) gas cylinder: recline... $99.00 10-2520 (1) 2” webbing for back... $13.50 10-1166 (1) 5/16” threaded hinge rod

UphOlsteRed Items 8) 654-back-xx (2) upholstered back

12) 654-leg-xx (2) upholstered legrest 13) 654-foot-xx (2) upholstered footrest 14) 654-side-r-xx (2) upholstered side panel; right 15) 654-side-l-xx (2) upholstered side panel; left (shown)

655 dROp aRm caRe clIneR

10-3260 seat frame w/ recline mech... $224.00 2) 10-1150 (1) back frame

3) 10-1152 right drop arm assy... $124.80 4) 10-1153 left drop arm assy. (shown)..... $124.80 5) 10-3233 drop arm release bar

10-1156 (1) side table hinge brackets; pair... $45.00 6) 10-1157 left recline mechanism... $69.95 7) 10-1158 right recline mechanism... $69.95

8) 10-0550 5” total lock caster... $73.00 10-0560 5” directional caster... $73.00 10-1162 (1) gas cylinder: recline... $99.00 10-2520 (1) 2” webbing for back... $13.50 9) 10-8836 blow molded side table... $49.00 10) 10-1165 plastic main side panel.... $39.00

10-1166 (1) 5/16” threaded hinge rod UphOlsteRed Items 11) 655-back-xx (2) upholstered back

12) 655-arm-xx (2) upholstered armpad, ea.... $46.00 13) 655-seat-xx (2) upholstered seat

15) 655-leg-xx (2) upholstered legrest 16) 655-foot-xx (2) upholstered footrest 17) 655-side-r-xx (2) upholstered side panel; right 18) 655-side-l-xx (2) upholstered side panel; left (shown)

winco 654Xl, 655

1 2 11 10 14, 15 12 9 7 13 3, 4 5, 6 8 seat height: 21” seat width: 25" overall height: 49" back height: 31.5" seat depth: 20" weight: 111 lbs weight capacity: 450 lbs footprint reclined 76.5” seat height: 21” seat width: 21" overall height: 49" overall width: (1) 33" back height: 31.5" seat depth: 20" weight: 105 lbs weight capacity: 275 lbs footprint reclined 76.5” note: ( with tray down)

(24)

2 - Recliners [email protected] 13 1 8 11 9 10 4, 5 3 2 6 7 14, 15 12 1 8 5 7 9 6 11,12 3 1, 2 4 10 nOte: (1) not shown (2) xx = color

657Xl dROp aRm caRe clIneR

2) 10-3265 seat frame w/ recline mech... $245.00 10-8833 (1) back frame

3) 10-8836 plastic side tray table... $49.00 10-1156 (1) side table hinge brackets; pair 4) 10-1157 left recline mechanism... $69.95 5) 10-1158 right recline mechanism... $69.95

6) 10-0550 5” total lock caster... $73.00 10-0560 5” directional caster... $73.00 10-1162 (1) gas cylinder: recline... $99.00 10-2520 (1) 2” webbing for back... $13.50 7) 10-1165 plastic main side panel... $39.00

10-1166 (1) 5/16” threaded hinge rod UphOlsteRed Items 8) 657-back-xx (2) upholstered back

12) 657-leg-xx (2) upholstered legrest 13) 657-foot-xx (2) upholstered footrest

14) 657-side-r-xx (2) upholstered side panel; right (shown) 15) 657-side-l-xx (2) upholstered side panel; left

656 pRemIeR caRe clIneR

fIG) ORdeR # nOte descRIptIOn 10-8845 (1) main frame assy

10-3260 (1) seat frame w/ recline mech... $224.00 10-3215 (1) back frame

10-1156 (1) side table hinge brackets; pr... $45.00 1) 10-1157 left recline mechanism... $69.95 2) 10-1158 right recline mechanism... $69.95

10-1159 (1) cable; 34”... $22.50 10-1160 (1) operator-actuator 3) 10-8849 3” total lock caster

10-1162 (1) gas cylinder: recline... $99.00 10-2520 (1) 2” webbing for back... $13.50 4) 10-8836 plastic side tray table... $49.00

10-1166 (1) 5/16” threaded hinge rod UphOlsteRed Items 5) 656-back-xx (2) upholstered back 6) 656-arm-xx (2) upholstered arm rest 7) 656-seat-xx (2) upholstered seat 8) 656-apron-xx (2) apron fabric

9) 656-leg-xx (2) upholstered legrest 10) 656-foot-xx (2) upholstered footrest

11) 656-side-r-xx (2) upholstered side panel; right (shown) 12) 656-side-l-xx (2) upholstered side panel; left

winco 657Xl, 656

seat height: 20 seat width: 21" overall height: 46.5" overall width: 30.5" back height: 30" seat depth: 19.5" weight: 93 lbs weight capacity: 275 lbs footprint reclined 76.5” UphOlsteRy cOlORs / see Back cOveR

seat height: 21” seat width: 25" overall height: 49" overall width: 36" back height: 31.5" seat depth: 20" weight: 111 lbs weight capacity: 450 lbs footprint reclined 76.5”

(25)

2

- Recliners

catalog no. 2910

BROda 785 chaIR

fIG) ORdeR # descRIptIOn 1) 71-1400 base for 785

2) 71-1401 6” tente single dir. locking rear 3) 71-1458 5” total lock plastic tente caster 4) 71-1403 control rod / 6” caster

5) 71-1404 control pedal / 6” caster 6,7) 71-1468 gas spring, 8-1/8” cylinder: short 8) 71-1407 seat for 785

9) 71-1408 back for reclining models 10) 71-1469 gas spring, 10-1/4” cylinder; long 11) 71-1410 legrest ext. bar 785 / black 12) 71-1411 legrest ext. bar / chrome

13) 71-1412 legrest attach. rod / 17” seat depth 14) 71-1413 J lever for 785 legrest

15) 71-1414 legrest elev. tube / 785

16) 71-1415 legrest elev. rod / 17” seat depth 17) 71-1416 3/4” x 3” green die spring

18) 71-1417 vertical legrest

19) 71-1418 upper, dbl. flip down footrest 20) 71-1419 compression spring/footrest rod 21) 71-1420 footrest rod

22) 71-1421 lower, dbl. flip down footrest

23) 71-1422 retaining ring spring / rem. arms & wings 24) 71-1423 removable wing, right

25) 71-1424 removable wing, left

26) 71-1425 cable assy. incl: cable/handle/mtg screw 27) 71-1426 lower/adJ. removable arm

28) 71-1427 upper/adJ. removable arm

29) 71-1465 armrest; black urethane w/screws

BROda 48 pedal chaIR/BasIc

1) 71-1450 frame base/pedal chair 2) 71-1451 frame tilt seat

3) 71-1452 frame arm top-basic pedal 4) 71-1453 plug, 1” black plastic

5) 71-1465 armrest; black urethane w/screws 6) 71-1455 1/4” plug with pass hole, plastic 7) 71-1425 cable handle assembly

8) 71-1468 gas spring, 8-1/8” cylinder: short 9) 71-1458 5” swivel total-lock caster 10) 71-1459 5” fixed caster; locking

11) 71-1466 cable release actuator mech, aluminum 12, 13, 14) 71-1712 push pin assembly for arm bottoms

BROda

Broda chair

please provide chair serial no. & model no. for accuracy
