S O F T W A R E
Open Access
ReformAlign: improved multiple sequence
alignments using a profile-based meta-alignment
approach
Dimitrios P Lyras
*and Dirk Metzler
Abstract
Background: Obtaining an accurate sequence alignment is fundamental for consistently analyzing biological data. Although this problem may be efficiently solved when only two sequences are considered, the exact inference of the optimal alignment easily gets computationally intractable for the multiple sequence alignment case. To cope with the high computational expenses, approximate heuristic methods have been proposed that address the problem indirectly by progressively aligning the sequences in pairs according to their relatedness. These methods however are not flexible to change the alignment of an already aligned group of sequences in the view of new data, resulting thus in compromises on the quality of the deriving alignment. In this paper we present ReformAlign, a novel meta-alignment approach that may significantly improve on the quality of the deriving alignments from popular aligners. We call ReformAlign a meta-aligner as it requires an initial alignment, for which a variety of alignment programs can be used. The main idea behind ReformAlign is quite straightforward: at first, an existing alignment is used to construct a standard profile which summarizes the initial alignment and then all sequences are individually re-aligned against the formed profile. From each sequence-profile comparison, the alignment of each sequence against the profile is recorded and the final alignment is indirectly inferred by merging all the individual sub-alignments into a unified set. The employment of ReformAlign may often result in alignments which are significantly more accurate than the starting alignments.
Results: We evaluated the effect of ReformAlign on the generated alignments from ten leading alignment methods using real data of variable size and sequence identity. The experimental results suggest that the proposed meta-aligner approach may often lead to statistically significant more accurate alignments. Furthermore, we show that ReformAlign results in more substantial improvement in cases where the starting alignment is of relatively inferior quality or when the input sequences are harder to align.
Conclusions: The proposed profile-based meta-alignment approach seems to be a promising and computationally efficient method that can be combined with practically all popular alignment methods and may lead to significant improvements in the generated alignments.
Keywords: Multiple sequence alignment, Iterative refinement, Dynamic programming
* Correspondence:[email protected]
Faculty of Biology, Department II, Ludwig-Maximilians Universität München, Planegg-Martinsried 82152, Germany
© 2014 Lyras and Metzler; licensee BioMed Central Ltd. This is an Open Access article distributed under the terms of the Creative Commons Attribution License (http://creativecommons.org/licenses/by/4.0), which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly credited. The Creative Commons Public Domain Dedication waiver (http://creativecommons.org/publicdomain/zero/1.0/) applies to the data made available in this article, unless otherwise stated.
Background
The alignment of multiple DNA, RNA or Protein se-quences is of major importance for a variety of biological modelling methods, including the estimation of the phylogenetic tree of the sequences and the prediction of their structural, functional and/or evolutionary relation-ships [1]. In addition, the recent advances in rapid, low-cost sequencing methods, have resulted in the accumulation of large amounts of molecular data to be processed, making thus the need for fast and accurate multiple sequence aligners even more imperative [2].
A widely used approach to cope with the Multiple Se-quence Alignment (MSA) problem, is the employment of a computational formulation comprised of two major components, namely an objective function [3] able to quantify the degree of similarity of a given alignment and an optimization procedure that targets at identifying the optimal alignment based on the underlying objective function [4]. Concerning the former component, the Sum-of-Pairs scoring model (SP) [4,5] remains amongst the most popular choices [6-8].
The maximization of the SP score is usually performed using dynamic programming. For the pairwise alignment case, an optimal (numerically but not necessarily biologic-ally) solution can be found within reasonable time. How-ever this does not hold for the multiple sequence alignment case, where it has already been shown [9-12] that obtaining the optimal alignment using the SP score is NP-hard. To overcome the computational intractability of the MSA problem, a large number of efficient heuristic algorithms have been proposed with the most popular being the pro-gressive alignment approach [13-16].
In progressive alignment the sequences are initially placed on a bifurcating tree according to their degree of similarity. Then, they are progressively aligned in pairs following the formed guide tree in a bottom-up order until its root is reached. At each step, two nodes of the tree (i.e. two sequences, a sequence and an alignment or two alignments) are aligned by a standard pairwise alignment algorithm, and the deriving subalignment is retained to be used at a subsequent step. One important aspect of the progressive alignment strategy is the“once a gap, always a gap” rule, first introduced in [13]. Based on this policy, once a group of sequences is aligned, all
gaps in the alignment are replaced by a neutral ‘X’
symbol ensuring that all subsequent pairwise alignments will be consistent with the pre-existing alignment of the group [17]. This rule by definition implies that once a group of alignments has been built up, they will remain fixed even in the view of new sequences that could potentially improve the overall alignment. Consequently, early errors in the progressive alignment steps are accumu-lated and propagated to later alignment stages compromis-ing thus the alignment quality.
This problem is often tackled by using iterative refine-ment techniques [18,19]. In iterative refinerefine-ment, one sequence (or a group of sequences) is iteratively sub-tracted and realigned against the alignment of the remaining sequences. Via this sequence-profile or profile-profile realignment, a new alignment is ob-tained which is then used for the next iteration of the algorithm. The refinement terminates when a fixed number of iterations is reached or when the alignment remains unchanged between consecutive iterations [17]. Although these methods are very efficacious at curating early alignment errors, they only partially ad-dress the“frozen subalignments” issue, since at each it-eration of the algorithm only one sequence (or a group of sequences) is realigned whereas the alignment of the remaining sequences is kept fixed.
In this article we present a variation of the aforemen-tioned iterative refinement strategy where all sequences may be simultaneously and independently realigned against a summarization profile that encapsulates all the starting alignment information. The process begins by constructing a standard profile that summarizes all the initial alignment information. Then, a series of individual (and possibly concurrent) sequence-profile pairwise comparisons takes place, recording the way that each se-quence is aligned against the profile. The new alignment is then indirectly inferred by merging all the individual subalignments into a unified group. The proposed ap-proach is implemented as part of a newly introduced meta-aligner under the name ReformAlign (Reformed Alignments) and is freely available to the public from http://evol.bio.lmu.de/_statgen/software/reformalign/ under the GNU General Public License (version 3 or later). We call ReformAlign a meta-aligner, in the sense described in [20], meaning that an initial alignment is required and it can be used with a variety of alignment programs.
As currently ReformAlign can only align DNA/RNA sequences, for the needs of our performance evaluations real nucleic acid datasets of variable length and average sequence identity rates were used. Our experimental results demonstrate that the suggested profile-based modification of the classic progressive alignment and it-erative refinement strategies is able to overcome the challenges posed by the propagation of early pairwise alignment errors and that ReformAlign is an efficient, well suited approach that may improve on the perform-ance of a vast variety of existing alignment software. Implementation
Alignment strategy
ReformAlign aims at improving on the quality of an existing alignment by providing the sequences with an additional opportunity to be individually re-aligned against a standard profile that efficiently summarizes
the starting alignment information. The idea is that via this re-alignment step, early alignment errors caused
by “frozen” subalignments may be fixed, delivering
thus better results in terms of alignment accuracy. Towards this end, in ReformAlign the alignment of the sequences is performed in two steps. The first step involves the construction of a non-probabilistic profile from an existing alignment, whereas during the second step all the sequences are individually realigned against the profile that derived from the first step. The new alignment is finally indirectly reconstructed by merging all the individual sequence-profile subalignments into a unified group. Due to the nature of the latter step, all pairwise sequence-profile comparison can be performed in parallel, improving thus the aligner performance in terms of execution time.
Upon completion of the latter step, a new (reformed) alignment is derived which is very often different to the starting one. Since this alignment may be also sus-ceptible to further improvement, the whole process can be re-initiated using the reformed alignment as starting alignment. The algorithm terminates when either the alignment between two successive runs re-mains unchanged or a pre-defined maximum number of iterations is reached. A diagrammatic overview of the ReformAlign alignment logic flow is provided at Figure 1.
A. Profile construction step
In the profile construction step, a popular aligner is employed to infer a starting alignment for the examined
group of sequences. Then, a summarization profile is constructed upon the starting alignment, having as many position as the columns in the alignment. Each position in the profile is characterized by a series of < Residue, Weight > pairs sized to fit the number of distinct resi-dues that appear in the corresponding column of the alignment. The“Residue” part in each pair corresponds to the label of a particular residue in the alignment
col-umn whereas its “Weight” represents the number of
times that this particular residue appears in that column.
B. Sequence alignment step
In ReformAlign, the formation of the final alignment is performed indirectly by aligning all the sequences against the profile that derived from the first step. All sequence-profile alignments are performed using a standard pairwise alignment algorithm and for each se-quence its alignment against the profile is recorded. By joining all deriving pairwise alignments into a unified group, it is possible to infer the final alignment of the examined sequences. In contrast to traditional iterative refinement approaches where at each refinement only one sequence (or a group of sequences) is realigned, in the proposed approach all the sequences have a chance to align differently against the formed summarization profile.
Intuitively, the majority of the pairwise alignments that will come up from this step will have at most as many columns as the number of positions of the formed profile. Nevertheless this is not always the case. For example, it might happen that a particular residue is
Figure 1 Logic Flow diagram of the ReformAlign alignment strategy. The algorithm creates an initial profile based on a starting alignment deriving from an established aligner. Then, all the sequences are aligned against the formed profile to obtain the reformed alignment. Notice that in this step, in case a new insertion is detected, the algorithm automatically switches to a profile fine-tuning mode in order to modify the profile to also account for the new insertion(s). After all sequences have been successfully aligned against the profile, the deriving alignment is indirectly inferred by merging all the estimated subalignments into a unified set and it is then freed from uninformative void columns (i.e. columns consisting exclusively of gaps). The process is repeated using the reformed alignment as starting alignment until the alignment between two successive runs remains unchanged or a predefined maximum number of iterations is reached.
aligned as a mismatch in one of the columns of the starting alignment, but during the sequence alignment step the score obtained by misaligning this residue against the corresponding profile position might be smaller than the penalty for opening a new gap in the alignment. In cases where the profile has to be updated in order to accommodate new insertion(s), ReformAlign automatically switches to a profile fine-tuning mode. As soon as the profile has been successfully updated, Refor-mAlign restarts the sequence alignment step using the new profile.
Another important aspect of the suggested meta-alignment technique is that since the meta-alignment of the sequences may alter during the sequence alignment step, it might happen that none of the sequences aligns against one or more of the positions of the final profile, leading thus to the derivation of void (all gapped) columns. To fix for this issue, upon completion of the sequence alignment step, the program checks for uninformative void columns and completely removes them from the reported alignment.
C. Iterative refinement
After the sequence alignment step has been completed, a new alignment is produced. In case the reformed alignment is different to the starting one, ReformAlign may be iteratively applied to further fine-tune the pro-duced alignment(s). The iterative refinement step termi-nates when the pre-defined limit of iterations is reached or when the deriving alignments between two successive runs of the algorithm are identical.
Dynamic programming and scoring system
The dynamic programming scheme employed by ReformA-lign for the sequence-profile aReformA-lignment task is the Gotoh’s [21] affine-gap penalties variation of the Needleman-Wunsch global alignment algorithm [22], as described in [17].
Regarding the scoring scheme for assessing the simi-larity between a position in a sequence and one from the profile, in contrast to the average function encountered in various alignment models such as ClustalW [6], we employed an additive variant where the observed counts of the residues are used instead of their averaged fre-quencies, as follows: SSij¼ X a∈Α X b∈Α Ca⋅Cb⋅Suba→b
where A is the current alphabet (e.g.Α = {A, C, G,T} for
DNA alignments), Ca and Cb represent the observed
counts (tallies) of residues a and b respectively and
Suba→ bcorresponds to the score matrix value for
align-ing residue a to b.
The main reason for selecting aforementioned scoring scheme is that the use of the observed counts instead of the relative frequencies allows for a better discrimination between well-conserved columns. For example, a profile position exclusively comprised of a several Cytosine resi-dues will have exactly the same score as another profile position formed by a single Cytosine, if the averaged sum of pairs scoring scheme was used, but the score for the former case would be significantly higher if the addi-tive scoring model was employed instead.
Alignment parameters
The choice of a proper values for the alignment parame-ters is essential for the multiple sequence alignment problem, since it has been proven [23,24] that it may significantly affect the decision of the “optimal” align-ment among the numerous alternatives. These parame-ters may significantly vary among different alignment approaches and they are usually decided by cross valid-ation testing.
In ReformAlign, the alignment parameters that have to be defined are the substitution scores and the gap open-ing and extension penalties. However, it would be desir-able in our strategy that each residue of the sequences could inexpensively skip any low-scoring profile posi-tions in order to align itself against another higher scor-ing position. Furthermore, based on the fact that by definition the profile already incorporates enough posi-tions where every residue of the sequences could pos-sibly be aligned, opening a new gap in the profile should be more costly than opening a gap to the sequence. Consequently, in ReformAlign four distinct types of gap penalties are considered: a penalty for opening a gap in the profile (HGOP), a penalty for extending a gap in the profile (HGEP), a penalty for opening a gap in the se-quence (VGOP) and a penalty for extending a gap in the sequence (VGEP). As in ClustalW, terminal gaps (TGOP and TGEP) are not penalized in our approach either.
An additional parameter constraint deriving from the inherent properties of our model is that the substitution scores should be substantially higher than the gap penal-ties. In case this restriction is not met, it might happen that many sequences require a profile update during the sequence alignment phase, resulting thus in very large profiles containing a lot of poorly supported positions. To avoid such cases it is recommended that substitution scores are always set to (relatively high) positive values whereas gap opening and extension penalties are set to negative values.
Regarding the substitution weights, ReformAlign cur-rently uses a modified version of the HOXD substitution matrix [25] where all scores are increased by a positive “bonus” value, so that the aforementioned condition is met and to further reward (mis)matches compared to
0% 20% 40% 60% 80% 100% 0% 20% 40% 60% 80%100%
ClustalW Cline Score
Ref.ClustalW Cline Score 0%
20% 40% 60% 80% 100% 0% 20% 40% 60% 80%100%
ClustalO Cline Score
Ref.ClustalO Cline Score 0%
20% 40% 60% 80% 100% 0% 20% 40% 60% 80%100%
Kalign Cline Score
Ref.Kalign Cline Score
0% 20% 40% 60% 80% 100% 0% 20% 40% 60% 80%100%
Mafft (FFTnsi) Cline Score
Ref.Mafft (FFTnsi) Cline Score 0%
20% 40% 60% 80% 100% 0% 20% 40% 60% 80%100%
Mafft (Linsi) Cline Score
Ref.Mafft (Linsi) Cline Score 0%
20% 40% 60% 80% 100% 0% 20% 40% 60% 80%100%
Muscle Cline Score
Ref.Muscle Cline Score
0% 20% 40% 60% 80% 100% 0% 20% 40% 60% 80%100%
DialignTX Cline Score
Ref.DialignTX Cline Score 0%
20% 40% 60% 80% 100% 0% 20% 40% 60% 80%100%
GramAlign Cline Score
Ref.GramAlign Cline Score 0%
20% 40% 60% 80% 100% 0% 20% 40% 60% 80%100%
ProbCons Cline Score
Ref.ProbCons Cline Score
0% 20% 40% 60% 80% 100% 0% 20% 40% 60% 80%100%
PicXAA Cline Score
Ref.PicXAA Cline Score
0% 20% 40% 60% 80% 100% 0% 20% 40% 60% 80%100%
RCoffee Cline Score
Ref.RCoffee Cline Score
gaps. Nevertheless, increasing all substitution scores by the same“bonus” value results in understating the differ-ences between matches and mismatches. For this reason, each score value is then increased by a re-adjustment coefficient (Coeff ).
The default bonus value and re-adjustment coeffi-cient applied to the score matrix as well as the default gap opening and extension penalties were decided based on a greedy parameters search that was per-formed using MUSCLE [8,26] as the starting aligner and a separate training set with alignments from the data-set 1 of a previous version of BRAliBase (i.e. BRA-liBase II) [27]. For each test in the training set, the per-cent APSI value of the initial alignment was calculated and then more than 300,000 parameter combinations were greedily assessed by comparing each time the deriving (reformed) alignment to the expected one (reference alignment) in terms of alignment accuracy. The results of this cross-validation analysis suggested that the score matrix bonus value and the gap penalties should be re-adjusted according to the APSI value of the initial alignment based on the subsequent formulas: Bonus¼ 0:334 ⋅ APSIpþ 317:206 Coeff ¼ 0:224 HGOP¼ 0:002 ⋅ APSIp ‐435:566 HGEP¼ 0:026 ⋅ APSIp ‐217:305 VGOP¼ 0:1 ⋅ APSIp ‐301:969 VGEP¼ ‐0:14 ⋅ APSIp ‐139:698
where APSIp is the percent Average Pairwise Sequence
Identity calculated over the initial alignment.
The aforementioned scheme for defining the starting parameter values was used for all the experiments out-lined in the present study and is automatically employed by default in ReformAlign, unless more appropriate starting values are defined to the program by the user.
Finally, ReformAlign follows ClustalW’s paradigm [6] by heuristically updating the gap opening and extension penalties during runtime, in an attempt to deliver superior alignment results. In particular, the penalties are modified based on the following criteria:
Dependency on the lengths of the sequences
Both the gap opening and gap extension penalties are modified depending on the ratio between the length (number of residues) of the sequence to be aligned and the largest sequence in the set. Intuitively, gaps should be penalized harder for shorter sequences in order to avoid having alignments with too many and/or sparse gaps. The calculation of the starting gap penalties is per-formed according to the following formula:
GP→GP⋅ M=Nð Þ
where GP represents all types of gap penalties (HGOP, HGEP, VGOP and VGEP), M is the length of the largest sequence in the set and N is the length of the sequence to be aligned.
Position-specific penalties based on the profile conservation rate
During the computation of the dynamic programming matrix, the gap opening penalties (HGOP and VGOP) are modified in a position-specific way depending on the conservation rate of the profile. If a position in the pro-file is well conserved (the weights for one or more of its pairs are set to relatively high values), then this implies that the specific position is strongly supported by many sequences (probably even by the examined sequence it-self– based on the starting alignment) and thus the pen-alty for opening a new gap against this profile position should be higher compared to weakly supported posi-tions. Consequently, the gap opening penalties per pos-ition are calculated as follows:
GOP→GOP− PCRi⋅SSij
where GOP represents the gap opening penalties
(HGOP, and VGOP), PCRi is the Profile Conservation
Rate for the ith position of the profile calculated as a
fraction of the maximum weight value among all <
Resi-due, Weight >pairs contained in the ith position of the
profile divided by the sum of all weights of the pairs in
the ith position and SSij is the substitution score for
aligning the ith position of the profile against the jth
position of the sequence.
The idea behind the multiplication of the profile conservation rate by the substitution score is to linearly increase the gap opening penalties for conserved col-umns, so that gaps would be favored only if subsequent matches of the sequence against ensuing positions of the (See figure on previous page.)
Figure 2 Scatterplots of the Cline scores per alignment pair for the 2,218 benchmark tests of the BRAliBase dataset. A scatterplot is constructed per alignment pair for each one of the 2,218 benchmark tests. The diagonal line represents the expected plot if the initial and the reformed alignments were identical. Consequently, an accumulation of points above the diagonal line represents improved reformed alignments whereas points below the diagonal correspond to cases where ReformAlign worsened the initial alignment.
profile would score high enough to sufficiently compen-sate for the very costly gap that was opened.
Methods
In order to assess the efficiency of ReformAlign in im-proving the quality of existing alignments, testsets from the BRAliBase 2.1 RNA alignment database [27,28] and the DNA SMART database [29] were used.
BRAliBase 2.1
BRAliBase (Benchmark RNA Alignment database) is a collection of RNA alignments taken from the Rfam data-base. It was initially introduced in [30], but since then it has been further enriched with additional alignments [27,28], leading to its current version v2.1 which con-tains in total 18,990 aligned sets of sequences (packed in
sets of 2, 3, 5, 7, 10 and 15 sequences) with an Average Pairwise Sequence Identity (APSI) rate ranging between 20% and 95% [28]. For the needs of the present study we limited our analysis to the BRAliBase alignments com-posed of 7, 10 and 15 sequences per alignment.
DNA SMART
The DNA Reference Alignment Benchmarks database [29] was proposed in 2007 as a collection of DNA refer-ence alignments for the assessment of MSA applications. It is comprised of multiple DNA sequence alignments (MDSAs) corresponding to protein alignments of the BAliBASe [31], OXBench [32], PREFAB [8] and SMART [33] benchmarking datasets. For our experiments, we considered all alignments corresponding to the SMART database containing between 20 and 300 sequences per alignment. Since however ReformAlign does not currently
Figure 3 Boxplots of the averaged Cline scores of the considered alignment pairs for the 2,218 alignments of the BRAliBase dataset. The boxplots of the Cline scores averaged over all 2,218 test cases of the BRAliBase dataset are given at this figure. The figures are organized in pairs corresponding, from left to right, to the averaged performance of [ClustalW– Ref. ClustalW], [ClustalO – Ref. ClustalO], [Kalign – Ref. Kalign], [Mafft (FFTnsi)– Ref. Mafft (FFTnsi)], [Mafft (Linsi) – Ref.Mafft (Linsi)], [Muscle – Ref. Muscle], [DialignTX- Ref. DialignTX], [GramAlign – Ref. GramAlign], [ProbConsRNA– Ref. ProbConsRNA], [PicXAA – Ref. PicXAA], and [RCoffee – Ref. RCoffee]. The bars at the bottom of each pair represent the percentage of times where the reformed alignments were superior (blue bars), equal (green bars) or inferior (red bars) in terms of Cline score compared to the initial alignments.
Table 1 BRAliBase Cline scores
APSI [25%-100%] (N = 2,218)
Aligner Initial (I) Reformed (R) Avg. Dif. (R-I) p-value R > I R = I R < I
ClustalW 84.97% 86.09% 1.12% p < 0.001*** 40.22% 46.71% 13.07% ClustalO 85.41% 87.71% 2.30% p < 0.001*** 44.00% 40.76% 15.24% Kalign 89.30% 89.61% 0.30% p < 0.001*** 36.29% 46.93% 16.77% Mafft (FFTnsi) 89.16% 89.94% 0.78% p < 0.001*** 27.23% 57.35% 15.42% Mafft (Linsi) 88.63% 89.33% 0.70% p < 0.001*** 27.46% 55.91% 16.64% Muscle 89.68% 89.89% 0.21% p < 0.001*** 21.51% 63.53% 14.97% DialignTX 81.17% 84.82% 3.65% p < 0.001*** 54.78% 35.21% 10.01% GramAlign 80.47% 84.90% 4.43% p < 0.001*** 54.64% 37.29% 8.07% ProbCons 91.35% 91.34% −0.01% p = 0.127 27.41% 42.34% 30.25% PicXAA 91.51% 91.46% −0.06% p < 0.001*** 26.28% 41.88% 31.83% R-Coffee 91.34% 91.42% 0.08% p < 0.001*** 39.18% 32.33% 28.49% APSI [25%-55%] (N = 869)
Aligner Initial (I) Reformed (R) Avg. Dif. (R-I) p-value R > I R = I R < I
ClustalW 69.03% 71.57% 2.54% p < 0.001*** 71.00% 14.04% 14.96% ClustalO 69.19% 74.82% 5.63% p < 0.001*** 79.29% 3.68% 17.03% Kalign 79.32% 79.95% 0.63% p < 0.001*** 53.28% 22.09% 24.63% Mafft (FFTnsi) 78.46% 80.35% 1.89% p < 0.001*** 53.51% 23.82% 22.67% Mafft (Linsi) 77.79% 79.38% 1.59% p < 0.001*** 48.10% 26.12% 25.78% Muscle 79.79% 80.33% 0.54% p < 0.001*** 42.58% 34.52% 22.90% DialignTX 59.75% 68.31% 8.56% p < 0.001*** 90.33% 0.69% 8.98% GramAlign 66.63% 70.10% 3.47% p < 0.001*** 78.02% 11.85% 10.13% ProbCons 83.39% 83.39% 0.00% p = 0.581 42.58% 10.01% 47.41% PicXAA 83.77% 83.67% −0.10% p = 0.001*** 40.05% 9.21% 50.75% R-Coffee 83.67% 83.57% −0.10% p = 0.429 46.49% 4.83% 48.68% APSI [55%-75%] (N = 284)
Aligner Initial (I) Reformed (R) Avg. Dif. (R-I) p-value R > I R = I R < I
ClustalW 84.78% 85.40% 0.62% p < 0.001*** 48.94% 25.35% 25.70% ClustalO 87.53% 87.91% 0.38% p = 0.001*** 49.30% 11.62% 39.08% Kalign 86.37% 86.76% 0.39% p < 0.001*** 55.28% 25.35% 19.37% Mafft (FFTnsi) 87.46% 87.76% 0.30% p = 0.004** 34.51% 37.32% 28.17% Mafft (Linsi) 86.65% 86.80% 0.15% p = 0.875 28.87% 39.08% 32.04% Muscle 87.80% 87.80% 0.00% p = 0.905 25.35% 46.48% 28.17% DialignTX 83.49% 85.25% 1.76% p < 0.001*** 73.59% 5.63% 20.77% GramAlign 81.75% 83.78% 2.03% p < 0.001*** 73.94% 17.25% 8.80% ProbCons 89.23% 89.26% 0.03% p = 0.686 41.20% 19.72% 39.08% PicXAA 89.34% 89.33% −0.01% p = 0.609 39.08% 21.83% 39.08% R-Coffee 89.49% 89.59% 0.10% p = 0.014* 48.94% 11.27% 39.79% APSI [75%-90%] (N = 840)
Aligner Initial (I) Reformed (R) Avg. Dif. (R-I) p-value R > I R = I R < I
ClustalW 98.16% 98.26% 0.10% p < 0.001*** 12.02% 81.79% 6.19%
ClustalO 98.20% 98.30% 0.10% p < 0.001*** 13.69% 80.36% 5.95%
Kalign 98.40% 98.41% 0.01% p = 0.074 13.21% 77.62% 9.17%
support ambiguous characters, we limited our analysis to a total of 264 alignments containing exclusively unambiguous DNA letters.
Accuracy measures
To assess the agreement between the reconstructed and the reference alignments, the following measures of accuracy were considered.
The sum of pairs (SP) score (aka developer’s score - fD
[34]) was initially proposed by Thompson et al. [35] and is defined as a fraction of the number of the correctly aligned residue pairs in the reconstructed alignment over the number of aligned residue-pairs of the reference alignment. If the denominator of the fraction is replaced by the number of residue-pairs in the test alignment, then the reverse sum of pairs score (aka modeler’s score - fM) is
obtained. Finally, the total columns (TC) score is computed by dividing the number of correctly identified columns in the reconstructed alignment over the total number of columns in the reference alignment.
Although these metrics can provide an overview of the quality of the deriving alignments, each one has its own drawbacks. The developer’s score fails to penalize
over-alignments and could give a great score to an alignment that erroneously aligns non-homologous regions, whereas the modeler’s score is not sensitive to detecting under-alignments and thus could possibly give high scores to alignments that systematically fail to align homologous re-gions (refer to [36] for further details regarding these types of alignment errors). Finally, the TC score is very sensitive to the misalignment of even a single sequence yielding a zero-valued TC Score even if all the remaining sequences in the examined group are properly aligned.
For this reason, two additional metrics were consid-ered: a) the Cline’s score (CS) [36], which efficiently ad-dresses the issues of the developer’s and modeler’s scores by penalizing over- and under- alignments while taking into account minor shifts in the reconstructed alignment compared to the reference and b) the D-POS metric proposed by Blackburne and Whelan [37] which satisfies the conditions of symmetry and triangular in-equality that are not met by the SP and TC scores, where at the same time it incorporates information from indels by recording the position where gaps occur. All accuracy measures take their values in the [0,1] range, with the exception of Cline’s Score which may also take
Table 1 BRAliBase Cline scores (Continued)
Mafft (Linsi) 98.08% 98.23% 0.15% p < 0.001*** 10.83% 85.60% 3.57% Muscle 98.41% 98.41% 0.00% p = 0.489 3.57% 92.38% 4.05% DialignTX 98.15% 98.30% 0.15% p < 0.001*** 20.24% 72.86% 6.90% GramAlign 92.78% 97.35% 4.57% p < 0.001*** 27.14% 66.07% 6.79% ProbCons 98.61% 98.57% −0.04% p < 0.001*** 8.33% 78.81% 12.86% PicXAA 98.61% 98.58% −0.03% p < 0.001*** 8.93% 77.62% 13.45% R-Coffee 98.27% 98.48% 0.21% p < 0.001*** 27.74% 64.52% 7.74% APSI [95%-100%] (N = 225)
Aligner Initial (I) Reformed (R) Avg. Dif. (R-I) p-value R > I R = I R < I
ClustalW 97.53% 97.59% 0.06% p = 0.030* 15.56% 68.89% 15.56% ClustalO 97.62% 97.66% 0.04% p = 0.245 14.22% 72.89% 12.89% Kalign 97.57% 97.63% 0.06% p < 0.001*** 32.89% 55.56% 11.56% Mafft (FFTnsi) 97.72% 97.70% −0.02% p = 0.009** 3.56% 86.67% 9.78% Mafft (Linsi) 97.67% 97.73% 0.06% p = 0.642 8.00% 81.33% 10.67% Muscle 97.68% 97.67% −0.01% p = 0.011* 2.22% 89.33% 8.44% DialignTX 97.58% 97.69% 0.11% p < 0.001*** 22.67% 65.33% 12.00% GramAlign 86.28% 96.95% 10.67% p < 0.001*** 42.67% 53.33% 4.00% ProbCons 97.66% 97.67% 0.01% p = 0.299 22.67% 59.56% 17.78% PicXAA 97.67% 97.68% 0.01% p = 0.526 21.78% 60.00% 18.22% R-Coffee 97.41% 97.68% 0.27% p < 0.001*** 41.33% 44.89% 13.78%
Cline scores corresponding to the 2,218 alignments of the BRAliBase dataset. *significant at p<0.05, **significant at p<0.005, ***significant at p≤0.001. The first sub-table summarizes the performance of each alignment pair averaged over all test cases whereas the remaining sub-tables report the results organized according to the average pairwise sequence identity of the sequences. For every sub-table, the APSI value and the number of alignments (N) corresponding to each group are reported in the first row. Columns 2 and 3 correspond to the average Cline scores of the initial (I) and the reformed (R) alignments respectively. The average differences (R-I) per alignment pair are given in the fourth column and the corresponding p-values of these differences are given at the fifth column (statistically significant values at the .05 significance level are highlighted in bold). Finally, columns 6–8 indicate the percentage of cases where the reformed alignments were superior, equal or inferior (in terms of Cline score) to the initial alignment.
negative values in case there exist many large shifts. Moreover, in contrast to the remaining metrics, D-POS reports the distance between the generated and the ref-erence alignment and thus lower D-POS values corres-pond to better alignments.
Since D-POS and Cline’s Score can efficiently summarize the quality of the deriving alignments while at the same time being the most immune to deficiencies, the discussion will be mostly based on the experimental results of these two metrics.
Alignment programs
We assessed the effect ReformAlign on the deriving alignments of ten leading methods: ClustalW [38], ClustalO [39], MUSCLE [8,26], MAFFT [40], Kalign [7], GramAlign [41], ProbConsRNA [42], R-Coffee [43,44], PicXAA [45] and Dialign-TX [46]. These aligners implement a variety of alignment techniques, such as progressive alignment [7,38,41], iterative refinement [26,39,40], segment-based alignment [46], probabilistic/consistency-segment-based alignment [42,44] and maximum expected accuracy alignment [45]. Moreover, R-Coffee specializes in the alignment of RNA sequences and could thus provide us with an overview of the way that the proposed sequence-based method may affect initial alignments that use secondary structure information.
Since our main intention was to examine the effect of ReformAlign on existing alignments rather than to ana-lytically assess the efficiency of each aligner on the benchmark databases, we used the default settings for all aligners except for MAFFT which was executed using
both the –FFT-NS-i and the –L-INS-i options. Finally,
the default value for the maximum number of refine-ment iterations in ReformAlign was set to 5 for all ex-periments (an analytical listing of the command-line options used for each aligner is provided at Additional file 1: Table S1).
Results and discussion
Each benchmark test was given as input to all the con-sidered aligners in order to obtain an initial alignment which was compared against the reference. Then, this alignment was provided as input to ReformAlign and the newly generated alignment was also compared against the reference using all considered accuracy
metrics. Via this procedure, we came up with eleven distinct alignment pairs for each benchmark test (Mafft was separately assessed for the FFT-NS-i and L-INS-i op-tions). Furthermore, in order to determine the statistical significance of the differences between the initial and the reformed alignments, Wilcoxon signed rank tests were also performed for each alignment-pair. However, since multiple test cases in the benchmark data may contain se-quences of the same families, the samples independency assumption of the statistical test might not be fully met and for this reason the reported results should be inter-preted with caution.
BRAliBase 2.1
The results for the 2,218 BRAliBase benchmark tests are visualized in Figures 2 and 3. Moreover, in order to ex-plore the effect of ReformAlign to testsets of increasing APSI, we grouped the benchmarks in four clusters ac-cording to the percent identity of the sequences. The average scores for each group are shown in Table 1 and Additional file 2: Table S2 and are graphically depicted at Figure 4.
Despite the simplicity of the ReformAlign logic, the experimental results suggest that the proposed approach may significantly improve on the performance of almost all examined aligners. In general, the improvement due to ReformAlign seems to be substantially higher for diffi-cult examples (i.e. alignments with relatively low APSI) or for lower-scoring aligners (e.g. DialignTX or GramAlign) and becomes less noticeable when the starting alignments are already nearly optimal leaving thus less room for improvement (Table 1, Additional file 2: Table S2 and Figure 4). The only cases where ReformAlign seems to degrade on average the initial alignments are for PicXAA and ProbConsRNA. Nonetheless, even for these aligners it was found that in a considerable amount of cases the reformed alignments were super-ior to the initial ones (Table 1 and Figure 3) whereas it may also be observed that the average decrease for both aligners is relatively small and not always statistically signifi-cant (Table 1). In addition, although the Cline (Table 1), SP and TC scores (Additional file 2: Table S2) seem to indicate a marginal degradation of the initial alignments due to ReformAlign, according to the D-POS similarity metric the reformed alignments were superior to the starting ones for (See figure on previous page.)
Figure 4 Average Cline score differences for the benchmark tests of the BRAliBase dataset. Effect of ReformAlign to testsets of increasing APSI (A) and increasing number of sequences per alignment (B). The alignment pairs (from top to bottom, as appearing in the legends) correspond to [Ref. ClustalO– ClustalO], [Ref. ClustalW – ClustalW], [Ref. DialignTX – DialignTX], [Ref. GramAlign – GramAlign], [Ref. Kalign – Kalign], [Ref. Mafft (FFTnsi) – Mafft (FFTnsi)], [Ref. Mafft (Linsi)– Mafft (Linsi)], [Ref. Muscle – Muscle], [Ref. ProbConsRNA – ProbConsRNA], [Ref. PicXAA – PicXAA], and [Ref. RCoffee – RCoffee]. For each value of the horizontal axis, the difference is calculated by subtracting the average Cline score of the reformed alignments to the respective score of the initial alignments that belong to each group. Statistically significant differences at the .05 significance level are denoted by an asterisk (*) at the top-left corner of the respective points. The number of test cases (N) per group is given at the bottom of each value in the x-axis.
0% 20% 40% 60% 80% 100% 0% 20% 40% 60% 80%100% 0% 20% 40% 60% 80% 100% 0% 20% 40% 60% 80%100% 0% 20% 40% 60% 80% 100% 0% 20% 40% 60% 80%100% 0% 20% 40% 60% 80% 100% 0% 20% 40% 60% 80%100% 0% 20% 40% 60% 80% 100% 0% 20% 40% 60% 80%100% 0% 20% 40% 60% 80% 100% 0% 20% 40% 60% 80%100% 0% 20% 40% 60% 80% 100% 0% 20% 40% 60% 80%100% 0% 20% 40% 60% 80% 100% 0% 20% 40% 60% 80%100% 0% 20% 40% 60% 80% 100% 0% 20% 40% 60% 80%100% 0% 20% 40% 60% 80% 100% 0% 20% 40% 60% 80%100%
all aligners participating in our experiments (Additional file 2: Table S2).
Another important observation is that ReformAlign very often delivers alignments which are different to the starting ones (Figure 3 and Table 1), and in the majority of these cases the reformed alignments are superior to the corresponding starting ones. This trend is much more apparent for testsets with relatively low APSI values and becomes less evident for highly similar align-ment cases (Table 1 and Additional file 2: Table S2).
The experimental results also demonstrate that the ap-plication of ReformAlign to existing alignments does not affect all aligners in the same way and may result in changes in their overall ranking. For example, as it may be seen at Table 1, although initially GramAlign and R-Coffee score on average lower than DialignTX and Prob-ConsRNA respectively, the situation is reversed after ReformAlign has been applied to fine-tune the respective alignments. The same holds true for the MUSCLE, Kalign and Mafft (with the FFT-NS-i setting) aligners with the latter scoring higher than the other two after the respective alignments have been reformed.
Finally, as it may be seen at Figure 4A, the effect of ReformAlign for the majority of aligners seems to be more substantial for harder test cases (APSI≤ 75%) and becomes less noticeable as the average pairwise sequence identity increases. This does not seem to be the case for the highest scoring aligners (ProbConsRNA, PicXAA and R-Coffee) which deliver quite accurate alignments (Table 1 and Additional file 2: Table S2) even for rela-tively hard test cases leaving thus less room for improve-ment, and for GramAlign where several test cases from the higher APSI groups seem to violate its grammar-based assumptions resulting thus in lower-scoring initial alignments that are then refined by ReformAlign (Figures 3 and 4, Table 1 and Additional file 2: Table S2).
The analysis of the Cline score differences versus the number of sequences per alignment (Figure 4B) revealed similar results. Probabilistic and consistency-based aligners, which appear to deliver more accurate starting alignments, seem to benefit less (or are even marginally worsened) from the application of ReformAlign compared to optimization-driven or iterative refinement based approaches. The main reason for this might be in the underlying assumptions of these models. In particular, these high-scoring aligners employ sophisticated albeit computationally expensive probabilistic assumptions resulting thus quite often in very
accurate alignments. ReformAlign however is based on the ad hoc SP scoring scheme and it may thus happen that accurate starting alignments that meet the probabilistic/ consistency based assumptions are slightly degraded by the more arbitrary optimization scheme of ReformAlign, especially in alignments composed of multiple sequences. However, as the experimental results demonstrate, there is a considerable amount of cases where the initial align-ments of the Probabilistic Consistency Transformation (PCT) approaches are improved by the proposed post-processing step (Table 1, Figures 2 and 3), suggesting thus that ReformAlign could appear to be useful even for fine-tuning the starting alignments of such sophisticated align-ment methods.
DNA SMART
A similar analysis was carried out for the benchmark tests of the DNA SMART database. For these experiments R-Coffee (which is specialized for RNA alignments) was removed from the analysis. Since the majority of the test cases (257 out of 264 alignments) were sharing an average sequence identity equal or lower to 55%, the differences between the reformed and the initial alignments for the higher APSI groups were not found to be statistically significant at the .05 level (data not shown). The performance averaged over all 264 test cases per alignment pair is graphically depicted at Figures 5 and 6 whereas the analytic results for the considered accuracy metrics are reported at Table 2 and Additional file 3: Table S3.
The experimental results suggest that ReformAlign was able to improve on the starting alignments for the majority of the considered aligners. For ProbConsRNA the effect of ReformAlign is dubious: although on aver-age the reformed alignments appear to be marginally su-perior to the initial ones (Table 2 and Additional file 3: Table S3), they demonstrate a greater variability com-pared to the starting alignments (Figure 6) and the re-ported differences are not always found to be statistically significant. Regarding the remaining aligners of our benchmark study, only Mafft (with the L-NS-i setting) and PicXAA are shown to be negatively affected by the application of ReformAlign whereas a noticeable im-provement is observed for the rest. The reported degrad-ation of the PCT-based aligners could be due to the sophisticated assumptions of these high performance methods compared to the ad hoc optimization scheme (See figure on previous page.)
Figure 5 Scatterplots of the Cline scores per alignment pair for the 264 benchmark tests of the DNA SMART dataset. For each alignment pair a scatterplot is constructed. Each point corresponds to an alignment test case of the DNA SMART dataset and depicts the Cline score of the initial alignment versus the respective score of the reformed alignment. The diagonal line represents the expected plot if the initial and the reformed alignments were identical.
Table 2 DNA SMART Cline scores
APSI [25%-90%] (N = 264)
Aligner Initial (I) Reformed (R) Avg. Dif. (R-I) p-value R > I R = I R < I
ClustalW 59.55% 67.06% 7.51% p < 0.001*** 95.08% 0.76% 4.17% ClustalO 70.94% 74.25% 3.31% p < 0.001*** 74.24% 3.79% 21.97% Kalign 68.37% 72.37% 4.00% p < 0.001*** 87.50% 3.41% 9.09% Mafft (FFTnsi) 71.93% 74.81% 2.88% p < 0.001*** 60.98% 3.79% 35.23% Mafft (Linsi) 79.70% 78.26% −1.44% p < 0.001*** 33.71% 7.20% 59.09% Muscle 69.51% 72.52% 3.01% p < 0.001*** 70.08% 3.79% 26.14% DialignTX 60.82% 70.13% 9.31% p < 0.001*** 87.50% 1.52% 10.98% GramAlign 66.96% 70.11% 3.15% p < 0.001*** 74.62% 4.17% 21.21% ProbCons 73.68% 73.90% 0.22% p = 0.099 54.55% 3.41% 42.05% PicXAA 75.64% 73.85% −1.79% p < 0.001*** 28.03% 3.03% 68.94%
Cline scores corresponding to the 264 alignments of the DNA SMART dataset. *significant at p<0.05, **significant at p<0.005, ***significant at p≤0.001. The average Cline scores corresponding to the initial (I) and the reformed (R) alignments are given at columns 2 and 3 respectively. Column 4 represents the differences of the Cline Scores (R-I) per alignment pair and the statistical significance of these differences is given at column 5 (statistically significant values at the .05 significance level are highlighted in bold). The last three columns correspond to the percentage of cases where the reformed alignments were superior, equal or inferior (in terms of Cline score) to the initial alignment.
Figure 6 Boxplots of the averaged Cline scores for the 264 alignments of the DNA SMART dataset. The boxplots corresponding to the Cline scores for the DNA SMART dataset are given in this figure. The figures, correspond, from left to right, to the averaged performance of [ClustalW– Ref. ClustalW], [ClustalO – Ref. ClustalO], [Kalign – Ref. Kalign], [Mafft (FFTnsi) – Ref. Mafft (FFTnsi)], [Mafft (Linsi) – Ref.Mafft (Linsi)], [Muscle– Ref. Muscle], [DialignTX- Ref. DialignTX], [GramAlign – Ref. GramAlign], [ProbConsRNA – Ref. ProbConsRNA] and [PicXAA – Ref. PicXAA]. The bars at the bottom of each pair represent the percentage of times where the reformed alignments were superior (blue bars), equal (green bars) or inferior (red bars) in terms of Cline score compared to the initial alignments.
of ReformAlign. Specifically, since the DNA SMART data-base is composed of alignments which are data-based on bio-logical features such as the tertiary structure of encoded proteins, the simplicity of the ReformAlign scheme could result more often in degradation of alignments deriving from the more accurate PCT-based methods, compared to alignments generated from progressive and iterative refine-ment aligners.
In agreement to the results of the BRAliBase experi-ments, the DNA SMART analysis supports the conclu-sions that ReformAlign generates alignments that are frequently different (and often superior) to the starting ones (Figure 6 and Table 2) and that the suggested ap-proach does not affect all aligners the same way, result-ing thus in changes in their overall rankresult-ing (Table 2 and Additional file 3: Table S3).
Finally, the assessment of the effect of ReformAlign to testsets of increasing APSI (Figure 7A) and increasing number of sequences per alignment (Figure 7B) did not provide us with conclusive results, mainly due to the fact that there were only a limited number of test cases be-longing to the higher order groups, often resulting in statistically insignificant differences for the considered alignment pairs. Nevertheless, the results of Figure 7A indicate a trend that further supports the idea that the effect of ReformAlign is weaker for closely related se-quences compared to alignments with lower APSI values, whereas there does not seem to be a clear pattern describing the way ReformAlign affects the examined aligners with an increasing number of sequences per alignment (Figure 7B).
Conclusion
In this paper we presented ReformAlign, a novel profile-based meta-alignment approach that aims at cor-recting early alignment errors by giving the sequences a second opportunity to re-align themselves against a stand-ard profile that efficiently summarizes the initial alignment information. ReformAlign is based on the Gotoh’s affine-gap penalties variation of the classic Needleman-Wunsch algorithm and uses a refinement scheme according to which the reformed alignment is indirectly inferred by a series of individual and independent sequence-profile pair-wise comparisons.
ReformAlign was extensively assessed on the way it af-fects the alignments of ten leading aligners using bench-mark testsets from the BRAliBase and DNA SMART datasets. The results suggest that the majority of aligners showed a notable improvement on the accuracy of the delivered alignments when ReformAlign was employed as a post-processing step. This improvement was more substantial for harder alignment cases with low APSI or when there was still adequate room for improvement on the starting alignments, and became less evident when the initial alignment was already quite accurate or for easier alignment cases with high identity rates.
Finally, it is important to mention that the proposed method does not come to replace other popular align-ment techniques. Instead, users may continue to use their aligner(s) of preference (even programs that were not examined in the present study) and then comple-mentarily employ ReformAlign as a post-processing step to examine if the delivered alignment is more appropri-ate for their analyses.
Availability and requirements
ReformAlign is freely available to the public under the GNU General Public License (version 3 or later). Both the source code and precompiled binaries for Linux and Windows may be downloaded from http://evol.bio.lmu. de/_statgen/software/reformalign/. Currently ReformA-lign can only aReformA-lign DNA and RNA sequences and it is provided as a command line program. Its source code is in C++ and it makes use of the Open Multi-Processing (OpenMP) parallelization API.
For the benchmark tests, the BRAliBase 2.1 RNA align-ment database [28] and the alignalign-ments from the DNA Reference Alignment Benchmarks database [29] were employed. The evaluation of the alignments accuracy was performed using Robert Edgar’s QScore, (v.2.1) multiple alignment scoring software and Blackburne and Whelan’s MetAl (v.1.1) [37] command-line utility for calculating metric distances between alternative alignments.
Finally, the alignment programs that were used in our benchmark analysis are as follows: ClustalW2 [38] (v.2.1), ClustalO [39] (v.1.2), MUSCLE [8,26] (v.3.8.31), MAFFT [40] (v.7.149), Kalign [7] (v.2.04), GramAlign [41] (v.3), ProbConsRNA [42] (v.1.1), R-Coffee [43,44] (T-Coffee (See figure on previous page.)
Figure 7 Average Cline score differences for the benchmark tests of the DNA SMART dataset. Effect of ReformAlign to testsets of increasing APSI (A) and increasing number of sequences per alignment (B). The alignment pairs (from top to bottom, as appearing in the legends) correspond to [Ref. ClustalO– ClustalO], [Ref. ClustalW – ClustalW], [Ref. DialignTX – DialignTX], [Ref. GramAlign – GramAlign], [Ref. Kalign – Kalign], [Ref. Mafft (FFTnsi)– Mafft (FFTnsi)], [Ref. Mafft (Linsi) – Mafft (Linsi)], [Ref. Muscle – Muscle], [Ref. ProbConsRNA – ProbConsRNA] and [Ref. PicXAA – PicXAA]. For each value of the horizontal axis, the difference is calculated by subtracting the average Cline score of the reformed alignments to the respective score of the initial alignments that belong to each group. Statistically significant differences at the .05 significance level are denoted by an asterisk (*) at the top-left corner of the respective points.
v.10.00.r1613), PicXAA [45] (v.1.03) and Dialign-TX [46] (v.1.0.2).
Additional files
Additional file 1: Table S1. Command-line options per alignment method.
Additional file 2: Table S2. BRAliBase Results. Averaged D-POS, SP and TC scores for the 2,218 benchmark tests of the BRAliBase dataset. The results are presented averaged over all benchmark tests as well as organized in four groups according to the average pairwise sequence identity of the sequences. For each accuracy metric three figures are provided corresponding to the average scores of the initial alignments (I), the reformed alignments (R) and their respective differences (R-I). Differences that are found to be statistically significant at the .05 significance level are highlighted in bold. For the SP and TC scores, positive average differences indicate that the reformed alignments were superior to the initial ones whereas negative values indicate that ReformAlign (on average) worsened the starting alignments. For the D-POS scores the situation is reversed: negative values indicate an improvement due to ReformAlign, whereas positive values represent a degradation of the starting alignments.
Additional file 3: Table S3. DNA SMART Results. Averaged D-POS, SP and TC scores for the 264 benchmark tests of the DNA SMART dataset. For each accuracy metric three figures are provided corresponding to the average scores of the initial alignments (I), the reformed alignments (R) and their respective differences (R-I). Statistically significant differences at the .05 significance level are highlighted in bold.
Competing interests
The authors declare that they have no competing interests. Authors’ contributions
D.P.L. developed the idea, implemented the software and drafted the manuscript. D.M. planned and supervised the work and contributed to the manuscript. Both authors read and approved the final manuscript. Acknowledgements
The authors would like to thank the anonymous reviewers for their insightful comments and Prof. Dr. Nick Goldman and Dr. Ari Löytynoja for their advice. This work was supported by the German Science Foundation DFG through grant number ME 3134/4-1.
Received: 24 March 2014 Accepted: 29 July 2014 Published: 7 August 2014
References
1. Notredame C: Recent evolutions of multiple sequence alignment algorithms. PLoS Comput Biol 2007, 3:e123.
2. Edgar RC, Batzoglou S: Multiple sequence alignment. Curr Opin Struct Biol 2006, 16:368–373.
3. Notredame C: Recent progress in multiple sequence alignment: a survey. Pharmacogenomics 2002, 3:131–144.
4. Do CB, Katoh K: Protein multiple sequence alignment. Methods Mol Biol Clifton NJ 2008, 484:379–413.
5. Murata M, Richardson JS, Sussman JL: Simultaneous comparison of three protein sequences. Proc Natl Acad Sci U S A 1985, 82:3073–3077. 6. Thompson JD, Higgins DG, Gibson TJ: CLUSTAL W: improving the
sensitivity of progressive multiple sequence alignment through sequence weighting, position-specific gap penalties and weight matrix choice. Nucleic Acids Res 1994, 22:4673–4680.
7. Lassmann T, Frings O, Sonnhammer ELL: Kalign2: high-performance multiple alignment of protein and nucleotide sequences allowing external features. Nucleic Acids Res 2009, 37:858–865.
8. Edgar RC: MUSCLE: multiple sequence alignment with high accuracy and high throughput. Nucleic Acids Res 2004, 32:1792–1797.
9. Just W: Computational complexity of multiple sequence alignment with SP-score. J Comput Biol J Comput Mol Cell Biol 2001, 8:615–623.
10. Kececioglu J, Starrett D: Aligning alignments exactly. In Proc Eighth Annu Int Conf Res Comput Mol Biol. New York, NY, USA: ACM; 2004:85–96. RECOMB’04.
11. Wang L, Jiang T: On the complexity of multiple sequence alignment. J Comput Biol J Comput Mol Cell Biol 1994, 1:337–348.
12. Bonizzoni P, Vedova GD: The complexity of multiple sequence alignment with SP-score that is a metric. Theor Comput Sci2001, 259:63–79. 13. Feng DF, Doolittle RF: Progressive sequence alignment as a prerequisite
to correct phylogenetic trees. J Mol Evol 1987, 25:351–360. 14. Hogeweg P, Hesper B: The alignment of sets of sequences and the
construction of phyletic trees: an integrated method. J Mol Evol 1984, 20:175–186.
15. Barton GJ, Sternberg MJ: A strategy for the rapid multiple alignment of protein sequences. Confidence levels from tertiary structure comparisons. J Mol Biol 1987, 198:327–337.
16. Higgins DG, Sharp PM: Fast and sensitive multiple sequence alignments on a microcomputer. Comput Appl Biosci CABIOS 1989, 5:151–153. 17. Durbin R, Eddy S, Krogh A, Mitchison G: Biological Sequence Analysis:
Probabilistic Models of Proteins and Nucleic Acids. Cambridge: University Press; 1998.
18. Berger MP, Munson PJ: A novel randomized iterative strategy for aligning multiple protein sequences. Comput Appl Biosci CABIOS 1991, 7:479–484. 19. Gotoh O: Optimal alignment between groups of sequences and its
application to multiple sequence alignment. Comput Appl Biosci CABIOS 1993, 9:361–370.
20. Roskin KM, Paten B, Haussler D: Meta-alignment with crumble and prune: partitioning very large alignment problems for performance and parallelization. BMC Bioinformatics 2011, 12:1–12.
21. Gotoh O: An improved algorithm for matching biological sequences. J Mol Biol 1982, 162:705–708.
22. Needleman SB, Wunsch CD: A general method applicable to the search for similarities in the amino acid sequence of two proteins. J Mol Biol 1970, 48:443–453.
23. Ye X, Wang G, Altschul SF: An assessment of substitution scores for protein profile-profile comparison. Bioinformatics 2011, 27:3356–3363. 24. Edgar RC: Optimizing substitution matrix choice and gap parameters for
sequence alignment. BMC Bioinformatics 2009, 10:396.
25. Chiaromonte F, Yap VB, Miller W: Scoring pairwise genomic sequence alignments. Pac Symp Biocomput Pac Symp Biocomput 2002, 115–126. 26. Edgar RC: MUSCLE: a multiple sequence alignment method with reduced
time and space complexity. BMC Bioinformatics 2004, 5:113. doi:10.1186/ 1471-2105-5-113.
27. Gardner PP, Wilm A, Washietl S: A benchmark of multiple sequence alignment programs upon structural RNAs. Nucleic Acids Res 2005, 33:2433–2439.
28. Wilm A, Mainz I, Steger G: An enhanced RNA alignment benchmark for sequence alignment programs. Algorithms Mol Biol 2006, 1:19. 29. Carroll H, Beckstead W, O’Connor T, Ebbert M, Clement M, Snell Q,
McClellan D: DNA reference alignment benchmarks based on tertiary structure of encoded proteins. Bioinformatics 2007, 23:2648–2649. 30. Gardner PP, Giegerich R: A comprehensive comparison of comparative
RNA structure prediction approaches. BMC Bioinformatics 2004, 5:140. 31. Thompson JD, Koehl P, Ripp R, Poch O: BAliBASE 3.0: Latest developments
of the multiple sequence alignment benchmark. Proteins Struct Funct Bioinforma 2005, 61:127–136.
32. Raghava GPS, Searle SM, Audley PC, Barber JD, Barton GJ: OXBench: A benchmark for evaluation of protein multiple sequence alignment accuracy. BMC Bioinformatics 2003, 4:47.
33. Ponting CP, Schultz J, Milpetz F, Bork P: SMART: identification and annotation of domains from signalling and extracellular protein sequences. Nucleic Acids Res 1999, 27:229–232.
34. Sauder JM, Arthur JW, Dunbrack RL Jr: Large-scale comparison of protein sequence alignment algorithms with structure alignments. Proteins 2000, 40:6–22.
35. Thompson JD, Plewniak F, Poch O: A comprehensive comparison of multiple sequence alignment programs. Nucleic Acids Res 1999, 27:2682–2690.
36. Cline M, Hughey R, Karplus K: Predicting reliable regions in protein sequence alignments. Bioinformatics 2002, 18:306–314.
37. Blackburne BP, Whelan S: Measuring the distance between multiple sequence alignments. Bioinformatics 2012, 28:495–502.
38. Larkin MA, Blackshields G, Brown NP, Chenna R, McGettigan PA, McWilliam H, Valentin F, Wallace IM, Wilm A, Lopez R, Thompson JD, Gibson TJ, Higgins DG: Clustal W and Clustal X version 2.0. Bioinformatics 2007, 23:2947–2948.
39. Sievers F, Wilm A, Dineen D, Gibson TJ, Karplus K, Li W, Lopez R, McWilliam H, Remmert M, Söding J, Thompson JD, Higgins DG: Fast, scalable generation of high‐quality protein multiple sequence alignments using Clustal Omega. Mol Syst Biol 2011, 7:539. doi:10.1038/msb.2011.75. 40. Katoh K, Standley DM: MAFFT multiple sequence alignment software
Version 7: improvements in performance and usability. Mol Biol Evol 2013, 30:772–780.
41. Russell DJ, Way SF, Benson AK, Sayood K: A grammar-based distance metric enables fast and accurate clustering of large sets of 16S sequences. BMC Bioinformatics 2010, 11:601.
42. Do CB, Mahabhashyam MSP, Brudno M, Batzoglou S: ProbCons: Probabilistic consistency-based multiple sequence alignment. Genome Res 2005, 15:330–340.
43. Wilm A, Higgins DG, Notredame C: R-Coffee: a method for multiple alignment of non-coding RNA. Nucleic Acids Res 2008, 36:e52. 44. Notredame C, Higgins DG, Heringa J: T-Coffee: a novel method for fast
and accurate multiple sequence alignment. J Mol Biol 2000, 302:205–217. 45. Sahraeian SME, Yoon B-J: PicXAA: greedy probabilistic construction of
maximum expected accuracy alignment of multiple sequences. Nucleic Acids Res 2010, 38:4917–4928.
46. Subramanian AR, Kaufmann M, Morgenstern B: DIALIGN-TX: greedy and progressive approaches for segment-based multiple sequence alignment. Algorithms Mol Biol 2008, 3:6.
doi:10.1186/1471-2105-15-265

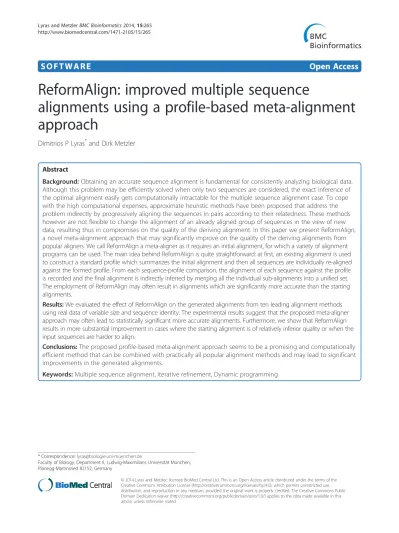

Cite this article as: Lyras and Metzler: ReformAlign: improved multiple sequence alignments using a profile-based meta-alignment approach. BMC Bioinformatics 2014 15:265.
Submit your next manuscript to BioMed Central and take full advantage of:
• Convenient online submission • Thorough peer review
• No space constraints or color figure charges • Immediate publication on acceptance
• Inclusion in PubMed, CAS, Scopus and Google Scholar • Research which is freely available for redistribution
Submit your manuscript at www.biomedcentral.com/submit
