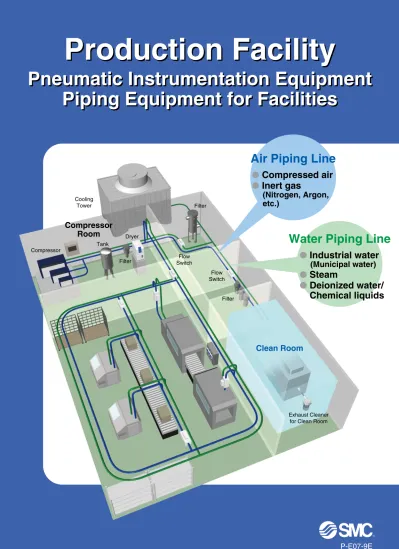

SMC Pneumatics in Process Automation

(1)

Clean Room

Exhaust Cleaner for Clean Room

Production Facility

Pneumatic Instrumentation Equipment

Piping Equipment for Facilities

Production Facility

Pneumatic Instrumentation Equipment

Piping Equipment for Facilities

Air Piping Line

Water Piping Line



Industrial water

(Municipal water)

 Steam

 Deionized water/

Chemical liquids

 Compressed air

 Inert gas

(Nitrogen, Argon,

etc.)

Tank Flow Switch Flow Switch Dryer Filter Filter Compressor Cooling Tower Filter

Compressor

Room

(2)

In principle, SMC products cannot be used outdoors.

Factory Automation

Process Automation

PA

FA

Air Preparation Equipment

Pressure Control Equipment

Piping Material

Operation Unit

Actuators

Detection Conversion Unit

Air Dryers Air Preparation Filters Fittings/S Couplers Tubing

Industrial Filters

Explosion-proof Specifications NAMUR Standards Relay Electro-Pneumatic Transducer Booster relay Electro-pneumatic transducer Intrinsically safe explosion-proof Explosion proof (Flameproof) IP67

 Stainless steel series

 Coil tube

 Double-layered tube

 Longer length tube

Lock-up valve

Lever type

Rotary type

Cylinder with Positioner

Solenoid Valves Accessories

Pressure Sensors Flow Sensors

Positioners

(3)

In principle, SMC products cannot be used outdoors.

For Pneumatic Control in

Factory Automation

Process Automation

PA

FA

Air Preparation Equipment

Pressure Control Equipment

Piping Material

Operation Unit

Actuators

Detection Conversion Unit

Air Dryers Air Preparation Filters Fittings/S Couplers Tubing

Industrial Filters

Explosion-proof Specifications NAMUR Standards Relay Electro-Pneumatic Transducer Booster relay Electro-pneumatic transducer Intrinsically safe explosion-proof Explosion proof (Flameproof) IP67

 Stainless steel series

 Coil tube

 Double-layered tube

 Longer length tube

Lock-up valve

Lever type

Rotary type

Cylinder with Positioner

Solenoid Valves Accessories

Pressure Sensors Flow Sensors

Positioners

(4)

Series

KKA

Fluid Air, Water Port size 6A to 50A (1/8 to 11/2)

S Couplers/Stainless Steel 304

Series

LQ

Fluid

Deionized water, Chemical liquids, etc. (Please contact SMC for details.)

Applicable tubing O.D.

ø3 to ø25

Fluoropolymer Fittings

Clean One-touch Fittings

Series

KP

Fluid

Air, N2, Water (Deionized water)

(Please contact SMC for details.)

ø4 to ø12

Series

KF

Fluid

Air, Steam (Brass sleeve)

Air, Water (Resin sleeve)

ø4 to ø12

Insert Fittings

Brass sleeve Resin sleeve Series

KQG2

Fluid

Air, Water, Steam

ø3.2 to ø16

Stainless Steel 316 One-touch Fittings

Series

KQ2

Fluid

Air, Water

ø2 to ø16

One-touch Fittings

w

Aftercooler

q

Air Tank

e

Main Line Filter

Series AT

Tank capacity 100 to 3000 L

Port size

15A (1/2) to 4B flange

Air-cooled Series HAA

Applicable compressor 7.5 to 37 kW

Air flow capacity 1000 to 5700 L/min (ANR)

Water-cooled Series HAW

Applicable compressor 2.2 to 110 kW

Series AFF Filtration accuracy 3 µm (99% filtration efficiency) Rated flow 300 to 45000 L/min (ANR) Port size 6A (1/8) to 4B flange

q

w

e

r

t

y

u

Refrigerated Air Dryer

Aftercooler _SeparatorMist

i

Super Mist Separator

Air Tank Micro Mist_Separator

o

Odor Removal Filter (Deodorization) Flow Switch Main Line Filter Refrigerant: R134a (HFC) R407C (HFC) Ozone-depleting potential “0” Series IDF 1E to 370D Applicable compressor 0.75 to 370 kW

Air flow capacity 0.10 to 65.0 m3_{/min (ANR)}

Series IDU 3E to 75E

r

Refrigerated Air Dryer

Series IDF 100FS/125FS/150FS

Double energy saving function series Applicable compressor

100, 125, 150 kW

Air flow capacity

18.8 to 27.0 m3_{/min (ANR)}

t

Flow Switch

Series PF2A

Measurement flow rate (L/min)

1 to 10, 5 to 50, 10 to 100, 20 to 200 50 to 500, 150 to 3000 300 to 6000, 600 to 12000 Port size 6A to 50A (1/8 to 2) Series AME Filtration accuracy 0.01 µm (99.9% filtration efficiency) Rated flow 200 to 12000 L/min (ANR) Port size 6A to 50A (1/8 to 2)

i

Super Mist Separator

u

Micro Mist Separator

o

Odor Removal Filter

Series AMF Filtration accuracy 0.01 µm (99.9% filtration efficiency) Rated flow 200 to 40000 L/min (ANR) Port size 6A (1/8) to 6B flange Series AMD Filtration accuracy 0.01 µm (99.9% filtration efficiency) Rated flow 200 to 40000 L/min (ANR) Port size 6A (1/8) to 6B flange Series AM Filtration accuracy 0.3 µm (99.9% filtration efficiency) Rated flow 300 to 12000 L/min (ANR) Port size 6A to 50A (1/8 to 2)

y

Mist Separator

“Compressed Air” Line

Piping Equipment

(Fittings and Tubing)

Series

KK

Fluid Air, Water

Applicable tubing O.D. ø3.2 to ø16

Applicable hose I.D./ O.D. 5/8 to 11/16

Port size M5 to 25A (3/4)

Series

KK130

Fluid Air

Applicable tubing O.D. ø6 to ø12

Port size 6A to 15A (1/8 to 1/2)

S Couplers

Series

H,DL,L,LL

Fluid

Air

ø4 to ø12

Self-align Fittings

Series

KQB2

Fluid

Air, Water

ø3.2 to ø16

Metal One-touch Fittings

Series

KFG2

Fluid

ø4 to ø16

Stainless Steel 316 Insert Fittings

Series T TS TU TUS TUH TPH,TPS TH TD TQ TL TLM

Air, Water, Inert gas, Solvent

Length: Up to 500-meter rolls can be used, but the maximum roll length depends on tube materials and external diameter. Please consult SMC for details. (Made to Order) Note) Please contact SMC for details. Series T

Tubing

Water Separator

Series AMG Dehumidification rate 99% Rated flow 300 to 12000 L/min (ANR) Port size 6A to 50A (1/8 to 2) 500 m reel

Water drop removal

Compressor

Pressure

accumulation,

Pulsation

attenuation

Particle separation/

Filtration

Pressure

accumulation,

Pulsation

attenuation

Flow rate detection

Water drop removal

Flow rate detection

Oil separation/

Filtration

Particle separation/

Filtration

Oil separation/

Filtration

Cooling,

Removing water

roughly

Dehumidification

Oil separation/

Filtration

Deodorization

Oil separation/

Filtration

Material Nylon Nylon (Soft Nylon)

Polyurethane Polyurethane (Soft Polyurethane) Polyurethane (Hard polyurethane)

Polyolefin-based resin FEP (Fluoropolymer) Modified PTFE (Soft Fluoropolymer)

Super PFA PFA

Fluid Air, Water Air, Water Note)

Air, Water Air Air Air, N2, Water (Deionized water)Note)

Air, Water, Inert gas Air, Water, Inert gas

Deionized water, Chemical liquids, etc.Note) Air, Water, Inert gas

O.D. ø4 to ø16 ø4 to ø16 ø2 to ø16 ø4 to ø12 ø4 to ø12 ø4 to ø12 ø4 to ø12 ø4 to ø12 ø4 to ø12 ø4 to ø19 ø2 to ø25 Outer layer: Special nylon resin

Inner layer: Special fluoropolymer

Cooling,

Removing water

roughly

Dehumidification

Oil separation/

Filtration

Oil separation/

Filtration

(5)

Production Facility

Pneumatic Instrumentation Equipment/Piping Equipment for Facilities

Series

KKA

Fluid Air, Water Port size 6A to 50A (1/8 to 11/2)

S Couplers/Stainless Steel 304

Series

LQ

Fluid

Deionized water, Chemical liquids, etc. (Please contact SMC for details.)

ø3 to ø25

Fluoropolymer Fittings

Clean One-touch Fittings

Series

KP

Fluid

Air, N2, Water (Deionized water)

(Please contact SMC for details.)

ø4 to ø12

Series

KF

Fluid

Air, Steam (Brass sleeve)

Air, Water (Resin sleeve)

ø4 to ø12

Insert Fittings

Brass sleeve Resin sleeve Series

KQG2

Fluid

ø3.2 to ø16

Stainless Steel 316 One-touch Fittings

Series

KQ2

Fluid

Air, Water

ø2 to ø16

One-touch Fittings

w

Aftercooler

q

Air Tank

e

Main Line Filter

Series AT

Tank capacity 100 to 3000 L

Port size

15A (1/2) to 4B flange

Air-cooled Series HAA

Applicable compressor 7.5 to 37 kW

Water-cooled Series HAW

Series AFF Filtration accuracy 3 µm (99% filtration efficiency) Rated flow 300 to 45000 L/min (ANR) Port size 6A (1/8) to 4B flange

q

w

e

r

t

y

u

Refrigerated Air Dryer

Aftercooler _SeparatorMist

i

Super Mist Separator

Air Tank Micro Mist_Separator

o

Odor Removal Filter (Deodorization) Flow Switch Main Line Filter Refrigerant: R134a (HFC) R407C (HFC) Ozone-depleting potential “0” Series IDF 1E to 370D Applicable compressor 0.75 to 370 kW

Series IDU 3E to 75E

r

Refrigerated Air Dryer

Series IDF 100FS/125FS/150FS

Double energy saving function series Applicable compressor

100, 125, 150 kW

Air flow capacity

18.8 to 27.0 m3_{/min (ANR)}

t

Flow Switch

Series PF2A

Measurement flow rate (L/min)

1 to 10, 5 to 50, 10 to 100, 20 to 200 50 to 500, 150 to 3000 300 to 6000, 600 to 12000 Port size 6A to 50A (1/8 to 2) Series AME Filtration accuracy 0.01 µm (99.9% filtration efficiency) Rated flow 200 to 12000 L/min (ANR) Port size 6A to 50A (1/8 to 2)

i

Super Mist Separator

u

Micro Mist Separator

o

Odor Removal Filter

Series AMF Filtration accuracy 0.01 µm (99.9% filtration efficiency) Rated flow 200 to 40000 L/min (ANR) Port size 6A (1/8) to 6B flange Series AMD Filtration accuracy 0.01 µm (99.9% filtration efficiency) Rated flow 200 to 40000 L/min (ANR) Port size 6A (1/8) to 6B flange Series AM Filtration accuracy 0.3 µm (99.9% filtration efficiency) Rated flow 300 to 12000 L/min (ANR) Port size 6A to 50A (1/8 to 2)

y

Mist Separator

“Compressed Air” Line

Piping Equipment

(Fittings and Tubing)

Series

KK

Fluid Air, Water

Applicable tubing O.D. ø3.2 to ø16

Port size M5 to 25A (3/4)

Series

KK130

Fluid Air

Applicable tubing O.D. ø6 to ø12

Port size 6A to 15A (1/8 to 1/2)

S Couplers

Series

H,DL,L,LL

Fluid

Air

ø4 to ø12

Self-align Fittings

Series

KQB2

Fluid

Air, Water

ø3.2 to ø16

Metal One-touch Fittings

Series

KFG2

Fluid

ø4 to ø16

Stainless Steel 316 Insert Fittings

Series T TS TU TUS TUH TPH,TPS TH TD TQ TL TLM

Air, Water, Inert gas, Solvent

Length: Up to 500-meter rolls can be used, but the maximum roll length depends on tube materials and external diameter. Please consult SMC for details. (Made to Order) Note) Please contact SMC for details. Series T

Tubing

Water Separator

Series AMG Dehumidification rate 99% Rated flow 300 to 12000 L/min (ANR) Port size 6A to 50A (1/8 to 2) 500 m reel

Water drop removal

Compressor

Pressure

accumulation,

Pulsation

attenuation

Particle separation/

Filtration

Pressure

accumulation,

Pulsation

attenuation

Flow rate detection

Water drop removal

Flow rate detection

Oil separation/

Filtration

Particle separation/

Filtration

Oil separation/

Filtration

Cooling,

Removing water

roughly

Dehumidification

Oil separation/

Filtration

Deodorization

Oil separation/

Filtration

Material Nylon Nylon (Soft Nylon)

Polyurethane Polyurethane (Soft Polyurethane) Polyurethane (Hard polyurethane)

Polyolefin-based resin FEP (Fluoropolymer) Modified PTFE (Soft Fluoropolymer)

Super PFA PFA

Fluid Air, Water Air, Water Note)

Air, Water Air Air Air, N2, Water (Deionized water)Note)

Air, Water, Inert gas Air, Water, Inert gas

Deionized water, Chemical liquids, etc.Note) Air, Water, Inert gas

O.D. ø4 to ø16 ø4 to ø16 ø2 to ø16 ø4 to ø12 ø4 to ø12 ø4 to ø12 ø4 to ø12 ø4 to ø12 ø4 to ø12 ø4 to ø19 ø2 to ø25 Outer layer: Special nylon resin

Inner layer: Special fluoropolymer

Cooling,

Removing water

roughly

Dehumidification

Oil separation/

Filtration

Oil separation/

Filtration

(6)

SMC Air Preparation System

HAW Cooling Separation, Filtration

Main Line

AT

AFF

IDF

HAA or

HAW

B

C

D

E

F

G

H

HAA or

HAW

Dehumidification

IDU

Sub Line

1 2 3 4 5 6 7 Class ≤ 0.10 Not specified Not specified Not specified Not specified Not specified 0.10 < d ≤ 0.5 100 100000 Not specified Not specified Not specified 0.5 < d ≤ 1.0 1 1000 10000 Not specified Not specified 1.0 < d ≤ 5.0 0 10 500 1000 20000 Max. number of particles/1 m3

Particle diameter d µm NA NA Solid particle Particle diameter µm NA ≤ 5 ≤ 40 Concen-tration mg/m3 NA ≤ 5 ≤ 10 1 2 3 4 Oil mg/m3 ≤ 0.01 ≤ 0.1 ≤ 1 ≤ 5 1 2 3 4 5 6 Moisture Pressure dew point At air pressure

(

of 0.7 MPa

)

°C ≤ –70 ≤ –40 ≤ –20 ≤ +3 ≤ +7 ≤ +10 Class Class

Indication: The degree of quality is indicated with 1, 4 and 2 for systems with solid particle “class 1,” moisture “class 4” and oil “class 2.”

Application Moisture

Dew

point Moisturecontent

Impurity in compressed air

System no. _Filtration

Cleanliness Oil odor Quality grade as system

(2)

Oil mist density

(1)

Water drop removal air

A

• •

Air blowing (Simple removal of particles) General pneumatic tools

Dry air

Dry clean air

• Used for the same applications as A, when temperature drop in the middle of piping is large. • • General pneumatic equipment General painting • • • • • •

High grade painting Sequence control Measurement device Instrumentation Drying and cleaning (Precision parts) Machine tools (Pneumatic bearing) •

•

Without refrigerated air dryer on the sub line Built-in with equipment (With machine tools, 3-D measurement device, etc.)

Deodorant air

Low dew point clean air

(For clean room)

• •

Stirring, transporting, drying and packaging Food industry (Except direct blowing to foods) •

• • • •

Drying electric and electronic parts

Drying a filling tank Transporting powders Ozone generator Low temperature actuated equipment

• Blowing semi-conductor parts in the clean room

Note 1) When the inlet oil mist density (compressed air density) is approximately 30 mg/m3_{(ANR) or less.}

Note 2) This describes the grade of compressed air quality based on ISO8573-1: 2001 (JIS B8392-1: 2003), which is the maximum quality grade for the system. It varies, however, depending on the inlet air conditions.

Note 3) Contact SMC since this can be manufactured as a special order (depending on the operating conditions).

3 µm Filtering efficiency

(

99%

)

0.3 µm Filtering efficiency

(

99.9%

)

(

99.9%

)

(

99.99%

)

— Max. 1 mg/m3 (ANR) 0.8 ppm Max. 0.1 mg/m3 (ANR) 0.08 ppm Max. 0.01 mg/m3 (ANR) 0.008 ppm Max. 0.004 mg/m3 (ANR) 0.0032 ppm Max. 0.004 mg/m3 (ANR) 0.0032 ppm Max. 0.01 mg/m3 (ANR) 0.008 ppm — Particles with 0.3 µm or more: 100 or less/ft3 (35 or less/ 10 L (ANR)) Particles with 0.1 µm or more: 0/6 L Yes Yes No No 3, , 3, 4, 3, 5, 3, 6, -2, 4, 3 2, 5, 3 2, 6, 3 1, 4, 2 1, 5, 2 1, 6, 2 1, 4, 1 1, 5, 1 1, 6, 1 1, 1, 1 1, 2, 1 1, 3, 1 Atmospheric

pressure dew point 6°C 0.7 MPa Pressure dew point

40°C Atmospheric pressure dew point –14 to –23°C 0.7 MPa Pressure dew point 15 to 3°C Atmospheric pressure dew point –30 to –60°C 0.7 MPa Pressure dew point –6 to –42°C 7 g/m3 (ANR) 1.7 g/m3 (ANR) to 0.8 g/m3 (ANR) 0.5 g/m3 (ANR) to 0.02 g/m3 (ANR) (3) Description Capacity Air Tank

AT

HAA, HAW

AFF

IDF

Air Cooled Aftercooler Water Cooled Aftercooler

Main Line

Filter Refrigerated Air Dryer

Representative model

Max. inlet air temperature Filtration

(Filtering efficiency)

Outlet oil mist concentration (Max.) (1) Outlet cleanliness 100°C 60°C 3 µm (99%) 50°C Flow capacity (L/min (ANR)) 1,000 to 5,700300 to 18,000 70°C 70°C, 180°C (Varies by model) 300 to 42,000 100 to 65,000 100 to 3,000 L –17°C At inlet temperature 35°C

IDU

80°C 320 to 12,500 –17°C At inlet temperature 55°C Air Tank Class 2 pressure vessel Main Line Filter Not required when attached

to air compressors. Dehumidification Applicable air compressors: 5.5 kW (7 hp) to 220 kW (300 hp) HAA HAW Refrigerated Air Dryer Applicable air compressors: 7.5 kW (10 hp) to 37 kW (50 hp) Applicable air compressors: 2.2 kW (3 hp) to 240 kW (320 hp) Applicable air compressors: 2.2 kW (3 hp) to 110 kW (150 hp) Reciprocating air compressor Screw air compressor

Outlet air pressure dew point 10°C (0.7 MPa, at 35°C) Applicable air compressors: 0.75 kW (1 hp) to 370 kW (500 hp)

Refrigerated Air Dryer

(High inlet air temperature type)

Outlet air pressure dew point 10°C (0.7 MPa, at 55°C) Applicable air compressors: 2.2 kW (3 hp) to 75 kW (100 hp) Oil con- centra-tion Atmospheric pressure dew point [At inlet air pressure of 0.7 MPa]

Pulsation attenuation, Accumulation,

Cooling _{Select either}

Air Cooled Aftercooler

or Water Cooled

Aftercooler

AFF

Required even for screw compressors since the piping of the oil-free type is rusted easily.

Not required when attached to air compressors.

Air tank is not required for rotary screw compressors since pulsation is small, but required when it is used to accumulate pressure.

Required for reciprocating air compressors since carbon and tarry substances are generated at high temperatures.

A

B

C

D

E

F

G

H

Local line

AM

AMH

IDG

AME

AMF

SFD

AME

AMD

AM

AMH

AME

AMD

AM

IDG

AMD

AMH

AM

ID

AM

AMG

AM

ID

AMH

AMD

IDG

AME

AMF

SFD

SFA/SFB/SFC

Water

Separator SeparatorMist Air DryerHeatless

Micro Mist Separator with Pre-filter Odor Removal Filter Micro Mist

Separator Membrane Air Dryer Super MistSeparator Air FilterClean Gas FilterClean

SFA, SFB, SFC

50°C, 55°C

(Varies by model) (Varies by models)80°C, 120°C

60°C 50°C 60°C 50°C 60°C 300 to 12,000 80 to 780 200 to 12,000 200 to 40,000 10 to 1,000 200 to 12,000 200 to 40,000 26 to 300 45°C 100 to 500 75 to 300 50 to 150 0.3 µm (99.9%) 0.01 µm(99.9%) 0.01 µm(99.9%) (99.99%)0.01 µm Water drop removal ratio

99% 0.01 µm (With 0.3 µm pre-filter) 1 mg/m3_(ANR) [ ≈ 0.8 ppm] 0.01 mg/m 3_(ANR) [ ≈ 0.008 ppm] 0.004 mg/m3 (ANR) [ ≈ 0.0032 ppm] 0.1 mg/m3_(ANR) [ ≈ 0.08 ppm] Particles with 0.3 µm or more: 100 or less/ft3 (35 or less/10 L (ANR)) 0.01 µm (99.99%) –30°C –50°C At inlet temperature 35°C –15°C –20°C At inlet temperature 25°C –40°C –60°C At inlet temperature 25°C Water Separator Mist Separator Micro Mist Separator Micro Mist Separator with Pre-filter With 0.3 µm pre-filter/ Integrated AM + AMD Membrane Air Dryer Super Mist Separator Odor Removal Filter

With oil saturation indicator

Atmospheric pressure dew point –15°C, –20°C (0.7 MPa, at 25°C) Clean Gas Filter Clean Air Filter Membrane Air Dryer

Atmospheric pressure dew point –40°C, –60°C (0.7 MPa, at 25°C)

Heatless Air Dryer

Filtration

Precision filtration Water droplet separation

Separation, Filtration Separation, Filtration Separation, Filtration Dehumidification Dehumidification Deodorization Dehumidification Particles with 0.1 µm or more: 0/6 L

(7)

SMC Air Preparation System

HAW Cooling Separation, Filtration

Main Line

AT

AFF

IDF

HAA or

HAW

B

C

D

E

F

G

H

HAA or

HAW

Dehumidification

IDU

Sub Line

1 2 3 4 5 6 7 Class ≤ 0.10 Not specified Not specified Not specified Not specified Not specified 0.10 < d ≤ 0.5 100 100000 Not specified Not specified Not specified 0.5 < d ≤ 1.0 1 1000 10000 Not specified Not specified 1.0 < d ≤ 5.0 0 10 500 1000 20000 Max. number of particles/1 m3

Particle diameter d µm NA NA Solid particle Particle diameter µm NA ≤ 5 ≤ 40 Concen-tration mg/m3 NA ≤ 5 ≤ 10 1 2 3 4 Oil mg/m3 ≤ 0.01 ≤ 0.1 ≤ 1 ≤ 5 1 2 3 4 5 6 Moisture Pressure dew point At air pressure

(

of 0.7 MPa

)

°C ≤ –70 ≤ –40 ≤ –20 ≤ +3 ≤ +7 ≤ +10 Class Class

Indication: The degree of quality is indicated with 1, 4 and 2 for systems with solid particle “class 1,” moisture “class 4” and oil “class 2.”

Application Moisture

Dew

point Moisturecontent

Impurity in compressed air

System no. _Filtration

Cleanliness Oil odor Quality grade as system

(2)

Oil mist density

(1)

Water drop removal air

A

• •

Air blowing (Simple removal of particles) General pneumatic tools

Dry air

Dry clean air

• Used for the same applications as A, when temperature drop in the middle of piping is large. • • General pneumatic equipment General painting • • • • • •

High grade painting Sequence control Measurement device Instrumentation Drying and cleaning (Precision parts) Machine tools (Pneumatic bearing) •

•

Without refrigerated air dryer on the sub line Built-in with equipment (With machine tools, 3-D measurement device, etc.)

Deodorant air

Low dew point clean air

(For clean room)

• •

Stirring, transporting, drying and packaging Food industry (Except direct blowing to foods) •

• • • •

Drying electric and electronic parts

Drying a filling tank Transporting powders Ozone generator Low temperature actuated equipment

• Blowing semi-conductor parts in the clean room

Note 1) When the inlet oil mist density (compressed air density) is approximately 30 mg/m3_{(ANR) or less.}

Note 2) This describes the grade of compressed air quality based on ISO8573-1: 2001 (JIS B8392-1: 2003), which is the maximum quality grade for the system. It varies, however, depending on the inlet air conditions.

Note 3) Contact SMC since this can be manufactured as a special order (depending on the operating conditions).

3 µm Filtering efficiency

(

99%

)

(

99.9%

)

(

99.9%

)

(

99.99%

)

— Max. 1 mg/m3 (ANR) 0.8 ppm Max. 0.1 mg/m3 (ANR) 0.08 ppm Max. 0.01 mg/m3 (ANR) 0.008 ppm Max. 0.004 mg/m3 (ANR) 0.0032 ppm Max. 0.004 mg/m3 (ANR) 0.0032 ppm Max. 0.01 mg/m3 (ANR) 0.008 ppm — Particles with 0.3 µm or more: 100 or less/ft3 (35 or less/ 10 L (ANR)) Particles with 0.1 µm or more: 0/6 L Yes Yes No No 3, , 3, 4, 3, 5, 3, 6, -2, 4, 3 2, 5, 3 2, 6, 3 1, 4, 2 1, 5, 2 1, 6, 2 1, 4, 1 1, 5, 1 1, 6, 1 1, 1, 1 1, 2, 1 1, 3, 1 Atmospheric

pressure dew point 6°C 0.7 MPa Pressure dew point

40°C Atmospheric pressure dew point –14 to –23°C 0.7 MPa Pressure dew point 15 to 3°C Atmospheric pressure dew point –30 to –60°C 0.7 MPa Pressure dew point –6 to –42°C 7 g/m3 (ANR) 1.7 g/m3 (ANR) to 0.8 g/m3 (ANR) 0.5 g/m3 (ANR) to 0.02 g/m3 (ANR) (3) Description Capacity Air Tank

AT

HAA, HAW

AFF

IDF

Air Cooled Aftercooler Water Cooled Aftercooler

Main Line

Filter Refrigerated Air Dryer

Representative model

Max. inlet air temperature Filtration

(Filtering efficiency)

Outlet oil mist concentration (Max.) (1) Outlet cleanliness 100°C 60°C 3 µm (99%) 50°C Flow capacity (L/min (ANR)) 1,000 to 5,700300 to 18,000 70°C 70°C, 180°C (Varies by model) 300 to 42,000 100 to 65,000 100 to 3,000 L –17°C At inlet temperature 35°C

IDU

80°C 320 to 12,500 –17°C At inlet temperature 55°C Air Tank Class 2 pressure vessel Main Line Filter Not required when attached

to air compressors. Dehumidification Applicable air compressors: 5.5 kW (7 hp) to 220 kW (300 hp) HAA HAW Refrigerated Air Dryer Applicable air compressors: 7.5 kW (10 hp) to 37 kW (50 hp) Applicable air compressors: 2.2 kW (3 hp) to 240 kW (320 hp) Applicable air compressors: 2.2 kW (3 hp) to 110 kW (150 hp) Reciprocating air compressor Screw air compressor

Outlet air pressure dew point 10°C (0.7 MPa, at 35°C) Applicable air compressors: 0.75 kW (1 hp) to 370 kW (500 hp)

Refrigerated Air Dryer

(High inlet air temperature type)

Outlet air pressure dew point 10°C (0.7 MPa, at 55°C) Applicable air compressors: 2.2 kW (3 hp) to 75 kW (100 hp) Oil con- centra-tion Atmospheric pressure dew point [At inlet air pressure of 0.7 MPa]

Pulsation attenuation, Accumulation,

Cooling _{Select either}

Air Cooled Aftercooler

or Water Cooled

Aftercooler

AFF

Required even for screw compressors since the piping of the oil-free type is rusted easily.

Not required when attached to air compressors.

Air tank is not required for rotary screw compressors since pulsation is small, but required when it is used to accumulate pressure.

Required for reciprocating air compressors since carbon and tarry substances are generated at high temperatures.

Production Facility

A

B

C

D

E

F

G

H

Local line

AM

AMH

IDG

AME

AMF

SFD

AME

AMD

AM

AMH

AME

AMD

AM

IDG

AMD

AMH

AM

ID

AM

AMG

AM

ID

AMH

AMD

IDG

AME

AMF

SFD

SFA/SFB/SFC

Water

SeparatorSeparatorMist Air DryerHeatless

Micro Mist Separator with Pre-filter Odor Removal Filter Micro Mist

Separator Membrane Air Dryer Super MistSeparator Air FilterClean Gas FilterClean

SFA, SFB, SFC

50°C, 55°C

(Varies by model) (Varies by models)80°C, 120°C

60°C 50°C 60°C 50°C 60°C 300 to 12,000 80 to 780 200 to 12,000 200 to 40,000 10 to 1,000 200 to 12,000 200 to 40,000 26 to 300 45°C 100 to 500 75 to 300 50 to 150 0.3 µm (99.9%) 0.01 µm(99.9%) 0.01 µm(99.9%) (99.99%)0.01 µm Water drop removal ratio

99% 0.01 µm (With 0.3 µm pre-filter) 1 mg/m3_(ANR) [ ≈ 0.8 ppm] 0.01 mg/m 3_(ANR) [ ≈ 0.008 ppm] 0.004 mg/m3 (ANR) [ ≈ 0.0032 ppm] 0.1 mg/m3_(ANR) [ ≈ 0.08 ppm] Particles with 0.3 µm or more: 100 or less/ft3 (35 or less/10 L (ANR)) 0.01 µm (99.99%) –30°C –50°C At inlet temperature 35°C –15°C –20°C At inlet temperature 25°C –40°C –60°C At inlet temperature 25°C Water Separator Mist Separator Micro Mist Separator Micro Mist Separator with Pre-filter With 0.3 µm pre-filter/ Integrated AM + AMD Membrane Air Dryer Super Mist Separator Odor Removal Filter

With oil saturation indicator

Atmospheric pressure dew point –15°C, –20°C (0.7 MPa, at 25°C) Clean Gas Filter Clean Air Filter Membrane Air Dryer

Heatless Air Dryer

Filtration

Precision filtration Water droplet separation

Separation, Filtration Separation, Filtration Separation, Filtration Dehumidification Dehumidification Deodorization Dehumidification Particles with 0.1 µm or more: 0/6 L

(8)

Pressure Switch

Main Line Filter Filter Regulator

Positioner

Serial Communication Valve

Sanitary Valve Control Flow Switch

q

w

e

r

_t

y

Manifold with Supply Stop Valve

r

Filter Regulator

w

_{Pressure Switch}

e

Flow Switch

t

Positioner

Series

ISG

Set pressure range

0.1 to 1.0 MPa Port size 10A (3/8) Series

1301/IW

Filtration accuracy 5 µm

IP

Input current 4 to 20 mADC Port size 8A (1/4)

y

Reduced-wiring Fieldbus System

(Serial Transmission System) Series

SY/VQC

·DeviceNetTM ·CC-Link ·PROFIBUS DP ·AS-Interface ·CANopen ·EtherNet/IPTM ·CompoNetTM ·EtherCAT® ·PROFINET

q

_{Main Line Filter}

Series

AFF

Filtration accuracy

3 µm (95% filtered particle size)

Rated flow

300 to 42000 L/min (ANR)

Port size

6A (1/8) to 4B flange

Double-layered Tube for Instrumentation Device (single-tubed/double-tubed)

Element

q

w

e

r

t

y

Pump Cooling Tower (Cooling building)

<Air-cooled Refrigerated Type> <Water-cooled Refrigerated Type>

Boiler

Installing extra cooling towers can be troublesome. The HRSH (air-cooled refrigerated type) can be moved easily to wherever you need it, when you need it. Cooling water is supplied from the attached hose.

w

Flow Switch

q

Industrial Filter

e

Pressure Switch

t

2 Port Valve

(for Steam)

y

Circulating Fluid Temperature Controller

Thermo-cooler

Series

PF3W

Measurement flow rate (L/min) 0.5 to 4, 2 to 16, 5 to 40 10 to 100, 50 to 250

Port size

10A to 40A (3/8 to 1 1/2) Series

IFW5

Set flow rate range (L/min)

1 to 10, 10 to 20, 20 to 50 Port size 3/8 to 3/4 Series

VX

Orifice diameter ø3 to ø50 Port size Thread: 6A to 50A (1/8 to 2) Flange: 32A to 50A Series

FG/FQ/FN

Nominal filtration accuracy

0.5 to 120 µm

Port size

Thread: 10A to 50A (3/8 to 2) Flange: 25A to 150A (1B to 6B)

Series

ISE80

Rated pressure range

−0.100 to 2.000 MPa Port size M5, 6A (1/8), 8A (1/4)

r

2 Port Valve

Series

HRSH

Set temperature 5 to 35°C Port size Rc1 Cooling capacity (60Hz) 10 to 25 kW (air-cooled, water-cooled) Series

VND

Orifice diameter ø7 to ø50 Port size Thread: 6A to 50A (1/8 to 2) Flange: 32F to 50F

Check Valve

INA-14-290

(Brass, Rc: 1/8)

XTO-674-



(Brass, Rc: 1/4 to 1/2)

INA-14-



(All stainless steel, Rc: 1/4 to 1/2)

Trademark

DeviceNet™ is a trademark of ODVA. EtherNet/IP™ is a trademark of ODVA. CompoNet™ is a trademark of ODVA.

EtherCAT®_{is registered trademark and patented technology, licensed by Beckhoff Automation GmbH, Germany.}

IN-241-

-

T0604 to T1075-

-- (X120, X121, X166)

Double-layered tube with an external layer of vinyl chloride or polyolefin to protect the inner tube-Double-tubed type (Color: black + black/black + white) and 300 m length are available.

∗ If you need a different no. of tubes, different colors or lengths over 300 mm, please contact our sales representatives.

Explosion-proof Solenoid Valve

NAMUR Standards Solenoid Valve

Series

IF3

14 to 60, 20 to 1500 36 to 2600

Port size

3/4, 1

This equipment supplies temperature-controlled water to the heat source in a circular manner.

Outer layer:

Vinyl chloride or Polyolefin-based resin

Inner Special: Nylon

Explosion-proof Solenoid Valve

51-SY5000/7000/9000

50-VFE3000/5000

50-VPE500/700

NAMUR Standards Solenoid Valve

VFN2120N-X23

VFN2120N-X36

Air operated type

Solenoid valve for actuating a sanitary valve, etc. Conforming to NAMUR standards

Manifold with Supply Stop Valve

SS5Y3-X460, SS5Y5-X4601

SS5Y7-X460, SS5Y3-X2104

The supply pressure can be stopped individually. Solenoid valve can be replaced without shutting off the supply pressure in case of emergency.

Pneumatic Instrumentation Equipment

“Industrial Water (Municipal Water)” Line

Series

PF2A

Measurement flow rate (L/min) 1 to 10, 5 to 50, 10 to 100, 20 to 200 50 to 500, 150 to 3000 300 to 6000, 600 to 12000 Port size 6A to 50A (1/8 to 2)

Pressure adjustment

Particle separation/

Filtration

Pressure detection

Flow rate detection

Actuator control

Reduced wiring

Particle separation/

Filtration

Particle separation/

Filtration

Flow rate detection

Pressure detection

Flow rate control

Cooling water

temperature control

Pressure adjustment

Particle separation/

Filtration

Pressure detection

Flow rate detection

Actuator control

Reduced wiring

Particle separation/

Filtration

Particle separation/

Filtration

Flow rate detection

Pressure detection

Flow rate control

Cooling water

temperature control

(9)

Pressure Switch

Main Line Filter Filter Regulator

Positioner

Serial Communication Valve

Sanitary Valve Control Flow Switch

q

w

e

r

_t

y

Manifold with Supply Stop Valve

r

Filter Regulator

w

_{Pressure Switch}

e

Flow Switch

t

Positioner

Series

ISG

1301/IW

Filtration accuracy 5 µm

IP

Input current 4 to 20 mADC Port size 8A (1/4)

y

Reduced-wiring Fieldbus System

(Serial Transmission System) Series

SY/VQC

·DeviceNetTM ·CC-Link ·PROFIBUS DP ·AS-Interface ·CANopen ·EtherNet/IPTM ·CompoNetTM ·EtherCAT® ·PROFINET

q

_{Main Line Filter}

Series

AFF

Filtration accuracy

3 µm (95% filtered particle size)

Rated flow

300 to 42000 L/min (ANR)

Port size

6A (1/8) to 4B flange

Double-layered Tube for Instrumentation Device (single-tubed/double-tubed)

Element

q

w

e

r

t

y

Pump Cooling Tower (Cooling building)

<Air-cooled Refrigerated Type> <Water-cooled Refrigerated Type>

Boiler

Installing extra cooling towers can be troublesome. The HRSH (air-cooled refrigerated type) can be moved easily to wherever you need it, when you need it. Cooling water is supplied from the attached hose.

w

Flow Switch

q

Industrial Filter

e

Pressure Switch

t

2 Port Valve

(for Steam)

y

Circulating Fluid Temperature Controller

Thermo-cooler

Series

PF3W

Measurement flow rate (L/min) 0.5 to 4, 2 to 16, 5 to 40 10 to 100, 50 to 250

Port size

10A to 40A (3/8 to 1 1/2) Series

IFW5

1 to 10, 10 to 20, 20 to 50 Port size 3/8 to 3/4 Series

VX

Orifice diameter ø3 to ø50 Port size Thread: 6A to 50A (1/8 to 2) Flange: 32A to 50A Series

FG/FQ/FN

Nominal filtration accuracy

0.5 to 120 µm

Port size

Thread: 10A to 50A (3/8 to 2) Flange: 25A to 150A (1B to 6B)

Series

ISE80

−0.100 to 2.000 MPa Port size M5, 6A (1/8), 8A (1/4)

r

2 Port Valve

Series

HRSH

Set temperature 5 to 35°C Port size Rc1 Cooling capacity (60Hz) 10 to 25 kW (air-cooled, water-cooled) Series

VND

Orifice diameter ø7 to ø50 Port size Thread: 6A to 50A (1/8 to 2) Flange: 32F to 50F

Check Valve

INA-14-290

(Brass, Rc: 1/8)

XTO-674-



(Brass, Rc: 1/4 to 1/2)

INA-14-



(All stainless steel, Rc: 1/4 to 1/2)

Trademark

DeviceNet™ is a trademark of ODVA. EtherNet/IP™ is a trademark of ODVA. CompoNet™ is a trademark of ODVA.

EtherCAT®_{is registered trademark and patented technology, licensed by Beckhoff Automation GmbH, Germany.}

IN-241-

-

T0604 to T1075-

-- (X120, X121, X166)

Double-layered tube with an external layer of vinyl chloride or polyolefin to protect the inner tube-Double-tubed type (Color: black + black/black + white) and 300 m length are available.

∗ If you need a different no. of tubes, different colors or lengths over 300 mm, please contact our sales representatives.

Explosion-proof Solenoid Valve

NAMUR Standards Solenoid Valve

Series

IF3

14 to 60, 20 to 1500 36 to 2600

Port size

3/4, 1

This equipment supplies temperature-controlled water to the heat source in a circular manner.

Outer layer:

Vinyl chloride or Polyolefin-based resin

Inner Special: Nylon

Explosion-proof Solenoid Valve

51-SY5000/7000/9000

50-VFE3000/5000

50-VPE500/700

NAMUR Standards Solenoid Valve

VFN2120N-X23

VFN2120N-X36

Air operated type

Solenoid valve for actuating a sanitary valve, etc. Conforming to NAMUR standards

Manifold with Supply Stop Valve

SS5Y3-X460, SS5Y5-X4601

SS5Y7-X460, SS5Y3-X2104

The supply pressure can be stopped individually. Solenoid valve can be replaced without shutting off the supply pressure in case of emergency.

Pneumatic Instrumentation Equipment

“Industrial Water (Municipal Water)” Line

Series

PF2A

Measurement flow rate (L/min) 1 to 10, 5 to 50, 10 to 100, 20 to 200 50 to 500, 150 to 3000 300 to 6000, 600 to 12000 Port size 6A to 50A (1/8 to 2)

Production Facility

Pressure adjustment

Particle separation/

Filtration

Pressure detection

Flow rate detection

Actuator control

Reduced wiring

Particle separation/

Filtration

Particle separation/

Filtration

Flow rate detection

Pressure detection

Flow rate control

Cooling water

temperature control

Pressure adjustment

Particle separation/

Filtration

Pressure detection

Flow rate detection

Actuator control

Reduced wiring

Particle separation/

Filtration

Particle separation/

Filtration

Flow rate detection

Pressure detection

Flow rate control

Cooling water

temperature control

(10)

Clean Air Module N2 Bomb

q

w

e

t

y

r

Nitrogen

w

2 Port Valve

q

_Regulator

t

Clean Gas Filter

y

Clean Air Module

Series

VX

Orifice diameter

ø3 to ø50

Port size

Thread: 6A to 50A (1/8 to 2) Flange: 32A to 50A

Series

ISE

−0.100 to 1.000 MPa

Port size

M5, 6A (1/8), 8A (1/4) Series

SRH

0.05 to 0.7 MPa Port size 6A to 15A (1/8 to 1/2) Series

AP/AZ/AK

Series

LLB

Filtration accuracy 0.01 µm

Port size 8A to 10A (1/4 to 3/8)

r

_{Pressure Switch}

Series

SF

Filtration accuracy 0.01 µm Port size 8A to 10A (1/4 to 3/8)

Piping Equipment

e

Flow Switch

Series

PF2A

Measurement flow rate (L/min) 1 to 10, 5 to 50, 10 to 100, 20 to 200 50 to 500, 150 to 3000

300 to 6000, 600 to 12000

Port size

6A to 50A (1/8 to 2)

Stainless Steel 316 Fittings: Series

KQG2/KFG2

Clean One-touch Fittings: Series

KP

Fluoropolymer Tubing: Series

TH/TL/TD/TLM/TQ

Clean Tubing: Series

TPH/TPS

q

w

e

r

t

r

2 Port Valve

q

Pump

w

Regulator

e

_{Flow Switch}

t

Restrictor

Series

SRF

Port size

Integral fitting: Applicable tubing O.D.

ø4 to ø19

Tube extension: 1/4" to 3/4"

0.02 to 0.4 MPa

Series

LV

Port size

Thread: (1/8 to 1)/6A to 25A Integral fitting: Applicable tubing O.D.

ø3 to ø25

Tube extension: ø3 to ø25

Orifice diameter

ø2 to ø22

Series

LVP

16A, 20A, 25A

Orifice diameter

ø16, ø22

Process Pump: Series

PAF

Discharge flow rate

1 to 45 L/min

Port size

Thread: (3/8, 3/4)/10A, 20A Tube extension: 1/2", 3/4" With nut: Connection

fitting size 4 or 5 (LQ1, LQ3)

Series

PF2D

Measurement flow rate

0.4 to 40 L/min

Port size

Series

PF3W

Measurement flow rate (L/min) 10 to 100, 30 to 250

Port size

PVC tubing O.D. 25A, 30A

Needle Valve: Series

LVN

Port size

ø4 to ø12

Orifice diameter

ø4.4 to ø10

Piping Equipment

Quick Drain Valve: Series

LVW

ø32 to ø89 (25A to 80A)

“Inert Gas” “Clean Dry Air” Line

“Deionized Water/Chemical Liquids” Line

Fluoropolymer Fittings: Series

LQ

TH/TL/TD/TLM/TQ

A flow switch, regulator, 2 port valve, restrictor,

and filter have been combined into a single unit.

Easily obtains clean air.

Pressure adjustment

Fluid control

Pressure detection

Particle separation

/Filtration

Modularization

Flow rate detection

Liquid discharge

Pressure adjustment

Flow rate detection

Liquid discharge

Flow rate adjustment

Pressure adjustment

Fluid control

Pressure detection

Particle separation

/Filtration

Modularization

Flow rate detection

Liquid discharge

Pressure adjustment

Flow rate detection

Liquid discharge

(11)

Clean Air Module N2 Bomb

q

w

e

t

y

r

Nitrogen

w

2 Port Valve

q

_Regulator

t

Clean Gas Filter

y

Clean Air Module

Series

VX

Orifice diameter

ø3 to ø50

Port size

Thread: 6A to 50A (1/8 to 2) Flange: 32A to 50A

Series

ISE

−0.100 to 1.000 MPa

Port size

M5, 6A (1/8), 8A (1/4) Series

SRH

0.05 to 0.7 MPa Port size 6A to 15A (1/8 to 1/2) Series

AP/AZ/AK

Series

LLB

Filtration accuracy 0.01 µm

Port size 8A to 10A (1/4 to 3/8)

r

_{Pressure Switch}

Series

SF

Filtration accuracy 0.01 µm Port size 8A to 10A (1/4 to 3/8)

Piping Equipment

e

Flow Switch

Series

PF2A

Measurement flow rate (L/min) 1 to 10, 5 to 50, 10 to 100, 20 to 200 50 to 500, 150 to 3000

300 to 6000, 600 to 12000

Port size

6A to 50A (1/8 to 2)

Stainless Steel 316 Fittings: Series

KQG2/KFG2

Clean One-touch Fittings: Series

KP

TH/TL/TD/TLM/TQ

Clean Tubing: Series

TPH/TPS

q

w

e

r

t

r

2 Port Valve

q

Pump

w

Regulator

e

_{Flow Switch}

t

Restrictor

Series

SRF

Port size

ø4 to ø19

0.02 to 0.4 MPa

Series

LV

Port size

Thread: (1/8 to 1)/6A to 25A Integral fitting: Applicable tubing O.D.

ø3 to ø25

Tube extension: ø3 to ø25

Orifice diameter

ø2 to ø22

Series

LVP

16A, 20A, 25A

Orifice diameter

ø16, ø22

Process Pump: Series

PAF

Discharge flow rate

1 to 45 L/min

Port size

Thread: (3/8, 3/4)/10A, 20A Tube extension: 1/2", 3/4" With nut: Connection

fitting size 4 or 5 (LQ1, LQ3)

Series

PF2D

Measurement flow rate

0.4 to 40 L/min

Port size

Series

PF3W

Measurement flow rate (L/min) 10 to 100, 30 to 250

Port size

PVC tubing O.D. 25A, 30A

Needle Valve: Series

LVN

Port size

ø4 to ø12

Orifice diameter

ø4.4 to ø10

Piping Equipment

Quick Drain Valve: Series

LVW

ø32 to ø89 (25A to 80A)

“Inert Gas” “Clean Dry Air” Line

“Deionized Water/Chemical Liquids” Line

Fluoropolymer Fittings: Series

LQ

TH/TL/TD/TLM/TQ

Production Facility

A flow switch, regulator, 2 port valve, restrictor,

and filter have been combined into a single unit.

Easily obtains clean air.

Pressure adjustment

Fluid control

Pressure detection

Particle separation

/Filtration

Modularization

Flow rate detection

Liquid discharge

Pressure adjustment

Flow rate detection

Liquid discharge

Flow rate adjustment

Pressure adjustment

Fluid control

Pressure detection

Particle separation

/Filtration

Modularization

Flow rate detection

Liquid discharge

Pressure adjustment

Flow rate detection

Liquid discharge

(12)

POLAND

SMC Industrial Automation Polska Sp.z.o.o. ROMANIA

SMC Romania S.r.l. RUSSIA

SMC Pneumatik LLC. SLOVAKIA

SMC Priemyselná Automatizácia Spol s.r.o. SLOVENIA

SMC Industrijska Avtomatika d.o.o. SPAIN/PORTUGAL SMC España S.A. SWEDEN SMC Pneumatics Sweden AB SWITZERLAND SMC Pneumatik AG TURKEY

SMC Pnömatik Sanayi Ticaret ve Servis A.S¸. U.K. SMC Pneumatics (U.K.) Ltd.

ASIA

CHINA <Beijing/Shanghai> SMC (China) Co., Ltd. CHINA <Guangzhou> SMC Pneumatics (Guangzhou) Ltd. HONG KONG <Hong Kong/South China> SMC Pneumatics (Hong Kong) Ltd. INDIA SMC Pneumatics (India) Pvt. Ltd. MALAYSIA SMC Pneumatics (S.E.A.) Sdn. Bhd. PHILIPPINES Shoketsu SMC Corporation SINGAPORE

SMC Pneumatics (S.E.A.) Pte. Ltd. (Sales subsidiary) SOUTH KOREA

SMC Pneumatics Korea Co., Ltd.

TAIWAN

SMC Pneumatics (Taiwan) Co., Ltd. THAILAND SMC (Thailand) Ltd. VIETNAM SMC Pneumatics (VN) Co., Ltd

NORTH AMERICA

CANADA SMC Pneumatics (Canada) Ltd. MEXICO

SMC Corporation (Mexico), S.A. de C.V. U.S.A. SMC Corporation of America

SOUTH AMERICA

ARGENTINA SMC Argentina S.A. BOLIVIA SMC Pneumatics Bolivia S.r.l. BRAZIL

SMC Pneumaticos do Brasil Ltda. CHILE

SMC Pneumatics (Chile) S.A. COLOMBIA

SMC Colombia Sucursal de SMC Chile S.A. ECUADOR

ASSISTECH CIA. LTDA. PERU

IMPECO Automatizacion Industrial S.A.C. VENEZUELA

SMC Neumatica Venezuela S.A.

OCEANIA

AUSTRALIA

SMC Pneumatics (Australia) Pty. Ltd. NEW ZEALAND SMC Pneumatics (N.Z.) Ltd.

EUROPE

AUSTRIA SMC Pneumatik GmbH (Austria) BELGIUM SMC Pneumatics N.V./S.A. BULGARIA

SMC Industrial Automation Bulgaria Eood CROATIA

SMC Industrijska Automatika d.o.o. CZECH REPUBLIC

SMC Industrial Automation CZ s.r.o. DENMARK

SMC Pneumatik A/S ESTONIA

SMC Pneumatics Estonia OÜ FINLAND SMC Pneumatics Finland Oy FRANCE SMC Pneumatique SA GERMANY SMC Pneumatik GmbH GREECE SMC Hellas E.P.E. HUNGARY

SMC Hungary Ipari Automatizálási Kft. IRELAND SMC Pneumatics (Ireland) Ltd. ITALY SMC Italia S.p.A. KAZAKHSTAN LLP “SMC Kazakhstan” LATVIA

SMC Pnuematics Latvia SIA LITHUANIA UAB “SMC Pneumatics” NETHERLANDS SMC Pneumatics B.V. NORWAY SMC Pneumatics Norway AS
