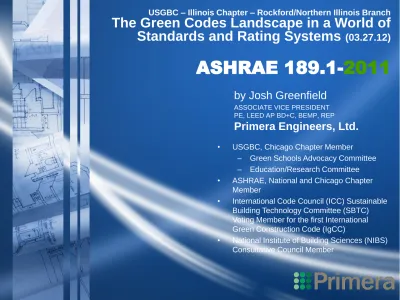

Standards and Rating Systems
(03.27.12)
ASHRAE 189.1-
2011
by Josh Greenfield
ASSOCIATE VICE PRESIDENT PE, LEED AP BD+C, BEMP, REP
Primera Engineers, Ltd.
•
USGBC, Chicago Chapter Member
– Green Schools Advocacy Committee
– Education/Research Committee
•
ASHRAE, National and Chicago Chapter
Member
•
International Code Council (ICC) Sustainable
Building Technology Committee (SBTC)
Voting Member for the first International
Green Construction Code (IgCC)
•
National Institute of Building Sciences (NIBS)
Consultative Council Member
Agenda…
• Why ASHRAE 189.1-2011 is embedded in
IgCC-2012 as an implementable option within
IgCC
• A summary of what ASHRAE 189.1-2011
tackles
• How ASHRAE 189.1-2011 differs from
ASHRAE 90.1-2010
• How ASHRAE 189.1-2011 ‘can’ lead to LEED
certification
ASHRAE 189.1 and IgCC
•
Jurisdictions are used to having a model code as a basis for adopting
legislation to regulate building construction.
•
As green construction has become more mainstream in the U.S., the time is
now ripe to offer a model code guiding green construction.
•
The agreement between ASHRAE and ICC means that 189.1 fits within the
framework of the IgCC as an option for compliance.
"ASHRAE felt the agreement with ICC was of significant importance to
the industry so there's not two sets of competing green building
standards,"
-- Gordon Holness, ASHRAE's 2009-2010 President
•
Because both standards cover essentially the same areas of building with
approximately the same rigor, jurisdictions (and possibly building owners, in
some cases) will have the option to use either IgCC or 189.1.
•
Because ICC is the most recognized new construction code-writing body, and
with more than 22,000 jurisdictions in all 50 states using ICC codes, the
agreement gives 189.1 the possibility of much wider adoption than if
jurisdictions would have considered adopting 189.1 by itself.
ANSI/ASHRAE/USGBC/IES STANDARD 189.1-2011
Standard for The Design of High-Performance Green Buildings
Except Low-Rise Residential Buildings
A Jurisdictional Compliance Option of the IgCC
• Developed by collaborative effort between the American
Society of Heating, Refrigeration and Air-Conditioning
Engineers (ASHRAE), the Illuminating Engineering
Society (IES) and the United States Green Building
Council (USGBC)
• Establishes mandatory criteria in all topic areas
• Remedies the issue of rating systems containing
few mandatory provisions but still calling the output
a “green building”
• First “code-intended” written Standard for commercial
green buildings in the US
• Covers similar topics as green rating systems
• Provide energy reduction over the requirements of
ASHRAE 90.1 AND reduces negative environmental
impacts through high-performance building design,
construction, and operations practices
Mandatory, Enforceable…
x.1 General. This subsection includes a statement of scope
and addresses other broad issues.
x.2 Compliance Paths. This subsection indicates the
compliance options for each section.
x.3 Mandatory Provisions. This subsection contains the
criteria that must be complied with by all projects (i.e., the
criteria that cannot be traded off).
x.4 Prescriptive Option. This subsection contains additional
criteria specified in a manner that provides a simple way to
show compliance that involves little or no calculations.
x.5 Performance Option. This subsection contains an
alternative way to show compliance that is typically more
complex then the prescriptive option.
Does ‘189’ mean anything?
189 is the…
•
…number of episodes of the TV show ‘Different Strokes’ from
1978-1985.
•
…height (in feet) of Cinderella Castle at The Magic Kingdom.
•
…rank of the song ‘Stayin Alive’ on Rolling Stone’s list of “500
Greatest Songs of All Time”.
•
…maximum seating capacity of a Boeing 727-300 jetliner.
SPC 188P: Prevention of Legionellosis Associated with
Building Water Systems
SPC 189P: Design of High-Performance Green Buildings,
Except Low-Rise Residential
189.1-2011: Standard for the Design of
High-Performance Green Buildings, Except Low-Rise Residential
SPC 190P: Method of Testing for Rating Indoor Pool
Dehumidifiers
What about Residential?
2.2 The provisions of this standard do not apply to:
a. single-family houses, multi-family structures of three stories
or fewer above grade, manufactured houses (mobile homes)
and manufactured houses (modular).
Someday maybe…
ASHRAE Standard 90.1: Energy Standard for Buildings Except
Low-Rise Residential Buildings
ASHRAE Standard 90.2: Energy Efficient Design of Low-Rise
Residential Buildings
ASHRAE Standard 189.1: Standard for the Design of
High-Performance Green Buildings Except Low-Rise Residential
Buildings
ASHRAE SPC 189.3: Proposed Standard for the Design,
Construction and Operation of Sustainable High Performance
Health Care Facilities
§5.3:
Site Sustainability
Mandatory Provisions
•
Site Selection
– Allowable Sites
•
Mitigation of Heat Island Effect
– 50% Site Hardscapes
– 30% Shaded walls (east and west above-grade)
– 75% High SRI and/or EnergyStar Roof products
•
Reduction of Light Pollution
– Section 9 of ANSI/ASHRAE/IESNA Standard 90.1-2010
– Maximum glare ratings
– Maximum uplight ratings
§5.4-5.5:
Site Sustainability
Prescriptive/Performance Options
•
Prescriptive: Pervious Area
– A minimum of 40% of the entire site
•
Performance: Site Development
– 20%/40%/50% of the average rainfall on the developed footprint shall
189.1 as part of LEED-NC v3.0
Certification - SS
Yes No
10 16 Sustainable Sites 26 Points Y Prereq 1 Construction Activity Pollution Prevention C Required
1 Credit 1 Site Selection D 1
5 Credit 2 Development Density & Community Connectivity D 5
1 Credit 3 Brownfield Redevelopment D 1
6 Credit 4.1 Alternative Transportation, Public Transportation Access D 6
1 Credit 4.2 Alternative Transportation, Bicycle Storage & Changing Rooms D 1
3 Credit 4.3 Alternative Transportation, Low-Emitting & Fuel-Efficient Vehicles D 3
2 Credit 4.4 Alternative Transportation, Parking Capacity D 2
1 Credit 5.1 Site Development, Protect or Restore Habitat C 1
1 Credit 5.2 Site Development, Maximize Open Space D 1
1 Credit 6.1 Stormwater Design, Quantity Control D 1
1 Credit 6.2 Stormwater Design, Quality Control D 1
1 Credit 7.1 Heat Island Effect, Non-Roof C 1
1 Credit 7.2 Heat Island Effect, Roof D 1
1 Credit 8 Light Pollution Reduction D 1
Complement LEED…
§6.3:
Water Use Efficiency
Mandatory Provisions
•
Site Water Use Reduction
– 60% of improved landscape shall be native/adapted plants
– Hydrozoning of automatic irrigation systems to water different plant
materials
– Weather data controlled smart controller to adjust irrigation
schedules
•
Building Water Use Reduction
– Plumbing Fixtures and Fittings = 1.28 gpf toilets, 0.5 gpf urinals, etc.
– ENERGY STAR Appliances
– Once-through cooling with potable water is prohibited
– Makeup and blowdown meters on cooling towers and evaporative
coolers with alarms
– Condensate from air-conditioning units with a capacity greater then
65,000 Btu/h and from all steam systems shall be recovered for
re-use
•
Water Consumption Management
– Domestic water (potable and reclaimed water) entering the building
project shall be monitored or sub-metered
– Meters shall communicate water consumption data to a meter data
§6.4-6.5:
Water Use Efficiency
Prescriptive/Performance Options
•
Site Water Use Reduction
– Maximum of 1/3 of improved landscape area is allowed to be
irrigated with potable water
•
Building Water Use Reduction
– Cooling tower blowdown limits
– Commercial Food Service Operations equipment
– Medical and Laboratory Facilities equipment
– Special Water Features
• Fountains
189.1 as part of LEED-NC v3.0
Certification - WE
Yes No
2 8 Water Efficiency 10 Points Y Prereq 1 Water Use Reduction, 20% Reduction D Required
2 2 Credit 1 Water Efficient Landscaping D 2 to 4
2 Reduce by 50% 2
0 No Potable Water Use of Irrigation 4
2 Credit 2 Innovative Wastewater Technologies D 2
4 Credit 3.1 Water Use Reduction D 2 to 4
0 Reduce by 30% 2
0 Reduce by 35% 3
Main Goals:
• 70% reduction guides by 2015 and include “net-zero”
guidance.
• By 2020 tools in place and market viable NZEBs by
2030 (ASHRAE Std. 90.1-2031)
0 5 10 15 20 25 30 35 40 2010 2013 2016 2019 2022 2025 2028 203136
30
25
20
15
10
5
0
E n er g y Use T ar g et (kBt u /sq ft /y ea r) YearSTANDARD: ASHRAE 90.1
Energy Standard for Buildings Except Low-Rise
Residential Buildings
•
The average commercial building EUI (including receptacle and
process loads) could be 70.7 kBtu/ft2·yr if all buildings were
rebuilt to 90.1-2004 standards.
•
By applying a comprehensive package of technologies and
practices, termed “Max Tech” in the report, the EUI could be
further reduced to as little as 40.3 kBtu/ft2·yr.
•
However, if PV was added and the excess generated electricity
could be freely put into the grid, the EUI could be reduced to
12.2 kBtu/ft2·yr.
NREL: Technical Potential for Achieving Net Zero-Energy
Buildings in the Commercial Sector, 2007
Source: Report of the Technology Council Ad Hoc Committee on Energy Targets, June 2010
189.1-2025 GOAL!
Max Tech
Main Goals:
• By 2020 tools in place and market viable NZEBs by
2030 (ASHRAE Std. 189.1-2030)
0 5 10 15 20 25 30 35 40 2010 2013 2016 2019 2022 2025 2028 203136
30
25
20
15
10
5
0
E n er g y Use T ar g et (kBt u /sq ft /y ea r) YearSTANDARD: ASHRAE 189.1
Standard for the Design of High-Performance Green
Buildings Except Low-Rise Residential Buildings
ASHRAE Board of Directors Energy
Reduction Proposal
Post-April 2007…
Source: Report of the Technology Council Ad Hoc Committee on Energy Targets, June 2010
§7.3:
Energy Efficiency
Mandatory Provisions
•
Building projects shall be designed to comply with
Sections 5.4, 6.4, 7.4, 8.4, 9.4, and 10.4 of
ANSI/ASHRAE/IESNA Standard 90.1-2010.
•
On-site Renewable Energy Systems
– Building project design shall show allocated space and pathways
for future installation of on-site renewable energy systems and
associated infrastructure that provide the annual energy production
equivalent of not less then 6.0 kBtu/sf for single-story buildings and
not less then 10.0 kBtu/sf multiplied by the total roof area in sf for all
other buildings.
• Exception: Annual daily average incident solar radiation available to a flat plate collected oriented due south at an angle from horizontal equal to the latitude of the collector location less then 4.0 kW/sm-day.
•
Energy Consumption Management
– Measurement devices with remote communication capability for
each energy supply source to the building.
– Subsystem measurement devices with remote capability (including
current sensors or flowmeters).
Average Incident Solar Radiation…
§7.4:
Energy Efficiency
Prescriptive Option
•
On-Site Renewable Energy Systems
– Building projects shall contain on-site renewable energy systems that provide the annual
energy production equivalent of not less then 6.0 kBtu/sf multiplied by the total roof area in
sf for single-story buildings and not less then 10.0 kBtu/sf multiplied by the total roof area
in sf for all other buildings.
– Exception: Purchase of renewable electricity products complying with Green-e Energy
National Standard for Renewable Electricity Products of at least 7 kWh/sf of conditioned
space each year until the cumulative purchase totals 70 kWh/sf of conditioned space
•
Building Envelope
– Improved Building Envelope over ANSI/ASHRAE/IESNA Standard 90.1-2010 and NO building
envelope trade-off option and permanent projections on W/S/E vertical fenestration.
•
Continuous Air Barrier
– Not all requirements in Energy Code have to do with energy...key aspects of durability
addressed by air barriers and vapor retarders.
•
HVAC
– Improved equipment efficiencies & DCV @ 25p/1000sf (supersedes 90.1-2010 @ 40p/1000sf)
•
Lighting and Power
– Peak Load Reduction via demand limiting or load shifting
– Automatic lighting controls (occ sensors per 90.1-2010)
§7.4:
Energy Efficiency
Prescriptive Option
Climate Zone 5A (Chicago, IL) per ASHRAE 90.1-2007 per ASHRAE 90.1-2010 per ASHRAE 189.1-2011
Opaque Elements
Nonresidential Nonresidential Nonresidential
Assembly Insulation Min. Assembly Insulation Min. Assembly Insulation Min.
Maximum R-Value Maximum R-Value Maximum R-Value
Roofs
Insulation Entirely above Deck U-0.048 R-20.0 ci U-0.048 R-20.0 ci U-0.039 R-25.0 ci
Walls, Above-Grade
Steel-Framed U-0.064 R-13.0 + R-7.5 ci U-0.064 R-13.0 + R-7.5 ci U-0.055 R-13.0 + R-10.0 ci
Wall, Below-Grade
Below-Grade Wall C-0.119 R-7.5 ci C-0.119 R-7.5 ci C-0.092 R-10.0 ci
Floors
Steel-Joist U-0.038 R-30.0 U-0.038 R-30.0 U-0.032 R-38.0
Slab-On-Grade Floors
Unheated F-0.730 NR F-0.730 NR F-0.540 R-10 for 24 in.
Opaque Doors
Swinging U-0.700 - U-0.700 - U-0.400 - Non-Swinging U-0.500 - U-0.500 - U-0.400 -
Fenestration
Assembly Assembly Max. Assembly Assembly Max. Assembly Assembly Max.
Max. U SHGC (All Max. U SHGC (All Max. U SHGC (All
(Fixed/ Orientations/ (Fixed/ Orientations/ (Fixed/ Orientations/
Operable) North-Oriented) Operable) North-Oriented) Operable) North-Oriented)
Vertical Glazing,0-40% of Wall
Metal framing
U-0.55 SHGCall-0.40 U-0.55 SHGCall-0.40 U-0.45 SHGCall-0.35
§7.4:
Energy Efficiency
Prescriptive Option
Climate Zone 5A (Chicago, IL) per ASHRAE 90.1-2010 per ASHRAE 189.1-2011
Air Conditioners
Size Minimum Size Minimum
Category Efficiency Category Efficiency
Air Conditioners, air cooled <65,000 Btu/h 13.0 SEER <65,000 Btu/h 14.0 SEER Air Conditioners, air cooled <135,000 Btu/h 11.0 EER <135,000 Btu/h 11.3 EER Air Conditioners, air cooled <240,000 Btu/h 10.8 EER <240,000 Btu/h 11.3 EER
Water Chilling Packages
Size Minimum Size Minimum
Category Efficiency Category Efficiency
Air cooled, with condenser <150 tons 9.562 EER <150 tons 10.000 EER Water cooled, positive displacement <150 tons <0.775 kW/Ton <150 tons <0.775 kW/Ton Water cooled, centrifugal <150 tons <0.634 kW/Ton <150 tons <0.634 kW/Ton
Warm Air Furnace
Size Minimum Size Minimum
Category Efficiency Category Efficiency
Warm air furnace, gas-fired <225,000 Btu/h 80% <225,000 Btu/h 80%
Gas-Fired Boilers
Size Minimum Size Minimum
Category Efficiency Category Efficiency
§7.5:
Energy Efficiency
Performance Option
90.1-2010 Appendix G = 189.1-2011 Appendix D, except….
D1.1.7: Added details to show when to model baseline/proposed model
air-side system economizers.
D1.1.8: System fan bhp shall be 10% less then values calculated using
90.1-2010.
Table D1.1.15B: Baseline building design shall have an on-site renewable
energy system that complies with the annual energy production of Section 7.4.
The U.S Department of Energy (DOE), through NREL, has made a preliminary
estimate based on
Standard 189.1-2009
as published, that shows a weighted
average energy savings in comparison to
Standard 90.1-2007
of…
27%
The DOE final determination on
Standard 90.1-2010
as published, shows a
weighted average site energy savings in comparison to
Standard 90.1-2007
of…
18.5%
§7.5:
Energy Efficiency
Performance Option
Also…
•
Annual Carbon Dioxide Equivalent (CO2e) calculations
•
Annual Load Factor/Peak Electric Demand
– Building project shall have a minimum electrical
annual load factor of 0.25
Annual Load Factor = the calculated annual electric consumption,
in kWh, divided by the product of the calculated annual peak
189.1 as part of LEED-NC v3.0
Certification - EA
Yes No
16 19 Energy & Atmosphere 35 Points
Y Prereq 1 Fundamental Commissioning of the Building Energy Systems C Required
Y Prereq 2 Minimum Energy Performance D Required
Y Prereq 3 Fundamental Refrigerant Management D Required
Yes No
8 11 Credit 1 Optimize Energy Performance D 1 to 19
X Improve by 12% for New Buildings or 8% for Existing Building Renovations 1
X Improve by 14% for New Buildings or 10% for Existing Building Renovations 2
X Improve by 16% for New Buildings or 12% for Existing Building Renovations 3
X Improve by 18% for New Buildings or 14% for Existing Building Renovations 4
X Improve by 20% for New Buildings or 16% for Existing Building Renovations 5
X Improve by 22% for New Buildings or 18% for Existing Building Renovations 6
X Improve by 24% for New Buildings or 20% for Existing Building Renovations 7
X Improve by 26% for New Buildings or 22% for Existing Building Renovations 8
… …
Improve by 48% for New Buildings or 44% for Existing Building Renovations 19
3 4 Credit 2 On-Site Renewable Energy D 1 to 7
X 1% Renewable Energy 1 X 3% Renewable Energy 2 X 5% Renewable Energy 3 7% Renewable Energy 4 9% Renewable Energy 5 11% Renewable Energy 6 13% Renewable Energy 7
2 Credit 3 Enhanced Commissioning C 2
2 Credit 4 Enhanced Refrigerant Management D 2
3 Credit 5 Measurement & Verification C 3
§8.3:
Indoor Environmental
Quality (IEQ)
Mandatory Provisions
•
Indoor Air Quality
– Sections 4 through 7 of ANSI/ASHRAE Standard 62.1-2010
– Outdoor air measurement device
– MERV 8 filters minimum
– No smoking in building or within 25 feet of building entrance
– Building entrance entry mat systems
•
Thermal Environmental Conditions for Human
Occupancy
– ANSI/ASHRAE Standard 55-2004
•
Acoustical Control
– Exterior sound
– Interior sound
•
Daylighting by Toplighting
– Conditioned/Unconditioned spaces >20,000 sf directly under a roof
•
Isolation of the Building from Pollutants in Soil
§8.4-8.5:
Indoor
Environmental Quality (IEQ)
Prescriptive/Performance Options
•
Daylighting by Sidelighting
– Offices and classrooms
•
VOC Content
– Adhesives and Sealants
– Paints and Coatings
– Floor Covering Materials
– Composite Wood, Wood Structural Panel and Agrifiber Products
– Office Furniture Systems and Seating
– Ceiling and Wall Systems
Performance Option:
•
Daylighting Simulation
– 75% of the area of the daylight zones
• Materials
189.1 as part of LEED-NC v3.0
Certification - EQ
Yes No
9 6 Indoor Environmental Quality 15 Points Y Prereq 1 Minimum IAQ Performance D Required
Y Prereq 2 Environmental Tobacco Smoke (ETS) Control D Required
1 Credit 1 Outdoor Air Delivery Monitoring D 1
1 Credit 2 Increased Ventilation D 1
1 Credit 3.1 Construction IAQ Management Plan, During Construction C 1
1 Credit 3.2 Construction IAQ Management Plan, Before Occupancy C 1
1 Credit 4.1 Low-Emitting Materials, Adhesives & Sealants C 1
1 Credit 4.2 Low-Emitting Materials, Paints & Coatings C 1
1 Credit 4.3 Low-Emitting Materials, Carpet Systems C 1
1 Credit 4.4 Low-Emitting Materials, Composite Wood & Agrifiber Products C 1
1 Credit 5 Indoor Chemical & Pollutant Source Control C 1
1 Credit 6.1 Controllability of Systems, Lighting D 1
1 Credit 6.2 Controllability of Systems, Thermal Comfort D 1
1 Credit 7.1 Thermal Comfort, Design D 1
1 Credit 7.2 Thermal Comfort, Verification D 1
1 Credit 8.1 Daylight & Views, Daylight 75% of Spaces D 1
§9.3:
The Building’s Impact
on the Atmosphere, Materials,
and Resources
Mandatory Provisions
•
Construction Waste Management
– Diversion of 50% of nonhazardous construction and demolition
waste material from disposal in landfills and incinerators by
recycling and/or reuse.
•
Extracting, Harvesting, and/or Manufacturing
– No wood from endangered wood species
•
Refrigerants
– CFC-based refrigerants in HVAC&R systems shall not be used.
•
Storage and Collection of Recyclables and Discarded
Goods
– Area of building that serves entire building and is dedicated to the
collection and storage of non-hazardous materials for recycling,
including…
• Paper, corrugated cardboard, glass, plastics, metals
• Reusable goods (charity ready)
§9.4-9.5:
The Building’s
Impact on the Atmosphere,
Materials, and Resources
Prescriptive/Performance Options
•
Recycled Content
– Minimum 10% post-consumer recycled content plus one-half of the
pre-consumer recycled content
•
Regional Materials
– Minimum 15% of building materials shall be regionally
extracted/harvested/recovered or manufactured within a radius 0f
500 miles of the project site
•
Biobased Products
– Minimum of 5% of building materials used shall be biobased
products
Performance Option:
189.1 as part of LEED-NC v3.0
Certification - MR
Yes No
5 9 Materials & Resources 14 Points Y Prereq 1 Storage & Collection of Recyclables D Required
3 Credit 1.1 Building Reuse, Maintain Existing Walls, Floors, and Roof C 1 to 3
0 Reuse 55% 1
0 Reuse 75% 2
0 Reuse 95% 3
1 Credit 1.2 Building Reuse, Maintain 50% of Interior Non-Structural Elements C 1
1 1 Credit 2 Construction Waste Management C 1 to 2
1 50% Recycled or Salvaged 1
0 75% Recycled or Salvaged 2
Yes No
2 Credit 3 Materials Reuse C 1 to 2
0 Reuse 5% 1
0 Reuse 10% 2
1 1 Credit 4.1 Recycled Content C 1 to 2
1 10% (post-consumer + ½ pre-consumer) 1
0 20% (post-consumer + ½ pre-consumer) 2
1 1 Credit 5.1 Regional Materials C 1 to 2
1 10% Extracted, Processed & Manufactured Regionally 1
0 20% Extracted, Processed & Manufactured Regionally 2
1 Credit 6 Rapidly Renewable Materials C 1
§10.3:
Construction and Plans
for Operation
Mandatory Provisions
•
Construction
– Building Acceptance Testing (<5,000 sf)
– Building Project Commissioning (>5,000 sf)
– Erosion and Sediment Control (ESC)
– Indoor Air Quality (IAQ) Construction Management
• SMACNA Guidelines + Flush-out
– Moisture Control
• Protection of absorptive materials stored onsite
– Construction Activity Pollution Prevention: No-Idling of
Construction Vehicles
• Vehicle staging areas for waiting to load or unloading materials
•
Plans for Operation
– High Performance Building Operation Plan
• Site Sustainability, Water Use Efficiency, Energy Efficiency, IEQ, Building Green Cleaning Plan
– Maintenance Plan
• ANSI/ASHRAE/ACCA Standard 180
– Service Life Plan
• Structural, building envelope and hardscape material repairs
– Transportation Management Plan (TMP)
§10.4-10.5:
Construction and
Plans for Operation
Prescriptive/Performance Options
189.1 as part of LEED-NC v3.0
Certification – ID & RP
Yes No
5 1 Innovation & Design Process 6 Points
1 Credit 1.1 Innovation in Design: High Performance Building Operation Plan* D 1
1 Credit 1.2 Innovation in Design: Building Green Cleaning Plan* D 1
1 Credit 1.3 Innovation in Design: EP SSc4 Transportation Management Plan* D 1
1 Credit 1.4 Innovation in Design: EP MRc6 5% Rapidly Renewable Materials* D 1
1 Credit 1.5 Innovation in Design: HVAC Condensate Reuse* D 1
1 Credit 2 LEED® Accredited Professional C 1
Yes No
3 1 Regional Priority Credits 4 Points
1 Credit 1.x Regional Priority: EQc2 Increased Ventilation D 1
1 Credit 1.x Regional Priority: SSc4.1 Public Transportation D 1
1 Credit 1.x Regional Priority: SSc5.2 Maximize Open Space D 1
1 Credit 1.x Regional Priority: SSc6.1 Stormwater Quantity D 1
1 Credit 1.x Regional Priority: SSc6.2 Stormwater Quality D 1
1 Credit 1.x Regional Priority: SSc7.2 Heat Island Reduction - Roofs D 1
189.1 as part of LEED-NC v3.0
Certification – Overall
Yes No
10 16 Sustainable Sites 26 Points Y Prereq 1 Construction Activity Pollution Prevention C Required
2 8 Water Efficiency 10 Points Y Prereq 1 Water Use Reduction, 20% Reduction D Required
16 19 Energy & Atmosphere 35 Points Y Prereq 1 Fundamental Commissioning of the Building Energy Systems C Required
Y Prereq 2 Minimum Energy Performance D Required
Y Prereq 3 Fundamental Refrigerant Management D Required
5 9 Materials & Resources 14 Points Y Prereq 1 Storage & Collection of Recyclables D Required
9 6 Indoor Environmental Quality 15 Points Y Prereq 1 Minimum IAQ Performance D Required
Y Prereq 2 Environmental Tobacco Smoke (ETS) Control D Required
5 1 Innovation & Design Process 6 Points
3 1 Regional Priority Credits 4 Points
Yes No
50* 60 Project Totals (Certification estimates) 110 Points
Certified: 40-49 points, Silver: 50-59 points, Gold: 60-79 points, Platinum: 80-110 points
* This is only a general analysis and does not guarantee that these total points can be obtained.
