Approach to Optimize Maintenance Leading
Time to Analyze Of Building Information
Modeling (Bim)-Based Facility Management
Dhurgham K.Abed
Construction and engineering Management College of Engineering, Osmania University, Hyderabad,Telangana, India
Email:[email protected]
Ihsan K.Abed
Building and Construction Engineering Department, University of Technology/Baghdad-Iraq Email:- [email protected]
Abstract:
The point of this proposition is to identity the fundamental issues identified with the offering period of various open acquirements and to study how BIM could be used in Tendering to enhance the current frail focuses. The part of Model Checking is researched to see how it can be connected inside the determination of a temporary worker in conventionally Public Procurement Methods, and additionally in some new techniques as of late embraced as per BIM forms. To guarantee the greater part of those contemplations are reflected in the building execution, basic outline choices ought to be made by key partners right on time amid the plan advancement organize. The utilization of BIM amid building energy reenactments has significantly enhanced the energy examination process and along these lines this approach has picked up force. Notwithstanding, in spite of fast advances in BIM-based procedures, the question still remains how standard building partners can perform energy execution investigation, which has beforehand been led dominatingly by experts, to amplify energy productive building execution. To address this issue, we distinguished two driving building execution examination programming programs, Energy Plus and IES <Virtual Environment>, and looked at their viability and appropriateness as BIM-based energy recreation devices. To encourage this review, we inspected a contextual investigation on Building Performance Model (BPM) of a solitary story working with one entryway, different windows on each divider, a piece and a rooftop. We concentrated especially on building energy execution by contrasting building introduction and window sizes and looked at how adequately these two programming programs examined the execution. The decision making forms executing building energy direct BIM-based building energy execution assessments all the more effectively.
INTRODUCTION:
In the Construction Industry, particularly in the Public Sector, the offering, where the favored temporary worker is chosen and the value concurred, is an imperative stride for the accomplishment of a venture. Be that as it may, rehearse demonstrates that for the most part there are issues and the value ascends along the development procedure not just because of blunders in the venture itself or changes connected by the customer, additionally because of extra works and materials to be received which were excluded or very much portrayed into the delicate documentation. Another usual way of doing things called Building Information
Modeling (BIM) is developing in the
Construction Sector to diminish common slip-ups of 2D paper-based administration of the techniques, on account of an advanced approach that is less demanding controlled and broke down. BIM can enhance the general procedure, yet its spread is more cutting-edge in the stages after the delicate honor. The BIM appropriation in the prior stages has not yet been broadly spread.
Building Information Modeling (BIM) is the way toward producing and overseeing building data amid its development life cycle. BIM covers every one of the properties and characteristics of building segments, and can be utilized to delineate the whole life cycle of the venture enveloping development and office administration. With archived affect in the plan and development, members of the development venture are searching for approaches to use
advantages of BIM to enhance the
administration and operation periods of offices lifecycle. Be that as it may, the most vital asset of the best possible administration of office is
the data or the information of the venture. Without precise as-assembled data, office administrators won't have the capacity to work
viably. There are various unrecorded
information data focuses amid the development of an office, which is not been exchanged to the proprietor for administration. The reason for this information misfortune is manual and paper based data-section. One of the answers for this circumstance is the utilization of BIM as database to store, sort out and trade information.
The idea of BIM is not new to the development business. BIM is a portrayal of a working as an incorporated database of facilitated, inside reliable, and processable information in outline and development. This coordinated database can contain an endless measure of venture information, similar to material amounts, establishment dates, subcontractor duties, kind of material utilized as a part of an office, cost, plan, and so forth. This implies a BIM show can possibly disentangle the data assembling and putting away procedures of a venture since it can be utilized as a solitary hotspot for all venture data. The general reason for using BIM for office administration is to use office data through the office life cycle to give sheltered, sound, powerful and effective workplaces. An endless measure of data is been produced amid various periods of development the upkeep of
this data may make more noteworthy
efficiencies, for example, having precise as-manufactured information to lessen the cost and
time required for remodels, expanding
This paper looks at three activities where the idea of BIM for FM is being connected utilizing COBie as the data handover device. The exertion is being embraced by the college's Health Science Center at two of its grounds, and by the University System at the Multi-Purpose Main Building of another grounds. A typical advisor was employed by the proprietor on every one of these undertakings. Since the amassing of data for FM was begun at various stages on these activities, it is fascinating to study its impact on the proficiency of the data gathering process.
EXTENDED LEAN CONSTRUCTION PRINCIPLES
Lean principles support required systems for executing Lean ideas in development. They stress entire process enhancement through cooperation, nonstop change, disposal of waste and an attention on conveying the esteem craved by the end-client. As indicated by Ballard and Howell (2003), a portion of the fundamental qualities of a Lean Project Delivery (LPS) are that the item and process are outlined together, all item lifecycle stages are considered in configuration, learning is joined into the venture, and the way that partner premiums are adjusted. Sacks et al. (2010) have inferred other Lean standards by thinking about two incline ideas: stream and esteem. In this exploration, there are two more incline standards recognized in three essential territories depicted underneath.
Increase Relatedness and Collaboration: This guideline infers the need to wipe out any hindrance, which causes inadequate relatedness of venture members. Relatedness must be cultivated for various claims to fame who work together to build up the "item" and its related procedures together where extend members
consider each other's needs all through various venture stages. Members need to create connections established on trust on the off chance that they are to share their slip-ups as learning open doors for their venture, and the various undertakings.
Tightly Coupling of Learning with Action:
Project value can be advanced by the way toward performing work, gaining from activity and enhancing work. Instead of utilizing single stream for activity, solidly connecting learning with activity ought to be executed in light of the criticism of how palatable the performed function has been regarding meeting quality necessities and desires.
EXTENDED BIM FUNCTIONALITIES
BIM functionalities are generally known for plan and development forms. The following stride is distinguishing BIM functionalities that add to Lean development. We first propose the new functionalities which are used amid the preconstruction and development stages and a short time later we talk about the functionalities that for the most part concentrate on the operation and (O&M) stage and bolster BIM-empowered offices administration. As expressed a valuable administration device for choosing the suitable procedure to expand the offices yield will lessen building lifecycle costs and boosts benefits. BIM functionalities encourage
applying the fundamental administration
systems by creating a structure for joint effort, sorting out building data and giving access to them all through office's lifecycle. Subsequent to dissecting ventures for their potential
communications, executed BIM based
strategies that encourage Lean standards in the plan and development of these undertakings. The following sections acquaint new BIM functionalities included with those recognized by Sacks et al. (2010).
Support the Make Ready Process: The "make ready" process is a piece of the Last Planner System™ in which the requirements identified with a particular assignment are investigated at the medium term arranging level or look-ahead level. BIM can bolster the make prepared process by permitting venture members to picture 4 a month and a half in front of execution and BIM helps them breaking down which assignments should be performed and what extra imperatives might be recognized by looking at the model for every particular errand. In spite of the way that not everything that happens amid establishment is demonstrated in BIM, the model gives a flying creatures eye perspective of the circumstance teams may experience and help each exchange to prepare for development.
Facilitating Real- Time Construction Tracking and Reporting: BIM gives the capacity to screen continuous development advance, exchange recovered data and contrast it and accessible information database with the reason to assess advance and settle on future choices ahead of time, in view of the venture verifiable information.
Support Augmented Reality: By incorporating
BIM with enlarged reality, a superior
comprehension of development advance,
exactness and precision of built components can be accomplished through superimposing as-assembled and as-arranged model; thus the development extend supervisor may have the capacity to recognize defaults and to settle on
control choices and successfully report
inadequacies to the capable venture
participantation.
ENERGY SIMULATIONS:
As insinuated in the past segment, it is best to settle on choices related with maintainable plan of a building office in the early outline and preconstruction stages. Access to an exhaustive arrangement of information with respect to the building's structure, materials, setting, and specialized frameworks is required keeping in mind the end goal to sensibly evaluate building execution in the early plan and preconstruction stages. Since BIM permits multidisciplinary information to be superimposed inside one model, it makes an open door for supportability measures and execution examination to be performed all through the outline procedure. In this review, two of the most ordinarily utilized vitality reenactment programming bundles, EnergyPlus and IES <VE>, were utilized to perform vitality recreations and to assess vitality execution of a Building Performance Model (BPM).
Energy Simulation Solutions
EnergyPlus is an entire building reproduction program created by the Department of Energy. It gives a coordinated (burdens and frameworks) reenactment for temperature and solace forecast at a client determined time step. It is
additionally fit for assessing reasonable
shading, sun oriented increase, sun based entrance, easygoing additions, airtightness, regular ventilation, mechanical ventilation,
blended mode frameworks, and HVAC
frameworks.
The Building Performance Model (BPM) The BPM assessed is a solitary story working with one entryway, various windows on each divider, a chunk establishment and a rooftop. Building Energy Simulation Processes The initial step was to utilize EnergyPlus to direct vitality reproductions. The BPM was made utilizing Google SketchUp, then its vitality execution
was recreated utilizing OpenStudio, an
EnergyPlus Plug-in for SketchUp. The
recreation results are appeared in Table 1. IES <VE> was then used to assess the vitality
execution of the BPM. Revit Architecture was utilized to make the BPM, then the IES <VE> module for Revit was utilized to direct the vitality reenactment. Table 1 compresses the recreation comes about. Many plan parameters
can possibly influence building vitality
execution. Since the objective of this review was to investigate the ways vitality productivity influences the building plan basic leadership handle, exhaustive research of all the outline parameters was a bit much.
Two outline parameters were considered in the vitality recreations, the introduction and window sizes. VAV Single Duct framework was picked as the default HVAC framework for vitality recreations.
Energy Simulation Results and Discussions
The simulations results are shown in the tables below.

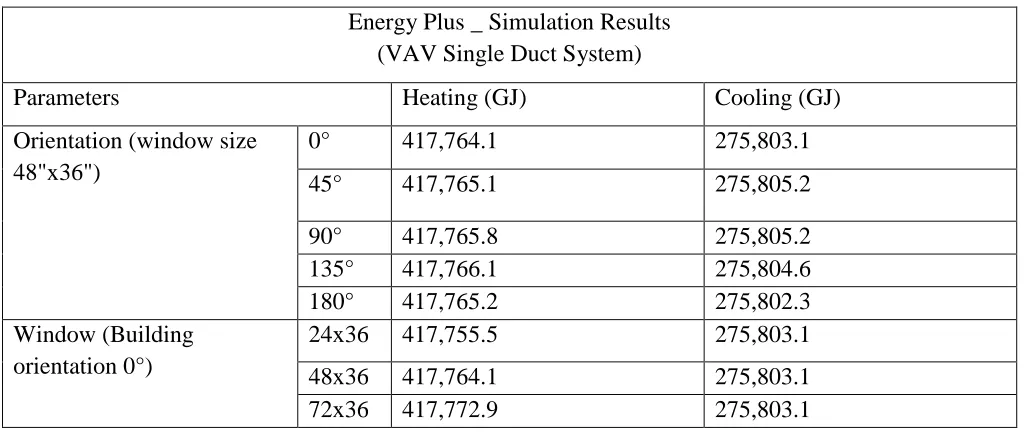

Table 1: Energy Simulation Results Using EnergyPlus
Energy Plus _ Simulation Results (VAV Single Duct System)
Parameters Heating (GJ) Cooling (GJ)
Orientation (window size 48"x36")
0° 417,764.1 275,803.1
45° 417,765.1 275,805.2
90° 417,765.8 275,805.2
135° 417,766.1 275,804.6
180° 417,765.2 275,802.3
Window (Building orientation 0°)
24x36 417,755.5 275,803.1
48x36 417,764.1 275,803.1
72x36 417,772.9 275,803.1
As appeared in Tables 1 and 2, when the BPM was at 0° and 180° introduction, the aggregate vitality utilization, including cooling and
expanded the aggregate vitality utilization. Despite the fact that the lighting conditions can be altogether enhanced by including bigger windows, the HVAC framework will utilize additionally warming vitality to warm the building, and will utilize all the more cooling vitality to cool the building. Consequently, bigger windows won't vital guarantee a superior outline The HVAC framework in a building represents the lion's share of warming and cooling vitality utilization. Amid the vitality simulation in this review, the default HVAC arrangement of VAV Single Duct System was chosen and no other HVAC frameworks were considered for changing plan parameters. This clarifies the way that there were no huge contrasts in vitality utilization between the two simulation models.
The architecture of SEEMPubS Building Energy Management System
As depicted already, one of the primary objectives of SEEMPubS is to build up a middleware for all encompassing Building Energy Management Systems (BEMS). As to framework engineering plan two noteworthy prerequisites were recognized. To begin with,
such middleware needs to bolster the
reconciliation of heterogeneous innovations, for
example, WSAN, building administration
frameworks, or keen meters. Second, the middleware must give brought together access to these innovations to bolster the execution of uses that utilization these advancements in an interoperable way (e.g. usage of building control procedures). A further necessity from the middleware viewpoint is that the created parts ought to be extensible and reusable in comparative settings.
Keeping in mind the end goal to adapt to these necessities, the SEEMPubS consortium has chosen to breaking point custom advancements and rather utilize and augment an officially existing and demonstrated innovation, in particular the LinkSmart Middleware. The LinkSmart Middleware is a non specific middleware for creating Ambient Intelligence (AmI) applications. It is the aftereffect of the FP6 European Project HYDRA and it is as of now utilized in countless EU and worldwide research activities. AmI is portrayed by making utilization of different distinctive advancements
and gadgets, which together perform
encompassing and smart processing
assignments. Common cases of AmI are savvy homes or surrounding helped living tasks. LinkSmart gives a system and programming
advancement device for incorporating
heterogeneous organized gadgets into AmI
applications. Encourage, LinkSmart
accompanies programming parts that give usefulness normally to AmI applications (e.g. message encryption, occasion administration, or gadget disclosure). The LinkSmart Middleware is connected and reached out to build up a devoted middleware for the vitality proficient structures space – under thought of the previously mentioned necessities. In the accompanying we depict the SEEMPubS design and disclose to which degree LinkSmart innovation is reused and stretched out with new usefulness.
characterized by the LinkSmart Middleware. This approach permits to utilize the diverse advances unifiedly. A LinkSmart Proxy is a segment that goes about as extension from a
particular innovation to the LinkSmart
middleware by giving a characterized benefit interface. Along these lines, intermediaries permit bound together access to the diverse
advances through LinkSmart. On the
SEEMPubS Middleware Layer dwell segments that procedure data gave from the Integration Layer and give promote usefulness to the Application Layer (e.g. segments to execute building control systems live on this layer). The Middleware Layer is theoretically isolated into two sections: the LinkSmart foundation parts and the Context Framework. The foundation parts, specifically Network Manager and Event Manager give the center correspondence usefulness to all LinkSmart segments. The
Network Manager empowers organize
correspondence among gadgets inside a
LinkSmart arrange. It makes an overlay P2P arrange that actualizes SOAP Tunneling as transport component for web benefit calls, permitting direct correspondence among all gadgets inside a LinkSmart organize, regardless of on the off chance that they show up behind a firewall or NAT (Network Address Translator). The Event Manager permits engineers to construct occasion based frameworks, which on account of frameworks managing sensors, is a center prerequisite.
In SEEMPubS, the Event Manager is utilized to distribute occasions at the Proxy Layer and to tune in to occasions wherever required, for example at Context Framework, for further handling. The Context Framework is an augmentation to LinkSmart which is particularly
intended for vitality effectiveness applications
going for accomplishing semantic
interoperability. While syntactic interoperability is accomplished by the Proxy Layer (by homogenizing the distinctive measures and conventions of various advancements), semantic interoperability in SEEMPubS intends to extract from the Proxy Layer to a layer that arrangements with space objects like structures, rooms, windows, machines, sensors, and so forth. Such area information can then be utilized by the framework for (i) end-client applications, (e.g. for representation) and (ii) for executing building administration control techniques that work flawlessly crosswise over heterogeneous advancements.

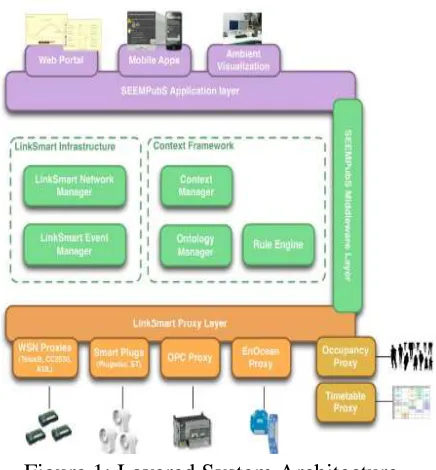

Figure 1: Layered System Architecture
Estimated energy savings, heating and cooling
This sections goes for showing point by point comes about for one of the six contextual investigations. The test office is a piece of the Valentino Castle, the chronicled assembling made of substantial dividers without warm protection. Its vitality utilization is high and its warm responsiveness is low. As reserve funds methodologies depend on an advancement of opportunity periods, comes about intensely rely on upon inhabitance speculation utilized as a part of the reproductions. Two diverse sort of occupation profiles are utilized as a part of the recreation. The "hypothetical inhabitance" begins at 8 AM and closes at 6 PM (ten hours a day, five days seven days, which implies fifty hours seven days) and relates to the time run when inhabitance likelihood is high. In the nearness location calculation, the hypothetical occupation profile does not give a great deal of points of interest since it is difficult to estimate the genuine inhabitance, while in the nearness
suspicion calculation, the hypothetical
inhabitance profile is nitty gritty however much as could reasonably be expected since it is utilized for classrooms and meeting rooms where it is anything but difficult to know ahead of time what the future occupation ought to be. The "real occupancy" is specifically connected to the inhabitance location sensor however in the recreation it is set as settled extents which incorporate two full inhabitance days (on Mondays and Fridays) with a one-hour meal break and two half inhabitance days (on Tuesdays and Wednesdays) with a five-hour inhabitance isolated into three periods (8 AM – 10 AM, 1PM – 2 PM, 4 PM – 6 PM). No inhabitance at all is considered on Thursdays. For example, it might speak to a free day, a workshop day or a day out of office. With respect to this reproduction speculation, the genuine inhabitance profile utilized as a part of the reenactment speaks to 56% of the hypothetical inhabitance. As the nearness suspicion calculation was initially intended for basic rooms, for example, classrooms or meeting rooms, comes about examined later will
mostly concentrate on a the nearness
recognition calculation. To improve the
dissected independently since the warm conduct of the building is distinctive following two unheated days.
Figure 2: Recovery time as a component of the temperature distinction Δt = Tsp - Tin(i) amid the warming time frame The best connections connected the recuperation time to the temperature contrast between set point and indoor temperature at the restarting time. As this exceptionally straightforward straight condition is not adequate to appropriately portray the building conduct, its immediate utilize prompts to great vitality funds additionally prompts to inconsistency of client solace, because of the underestimation of the recuperation time for about portion of the time.
Keeping in mind the end goal to streamline the harmony between vitality reserve funds and client comfort, two overhauled relationships are utilized. As it is not adequate to enhance comfort as much not surprisingly, a moment set of overhauled relationships is utilized. Vitality reserve funds qualities are given in rate of investment funds contrasted with recreation aftereffects of the real control rules utilized as a part of the contextual analysis (reference room).
The principle contrasts with the test room lie without nearness discovery and in the utilization of just two set-point temperatures (one around evening time, and another amid working hours). As indoor temperatures might be higher in the reference room than in the test room
(particularly amid working hours when
inhabitance is not "distinguished"), non-unimportant warmth exchanges happen from the reference space to the test room. This prompts to an over-estimation of the reference room utilization and an under estimation of the test
room utilization. Results can then be
complimenting and ...false! To ascertain the utilization that would really be watched if the entire building was outfitted with a similar control framework, two reenactments are run independently: one with the genuine protection technique (reference), and another with the proposed conservation strategy (test).
Comfort examination depends on the agent temperature circulation in the principal hour of inhabitance (8AM - 9AM) when inhabitance is "recognized" (figure 8).Results are near the current circumstance as far as solace and this methodology permits a 14.6% decrease on the general annual energy demand.
These first reenactment comes about demonstrate that the estimation of the recuperation time can be enhanced later on. The more exact the estimation of recuperation time is, the less vitality is required keeping in mind the end goal to achieve a given solace level (and the more effective are the control rules). All
things considered the recuperation time
vigorously relies on upon the building qualities, additionally on the HVAC framework details (water and wind current rates and temperatures of the fan loops unit) that are hard to know with accuracy. It then requires to fit recreation comes about with checking brings about request to locate the undoubtedly HVAC determinations. These control standards will subsequently require a great deal of data and studies to be stretched out to new structures with various attributes. That is the motivation behind why we are presently concentrate the plausibility of building up a self-learning framework that would itself figure an estimation of the recuperation time, in view of data accumulation of the previous few days or months. It would maintain a strategic distance from warm dormancy computation (and related data gathering) since the framework would ascertain it itself.
An algorithm in view of nearness reckoning additionally requires the recuperation time computation and furthermore should be connected to a calendars DB. Reproduction on a similar office demonstrated somewhat better outcomes as far as solace however higher vitality utilization for nearness foresight system. It is most likely because of the high latency of the building, which prompts to moderate temperature variety when the HVAC framework is killed. For opening period shorter than a few hours, the nearness recognition methodology does not call for warming or cooling while the nearness suspicion technique restarts the HVAC frameworks ahead of time, which prompts to higher power utilization. Nearness reckoning procedure is then most likely more pertinent for low inhabitance rooms in low latency structures.
Results about demonstrated that it is
conceivable to set aside to 22.6 % (32.5 % on warming and 3.9 % on cooling) in the
classrooms contextual investigation. The
advancement of HVAC procedures will proceed in two points of view: developing nitty gritty examination of predictable energy savings funds to comparative spaces (workplaces) of different sorts of structures, and breaking down the outcomes acquired from models that will be introduced in the six test rooms.
Figure 3: Indoor operative temperature
Conclusion
This paper exhibits an augmented
communication framework for BIM and incline development upheld by both experimental and scholarly confirmation. The creators took the venture lifecycle as the base point for examination and concentrated on the stages in which the FM practices are considered to involve an incredible part. The creators trust that there is a developing enthusiasm for abusing BIM for enhancing FM hones and limiting the costs identified with keeping up and growing offices. In this review we tried how ICT makes it conceivable to coordinate diverse
procedures, applications, frameworks and
advances with a specific end goal to diminish vitality utilization. As a matter of first importance, to acquire a shrewd building administration and control influences, we characterized an ICT framework made of heterogeneous checking and incitation gadgets and we built up the LinkSmart middleware to gather natural data originating from the sensor hubs in a nearby DB. At that point we proposed
an electronic foundation to make
straightforward to the end-client the
fundamental gadgets, abstracting all the
information about equipment, correspondence convention stack and implanted working framework. Also, we set a Context Framework that uses an Ontology-based information archive
and administer based setting acknowledgment framework to permit the meaning of activities
that ought to be performed upon
acknowledgment. At long last, we utilized BIM and interoperability to handle and envision all data basic for vitality reproductions and for FM. Our outcomes concern control principles and test on HVAC and lighting frameworks utilizing temperature, luminance and inhabitance sensors, with a specific end goal to appropriately adjust vitality funds and solace issues. Future work ought to advance the expansion in individuals' mindfulness by an electronic apparatus to specifically collaborate and convey information to clients.
REFERENCE:
[1] Ballard, G. and Howell, G. (2003).
“Lean Project Management” Build. Res. & Info., 31, 1-15.
[2] Becerik-Gerber B., Jazizadeh F., Li N., Calis G. (2011). “Application Areas and Data
Requirements for BIM‐Enabled Facilities
Management.” J. Const. Eng. Mgmt., 138 p. 431.
[3] Enache-Pommer E., Horman M., I.
Messner J., Riley D. (2010). “A Unified Process Approach to Healthcare Project Delivery: Synergies between Greening Strategies,Lean Principles and BIM.” Construction Research Congress, ASCE, 1376- 1385
[4] Ballard, G. and Howell, G. (1998).
[5] Lichtig, W. (2005). “Sutter Health: Developing a Contracting Model to Support Lean Project Delivery” Lean Construction Journal, Vol. 2.
[6] Motamedi A. and Hammad A. (2009).
“Lifecycle management of dacilities
components using radio frequency identification and building information model.” J. Info. Tech. in Const., 14, P. 238.
[7] Reidy, R., Davis, M., Coony, R., Gould,
S., Mann, C., Sewak, B. (2005). “Guidelines for Life Cycle Cost Analysis” Stanford University Lifecycle Cost Analysis Team.
[8] Sabol L., (2008). “Building Information Modeling & FM.” IFMA World Workplace.
[9] Sacks R., Radosavljevic M. and Barak
R. (2010). “Requirements for Building Information Modeling based Lean Production Management Systems for Construction” J. Auto. In Const., 19, 641- 655.
[10] Sacks, R., Koskela, L., Dave, B. A., Owen, R. (2010). “Interaction of Lean and
Building Information Modeling in
