Checking and controlling of smart types of Equipment utilizing Android

good devices towards IOT applications and administrations in

manufacturing industry

Dara Swarupa Rani1_{, Syed Mahaboob Basha}2

1,2_{P.G. Scholar., Assistant Professor}

1,2_{Branch:ECE, Embedded Systems,}

1,2_{Geethanjali College Of Engineering And echnology}

Email: [email protected], [email protected]

Abstract:

The regularly expanding necessities for data being available whenever, from wherever, in any case the kind of remote device or arranged task, together with the need of finish control of a particular situation or device has prepared towards the following innovative transformation: Internet of Things (IoT) furthermore, prompted a few noteworthy research projects. Inside this printed material the authors' vision in regards to the architecture of an IoT organize and an test testing seat for one of the initial steps driving towards executing the IoT vision is quickly presented. The initial segment presents a diagram of the Internet of Things. In the second part, authors' idea with respect to an architecture for IoT and the vision towards execution it into assembling conditions are displayed. The third part outlines the usage and testing of the picked answer for availability between a keen hardware and Android perfect devices. In the last part, ends are featured and the guide with respect to idea usage is characterized.

Keywords - IoT, Android, embedded design, manufacturing processes, smart equipments

WHAT IS INTERNET OF THINGS?

The term Internet of Things was presented by K. Ashton in the setting of inventory

network administration and it depicts a framework where the digital world is associated with the physical world framing a worldwide system [1], [2]. A report of McKinsey Worldwide Institute with respect

to the troublesome advancements

characterizes Internet of Things with regards to the "utilization of sensors, actuators, and information correspondence innovation incorporated with physical articles – from roadways to pacemakers – that empower those question be followed, facilitated, or controlled over an information arrange or internet" with the objective of making esteem [10]. In the course of the most recent years IoT is anticipated as the answer for the regularly expanding interest for availability between people groups, associations, organizations, contraptions and devices and it was conceived from the longing to accomplish programming real-time control and access to information.

In light of machine-to-machine (M2M) idea, fuelled by the advancement of smart sensors and actuators, together with

correspondence innovations (Wi-Fi,

(2)

Internet of Things, characterizes 'Things' as dynamic members in any sort of "business, information and social procedures where they are empowered to cooperate and impart among themselves and with the condition, by trading information and information 'detected' about the earth, while responding self-sufficiently to the 'real/physical world' occasions and affecting it by running forms

that trigger activities and make

administrations with or without direct human intercession" [3]. Subsequently, the Internet of Things is both a receptive (respond to changes) and proactive (start changes) layer of digital information, covering the real world and associating with it.

Fig. 1. Internet of Things (4)

A. Actualities about IoT Broad research and extraordinary measure of time and money related assets have been contributed by organizations and governments into this idea, which is likewise refereed as the following innovative unrest [4]. In Gubbi [16], sentiment about IoT is made out of three fundamental parts, connected by correspondence systems:

• Things: physical devices with a character that can

be gotten to, observed and controlled. • Middleware, the layer that interfaces the

physical world with the virtual world. • Monitoring and control/Information

frameworks.

It has been assessed that the associated things will come to a number over 50 billion [7] by 2020 and they will bring esteem to any general public related action [12], [13]:

• Energy reserve funds by 20-30% , • Increase stopping income by 20-30%, • Reduce urban activity by 30%,

• Reduce water utilization with up to half, • Crime rates will declares by 20%.

Additionally, the significance of this idea is delineated in the table underneath, as seen by various partnerships:

TABLE I. HOW IOT IS PERCEIVED

Corporation How IoT is perceived

Rockwell

Automations

IoT will enable us to enhance the standard of living for everybody [6]

Cisco Re-characterizing what's conceivable… associating the detached [7]

Cisco IoT is driving the advancement to a canny coordinated system

Schneider

Electric

IoT has the capability of conveying a quantum jump in operational productivity for a part of the expense of existing control and venture frameworks [8]

Intel The IoT begins with insight

inside [9]

Regardless of whether there are

(3)

wind up "the sensory system of the planet" [11].

B. Budgetary significance of IoT

The estimation of the system is given by the accompanying condition: Network esteem = #Connections2 [7]. Considering the gigantic number of things that will be associated, the monetary significance of IoT is of incredible centrality to any sort of

business. Figure 2 speaks to the

dissemination of income inside the IoT business.

Executing IoT in the field of assembling will create income of 3.9 trillions of dollars out of a gauge esteem in question of $ 14.4 T. As a reality, fabricating (27%) is considered a standout amongst the most essential fields where IoT can be executed and misused [6].

Fig. 2. Dispersion of money related income inside IoT [12], [13]

PROPOSED ARCHITECTURE

TOWARDS IOT

A few architectures of how the usage of IoT ought to be done are proposed in [13], [14], [15] and [16]. By and by, the greater part of them can be abridged by an oversimplified see as exhibited in figure 3.

Fig. 3. Simplified generic IoT Architecture

The European IoT research group assembled under a key research guide the innovation empowering influences and the issues that should be tended to towards accomplishing the genuine objectives of IoT idea [3].

The objective of the research project presented in this paper is to convey network to smart assembling hardware in request to enable them to be controlled and observed by programming applications running on Android perfect devices. Along these lines, among the recognized empowering agents and issues that require to be tended to, the ones of enthusiasm for this project are recorded beneath:

• Networks of smart hardware improved with implanted circulated insight to manage versatility challenges [3],

• Micro-electromechanical frameworks and sensors for expanded applications [17] or foresight and attention to things to come [3],

• Plug – and – deliver and interoperable

diminishes for effective things

correspondence [3],

(4)

Energy proficient and reconfigurable things [3],

• Remote human machine interaction and interfaces; upkeep administration and support [3],

• High computational power and

information preparing, information stockpiling and information accessibility [3], [17], Authors' vision and proposed architecture idea for sending IoT into the assembling field are introduced in figure 4, in view of a few associated research points in the zone of the previously mentioned IoT empowering influences and difficulties [17], [18] also, [19]. For a superior clearness, a few layers of the proposed architecture are not introduced, among them being: security, middleware and generally speaking information administration.

Fig. 4. Rearranged perspective of the proposed IoT architecture for fabricating

A. Brief portrayal of the proposed architecture anticipated yields

As portrayed from figure 4, an assembling

framework is fabricated out of smart reconfigurable assembling assets that are connected by methods for wired or remote correspondence between them and to the

assembling framework control and

information administration layer. Sensors and actuators are a piece of reconfigurable assembling assets, which, whenever joined together, can make more intricate assets acquiring expanded functionalities.

A Smart reconfigurable assets can be viewed as things since they are addressable by utilizing a correspondence organize (wired or not) and they can process, store, send and get information and screen or control devices (sensors, actuators, and so forth.). Significantly more, they can speak with other reconfigurable assembling assets and respond to changes with the end goal to keep up a predefined process parameter set-point by various means.

A smart reconfigurable assembling asset is improved with circulated insight, giving neighborhood control to the physical assembling asset, plug – and – play ability what's more, high computational power. Considerably more, the equipment and

programming building squares of a

reconfigurable assembling asset can be revamped with the end goal to acquire an alternate at that point prior to usefulness with a base exertion and postponement.

(5)

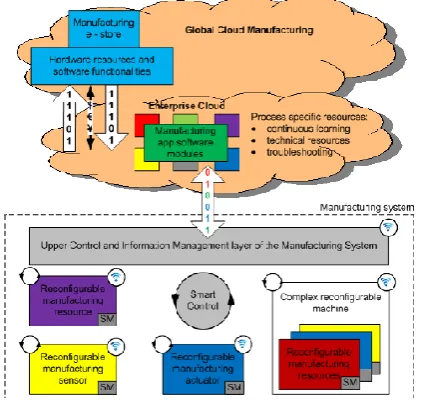

Fig. 5. Smart assembling asset architecture for IoT

A few test improvements for sending smart reconfigurable assembling hardware and control architectures were finished by the authors in [17], [18] and [19].

The endeavor cloud is intended to be an administration that will interface the assembling framework or an assembling asset to a plant. It is conceived to give access to processing administrations,

fabricating information, producing

programming applications and to help information offering to the served process, be that as it may, not confined to this. Endeavor cloud will permit one to remotely interface with a particular assembling asset, screen its status, upgrade programming calculations or download new ones.

Worldwide assembling cloud speaks to the worldwide system of assembling, though an undertaking could offer or

purchase items, crude materials

programming and equipment fabricating assets, specialized help and information. There are three noteworthy expected yields from the proposed architecture toward the finish of the project. In the first place, the improvement of smart reconfigurable assets, permitting to rework their building obstructs with the end goal to fit process needs by

choosing the right programming

applications from the endeavor or producing cloud inside the limitations of the accessible

modules. Out of these assets, more mind boggling reconfigurable assembling assets can be accomplished, driving additionally to reconfigurable assembling frameworks. Their improvement will be bolstered by

exceedingly interoperable measured

equipment and programming squares,

nonexclusive installed frameworks, real time installed working framework, shrewd information administration calculations and

informational electrical-mechanical

interfaces.

The second yield: the graphical human-process interface will give a more charming client experience to the producing forms by methods for PCs, smart telephones and tablets. The interface will be utilized to configuration control calculations for reconfigurable assets or to its modules, by utilizing the programming functionalities and specialized assets accessible in the enterprise cloud or manufacturing e-store. The control calculation will be exchanged to the asset for which it was planned all through the computational asset of the upper control and information administration layer of the manufacturing framework. This layer will be in charge of a few exercises: to

auto-incorporate the recently associated

reconfigurable manufacturing assets, to help the administrator in the setup procedure of the recently associated asset, to give the system to planning control calculations, to exchange control calculations to the

manufacturing asset, to screen the

information got from the manufacturing assets and to assume control over the control of manufacturing assets if necessary.

(6)

enterprise cloud will be the virtual model of a particular enterprise that will connect the manufacturing cloud with the enterprise offices. It will have information identified with the enterprise and its manufacturing

forms, a database with accessible

programming functionalities that can be downloaded into equipment assets and a learning base with specialized assets and investigating activities.

TESTING THE NETWORK

ARRANGEMENT

Among the initial moves towards executing the proposed architecture idea is the execution and testing of the picked network arrangement. Thusly, this printed material and analyze is centered around testing the proficiency of controlling what's more, observing activities on smart gear by utilizing Android good devices as for exhibitions of the created implanted

structure and the chosen network

arrangement.

At this stage, we hope to effectively convey at any rate the following IoT qualities as exhibited in figure 1: whenever, wherever, anybody and halfway any system. Subsequently, for this progression, an installed framework was plan around an ATmega32U4 microcontroller running at 8 MHz at which a few sensors and actuators can be associated with regard to equipment imperatives and particular qualities. By

conveying particular programming

calculations and an insightful information administration, the associated sensors and additionally actuators will wind up smart gear [18].

The UART correspondence convention of the microcontroller was designed to work at a baud rate of 115200 bits for each second 8

bit information, without equality and stream control and 1 stop bit. On the UART correspondence interface a remote shield from Meandering Systems (RN-171ek) was associated as an information door from the implanted structure to a remote system, as delineated in figure 6.

A LM35 temperature sensor and a 5VDC fan are associated with the installed plan. At the point when an android good device is associated with the inserted plan, the client can screen the: temperature esteem, the runtime of the framework and the due time to support.

Fig. 6. Remote association graph

Likewise the client can trigger activities like: beginning or ceasing the fan by sending particular directions like: fan on or fan off. A product application from meandering systems is utilized as a terminal for checking and controlling the inserted plan through the WiFly remote shield.

(7)

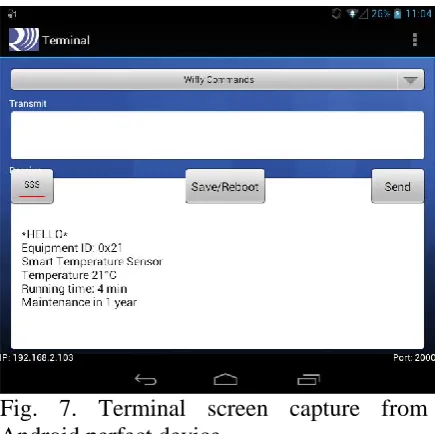

Fig. 7. Terminal screen capture from Android perfect device

The previously mentioned remote shield joins a 2.4 GHz radio processor, full TCP/IP stack, real-time clock and bolsters FTP

customer, DHCP, DNS and HTML

customer convention. Secure Wi-Fi

validation with WEP, WPA-PSK and WPA2-PSK and setup over ASCII codes by means of UART interface.

Figure 8 presents the experimental

workbench composed out of an embedded design having an LCD (4) for local displayf process information, together with an Android compatible smartphone (1). Within figure 8, one can also observe: a custom made embedded system (2), a Wi-Fly module (3), a LM35 temperature sensor (5), a board with two relays for loads

control (6) and a 5 VDC fan.

Fig. 8. Experimental workbench

CONCLUSIONS AND FURTHER

RESEARCH DIRECTIONS

IoT can be actualized into the

manufacturing field, the following future research bearings are set up

 Building up an instinctive, utilize focused graphical human-machine interface for Android devices that can give stretched out access and control to information put away inside the inserted plan and to its functionalities.

 Advancement of programming

applications that can be downloaded

from enterprise cloud to a

manufacturing asset and utilized by this asset for process control what's more, checking.

 Improvement of a system of

manufacturing assets for versatility testing.
