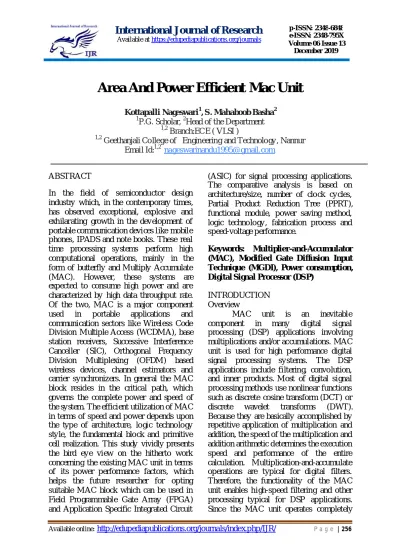

Area And Power Efficient Mac Unit

Kottapalli Nageswari1, S . Mahaboob Basha2 1

P.G. Scholar, 2Head of the Department

1,2

Branch:ECE ( VLSI )

1,2

Geethanjali College of Engineering and Technology, Nannur

Email Id:1,2 [email protected]

ABSTRACT

In the field of semiconductor design industry which, in the contemporary times, has observed exceptional, explosive and exhilarating growth in the development of portable communication devices like mobile phones, IPADS and note books. These real time processing systems perform high computational operations, mainly in the form of butterfly and M ultiply Accumulate (MAC). However, these systems are expected to consume high power and are characterized by high data throughput rate. Of the two, M AC is a major component used in portable applications and communication sectors like Wireless Code Division M ultiple Access (WCDM A), base station receivers, Successive Interference Canceller (SIC), Orthogonal Frequency Division M ultiplexing (OFDM ) based wireless devices, channel estimators and carrier synchronizers. In general the M AC block resides in the critical path, which governs the complete power and speed of the system. The efficient utilization of MAC in terms of speed and power depends upon the type of architecture, logic technology style, the fundamental block and primitive cell realization. This study vividly presents the bird eye view on the hitherto work concerning the existing M AC unit in terms of its power performance factors, which helps the future researcher for opting suitable M AC block which can be used in Field Programmable Gate Array (FPGA) and Application Specific Integrated Circuit

(ASIC) for signal processing applications. The comparative analysis is based on architecture/size, number of clock cycles, Partial Product Reduction Tree (PPRT), functional module, power saving method, logic technology, fabrication process and speed-voltage performance.

Keywords: Multiplier-and-Accumulator (MAC), Modified Gate Diffusion Input Technique (MGDI), Power consumption, Digital Signal Processor (DS P)

INTRODUCTION Overview

MAC unit is an inevitable

component in many digital signal

(2)

Available online: http://edupediapublications.org/journals/index.php/IJR/ P a g e | 257 independent of the CPU, it can process data

separately and thereby reduce CPU load. The application like optical communication systems which is based on DSP , require extremely fast processing of huge amount of digital data. The Fast Fourier Transform

(FFT) also requires addition and

multiplication. 64 bit can handle larger bits and have more memory.

A M AC unit consists of a multiplier and an accumulator containing the sum of the previous successive products. The MAC inputs are obtained from the memory location and given to the multiplier block. The design consists of 64 bit modified Wallace multiplier, 128 bit carry save adder and a register.

A design of high performance 64 bit M ultiplier-and-Accumulator (M AC) is implemented in this paper. M AC unit performs important operation in many of the digital signal processing (DSP) applications. The multiplier is designed using modified Wallace multiplier and the adder is done with carry save adder. The total design is coded with verilog-HDL and the synthesis is done using Cadence RTL complier using typical libraries of TSM C 0.18um technology. The total M AC unit operates at 217 M Hz. The total power dissipation is 177.732 mW.

The goal of this project is to design and implement a M AC unit and an Arithmetic Logic Unit (ALU). The MAC unit is a 16x16-bit 2's complement multiplier with a 40-bit accumulator.The ALU performs 16-bit arithmetic and includes saturating addition/subtraction logic. The imple-mentation includes a full custom layout and veri_cation of all cell necessary to complete the units.

We perform all our simulations for the TSM C 0.18 _m process, and the chip that uses these units will be fabricated. The priorities of this project, in order of

importance, are:Robust and safe

circuits.Design timeArea/speed balance. The most important priority during this project is to ensure that it works. Thus, the circuits must be robust and safe, and we must choose designs that are largely immune to noise and generate full rail-to-rail swing on the outputs. To be safe, all our circuits are designed with static CM OS, which means at every point in time, each gate output is connected to either Vdd or Gnd [4].

Bas ically, the archit ecture of M AC is class ified as p arallel, recurs ive and s hared s egment ed st ruct ure. T he recursive archit ecture incorporates " divide and conquer" t act ic, where t he comput at ion of large s iz e dat a is s egment ed into s maller unit s. T he mult ip ly-accumulat ion is achieved us ing it erat ive calculat ion of smaller module through s everal clock cycles . The lat ency and throughput of the M AC dep ends on t he number of mult ipliers and adders , w hich are recurs ively called for each cy cle. In the first cycle, dat a is fet ched from the int ernal memory, t he s econd cycle involves mult ip licat ion process, during the t hird cy cle s ummat ion t akes p lace, w hile in the fourth cy cle t he funct ion of A .B+A cc is performed and finally t he last output is lat ched w ithin t he int ernal

memory. This approach ut ilizes

(3)

of archit ecture support s mode

dep endent logic t o support full and half precis ion mult iply or M AC op erat ion. The number of clock cy cles is reduced by t hree, w hen compared to recurs ive architect ure by means of embedding t he accumulat or module w it hin t he part ial product summat ion net work. This M A C architect ure is mostly used in F ield P rogrammable Gat e Array (FPG A) of X ilinx Corporat ion and as coprocess or for t he LEON 2 RISC processor. T he s hared s egment ed M A C archit ecture int egrat es the st ruct ures of sp lit p arallel unit and recurs ive charact erist ics which op erat e parallel w it h moderat e resources s upport ing mode-dependent logic. T his kind of architect ure lacks from t hroughput limit at ions owing t o compound PPRT . This architect ure is cap able of supporting full and half precis ion mult iply or M AC op erat ion. This M AC operat es for SIM D (Single Inst ruct ion M ultip le D at a) w it h reduced

clock cycle, w hen compared t o

recursive M AC and reduced hardw are w it h resp ect t o p arallel M AC. T his type of archit ecture is us ed in M IP S T echnologies (M illion Inst ruct ions p er Second).

1.2 PO WER PERFO RMANC E FAC TO RS O F MAC UN IT

The performance of M AC unit depends on the follow ing paramet ers :

Power: The three major component s of pow er are: Trans ient or dynamic, s hort circuit and leakage power. The s hort circuit power is owing t o the current conduct ing p ath betw een GND and VD D. T he leakage pow er is due to t he reverse bias diode and s ub thres hold leakage. These tw o pow ers are due t o the logic style and t echnology , t hrough w hich t he M AC is realiz ed. T he trans ient or dy namic pow er is due t o

the tot al number of nodes and

cap acitors charged/dis charged in a trans it ion which is exp ress ed as follows :

(3)

w here, αtra ns i t io n is the t ot al number of

nodes act ive p er t rans it ion (node act ivity fact or), Cp d is t he dynamic

pow er cap acit ors , fc l k is the clock

frequency (Input /output ) and VD D is the s upply volt age. So, in the M AC unit the major p ort ion of p ow er is contribut ed due to t rans ient pow er t hat mainly dep ends upon the node act ivity fact or and dynamic capacitors .

(4)

Available online: http://edupediapublications.org/journals/index.php/IJR/ P a g e | 259 function (part) sw it ching depends on

the type of archit ecture us ed in t he des ign, it depends on the logic function and block s uch as AN D, OR, N AND , mult ip lier and adder, the s ignal st at ist ics and t he choice of logic style. The s econd part is due to glit ches , w hich is caus ed due t o s ignal skew s (different input s ignal arrival t ime) and the s ignal st at ist ics. T he p aras it ic part in the M AC can be reduced using balanced delay p ath, gat e s iz ing and reducing paras it ic capacit ances .

Clock frequency: It is one of t he s ignificant p arameters p ersuading t he functional p ow er diss ip at ion of M A C unit. T he pow er fact or is direct ly proport ional to clock frequen cy of t he M AC unit , t herefore reducing clock frequency may proport ionally reduce pow er, on the other hand, t he M AC sp eed and throughput s imultaneous ly reduced. In order t o pres erve t he throughput for reduced clock frequency parallelis m and pip elined archit ecture have t o be cons idered. The M A C architect ural pow er (block level) is characteriz ed in terms of bits of t he component (mult ipliers and adders) and their operat ing frequency w hich can be exp ress ed as :

(4 ) w here, fi n and fo u t is the input and

output frequency of M A C unit and Δ1,

Δ2 are t he empirical coefficient s

derived from gat e-level s imulat ion. A rchit ecture s election: Low pow er architect ure design becomes imp erat ive in M AC block. T he archit ecture s elect ion typically involves t he organiz ation of fun ct ional blocks in M AC and t he number of pip es involved

in t he comput at ion st age. In

architect ural level, low pow er can be achieved through clocking strat egy , parallelis m, pip elining and component organiz ation. By deploying p arallelis m

the t hroughput and performance of M AC unit can be improved w it hout increas ing t he operating frequency . In recurs ive archit ecture, the res ource ut iliz at ion is minimum, therefore, area

reduct ion is achieved but t he

throughput of the syst em is

cons iderably very low. Due t o t he s maller bit-siz e, component and reus ability, the dynamic pow er is reduced. For parallel M AC t he number of components w ill be doubled, when

comp ared to recurs ive M AC

architect ure to achieve high sp eed and throughput at t he exp ens e of increas ed chip area tw ice that of recurs ive M AC. To reduce the area penalty of p arallel M AC, split -pipelined M AC archit ecture is suit able, w hen t rade-off res ults w it h less area overhead but more comp lexity in controller des ign due t o mult i-mode op erat ion. When p ipelined struct ures are implement ed t hen t he propagation delay is reduced t o half when comp ared to t he recurs ive M AC. On the other hand, considerat ion should be t aken for pip elined M AC to maint ain t he throughput , w hen it is op erat ing at low er voltages .

Logic t echnique: T ill dat e, the majority of the circuit des igns have been

imp lement ed us ing Complementary

M et al O xide Semiconduct or (CM O S) logic style. It is very attract ive due it s reliable op erat ion at low volt ages . T he CM O S logic style incorporat es large

PM O S (P-type M et al O xide

Semiconductor) in circuit realiz at ion. As a res ult, t he propagat ion delay is

higher, becaus e of large node

cap acit ances . The pow er diss ip ation is very high at high operat ing frequencies due to increas e in t he input loads. From the lit erature survey it has been obs erved that the M AC block has been

imp lement ed us ing st at ic

Complementary M et al O xide

(5)

Available online: http://edupediapublications.org/journals/index.php/IJR/ P a g e | 260 trans miss ion G ate A diabat ic Logic

(CTGA L), Low Volt age Swing

Restoration T echnique (LVST ), P as s

Trans ist or Logic (PTL),

Complementary P ass T rans istor Logic (CP L), mixed st at ic CM O S-CP L and Sw ing Restored PT L (SRP L).

The PTL provides improved

performance, when compared t o CM O S logic due t o less number of trans istors , as a result, t he overall paras it ic cap acit ances is reduced. T he dy namic pow er diss ip ation is very minimal due to fast er sw it ching t ime. O ne of t he s hort falls ass ociated w ith t he PM O S logic is thres hold drop variation. As a result , the nois e margin of t he circuit is reduced t his in t urn degrades t he driving capability and leads t o unreliable op erat ion. The st at ic p ow er diss ipat ion is very high in PTL due t o thres hold drop variat ion. The LVST logic det ects the input volt ages even, w hen it is les s t han 100 mV and performs reliable operation in low volt ages . The logic st ructure realiz ation is very complicat ed, w it h t hree level st ages w ith t rue and complementary inp uts, w hich add on the number of invert ers in t he des ign, in turn, it increas es the st atic pow er diss ip at ion of the circuit and pos es moderat e nois e immunity.

The CP L logic required large number of trans ist ors or gat es to implement s imp le circuit. D ue to large t rans ist or t he s hort circuit current is high and w iring overhead ow ing t o the dual-rail s ignals . The SRPL circuit des ign is s imilar t o LVST w ith t hree stages support ing true and comp lement ary inputs, which different iat e tw o low inputs and regenerative op erat ion is est ablished through s ens e amplifier. In SRP L, when proper device s caling is not p rovided then dis charging t he output for 1 -0 trans it ion becomes bottlen eck and cons equently the output degrades. T he

M AC construct ed us ing SRP L ut ilizes high trans istor count and fair nois e margin.

F unct ional blocks : T he indisp ens able component necess ary to imp lement t he M AC blocks are adder and mult iplier circuits. A s ment io ned earlier, t he first st age of the M AC unit involves t he generat ion of part ial products , which can be est ablis hed through mult iplier circuits and t he s econd st age is accumulat ion of P PG, w hich can be accomplished us ing adder circuits . F rom t he literature s urvey , it have been obs erved that various mult iplier and

adder circuits like distribut ed

arit hmetic, p arallel, s erial-parallel,

comp lement ary (Booth encoding),

Wallace using CSA , row-column

byp ass , modulo diminis hing-1 and w ave pip elining mult ipliers. The M A C architect ure w ith complement ary boot h mult ip lier reduces t he generat ion of number of part ial products . M ajor bott le neck, w hen deploying boot h mult ip lier is hardw are comp lexity due to fundament al components of encoder and s hift regist ers to produce PPG . D ue to high int erconnect the p ow er diss ipat ion is very high in this type of M AC archit ect ure. While, deploying Wallace mult ip lier s cheme the t ime comp lexity is reduced by N /2, when comp ared to array struct ure but diss ipat es high pow er due to irregular int erconnects .

(6)

Available online: http://edupediapublications.org/journals/index.php/IJR/ P a g e | 261 Carry Look A head Adder CLA A) and

P arallel P refix A dder (P PA). T hes e

adders how ever exhibits pow er

diss ipat ion and delay due t o

int erconnect s cheme and dat a

distribut ion.

F igure of merit : T he F igure of M erit (FOM ) is express ed as :

(5)

w here, P is the t ot al pow er of M AC unit for the given volt age (V) operat ing at a given frequency and this performance parameter should be minimum.

Throughput : The throughput of t he M AC des ign is comput ed wit h resp ect to t he clock frequency fc l k and lat ency

in various p ipe st ages. T he t hroughp ut of the M AC can be expres s ed as

(6 ) In above Eq. 6 t he t erm parallel M A C denotes the number of M AC unit dep loy ed to execut e the inst ruct ion, generally it is express ed as M ega Op erat ion P er Second (M OP S).

1.3 MAC ARC HITEC TURE

The architect ure s elect ion for M AC unit generally depends up on t he type of

app licat ions. For embedded

microproces sor or microcont roller app licat ions t he memory us age is limit ed and the op erand s iz e is als o

s mall and therefore, recurs ive

architect ure is suit able, when pow er and area is important. This recurs ive M AC unit is dep loy ed in image process ing applicat ion s uch as Fast F ourier Transform (FFT ) and digit al filt ering.

F or high p erformance applicat ions like not epads , laptops and des ktops require large s et of dat a comp utat ion t herefore parallel architect ure w ill be s uit able. T o perform multi-mode logic dependent op erat ion, w here t he speed and pow er const raint is cons idered then s hared s egment ed archit ecture is p referable,

w hich is mainly used in embedded

medical equip ments and in

communicat ion syst ems , s uch as

O rthogonal Frequency D ivision

M ultip lexing (OFDM ) bas ed w ireles s devices, s ubcarrier frequency domain op erat ions , channel est imat or and

carrier synchronizer. The M A C

architect ure can be implement ed in A SIC and FPG A. The imp lement ation of M AC st ruct ure us ing FPGA s w ill have limit ed resources and fixed logic t echnology while in A SIC it is s

emi-custom or full custom s o t hat

opt imizat ion can be achieved from t he architect ural level t o t rans ist or level. Recurs ive M AC: A recursive M AC propos ed by M atsui et al. (1994) us e novel Sens eA mplifying F lipF lop (SA FF ) in combination w ith NM O S (N -type M et al O xide Semiconductor) different ial logic (F ig. 2a). The M A C unit has been embedded in 2 -D D CT w hich op erat es at 200 M Hz w ith 350 mW p ow er diss ip ation for the s upply volt age of 3.3 V. The macrocell w as

fabricat ed us ing 0.8 μm bas e rule

CM O S t echnology . The SA-F F

t echnique acts as a s ens e amplifier t o regenerate low-sw ing different ial inp uts. The propos ed M AC block reduces t he prop agat ion t ime and macrocell s iz e us ing SA-FF t echnique. The M AC operat ion has been execut ed us ing the D istribut ed Arithmet ic (DA ) on a bit-by bit dat a. T he int ermediat e addit ion proces s has been implement ed us ing convent ional RCA and Carry P rop agat ion A dder (CPA). The final accumulat ion and summat ion netwo rk has been des igned t hrough Carry Skip A dder (CSkA ).

A new Sw ing Rest ored P ass T rans istor Logic (SRP L) non -pip elined recurs ive uns igned M AC has been propos ed

by P aramesw ar et al. (1996) for

mult imedia applicat ions and it w as

(7)

Available online: http://edupediapublications.org/journals/index.php/IJR/ P a g e | 262 CM O S t echnology, w hich operat es at a

maximum sp eed of 150 M Hz

cons uming 34 mW w ith one cycle delay of 6.7 ns for bit s ize of 16 bit w ide. T he sp eed of the M AC unit has been

imp roved us ing G ate s izing

opt imizat ion approach, where t he asp ect rat io W/L (Width/Length) of NM O S trans istors connect ed clos e t o the output s ignal w as reduced, when comp ared to NM O S trans ist ors t hat w ere far away from the output. Another imp ort ant speed opt imiz at ion w as achieved by us ing moderat ely s caled PM O S devices in the sw ing restoring net work. T he P artial Product (PP ) w as obt ained using Boot h encoding s cheme and the same is added us ing CSAs.

The funct ional block has been

imp lement ed us ing s tat ic CM O S logic. The final st age of addit ion operation

has been construct ed us ing,

condit ional-sum addit ion t hat

incorp orat es P arallel Prefix Structure (PP S). T he sy nchroniz at ion of clock

circuit has been implement ed w it h s ingle rail domino logic.
