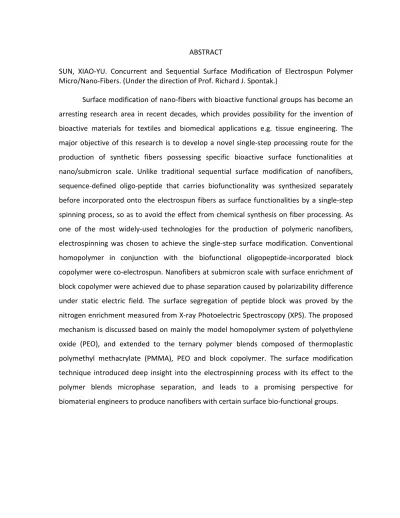

ABSTRACT
SUN, XIAO‐YU. Concurrent and Sequential Surface Modification of Electrospun Polymer Micro/Nano‐Fibers. (Under the direction of Prof. Richard J. Spontak.)
Surface modification of nano‐fibers with bioactive functional groups has become an
arresting research area in recent decades, which provides possibility for the invention of
bioactive materials for textiles and biomedical applications e.g. tissue engineering. The
major objective of this research is to develop a novel single‐step processing route for the
production of synthetic fibers possessing specific bioactive surface functionalities at
nano/submicron scale. Unlike traditional sequential surface modification of nanofibers,
sequence‐defined oligo‐peptide that carries biofunctionality was synthesized separately
before incorporated onto the electrospun fibers as surface functionalities by a single‐step
spinning process, so as to avoid the effect from chemical synthesis on fiber processing. As
one of the most widely‐used technologies for the production of polymeric nanofibers,
electrospinning was chosen to achieve the single‐step surface modification. Conventional
homopolymer in conjunction with the biofunctional oligopeptide‐incorporated block
copolymer were co‐electrospun. Nanofibers at submicron scale with surface enrichment of
block copolymer were achieved due to phase separation caused by polarizability difference
under static electric field. The surface segregation of peptide block was proved by the
nitrogen enrichment measured from X‐ray Photoelectric Spectroscopy (XPS). The proposed
mechanism is discussed based on mainly the model homopolymer system of polyethylene
oxide (PEO), and extended to the ternary polymer blends composed of thermoplastic
polymethyl methacrylate (PMMA), PEO and block copolymer. The surface modification
technique introduced deep insight into the electrospinning process with its effect to the
polymer blends microphase separation, and leads to a promising perspective for
biomaterial engineers to produce nanofibers with certain surface bio‐functional groups.
