Developing a data mining based model to extract predictor factors in

energy systems: Application of global natural gas demand

Reza Hafezi a, AmirNaser Akhavan b, Mazdak Zamani c , Saeed Pakseresht d , Shahaboddin

Shamshirband e,f*,

a Futures Studies Research Group, National Research Institute for Science Policy (NRISP), Tehran, Iran. b Technology Foresight Group, Department of Management, Science and Technology, Amirkabir University of Technology

(Tehran Polytechnic), Tehran, Iran.

cSchool of Arts and Sciences, Felician University, 262 South Main Street Lodi, New Jersey 07644 d Director of Research and Technology, National Iranian Gas Company (NIGC), Tehran, Iran.

e Department for Management of Science and Technology Development, Ton Duc Thang University, Ho Chi Minh City, Vietnam;

f Faculty of Information Technology, Ton Duc Thang University, Ho Chi Minh City, Vietnam

*Corresponding Authors email: shahaboddin.shamshirband@tdtu.edu.vn

Abstract:

Recently natural gas (NG) global market attracted much attention in case it is cleaner than oil, and simultaneously in most regions is cheaper than renewable energy sources. However, price fluctuations, environmental concerns, technological development, emerging unconventional resources, energy security challenges, and shipment are some of the forces that made the NG market more dynamic and complex. From a policy-making perspective, it is vital to uncover demand-side future trends. This paper proposed an intelligent forecasting model to forecast NG global demand, however investigating a multi-dimensional purified input vector. The model starts with a data mining (DM) step to purify input features, identify the best time lags, and to pre-process selected input vector. Then a hybrid artificial neural network (ANN) which equipped with genetic optimizer is applied to set up ANN’s characteristics. Among 13 available input features, six features (e.g. Alternative and Nuclear Energy, CO2 Emissions, GDP per Capita, Urban Population, Natural Gas Production, Oil Consumption) selected as the most critical feature via the DM step. Then, the hybrid prediction model is designed to extrapolate the consumption of future trends. The proposed model overcomes competitive models refer to different error based evaluation statistics. Besides, as the model proposed the best input feature set, results compared to the model which used the raw input set, with no DM purification process.

Keywords: Natural gas demands; Prediction; Energy market; Genetic algorithm; Artificial neural network; Data mining.

1. Introduction:

The world energy demand increased in the two past decades and even predictions implying the growing trends for the next decades [1-3]. Still, fossil fuels play a critical role in the

(2)

2

energy supply chain due to economic feasibility. Refer to International Energy Agency's (IEA) 2016 report, fossil fuels in the form of liquid fuels, natural gas, and coal contain more than 80% of the world energy consumption [4]. Easiness of utilization, higher performance, compared to traditional energy sources, ease of mobility via land or sea and affordable extraction cost introduced oil and natural gas (NG) as strategic commodities [5, 6]. However, emergent ecological concerns and rethinking of a more peaceful future (sustainable development goals) attracted attention toward climate change challenges (such as greenhouse gases emissions and global warming) [7]. The two non-aligned objectives, on one hand, development and increasing needs for energy supply and on the other hand, global environmental concerns, attracted researchers to study energy systems and develop different plausible future perspectives.

Despite successful efforts, the main problem is still existing, which is defined as “discovering reliable future trends and probable alternative futures in the field of energy systems and uncover the most influencing driving forces to aid energy management process”. This paper is aimed to develop an intelligent learning-based prediction model which is equipped with data mining (DM) techniques to purify and the setup input vector. The DM step is used to select and organize the best input features that represent patterns of future global NG demand trends. Although many previous studies successfully addressed NG global demand prediction problem, we attempt to uncover the most effective driving forces as input features and analyzing how they will affect the objective function (NG global demand prediction). For example, the proposed model studies time relation between input variables and the target variable. So a less-dimension input set is available to policymakers to simplify and experience reliable decision-making process.

As it is impressed by a series of variables and oscillating time series, the NG forecasting problem is a very challenging [8]. These days, massive efforts investigated artificial intelligence (AI) models or integration of several models (hybrid models) for prediction problems to increase the accuracy and the model reliability [9, 10]. Also, numerous notable studies investigated by demand prediction for the case of energy resources [11-16]. The prediction performance of the CDA model overcame compared to the earlier neural networks (NN) and an engineering based model.

Baumeister and Kilian published a research paper to analyze how vector autoregression (VAR) models form policy-relevant forecasting scenarios in the case of an oil market. The model investigates the influence of scenario weights' probability changes to the real-time oil price forecasting [17]. Also, Dilaver et al. investigated NG consumption in Europe to support long-term investments and contracts [18]. They estimated an OECD-Europe NG demand trends with annual time series during the period from 1978 to 2011 by applying a structural time series model (STSM). Finally, three scenario streams developed based on business as usual, high, and low case scenarios.

(3)

3

analysis step was applied [19]. Also, Suganthi and Samuel provided a comprehensive review of the energy model, which attempted to forecast the demand function [20]. Authors classified prediction models and presented that most of the recent researches contained quantitative models that result in a single future prediction. Models used statistical error functions to estimate, accuracy compared with other comparative models. However, as mentioned above, data-driven models may regret set of effective qualitative variables. In the other hand projecting alternative futures based on qualitative approaches are challenging, especially in the case of validation and moreover, they are extremely affected by the expert group (number of experts and judgment validation). To present a universal review and to dedicate insights about prediction approaches used by previous studies, table 1 summarized models used to address energy consumption prediction problem.

Table 1. Analyzing previous studies, based on their approaches to address energy consumption prediction problem

Approaches References

Classical computational extrapolation

Time series [11, 12, 18, 21-30]

Regression [15, 31-34]

Econometrics [35-39]

Expert systems and learning models

Artificial neural network (ANN) [8, 27, 40-53] Genetic programming (GP) [8, 11, 27, 45, 52, 54-59]

Ant colony optimization [60]

Particle swarm optimization (PSO) [13, 61] Support vector machine (SVM) [12, 27, 46, 51, 62, 63] Fuzzy inference system (FIS) [8, 31, 49, 57, 64]

Others

Decomposition approach [65, 66]

Input-output model [67, 68]

Bottom-up model [69-71]

Grey method [13, 24, 68, 72, 73]

Logistic model [74]

To dedicate a more detailed understanding of various existed forecasting models table 2 shows the pros and cons of main forecasting methods.

Table2. The major pros and cons of main forecasting methods

Type of Models Pros & Cons

(4)

4

forecasting • Do not consider jumps and drips of the prices.

• Generally, these models were introduced for stock markets.

• Do not use the unit root test for time series and econometric methods to estimate their parameters.

Time series models

• Focus on historical data.

• Do not cope with extreme jumps and drips.

• Do not use feedback loops to dynamically upgrade model adjustment features.

Learning forecasting models

• Focus on historical data.

• Generally being able to learn fluctuations and related formerly signals. • Use feedback loops to upgrade model adjustment features dynamically.

Qualitative based forecasting models

• Rarely depend on quantitative forecasting methods.

• Donate insights about long-run behaviors of a complex system.

• Mostly depend on experts’ evaluations, instead of historical time series. • Can dynamically modify input features.

In this paper, we are aimed to propose a learning-based model, which is designed to present a more reliable and relevant input features (driving forces) to initialize a hybrid prediction ANN to equip decision-making process with accurate and reliable forecasts. Following section investigates the proposed methodology and brief descriptions of various steps, then section three is dedicated to presenting the implementation phase and discussing results to show how the proposed methodology overcomes other benchmark models. Finally, section four provides summaries and conclusions.

2. The methodology of research:

(5)

5 DATA

1. Initializing Step

Feature Selection

2. Data Mining Step

Artificial Neural Network

Genetic Algorithm Testing &

Validation

3. Machine Learning 5. Reporting

4

.

T

es

ti

ng

Visualizing

Time Lag Selection Normalization

Fig1. The research methodology (by Authors)

The main phases and steps of the proposed methodology discussed as follow:

PHASE 1.

Step1. Data gathering: in this step, previous studies reviewed to detect raw input features.

Unlike most of the previously published researches, this paper pursues the maximum approach, means we will gather and use maximum available input data to ensure that the developed model will not neglect a possible solution. In simple words, the proposed methodology does not limit the solution space due to the use of confined input features —

output: input feature set.

PHASE 2.

Step2. Feature selection: this step is designed to select the most relevant subset of the

gathered features. The main target is to reduce problem dimensions while preserving all local optimal solutions — output: refined input feature sub-set.

Step3. Time lag selection: is investigated to study how different time lags for input features

may affect forecasting accuracy. This step will study time relation between the input variable and the target variable. Output: timed input features sub-set.

Step4. Normalization: different scales of input features may cause in a biased final forecasting

model. This step is aimed at reproducing input features but in similar, uniform scales. Output: uniformed timed input features sub-set.

(6)

6

Step5. Design of the forecasting model: in this step, an ANN is equipped with a GA in order

to optimize the network’s characteristics and develop an accurate prediction model. Output: prediction framework

PHASE 4.

Step6. Implementation: finalized input features applied to the prediction framework. In this

step, the input set divided into two main portions, one to train and other to test the performance of the prediction framework. Outputs: adjusted prediction model & obtained extrapolated results.

PHASE 5.

Step7. Validation: this step dedicated to comparing the obtained results of the proposed

prediction framework with other benchmark comparative models. Output: output/accuracy analysis

To model complex systems (like ours), selecting a robust model architecture is very challenging [75, 76]. The DM approach is selected to handle the complexity of input variables. DM is defined as the process of extracting appealing patterns and deriving knowledge in massive datasets. So, as Han et al. noted: "the principal dimensions are data, knowledge, applications, and technologies" [77].

2.1. Data gathering and data pre-processing:

Input data remarkably affect the accuracy and quality of the obtained results. In the case of energy consumption, previous researches investigated different sets of input features to predict energy consumption’s upcoming trends. A significant limitation of a prediction model is that it cannot reflect effects of variables which did not exist in the input feature set (those have been neglected). To ensure robustness and the validity of the proposed prediction model, the paper proposes the maximal approach, which means to investigate all available input data and reduce dataset dimension through a DM technique. This approach has the advantage of retaining all signals and trends while simultaneously, the model faces an undeniable challenge that is the increased complexity level due to the large input set which may negatively affect prediction efficiency. In another hand, it is a challenging process to set up strategic decisions based on an extensive collection of parameters/inputs. To handle the noted problem a DM based data pre-processing step is proposed by this paper to examine and purify input features. Table 3 summarizes the most frequently used input features (by other researchers) and the features which were available/accessible online.

Table3. Initialize input features

Title Unit Reference(s) Source

Alternative and Nuclear Energy % of total energy use Proposed by authors World Bank

CO2 Emissions metric tons per capita

[36]

World Bank

CO2 Emissions Kt World Bank

(7)

7

Fossil Fuel Energy

Consumption % of total [78] World Bank

GDP Growth annual % [36, 42, 46, 60, 61,

79-87]

World Bank

GDP per Capita current US$ World Bank

Population Growth annual % [33, 39, 40, 60, 61,

79, 81-83, 86-91] World Bank

Urban Population Person [79, 85] World Bank

Gold Price 10:30 A.M.in London Bullion

Market, US$ Proposed by authors World Bank

Natural Gas Production Billion cubic meters Proposed by authors British Petroleum

Oil Consumption Million tones Proposed by authors British Petroleum

Crude Oil Prices US dollars per barrel ($2013) [39, 78, 80, 86, 88,

89, 92] British Petroleum

In machine learning problems, it is very challenging to select a representative collection of features to build the model [93]. Studying more features (a larger feature set), helps to explore more problem dimensions and to reduce the threat of missing potential solutions, but at the same time it may conclude more computational complexity, learning algorithm confusing and over learning.

DM, as a process, generally contains data cleaning, integration, selection, and transformation to discover patterns, evaluate them, and present the extracted knowledge [77, 94]. In knowledge discovery processes, such as DM, the feature subset selection is very crucial, not only for the insight achieved from determining variables, but also for the upgraded reprehensibility, scalability, and the validity of the constructed models [95]. This research uses a correlation-based feature selection (CFs) algorithm to determine the most relevant input features. CFs was initially proposed by Hall in 1999 [93]. The key idea of CFs is the high correlation rate among features and the prediction class (target variable), yet selected features remain uncorrelated with each other [93]. "Best First" [96] and "Greedy Stepwise" [97] searching methods were applied to the CFs to study input dataset using various searching paradigms. Both of searching methods resulted in the same feature subset which means they support each other. Finally, through 13 representative input features (presented in table 3) 6 input features selected as the model’s input, contains: (1) alternative and nuclear energy, (2) CO2 emissions, (3) GDP per capita, (4) urban population, (5) NG production and (6) oil

consumption.

(8)

8

Numerous lag selection approaches exist that contain lag selection as a pre-processing, post-processing, or even as a part of the learning process [98]. Among popular statistical tests based on information criteria pre-processing lag selection methods, Akaike information criteria (AIC), Bayesian information criteria (BIC) and Schwarz Bayesian information criteria (SBIC) are well used [99, 100]. Information criteria methods consider 1 lag (as the minimum number) to p which define intermediate lags. The main hypothesis is to define the lag order p to minimize the following equation:

2 ˆ

( ) ln ( ) ( )

IC p =Np +p f N (1)

Where ˆ ( )2 p is defined as the estimated regression variance, related to the sample size and order p of lag structure, and N is the number of observations [101]. p f N

( )

is the penalty function to increase the order of the model. Different choices of f N( ) cause in different information criteria.

(9)

9

Fig2. Time lag selection results for selected input features (red bars show the time lags that represent higher correlation among the feature versus target attribute for each input feature).

Now, optimum input features are detected. Six selected features are representatives of all 13 identified input features and also the selected subset has been reorganized based on detected time lags.

Although an optimum set of input features have been selected, still input features are asymmetric and the units are different in scales. Data normalization step is investigated to restrain the parameters range influence on the results and adapt values of different features with different domains and scales to a shared scale. The “min-max” normalization method is used to adjust dataset using the following equation:

(10)

10

Where y(i) is an ith element in the column and min{ }y minimum and max{ }y is the

maximum of related column’s elements.

The next sub-section is dedicated to discussing the forecasting framework.

2.3.Designing the forecasting framework:

2.3.1. Artificial neural network:

Computational intelligence methods such as an artificial neural network (ANNs) [102] are modern paradigms to handle complex optimization problems [103-105]. ANN is organized as a simplified abstract of the biological nervous system to emulate neurons mechanism. A neuron is the computation unit of an ANN. Mathematically a neuron is a function, which aimed at dynamically reduce deviation cost. The mathematical description of a neuron presented as follows:

1

( ) ( )

n

j ij i ij j

i

o t f w x tT

=

  

=

 

 

(3)

Where xi and oj respectively are the input and the output at time t, ij defines the delay

between xi and oj. Tj presents the threshold of the jth neuron, while wij is the connection

coefficient from neuron i to neuron j.

An ANN consists of characteristics: the input layer, the hidden layer, the interconnection between different layers, the learning step to find the optimum values of interconnections weights, the transformer function which assigned to produce outputs refer to weighted inputs, the number of neurons performing in each layer and the output layer. Fig 3 schematically presents the architecture of an ANN with a single hidden layer.

Input Layer

Hidden Layer(s)

Output Layer

Fig3. A simple artificial neural network

As it has been shown in the fig.3 neurons are deployed in layers. Nodes of layers in row are connected to show interactions and information flow in an ANN. The connection between node i and j defines by the weight wij and also a bias bi parameter is assigned to each neuron

(11)

11

An ANN has the ability to be trained in order to build a precise network and minimize the lost function via adjusting wij weight matrices [76]. So, the performance of learning algorithm

will define the performance of the ANN. In this paper, genetic algorithm (GA) is used to equip ANN as the learning algorithm. In the next section, GA procedure is explained briefly.

2.3.2. Genetic algorithm:

Training an ANN is very complex which can directly influence outcomes' quality. Recently, numerous academic studies are presented which applied meta-heuristic and intelligent algorithms (i.e. GA) as learning algorithms [107].

GA is an evolutionary optimization approach developed by Holland in 1975 [108] which acts based on random search procedure. Compared to traditional optimization methods the GA has numerous advantages. For example the algorithm converge to a good, feasible solution faster than other existing traditional methods [11]. Series of computational operators like selection, mutation, and crossover functions are used in a GA to achieve a reliable solution. Fig 4 briefly presents the GA procedure.

Set the population size (Np)

Set the maximal iteration number (Nx)

Define the probability of crossover and mutation Randomly produce the starting point (solution) (D0) Select Np Solutions from D set to generate a new solution set through roulette wheel rule.

1.

Initialization

2.

Selection

Select Solutions from the generated solution set (refer to step 2) to exchange genes following crossover strategy.

3.

Crossover

4.

Mutation

Select Solutions from the generated solution set (refer to step 2) to exchange genes following mutation strategy.

5.

Evaluation Compute fitness value F of each solution; Find and

save the best solution Dbest of the n

th

iteration

6.

Output

The best solution: Dbest=min{Dbest of the n

th

iteration, n=0 .. Nx}

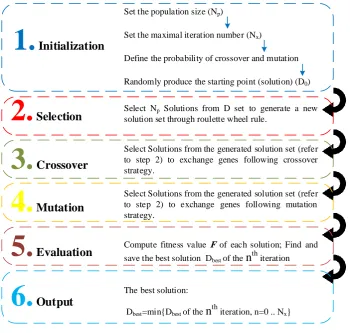

Fig4. The genetic algorithm (GA) procedure

2.3.3. Genetic neural network:

(12)

12

optimization algorithm such as selection, crossover, and mutation rates can be set to design the algorithm. The fitness function is the reciprocal of the quadratic sum of the difference between predicted and real values [109]. Roulette wheel selection is used to select a new individual, then two chromosomes are exchanged via crossover operation to generate a new individual. Finally, mutation step is applied to avoid premature convergence.

Equipping an ANN with a GA could save training time and improve the precision of the forecasting model [109]. Fig 5 schematically shows the flowchart of the presented GNN.

Problem representation and

data preparation

Built the network

Initialize population

End Calculate

fitness

Selection

operation

Crossover

population

Mutation

operation

Convergence

Training

network

No

Yes

Fig5. Flowchart of a GNN

Next section is dedicated to present the architecture of ANN, which is the basic framework of the developed forecasting model.

2.3.4. The architecture of the ANN:

(13)

13

network was designed to perform the prediction so the model contains a three-layer architecture. Fig6 shows the performance of a three-layered NN for three, four, five, six and seven neurons in the hidden layer. Four neurons were used for the hidden layer as it returns the best performance among other tested number of neurons (see fig6).

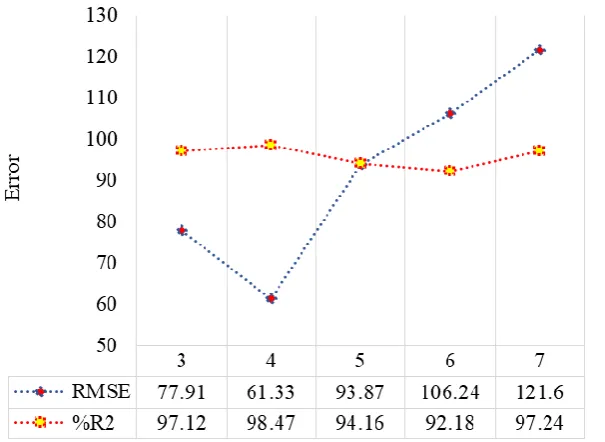

Fig6. Performance of DmGNn for different numbers of neurons (A: R2 statistic for the different number of DmGNn neurons; B: RMSE statistic for the different number of DmGNn neurons)

As it has been represented in fig 6, based on the R2 and root mean square error (RMSE) statistics, four number of neurons the proposed data mining genetic-neural network (DmGNn) model performs better than other examined set.

3. Outputs and Results:

(14)

14

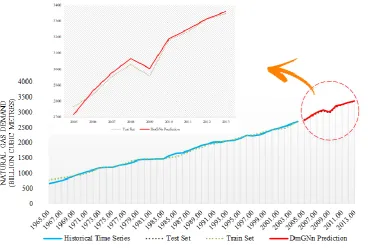

Fig7. Performance of the proposed DmGNn model for the training and testing data sets

Learning models were extensively applied in the case of NG demand predictions [49, 110]. Some competitive prediction models were selected to compare outputs of the proposed model and analysis of the accuracy. Adaptive Neuro-Fuzzy Inference Systems (ANFIS) [111-113] and a set of classical well-known neural network based techniques such as: Radial Basis Function Neural Network (RBF) [114, 115], Multi-Layered Perceptron (MLP) [116, 117] and Generalized Regression Neural Network (GRNN) [118-120] are nominated and optimized (through trial and error processes) to prove the accuracy of the proposed DmGNn model through a comparison study.

To evaluate different models, a set of mathematical criteria organized to measure prediction performance. A relatively large set of validity indicators support the justification of a model usage [8]. These statistics are summarized in table 4 (where yi refers to real historical value

and fi presents forecasting value).

Table4. Used mathematical criteria to evaluate forecast errors

Error Title Abbreviation Formula

R-squared R2 ⁎

Mean Absolute Error MAE

Mean Absolute Percentage Error MAPE

(15)

15

Root Mean Square Error RMSE

* Where, and .

Each model ran for 10 times and the average of outputs was calculated. Table 5 presents the performance of the proposed and competitive models refer to statistics introduced in table 4.

Table5. Statistical errors for each prediction model

As it is shown in table 5 the proposed DmGNn significantly outperforms other competitive models. The pattern of the absolute error for each model is shown in Fig 8, which represents how various forecasting models behave along the test period. As it is shown the proposed DmGNn outperforms other benchmark forecasting models (with lower absolute error value for forecasting period) and resulted in a robust forecast series (unlike other forecasting models DmGNn’s forecast errors showed a low swing pattern).

Models Characteristics R2 MAE MAPE MBE RMSE

DmGNn

Number of Neurons= 4; Maximum generation= 100; Cross Over Probability=0.8; Mutation Probability= 0.05;

0.9847 52.19 1.69 13.54 61.33

MLP Maximum Epochs= 200;

Train Parameter Goal= 1e-7; 0.8241 115.59 3.80 -44.85 145.61

ANFIS

FIS Generation Approach: FCM; Number of Clusters= 10; Partition Matrix exponent= 2;

0.8494 63.45 1.89 21.31 84.31

RBF Spread Value= 0.17; 0.0018 308.64 10.42 -308.64 366.51

(16)

16

0 100 200 300 400 500 600 700

2005 2006 2007 2008 2009 2010 2011 2012 2013

A

b

s

o

lu

te

E

r

r

o

r

s

Year

DmGNn MLP ANFIS RBE GRNN

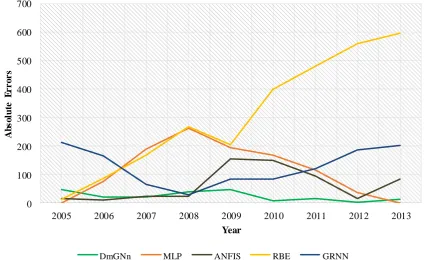

Fig8. Absolute error for each forecasting model along the testing period

Yet table 5 and fig 8 showed how the proposed GNN model overcame other benchmark models. To show the efficiency of the data mining phases, both pre-processed and raw data were applied to the design forecasting model. Fig 9 and table 6 compared the results.

Table 6. Statistical errors for different input vectors (raw versus processed)

Input protocol R2 MAE MAPE MBE RMSE

Processed data 0.9847 52.19 1.69 13.54 61.33

(17)

17 0

20 40 60 80 100 120

2005 2006 2007 2008 2009 2010 2011 2012

A

b

so

lu

te

Er

r

o

r

s

Year

Fig9. Absolute error for each different input protocols along the testing period

4. Conclusion:

Energy is a major topic both in practice and theory which many researchers investigated issues related to energy sectors and industries. The international energy supply system is characterized by a complicated combination of technological, social, economic and political elements. Predicting and planning for future global energy market is an interesting and simultaneously a challenging subject in both research and practical investment projects. Thus accurate prediction of energy demand is critical to developing future policies, modify current plans and evaluate potential strategies. This paper primary targeted to provide an accurate and robust prediction model to predict the global natural gas demands. In other hand authors aimed at introducing a process which reduces problem space dimensions to define the most relevant features which affect NG future consumption trends. So policymakers can monitor and manipulate NG market refers to extracted features.

(18)

18

Investigating suitable time lags will cause in a more accurate and rational prediction model, which guarantees synchronization between input features and the target attribute at t time step. Finally, a neural network framework is developed which equipped using a genetic algorithm to optimize the network’s characteristics aimed to predict future NG global demands.

Four comparative models are investigated to study the performance of the proposed data mining genetic-neural network (DmGNn) model. The proposed DmGNn model outperforms other benchmark models refer to 5 different error statistics. Based on the R2 statistic the DmGNn track real testing set fluctuations very well (only missed about 2%). Moreover, to distinct how the proposed pre-processing step affects the model accuracy, DmGNn model compared to a single GNn (without processing step). As shown the proposed pre-processing step improves predictions both in term of accuracy and reliability (robustness). Moreover, based on the interpretative capability index, the DmGNn dedicates a more clear vision about future trends since it uses a smaller input dataset. A limited input feature set enables decision makers to design responsive policies/strategies/actions as they aware of attributes affecting the global NG demands.

The proposed DmGNn is characterized by high flexibility, universal operation, learning ability and low requirements for computation resources. As a result, it can be used by decision makers and market participants who face a complex environment.

References:

1. BP, Statistical Review of World Energy. 2016. 2. IEA, World Energy Outlook. 2016.

3. EIA, Annual Energy Outlook. 2017. 4. EIA, Annual Energy Outlook. 2016.

5. Hafezi, R., A. Akhavan, and S. Pakseresht, Projecting plausible futures for Iranian oil and gas industries: Analyzing of historical strategies. Journal of Natural Gas Science and Engineering, 2017. 39: p. 15-27.

6. Alipour, M., et al., A new hybrid fuzzy cognitive map-based scenario planning approach for Iran's oil production pathways in the post-sanction period. Energy, 2017. 135: p. 851e864.

7. Hafezi, R., M. Bahrami, and A.N. Akhavan, Sustainability in development: rethinking about old paradigms. World Review of Science, Technology and Sustainable Development, 2017. 13(2): p. 192-204.

8. Panapakidis, I.P. and A.S. Dagoumas, Day-ahead natural gas demand forecasting based on the combination of wavelet transform and ANFIS/genetic algorithm/neural network model. Energy, 2017. 118: p. 231-245.

(19)

19

10. Júnior, S.E.R. and G.L. de Oliveira Serra, A novel intelligent approach for state space evolving forecasting of seasonal time series. Engineering Applications of Artificial Intelligence, 2017. 64: p. 272-285.

11. Ervural, B.C., O.F. Beyca, and S. Zaim, Model Estimation of ARMA Using Genetic Algorithms: A Case Study of Forecasting Natural Gas Consumption. Procedia-Social and Behavioral Sciences, 2016. 235: p. 537-545.

12. Zhu, L., et al., Short-term natural gas demand prediction based on support vector regression with false neighbours filtered. Energy, 2015. 80: p. 428-436.

13. Xu, N., Y. Dang, and Y. Gong, Novel grey prediction model with nonlinear optimized time response method for forecasting of electricity consumption in China. Energy, 2016.

14. Bianco, V., F. Scarpa, and L.A. Tagliafico, Scenario analysis of nonresidential natural gas consumption in Italy. Applied Energy, 2014. 113: p. 392-403.

15. Baldacci, L., et al., Natural gas consumption forecasting for anomaly detection. Expert Systems with Applications, 2016. 62: p. 190-201.

16. Zavanella, L., et al., Energy demand in production systems: A Queuing Theory perspective. International Journal of Production Economics, 2015. 170: p. 393-400. 17. Baumeister, C. and L. Kilian, Real-time analysis of oil price risks using forecast

scenarios. 2011.

18. Dilaver, Ö., Z. Dilaver, and L.C. Hunt, What drives natural gas consumption in Europe? Analysis and projections. Journal of Natural Gas Science and Engineering, 2014. 19: p. 125-136.

19. Li, J., et al., Forecasting the growth of China’s natural gas consumption. Energy, 2011. 36(3): p. 1380-1385.

20. Suganthi, L. and A.A. Samuel, Energy models for demand forecasting—A review. Renewable and sustainable energy reviews, 2012. 16(2): p. 1223-1240.

21. Aras, H. and N. Aras, Forecasting residential natural gas demand. Energy Sources, 2004. 26(5): p. 463-472.

22. Erdogdu, E., Natural gas demand in Turkey. Applied Energy, 2010. 87(1): p. 211-219.

23. Gori, F., D. Ludovisi, and P. Cerritelli, Forecast of oil price and consumption in the short term under three scenarios: Parabolic, linear and chaotic behaviour. Energy, 2007. 32(7): p. 1291-1296.

24. Kumar, U. and V. Jain, Time series models (Grey-Markov, Grey Model with rolling mechanism and singular spectrum analysis) to forecast energy consumption in India. Energy, 2010. 35(4): p. 1709-1716.

25. Akkurt, M., O.F. Demirel, and S. Zaim, Forecasting Turkey’s natural gas consumption by using time series methods. European Journal of Economic and Political Studies, 2010. 3(2): p. 1-21.

(20)

20

27. Fagiani, M., et al., A review of datasets and load forecasting techniques for smart natural gas and water grids: Analysis and experiments. Neurocomputing, 2015. 170: p. 448-465.

28. Shi, G., D. Liu, and Q. Wei, Energy consumption prediction of office buildings based on echo state networks. Neurocomputing, 2016. 216: p. 478-488.

29. Zhang, W. and J. Yang, Forecasting natural gas consumption in China by Bayesian model averaging. Energy Reports, 2015. 1: p. 216-220.

30. Taşpınar, F., N. Celebi, and N. Tutkun, Forecasting of daily natural gas consumption on regional basis in Turkey using various computational methods. Energy and Buildings, 2013. 56: p. 23-31.

31. Dalfard, V.M., et al., A mathematical modeling for incorporating energy price hikes into total natural gas consumption forecasting. Applied Mathematical Modelling, 2013. 37(8): p. 5664-5679.

32. Bianco, V., F. Scarpa, and L.A. Tagliafico, Analysis and future outlook of natural gas consumption in the Italian residential sector. Energy Conversion and Management, 2014. 87: p. 754-764.

33. Gorucu, F., Evaluation and forecasting of gas consumption by statistical analysis. Energy Sources, 2004. 26(3): p. 267-276.

34. O’Neill, B.C. and M. Desai, Accuracy of past projections of US energy consumption. Energy Policy, 2005. 33(8): p. 979-993.

35. Adams, F.G. and Y. Shachmurove, Modeling and forecasting energy consumption in China: Implications for Chinese energy demand and imports in 2020. Energy economics, 2008. 30(3): p. 1263-1278.

36. Ramanathan, R., A multi-factor efficiency perspective to the relationships among world GDP, energy consumption and carbon dioxide emissions. Technological Forecasting and Social Change, 2006. 73(5): p. 483-494.

37. Lu, W. and Y. Ma, Image of energy consumption of well off society in China. Energy Conversion and Management, 2004. 45(9): p. 1357-1367.

38. Hunt, L.C. and Y. Ninomiya, Primary energy demand in Japan: an empirical analysis of long-term trends and future CO 2 emissions. Energy Policy, 2005. 33(11): p. 1409-1424.

39. Iniyan, S., L. Suganthi, and A.A. Samuel, Energy models for commercial energy prediction and substitution of renewable energy sources. Energy Policy, 2006. 34(17): p. 2640-2653.

40. Sözen, A., E. Arcaklioğlu, and M. Özkaymak, Turkey’s net energy consumption. Applied Energy, 2005. 81(2): p. 209-221.

41. Ermis, K., et al., Artificial neural network analysis of world green energy use. Energy Policy, 2007. 35(3): p. 1731-1743.

(21)

21

43. Sözen, A., Z. Gülseven, and E. Arcaklioğlu, Forecasting based on sectoral energy consumption of GHGs in Turkey and mitigation policies. Energy Policy, 2007. 35(12): p. 6491-6505.

44. Geem, Z.W. and W.E. Roper, Energy demand estimation of South Korea using artificial neural network. Energy policy, 2009. 37(10): p. 4049-4054.

45. Forouzanfar, M., et al., Modeling and estimation of the natural gas consumption for residential and commercial sectors in Iran. Applied Energy, 2010. 87(1): p. 268-274. 46. Ekonomou, L., Greek long-term energy consumption prediction using artificial neural

networks. Energy, 2010. 35(2): p. 512-517.

47. Rodger, J.A., A fuzzy nearest neighbor neural network statistical model for predicting demand for natural gas and energy cost savings in public buildings. Expert Systems with Applications, 2014. 41(4): p. 1813-1829.

48. Aydinalp-Koksal, M. and V.I. Ugursal, Comparison of neural network, conditional demand analysis, and engineering approaches for modeling end-use energy consumption in the residential sector. Applied Energy, 2008. 85(4): p. 271-296. 49. Aramesh, A., N. Montazerin, and A. Ahmadi, A general neural and fuzzy-neural

algorithm for natural gas flow prediction in city gate stations. Energy and Buildings, 2014. 72: p. 73-79.

50. Szoplik, J., Forecasting of natural gas consumption with artificial neural networks. Energy, 2015. 85: p. 208-220.

51. Soldo, B., et al., Improving the residential natural gas consumption forecasting models by using solar radiation. Energy and buildings, 2014. 69: p. 498-506.

52. Izadyar, N., et al., Intelligent forecasting of residential heating demand for the District Heating System based on the monthly overall natural gas consumption. Energy and Buildings, 2015. 104: p. 208-214.

53. González-Romera, E., M.Á. Jaramillo-Morán, and D. Carmona-Fernández, Forecasting of the electric energy demand trend and monthly fluctuation with neural networks. Computers & Industrial Engineering, 2007. 52(3): p. 336-343.

54. Lee, Y.-S. and L.-I. Tong, Forecasting energy consumption using a grey model improved by incorporating genetic programming. Energy Conversion and Management, 2011. 52(1): p. 147-152.

55. Ozturk, H.K., et al., Estimating petroleum exergy production and consumption using vehicle ownership and GDP based on genetic algorithm approach. Renewable and Sustainable Energy Reviews, 2004. 8(3): p. 289-302.

56. Yu, F. and X. Xu, A short-term load forecasting model of natural gas based on optimized genetic algorithm and improved BP neural network. Applied Energy, 2014. 134: p. 102-113.

57. Askari, S., N. Montazerin, and M.F. Zarandi, Forecasting semi-dynamic response of natural gas networks to nodal gas consumptions using genetic fuzzy systems. Energy, 2015. 83: p. 252-266.

(22)

22

59. Mousavi, S.M., E.S. Mostafavi, and F. Hosseinpour, Gene expression programming as a basis for new generation of electricity demand prediction models. Computers & Industrial Engineering, 2014. 74: p. 120-128.

60. Toksarı, M.D., Ant colony optimization approach to estimate energy demand of Turkey. Energy Policy, 2007. 35(8): p. 3984-3990.

61. Ünler, A., Improvement of energy demand forecasts using swarm intelligence: The case of Turkey with projections to 2025. Energy Policy, 2008. 36(6): p. 1937-1944. 62. Paudel, S., et al., A relevant data selection method for energy consumption prediction

of low energy building based on support vector machine. Energy and Buildings, 2017. 138: p. 240-256.

63. Amasyali, K. and N. El-Gohary, Building Lighting Energy Consumption Prediction for Supporting Energy Data Analytics. Procedia Engineering, 2016. 145: p. 511-517. 64. Azadeh, A., et al., A neuro-fuzzy algorithm for improved gas consumption forecasting

with economic, environmental and IT/IS indicators. Journal of Petroleum Science and Engineering, 2015. 133: p. 716-739.

65. Sun, J., Energy demand in the fifteen European Union countries by 2010—: A forecasting model based on the decomposition approach. Energy, 2001. 26(6): p. 549-560.

66. Tao, Z., Scenarios of China's oil consumption per capita (OCPC) using a hybrid Factor Decomposition–System Dynamics (SD) simulation. Energy, 2010. 35(1): p. 168-180.

67. Alcántara, V., P. del Río, and F. Hernández, Structural analysis of electricity consumption by productive sectors. The Spanish case. Energy, 2010. 35(5): p. 2088-2098.

68. Liu, X., B. Moreno, and A.S. García, A grey neural network and input-output combined forecasting model. Primary energy consumption forecasts in Spanish economic sectors. Energy, 2016. 115: p. 1042-1054.

69. Huang, Y., Y.J. Bor, and C.-Y. Peng, The long-term forecast of Taiwan’s energy supply and demand: LEAP model application. Energy policy, 2011. 39(11): p. 6790-6803.

70. Shabbir, R. and S.S. Ahmad, Monitoring urban transport air pollution and energy demand in Rawalpindi and Islamabad using leap model. Energy, 2010. 35(5): p. 2323-2332.

71. Rout, U.K., et al., Energy and emissions forecast of China over a long-time horizon. Energy, 2011. 36(1): p. 1-11.

72. Wang, Z.-X. and D.-J. Ye, Forecasting Chinese carbon emissions from fossil energy consumption using non-linear grey multivariable models. Journal of Cleaner Production, 2017. 142: p. 600-612.

73. Zeng, B. and C. Li, Forecasting the natural gas demand in China using a self-adapting intelligent grey model. Energy, 2016. 112: p. 810-825.

(23)

23

75. FazelZarandi, M.H., E. Hadavandi, and I.B. Turksen, A Hybrid Fuzzy Intelligent Agent-Based System for Stock Price Prediction. International Journal of Intelligent Systems, 2012. 27(11): p. 1-23.

76. Hafezi, R., J. Shahrabi, and E. Hadavandi, A bat-neural network multi-agent system (BNNMAS) for stock price prediction: Case study of DAX stock price. Applied Soft Computing, 2015. 29: p. 196-210.

77. Han, J., J. Pei, and M. Kamber, Data mining: concepts and techniques. 2011: Elsevier.

78. Arsenault, E., et al., A total energy demand model of Québec: Forecasting properties. Energy Economics, 1995. 17(2): p. 163-171.

79. Tolmasquim, M.T., C. Cohen, and A.S. Szklo, CO 2 emissions in the Brazilian industrial sector according to the integrated energy planning model (IEPM). Energy Policy, 2001. 29(8): p. 641-651.

80. Intarapravich, D., et al., 3. Asia-Pacific energy supply and demand to 2010. Energy, 1996. 21(11): p. 1017-1039.

81. Raghuvanshi, S.P., A. Chandra, and A.K. Raghav, Carbon dioxide emissions from coal based power generation in India. Energy Conversion and Management, 2006. 47(4): p. 427-441.

82. Mackay, R. and S. Probert, Crude oil and natural gas supplies and demands up to the year AD 2010 for France. Applied energy, 1995. 50(3): p. 185-208.

83. Parikh, J., P. Purohit, and P. Maitra, Demand projections of petroleum products and natural gas in India. Energy, 2007. 32(10): p. 1825-1837.

84. Nel, W.P. and C.J. Cooper, A critical review of IEA's oil demand forecast for China. Energy Policy, 2008. 36(3): p. 1096-1106.

85. Zhang, M., et al., Forecasting the transport energy demand based on PLSR method in China. Energy, 2009. 34(9): p. 1396-1400.

86. Dincer, I. and S. Dost, Energy and GDP. International Journal of Energy Research, 1997. 21(2): p. 153-167.

87. Kankal, M., et al., Modeling and forecasting of Turkey’s energy consumption using socio-economic and demographic variables. Applied Energy, 2011. 88(5): p. 1927-1939.

88. Suganthi, L. and T. Jagadeesan, A modified model for prediction of India's future energy requirement. Energy & Environment, 1992. 3(4): p. 371-386.

89. Suganthi, L. and A. Williams, Renewable energy in India—a modelling study for 2020–2021. Energy policy, 2000. 28(15): p. 1095-1109.

90. Ceylan, H. and H.K. Ozturk, Estimating energy demand of Turkey based on economic indicators using genetic algorithm approach. Energy Conversion and Management, 2004. 45(15): p. 2525-2537.

(24)

24

92. Persaud, A.J. and U. Kumar, An eclectic approach in energy forecasting: a case of Natural Resources Canada's (NRCan's) oil and gas outlook. Energy policy, 2001. 29(4): p. 303-313.

93. Hall, M.A., Correlation-based feature selection for machine learning. 1999, The University of Waikato.

94. Wang, J., Y.-I. Lin, and S.-Y. Hou, A data mining approach for training evaluation in simulation-based training. Computers & Industrial Engineering, 2015. 80: p. 171-180.

95. Kim, Y., W.N. Street, and F. Menczer, Feature selection in data mining. Data mining: opportunities and challenges, 2003. 3(9): p. 80-105.

96. Rich, E. and K. Knight, Artificial intelligence. McGraw-Hill, New, 1991.

97. Freitag, D. Greedy attribute selection. in Machine Learning Proceedings 1994: Proceedings of the Eighth International Conference. 2014. Morgan Kaufmann.

98. Parras-Gutierrez, E., et al., Short, medium and long term forecasting of time series using the L-Co-R algorithm. neurocomputing, 2014 128: p. 433–446.

99. Winker, P., Optimized multivariate lag structure selection. Computational Economics, 2000. 16: p. 87-103.

100. Shahrabi, J., E. Hadavandi, and S. Asadi, Developing a hybrid intelligent model for forecasting problems: Case study of tourism demand time series. Knowledge-Based Systems, 2013. 43: p. 112-122.

101. Burnham, K.P. and D.R. Anderson, Multimodel inference: understanding AIC and BIC in Model Selection. Sociological Methods and Research, 2004. 33: p. 261-304. 102. Rumelhart, D.E., J.L. McClelland, and P.R. Group, Parallel distributed processing:

Explorations in the microstructures of cognition. Volume 1: Foundations. 1986, The MIT Press, Cambridge, MA.

103. Hadavandi, E., J. Shahrabi, and Y. Hayashi, SPMoE: a novel subspace-projected mixture of experts model for multi-target regression problems. Soft Computing, 2016. 20(5): p. 2047-2065.

104. Hadavandi, E., J. Shahrabi, and S. Shamshirband, A novel Boosted-neural network ensemble for modeling multi-target regression problems. Engineering Applications of Artificial Intelligence, 2015. 45: p. 204-219.

105. Kourentzes, N., Intermittent demand forecasts with neural networks. International Journal of Production Economics, 2013. 143(1): p. 198-206.

106. Teixeira, J.P. and P.O. Fernandesa, Tourism Time Series Forecast -Different ANN Architectures with Time Index Input. Procedia Technology, 2012. 5: p. 445-454. 107. Yadav, A.K. and S. Chandel, Solar radiation prediction using Artificial Neural

Network techniques: A review. Renewable and Sustainable Energy Reviews, 2014. 33: p. 772-781.

108. Holland, J.H., Genetic algorithms. Scientific american, 1992. 267(1): p. 66-72.

(25)

25

110. Biswas, M.R., M.D. Robinson, and N. Fumo, Prediction of residential building energy consumption: A neural network approach. Energy, 2016. 117: p. 84-92.

111. Anemangely, M., A. Ramezanzadeh, and B. Tokhmechi, Shear wave travel time estimation from petrophysical logs using ANFIS-PSO algorithm: A case study from Ab-Teymour Oilfield. Journal of Natural Gas Science and Engineering, 2017.

112. Zendehboudi, A., X. Li, and B. Wang, Utilization of ANN and ANFIS models to predict variable speed scroll compressor with vapor injection. International Journal of Refrigeration, 2017. 74: p. 473-485.

113. Abdi, J., et al., Forecasting of short-term traffic-flow based on improved neurofuzzy models via emotional temporal difference learning algorithm. Engineering Applications of Artificial Intelligence, 2012. 25(5): p. 1022-1042.

114. Fath, A.H., Application of radial basis function neural networks in bubble point oil formation volume factor prediction for petroleum systems. Fluid Phase Equilibria, 2017.

115. Mohammadi, R., S.F. Ghomi, and F. Zeinali, A new hybrid evolutionary based RBF networks method for forecasting time series: a case study of forecasting emergency supply demand time series. Engineering Applications of Artificial Intelligence, 2014. 36: p. 204-214.

116. Heidari, E., M.A. Sobati, and S. Movahedirad, Accurate prediction of nanofluid viscosity using a multilayer perceptron artificial neural network (MLP-ANN). Chemometrics and Intelligent Laboratory Systems, 2016. 155: p. 73-85.

117. Hafezi, R. and A.N. Akhavan, Forecasting Gold Price Changes: Application of an Equipped Artificial Neural Network. AUT Journal of Modeling and Simulation, 2018. 118. Park, J. and K.-Y. Kim, Meta-modeling using generalized regression neural network

and particle swarm optimization. Applied Soft Computing, 2017. 51: p. 354-369. 119. Hu, R., et al., A short-term power load forecasting model based on the generalized

regression neural network with decreasing step fruit fly optimization algorithm. Neurocomputing, 2017. 221: p. 24-31.

Figure

Table 1. Analyzing previous studies, based on their approaches to address energy consumption prediction problem
Fig4. The genetic algorithm (GA) procedure
Fig5. Flowchart of a GNN
Fig6. Performance of DmGNn for different numbers of neurons (A: R2 statistic for the different number of DmGNn neurons; B: RMSE statistic for the different number of DmGNn neurons)
+3

References

Related documents

It puts forward an analogy based currency option pricing formula that provides an explanation for the implied volatility smile in currency options.. It contains

Finnish Championships rules apply for Optimist and Europe Youth Championships 1.3 RRS G3 applies for loaned and chartered boats having permission of race committee.. 1.4 Decisions

Berdasarkan hasil kajian di atas jelas terlihat bahwa klasifikasi fase retinopati diabetes menggunakan ekstraksi ciri 3D-GLCM Projection memberikan hasil yang lebih

Preprocedural fasting state and adverse events in children undergoing procedural sedation and analgesia in a pediatric emergency department. Annals of Emergency Medicine 2003; 42 :

(2017) used sodium selenate as a Se source in concentrations of approximately 0.79 and 7.9 mg L -1 ; supplementation with Se did not negatively affect growth, fruit yield,

MOLLER PEDERSEN Sarah RAHMANNSHOF'S DALISCO 17 0026 WESTF/2005/Gelding/Bay/Darco x Jalisco B DEN Annemarie Straumann HOWLEY Cirian LUXOR 15 18 0247 OLDBG/2005/Gelding/Bay/Landfein

Although Knight-Piesold considers that Maximum Design Earthquake for the Pebble dam design to be the Maximum Credible Earthquake, an examination of Table 3.1 of the report reveals

People should also need the items stocked in the vending machines, so the target customers must be considered when deciding where to site the vending. machine and what products
