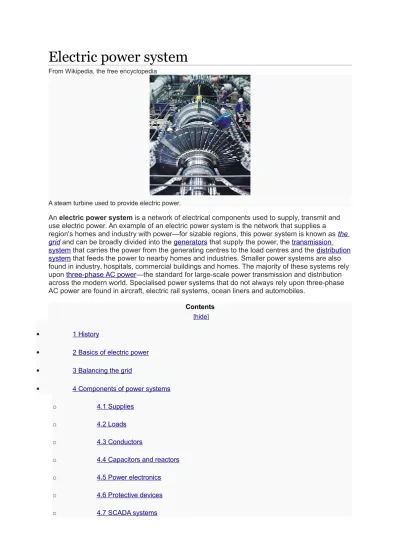

Electric power system
From Wikipedia, the free encyclopediaA steam turbine used to provide electric power.
An electric power system is a network of electrical components used to supply, transmit and use electric power. An example of an electric power system is the network that supplies a region's homes and industry with power—for sizable regions, this power system is known as the grid and can be broadly divided into the generators that supply the power, the transmission system that carries the power from the generating centres to the load centres and the distribution system that feeds the power to nearby homes and industries. Smaller power systems are also found in industry, hospitals, commercial buildings and homes. The majority of these systems rely upon three-phase AC power—the standard for large-scale power transmission and distribution across the modern world. Specialised power systems that do not always rely upon three-phase AC power are found in aircraft, electric rail systems, ocean liners and automobiles.
Contents [hide] 1 History
2 Basics of electric power 3 Balancing the grid
4 Components of power systems o 4.1 Supplies
o 4.2 Loads o 4.3 Conductors
o 4.4 Capacitors and reactors o 4.5 Power electronics o 4.6 Protective devices o 4.7 SCADA systems
5 Power systems in practice
o 5.1 Residential power systems o 5.2 Commercial power systems 6 References
7 External links
History
[
edit
]
A sketch of the Pearl Street Station
In 1881 two electricians built the world's first power system at Godalming in England. It was powered by a power station consisting of two waterwheels that produced an alternating current that in turn supplied seven Siemens arc lamps at 250 volts and 34 incandescent lamps at 40 volts.[1] However supply to the lamps was intermittent and in 1882 Thomas Edison and his
company, The Edison Electric Light Company, developed the first steam powered electric power station on Pearl Street in New York City. The Pearl Street Station initially powered around 3,000 lamps for 59 customers.[2][3] The power station used direct current and operated at a single voltage. Direct current power could not be easily transformed to the higher voltages necessary to minimise power loss during long-distance transmission, so the maximum economic distance between the generators and load was limited to around half-a-mile (800 m).[4]
That same year in London Lucien Gaulard and John Dixon Gibbs demonstrated the first transformer suitable for use in a real power system. The practical value of Gaulard and Gibbs' transformer was demonstrated in 1884 at Turin where the transformer was used to light up forty kilometres (25 miles) of railway from a single alternating current generator.[5] Despite the success
of the system, the pair made some fundamental mistakes. Perhaps the most serious was connecting the primaries of the transformers in series so that active lamps would affect the brightness of other lamps further down the line. Following the demonstration George
Westinghouse, an American entrepreneur, imported a number of the transformers along with a Siemens generator and set his engineers to experimenting with them in the hopes of improving them for use in a commercial power system. In July 1888, Westinghouse also licensed Nikola Tesla's US patents for a polyphase AC induction motor and transformer designs and hired Tesla for one year to be a consultant at the Westinghouse Electric & Manufacturing
One of Westinghouse's engineers, William Stanley, recognised the problem with connecting transformers in series as opposed to parallel and also realised that making the iron core of a transformer a fully enclosed loop would improve the voltage regulation of the secondary winding. Using this knowledge he built a much improved alternating current power system at Great Barrington, Massachusetts in 1886.[7]
By 1890 the electric power industry was flourishing, and power companies had built thousands of power systems (both direct and alternating current) in the United States and Europe. These networks were effectively dedicated to providing electric lighting. During this time a fierce rivalry known as the "War of Currents" emerged between Thomas Edison and George Westinghouse over which form of transmission (direct or alternating current) was superior.[8] In 1891,
Westinghouse installed the first major power system that was designed to drive a 100
horsepower (75 kW) synchronous electric motor, not just provide electric lighting, at Telluride, Colorado.[9] On the other side of the Atlantic, Oskar von Miller built a 20 kV 176 km three-phase
transmission line from Lauffen am Neckar to Frankfurt am Main for the Electrical Engineering Exhibition in Frankfurt.[10] In 1895, after a protracted decision-making process, the Adams No. 1
generating station at Niagara Falls began transferring three-phase alternating current power to Buffalo at 11 kV. Following completion of the Niagara Falls project, new power systems
increasingly chose alternating current as opposed to direct current for electrical transmission.[11]
Developments in power systems continued beyond the nineteenth century. In 1936 the first experimental HVDC (high voltage direct current) line using mercury arc valves was built between Schenectady and Mechanicville, New York. HVDC had previously been achieved by series-connected direct current generators and motors (the Thury system) although this suffered from serious reliability issues.[12] In 1957 Siemens demonstrated the first solid-state rectifier, but it
was not until the early 1970s that solid-state devices became the standard in HVDC.[13] In recent
times, many important developments have come from extending innovations in the ICT field to the power engineering field. For example, the development of computers meant load flow studies could be run more efficiently allowing for much better planning of power systems. Advances in information technology and telecommunication also allowed for remote control of a power system's switchgear and generators.
Basics of electric power
[
edit
]
An external AC to DC power adapter used for household appliances
Electric power is the product of two quantities: current and voltage. These two quantities can vary with respect to time (AC power) or can be kept at constant levels (DC power).
Most refrigerators, air conditioners, pumps and industrial machinery use AC power whereas most computers and digital equipment use DC power (the digital devices you plug into the mains typically have an internal or external power adapter to convert from AC to DC power). AC power has the advantage of being easy to transform between voltages and is able to be generated and utilised by brushless machinery. DC power remains the only practical choice in digital systems and can be more economical to transmit over long distances at very high voltages (see HVDC).[14] [15]
The ability to easily transform the voltage of AC power is important for two reasons: Firstly, power can be transmitted over long distances with less loss at higher voltages. So in power systems
where generation is distant from the load, it is desirable to step-up (increase) the voltage of power at the generation point and then step-down (decrease) the voltage near the load.
Secondly, it is often more economical to install turbines that produce higher voltages than would be used by most appliances, so the ability to easily transform voltages means this mismatch between voltages can be easily managed.[14]
Solid state devices, which are products of the semiconductor revolution, make it possible to transform DC power to different voltages, build brushless DC machines and convert between AC and DC power. Nevertheless devices utilising solid state technology are often more expensive than their traditional counterparts, so AC power remains in widespread use.[16]
Balancing the grid
[
edit
]
One of the main difficulties in power systems is that the amount of active power consumed plus losses should always equal the active power produced. If more power would be produced than consumed the frequency would rise and vice versa. Even small deviations from the nominal frequency value would damage synchronous machines and other appliances. Making sure the frequency is constant is usually the task of a transmission system operator. In some countries (for example in the European Union) this is achieved through a balancing market using ancillary services.[17]
Components of power systems
[
edit
]
Supplies
[
edit
]
The majority of the world's power still comes from coal-fired power stations like this.
All power systems have one or more sources of power. For some power systems, the source of power is external to the system but for others it is part of the system itself—it is these internal power sources that are discussed in the remainder of this section. Direct current power can be supplied by batteries, fuel cells or photovoltaic cells. Alternating current power is typically supplied by a rotor that spins in a magnetic field in a device known as a turbo generator. There have been a wide range of techniques used to spin a turbine's rotor, from steam heated
using fossil fuel (including coal, gas and oil) or nuclear energy, falling water (hydroelectric power) and wind (wind power).
The speed at which the rotor spins in combination with the number of generator poles
determines the frequency of the alternating current produced by the generator. All generators on a single synchronous system, for example the national grid, rotate at sub-multiples of the same speed and so generate electrical current at the same frequency. If the load on the system increases, the generators will require more torque to spin at that speed and, in a typical power station, more steam must be supplied to the turbines driving them. Thus the steam used and the fuel expended are directly dependent on the quantity of electrical energy supplied. An exception exists for generators incorporating power electronics such as gearless wind turbines or linked to a grid through an asynchronous tie such as a HVDC link — these can operate at frequencies independent of the power system frequency.
Depending on how the poles are fed, alternating current generators can produce a variable number of phases of power. A higher number of phases leads to more efficient power system operation but also increases the infrastructure requirements of the system.[18]
Electricity grid systems connect multiple generators and loads operating at the same frequency and number of phases, the commonest being three-phase at 50 or 60 Hz. However there are other considerations. These range from the obvious: How much power should the generator be able to supply? What is an acceptable length of time for starting the generator (some generators can take hours to start)? Is the availability of the power source acceptable (some renewables are only available when the sun is shining or the wind is blowing)? To the more technical: How should the generator start (some turbines act like a motor to bring themselves up to speed in which case they need an appropriate starting circuit)? What is the mechanical speed of operation for the turbine and consequently what are the number of poles required? What type of generator is suitable (synchronous or asynchronous) and what type of rotor (squirrel-cage rotor, wound rotor, salient pole rotor or cylindrical rotor)?[19]
Loads
[
edit
]
A toaster is great example of a single-phase load that might appear in a residence. Toasters typically draw 2 to 10 amps at 110 to 260 volts consuming around 600 to 1200 watts of power
Power systems deliver energy to loads that perform a function. These loads range from household appliances to industrial machinery. Most loads expect a certain voltage and, for alternating current devices, a certain frequency and number of phases. The appliances found in your home, for example, will typically be single-phase operating at 50 or 60 Hz with a voltage between 110 and 260 volts (depending on national standards). An exception exists for
centralized air conditioning systems as these are now typically three-phase because this allows them to operate more efficiently. All devices in your house will also have a wattage, this specifies the amount of power the device consumes. At any one time, the net amount of power consumed by the loads on a power system must equal the net amount of power produced by the supplies less the power lost in transmission.[20][21]
Making sure that the voltage, frequency and amount of power supplied to the loads is in line with expectations is one of the great challenges of power system engineering. However it is not the only challenge, in addition to the power used by a load to do useful work (termed real power) many alternating current devices also use an additional amount of power because they cause the alternating voltage and alternating current to become slightly out-of-sync (termed reactive power). The reactive power like the real power must balance (that is the reactive power produced on a system must equal the reactive power consumed) and can be supplied from the generators, however it is often more economical to supply such power from capacitors (see "Capacitors and reactors" below for more details).[22]
A final consideration with loads is to do with power quality. In addition to sustained overvoltages and undervoltages (voltage regulation issues) as well as sustained deviations from the system frequency (frequency regulation issues), power system loads can be adversely affected by a range of temporal issues. These include voltage sags, dips and swells, transient overvoltages, flicker, high frequency noise, phase imbalance and poor power factor.[23] Power quality issues
occur when the power supply to a load deviates from the ideal: For an AC supply, the ideal is the current and voltage in-sync fluctuating as a perfect sine wave at a prescribed frequency with the
voltage at a prescribed amplitude. For DC supply, the ideal is the voltage not varying from a prescribed level. Power quality issues can be especially important when it comes to specialist industrial machinery or hospital equipment.
Conductors
[
edit
]
Conductors carry power from the generators to the load. In a grid, conductors may be classified as belonging to the transmission system, which carries large amounts of power at high voltages (typically more than 69 kV) from the generating centres to the load centres, or the distribution system, which feeds smaller amounts of power at lower voltages (typically less than 69 kV) from the load centres to nearby homes and industry.[24]
Choice of conductors is based upon considerations such as cost, transmission losses and other desirable characteristics of the metal like tensile strength. Copper, with lower resistivity than aluminium, was the conductor of choice for most power systems. However, aluminum has lower cost for the same current carrying capacity and is the primary metal used for transmission line conductors. Overhead line conductors may be reinforced with steel or aluminum alloys.[25]
Conductors in exterior power systems may be placed overhead or underground. Overhead conductors are usually air insulated and supported on porcelain, glass or polymer insulators. Cables used for underground transmission or building wiring are insulated with cross-linked polyethylene or other flexible insulation. Large conductors are stranded for ease of handling; small conductors used for building wiring are often solid, especially in light commercial or residential construction.[26]
Conductors are typically rated for the maximum current that they can carry at a given
temperature rise over ambient conditions. As current flow increases through a conductor it heats up. For insulated conductors, the rating is determined by the insulation.[27] For overhead
conductors, the rating is determined by the point at which the sag of the conductors would become unacceptable.[28]
Capacitors and reactors
[
edit
]
The majority of the load in a typical AC power system is inductive; the current lags behind the voltage. Since the voltage and current are out-of-phase, this leads to the emergence of an "imaginary" form of power known as reactive power. Reactive power does no measurable work but is transmitted back and forth between the reactive power source and load every cycle. This reactive power can be provided by the generators themselves, through the adjustment of
generator excitation, but it is often cheaper to provide it through capacitors, hence capacitors are often placed near inductive loads to reduce current demand on the power system (i.e., increase the power factor), which may never exceed 1.0, and which represents a purely resistive load. Power factor correction may be applied at a central substation, through the use of so-called "synchronous condensers" (synchronous machines which act as condensers which are variable in VAR value, through the adjustment of machine excitation) or adjacent to large loads, through the use of so-called "static condensers" (condensers which are fixed in VAR value).
Reactors consume reactive power and are used to regulate voltage on long transmission lines. In light load conditions, where the loading on transmission lines is well below thesurge impedance loading, the efficiency of the power system may actually be improved by switching in reactors. Reactors installed in series in a power system also limit rushes of current flow, small reactors are therefore almost always installed in series with capacitors to limit the current rush associated with switching in a capacitor. Series reactors can also be used to limit fault currents.
Capacitors and reactors are switched by circuit breakers, which results in moderately large steps in reactive power. A solution comes in the form of static VAR compensators andstatic
synchronous compensators. Briefly, static VAR compensators work by switching in capacitors using thyristors as opposed to circuit breakers allowing capacitors to be switched-in and
switched-out within a single cycle. This provides a far more refined response than circuit breaker switched capacitors. Static synchronous compensators take a step further by achieving reactive power adjustments using only power electronics.
Power electronics are semi-conductor based devices that are able to switch quantities of power ranging from a few hundred watts to several hundred megawatts. Despite their relatively simple function, their speed of operation (typically in the order of nanoseconds[29]) means they are
capable of a wide range of tasks that would be difficult or impossible with conventional
technology. The classic function of power electronics is rectification, or the conversion of AC-to-DC power, power electronics are therefore found in almost every digital device that is supplied from an AC source either as an adapter that plugs into the wall (see photo in Basics of Electric Power section) or as component internal to the device. High-powered power electronics can also be used to convert AC power to DC power for long distance transmission in a system known as HVDC. HVDC is used because it proves to be more economical than similar high voltage AC systems for very long distances (hundreds to thousands of kilometres). HVDC is also desirable for interconnects because it allows frequency independence thus improving system stability. Power electronics are also essential for any power source that is required to produce an AC output but that by its nature produces a DC output. They are therefore used by many photovoltaic installations both industrial and residential.
Power electronics also feature in a wide range of more exotic uses. They are at the heart of all modern electric and hybrid vehicles—where they are used for both motor control and as part of the brushless DC motor. Power electronics are also found in practically all modern petrol-powered vehicles, this is because the power provided by the car's batteries alone is insufficient to provide ignition, air-conditioning, internal lighting, radio and dashboard displays for the life of the car. So the batteries must be recharged while driving using DC power from the engine—a feat that is typically accomplished using power electronics. Whereas conventional technology would be unsuitable for a modern electric car, commutators can and have been used in petrol-powered cars, the switch to alternators in combination with power electronics has occurred because of the improved durability of brushless machinery.[30]
Some electric railway systems also use DC power and thus make use of power electronics to feed grid power to the locomotives and often for speed control of the locomotive's motor. In the middle twentieth century, rectifier locomotives were popular, these used power electronics to convert AC power from the railway network for use by a DC motor.[31]Today most electric
locomotives are supplied with AC power and run using AC motors, but still use power electronics to provide suitable motor control. The use of power electronics to assist with motor control and with starter circuits cannot be underestimated and, in addition to rectification, is responsible for power electronics appearing in a wide range of industrial machinery. Power electronics even appear in modern residential air conditioners.
Power electronics are also at the heart of the variable speed wind turbine. Conventional wind turbines require significant engineering to ensure they operate at some ratio of the system frequency, however by using power electronics this requirement can be eliminated leading to quieter, more flexible and (at the moment) more costly wind turbines. A final example of one of the more exotic uses of power electronics comes from the previous section where the fast-switching times of power electronics were used to provide more refined reactive compensation to the power system.
Protective devices
[
edit
]
Main article: power system protection
Power systems contain protective devices to prevent injury or damage during failures. The quintessential protective device is the fuse. When the current through a fuse exceeds a certain threshold, the fuse element melts, producing an arc across the resulting gap that is then
extinguished, interrupting the circuit. Given that fuses can be built as the weak point of a system, fuses are ideal for protecting circuitry from damage. Fuses however have two problems: First, after they have functioned, fuses must be replaced as they cannot be reset. This can prove inconvenient if the fuse is at a remote site or a spare fuse is not on hand. And second, fuses are typically inadequate as the sole safety device in most power systems as they allow current flows well in excess of that that would prove lethal to a human or animal.
The first problem is resolved by the use of circuit breakers—devices that can be reset after they have broken current flow. In modern systems that use less than about 10 kW, miniature circuit
breakers are typically used. These devices combine the mechanism that initiates the trip (by sensing excess current) as well as the mechanism that breaks the current flow in a single unit. Some miniature circuit breakers operate solely on the basis of electromagnetism. In these miniature circuit breakers, the current is run through a solenoid, and, in the event of excess current flow, the magnetic pull of the solenoid is sufficient to force open the circuit breaker's contacts (often indirectly through a tripping mechanism). A better design however arises by inserting a bimetallic strip before the solenoid—this means that instead of always producing a magnetic force, the solenoid only produces a magnetic force when the current is strong enough to deform the bimetallic strip and complete the solenoid's circuit.
In higher powered applications, the protective relays that detect a fault and initiate a trip are separate from the circuit breaker. Early relays worked based upon electromagnetic principles similar to those mentioned in the previous paragraph, modern relays are application-specific computers that determine whether to trip based upon readings from the power system. Different relays will initiate trips depending upon different protection schemes. For example, an
overcurrent relay might initiate a trip if the current on any phase exceeds a certain threshold whereas a set of differential relays might initiate a trip if the sum of currents between them indicates there may be current leaking to earth. The circuit breakers in higher powered applications are different too. Air is typically no longer sufficient to quench the arc that forms when the contacts are forced open so a variety of techniques are used. One of the most popular techniques is to keep the chamber enclosing the contacts flooded with sulfur hexafluoride (SF6)— a non-toxic gas that has sound arc-quenching properties. Other techniques are discussed in the reference.[32]
The second problem, the inadequacy of fuses to act as the sole safety device in most power systems, is probably best resolved by the use of residual current devices (RCDs). In any properly functioning electrical appliance the current flowing into the appliance on the active line should equal the current flowing out of the appliance on the neutral line. A residual current device works by monitoring the active and neutral lines and tripping the active line if it notices a difference.
[33] Residual current devices require a separate neutral line for each phase and to be able to trip
within a time frame before harm occurs. This is typically not a problem in most residential applications where standard wiring provides an active and neutral line for each appliance (that's why your power plugs always have at least two tongs) and the voltages are relatively low however these issues do limit the effectiveness of RCDs in other applications such as industry. Even with the installation of an RCD, exposure to electricity can still prove lethal.
SCADA systems
[
edit
]
In large electric power systems, Supervisory Control And Data Acquisition (SCADA) is used for tasks such as switching on generators, controlling generator output and switching in or out system elements for maintenance. The first supervisory control systems implemented consisted of a panel of lamps and switches at a central console near the controlled plant. The lamps provided feedback on the state of plant (the data acquisition function) and the switches allowed adjustments to the plant to be made (the supervisory control function). Today, SCADA systems are much more sophisticated and, due to advances in communication systems, the consoles controlling the plant no longer need to be near the plant itself. Instead it is now common for plant to be controlled from a with equipment similar to (if not identical to) a desktop computer. The ability to control such plant through computers has increased the need for security and already there have been reports of cyber-attacks on such systems causing significant disruptions to power systems.[34]
Power systems in practice
[
edit
]
Despite their common components, power systems vary widely both with respect to their design and how they operate. This section introduces some common power system types and briefly explains their operation.
Residential dwellings almost always take supply from the low voltage distribution lines or cables that run past the dwelling. These operate at voltages of between 110 and 260 volts (phase-to-earth) depending upon national standards. A few decades ago small dwellings would be fed a single phase using a dedicated two-core service cable (one core for the active phase and one core for the neutral return). The active line would then be run through a main isolating switch in the fuse box and then split into one or more circuits to feed lighting and appliances inside the house. By convention, the lighting and appliance circuits are kept separate so the failure of an appliance does not leave the dwelling's occupants in the dark. All circuits would be fused with an appropriate fuse based upon the wire size used for that circuit. Circuits would have both an active and neutral wire with both the lighting and power sockets being connected in parallel. Sockets would also be provided with a protective earth. This would be made available to
appliances to connect to any metallic casing. If this casing were to become live, the theory is the connection to earth would cause an RCD or fuse to trip—thus preventing the future electrocution of an occupant handling the appliance. Earthing systems vary between regions, but in countries such as the United Kingdom and Australia both the protective earth and neutral line would be earthed together near the fuse box before the main isolating switch and the neutral earthed once again back at the distribution transformer.[35]
There have been a number of minor changes over the year to practice of residential wiring. Some of the most significant ways modern residential power systems tend to vary from older ones include:
For convenience, miniature circuit breakers are now almost always used in the fuse box instead of fuses as these can easily be reset by occupants.
For safety reasons, RCDs are now installed on appliance circuits and, increasingly, even on lighting circuits.
Dwellings are typically connected to all three-phases of the distribution system with the phases being arbitrarily allocated to the house's single-phase circuits.
Whereas air conditioners of the past might have been fed from a dedicated circuit attached to a single phase, centralised air conditioners that require three-phase power are now becoming common.
Protective earths are now run with lighting circuits to allow for metallic lamp holders to be earthed.
Increasingly residential power systems are incorporating microgenerators, most notably, photovoltaic cells.
Commercial power systems
[
edit
]
Commercial power systems such as shopping centers or high-rise buildings are larger in scale than residential systems. Electrical designs for larger commercial systems are usually studied for load flow, short-circuit fault levels, and voltage drop for steady-state loads and during starting of large motors. The objectives of the studies are to assure proper equipment and conductor sizing, and to coordinate protective devices so that minimal disruption is cause when a fault is cleared. Large commercial installations will have an orderly system of sub-panels, separate from the main distribution board to allow for better system protection and more efficient electrical installation. Typically one of the largest appliances connected to a commercial power system is the HVAC unit, and ensuring this unit is adequately supplied is an important consideration in commercial power systems. Regulations for commercial establishments place other requirements on commercial systems that are not placed on residential systems. For example, in Australia, commercial systems must comply with AS 2293, the standard for emergency lighting, which requires emergency lighting be maintained for at least 90 minutes in the event of loss of mains
supply.[36] In the United States, the National Electrical Code requires commercial systems to be
built with at least one 20A sign outlet in order to light outdoor signage.[37] Building code
regulations may place special requirements on the electrical system for emergency lighting, evacuation, emergency power, smoke control and fire protection.
A thermodynamic system is the content of a macroscopic volume in space, along with its walls and surroundings; it undergoesthermodynamic processes according to the principles of thermodynamics. A physical system qualifies as a thermodynamic system only if it can be adequately described by thermodynamic variables such as temperature, entropy, internal energy and pressure.
The thermodynamic state of a thermodynamic system is its internal state as specified by its state variables. A thermodynamic account also requires a special kind of function called a state
function. For example, if the state variables are internal energy, volume and mole amounts, the needed further state function is entropy. These quantities are inter-related by one or more functional relationships called equations of state. Thermodynamics defines the restrictions on the possible equations of state imposed by the laws of thermodynamics through that further function of state.
The system is delimited by walls or boundaries, either actual or notional, across which conserved (such as matter and energy) or unconserved (such as entropy) quantities can pass into and out of the system. The space outside the thermodynamic system is known as thesurroundings, a reservoir, or the environment. The properties of the walls determine what transfers can occur. A wall that allows transfer of a quantity is said to be permeable to it, and a thermodynamic system is classified by the permeabilities of its several walls. A transfer between system and
surroundings can arise by contact, such as conduction of heat, or by long-range forces such as an electric field in the surroundings.
A system with walls that prevent all transfers is said to be isolated. This is an idealized
conception, because in practice some transfer is always possible, for example by gravitational forces. It is an axiom of thermodynamics that an isolated system eventually reaches
internal thermodynamic equilibrium, when its state no longer changes with time.
According to the permeabilities of its walls, a system that is not isolated can be in thermodynamic equilibrium with its surroundings, or else may be in a state that is constant or precisely cyclically changing in time - a steady state that is far from equilibrium. Classical thermodynamics considers only states of thermodynamic systems in equilibrium that are either constant or precisely cycling in time.
The walls of a closed system allow transfer of energy as heat and as work, but not of matter, between it and its surroundings. The walls of an open system allow transfer both of matter and of energy.[1][2][3][4][5][6][7] This scheme of definition of terms is not uniformly used, though it is convenient for some purposes. In particular, some writers use 'closed system' where 'isolated system' is here used.[8][9]
In 1824 Sadi Carnot described a thermodynamic system as the working substance (such as the volume of steam) of any heat engine under study. The very existence of such thermodynamic systems may be considered a fundamental postulate of equilibrium thermodynamics, though it is not listed as a numbered law.[10][11] According to Bailyn, the commonly rehearsed statement of the zeroth law of thermodynamics is a consequence of this fundamental postulate.[12]
In equilibrium thermodynamics the state variables do not include fluxes because in a state of thermodynamic equilibrium all fluxes have zero values by definition. Equilibrium thermodynamic processes may of course involve fluxes but these must have ceased by the time a
thermodynamic process or operation is complete bringing a system to its eventual
thermodynamic state. Non-equilibrium thermodynamics allows its state variables to include non-zero fluxes, that describe transfers of matter or energy or entropy between a system and its surroundings.[13]
by types of wall Types of transfers permitted
type of wall type of transfer
Mass
and energy Work Heat
permeable to matter permeable to energy but
impermeable to matter adiabatic
adynamic and impermeable to matter
Contents [hide] 1 Overview 2 History 3 Walls 4 Surroundings 5 Open system o 5.1 Flow process
o 5.2 Selective transfer of matter 6 Closed system
7 Isolated system
8 Mechanically isolated system 9 Systems in equilibrium 10 See also 11 References 12 External links
Overview
[
edit
]
Thermodynamics
The classical Carnot heat engine
Branches[show]
Laws[show]
Systems[show]
Material properties[show] Equations[show] Potentials[show] History Culture [show] Scientists[show] Book:Thermodynamics V T E
Thermodynamics describes the macroscopic physics of matter and energy, especially including heat transfer, by using the concept of the thermodynamic system, a region of the universe that is under study, specified by thermodynamic state variables, together with the kinds of transfer that may occur between it and its surroundings, as determined by the physical properties of the walls of the system.
An example system is the system of hot liquid water and solid table salt in a sealed, insulated test tube held in a vacuum (the surroundings). The test tube constantly loses heat in the form of black-body radiation, but the heat loss progresses very slowly. If there is another process going on in the test tube, for example the dissolution of the salt crystals, it probably occurs so quickly that any heat lost to the test tube during that time can be neglected. Thermodynamics in general does not measure time, but it does sometimes accept limitations on the time frame of a process.
History
[
edit
]
The first to develop the concept of a thermodynamic system was the French physicist Sadi Carnot whose 1824 Reflections on the Motive Power of Fire studied what he called the working substance, e.g., typically a body of water vapor, in steam engines, in regards to the system's ability to do work when heat is applied to it. The working substance could be put in contact with either a heat reservoir (a boiler), a cold reservoir (a stream of cold water), or a piston (to which the working body could do work by pushing on it). In 1850, the German physicist Rudolf
Clausius generalized this picture to include the concept of the surroundings, and began referring to the system as a "working body." In his 1850 manuscript On the Motive Power of Fire, Clausius wrote:
“
"With every change of volume (to the working body) a certain amount The article Carnot heat engine shows the original piston-and-cylinder diagram used by Carnot indiscussing his ideal engine; below, we see the Carnot engine as is typically modeled in current use:
Carnot engine diagram (modern) - where heat flows from a high temperature TH furnace through the fluid of the "working body" (working substance) and into the cold sink TC, thus forcing the working substance to do mechanical work W on the surroundings, via cycles of contractions and expansions.
In the diagram shown, the "working body" (system), a term introduced by Clausius in 1850, can be any fluid or vapor body through which heat Q can be introduced or transmitted through to produce work. In 1824, Sadi Carnot, in his famous paper Reflections on the Motive Power of Fire, had postulated that the fluid body could be any substance capable of expansion, such as vapor of water, vapor of alcohol, vapor of mercury, a permanent gas, or air, etc. Though, in these early years, engines came in a number of configurations, typically QH was supplied by a boiler, wherein water boiled over a furnace; QC was typically a stream of cold flowing water in the form of a condenser located on a separate part of the engine. The output work W was the movement of the piston as it turned a crank-arm, which typically turned a pulley to lift water out of flooded salt mines. Carnot defined work as "weight lifted through a height."
Walls
[
edit
]
A system is enclosed by walls that bound it and connect it to its surroundings.[14][15][16][17][18][19] Often a wall restricts passage across it by some form of matter or energy, making the connection indirect. Sometimes a wall is no more than an imaginary two-dimensional closed surface through which the connection to the surroundings is direct. Topologically, it is often considered nearly or piecewise smoothly homeomorphic with a two-sphere (ordinary sphere like a surface that forms the boundary of a ball in three dimensions), because a system is often considered simply connected.
A wall can be fixed (e.g. a constant volume reactor) or moveable (e.g. a piston). For example, in a reciprocating engine, a fixed wall means the piston is locked at its position; then, a constant volume process may occur. In that same engine, a piston may be unlocked and allowed to move in and out. Ideally, a wall may be declared adiabatic,diathermal, impermeable, permeable, or semi-permeable. Actual physical materials that provide walls with such idealized properties are not always readily available.
Anything that passes across the boundary and effects a change in the contents of the system must be accounted for in an appropriate balance equation. The volume can be the region surrounding a single atom resonating energy, such as Max Planck defined in 1900; it can be a body of steam or air in a steam engine, such as Sadi Carnot defined in 1824. It could also be just one nuclide (i.e. a system of quarks) as hypothesized in quantum thermodynamics.
Surroundings
[
edit
]
See also: Environment (systems)
The system is the part of the universe being studied, while the surroundings is the remainder of the universe that lies outside the boundaries of the system. It is also known as theenvironment, and the reservoir. Depending on the type of system, it may interact with the system by
exchanging mass, energy (including heat and work), momentum, electric charge, or other conserved properties. The environment is ignored in analysis of the system, except in regards to these interactions.
Open system
[
edit
]
Generic open system scheme. Exchanges of matter or energy with system's surroundings are represented by input and output flows.
In an open system, matter may flow in and out of some segments of the system boundaries. There may be other segments of the system boundaries that pass heat or work but not matter. Respective account is kept of the transfers of energy across those and any other several boundary segments.
During steady, continuous operation, an energy balance applied to an open system equates shaft work performed by the system to heat added plus net enthalpy added.
The region of space enclosed by open system boundaries is usually called a control volume. It may or may not correspond to physical walls. It is convenient to define the shape of the control volume so that all flow of matter, in or out, occurs perpendicular to its surface. One may consider a process in which the matter flowing into and out of the system is chemically homogeneous.
[20] Then the inflowing matter performs work as if it were driving a piston of fluid into the system.
Also, the system performs work as if it were driving out a piston of fluid. Through the system walls that do not pass matter, heat (δQ) and work (δW) transfers may be defined, including shaft work.
Classical thermodynamics considers processes for a system that is initially and finally in its own internal state of thermodynamic equilibrium, with no flow. This is feasible also under some restrictions, if the system is a mass of fluid flowing at a uniform rate. Then for many purposes a process, called a flow process, may be considered in accord with classical thermodynamics as if the classical rule of no flow were effective.[21] For the present introductory account, it is supposed
that the kinetic energy of flow, and the potential energy of elevation in the gravity field, do not change, and that the walls, other than the matter inlet and outlet, are rigid and motionless. Under these conditions, the first law of thermodynamics for a flow process states: the increase in the internal energy of a system is equal to the amount of energy added to the system by matter flowing in and by heating, minus the amount lost by matter flowing out and in the form of work done by the system. Under these conditions, the first law for a flow process is written:
where
U
in andU
out respectively denote the average internal energy entering and leaving the system with the flowing matter.There are then two types of work performed: 'flow work' described above, which is performed on the fluid in the control volume (this is also often called '
PV
work'), and 'shaft work', which may be performed by the fluid in the control volume on some mechanical device with a shaft. These two types of work are expressed in the equation:Substitution into the equation above for the control volume cv yields:
The definition of enthalpy,
H = U + PV
, permits us to use this thermodynamic potential to account jointly for internal energyU
andPV
work in fluids for a flow process:During steady-state operation of a device (see turbine, pump, and engine), any system property within the control volume is independent of time. Therefore, the internal energy of the system enclosed by the control volume remains constant, which implies that dUcv in the expression above may be set equal to zero. This yields a useful expression for thepower generation or requirement for these devices with chemical homogeneity in the absence of chemical reactions:
This expression is described by the diagram above.
Selective transfer of matter
[
edit
]
For a thermodynamic process, the precise physical properties of the walls and surroundings of the system are important, because they determine the possible processes.
An open system has one or several walls that allow transfer of matter. To account for the internal energy of the open system, this requires energy transfer terms in addition to those for heat and work. It also leads to the idea of the chemical potential.
A wall selectively permeable only to a pure substance can put the system in diffusive contact with a reservoir of that pure substance in the surroundings. Then a process is possible in which that pure substance is transferred between system and surroundings. Also, across that wall a contact equilibrium with respect to that substance is possible. By
suitable thermodynamic operations, the pure substance reservoir can be dealt with as a closed system. Its internal energy and its entropy can be determined as functions of its temperature, pressure, and mole number. A thermodynamic operation can render impermeable to matter all system walls other than the contact equilibrium wall for that substance. This allows the definition of an intensive state variable, with respect to a reference state of the surroundings, for that substance. The intensive variable is called the chemical potential; for component substance
i
it is usually denotedμ
i. Thecorresponding extensive variable can be the number of moles
N
i of the component substance in the system.For a contact equilibrium across a wall permeable to a substance, the chemical potentials of the substance must be same on either side of the wall. This is part of the nature of thermodynamic equilibrium, and may be regarded as related to the zeroth law of thermodynamics.[22]
Closed system
[
edit
]
Main article: Closed system § In thermodynamics
In a closed system, no mass may be transferred in or out of the system boundaries. The system always contains the same amount of matter, but heat and work can be exchanged across the boundary of the system. Whether a system can exchange heat, work, or both is dependent on the property of its boundary.
Adiabatic boundary – not allowing any heat exchange: A thermally isolated system
Rigid boundary – not allowing exchange of work: A mechanically isolated system
One example is fluid being compressed by a piston in a cylinder. Another example of a closed system is a bomb calorimeter, a type of constant-volume calorimeter used in measuring the heat of combustion of a particular reaction. Electrical energy travels across the boundary to produce a spark between the electrodes and initiates combustion. Heat transfer occurs across the boundary after combustion but no mass transfer takes place either way.
Beginning with the first law of thermodynamics for an open system, this is expressed as:
where U is internal energy, Q is the heat added to the system, W is the work done by the system, and since no mass is transferred in or out of the system, both expressions involving mass flow are zero and the first law of thermodynamics for a closed system is derived. The first law of thermodynamics for a closed system states that the increase of internal energy of the system equals the amount of heat added to the system minus the work done by the system. For infinitesimal changes the first law for closed systems is stated by:
If the work is due to a volume expansion by dV at a pressure P than:
For a homogeneous system, in which only reversible processes can take place, the second law of thermodynamics reads:
where T is the absolute temperature and S is the entropy of the system. With these relations the fundamental
thermodynamic relationship, used to compute changes in internal energy, is expressed as:
For a simple system, with only one type of particle (atom or molecule), a closed system amounts to a constant number of particles. However, for systems undergoing a chemical reaction, there may be all sorts of molecules being generated and destroyed by the reaction process. In this case, the fact that the system is closed is expressed by stating that the total number of each elemental atom is conserved, no matter what kind of molecule it may be a part of. Mathematically:
where Nj is the number of j-type molecules, aij is the number of atoms of element i in
molecule j and bi0 is the total number of atoms of element i in the system, which remains constant, since the system is closed. There is one such equation for each element in the system.
Isolated system
[
edit
]
Main article: Isolated system
An isolated system is more restrictive than a closed system as it does not interact with its surroundings in any way. Mass and energy remains constant within the system, and no energy or mass transfer takes place across the boundary. As time passes in
an isolated system, internal differences in the system tend to even out and pressures and temperatures tend to equalize, as do density differences. A system in which all equalizing processes have gone practically to completion is in a state of thermodynamic equilibrium.
Truly isolated physical systems do not exist in reality (except perhaps for the universe as a whole), because, for example, there is always gravity between a system with mass and masses elsewhere.[23][24][25][26][27] However, real systems may behave nearly as an isolated system for finite (possibly very long) times. The concept of an isolated system can serve as a
useful model approximating many real-world situations. It is an acceptable idealization used in constructing mathematical models of certain natural phenomena.
In the attempt to justify the postulate of entropy increase in the second law of thermodynamics, Boltzmann’s
H-theorem used equations, which assumed that a system (for example, a gas) was isolated. That is all the mechanical degrees of freedom could be specified, treating the walls simply
as mirror boundary conditions. This inevitably led toLoschmidt's paradox. However, if
the stochastic behavior of the molecules in actual walls is considered, along with
the randomizing effect of the ambient, background thermal radiation, Boltzmann’s assumption of molecular chaos can be justified. The second law of thermodynamics for isolated systems states that the entropy of an isolated system not in equilibrium tends to increase over time, approaching maximum value at equilibrium. Overall, in an isolated system, the internal energy is constant and the entropy can never decrease. A closed system's entropy can decrease e.g. when heat is extracted from the system.
It is important to note that isolated systems are not equivalent to closed systems. Closed systems cannot exchange matter with the surroundings, but can exchange energy. Isolated systems can exchange neither matter nor energy with their surroundings, and as such are only theoretical and do not exist in reality (except, possibly, the entire universe).
It is worth noting that 'closed system' is often used in thermodynamics discussions when 'isolated system' would be correct - i.e. there is an
assumption that energy does not enter or leave the system.
Mechanically isolated
system
[
edit
]
Main article: Mechanically isolated system
A mechanically isolated system can exchange no work energy with its environment, but may exchange heat energy and/or mass with its
environment. The internal energy of a mechanically isolated system may therefore change due to the exchange of heat energy and mass. For a simple system, mechanical isolation is equivalent to constant volume and any process which occurs in such a simple system is said to be isochoric.
Systems in equilibrium
[
edit
]
At thermodynamic equilibrium, a system's properties are, by definition, unchanging in time. Systems in equilibrium are much simpler and easier to understand than systems not in equilibrium. In some cases, when analyzing a thermodynamic process, one can assume that each intermediate state in the process is at equilibrium. This considerably simplifies the analysis.
In isolated systems it is consistently observed that as time goes on internal rearrangements diminish
and stable conditions are approached. Pressures and temperatures tend to equalize, and matter arranges itself into one or a few relatively homogeneous phases. A system in which all processes of change have gone practically to completion is considered in a state
of thermodynamic equilibrium. The thermodynamic properties of a system in equilibrium are
unchanging in time. Equilibrium system states are much easier to describe in a deterministic manner than non-equilibrium states.
For a process to be reversible, each step in the process must be reversible. For a step in a process to be reversible, the system must be in equilibrium throughout the step. That ideal cannot be
accomplished in practice because no step can be taken without perturbing the system from
equilibrium, but the ideal can be approached by making changes slowly.
Bioenergetic systems are metabolic processes which relate to the flow of energy in the living organisms. Those processes convert the energy into adenosine triphosphate, which is the form of chemical energy suitable for muscular activity. There are two main forms of synthesis of adenosine triphosphate: aerobic, which involves oxygen from the bloodstream, and anaerobic, which does not. Bioenergetics is the field of biology which studies the bioenergetic systems.
Contents [hide] 1 Overview
2 Adenosine triphosphate
3 The principle of coupled reactions 4 Aerobic and anaerobic metabolism 5 ATP–CP: the phosphagen system 6 Anaerobic system
7 Aerobic system 8 How they work 9 References
10 Further reading
Overview
[
edit
]
The cellular respiration process that converts food energy into adenosine triphosphate (a form of energy) is largely dependent on the availability of oxygen. During exercise, the supply and demand of oxygen available to muscle cells is affected by the duration and intensity of the exercise and by the individual's cardiorespiratory fitness level. There are three exercise energy systems that can be selectively recruited, depending on the amount of oxygen available, as part of the cellular respiration process to generate the ATP energy for the muscles. They are
adenosine triphosphate, the anaerobic system and the aerobic system.
Adenosine triphosphate
[
edit
]
Adenosine triphosphate (ATP) is the usable form of chemical energy for muscular activity. It is stored in most cells, particularly in muscle cells. Other forms of chemical energy, such as those available from food, must be transferred into ATP form before they can be utilized by the muscle cells.[1]
The principle of coupled reactions
[
edit
]
Since energy is released when ATP is broken down, energy is required to rebuild or resynthesize ATP. The building blocks of ATP synthesis are the by-products of its breakdown;adenosine diphosphate (ADP) and inorganic phosphate (Pi). The energy for ATP resynthesis comes from three different series of chemical reactions that take place within the body. Two of the three depend upon the food we eat, whereas the other depends upon a chemical compound called phosphocreatine. The energy released from any of these three series of hi reactions is coupled with the energy needs of the reaction that resynthesizes ATP. The separate reactions are functionally linked together in such a way that the energy released by the one is always used by the other.[2]
There are three methods to resynthesize ATP:
ATP–CP system (phosphogen system) – This system is used only for very short durations of up to 10 seconds. The ATP–CP system neither uses oxygen nor produceslactic acid if oxygen is unavailable and is thus said to be alactic anaerobic. This is the primary system behind very short, powerful movements like a golf swing, a 100 m sprint, or powerlifting.
Anaerobic system – Predominates in supplying energy for exercises lasting less than two minutes. Also known as the glycolytic system. An example of an activity of the intensity and duration that this system works under would be a 400 m sprint.
Aerobic system – This is the long-duration energy system. By five minutes of exercise, the O2 system is clearly the dominant system. In a 1 km run, this system is already providing approximately half the energy; in a marathon run it provides 98% or more.[3]
Aerobic and anaerobic metabolism
[
edit
]
The term metabolism refers to the various series of chemical reactions that take place within the body. Aerobic refers to the presence of oxygen, whereas anaerobic means with series of
chemical reactions that does not require the presence of oxygen. The ATP-CP series and the lactic acid series are anaerobic, whereas the oxygen series, is aerobic.[4]
ATP–CP: the phosphagen system
[
edit
]
(A) Phosphocreatine, which is stored in muscle cells, contains a high energy bond. (B) When creatine phosphate is broken down during muscular contraction, a large amount of energy is released. The energy released is coupled with the energy requirement to resynthesize ATP.
Creatine phosphate (CP), like ATP, is stored in the muscle cells. When it is broken down, a large amount of energy is released. The energy released is coupled to the energy requirement
necessary for the resynthesis of ATP.
The total muscular stores of both ATP and CP are very small. Thus, the amount of energy obtainable through this system is limited. If an individual were to run 100 meters as fast as they could, the phosphagen stores in the working muscles would probably be exhausted by the end of the sprint, about 15–30 seconds later. However, the usefulness of the ATP-CP system lies in the rapid availability of energy rather than quantity. This is extremely important with respect to the kinds of physical activities that humans are capable of performing.[5]
Anaerobic system
[
edit
]
This system is known as anaerobic glycolysis. “Glycolysis” refers to the breakdown of sugar. In this system, the breakdown of sugar supplies the necessary energy from which ATP is
of the by-products is lactic acid. This process creates enough energy to couple with the energy requirements to resynthesize ATP.
When H+ ions accumulate in the muscles causing the blood pH level to reach very low levels, temporary muscular fatigue results. Another limitation of the lactic acid system that relates to its anaerobic quality is that only a few moles of ATP can be resynthesized from the breakdown of sugar as compared to the yield possible when oxygen is present. This system cannot be relied on for extended periods of time.
The lactic acid system, like the ATP-CP system, is extremely important, primarily because it also provides a rapid supply of ATP energy. For example, exercises that are performed at maximum rates for between 1 and 3 minutes depend heavily upon the lactic acid system for ATP energy. In activities such as running 1500 meters or a mile, the lactic acid system is used predominately for the “kick” at the end of a race.[6]
Aerobic system
[
edit
]
The Krebs cycle
Oxidative phosphorylation
Glycolysis – The first stage is known as glycolysis, which produces 2 ATP molecules, 2 reduced molecules of NAD (NADH), and 2 pyruvate molecules which move on to the next stage – the Krebs cycle. Glycolysis takes place in the cytoplasm of normal body cells, or the sarcoplasm of muscle cells.
The Krebs cycle – This is the second stage, and the products of this stage of the aerobic system are a net production of one ATP, one carbon dioxide molecule, three reduced NAD molecules, one reduced FAD molecule (The molecules of NAD and FAD mentioned here are electron carriers, and if they are said to be reduced, this means that they have had a H+ ion added to them). The things produced here are for each turn of the Krebs cycle. The Krebs cycle turns twice for each molecule of glucose that passes through the aerobic system – as
two pyruvate molecules enter the Krebs cycle. In order for the Pyruvate molecules to enter the Krebs cycle they must be converted to Acetyl Coenzyme A. During this link reaction, for each molecule of pyruvate that gets converted to Acetyl Coenzyme A, an NAD is also reduced. This stage of the aerobic system takes place in the matrix of the cells' mitochondria.
Oxidative phosphorylation – This is the last stage of the aerobic system and produces the largest yield of ATP out of all the stages – a total of 34 ATP molecules. It is called
oxidative phosphorylation because oxygen is the final acceptor of the electrons and hydrogen ions that leave this stage of aerobic respiration (hence oxidative) and ADP gets phosphorylated (an extra phosphate gets added) to form ATP (hence phosphorylation).
This stage of the aerobic system occurs on the cristae (infoldings on the membrane of the mitochondria). The NADH+ from glycolysis and the Krebs cycle, and the FADH+ from the Krebs
cycle pass down electron carriers which are at decreasing energy levels, in which energy is released to reform ATP. Each NADH+ that passes down this electron transport chain provides enough energy for 3 molecules of ATP, and each molecule of FADH+ provides enough energy for 2 molecules of ATP. If you do your math this means that 10 total NADH+ molecules allow the rejuvenation of 30 ATP, and 2 FADH+ molecules allow for 4 ATP molecules to be rejuvenated (The total being 34 from oxidative phosphorylation, plus the 4 from the previous 2 stages meaning a total of 38 ATP being produced during the aerobic system). The NADH+ and FADH+ get oxidized to allow the NAD and FAD to return to be used in the aerobic system again, and electrons and hydrogen ions are accepted by oxygen to produce water, a harmless by-product.
Preliminary Energy Audit
The Preliminary Energy Audit focuses on the major energy suppliers and demands usually accounting for approximately 70% of total energy. It is essentially a preliminary data gathering and analysis effort. It uses only available data and is completed with limited diagnostic instruments. The PEA is conducted in a very short time frame i.e. 1-3 days during which the energy auditor relies on his experience together with all the relevant written, oral visual information that can lead to a quick diagnosis of the plant energy situation. The PEA focuses on the identification of obvious sources of energy wastage's. The typical out put of a PEA is a set of recommendations and immediate low cost action that can be taken up by the
department head.
Detailed Energy Audit
The detailed audit goes beyond quantitative estimates of costs and savings. It includes engineering recommendations and well-defined project, giving due priorities. Approximately 95% of all energy is accounted for during the detailed audit. The detailed energy audit is conducted after the preliminary energy audit. Sophisticated instrumentation including flow meter, flue gas analyzer and scanner are use of compute energy efficiency.
Scope of work for detailed Energy Audit
Review of Electricity Bills, Contract Demand and Power Factor: For the last one year, in which possibility will be explored for further reduction of contract demand and improvement of power factor
Electrical System Network : Which would include detailed study of all the Transformer operations of various Ratings / Capacities, their operational pattern, Loading, No Load Losses, Power Factor Measurement on the Main Power Distribution Boards and scope for improvement if any. The study would also cover possible improvements in energy metering systems for better control and monitoring.
Study of Motors and Pumps Loading : Study of motors (above 10 kW) in terms of measurement of voltage (V), Current (I), Power (kW) and power factor and thereby suggesting measures for energy saving like reduction in size of motors or installation of energy saving device in the existing motors. Study of Pumps and their flow, thereby suggesting measures for energy saving like reduction in size of Motors and Pumps or installation of energy saving device in the existing motors / optimization of pumps.
Study of Air conditioning plant : w.r.t measurement of Specific Energy consumption i.e kW/TR of refrigeration, study of Refrigerant Compressors, Chilling Units, etc. Further, various measures would be suggested to improve its performance.
Cooling Tower: This would include detailed study of the operational performance of the cooling towers through measurements of temperature differential, air/water flow rate, to enable evaluate specific performance parameters like approach, effectiveness
etc.
Performance Evaluation of Boilers: This includes detailed study of boiler efficiency, Thermal insulation survey and flue gas analysis.
Performance Evaluation of Turbines: This includes detailed study of Turbine efficiency, Waste heat recovery.
Performance Evaluation of Air Compressor: This includes detailed study of Air compressor system for finding its performance and specific energy consumption
Evaluation of Condenser performance: This includes detailed study of condenser performance and opportunities for waste heat recovery
Performance Evaluation of Burners / Furnace : This includes detailed study on performance of Furnace / Burner, thermal insulation survey for finding its efficiency
Windows / Split Air Conditioners: Performance shall be evaluated as regards, their input power vis-a-vis TR capacity and performance will be compared to improve to the best in the category
Illumination: Study of the illumination system, LUX level in various areas, area lighting etc. and suggest measures for improvements and energy conservation opportunity wherever feasible.
DG Set: Study the operations of DG sets to evaluate their average cost of Power Generation, Specific Energy Generation and subsequently identify areas wherein energy savings could be achieved after analysing the operational practices etc. of the DG sets.
The entire recommendations would be backed up with techno-economic calculations including the estimated investments required for implementation of the suggested measures and simple payback period. Measurement would be made using appropriate in
Energy conservation'' means to reduce the quantity of energy that is used for different
purposes. This practice may result in increase of financial capital, environmental value, national and personal security, and human comfort.
Individuals and organizations that are direct consumers of energy may want to conserve energy in order to reduce energy costs and promote economic, political and environmental sustainability. Industrial and commercial users may want to increase efficiency and thus maximize profit.
On a larger scale, energy conservation is an important element of energy policy. In general, energy conservation reduces the energy consumption and energy demand per capita. This reduces the rise in energy costs, and can reduce the need for new power plants, and energy imports. The reduced energy demand can provide more flexibility in choosing the most preferred methods of energy production.
By reducing emissions, energy conservation is an important method to prevent climate change. Energy conservation makes it easier to replace non-renewable resources withrenewable energy. Energy conservation is often the most economical solution to energy shortages.
Natural resource and energy conservation is achieved by managing materials more efficiently. Choose from the efforts and resources below to learn how to conserve resources at home and at work.
Reduce, Reuse, Recycle: Learn ways to reduce household and industrial waste. Three primary strategies for effectively managing materials and waste are reduce, reuse, and recycle.
o Reduce waste by making smart decisions when purchasing products, including the consideration of product packaging.
o Reuse containers and products.
o Recycle materials ranging from paper to food scraps, yard trimmings, and electronics.
o Purchase products manufactured with recycled content.
Reducing Food Waste: Information for businesses and organizations on reducing food waste.
Composting for Facilities: Learn more about industrial composting.
Sustainable Materials Management (SMM): SMM is a systemic approach to using and reusing materials more productively over their entire lifecycles. Learn what EPA is doing to advance SMM and how to become involved.
Conservation Tools: Tools and programs that promote waste reduction and recycling. Read guidelines for businesses regarding purchasing recycled materials, controlling solid waste management costs, and streamlining and improving operations. Learn about evaluating effectiveness of recycling in the community.
Common Wastes and Materials: Common materials from the municipal, commercial, and industrial waste streams that have good opportunities for recycling and reuse.
Building Evaluation Tools
VERDE.
Building Evaluation and Environmental
Certification Method
In the past few years, the concepts of “sustainable or green building” have evolved, incorporating new notions and concepts.
Due to several factors like climate change or a shortage in natural resources, we are witnessing an increase in the environmental awareness of both citizens and designers. This has lead us to look
