Relational Database Design Theory

(1)

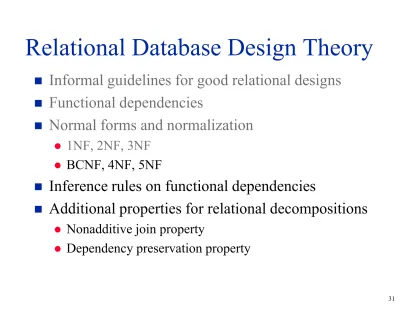

Relational Database Design Theory

Informal guidelines for good relational designs

Functional dependencies

Normal forms and normalization

1NF, 2NF, 3NF BCNF, 4NF, 5NF

Inference rules on functional dependencies

Additional properties for relational decompositions

Nonadditive join property

(2)

2NF, 3NF

2NF

(3)

(4)

(5)

(6)

Boyce-Codd Normal Form

BCNF

Difference from 3NF:

3NF allows A to be a key attribute 3NF allows A to be a key attribute

Every relation in BCNF is also in 3NF

Most relation schemas that are in 3NF are also in BCNF but not all:

(7)

(8)

(9)

1NF, 2NF, 3NF, BCNF

Test on any non-trivial X_A

Violations normalization

1NF Multi-valued attributes New relation for each multi-valued attributes 2NF a) X is a super key

or

b) X is not a key

1) partial key -> non-key attribute

(partial FD)

New relation for the partial key and its dependent attributes b) X is not a key

or

c) A is a key attribute

(partial FD) dependent attributes

3NF a) X is a super key or

c) A is a key attribute

1) or

2) Non-key attribute -> non-key attribute

(transitive FD)

Above and

New relation for the non-key attribute and its dependent attributes

BCNF a) X is a super key 1) or 2) or

3) non-key -> key attribute

Above and

New relation for the non-key attribute and its dependent attributes

(10)

Relational Database Design Theory

Functional dependencies and keys

Nonadditive join property

(11)

Keys and Functional

Dependencies

Superkey

No two distinct tuples in any state r of R can have the

same value for SK

Functional dependency: SK R

Key Key

Superkey of R; and it is minimal (removing any attribute

A from K leaves a set of attributes that is not a superkey

any more)

Functional dependency: K R, and for any A in K,

K-{A}_{R does not hold}

Given a set of functional dependencies, can we find the keys of R?

(12)

Inference Rules for FDs

Armstrong’s inference rules (complete)

Reflexivity rule: if Y ⊆ X then X → Y

Augmentation rule: if X → Y then XZ → YZ

Transitivity rule: if X → Y and Y → Z then X → ZTransitivity rule: if X → Y and Y → Z then X → Z

Other rules

Decomposition Rule:

if X → YZ then: X → Y and X → Z

Union or Additive Rule:

(13)

Inference Rules for FDs

Specify a set of FDs that can be easily determined from attribute semantics

Infer additional FDs using inference rules The closure of a FD set F

The closure of a FD set F

the set of all FDs that include F as well as all FDs that

(14)

Closure of attribute set

The closure of attribute set X under FD set F, denoted as X+

The set of attributes that are functionally determined by

X based on F

How can we computationally find X+

How can we determine a set of attributes X is a key?

(15)

(16)

Example

SSN+ Dnumber+ Dnumber+ {SSN, Dnumber}+ {SSN, Dnumber, Ename}+

(17)

Example

SSN+ = {SSN, Ename, Bdate, Address, Dnumber, Dname,

Dmgr_ssn} Dmgr_ssn}

Dnumber+ = {Dnumber, Dname, Dmgr_ssn}

{SSN, Dnumber}+ = {SSN, Ename, Bdate, Address,

Dnumber, Dname, Dmgr_ssn}

{SSN, Dnumber, Ename}+ = {SSN, Ename, Bdate, Address,

Dnumber, Dname, Dmgr_ssn}

(18)

Finding Keys based on Attribute

Closure

If X+ = R, then X is a superkey

If X+ = R, and (X-{A})+ != R, then X is a key

How do we find all keys given a FD set F? How do we find all keys given a FD set F? How do we find one key given a FD set F?

(19)

(20)

Example

Initialization

K = {SSN, Ename, Bdate, Address, Dnumber, Dname, Dmgr_ssn} K = {SSN, Ename, Bdate, Address, Dnumber, Dname, Dmgr_ssn}

Decrease one attribute at a time

…

(21)

Relational Database Design Theory

Functional dependencies and keys

Nonadditive join property

(22)

Dependency Preservation Property

Informally, given a decomposition D of R and a FD set F on R, each FD in F either appear directly in D or could be inferred

Claim 1. it is always possible to find a dependency-preserving decomposition D with respect to F such preserving decomposition D with respect to F such that each relation Ri in D is in 3NF

(23)

Non-additive Join Property

A decomposition D = {R1, R2, ..., Rm} of R has the lossless (nonadditive) join property with

respect to the set of FDs F on R if, for every legal relation state r, the following holds, where * is the natural join of all the relations in D:

π

* (

π

R1(r), ...,

π

Rm(r)) = r

lossless for “loss of information”, i.e. “addition of

spurious information”

How to test whether a decomposition satisfies the lossless join property?

(24)

(25)

(26)

(27)

(28)

(29)

(30)

Successive Lossless Join

Decomposition

Claim 2 (Preservation of non-additivity in

successive decompositions):

If a decomposition D = {R1, R2, ..., Rm} of R has the

lossless (non-additive) join property with respect to F

and if a decomposition Di = {Q1, Q2, ..., Qk} of Ri has

the lossless (non-additive) join property with respect to the projection of F

then the decomposition D2 = {R1, R2, ..., Ri-1, Q1, Q2,

..., Qk, Ri+1, ..., Rm} of R has the non-additive join property with respect to F.

(31)

Normalization with BCNF and

Lossless Join Property

(32)

In Practice

Relational design from ER model or existing tables/reports

Normalization for 3NF or BCNF with lossless join property

property

Sometimes normal forms are violated deliberately to achieve better performance (less join operations)
