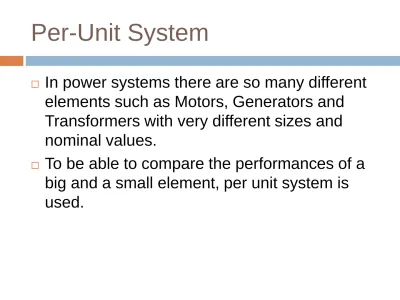

Per-Unit System

In power systems there are so many different

elements such as Motors, Generators and

Transformers with very different sizes and

nominal values.

To be able to compare the performances of a

big and a small element, per unit system is

used.

(2)

Power System Representation

Physical Components in the system are

represented by a mathematical model.

Mathematical models of components are

connected in exactly the same way as the physical components to obtain the system representation.

Various physical components have different

ratings or basis.

It is convenient to obtain the representation with

(3)

Per Unit And Percent Representation

The numerical per unit value of any

quantity is its ratio to the chosen base quantity of the same dimensions.

Thus a per unit quantity is a normalized

quantity with respect to a chosen base value.

Percent is the per unit quantity multiplied

(4)

Per Unit And Per Cent Representation Advantages

In the per-unit system of representation, device

parameters tend to fall in a relatively fixed range, making erroneous values prominent.

Ideal transformers are eliminated as circuit

elements. This results in a large saving in component representation and reduces computational burden.

The voltage magnitude throughout a given power

system is relatively close to unity in the per-unit system for a power system operating normally. This characteristic provides a useful check on the calculations.

(5)

Per Unit And Percent Representation Base Quantities

In power system calculations the nominal

voltage of lines and equipment is almost always known, so the voltage is a

convenient base value to choose.

The apparent power (volt-ampere) is

usually chosen as a second base. In

equipment this quantity is usually known and makes a convenient base.

(6)

Per Unit And Percent Representation Base Quantities

The choice of these two base quantities will

automatically fix the base of current, impedance, and admittance.

In a system study, the volt-ampere base can

be selected to be any convenient value such as 100 MVA, 200 MVA, etc.

(7)

Per Unit And Percent Representation Base Quantities

The same volt-ampere base is used in all

parts of the system. One base voltage in

a certain part of the system is selected

arbitrarily. All other base voltages must

be related to the arbitrarily selected one

by the turns ratio of the connecting

(8)

Per Unit System

 Power system quantities such as voltage,

current and impedance are often expressed in per unit or percent of specified values.

 Per unit quantities are calculated as:

Value

Base

Value

Actual

Value

Per Unit

(9)

Per Unit Values base pu S S  S base pu I I  I base pu V V  V base pu Z Z  Z Z Z 2 base base base pu V S Z Z   pu base 2 base pu base Z S V Z Z   Z

Conversion of Per Unit Values

(10)

Per Unit System

Usually, the nominal apparent power (S) and

nominal voltage (V) are taken as the base

values for power (S

base

) and voltage (V

base

).

The base values for the current (I

base

) and

impedance (Z

base

) can be calculated based on

the first two base values.

(11)

Per Unit System

100%

Z

base actual %

Z

Z

 The percent impedance

 e.g. in a synchronous generator with 13.8 kV

as its nominal voltage, instead of saying the voltage is 12.42 kV, we say the voltage is 0.9 p.u.

(12)

Per Unit in 3

Circuit

Simplified:

 Concerns about using phase or line voltages are

removed in the per-unit system

 Actual values of R, XC and XL for lines, cables,

and other electrical equipment typically phase values.

 It is convenient to work in terms of base VA (base

(13)

Per Unit in 3

Circuit

,

3

3

B B B B B B

V

S

I

I

V

S

 

B B B B B B B B

S

V

I

V

Z

Z

I

V

2

3

/

3

• Usually, the 3-phase SB or MVAB and line-to-line VB or kVB are selected

(14)

Change of Base

 The impedance of individual generators &

transformer, are generally in terms of

percent/per unit based on their own ratings.

 Impedance of transmission line in ohmic value  When pieces of equipment with various

different ratings are connected to a system, it is necessary to convert their impedances to a per unit value expressed on the same base.

(15)

 

            Z V S Z Z Z old B old B old B old pu 2

 

            Z V S Z Z Z new B new B new B new pu 2 new B new B V base voltage new & S base power new on the impedance unit per new the be new pu Z old B old B

V

base

voltage

&

S

base

power

on the

impedance

unit

per

the

be

old pu

Z

1 2

Change of Base

(16)

2









new B old B old B new B old pu new pu

V

V

S

S

Z

Z





old B new B old pu new pu

S

S

Z

Z

From (1) and (2), the relationship between the old and the new per unit value

If the voltage base are the same,

(17)

General Relations Between Circuit

Quantities

     3 2 3 3 3 2 3 30 3 3 * 30 3 30 3 3 30 3 30 30 3 * 3 30 S V S V V I V I V Z V S Z V I I Connection S V S V V I V Z Connection Y o LL LL o LL L o LL D LL D LL o D LL o L D o LL LL o LL L LN Y                         

(18)

Base Conversion

2 ) ( 2 ) ( ) ( ) ( ) ( ) (

*

*

new base old base old base new base old pu new pu

KV

KV

MVA

MVA

Z

Z

(19)

Example One: Base Conversion

• A 50-MVA, 34.5:161 kV transformer with 10%

reactance is connected to a power system where all the other impedance values are on a 100 MVA, 34.5 or 161 kV base. The reactance of the transformer under new base is:

2

.

0

*

50

100

*

1

.

0

2 ) ( 2 ) ( ) (

new base old base new pu

KV

KV

Z

(20)

Example Two: Base Conversion

• A generator and transformer, as shown below, are to

be combined into a single equivalent reactance on a 100 MVA, 110 kV (high voltage side) base.

(21)

Advantages

• More meaningful when comparing different voltage

levels

• The per unit equivalent impedance of the transformer

remains the same when referred to either the primary or the secondary side

• The per unit impedance of a transformer in a

three-phase system is the same, regardless the winding connection

• The per unit method is independent of voltage

(22)

Advantages

• Manufacturers usually specify the impedance of the

equipment in per unit or percent on the base of its nameplate ratings

• The per unit impedance values of various ratings of

(23)

Advantages

Transformer equivalent circuit can be

simplified by properly specifying base

quantities.

 Give a clear idea of relative magnitudes of

various quantities such as voltage, current, power and impedance.

 Avoid possibility of making serious calculation

error when referring quantities from one side of transformer to the other.

(24)

Advantages

Per-unit impedances of electrical equipment of

similar type usually lie within a narrow

numerical range when the equipment ratings

are used as base values.

 Manufacturers usually specify the impedances of

machines and transformers in per-unit or percent in nameplate rating.

(25)

Advantages

The circuit laws are valid in per unit systems,

and the power and voltage equation are

simplified since the factor √3 and 3 are

eliminated in the per-unit systems.

Ideal for the computerized analysis and

(26)
