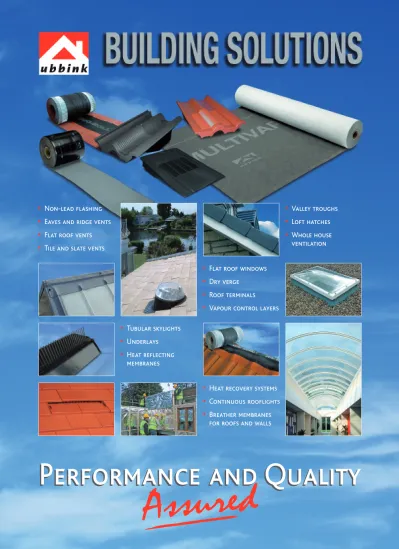

Performance and Quality

(1)

Performance and Quality

• Non-lead flashing

• Eaves and ridge vents

• Flat roof vents

• Tile and slate vents

• Valley troughs

• Loft hatches

• Whole house

ventilation

• Flat roof windows

• Dry verge

• Roof terminals

• Vapour control layers

• Tubular skylights

• Underlays

• Heat reflecting

membranes

• Heat recovery systems

• Continuous rooflights

• Breather membranes

for roofs and walls

(2)

Advanced technology and innovative design ensure that our products bring real environmental and economic benefits to both residential and commercial properties. Ease of installation is a key consideration during the product development process, while quality materials and rigorous manufacturing standards guarantee their durability. Our wide product range provides choice and flexibility, demonstrating our commitment to aesthetics as well as effec-tiveness and value. All exposed products are UV stable so their function will not diminish following continuous exposure.

Please contact us for information on our range of the following

products:

• Heat recovery ventilation • Whole house ventilation • Domestic fans and ducting

• Heating flues

UB8

Plain Tile Vent

ISOLIGHT

Duo-Roll

Ridge Vent Roll

UB11

Vepac Roof Ventilating Slate

Building Solutions

Ubbink is committed to sustainability. This means that not only are our products designed to provide environmentally friendly and energy efficient solutions, but every aspect of our business is focussed on reducing the environmental impact. This includes employing energy efficient manufac-turing processes, reducing waste and carbon emissions and meticulous selection of materials.

(3)

Multivent terminals for tiles 25 & slates - UB34/35

MVC service terminals - UB32/44 26 Service terminals - UB41 27 WEP Water expansion pipe outlet 27 UbiGas-H terminal - UB31 28 Hollow tile terminal - UB42 28 Plain tile terminal - UB37 28 Vepac terminal - UB39 29 Aerial terminal tile - UB38 29

VRC-T ridge terminal 29

MRT-N ridge terminal 30

Membrane 31

Flexible pipes 31

Felt sleeve and adaptor 31

Reducer 31

Ducting 32

Adaptor - UB17 32

'R' type adaptor 32

Flat roof vent - OFT 33

Flat roof terminal - OFT 34

Flat roof vent - FRV 34

Flat roof abutment vent - FRVA 34

VCL 265 35

Reflect 350 VCL 35

Over fascia system 15

DOS 10/25 fascia vent 16 Eaves ventilation pack 16

Spacer tray 16

Open eaves vent tray 17

RB100 roll out tray 17

SVS10/25 soffit strip 17 CSV push-in soffit vent 18

LTV lean-to roof vent 19

Metal mono vent 19

EPS eaves protection 20

BCF55 bird comb filler 20 Sim-Fix®_{slate strap} ₂₀

Weathering slate 21 Valley trough 21 Joining gutter 21 Ubiflex 22 Multivap 300 23 Multivap 400 24

BVS/L batten cavity vent 24 Multivap accessories - tapes 24

Tubular skylight 4 Purilan skylights 5 Isolight 5 Celeste rooflights 6 LH4/LH5 6 Ubivent - UB19 7 Ubivent - UB15/UB20 7

Plain tile vent - UB8 7

Plain tile vent - UB5 8

Trimline hollow tile - UB60/UB18 8

In-Line vent - UB62 9

Universal lead tile vent - UB16 9

Vepac roof ventilating slate - UB11 10

Ubivent - UB5/UB19 10

SlateVent - UB4/UB1 10

Slate space vent - UB17 11

Ubivent - UB15/UB20 11

Capped ridge vent - VRC 12

Metal ridge vent 12

Roofing & Building Products

Windows & Rooflights

Roof Ventilating Tiles

Pitched Roof Abutment Vents

Accessories for Terminals

Vents & Terminals - Flat Roof

Vapour Control Layers

Timber Frame Breather Membrane & Heat Reflecting Membrane

Loft Hatches

Roofing Accessories

Non-lead Flashing

Vapour Permeable Underlays

Roof Ventilating Slates

Ridge Vents

Dry Fix Systems

(4)

Ventilation

Regulations

PITCHED ROOFS

Building Regulation C2, Roofs (Resistance to damage from interstitial condensation)

6.10 - A roof will meet the requirment if it is designed and constructed in accordance with clause 8.4 of BS5250 2002 and BS EN ISO 13788:2001. The main recommendations are as follows. These and other situations are shown in the diagrams.

Tiled or slated pitched roof slopes of 15° and above should be provided with ventilation openings equivalent to the following continuous openings:

COLD ROOF

Low level ventilation to two opposite sides - 10mm

High level ventilation to two opposite sides for pitches over 35° and spans over 10m - 5mm

WARM ROOF (NON-CONVECTION TIGHT)

Low level ventilation to two opposite sides - 25mm

High level ventilation to two opposite sides - 5mm

LEAN-TO & MONO-PITCHED ROOFS

Low level ventilation cold roof - 10mm Non-convection tight warm roof - 25mm High level ventilation - 5mm

For roofs incorporating type LR underlays please refer to BS5250:2002

50 25 25 5, if span is over 10m 5 50 25 25 5 5, if span is over 10m or pitch is over 35º 25 10 10 25 10 5 50 25 5

All dimensions shown are in mm

BUILDING REGULATION REQUIREMENTS FOR DIFFERENT ROOF TYPES

Pitched roof over 15°

Pitched roof 15°or less

Warm roof (non-convection tight)

Mono-pitched roof over 15°

(5)

Ventilation

Regulations

Roof window or other obstruction in fully inclined ceiling

Roof window or other obstruction in partially inclined ceiling

Pitched roof over 15° with fire walls

Flat roof abutment showing required 25mm continuous venting at opposing eaves. 5 50 25 25 5 5 5 50 10 25 5 5 5 10 5 5 10 5 10 10 25 25 50+ SLOPE VENTS

Guide to Positioning of Slope Vents

Code Free Vent Area Spacing of Vents (m) (mm2) equivalent to continuous opening

5mm 10mm 25mm UB5/UB19 22,000 4.400 2.200 0.880 UB15/UB20 20,000 4.000 2.000 0.800 UB4 3,300 0.660 0.330 0.132 UB8 6,250 1.250 0.625 0.250 UB11 10,750 2.150 1.075 0.430 UB16 20,000 4.000 2.000 0.800

(6)

Natural daylight enhances any home or work

environment, and our stylish range of roof

lights and skylights provides innovative

solutions for flat and pitched roofs.

Rooflights

The tubular skylight ducts natural light from the roof to previously dark internal areas of any building

•For all roof types

•Straight forward installation

•Unrivalled performance

•Double glazed Optiview™ diffuser

•Polycarbonate impact resistant dome

•Combined extract ventilation kit available

•Raybender 3000 dome harvests more daylight than any other system.

•Spectralite® Infinity tubing delivers 99.3% reflectivity

RANGE

•250mm Tubular Skylight Kit

Basic kit comprises dome, flashing, 2 x 305mm tubes incorporating angle adaptor (0-30°), ceiling seal and double glazed diffuser. (Specify type of roof finish).

•250mm Ventilating Kit

The Ventilation Kit includes in addition to the basic kit; extract diffuser, insulated ducting, in-line fan.

Tubular Skylight

DESIGN & PERFORMANCE

OPTIONAL EXTRAS

610mm long extension tubes (basic kit covers installation up to 400mm long – add extension tubes as required). Electric light kit for night-time illumination.

Daylight dimmer butterfly system with motor and switch assemblies.

Angle bend 0-90° 610mm long adjustable elbow.

(7)

Rooflights

The Purilan range of skylights for tiled and slated roofs has been developed to combine high performance and ease of installation.

•25°- 75° roof pitches

•Double or single glazed

•Tile, slate and shingle roof coverings

•Space-saving top hung opening light

•Quick release window stay fastening

•Integral flashing

•Factory assembled components

•Special external locking units for outside to inside access

The Purilan skylight is a plastics framed component complete with top hung

Purilan Skylight

For light in the loft

opening double or single glazed light. The integral lower flashing (1.3mm lead for Purilan UNV and sheet aluminium for Purilan L models) removes the need for a separate, difficult-to-seal site joint between frame and flashing for most situations, thus providing for easier installations.

The casement stay is designed to hold the skylight casement in three positions – it may also be released from the frame for even wider opening. Units with the suffix E are external locking with a single barrel lock.

Purilan skylights are ideal where ventilation and light are required via the pitched roof finish. With specialist units for both slated and tiled roofs and the choice of single and double glazing, they are suitable for workrooms or hobby areas and for corridors and stairwells. The Purilan is also particularly suited for the replacement of cast iron skylights. The external locking units are produced for situations where a pitched roof is added to an existing flat roof and services requiring maintenance are then isolated in the newly created roof void.

FEATURES AND OPTIONS OF WINDOWS IN THE RANGE

UNV31 L31 UNV32 L32 UNV32E L32E

Overall Upstand Size (mm) 490 x 580 490 x 580 490 x 865 490 x 865 490 x 865 490 x 865

Single Glazed

Glass • • • • – –

Polycarbonate – – – – • •

Double Glazed (coded ISO)

Glass • • • • – –

Twin Wall Polycarbonate – – – – • •

Casement Closure

Internal stay • • • • – –

External lock – – – – • •

Isolight continuous rooflights enable the specifier to incorporate a design feature which is truly beneficial to the character and the environment of the building. Each Isolight is manufactured to individual project requirements and can be supplied to any length. Utilizing the latest UV protective polycarbonate glazing Isolight provides resistance to impact damage and is guaranteed to maintain its appearance for ten years. Various ventilation and opening options are available including manual. electric, pneumatic and weather and heat activated sensors.

Isolight Continuous Rooflights

GUIDANCE:

To meet the requirements of Part L in England and Wales and Technical Standards Section 6 in Scotland, rooflights will generally have to have a “U” value of 2.2 w/m2 K or better over the whole unit, ie dome and upstand

(8)

SHAPE

The range includes square, rectangular and circular units with pyramids or domes.

LIGHTS

Single, double and triple skin dome lights are available. Single skin dome lights and the inner & outer skin of multi-skin lights are manufactured in clear polycarbonate which has a specialist UV stabilised outer surface. Tinted and opal outer skins are available if required. Multi-skin lights are available with clear or diffused inner skins.

UPSTAND CURBS

Upstand curbs are manufactured in insulated GRP and PVC-u , to match the dome light sizes available.

Square and rectangular upstands are available 150 and 300mm high.

GRP circular upstands are unvented and available 150mm high only.

Upstands requires holes for site fixings to

Rooflights &

Loft Hatches

Celeste Rooflights

Roof deck fixings are not supplied with_product. FEATURES

•Single, double and triple skin domes.

•Class 1 lower surface spread of flame rating.

•Tp(a) rigid material.

•Vandal resistant polycarbonate domes.

•Clear and diffused double and triple skin glazing. Opal and tinted glazing available to order.

•Vented and non-vented GRP insulated upstands.

•Opening frames for access and ventilation.

•Suitable for mastic asphalt, built-up felt and single ply roofing.

CURB ADAPTORS

Aluminium curb adaptors are available to allow standard dome sizes to be fitted to non-standard or site prepared openings, details as required.

OPENING FRAMES

Opening light frames are available to fit all Celeste upstands, and are manufactured in PVC-u or GRP. All Celeste opening lights are supplied complete with hinges and catch/stay or control gear hardware.

Options available include manual and electric operation, hinged access and sliding units.

Over 30 sizes available.

See detailed brochure or price list, contact Ubbink for details.

Ubbink Loft Hatches are injection moulded in polypropylene. They are tough and durable units which are quick and easy to install and maintenance free. Each unit is insulated with CFC free flame retardant expanded polystyrene foam and has compressible draught and vapour seals. There is a twist operated catch to hold the hatch securely and prevent draught uplift.

Both hatches are Part L complient. LH4 is a in model. LH5 is a drop-down hinged model.

Both hatches provide an access of 526mm x 626mm and fit into a roof aperture of 560mm x 660mm.

COLOUR

White.

LH4/LH5

LH4

(9)

These allow you to meet building regulations for the

ventilation of roof spaces. Our extensive range of tiles with

different ventilation properties ensures that you’ll be able

to find just the combination you need. The wide selection

of sizes, styles and colours suits virtually all tile profiles to

ensure a perfect match and maintain the roofline.

We can also match many obsolete tiles and if the tile is not

known, we can provide a universal ventilating tile.

Roof Ventilating

Tiles

The Ubivent roof void ventilator is available with a variety of hood designs. The UB19 is a streamlined hood suitable for all roof finishes and has a free vent area of 22,000mm2

.

Matching units are also available for the termination of building services (soil & vent, mechanical & natural ventilation). See page 26.

MATERIAL

PVC-u and polyethylene.

ROOF FINISH

Pre-profiled units match all common profiles (over 70 available).

COLOUR

Standard colours: terracotta, red, sepia, anthracite. Special colour finishes are available to order.

Ubivent UB19

The UB15 and UB20 vents are suitable for all roof finishes and have an integral felt penetration sleeve to ensure optimum ventilation of the roof void. They have a free vent area of 20,000mm2

and the UB15 vent is covered by Agrement certificate No. 90/2542. Matching units are also available for the termination of building services (soil & vent, mechanical & natural ventilation). See page 26.

MATERIAL

PVC-u and polyethylene.

ROOF FINISH

Pre-profiled units match all common profiles (over 70 available).

Ubivent UB15 & UB20

UB15

UB20

The UB8 is an in-line roof ventilating tile for use in small plain non-interlocking tiles. Designed especially to merge into the surface of plain tiles without disturbing the roofline, each UB8 has a free vent area of 6,250mm2

.

For in situ shot – See inside front cover. Each unit has a slotted insect inhibitor to keep out large insects and vermin. UB8 plain tile vents are suitable for both high and low level ventilation and can be installed without batten or tile trimming. Matching units are also available for the termination of building services (soil & vent, mechanical and natural ventilation) – See UB37 Plain Tile Terminal on page 28.

MATERIAL

PVC-u.

ROOF FINISH

Small plain non-interlocking tiles.

COLOUR

Plain Tile Vent UB8

(10)

Roof Ventilating

Tiles

The UB5 PTU is a multi-tile profile vent with a flat hood. It is specifically designed for use in small plain non-interlocking tiles and has a free vent area of 22,000mm2

.

MATERIAL

PVC-u.

ROOF FINISH

Small plain non-interlocking tiles.

COLOUR

Plain Tile Vent UB5

The Hollow Tiles - the UB60 & UB18 roof ventilating tiles - are for installation in single lap interlocking tiles and are suitable for both new build and refurbishment. Hollow tiles provide ventilation to the roof void yet totally maintain the aesthetics of the roof, causing no interruptions to the lines of the tile profiling, with no visible caps or grilles.

The UB60 Trimline Hollow tile provides its 15,000mm2

free vent area via the body of the tile - air passing between the two layers. The large insect and vermin inhibitor is also positioned within the body of the tile.

For situations where a felt penetration sleeve is required, the UB18 Hollow Tile should be used. This unit has an integral felt sleeve which is factory fitted and provides a free vent area of 6500mm2

. Matching units are also available for the termination of building services (soil & vent, mechanical & natural ventilation) – See UB42 Hollow Tile Terminal on page 28.

MATERIAL

PVC-u.

ROOF FINISH

The UB60 and UB18 are produced to match most popular interlocking tile profiles.

Trimline Hollow Tile

UB60 & UB18

COLOUR

Standard colours - terracotta, red, sepia and anthracite.

They are also available colour coated to match individual requirements.

(11)

Roof Ventilating

Tiles

The UB62 In-Line vent offers high performance whilst retaining the aesthetics of the roof design. UB62’s are designed to provide ventilation of the roof space, either at low or high levels. UB62’s are suitable for all pitches above 221_/

2

o_{and may be used to supplement or}

replace other ventilation such as dry ridge, abutment or eaves systems, where they cannot be used. They are also suitable for ventilation of compartmental roof spaces, such as fire walls.

With the use of a stepped adaptor the UB62 can also be used for mechanical extraction, passive stack ventilation or with soil pipes for removal of foul air. The UB62 provides 15,000mm2_{of free}

vent area, and has a large insect and vermin grille.

MATERIAL

Polypropylene.

ROOF FINISH

Most common interlocking roof tiles.

COLOUR

Terracotta, red, sepia, anthracite.

In-Line Vent UB62

The UB16 is a Universal Roof Vent for use in all tiled and slated pitched roofs without the need to identify the make or design of the tiles or slates.

The unit comprises a flat box hood on a circular upstand with a 500 x 500mm lead flashing skirt. The upstand protrudes below the lead skirt to form a 160mm diameter penetration sleeve. The free vent area of the UB16 is 20,000mm2

. The unit has an integral mesh to stop the ingress of large insects and vermin.

If a matching terminal is required the UB41 should be used – See page 27.

MATERIAL

Lead skirt around PVC-u upstand with flat box hood.

ROOF FINISH

Tiled and slated pitched roofs.

COLOUR

Hood: Terracotta, red, sepia, anthracite. The unit can also be supplied with coated coloured lead for a better finish and to prevent roof staining from untreated lead.

Universal Lead Tile Vent UB16

(12)

For the ventilation of roof spaces on slate

roofs, our range of sizes and colours allows

you to comply with regulations without

spoiling the character of the property.

You can choose from discreet in-plane vents

through to high capacity hooded vents.

Roof Ventilating

Slates

The UB11 Vepac vent is an in-plane unit with a multi-purpose base which will provide inconspicuous ventilation in most sizes of natural and manmade slate. For in situ shot – See inside front cover. UB11s are suitable for high or low level venting.

Each vent has a slotted inhibitor to keep out large insects and vermin and provides a free vent area of 10,750mm2

.

This vent can be adapted for use as a service terminal – See UB39 on page 29.

MATERIAL

UV stabilised high impact polystyrene and ABS.

ROOF FINISH

In roofs of 25° and over, UB11s can be installed in most sizes of natural or manmade slate with the minimum of batten and slate trimming. (Not suitable for pitches below 25°).

COLOUR

Anthracite.

Special colour finishes are available to order.

Vepac Roof Ventilating

Slate UB11

The UB5 Flat Hood is best suited to flat slates. The UB19 is a streamlined hood suitable for all roof finishes. They have a free vent area of 22,000mm2.

Specialist units are available for 600 x 300mm and 500 x 250mm slates. A multi-purpose unit is available for use with all sizes of slate: Its overall size is 600 x 450mm.

MATERIAL

PVC-u.

ROOF FINISH

Slate – see above.

COLOUR

Slate grey.

Ubivent UB5 & UB19

There are two models of Slate Vents available which are suitable for both new build and refurbishment projects. The UB4 has an unobtrusive lowline hood with front grille and comes in two sizes – a unit which is a direct replacement for a 600 x 300mm slate and a multi-purpose unit which has a 600 x 450mm base which can be dressed into any size of slate. The UB4 is also available as a service terminal with a factory fitted spigot (UB26).

The UB1 has a wedge-shaped hood with front grille on a base which is a direct replacement for a 500 x 250mm slate. All these units are suitable for both high and low level ventilation. The UB4 has a free vent area of 3,300mm2

and the UB1 has a free vent area of 4,200mm2

. Both SlateVents are designed to stop the ingress of large insects and vermin.

SlateVent UB4/UB1

UB5

UB19

UB4

(13)

Roof Ventilating

Slates

MATERIAL

PVC-u.

ROOF FINISH

UB4: natural or manmade slates with the minimum of slate cutting.

UB1: presized natural or manmade slates 500 x 250mm.

COLOUR

Standard colour: slate grey.

The UB17 Slate Space Vent is a roof void ventilator for use in slates.

The base as supplied is a direct replacement for a 600 x 300mm slate. When the 25mm side bands are trimmed off and the inner set of fixing points is used, the unit is then a direct replacement for a 500 x 250mm slate. The UB17 is suitable for both high and low level ventilation and has a free vent area of 10,000mm2

.

The vent can be adapted for use as a service terminal. See page 32.

MATERIAL Polyethylene. ROOF FINISH Either 600 x 300mm or 500 x 250mm slates. COLOUR Black.

Slate Space Vent UB17

The UB15 and UB20 vents have an integral felt penetration sleeve to ensure optimum ventilation of the roof void. They have a free vent area of 20,000mm2

and the UB15 is covered by Agrement certificate No. 90/2542.

Specialist units are available for 600 x 300mm and 500 x 250mm slates. A multi-purpose unit is available for use with all sizes of slate: Its overall size is 600 x 450mm.

MATERIAL

PVC-u.

ROOF FINISH

Slate – see above.

COLOUR

Slate grey.

Ubivent UB15 & UB20

UB15

(14)

Our range of capped ridge vents provides

effective ventilation while maintaining the

roofline and is designed to match most of

the popular styles of ridge tiles. Uncapped

vents allow you to use your own choice of

ridge tile while still complying with building

regulations.

Ridge Vents

The VRC is a vented ridge tile comprising a metal under ridge vent combined with a PVC-u moulded cap which can be supplied in standard roofing colours or coloured & textured to individual requirements.

For high level ventilation each 450mm long Capped Ridge Vent provides a 12,500mm2

free vent area – 6,250mm2

on either side of the ridge. To achieve the equivalent of 5mm continuous ventilation on either side of the ridge they should be fitted every 1.25 metres. Incorporated in each unit is an expanded metal mesh insect screen to inhibit large insects and vermin.

VRC vents are installed by bedding in mortar and securing via the predrilled fixing strips to a suitable roof timber. There are VRC vents for both segmental and angled ridge tiles.

Matching units are also available for the termination of building services – See Ridge Terminals on page 29.

MATERIAL

Cover cap: PVC-u.

Vent: powder coated galvanised steel with expanded metal insect inhibitor.

ROOF FINISH

VRC’s are pre-profiled to match most popular ridge tiles.

VRC Capped Ridge Vent

Metal Ridge Vents provide roof void ventilation on either side of a conventional ridge tile. The width of the vent can be adjusted to suit individual types of ridge tile by releasing/ tightening a slotted screw.

There are two sizes of MRV available to suit 305mm and 450mm ridge tiles and the free vent areas provided are 6010mm2

and 9000mm2

respectively. To achieve the equivalent of 5mm continuous ventilation on either side of the ridge, they should be spaced as follows:

305mm – every 0.6 metres 450mm – every 0.9 metres Each vent has an integral expanded metal insect inhibitor. This mesh continues under the vent to aid grip to the mortar bed.

MRV Metal Ridge Vent

The MRV is installed underneath a standard hip tile or trimmed ridge tile in order to maintain the ridge line. Each unit is mortared in place and also mechanically fixed via the predrilled end fixing strips. The ridge tile is then mortared onto the vent.

MATERIAL

Powder coated galvanised steel with expanded metal insect inhibitor.

ROOF FINISH

COLOUR

Black.

COLOUR

Standard colours: red, terracotta, sepia and anthracite. They can also be supplied coloured and textured to individual requirements.

(15)

These allow easy installation in all weathers.

Securely fixed to the roof structure, they

require no mortar and no maintenance. They

are used with conventional ridge tiles so the

roofline is completely undisturbed.

Dry Fix

Systems

Ubbink’s Ridge Vent Duo-Roll is a continuous ventilated dry fix product which can be used with profiled tiles or

Ridge Vent Duo-Roll

the ridge. The corrugated construction of the Duo-Roll makes is easy to mould to the profiling of the tiles and is sealed with an integral butyl sealing strip. Fixing kits for both round and segmental ridge tiles are available.

MATERIAL

Colour coated aluminium with the centre made from water-resistant fabric.

ROOF FINISH

Profiled tiles in a pitched roof situation.

COLOUR

(16)

Dry Fix

Systems

The Dry Verge provides a durable and weatherproof verge finish that fits all common tile profiles. It is easy to fix and requires no mortar, so can be installed in all weathers. It can be counter-batten or barge board fitted. The interlocking stepped verge is 455mm long and fully adjustable to suit most tile gauges. Left and right-handed units are available with ridge end caps and eaves closers to match. Supplied in packs of 20.

MATERIAL

UV stable PP.

ROOF FINISH

Profiled tiles.

COLOUR

Anthracite, brown, terracotta, white.

Dry Verge for Tiles

A dry fix durable verge for slated roofs which is easy to handle and cut.

Each strip is 2m long.

At the ridge junction, ridge end caps are supplied to suit segmental or angled ridge tiles.

MATERIAL

PVC-u and ABS.

ROOF FINISH

Slated pitched roofs.

COLOUR

Slate grey.

Dry Verge for Slates

(17)

Providing effective ventilation without spoiling

the line of the eaves, our selection of products

includes retrofit options or new build solutions

for different styles of construction.

Eaves &

Fascia Vents

The Ubbink Over Fascia Ventilating System is a one-piece interlocking system fitted to the top of the fascia which provides:

•Eaves level continuous ventilation

•Semi-rigid hinged underlay support flap

OFVS Over Fascia System

roof pitches 15° - 70° although below 23° additional support may be needed for the support flap to prevent ponding: OFVS10 & OFVS/10L provide 900mm length x 10mm continuous ventilation OFVS25 & OFVS25/L provide 480mm length x 25mm continuous ventilation The interlocked strips are nailed to the top of the fascia and nail fixings should be calculated in accordance with BS5534. The fixing points are designed to eliminate any water leakage as are the interlocks between strips.

It should be noted that some cellular PVC-u fascia boards cannot take vertical fixings. In such cases the system may be fixed through its underlay support into a batten fixed to the rafters behind the fascia board. However, space must be left between the back of the fascia board and the fixing batten to allow air to pass into the roof void.

In full boarded roofs, a section of boarding immediately behind the fascia should be removed to allow air to pass into the roof void.

At hips and valleys, the system should be sawn to form tight fitting mitred joints. To prevent possible leakage at valleys, a flashing of underlay material should be positioned under the joint to discharge into the gutter.

system. The following figures can be used as guidelines:

It may be necessary to use gutter spacers with OFVS25 & OFVS25/L to prevent rainwater overshoot.

OFVS products should be used in conjunction with insulation inhibitor trays to ensure a clear airway into the roof void – See page 16 and 17.

MATERIAL

Polypropylene.

ROOF FINISH

OFVS10 & OFVS25 have integral bird excluder and are for use with profiled tiles.

OFVS10/L & OFVS25/L: flat tiles and slates.

COLOUR

Black.

Pitch of Roof OFVS10 & OFVS25 & Allowance OFVS10/L OFVS25/L

15 - 50° 20mm 35mm 51 - 55° 25mm 40mm 56 - 60° 30mm 45mm 61 - 65° 35mm 50mm 66 - 70° 40mm 55mm OFVS10 OFVS10/L OFVS25 OFVS25/L

(18)

DOS10 & DOS25 are over fascia ventilation strips. They are designed with a radiused leading edge to protect the felt and have integral large insect and vermin inhibitors.

DOS10 is 28mm high x 35mm deep x 1.0m or 500mm long. The strips lock together and provide 10,000mm2

per metre of continuous ventilation. DOS25 is 32mm high x 45mm deep x 1.0m long and provides 25,000mm2

per metre of continuous ventilation. These products should be used in conjunction with insulation inhibitor trays to ensure a clear airway into the roof void.

MATERIAL

Polypropylene.

ROOF FINISH

Slated and tiled roofs over 15° where the eaves detail provides a fascia board.

COLOUR

Black.

DOS 10/25 Fascia Vent

The Ubbink Eaves Ventilation Pack provides all the elements needed to ventilate 6 metres of eaves.

Over fascia ventilating strips (10mm) Roll out insulation spacer tray Felt supports

MATERIAL

Over fascia ventilation strip: polypropylene

Spacer tray: PVC-u Felt support: PVC-u

ROOF FINISH

Tiled and slated roofs over 15° where the eaves detail provides a fascia board.

COLOUR

Black.

Eaves Ventilation Pack

NB Insulation Spacer Trays provide a clear air way between the ceiling insulation and the roof underlay in a new build situation for both cold and warm roofs.

They are used in conjunction with eaves ventilation products

NB trays are 330mm deep and both cold and warm roof trays come in two models:

COLD ROOF TRAYS

NB400 for use with 400 & 450mm rafter centres.

NB600 for use with 600mm rafter centres.

Cold Roof Trays provide a minimum 25mm airway.

WARM ROOF TRAYS

NB400A for use with 400 & 450mm rafter centres.

NB600A for use with 600mm rafter centres.

Warm roof trays provide a minimum 50mm airway.

MATERIAL

PVC-u.

ROOF FINISH

COLOUR

Black.

Spacer Tray

Eaves &

Fascia Vents

(19)

Eaves &

Fascia Vents

OE trays are insulation spacer trays with a slotted large insect and vermin inhibitor for use in open/cottage eaves construction.

These trays are 330mm deep and come in three widths for installation in 400mm, 450mm and 600mm rafter centres.

OE trays are available for use in either cold roof or warm roof situations. The slotted inhibitor is 50mm high on the cold roof tray and 69mm high on the warm roof tray.

The free vent area of these units is as follows:

Cold Roof Trays

Warm Roof Trays (with suffix A)

OE400 4,000mm2 OE400A 10,000mm2 OE450 4,500mm2 OE450A 11,250mm2 OE600 6,000mm2 OE600A 15,000mm2 MATERIAL PVC-u. ROOF FINISH

Open Eaves Vent Tray

RB100 Roll Out Insulation Tray provides a minimum 25mm clear airway between the ceiling insulation and the roof underlay and is suitable for use in cold roofs. It is used in conjunction with eaves ventilation products.

Each roll of RB100 is 6 metres long and 400mm wide. Its flexible corrugated construction allows it to be used with most rafter centres.

MATERIAL

PVC-u.

ROOF FINISH

Tiled and slated pitched roofs (insulation at ceiling level).

COLOUR

Black.

RB100 Roll Out Tray

SVS10 & SVS25 are slotted strips which can be fixed to the back of the fascia board to introduce ventilation to the roof void via the soffit. They are suitable for use with 6mm – 12mm thick soffit boards. The 4mm wide slots stop the ingress of large insects and vermin into the roof void.

Each strip is 2.4 metres long and provides the following ventilation: SVS10 - 10,000mm2

per metre SVS25 - 25,000mm2

per metre The base width of the strip is; SVS10 = 55mm, SVS25 = 80mm These products should be used in conjunction with insulation inhibitor trays to ensure a clear airway into the roof void.

MATERIAL

PVC-u.

ROOF FINISH

Where the roof construction provides a fascia and soffit.

COLOUR

White, brown.

SVS10/25 Soffit Strip

(20)

CSV vents are 70mm diameter circular push-fit vents for use in existing buildings where ventilation is to be introduced via the soffit.

Each vent provides 1,400mm2

of ventilation via the moulded mesh which stops large insects and vermin entering the roof void. The push-fit design requires no mechanical fixings.

This product should be used in conjunction with insulation inhibitor trays to ensure a clear airway into the roof void.

MATERIAL

Polypropylene.

ROOF FINISH

Where the roof construction provides a soffit.

COLOUR

White, brown.

CSV Push-In Soffit Vent

Eaves &

Fascia Vents

(21)

For roof space ventilation to comply

with building regulations, abutment

vents are easily installed and are

hidden under the flashing.

Abutment

Vents

The Ubbink Lean-to Abutment Vent is an interlocking system which provides a continuous 5mm of ventilation where a monopitch roof abuts a wall. Each strip of LTV provides 900mm working length.

The spacers provided are positioned behind a batten which is fixed to the wall above the abutment joint. This allows the ventilation introduced by the LTV strip to pass behind this batten into the roof void. A lead strip is attached to the front of the batten and dressed down over the roof finish. The LTV vented strip is nailed to the top of the batten. A further strip of lead is raggled into the nearest mortar joint above the fitted strip, dressed down over the LTV and held tight to it by the integral stainless steel clips.

LTV Lean-to Roof Vent

The Metal Mono Vent provides the equivalent of a continuous 5mm of ventilation where a monopitch roof abuts a wall.

Metal Mono Vents are available in two sizes:

345mm long x 150mm wide x 19mm deep for use with rafters at 400mm centres

545mm long x 150mm wide x 19mm deep for use with rafters at 600mm

Metal Mono Vent

The following are the free ventilation areas of the units and the spacings necessary to achieve the equivalent of 5mm of continuous ventilation:

345mm long – 5,440mm2

– every 1 metre (adjusted to nearest rafter spacings)

545mm long – 8,640mm2

– every 1.7 metres (adjusted to nearest rafter spacings)

These units are V-shaped funnels which incorporate an integral expanded metal insect inhibitor. Installation is by slotting into place between the rafters and the abutment joint is then weathered by a lead flashing strip which is raggled into the mortar joint above the abutment and dressed onto the Metal Mono Vent. The gap between the underside of the vent and roof finish should be sealed.

MATERIAL

Powder coated galvanised steel.

ROOF FINISH

Where a pitched tiled or slated roof abuts a wall.

COLOUR

Black.

ROOF FINISH

Where a pitched tiled or slated roof meets a wall.

COLOUR

(22)

All of our roofing accessories are designed

for easy installation. They help to protect

the roof and roof space from the impact of

weathering and improve ease of

maintenance.

The Ubbink Bird Comb Filler prevents the ingress of birds between the underside of profiled tiles and the underlay on pitched roofs.

Manufactured in 1.0m strips, it is pre-drilled ready to fix to the top of the fascia and the sturdy teeth of the comb prevent birds from entering and nesting in the spaces under tile profiles.

MATERIAL Rigid polypropylene. ROOF FINISH Profiled tiles. COLOUR Black.

BCF55 Bird Comb Filler

The Ubbink Eaves Protection System is designed for use in both refurbishment projects and new build to provide an effective level of eaves protection. The 1.5m rigid pre-formed strips are suitable for use in roof pitches of 15° to 70°. On existing buildings EPS can be used to replace rotted gutter felt with the minimum of disruption to the existing slate or tile roof covering.

In new build situations, the preformed EPS strip directs water away from the underlay and into the gutter. At the same time it provides an effective underlay support flap, preventing ponding of the underlay behind the fascia board. EPS is ideal for use with the new generation of lightweight, high performance underlays, which are not suitable for forming a drip into the gutter. EPS is fixed to the top of the fascia with clout nails. If a plastic fascia is used which will not support clout nails, EPS may be fixed to a batten behind the fascia.

MATERIAL

PVC-u.

ROOF FINISH

Pitched tile and slate roofs.

COLOUR

EPS Eaves Protection

Quick and easy to use, the Sim-Fix®

is designed to re-fix all sizes of slates which have slipped from their original position. As well as securing against slippage it also secures against wind uplift. With its unique ratcheted retaining clip Sim-Fix can be used with all common slates. Made in slate grey it blends in with the roof once fixed into position.

MATERIAL

Made from durable weather and pollution resistant nylon.

ROOF FINISH

Slated roofs.

COLOUR

Slate grey.

Sim-Fix

®

_{Slate Strap}

Roofing

Accessories

(23)

Roofing

Accessories

A universal weathering slate for use where a pipe has to pass through the roof finish. Suitable for use with pipes from 80 to 110mm diameter, the weathering slate base is 450 x 450mm in size and there are separate models for pitched and flat roofs.

MATERIAL

Soft aluminium with an EPDM centre.

ROOF FINISH

Pitched roofs 15°to 45°and flat roofs.

Weathering Slate

A lightweight valley gutter which is durable and UV resistant whilst being easy to handle and to cut.

The profiled channeling is designed to deter blockage from organic growth and provides a clear opening of 125mm. Each gutter is 3m long and has a sanded strip on either edge to improve mortar adhesion.

Ubbink Valley Troughs are suitable for use in pitches from 22.5° for roof areas of less than 25m2

or from 30° for roof areas of 25 – 100m2

. The maximum difference in an adjacent pitch is 10°. It is recommended that these gutter strips are installed with overlaps of 250mm and supported by lay boards. Complies with NFRC TB 28.

Other valley gutters available on request.

MATERIAL

GRP.

ROOF FINISH

Tiled pitched roofs.

COLOUR

Grey.

Valley Trough

A joining strip designed to provide a weatherproof junction between terraced or semi-detached houses or when a new roof is being joined to an existing roof. This strip is particularly useful for linking two different roof finishes such as tiles and slates.

The durable UV resistant 3m strips have a sanded strip at either edge to assist mortar adhesion and are easy to handle and cut.

Joining Gutters are suitable for installation in pitches from 22.5° to 45° with an overlap allowance of 250mm.

MATERIAL

GRP.

ROOF FINISH

COLOUR

Grey.

Joining Gutter

(24)

Provides effective rain and snow protection

for all the critical areas of a roof.

Non-lead Flashing

Ubiflex is a non-lead flashing material which can be used in all applications where lead is traditionally installed. Ubiflex is environmentally friendly, non-toxic and recyclable.

UBIFLEX - SETTING NEW STANDARDS IN FLASHINGS

Ubiflex is 80% lighter than lead - giving handling, structural and health and safety advantages. Ubiflex is fully malleable, can be worked in both directions and is self-sealing if punctured.

Ubiflex allows aprons up to 12m long with 400mm width and below to be formed without seams. There is less wastage with Ubiflex than with traditional materials.

Ubiflex is up to 50% quicker to install than lead.

Ubiflex is compatible with all common building materials and components, such as thermal panels, extract flues, ventilators and rooflights.

Ubiflex does not cause unsightly staining.

Ubiflex is only of value to the installer; it has no re-sale value as scrap.

APPLICATIONS

Ubiflex is suitable for all applications where lead would traditionally be used: • Stepped flashings

• Abutment flashings • Chimney flashings • Saddle flashings • Pitched valleys liners

Ubiflex

• Rooflights and solar panels • Dormers

• Ubiflex can also be used to form damp proof courses and cavity trays in masonry walls.

INSTALLATION

Ubiflex can be worked in the same way as lead, but without the need for protective measures.

Ubiflex:

• Can be cut with a sharp knife • Can be fixed with stainless steel nails if

required

• Should be lapped or sealed with Ubiflex High Tack Lap Sealant • Is compatible with all common

building materials except PVC Single Ply Membranes

Ubiflex Gap Sealant is designed for pointing joints in brickwork or masonry and provides a flexible, long life joint which avoids the cracking and water penetration problems associated with traditional mortar.

Ubiflex Fixing Clips grip Ubiflex firmly in place in seconds and allows Ubiflex to be easily dressed before pointing in.

TECHNICAL DESCRIPTION

Roll size & weight: 150mm x 12m (7.2kg) 200mm x 12m (9.6kg) 250mm x 12m (12.0kg) 300mm x 12m (14.4kg) 400mm x 12m (19.2kg) 500mm x 6m (12.0kg) 600mm x 6m (14.4kg) 1000mm x 6m (24.0kg) Thickness: 3.5mm

Colour: grey or black topside

PERFORMANCE

Composition: Modified polyolefin compound with an aluminium mesh reinforcement. Temp resistance: -30˚C to +90˚C Min. working temp: By hand:-10˚C;

With hammer:+5˚C Use warmed material for improved malleability at low temperatures.

Corrosion: Resistant to corrosion. Wind stability: Resists wind forces.

In high exposure areas Ubiflex High Tack Lap Sealant may be required.

Durability: Tested to methods of water tightness, water absorption and artificial ageing by long term exposure to UV radiation, elevated temperature and water. Individually and in combinations of two and all three elements. Guarantee: 25 years.

(25)

Innovative technology in the

development of underlays allows

improved ventilation of the roof space as

well as greater protection against wind,

rain and snow.

Vapour Permeable

Underlays

TECHNICAL SPECIFICATION Table of results Thickness +/- 15% 0.5mm Roll width 1m / 1.5m Roll length 45m / 50m Colour Grey Tensile strength: BS EN ISO 527-1 (speed 100mm min-1) Length 7.9 Nmm-2 Cross-section 5.2 Nmm-2 Tear resistance: MOAT 27:5.4.1 Length 324N Cross-section 211N

Water vapour permeability

EN 1931 (25ºC/75%RH) 1318 gm-2_day-1

Water vapour resistance 0.15 MNsg-1

Hydrostatic head 5.9m

Multivap 300 breather underlay provides outstanding protection against wind-driven rain and water infiltration. Yet its vapour permeable surface allows moisture vapour to escape, helping to keep interiors condensation free.

CONDENSATION

With modern standards of insulation it is necessary to dispel the accumulation of moisture vapour in occupied buildings. In principle, ventilation dispels moisture and stops condensation forming. The first line of defence is a vapour control layer on the warm side of the insulation. However water vapour can occur and must be dealt with. Multivap 300 with its high vapour permeability

Multivap 300

allows vapour to pass freely through to evaporate in the atmosphere.

INSTALLATION ON PARTIALLY SUPPORTED COLD ROOFS

Multivap 300 should be draped over the rafters to allow any water ingress through tiles to drain down to the gutter. Overlaps must be provided with the minimum dimensions given in the following table.

A prefabricated gutter drip must be used with Multivap – Ubbink Eaves Protection System – see page 20, or Over Fascia Ventilation System – see page 15, are suitable.

For sealing overlaps or junctions with adjoining materials, use Ubiflex Tack Sealant.

MATERIAL

Multivap 300 is manufactured by the lamination of a water vapour permeable film between two layers of non-woven polypropylene spunbond to form a flexible breather membrane for

03/4064

ROOF FINISH

Both warm and cold roof construction.

COLOUR

Grey on the external side.

On fully supported warm roofs or sealed systems, counter battens should be installed over Multivap to allow drainage under the tile battens.

For fuller guidance please refer to Ubbink technical information.

Roof Pitch Horizontal Lap(mm) Vertical Lap Partially Fully (mm) Supported Supported

12.5 - 14 225 150 100

15 - 34 150 100 100

(26)

Similar to Multivap 300 but for heavy duty applications and where increased wind uplift resistance is needed.

Multivap 400

TECHNICAL SPECIFICATION Table of results Thickness +/- 15% 0.6mm Weight 165g/m2 Roll width 1.5m Roll length 45m / 50m Colour Grey Tensile strength: Edana 20:2:89 MD 320N CD 190N Tear resistance: MOAT 27:5.4.1 MD 324N CD 211N

Water vapour permeability

EN 1931 (25ºC/75%RH) 1389 gm-2_day-1

Water vapour resistance 0.15 MNsg-1

Hydrostatic head 5.9m

BVS/L is a fascia fitted strip which introduces ventilation to the cavity between the underlay and the roofing finish in a warm roof construction, where the underlay is laid directly on the insulation.

The 1.0m long pieces of BVS/L interlock together to form a 31mm high ventilation strip which provides 25,000mm2

of ventilation per metre, as recommended in BRE/GBG 37. When fixing to the fascia board, due allowance must be made for the height of this product.

Counter Battens may be needed on slates and flat tiles to ensure a continuous ventilation path.

Bird comb fillers are available seperately -see page 20.

MATERIAL

Polypropylene.

ROOF FINISH

Slated or tiled pitched roofs.

COLOUR

Black

BVS/L Batten Cavity Vent

Sleeving Tape: to seal round pipe and other penetrations - double sided butyl 95mm wide x 10m roll.

Lap sealant for airtight seals.

Multivap Accessories

Vapour Permeable

Underlays

DESIGN & PERFORMANCE DESIGN & PERFORMANCE

(27)

Our terminals are easy to install and the

range includes many sizes, styles and

colours to match most tiles, slates and

ridge tiles. The profiles are designed to

be as unobtrusive as possible,

maintaining the aesthetics of the roof.

Terminals for

Pitched Roofs

UbiSoil (UB23) and UbiFresh (UB25) are ranges of uncapped and capped vertical stack terminals, for drainage system vent pipes and room ventilation ducts, fitted for use in tiled or slated roofs. The UbiSoil range of uncapped service terminals for pitched roofs may be used with soil and vent stacks. The lock-on grille is easily removed for external pressure testing.

The UbiFresh range of capped service terminals may be used with 110mm

UbiSoil UB23/UbiFresh UB25

Specially designed for systems requiring a low resistance terminal, the Multivent Ser vice Terminals are suitable for mechanical and natural (passive) ventilation installations. The pipework above the roofline is twin walled and incorporates an integral condensation drain. Two models are available, the UB34 with an internal diameter of 125mm and the UB35 with an internal diameter of 160mm.

The unit is suitable for roof pitches of 25° to 45° and comes complete with flashing – a universal base for both tiles and slates (160mm dia). Special lower and higher pitch versions are available to order.

The free vent areas of the units are: 125mm dia = 12,250mm2

160mm dia = 20,000mm2

The pressure airflow resistance of both units is <1.0 pascal at 225m3

/h.

MATERIAL

Stack and cowl: polyethylene. Tile flashing: polyethylene & lead.

ROOF FINISH

Multivent Terminals UB34/35

The free vent area of a UB25 is 8,400mm2

and the pressure/airflow resistance 5.9 pascals (at 100m3

/h). These terminals are suitable for use in tiled and slated roofs in pitches between 15°and 55°. Units are available to match all popular tile profiles.

Slate bases of 600 x 300mm and 500 x 250mm are available.

A multi-purpose base of 600 x 450mm for use with other sizes of slate and plain tiles is also available.

The unit is supplied in two parts, pipe and tile. The roof pitch range, shown on either side of the stack, is selected and the stack pushed into the base until the two lugs engage in their sockets. The stack is then locked at the correct angle with the red locking clip.

MATERIAL

PVC-u.

ROOF FINISH

COLOUR

Profiled tile units: anthracite, terracotta and sepia.

Slate & plain tile units: anthracite. Special colour finishes are available to UB23

(28)

The MVC range of pre-profiled roof level service terminals for pitched roofs may be used as:

Mechanical or natural ventilation terminals for ducts from 100mm to 160mm diameter.

Soil and vent pipe terminals for drainage installations (only suitable if external pressure test is not required).

Air intake terminals for lift shafts, larders etc with optional mesh screen.

The MVC models UB44 (streamlined hood design) and UB32 (flat box hood design) are factor y assembled units suitable for 110mm connections. The self-assembly version of the MVC consists of a Ubivent roof ventilating tile or slate used with a felt sleeve and adaptor with connections from 100mm to 160mm. There is a choice of Ubivent design, the UB19 streamlined hood, or the UB5 which has a flat box hood. The felt sleeve is pushed into the underside of the Ubivent ensuring all fixing points are engaged. The stepped adaptor is cut off at the required diameter, and pushed onto the felt sleeve -this joint must be sealed with PVC solvent weld.

MVC Pitched Roof

Service Terminal

MVC service terminals are manufactured to match all popular tile profiles; bases 500 x 250mm, 600 x 300mm and a 600 x 450mm multi-purpose unit are for use with slates. A specialist base for use in small plain non-interlocking tiles is also available.

MATERIAL

PVC-u.

ROOF FINISH

COLOUR

Interlocking tiles: anthracite, terracotta, red, sepia.

Slate 500 x 250 and 600 x 300: anthracite. Slate/multi-purpose 600 x 450: anthracite, terracotta, red, sepia. Plain Tiles (code PTU): terracotta, red, sepia, anthracite.

Special colours to order.

Terminals for

Pitched Roofs

THE RANGE

Code Hood Design Diameter (mm)

Factory Assembled Units

UB44 Streamlined 110

UB32 Flat 110

Site Assembled Units

UB19+felt sleeve & adaptor Streamlined 100/110/125 150/160 UB5+felt sleeve & adaptor Flat box 100/110/125

150/160

PERFORMANCE

Code Diameter Free vent Pressure Airflow (mm) area (mm2_{) resistance (Pascals)}

100m3_{/h 200m}3_/h

UB32 & UB44 110 8,850 3.6 15.3 100 7,850 2.5 9.9 110 8,850 3.2 12.8 125 12,250 4.5 18.0 150 17,775 5.8 23.0 160 18,750 6.0 24.2 UB19/UB5 with felt sleeve & adaptor

(29)

Terminals for

Pitched Roofs

The UB41 is a Universal Ser vice Terminal for use in all tiled and slated pitched roofs without the need to identify the make or design of the tiles or slates.

The unit comprises a flat box hood on a circular upstand, a 500 x 500mm lead flashing skirt and stepped adaptor which allows connections from 100mm to 160mm diameter ducting. The unit may also be used to terminate soil & vent pipes where an external pressure test is not required.

The free vent areas and pressure/airflow resistance readings for the UB41 are as follows:

The unit is easy to install – the adaptor is cut off at the required diameter and attached to the undertile spigot with solvent weld/PVC glue. The lead flashing allows fitting into most tiles and

Universal Service Terminal UB41

ROOF FINISH

Most tiled and slated pitched roofs.

COLOUR

Hood available in terracotta, red, sepia and anthracite. This unit can also be supplied with coated coloured lead for a better finish and to prevent roof staining from untreated lead.

The Ubbink UB30 WEP is a pre-shaped flashing unit designed to provide a practical and aesthetically pleasing method for penetrating a pitched roof covering with horizontal pipework or cabling. The WEP system eliminates the need for installing lead flashings around pipe exit points, as well as the need to cut any of the surrounding tiles or slates. The UB30 is available with one or two grommets. Standard grommets accommodate diameters from aerial cables to 18mm pipes and are suitable for most domestic cistern overflow and warning pipes. A larger grommet size for pipes up to 32mm is available to order for the single grommet version only. The premoulded base is available to suit popular tile profiles and all sizes of slate.

MATERIAL

Polyethylene.

ROOF FINISH

Slated and tiled pitched roofs.

COLOUR

Anthracite as standard, terracotta and sepia to order.

WEP Water Expansion

Pipe Outlet UB30

PERFORMANCE

Diameter Free vent Pressure/Airflow area resistance (Pascals) (mm) (mm2₎ _100m3_/h _225m3_/h 100 7,850 3.0 7.5 110 8,850 4.5 16.0 125 12,250 5.3 24.0 150 17,775 6.5 31.0 160 18,750 6.5 31.0

(30)

Terminals for

Pitched Roofs

The UB31 UbiGas-H is a flashing unit used to bring 100mm and 125mm diameter concentric flues for fan-assisted balanced flued gas boilers horizontally through a pitched roof.

The standard wall terminal supplied by the boiler manufacturer may be used and an extension piece may be necessary. In a concentric flue on a fan assisted boiler, the outer pipe is cool enough to be carried in a plastic housing.

The UB31 has a concealed gutter and lead flashing to enable weathering into the tiles or slates. There are two models available, one for use in pitches 30° to 45° and one for use in pitches 45° to 55°.

MATERIAL

PVC-u and lead.

ROOF FINISH

COLOUR

Anthracite.

UbiGas-H UB31

The Hollow Tile Terminal is an in-plane pitched roof terminal for use in a range of single lap interlocking tile profiles. This ser vice terminal causes no interruptions to the lines of the tile profiling, with no visible caps or grilles, thereby totally maintaining the aesthetics of the roof.

The UB42 is suitable for terminating 110mm diameter mechanical extract systems and soil & vent systems where an external pressure test is not required. With the addition of a large insect and vermin inhibitor, the unit can be used as an air intake terminal for storage areas, etc.

The UB42 has a free vent area of 6,500mm2

and a pressure/airflow resistance reading of 23.8 pascals (reading taken at 100m3

/h).

MATERIAL

PVC-u.

ROOF FINISH

Many popular interlocking tile profiles.

COLOUR

Terracotta, red, sepia and anthracite. Special colour finishes are available to order.

Hollow Tile Terminal UB42

The Ubbink Plain Tile Terminal is an in-plane pitched roof terminal for use in small plain non-interlocking tiles. It is suitable for terminating 110mm diameter mechanical extract systems and soil & vent systems where an external pressure test it not required.

For aesthetic purposes, the UB37 terminal matches the UB8 roof ventilating tile.

/h).

MATERIAL

PVC-u.

ROOF FINISH

Pitched plain tiled roofs.

COLOUR

Terracotta, red, sepia and anthracite as standard. Special colour finishes are available to order.

Plain Tile Terminal UB37

(31)

Terminals for

Pitched Roofs

The Ubbink Vepac Terminal is an in-plane service terminal for use in slated roofs in pitches of 25° and over. The UB39 is suitable for terminating 110mm diameter mechanical extract systems and soil & vent systems where an external pressure test is not required. For aesthetic purposes, the UB39 terminal matches the UB11 roof ventilating slate.

/h).

MATERIAL

Vent slate and adaptor: UV stabilised high impact polystyrene and ABS. Pipe: polyethylene.

ROOF FINISH

Manmade and natural slated roofs with a pitch of 25° and over.

COLOUR

Anthracite. Special colour finishes are available to order.

Vepac Terminal UB39

The UB38 Aerial Tile provides a weatherproof means of taking a television or stereo aerial (minimum 25mm diameter) through the roof finish without tile/slate cutting or lead pieces. For smaller cables - see WEP on page 27. The UB38 is suitable for use with most tile profiles and with slates in roof pitches from 15° - 55°. Each terminal comprises a pre-profiled tile or slate with stepped stack. A pipe clip is provided to clamp the unit securely to a suitable roof timber. The aerial should be separately fixed to roof timbers within the loft space.

Aerials should not exceed one metre in height above the top of the terminal. The top of the aerial should be in line with or below the ridge line.

MATERIAL

Polyethylene and PVC-u.

ROOF FINISH

COLOUR

Terracotta, sepia and anthracite.

Aerial Terminal Tile UB38

The VRC-T Ridge Terminals have a 125mm diameter connection for ducting and are suitable for terminating mechanical ventilation systems and SVP systems (where permitted).

Each unit is 450mm long and comprises a PVC-u moulded cap on a metal under-ridge vent and a 125mm diameter metal connector. The cap can be supplied in standard roofing colours or coloured and textured to individual requirements. The metal under-ridge vent provides a free vent area of 12,250mm2

and has an expanded metal mesh screen to inhibit large insects and vermin. The galvanised connector provides a 125mm diameter ducting/ pipework connection.

VRC-T terminals are installed by bedding in mortar and securing via the predrilled fixing strips to a suitable roof timber.

MATERIAL

Cover cap: PVC-u.

Vent tile: powder coated galvanised steel with an expanded metal insect inhibitor. Connector: galvanised steel.

ROOF FINISH

VRC-T Capped Ridge Terminal

(32)

Terminals for

Pitched Roofs

The MRT is a service terminal which fits under a conventional 450mm ridge tile and allows connection to 110mm and 125mm pipework/ducting. The MRT is installed underneath a standard hip tile or trimmed ridge tile in order to maintain the ridge line. The metal vent has an integral expanded metal insect inhibitor. This mesh continues under the to aid grip to the mortar bed.

The MRT is mortared in place and also mechanically fixed via the pre-drilled fixing strips at either end of each unit. The ridge tile is then mortared onto the terminal. If a ridge board is used, it must be cut away for the length of the unit. The free vent areas of the two MRT terminals are:

110mm diameter - 8,400mm2

125mm diameter - 12,250mm2

MATERIAL

Powder coated galvanised steel with an expanded metal insect inhibitor. 110mm connector: PVC-u. 125mm connector: galvanised.

ROOF FINISH

Slated and tiled pitched roofs.

COLOUR

Black.

MRT Ridge Terminal

(33)

The 110/100mm PVC-u reducer is for use with 110mm diameter terminals when a 100mm ducting connection is

Reducer

These allow you to finish the job easily

and efficiently.

Accessories for

Terminals

The weathering membrane provides a water tight method of passing pipes of 100 or 110mm through the roofing felt. The membrane, made from flexible PVC, is pushed over the pipe and turned up to provide a water tight seal to the pipe. The upper end of the membrane is dressed up the roof and under the next felt lap to prevent any leakage of water running down the felt.

Membrane

The CPJ is a 500mm white lightweight flexible pipe. The flexible section is made from polypropylene and the 110/110mm end connectors are made from PVC-u.

Note: The CPJ should be insulated in the cold loft space.

CPJ Flexible Pipes

The felt sleeve and adaptor are used with Ubivent Roof Ventilation Tiles models UB5 and UB19. They allow the on-site conversion of these vents to service terminals.

The felt sleeve click-fits in place into the underside of the Ubivent. The stepped adaptor is cut off at the required diameter and then pushed onto the sleeve. It provides a choice of 100mm, 110mm, 125mm, 150mm and 160mm diameter connections. The joint between the felt sleeve and adaptor should be sealed with PVC solvent weld.

Felt Sleeve and Adaptor

FPJ Flexible Pipes

The units come complete with sealing rings.

The FPJ 110/110 has been pressure tested in accordance with BS-EN12056-2 and with Building Regulations, Scotland. (Certificate no 3380). Note: If used with a mechanical system this FPJ should be insulated in the cold loft space.

(34)

Accessories for

Terminals

Ubbink supply a range of uninsulated, insulated and acoustic ductings and hose clips for diameters from 100mm to 200mm.

Ducting

Adaptor (UB17)

A Ridge Type Adaptor suitable for connecting a metal flue to a concrete or clay gas flue ridge terminal. Manufactured in accordance with BS 715:2005.

MATERIAL

Aluminium.

‘R’ Type Adaptor

Adaptor to convert a UB17 Space Slate Vent into a service terminal.

MATERIAL

(35)

With finishes in asphalt, bitumen and single

ply, our flat roof terminals and vents are

designed to blend into the background.

They are constructed with easy installation

and effective sealing in mind.

Terminals &

Vents - Flat Roof

The Ubbink OFT range of vents comprises capped stacks for use in asphalt and built-up felt roofs.

There are two flange types denoted by the suffix F or A . Type F has an integral

Flat Roof Vent OFT

The OFT/2F is a 110mm diameter breather vent for built-up felt roofs. The OFT/3F (available in 110mm and 166mm diameters) and OFT/3A (available in 110mm, 131mm & 166mm diameters) are roof void vents.

MATERIAL

Type F: polyethylene.

Type A: polyethylene/aluminium.

ROOF FINISH

Built-up felt and asphalt flat roofs. For single ply membranes, please consult Ubbink.

COLOUR

Black.

SIZE/PERFORMANCE DETAILS

Code Diameter Height above Flange dia Depth below Free vent area

(mm) roof (mm) (mm) flange (mm) (mm2₎ OFT/2F 110 250 330 - 8,400 OFT/3F 110 250 330 50 8,400 166 300 363 50 20,000 OFT/3A 110 300 395 50 8,400 131 300 450 50 12,000 166 300 450 50 20,000 OFT/2F OFT/3F OFT/3A

Performance and Quality
