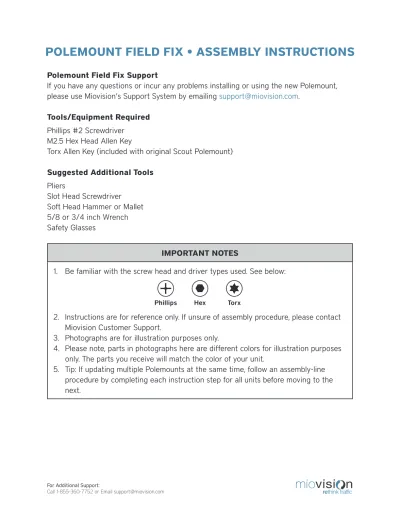

POLEMOUNT FIELD FIX ASSEMBLY INSTRUCTIONS

(1)

For Additional Support:

Call 1-855-360-7752 or Email [email protected]

Polemount Field Fix Support

If you have any questions or incur any problems installing or using the new Polemount, please use Miovision’s Support System by emailing [email protected].

Tools/Equipment Required

Phillips #2 Screwdriver M2.5 Hex Head Allen Key

Torx Allen Key (included with original Scout Polemount)

Suggested Additional Tools

Pliers

Slot Head Screwdriver Soft Head Hammer or Mallet 5/8 or 3/4 inch Wrench Safety Glasses

IMPORTANT NOTES

1. Be familiar with the screw head and driver types used. See below:

2. Instructions are for reference only. If unsure of assembly procedure, please contact Miovision Customer Support.

3. Photographs are for illustration purposes only.

4. Please note, parts in photographs here are different colors for illustration purposes only. The parts you receive will match the color of your unit.

5. Tip: If updating multiple Polemounts at the same time, follow an assembly-line procedure by completing each instruction step for all units before moving to the next.

POLEMOUNT FIELD FIX • ASSEMBLY INSTRUCTIONS

(2)

Call 1-855-360-7752 or Email [email protected] Page 2

Polemount Fix Instructions

1. Use the M2.5 Allen Key to unscrew the set screw in the Camera Mount. Remove the Camera Mount. Note: Use a rubber hammer to hit the Camera Mount off the top mast

if necessary.

Removing Epoxied Camera Mounts

If you have difficulty removing the Camera Mount from the top mast, please

follow the instructions on Page 11 before continuing.

(3)

Call 1-855-360-7752 or Email [email protected] Page 3 3. Lift the arm lever so the lever is up.

4. Use the M2.5 Allen Key to unscrew the bottom screw of the top most coupler. Keep the screw and the nut in a safe location.

5. Remove the peg from the coupler. If necessary, use a flat-headed screwdriver to pry the peg out from the center.

(4)

7. Remove the narrowest (16mm diameter) pole. Make sure the internal video cable is not pulled out.

(5)

9. Pull out approximately 8” of cable from the end of the pole.

10. Insert Pinching Peg into the coupler’s peg hole. Make sure the edged point and hole are horizontal.

(6)

12. While firmly pushing peg in, insert in the previously saved peg screws through the side holes of the pinching peg and coupler.

(7)

Camera Mount Instructions

1. Remove Camera Shroud from the plastic camera mount with the Torx Screwdriver.

2. Place the Camera Shroud on its face. Holding the New Camera Mount on an angle, carefully slide it onto the Camera Shroud in a bottom-up motion. Make sure the cable

channel on the mount faces away from the camera lens.

(8)

4. Rout cable in between channel of camera mount and firmly push camera insert into the coupler.

(9)

Polemount Base Can Instructions

1. Flip Scout Polemount on its side.

2. Using a Phillips #2, unscrew two (2) opposing screws that hold the Bottom Plate to the Can Top. Loosen the other two screws slightly, and tap the Bottom Plate to causing it to swing outward. Remove the remaining screws and remove the Bottom Plate.

(10)

5. Screw on the Base Add-On to the Can top with the previously obtained screws.

6. Make sure all wire is within the can. Place the Base Bottom Plate on the underside of the Base Add-On and hand-tighten the provided screws. If there is a large space

between the Base Bottom Plate and the Base Add-On, use the provided shims to fill in the gap.

7. Securely tighten each screw on Base-Bottom plate to the Base Add-On. 8. Place Scout upright and meet your new and improved Scout Polemount. 4. Place Base Add-On and hand-tighten

(11)

Removing Epoxied Camera Mounts

1. Flip the Scout Polemount onto its side, and point the camera mount in a safe direction. (Recommended that you wear safety glasses).

Once finished, continue onto Page 2, Step #2.

2. Make sure each level of the Polemount mast are collapsed and locked, leaving the top mast section extended half-way, and locked.

(12)
